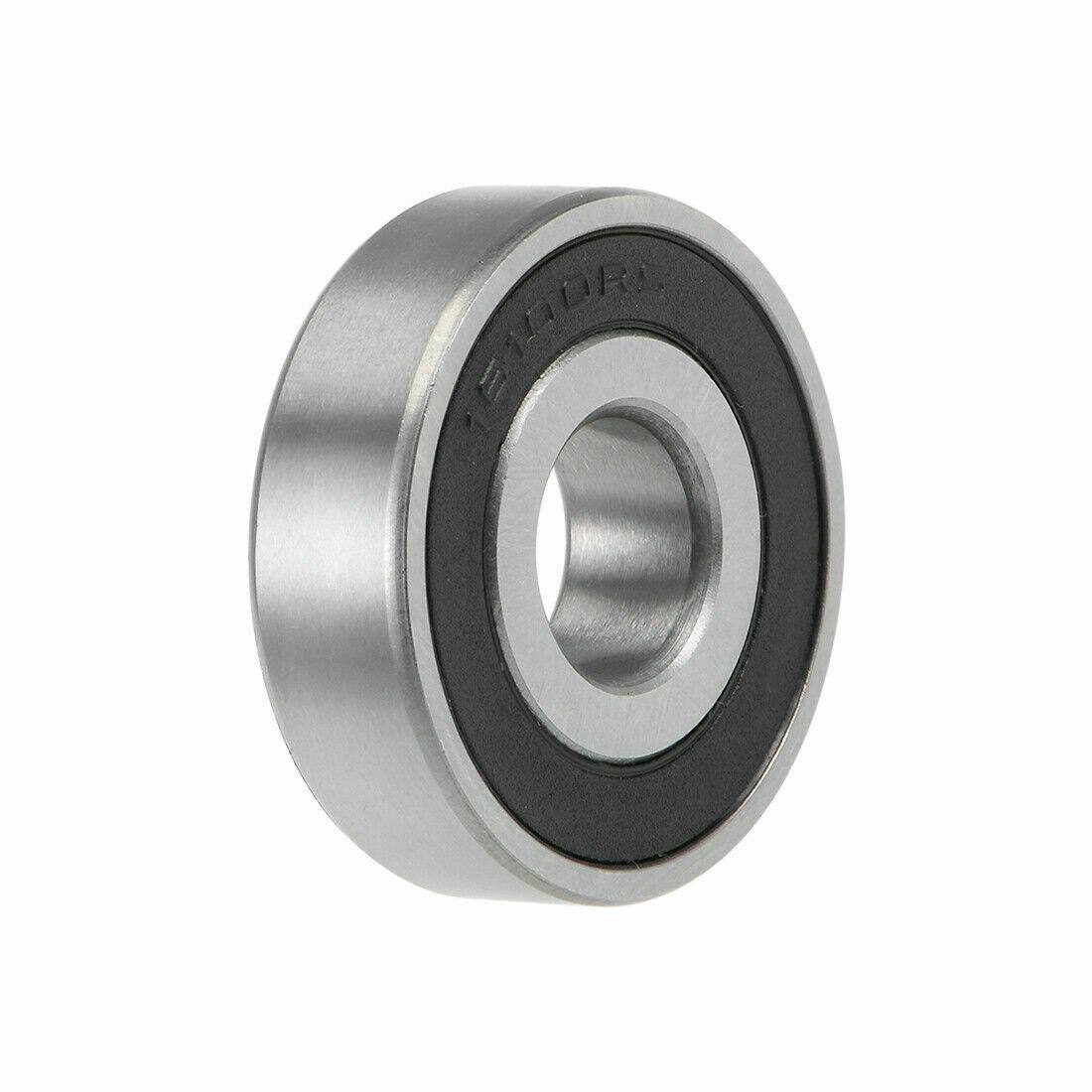

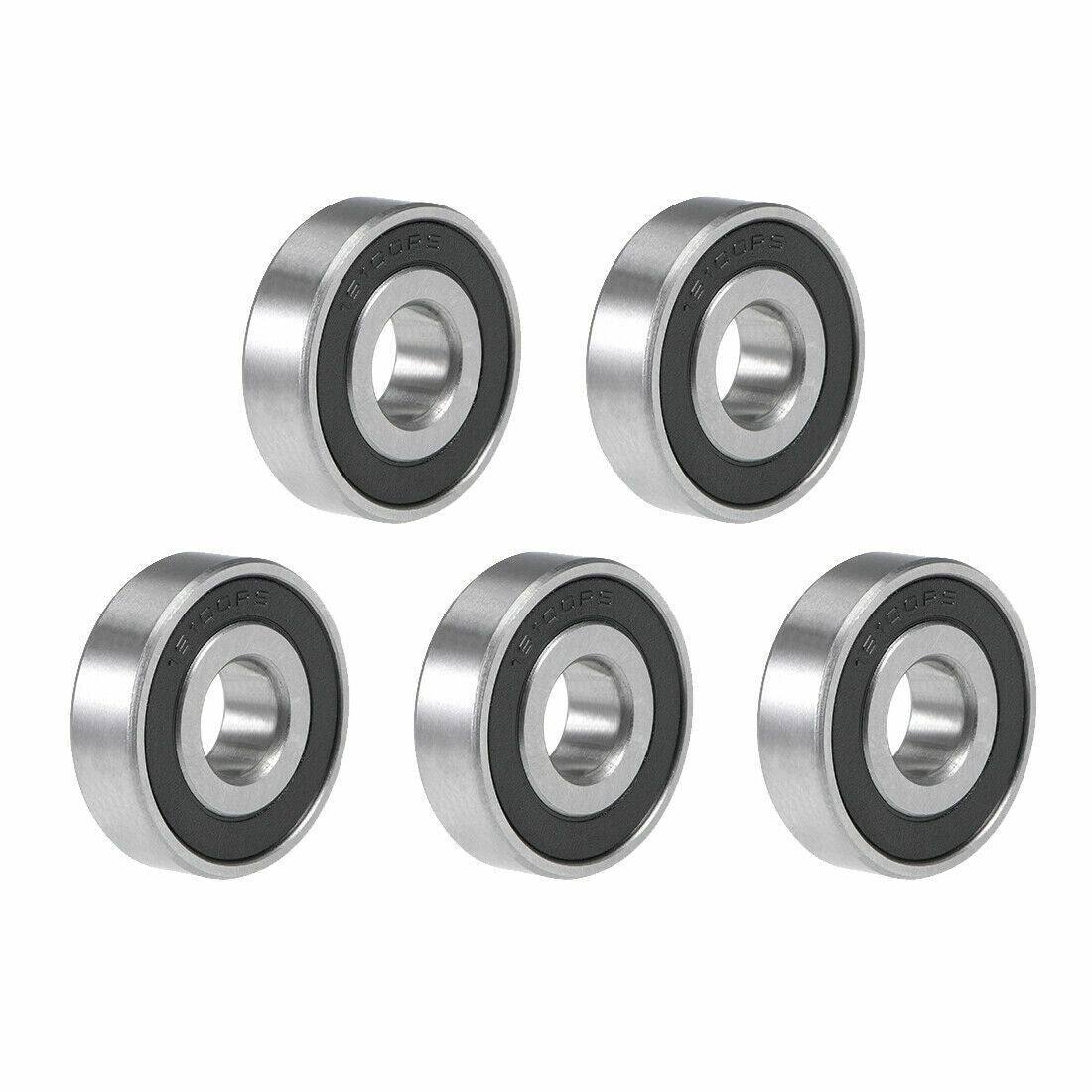

16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selecting Guide:

• Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
• Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

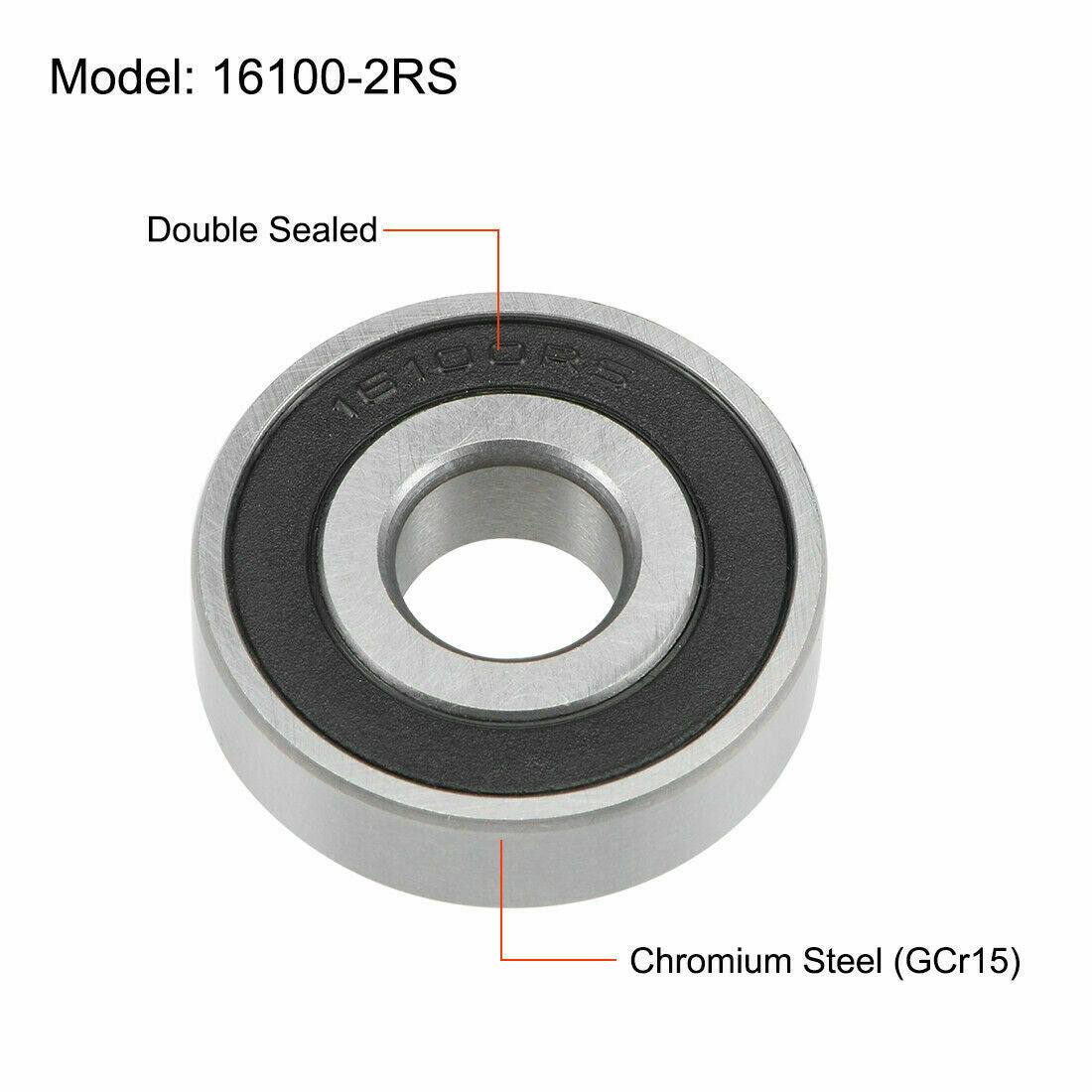

• Model: 16100-2RS
• Seal Type: Double Sealed
• Inner Race/Outer Race Material: Chrome Steel (GCr15)
• Cage Material: Stamping Steel

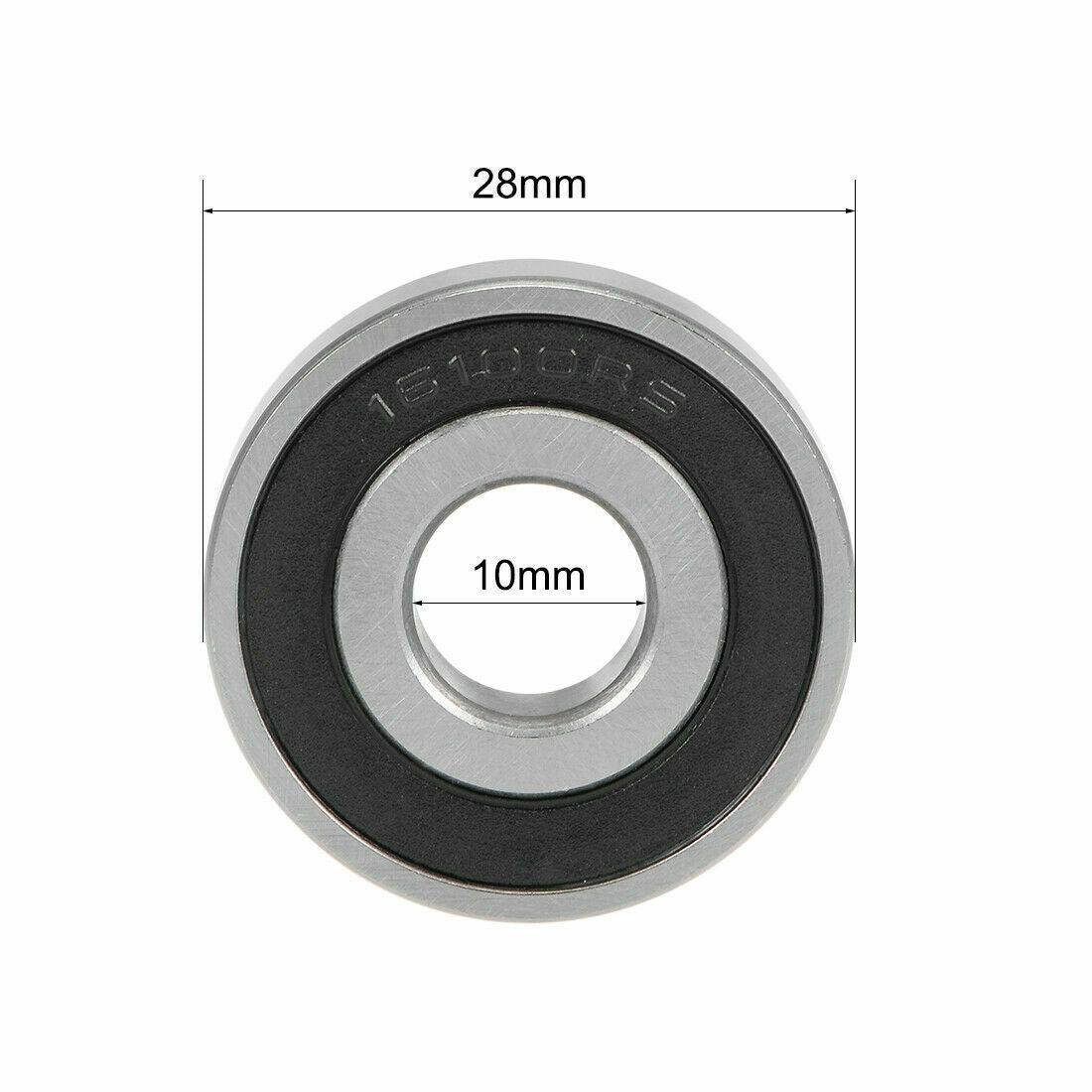

• Inner Diameter (d): 10mm
• Outer Diameter (D): 28mm

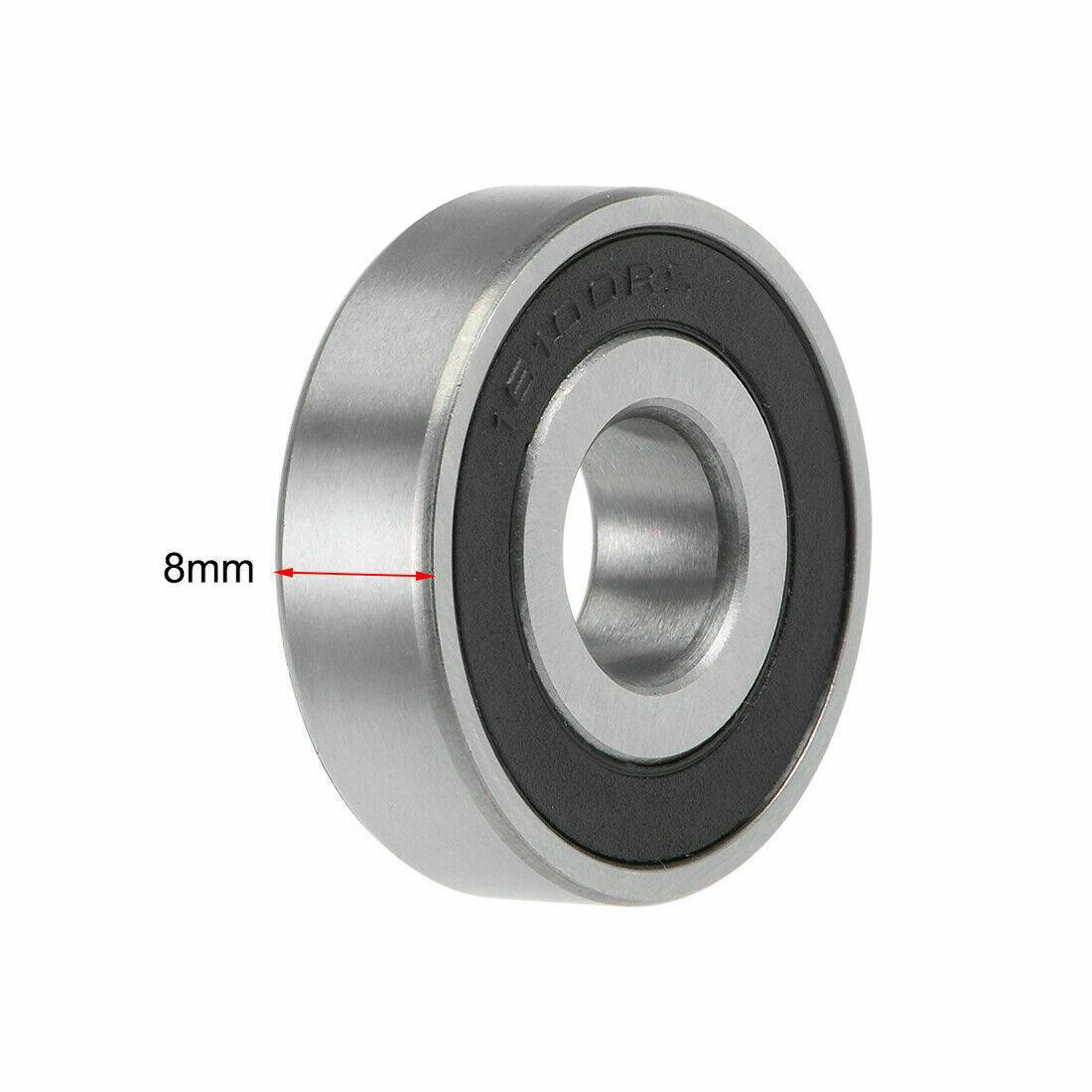

• Thickness: 8mm
• Dynamic Load Rating (Cr): 5.07kN
• Static Load Rating (Cor): 2.36kN
• Accuracy Class: P0 (ABEC-1)
• Noise Level: Z1
• Number of Pack: 1 pc

Important note：

• Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing).
• Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
