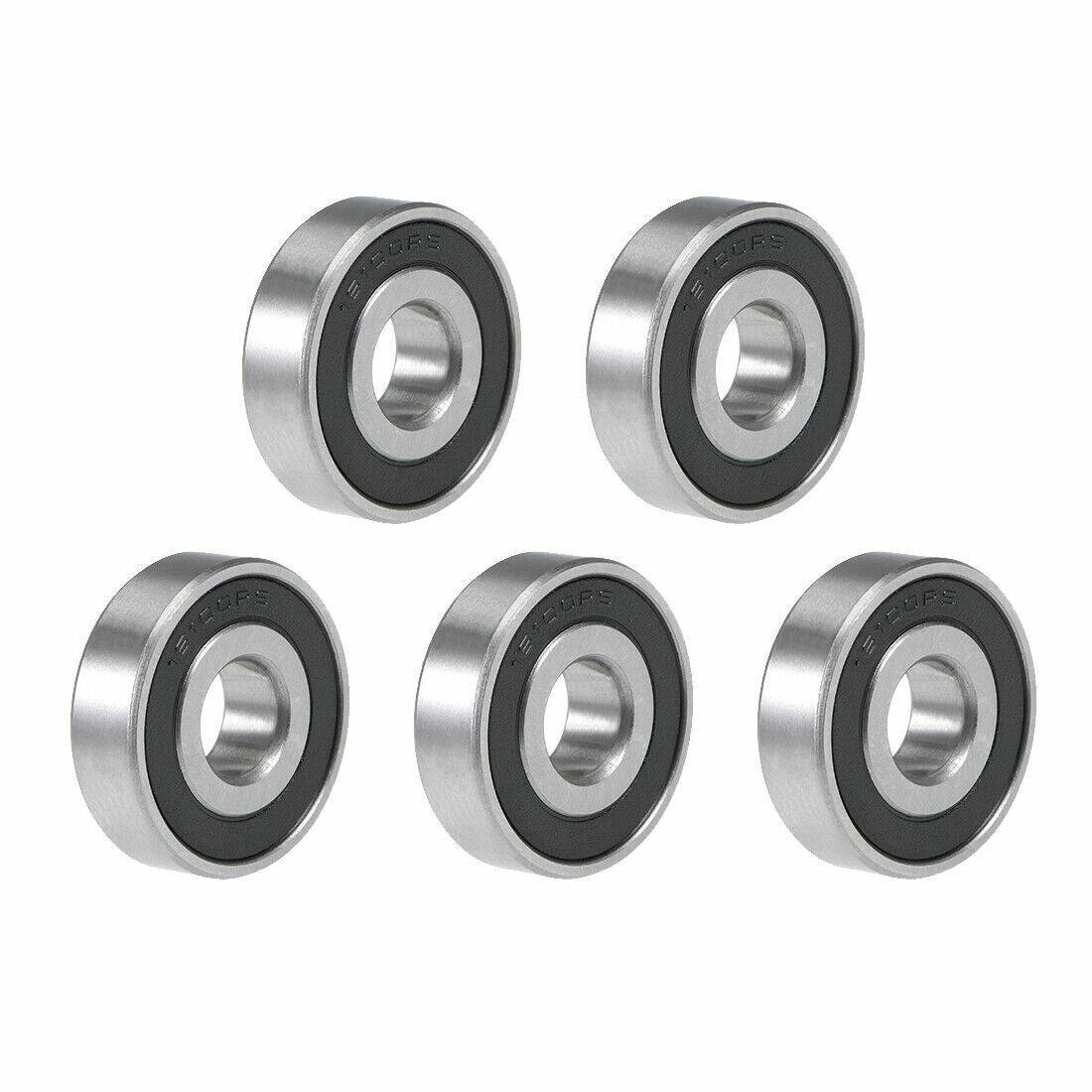

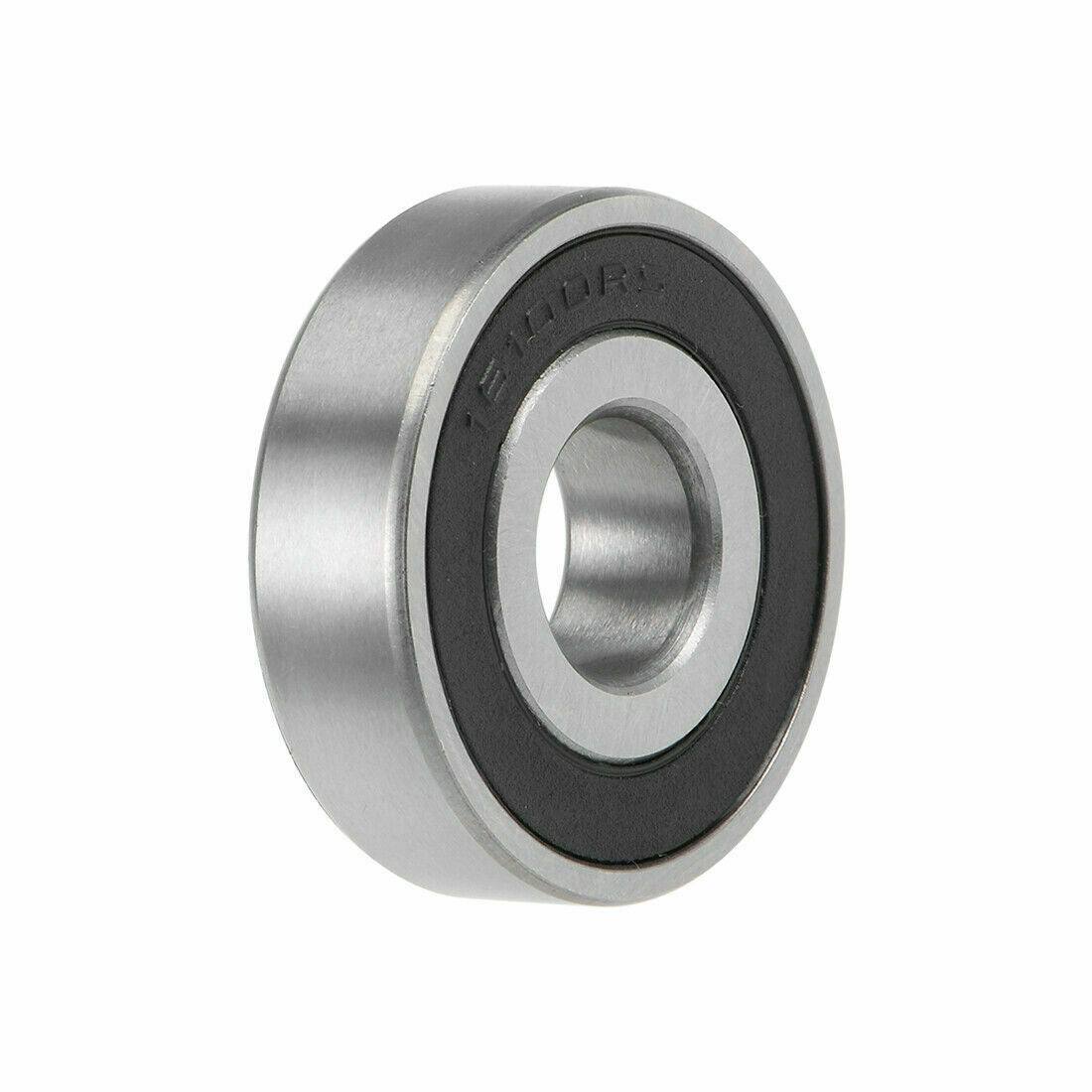

16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel

SKU: TW270*5
$26.36
$29.95
$26.36
Quantity: 5
Ask An Expert
10 customers are viewing this product
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO

16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel

$29.95 $26.36
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO
16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel - TDRMOTO

16100RS 10 x 28 x 8 mm Ball Bearings Double Sealed Rubber Steel

$29.95 $26.36
Quantity: 5
Description

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selecting Guide:

  • Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
  • Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

  • Model: 16100-2RS
  • Seal Type: Double Sealed
  • Inner Race/Outer Race Material: Chrome Steel (GCr15)
  • Cage Material: Stamping Steel
  • Inner Diameter (d): 10mm
  • Outer Diameter (D): 28mm
  • Thickness: 8mm
  • Dynamic Load Rating (Cr): 5.07kN
  • Static Load Rating (Cor): 2.36kN
  • Accuracy Class: P0 (ABEC-1)
  • Noise Level: Z1
  • Number of Pack: 1 pc

Important note：

  • Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing).
  • Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
