125cc Semi Auto Engine motor Kick/Elec Start Set Honda CT110 CT90 Postie bikes

Description:

• Brand New 125cc Semi Auto Engine Kick and Electric Start
• Will be a straight bolts on replacement for most postie bikes, however, for certain year model a rear bracket may need to be made to make it fit.
• Please check the measurement on the images to make sure it can fit your bike before purchase.
• If your Postie bike need a bracket, it is also available in our store.

Engine Specs:

• Single cylinder, 4-stroke, 2 valves, air cooled, 125cc
• Bore x Stroke: 52.4mm x 55.5mm
• Displacement: 123.7cc
• Compression Ratio: 9.0:1
• Ignition: CDI, 12 volt, permanent magnetic stator
• Maximum Power: 8.5 Kw DIN @ 9,500 rpm
• Rated Power: 6.5 Kw @ 7,500 rpm
• Torque: at least 8.8 Nm @ 5,500 rpm
• Gears: 4-speed, semi auto clutch, 4 UP Pattern
• Final Drive: 15 tooth #428 front sprocket ( also have other sized sprocket which can be replaced upon request)
• Lubrication: 900ml, 20W/50 4-stroke motorcycle oil, pressure and splash
• Fuel: Unleaded
• Engine Mounts: 8mm

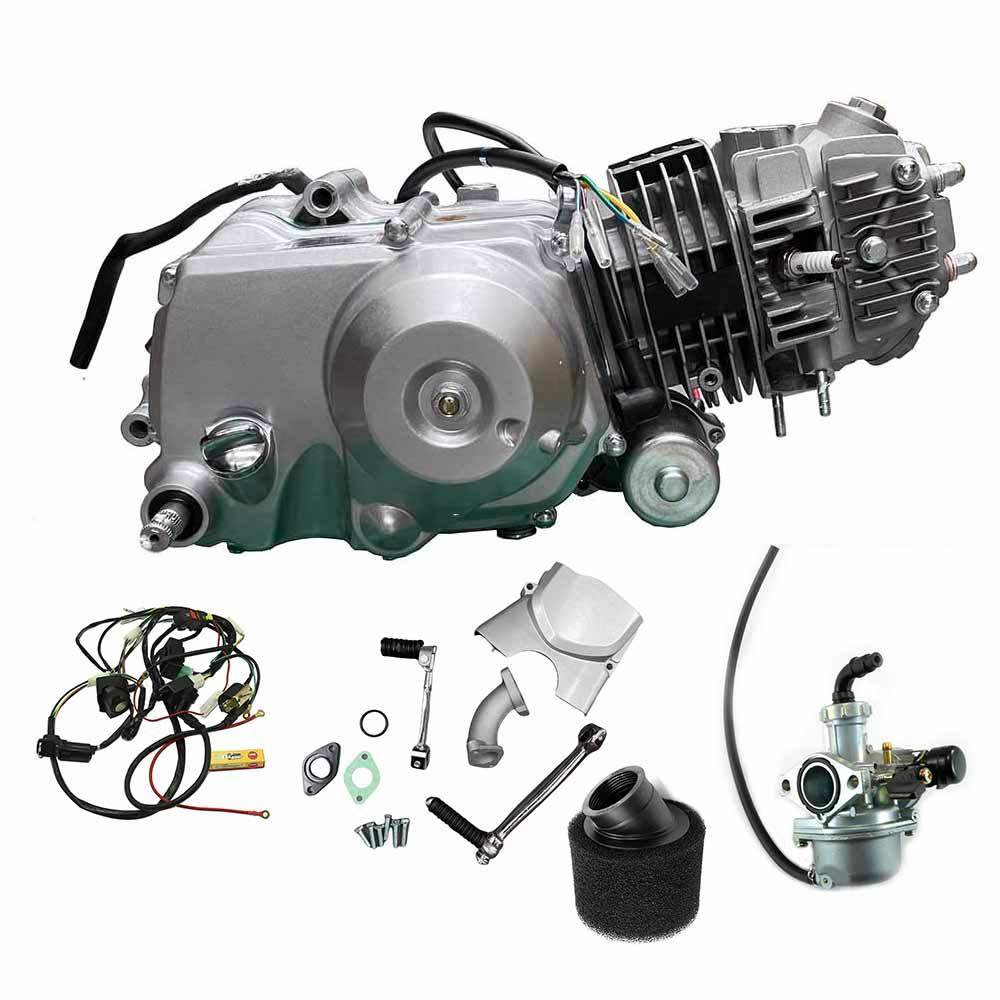

Package includes:

• 1 x 125CC semi auto ENGINE with starter motor at the bottom
• 1 x Kick Starter Lever
• 1 x Gear Shift Lever
• 1 x Manifold set Package
• 1 x 22mm PZ22 carby (option only)
• 1 set of wiring harness, kill switch, cdi, coil (option only)
• 1 x 38mm pod filter in black or red according to stock availability (option only)

Measurement:

• Dimension: 470 x 275 x 280mm
• Weight: 22kg
• Engine mounts: 8mm
• Please also check the measurements on the images
