1500W 26" Fat Bike 4.0 Tyre Rear Hub Electric Bike Conversion Kit (Battery & Charger Not Included)

1500W 26" Fat Bike 4.0 Tyre Rear Hub Electric Bike Conversion Kit (Battery & Charger Not Included)

SKU:

Regular price $512.95
Regular price $569.95 Sale price $512.95
10% off Sold out
Tax included. Shipping calculated at checkout.

Electric bike conversion kit equipped with a 1500W Brushless Motor that reaches speeds up to 60km per hour. Our electric bike conversion kit and electric bicycle kit contain a twist throttle and 12 magnets Pedal Assistant System. They are very helpful, even if on steep hills place. You can ride it very comfortably.


Specifications

  • For Fat Bike with 26-inch x 4-inch Wheel

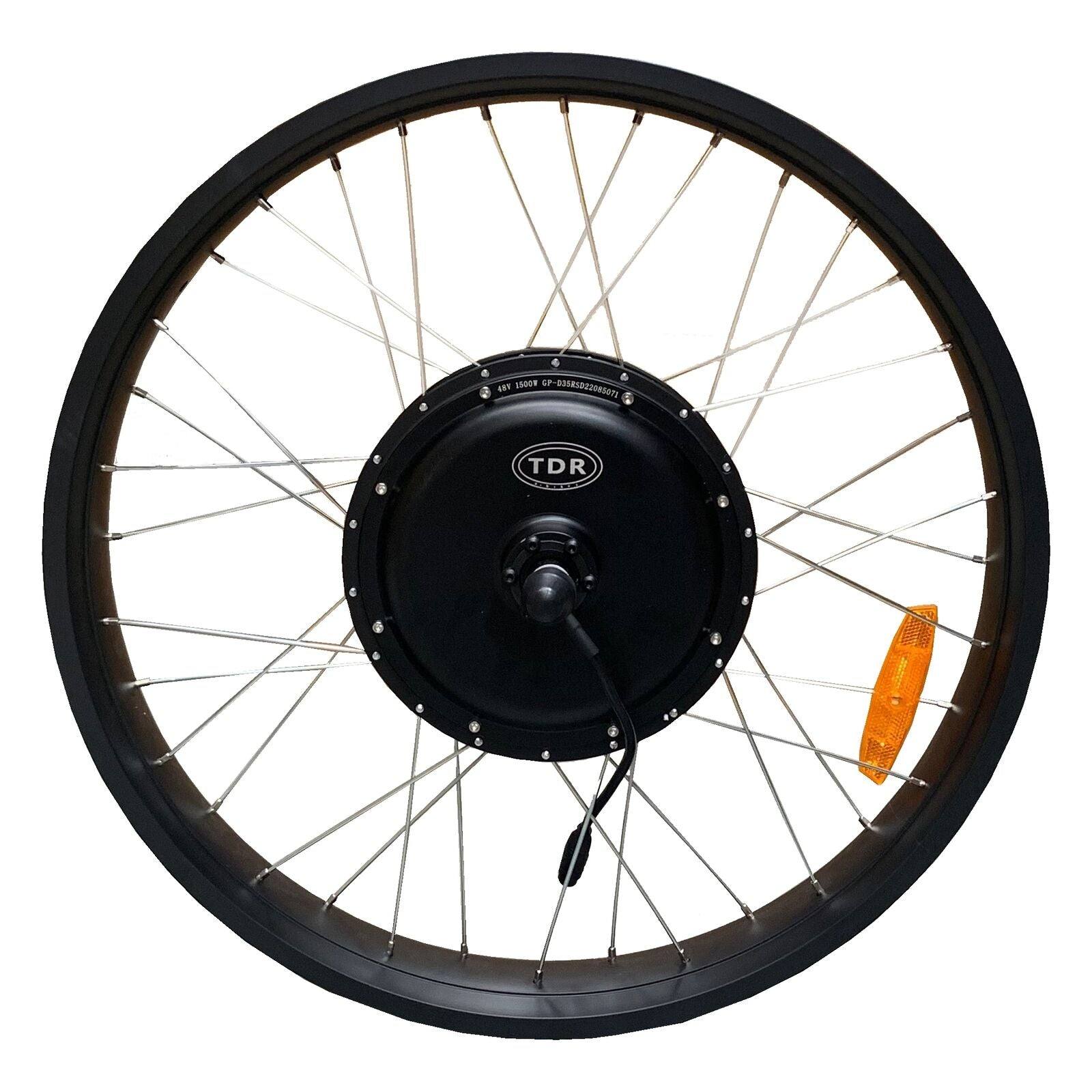

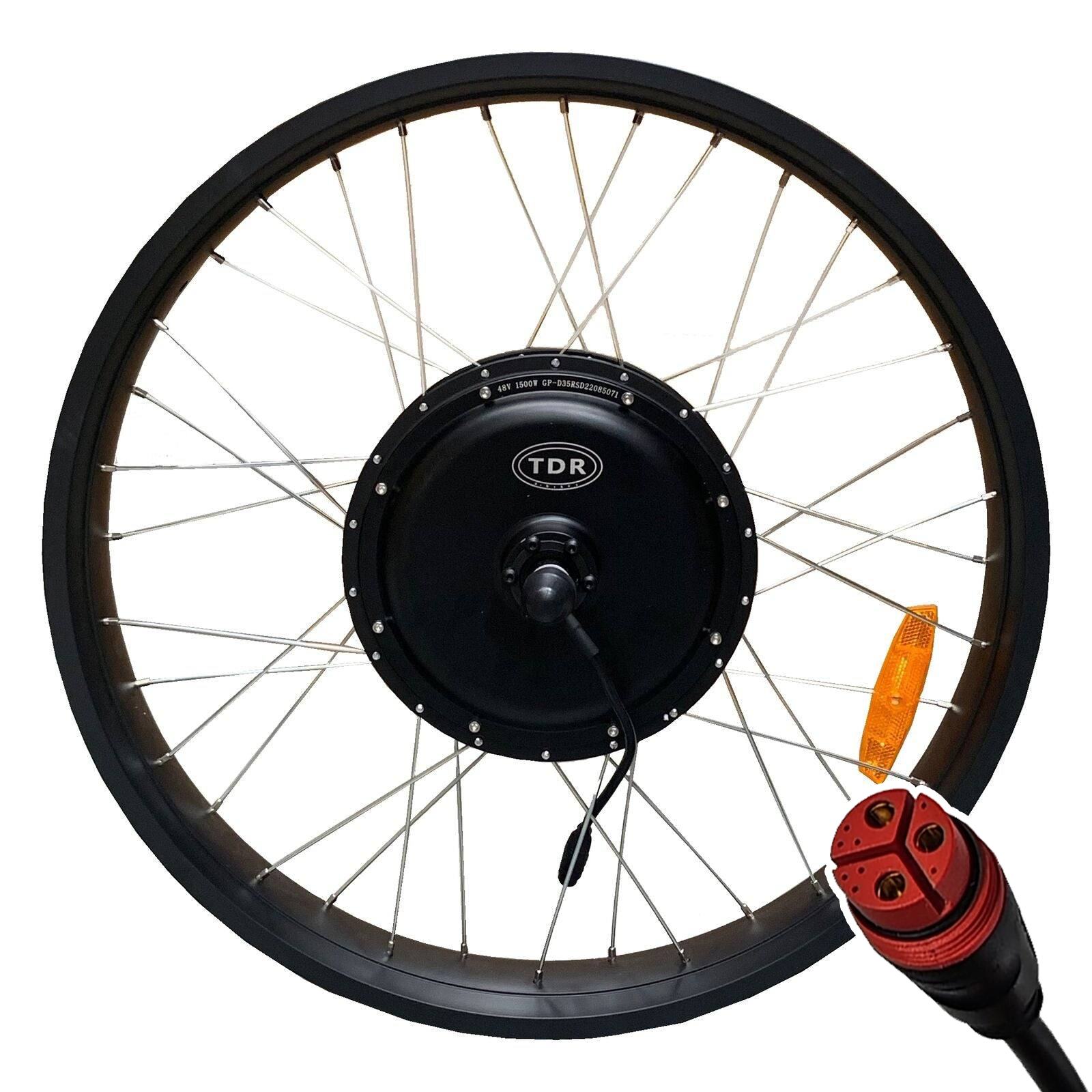

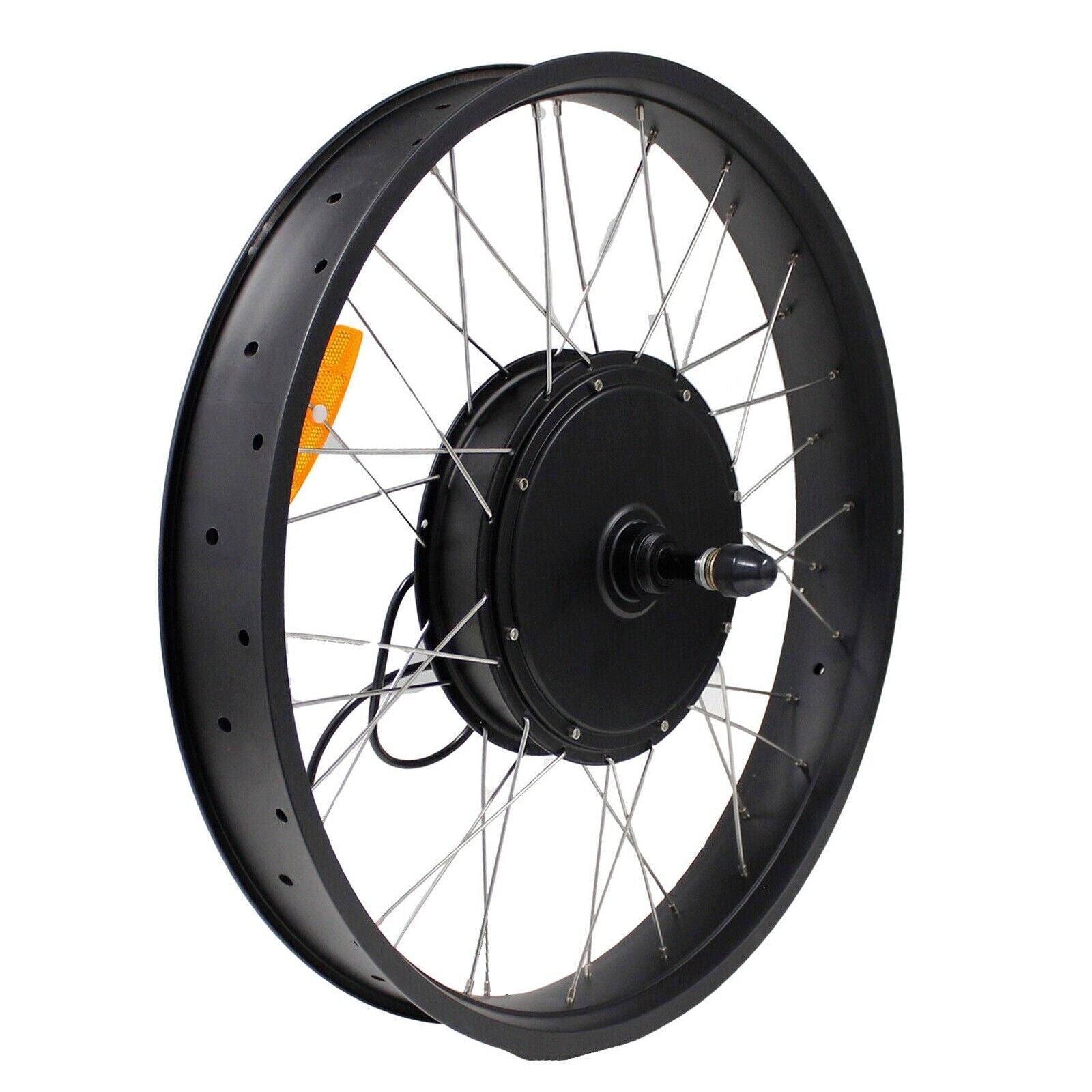

  • Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
  • Torque: 65 N.M

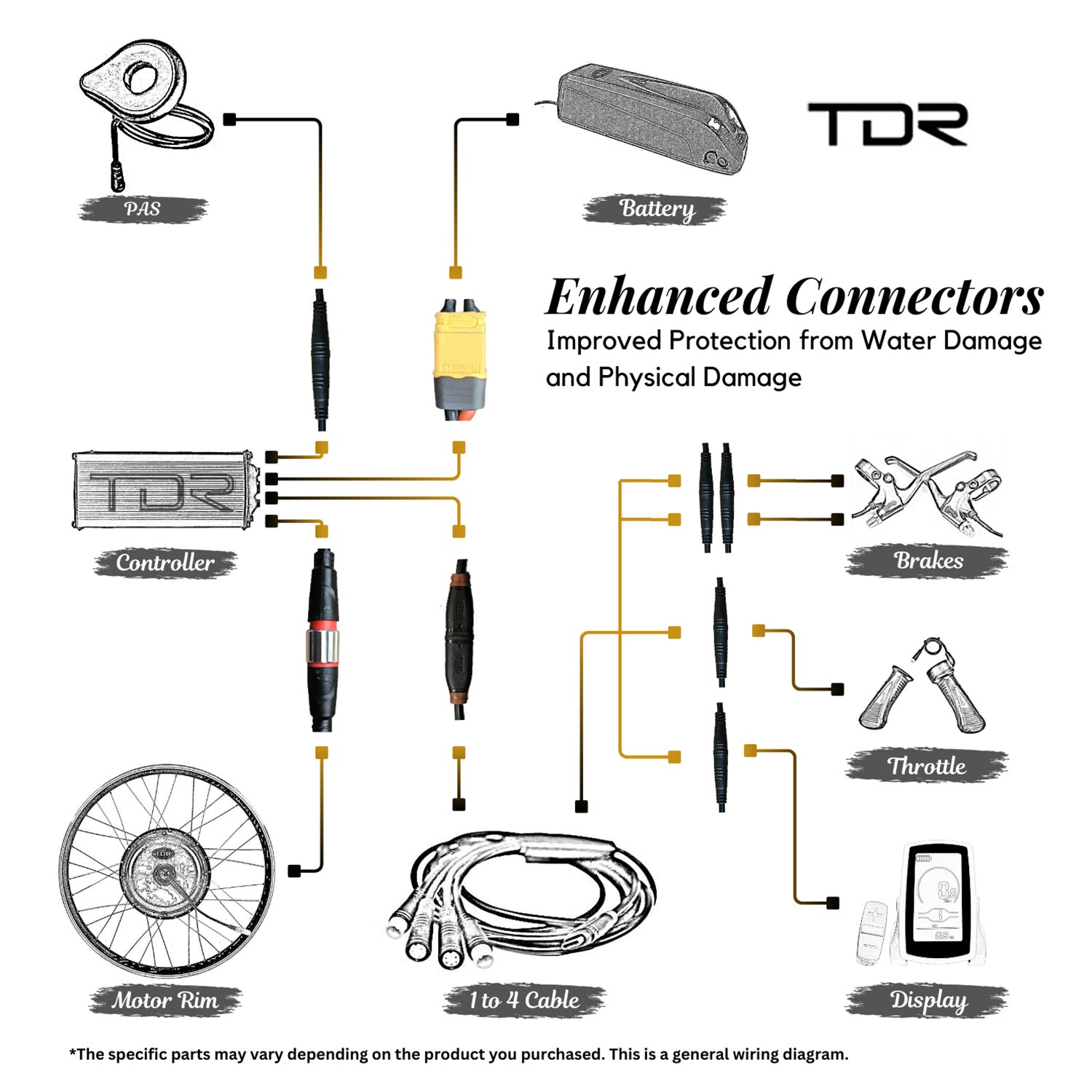

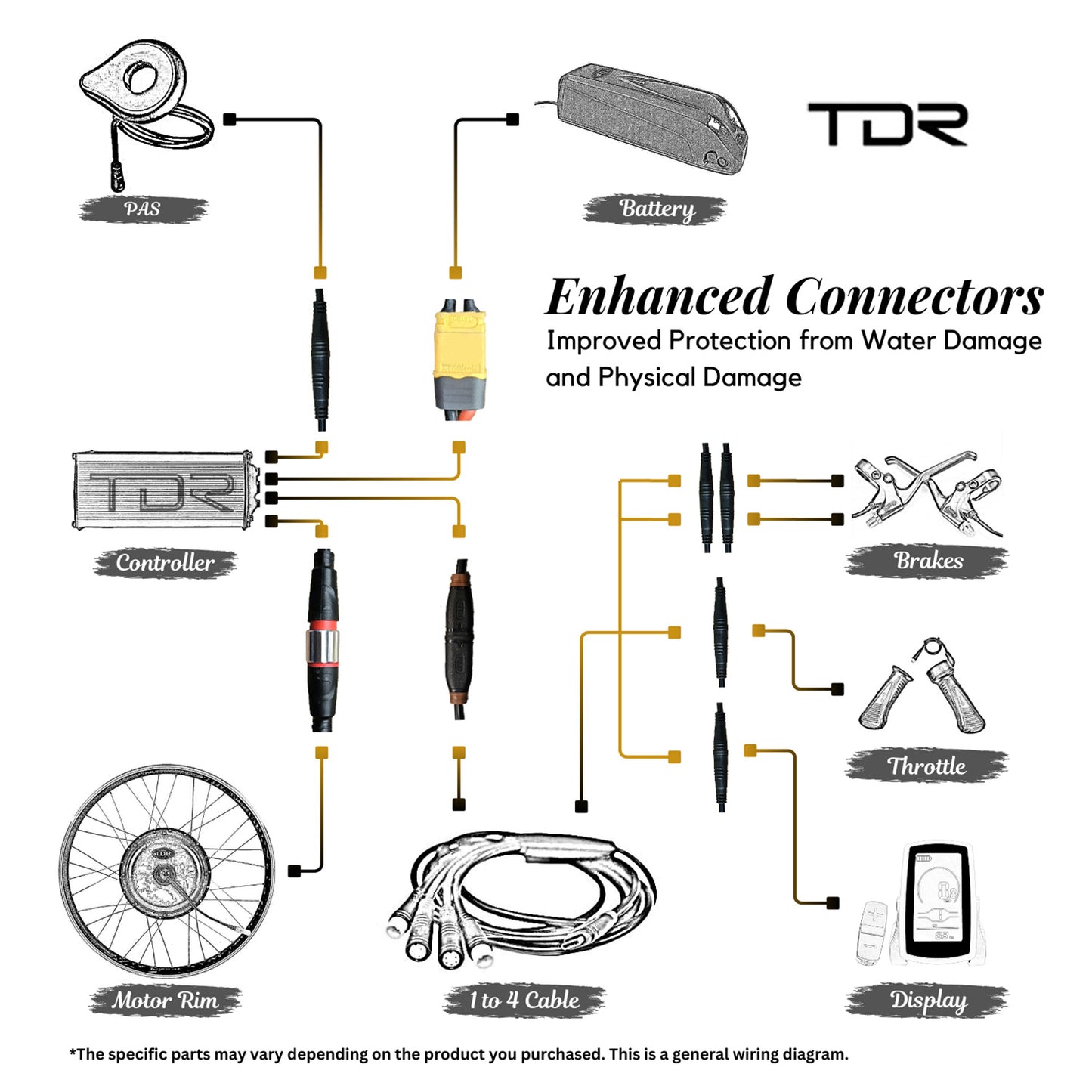

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 60 km/h
  • Display: Intelligent Colorful LCD Panel Display
  • Controller: Intelligent Motor Controller, the Current is 35±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
  • Rear Fork Width Requirement: 170mm
  • Disk Brake Only with 6 Holes to Mount the Disc Rotor
  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
  • PAS Sensor: 12 Magnets Pedal Assist Sensor

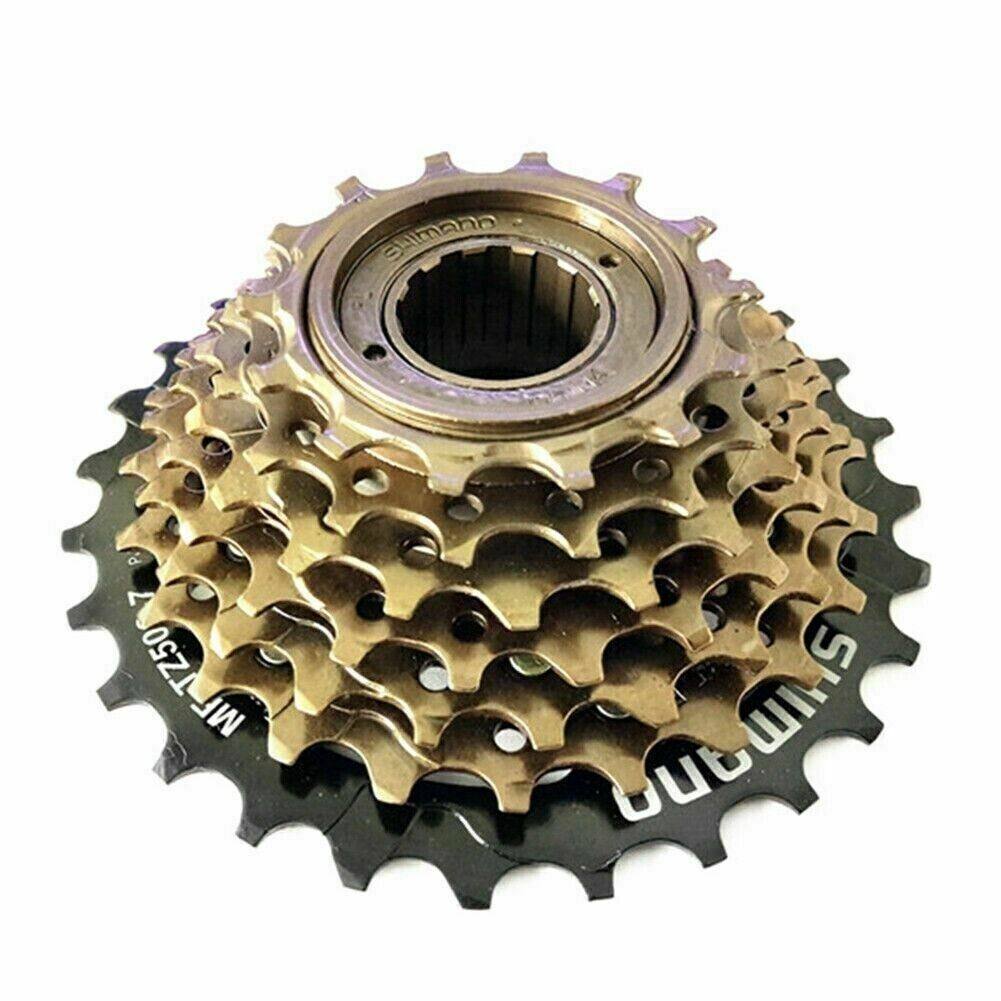

  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor

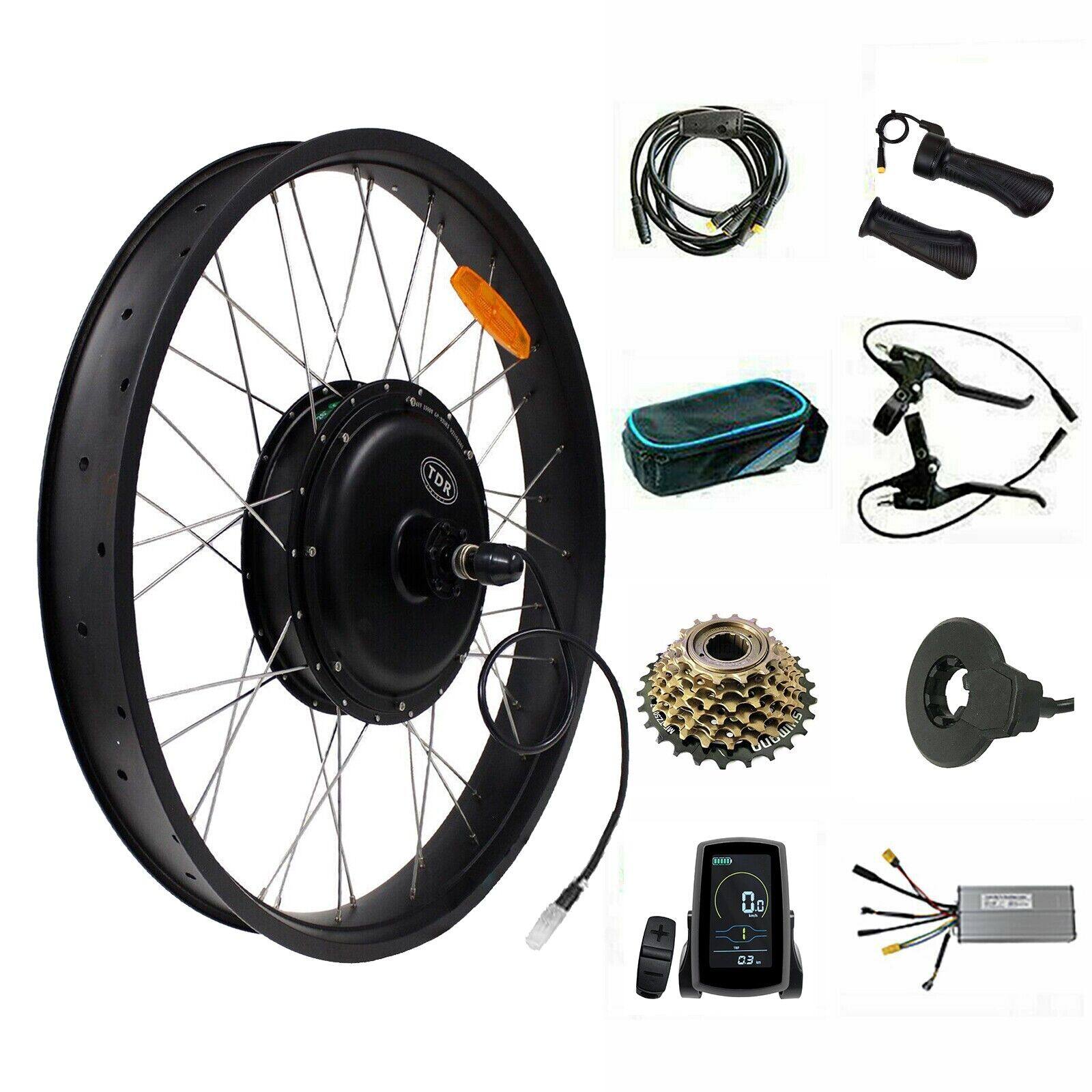

Package Include :

  • 1x 48V 1500W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Bag

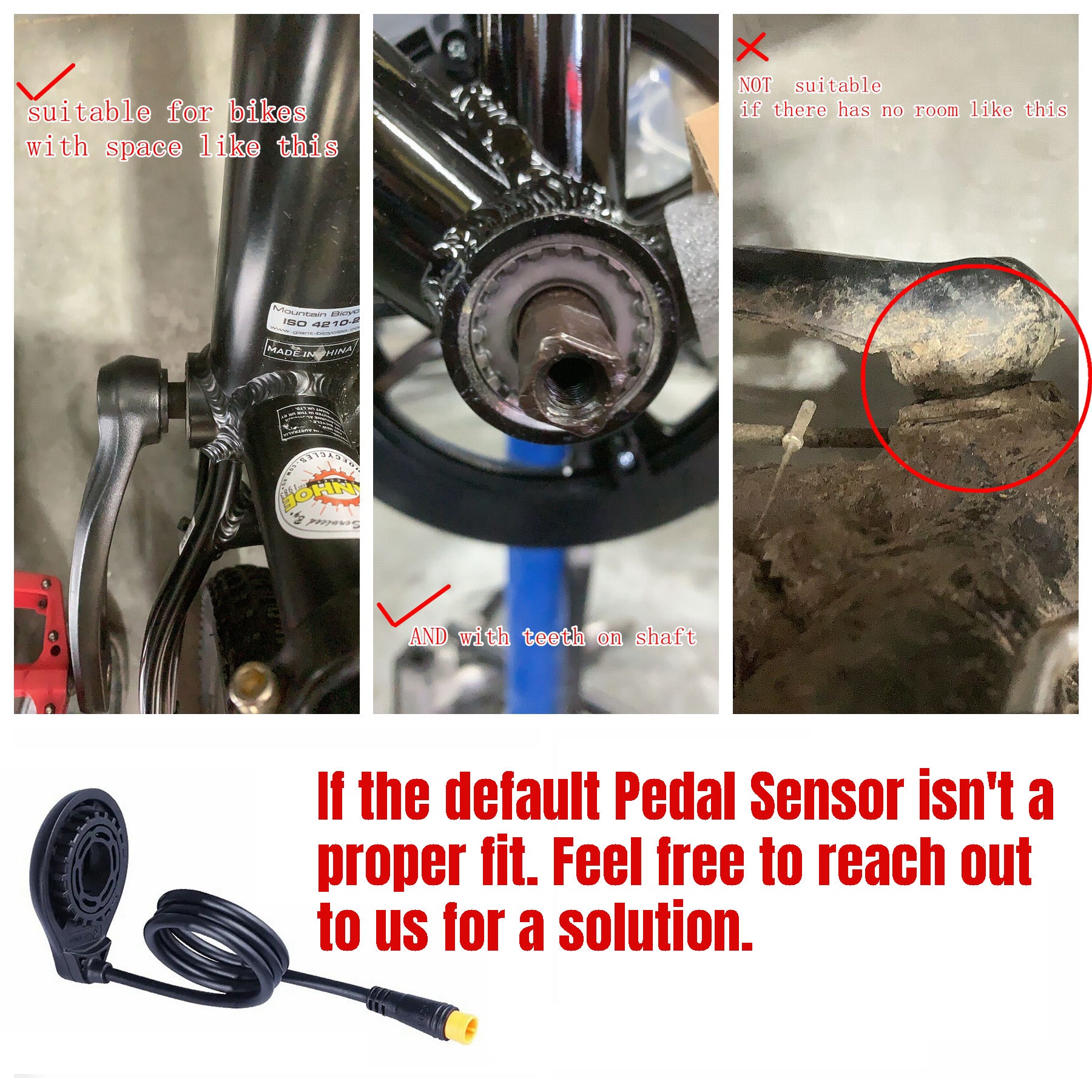

  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers

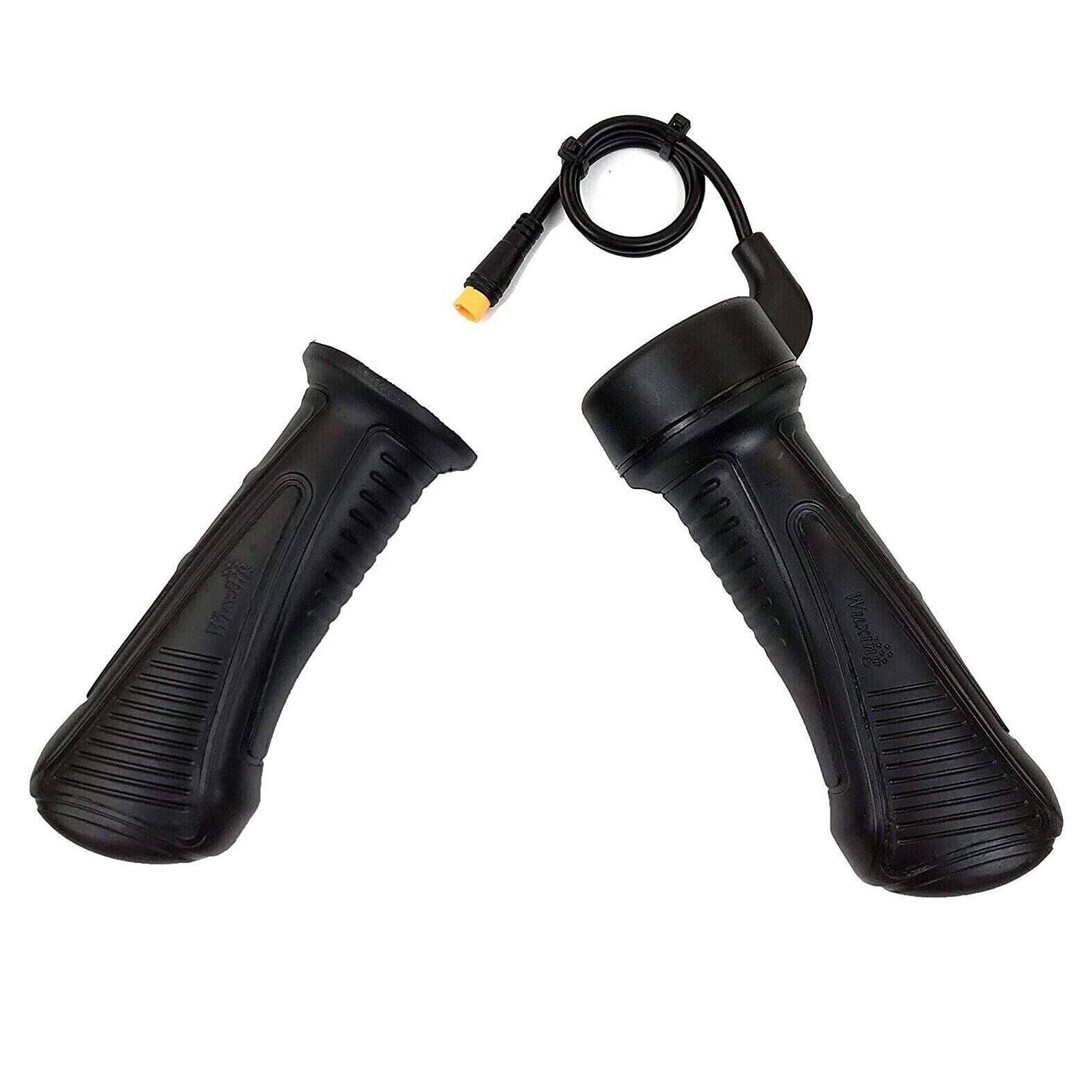

  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel


Important Notes

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

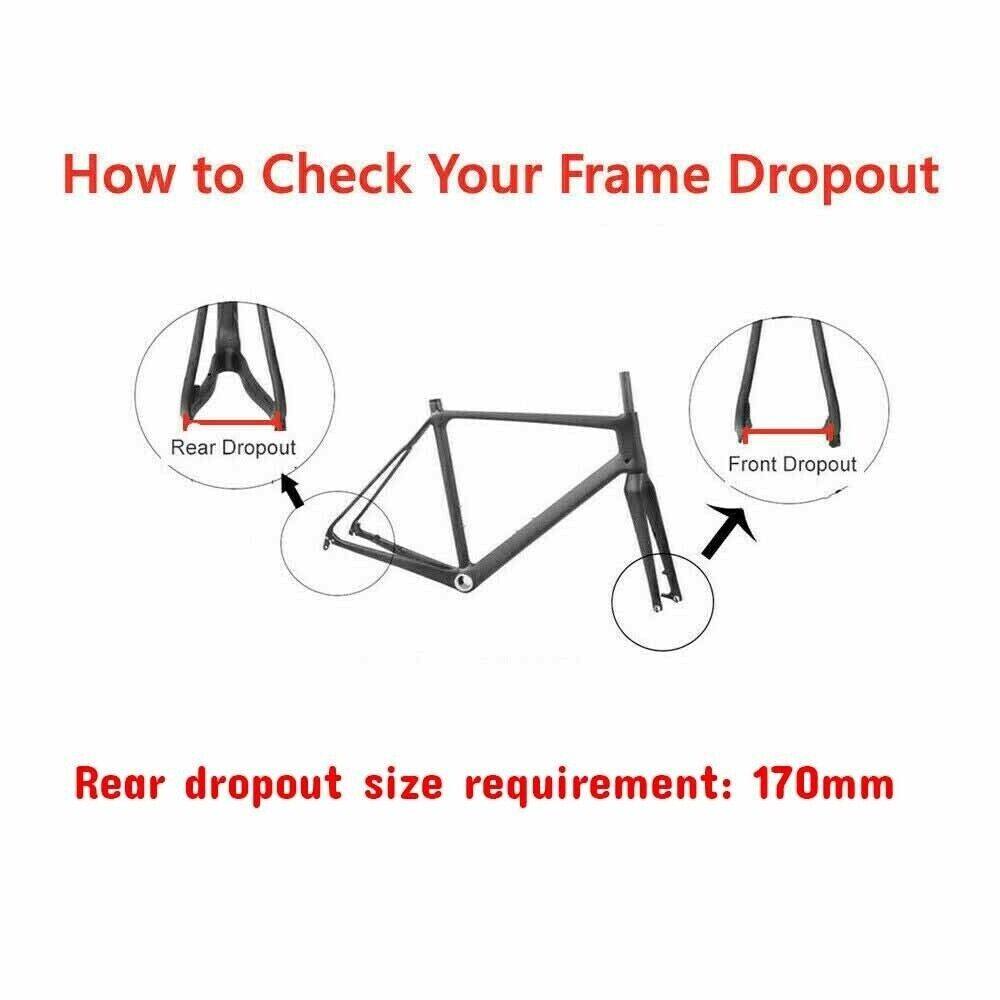

  • Please check your rear fork width (170mm) to make the motor hub can be fitted into it.
  • Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
E-Bike & E-Kit User Manuals, Installation Videos, Troubleshooting Guides View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Don Simpson
My 2nd kit

I bought my first conversion kit in response to my wife buying an electric bike, and subsequently running rings around me when we went for a ride.
This kit transformed my bike and now, going anywhere is just too easy.
I am now installing this 2nd kit onto my wife’s fat bike, so that she can comfortably accompany me where she couldn’t follow on her existing e-bike.
These kits have everything included and are relatively easy to install if are handy with tools.
If you own a fat bike I highly recommend fitting one of these kits, you’ll wonder why you didn’t do it sooner.
