1500W 26" Rear Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit

SKU: TJ336~TE174~TE508~TE512
$849.15
$999.00
$849.15
10 customers are viewing this product

Things to know before you ride

Local laws & your responsibility: Before using this vehicle, check the applicable local laws relating to your intended use on roads and road‑related areas. Any information provided by us is general and may not take account of your specific circumstances. You alone are responsible for confirming local laws before riding.

Safety first: Ride with caution and always wear a helmet and protective gear.

1500W 26" Rear Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit - TDRMOTO

1500W 26" Rear Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit

$999.00 $849.15

1500W 26" Rear Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit

$999.00 $849.15
  • Specifications For 26 Inch wheel with a width between 1.75 - 2.25 Inch

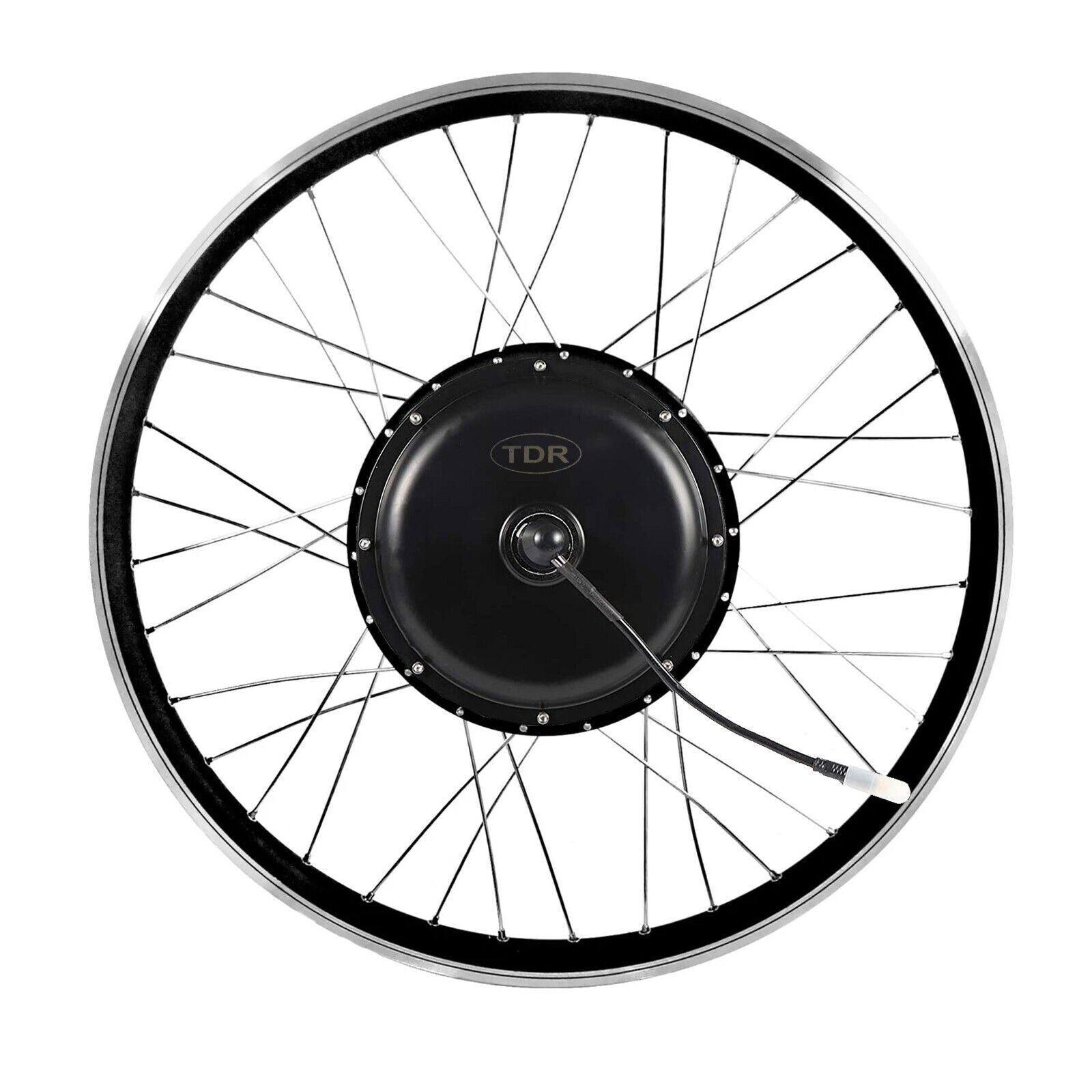

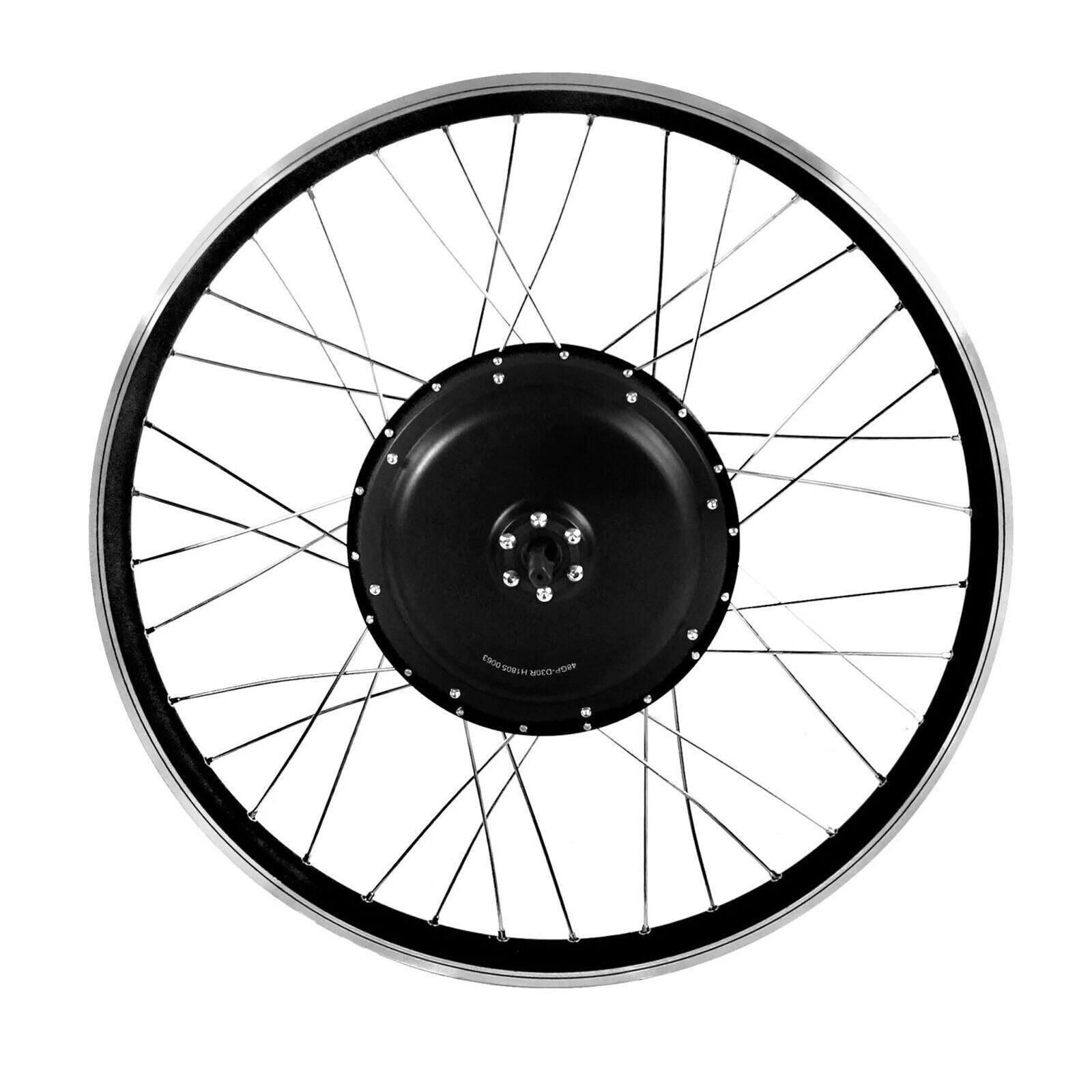

  • Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
  • Torque: 65 N.M

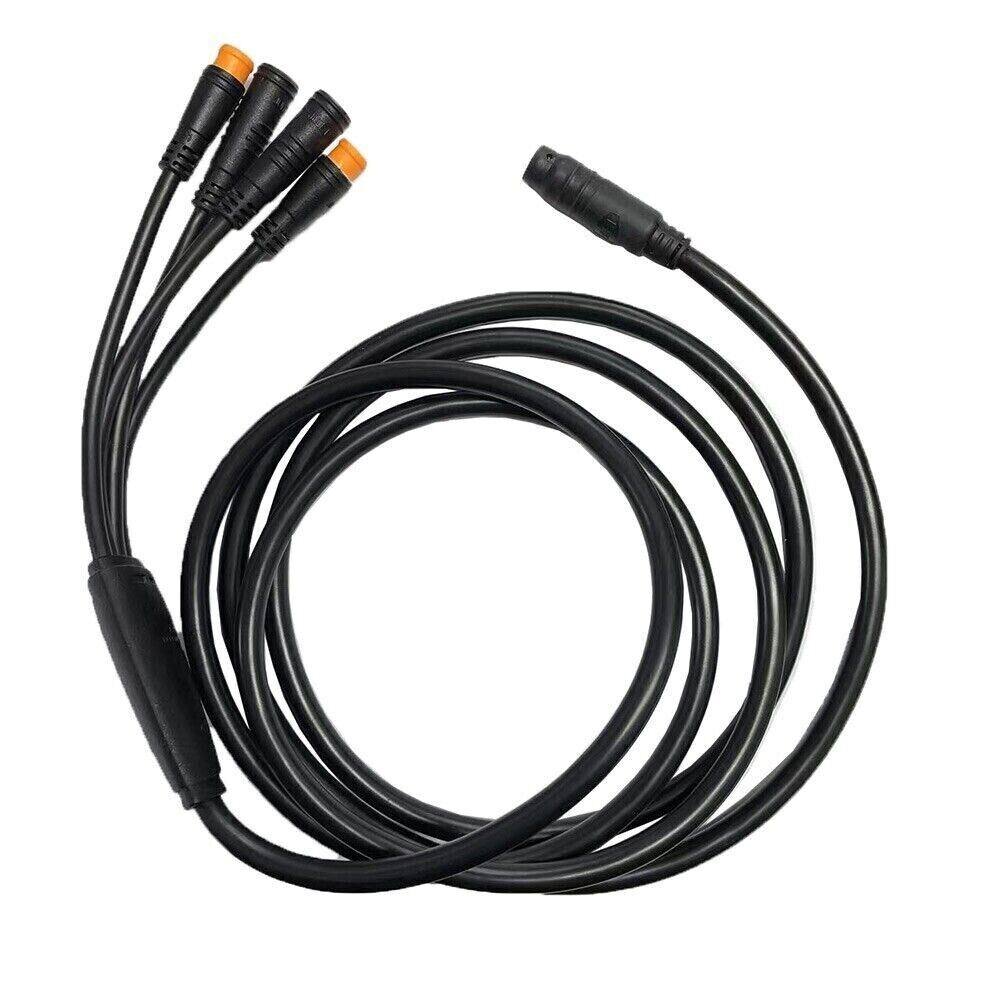

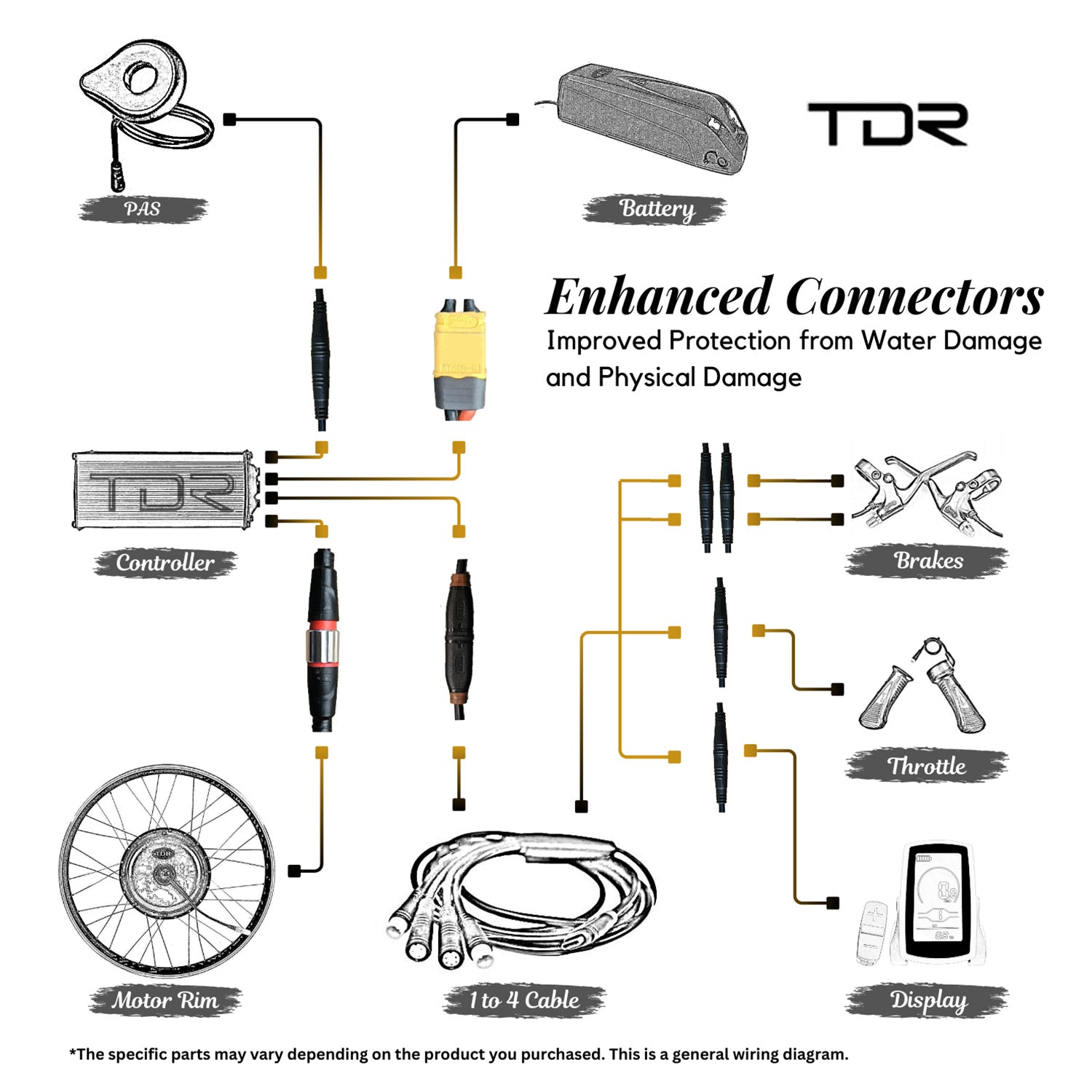

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 60 km/h

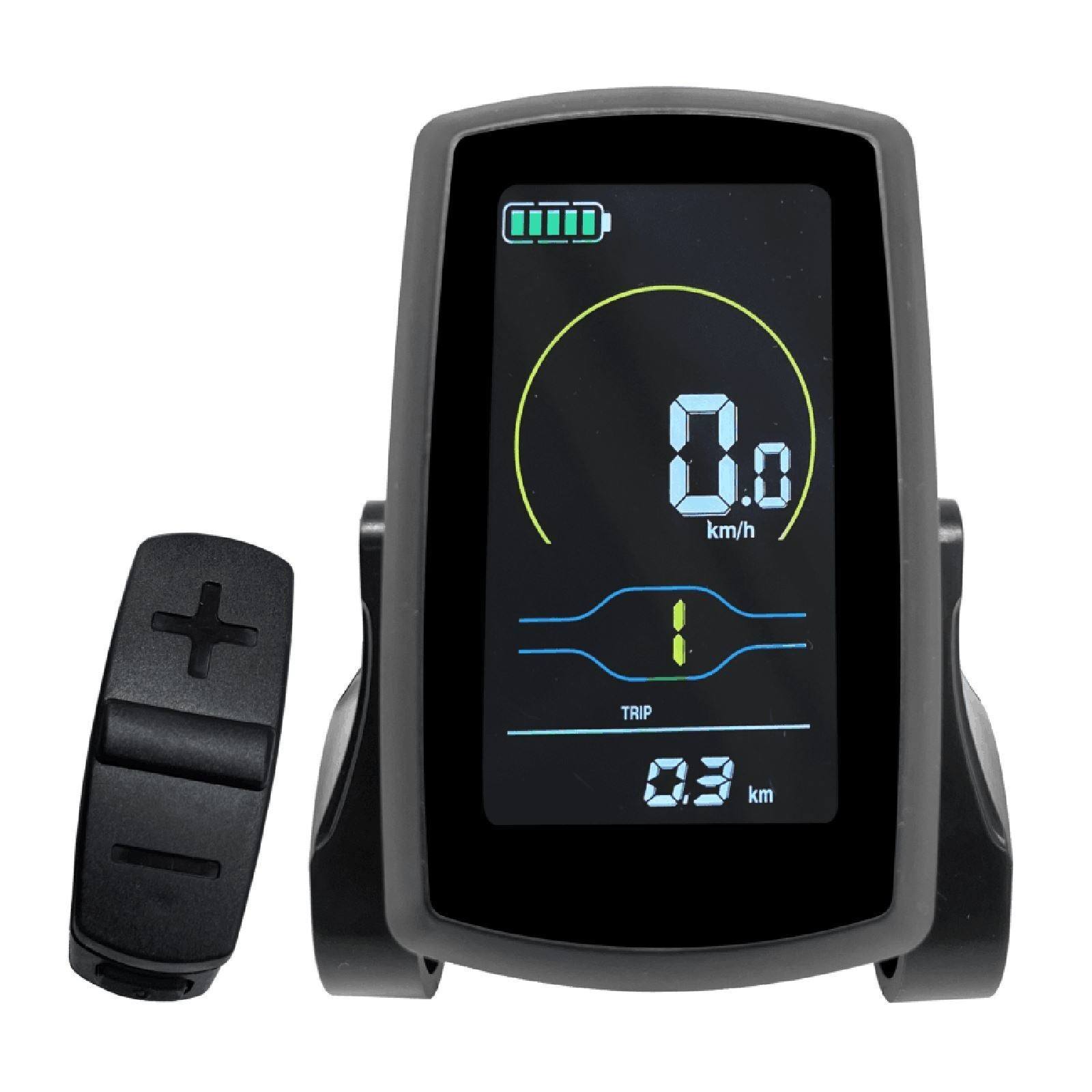

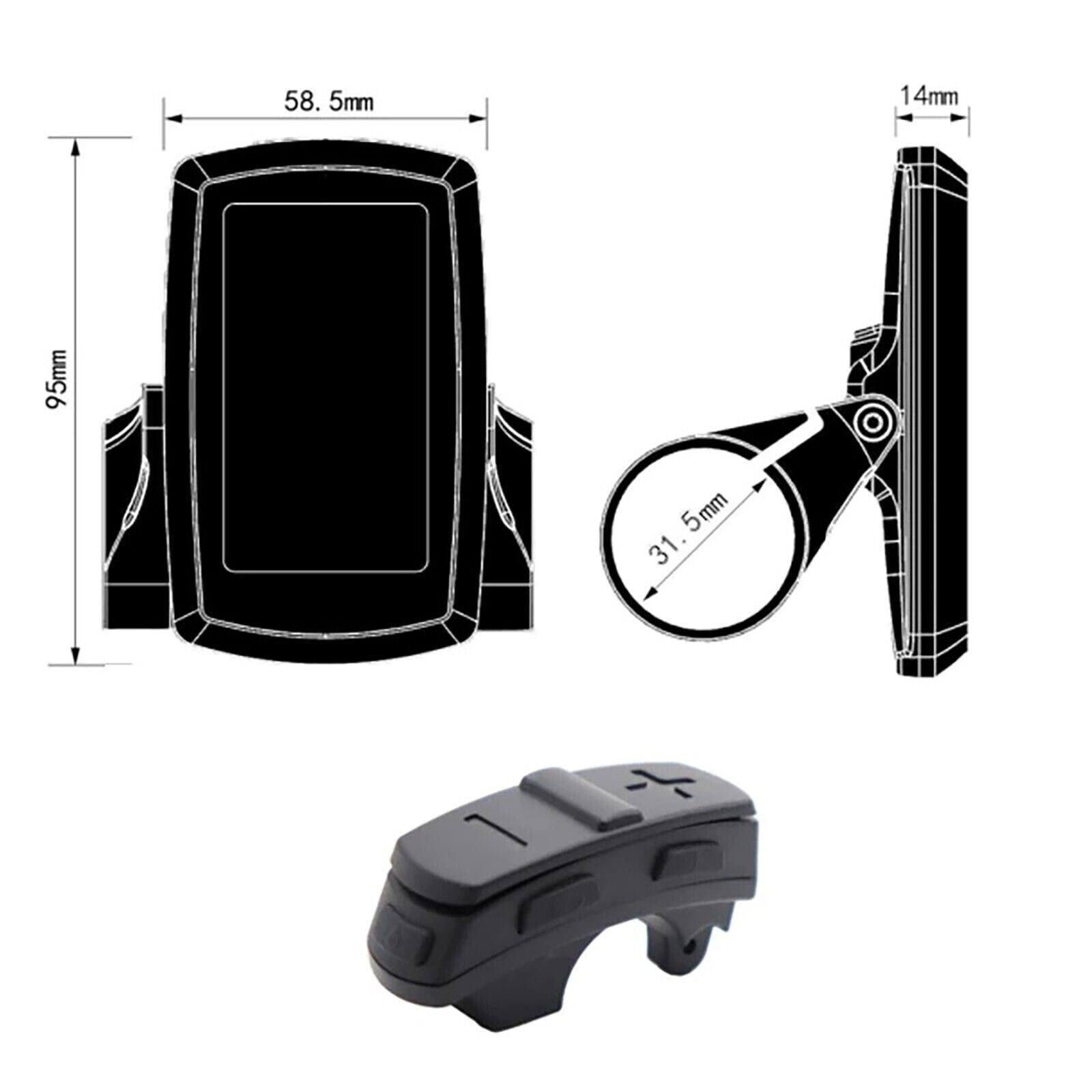

  • Display: Intelligent Colorful LCD Panel Display

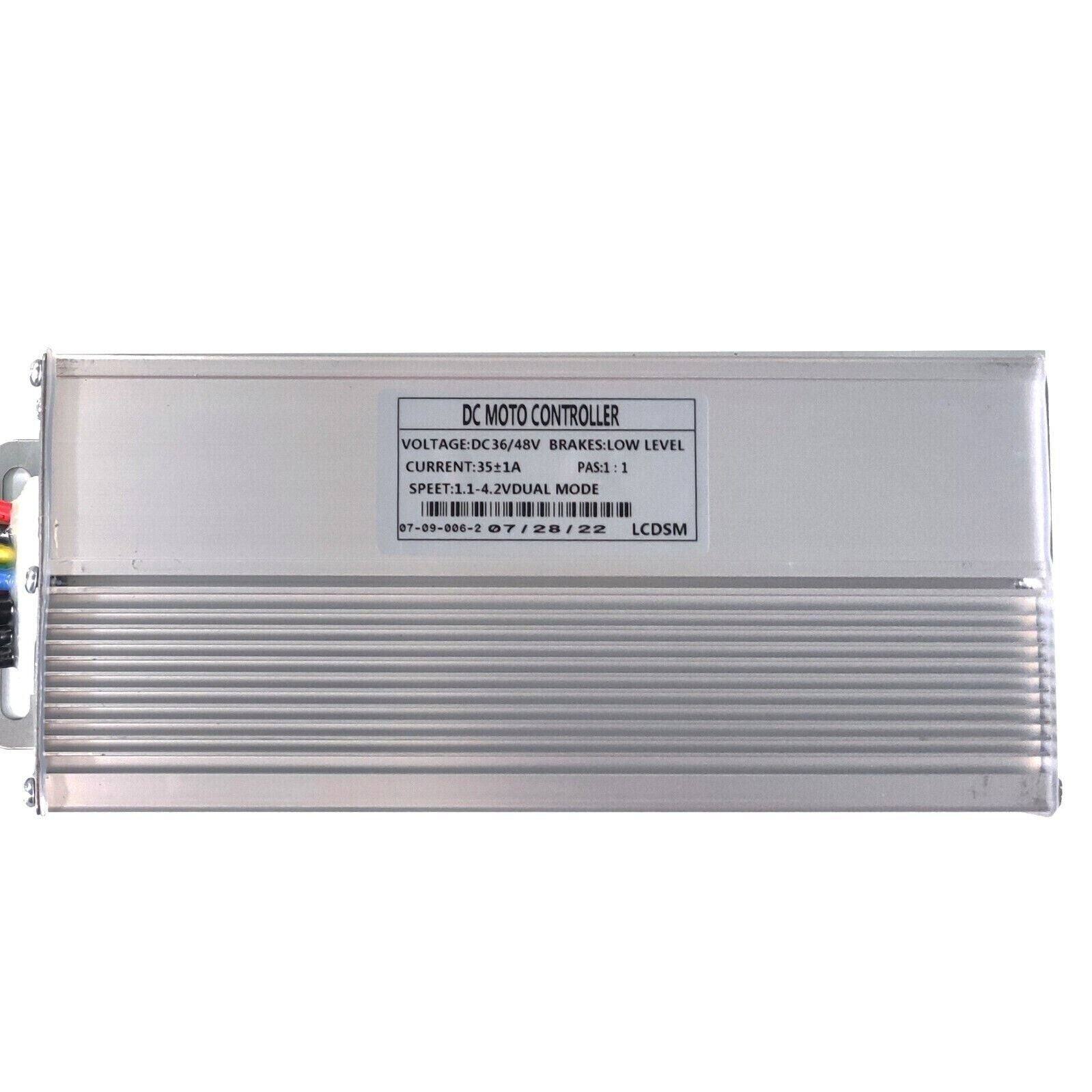

  • Controller: Intelligent Motor Controller, the Current is 35±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

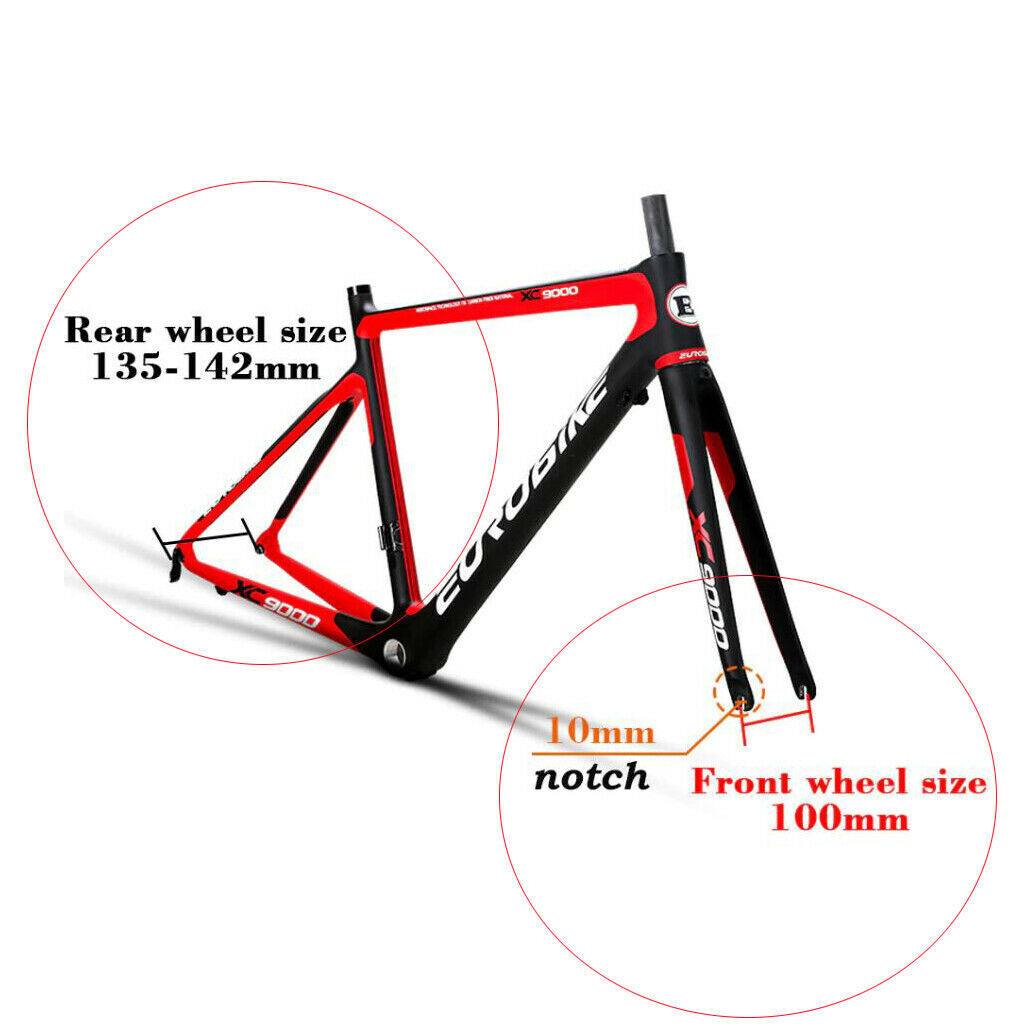

  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System - Hydraulic brakes require a hydraulic brake sensor, sold separately.

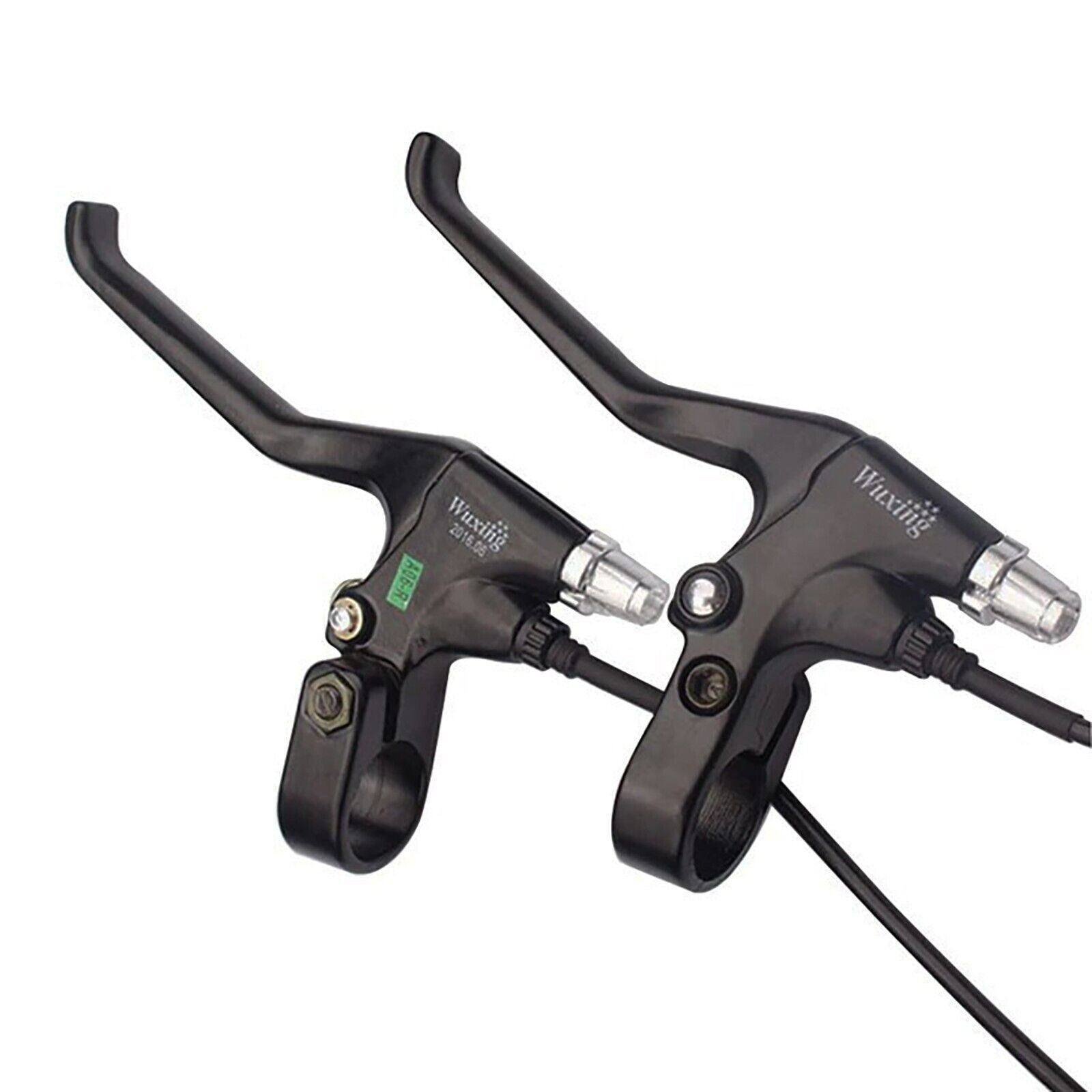

  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

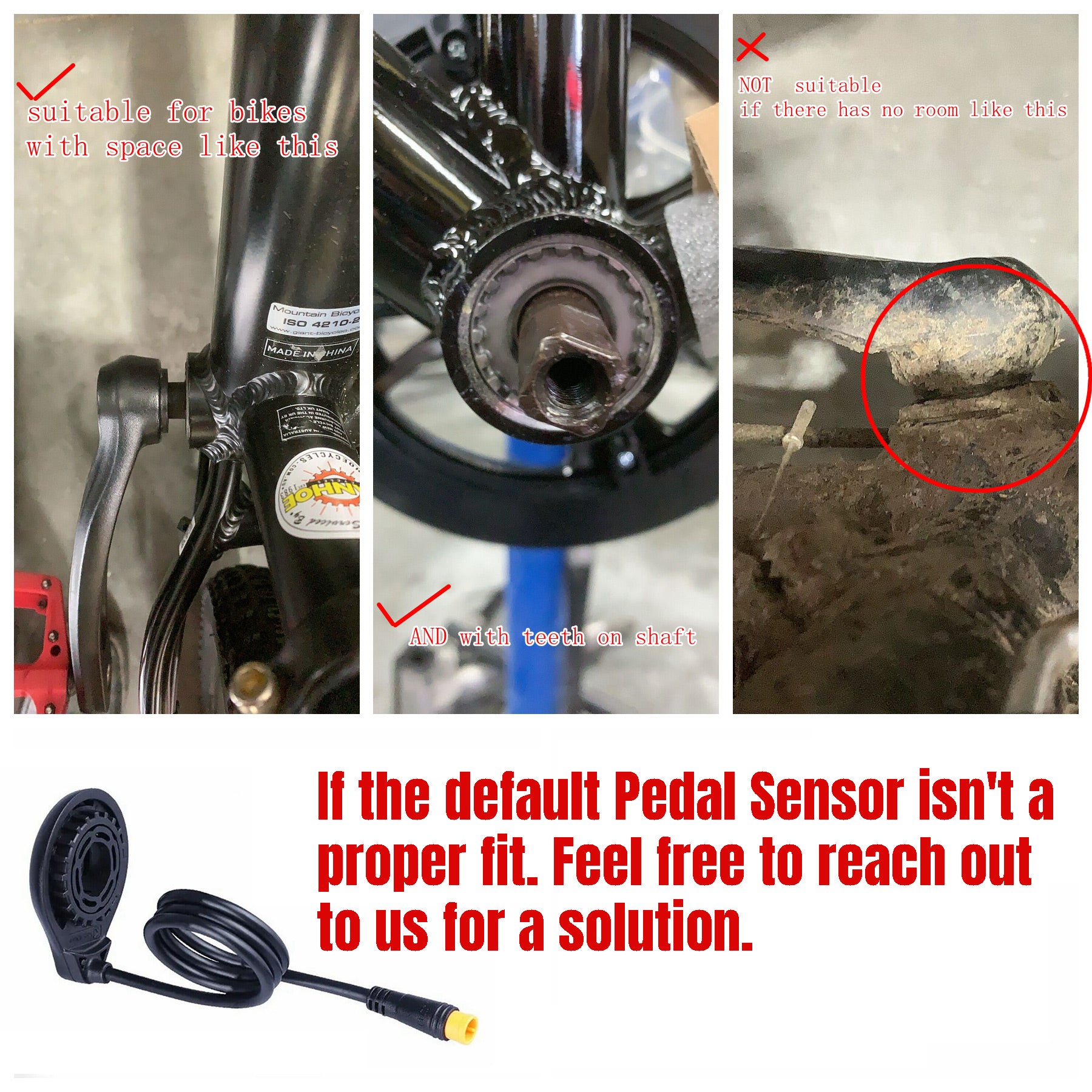

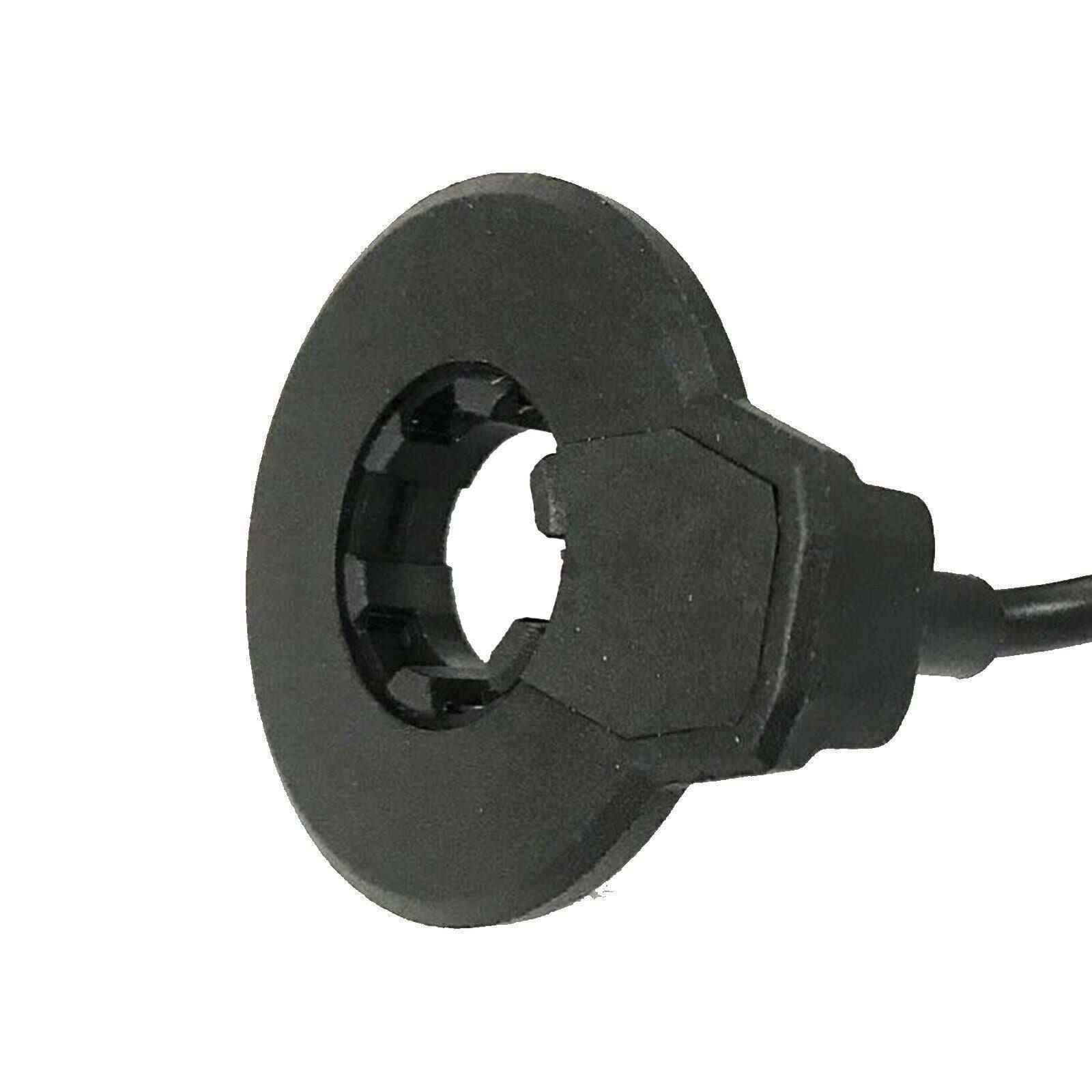

  • PAS Sensor: 12 Magnets Pedal Assist Sensor
  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor & Battery

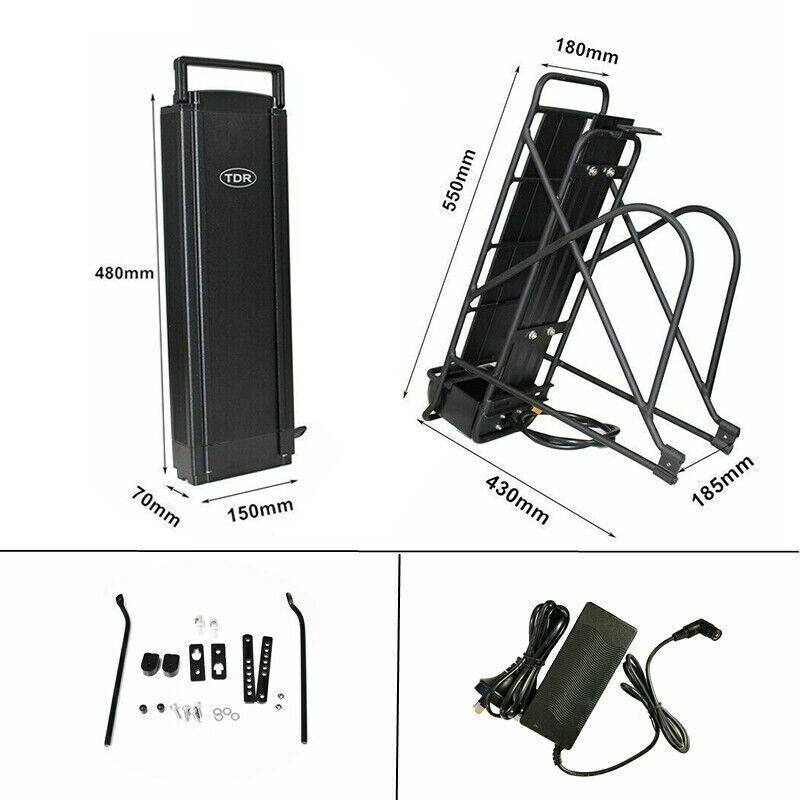

  • 48V 15AH Battery with Rear Rack
  • Riding Range: Up to 60 km range with Pedal Assist Mode

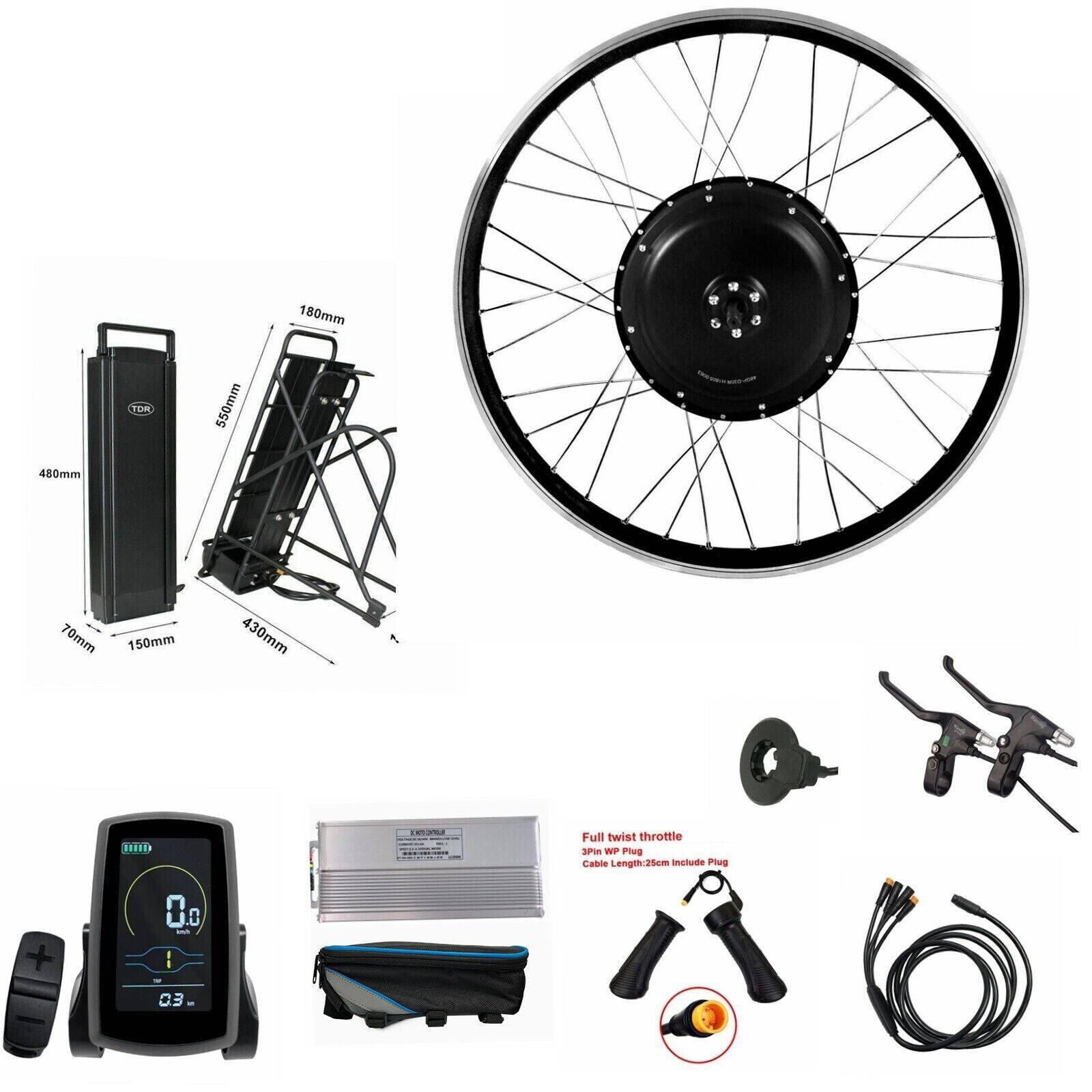

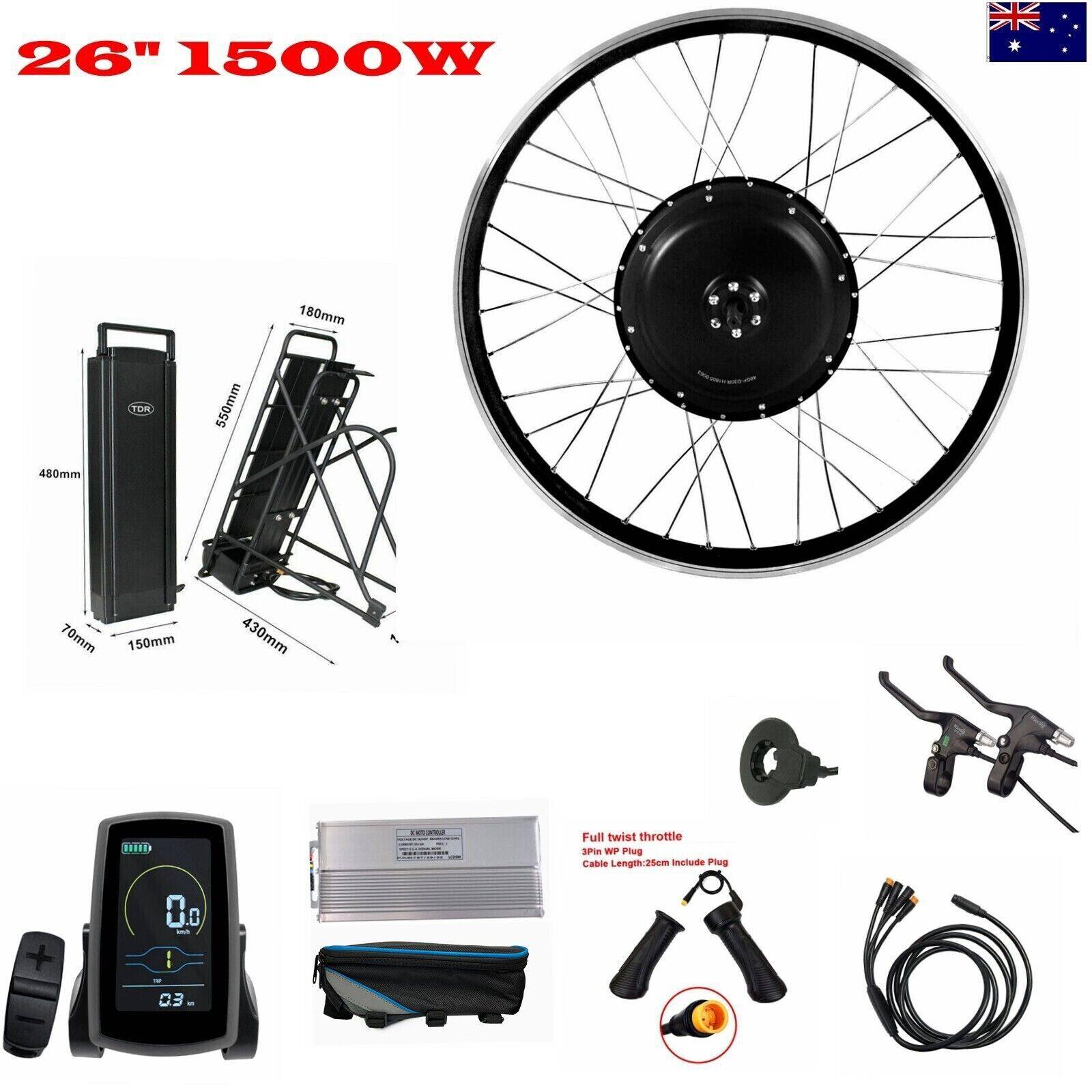

Package Include :

  • 1x 48V 1500W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers
  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel
  • 1 x 48V 15AH Rear Rack Battery & Charger Set

Important Notes

  • A pair of torque arms is highly recommended but is not included with this product.

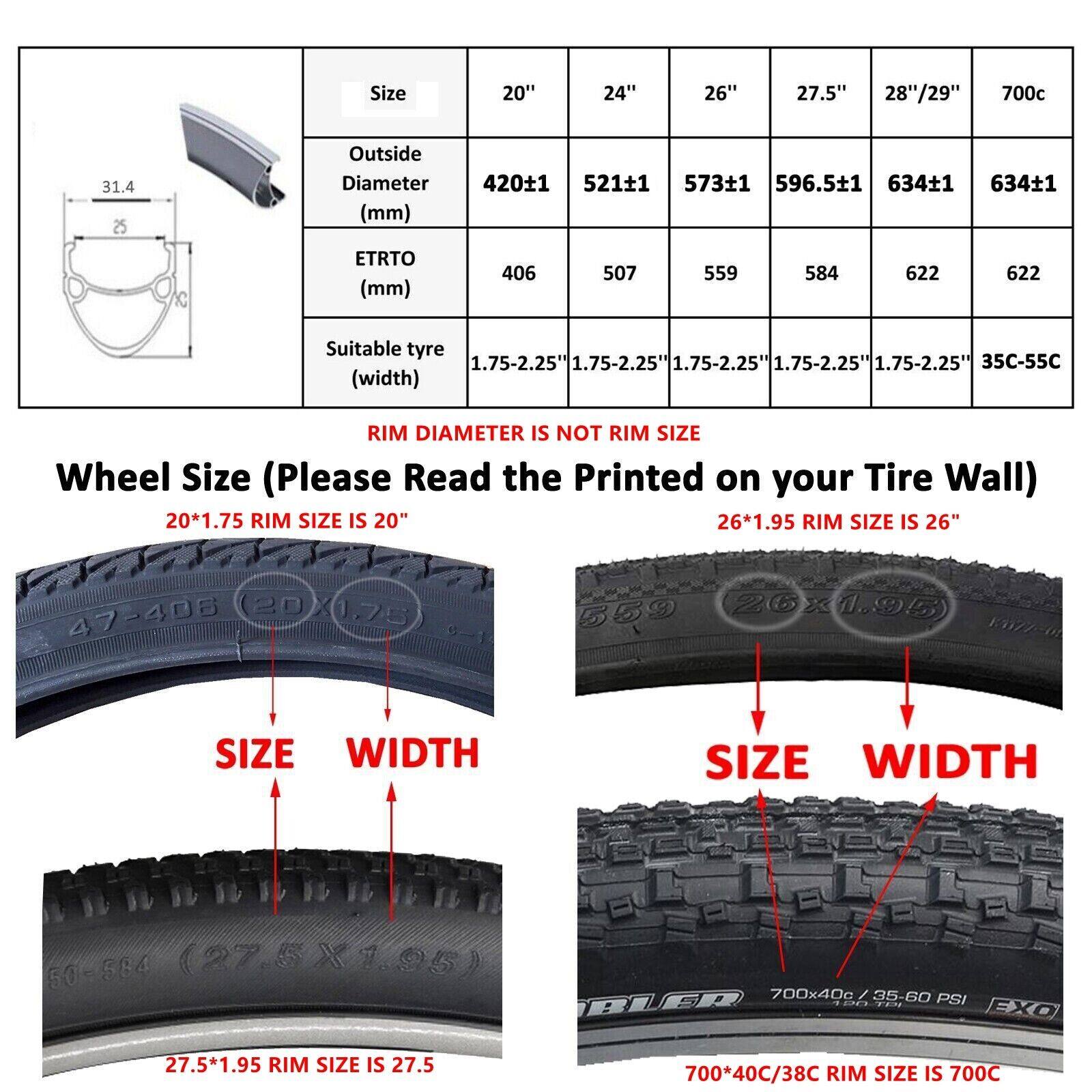

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

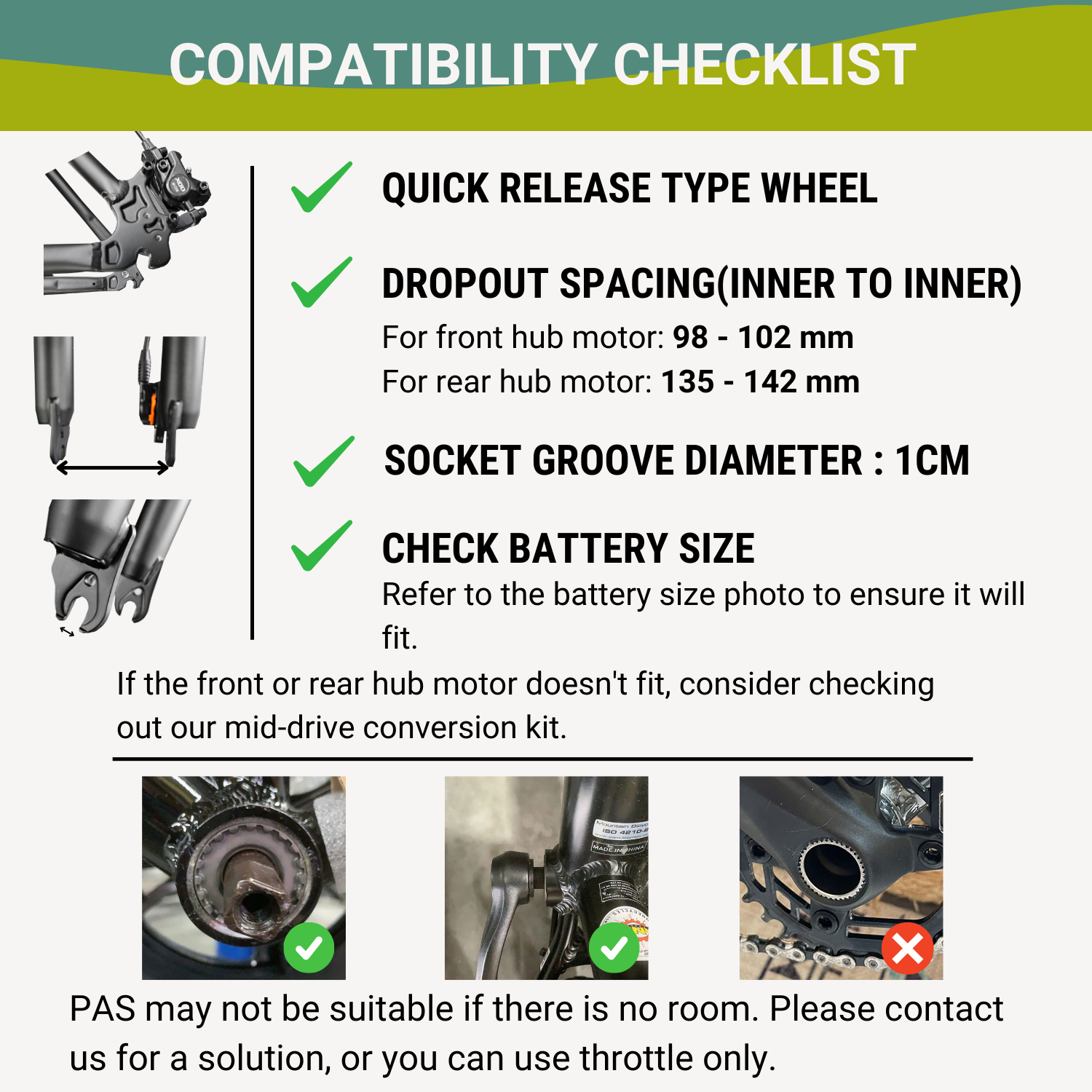

  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
