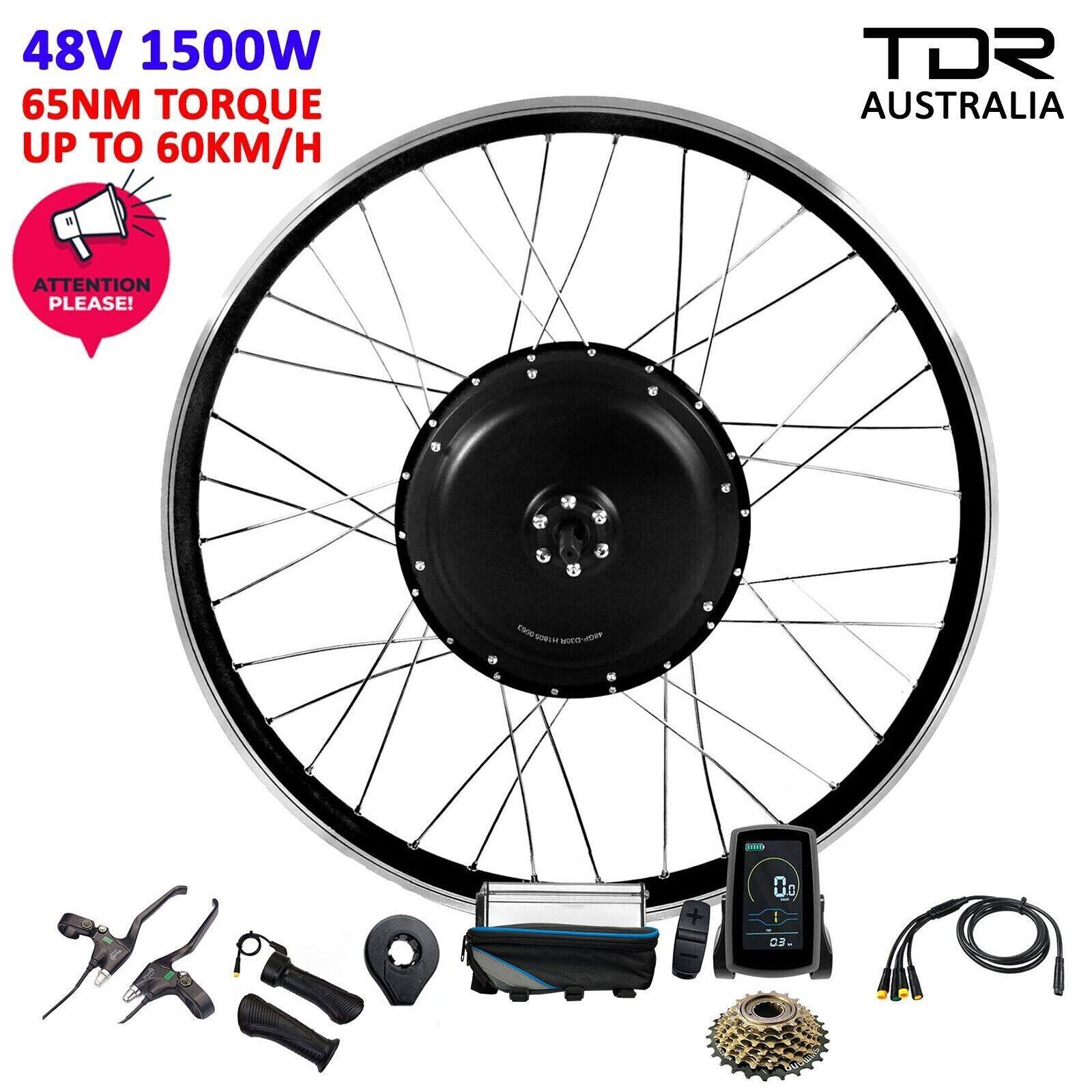

1500W 27.5" Rear Hub 48V Electric Bike Conversion Kit

1500W 27.5" Rear Hub 48V Electric Bike Conversion Kit

SKU:

Regular price $456.72
Regular price $519.00 Sale price $456.72
12% off Sold out
Tax included. Shipping calculated at checkout.
  • For 27.5 Inch wheel with a width between 1.75 to 2.25 Inch

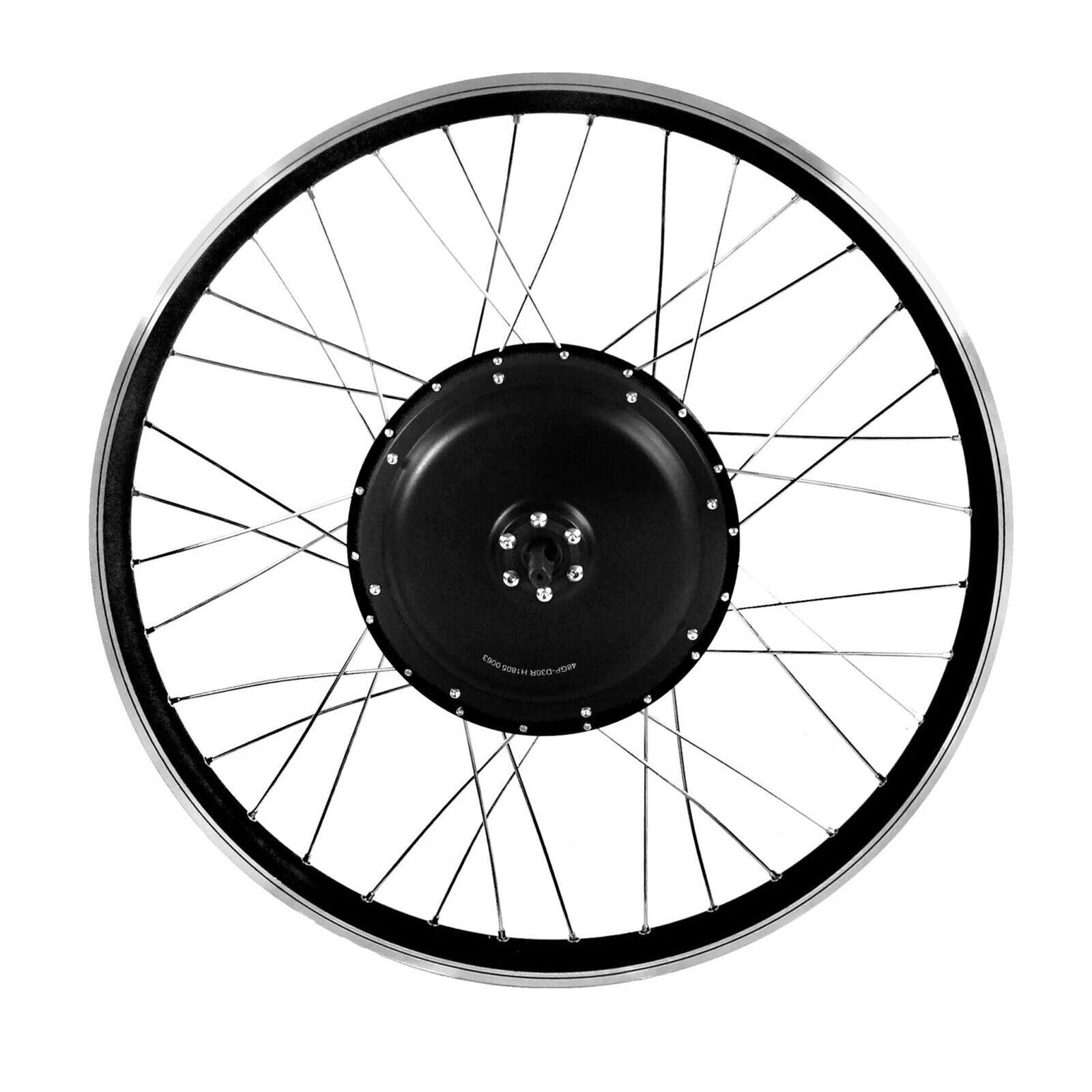

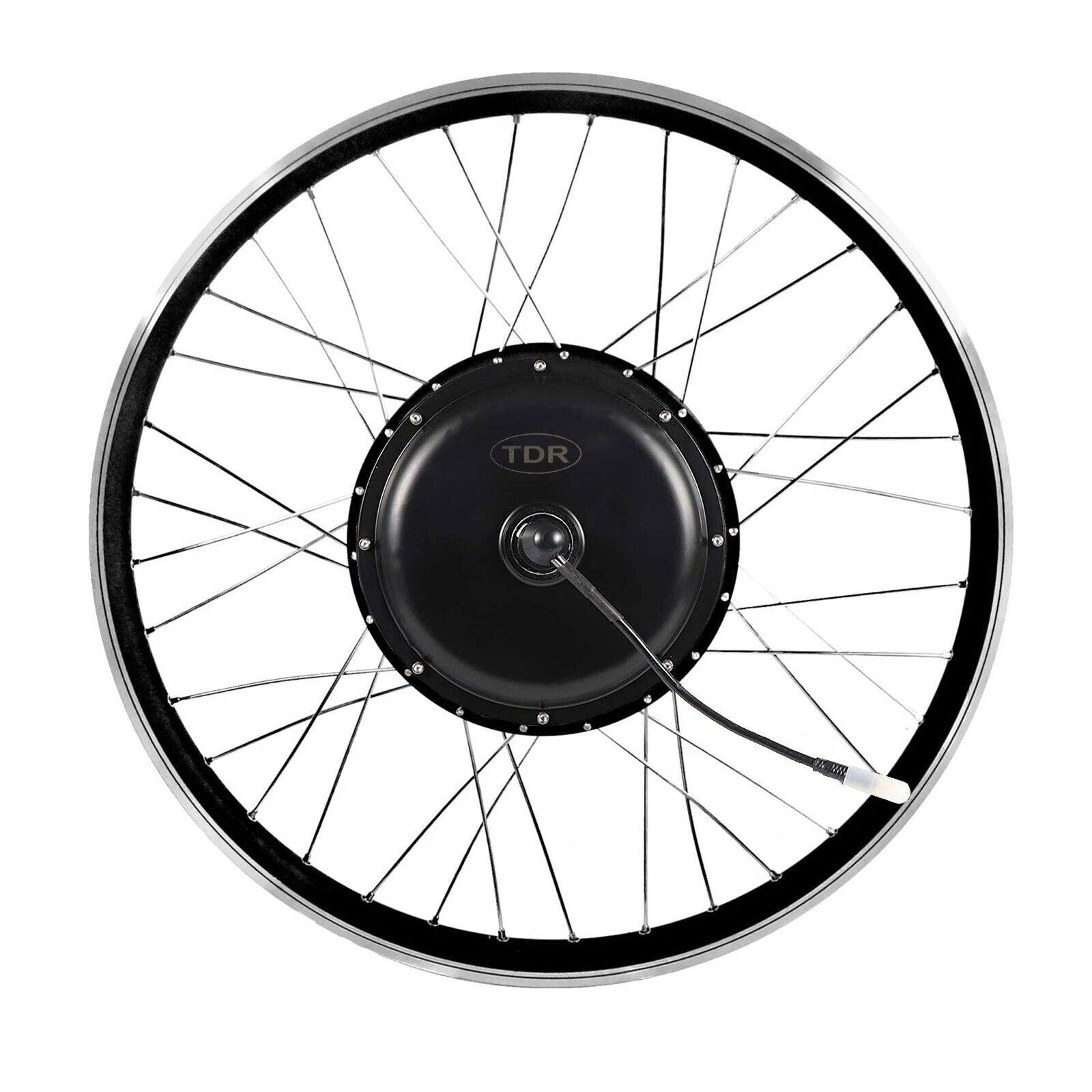

  • Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
  • Torque: 65 N.M

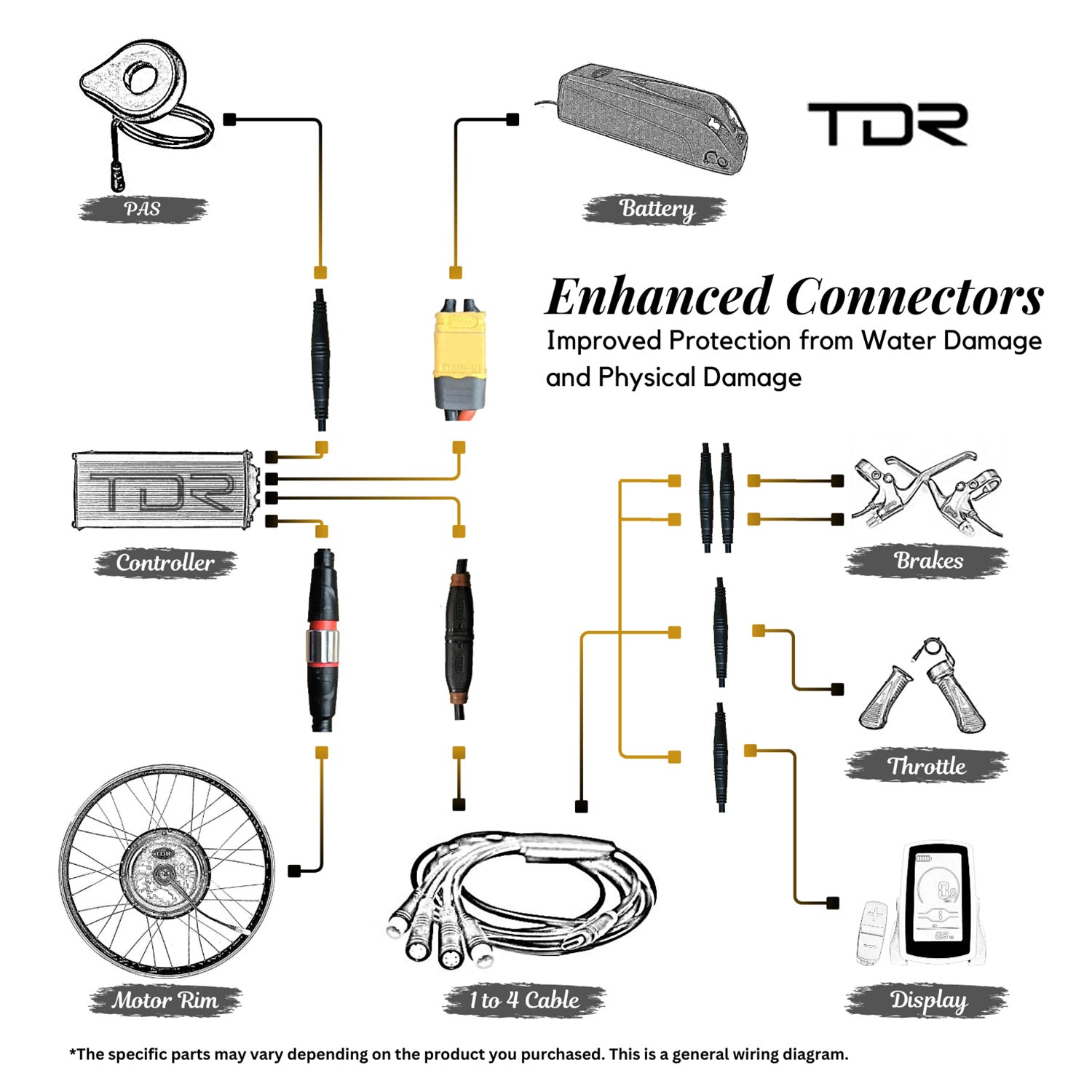

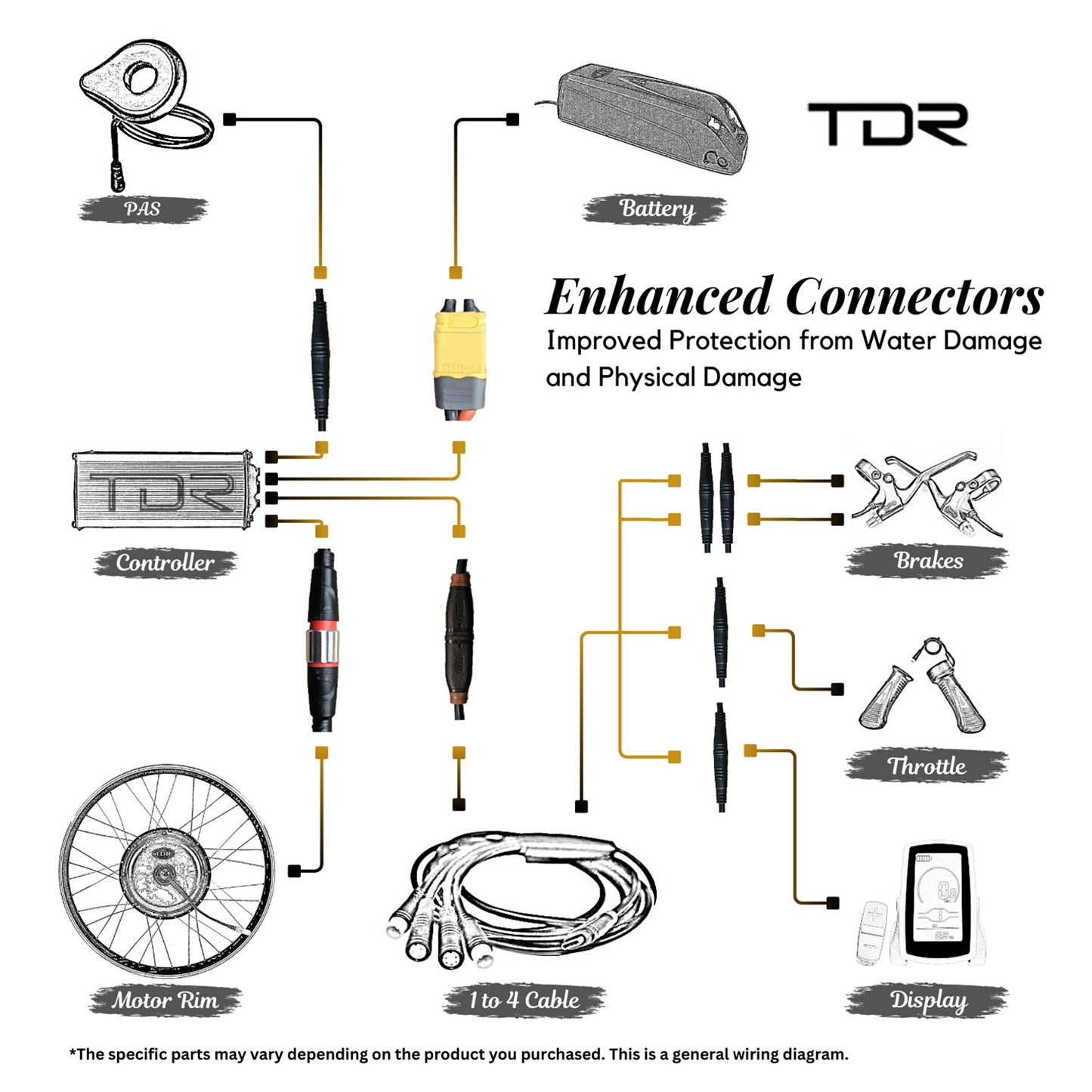

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 60 km/h
  • Display: Intelligent Colorful LCD Panel Display

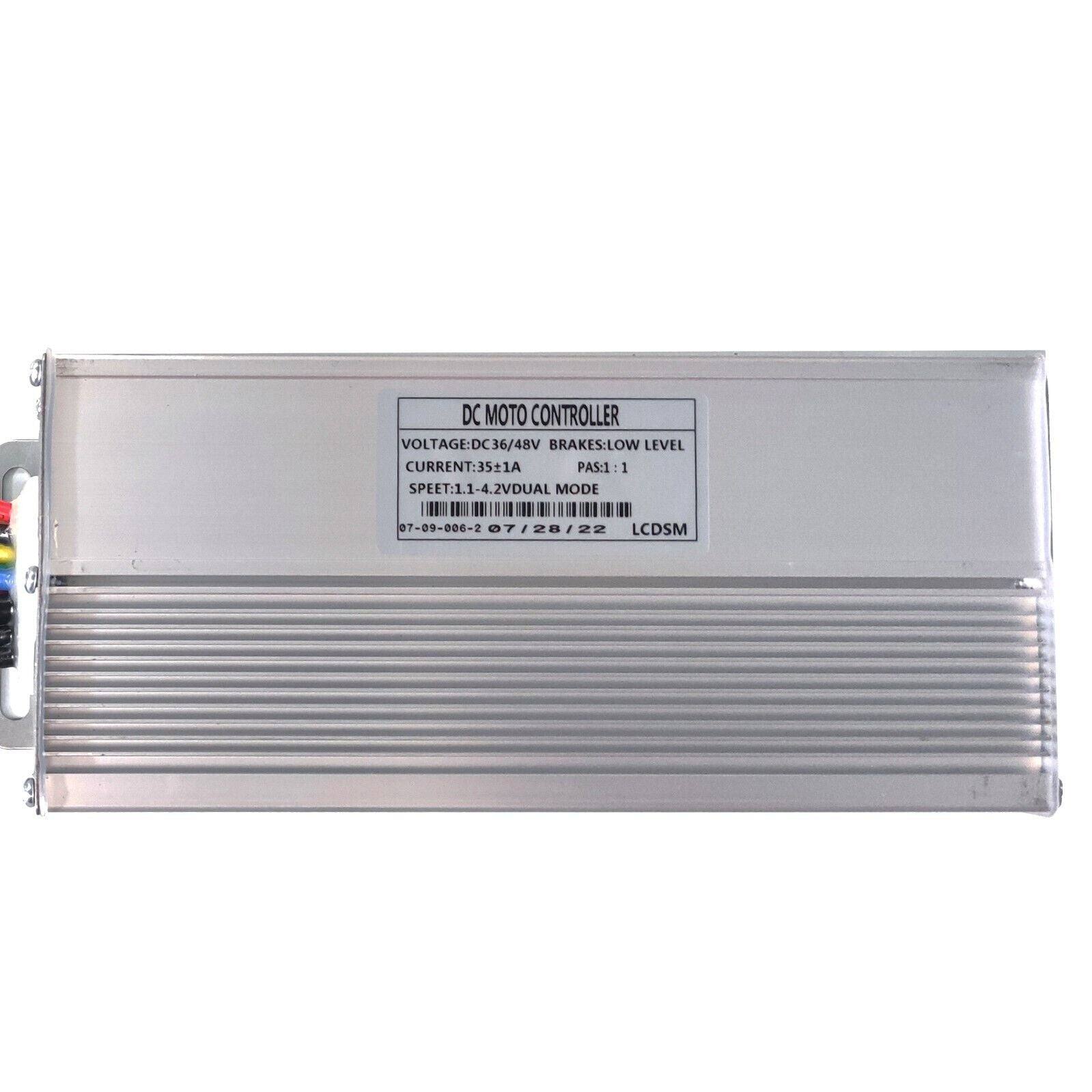

  • Controller: Intelligent Motor Controller, the Current is 35±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

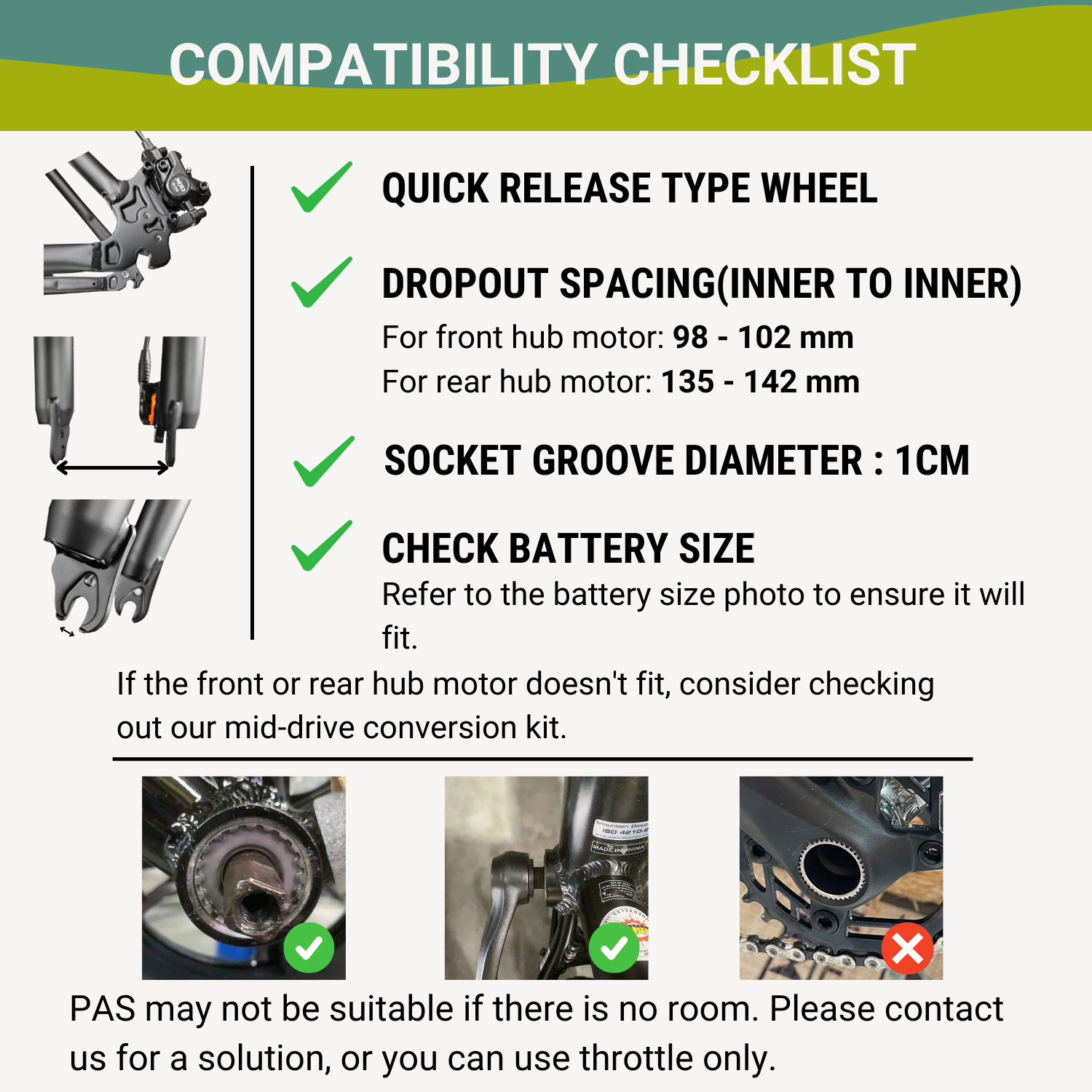

  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

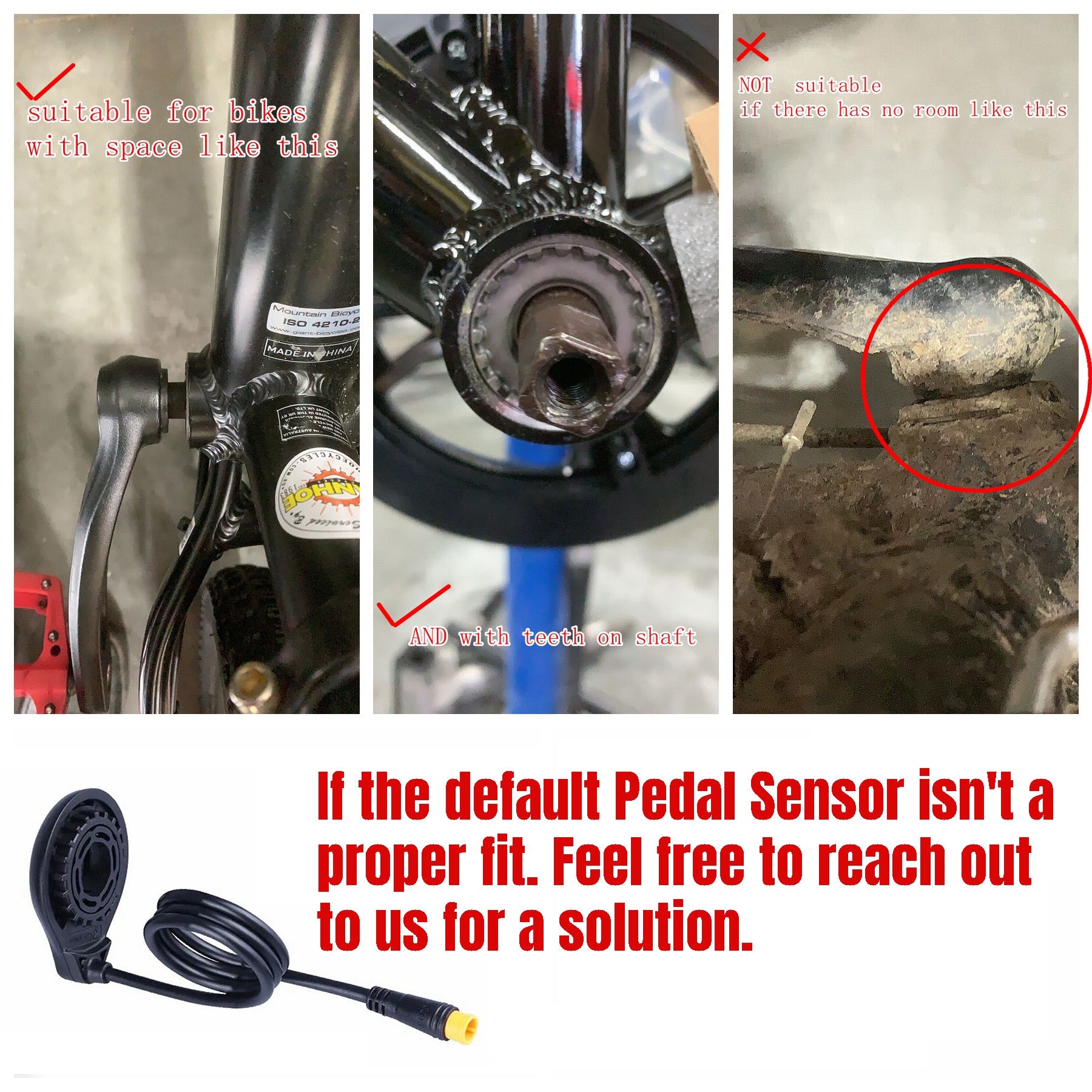

  • PAS Sensor: 12 Magnets Pedal Assist Sensor
  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor

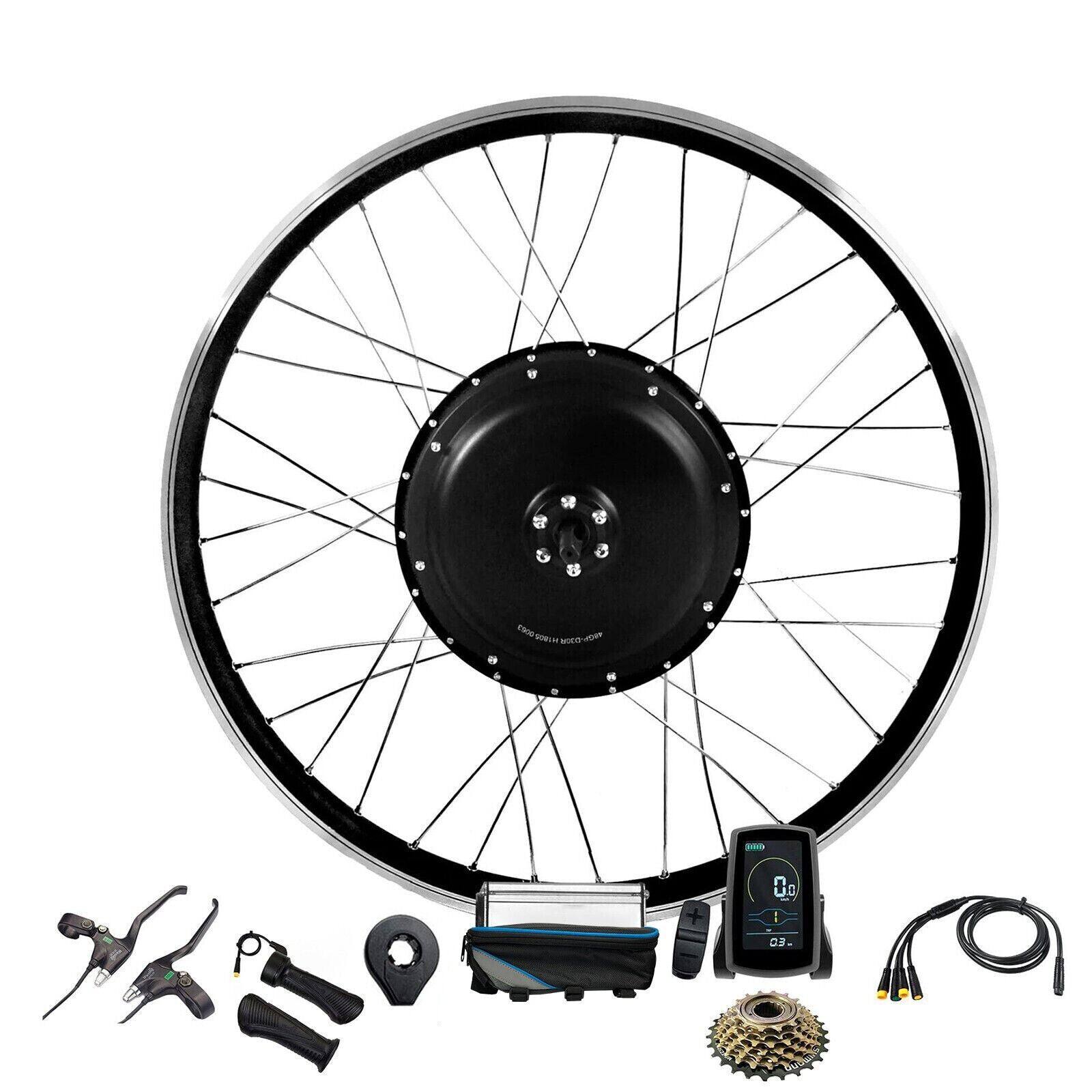

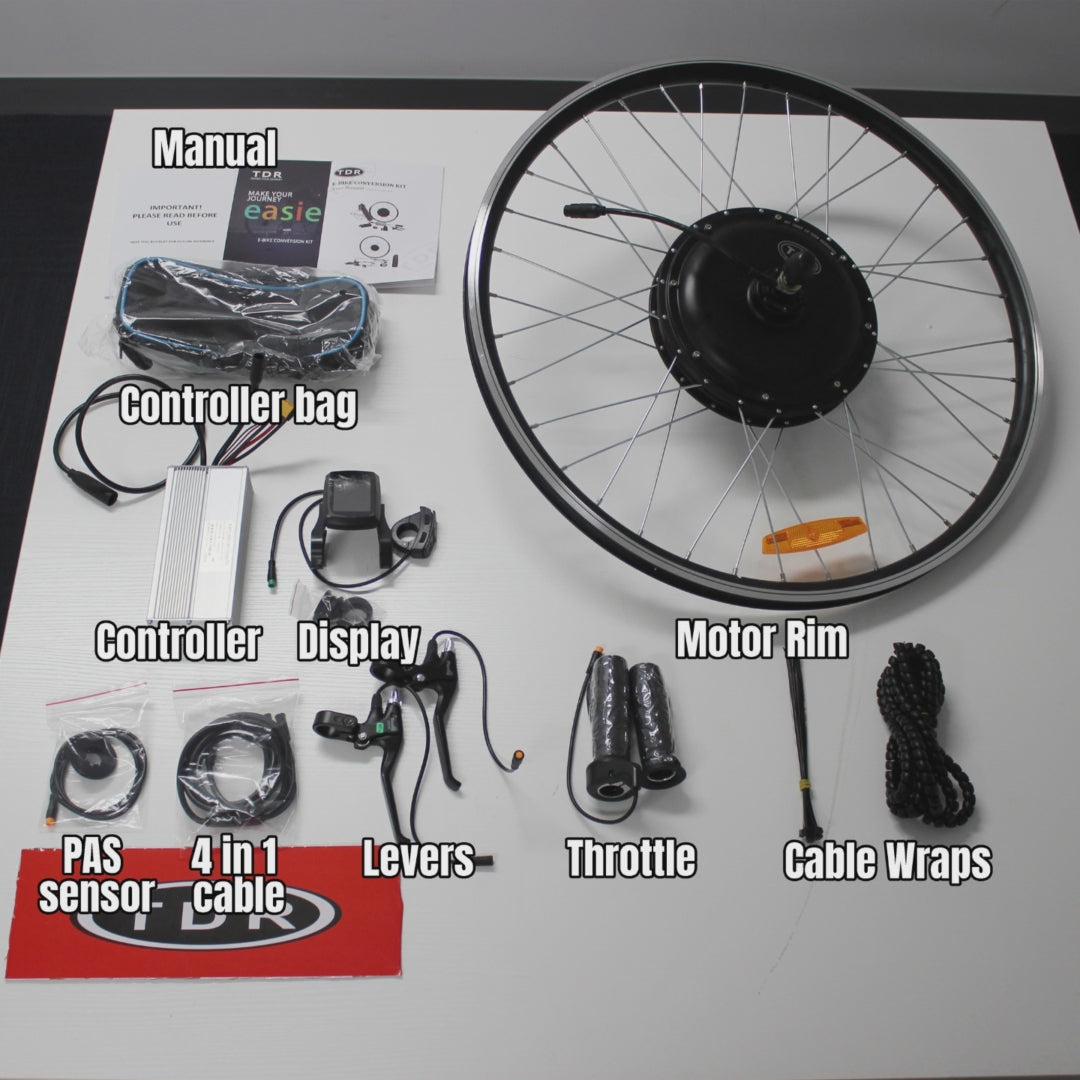

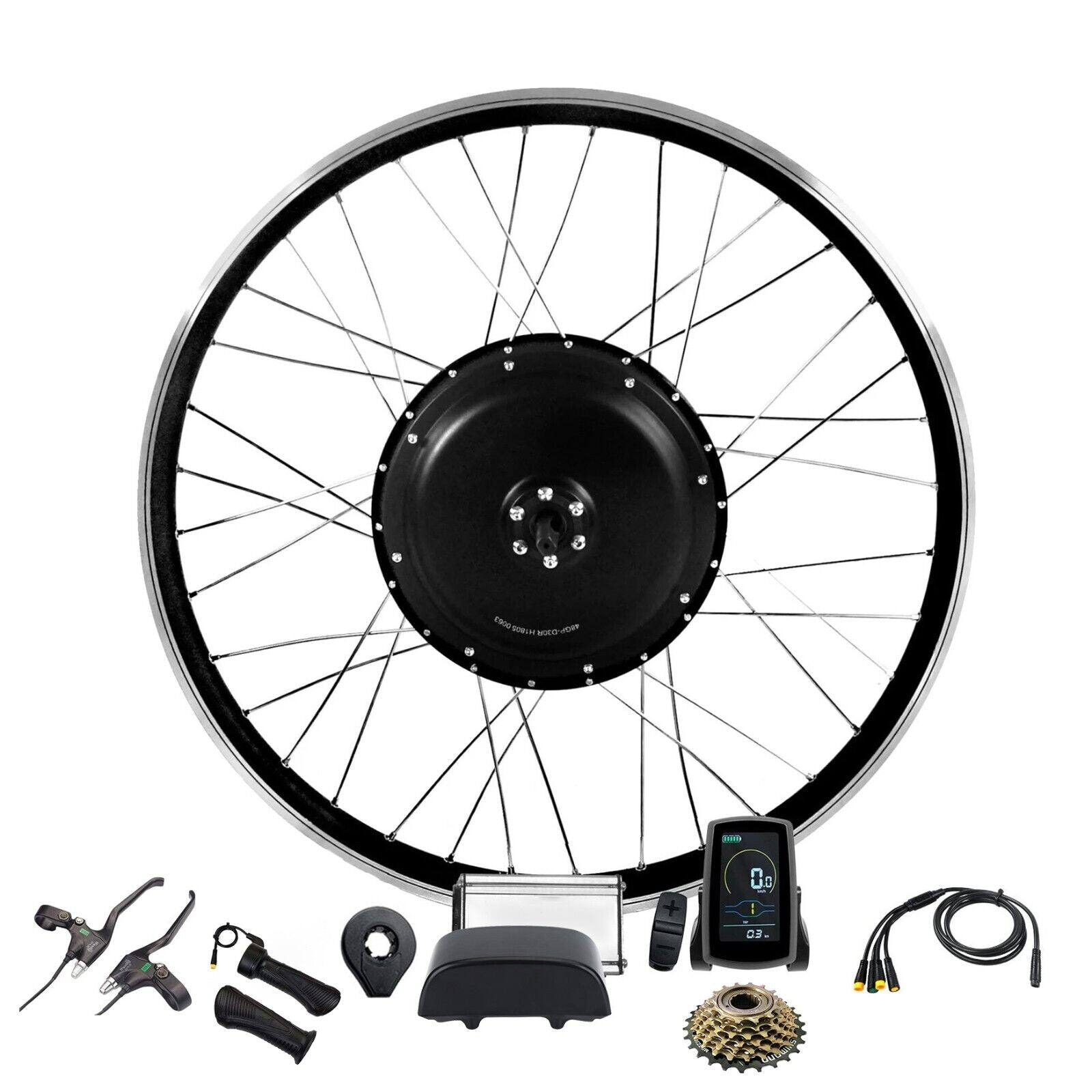

Package Include :

  • 1x 48V 1500W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers
  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel


Important Notes

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
E-Bike & E-Kit User Manuals, Installation Videos, Troubleshooting Guides View full details

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
E
Ethan Thompson
Plenty of power and speed

silent as buggery, power efficent, easy install

A
Angus Barns
E bike

Break so esay

D
Daniel Simons
Ebike conversion kit

Great ebike kit that has plenty of power and speed. With 48v it could maybe go 60kmh but with 52v it goes 65kmh easily. Great kit but should come with torque arms with the amount of power the motor delivers.
