- For 27.5 Inch wheel with a width between 1.75 to 2.25 Inch
- Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
- Torque: 65 N.M
- Wiring Method: Waterproof Wire Connection System
- Maximum Speed: 60 km/h
- Display: Intelligent Colorful LCD Panel Display
- Controller: Intelligent Motor Controller, the Current is 35±1A
- Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
- Rear Fork Width Requirement:135 - 142mm
-
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System - Hydraulic brakes require a hydraulic brake sensor, sold separately.
- Brake levers: Aluminum Alloy Wuxing E-brake Lever
- Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
- PAS Sensor: 12 Magnets Pedal Assist Sensor
- Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
- 12 Months Replacement Warranty on the Motor

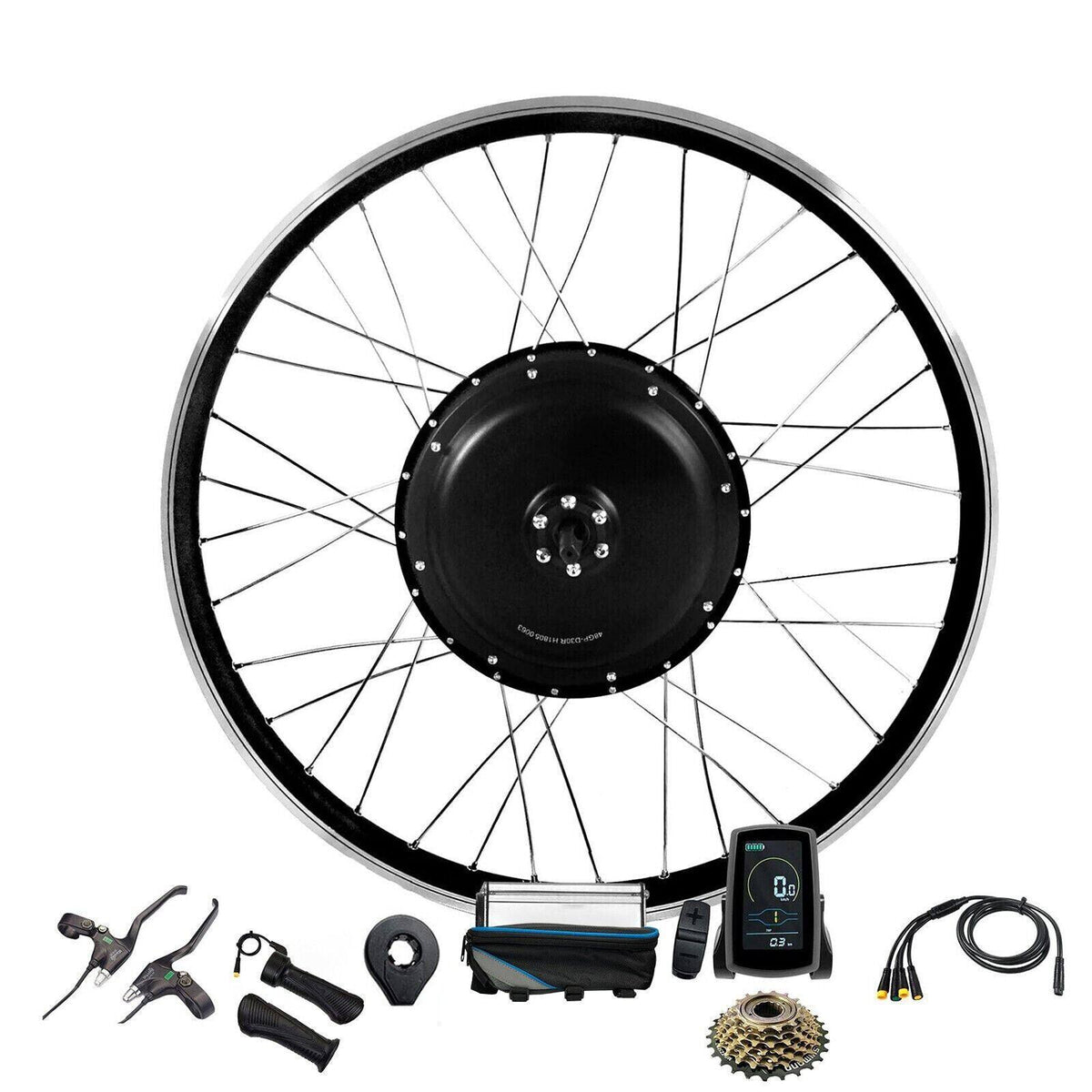

Package Include :
- 1x 48V 1500W Rear Rim Motor
- 1x Intelligent Motor Controller
- 1x Controller Box
- 1x Pedal Assist Crank Sensor
- 1x Pair of E-Brake Levers
- 1x Twist Throttle
- 1x LCD Display
- 1x Cable Ties Set
- 1x Manual
- 1x 6 or 7 Speed Freewheel
Important Notes
- A pair of torque arms is highly recommended but is not included with this product.
- Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
- Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
- Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
- Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
- The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
- Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
- Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
