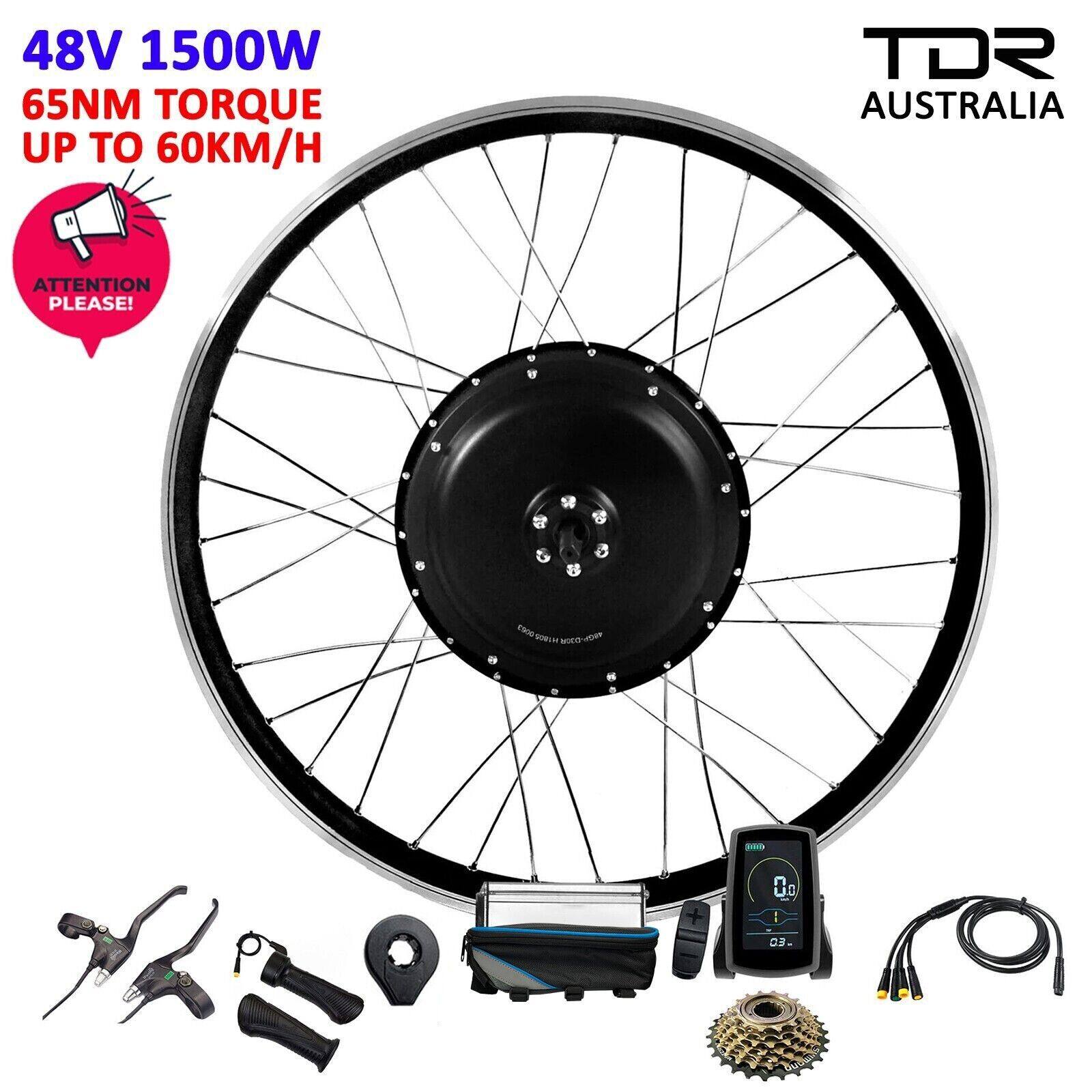

1500W 700C 28" 29" Rear Hub 48V Electric Bike Conversion Kit

1500W 700C 28" 29" Rear Hub 48V Electric Bike Conversion Kit

SKU:

Regular price $475.16
Regular price $539.95 Sale price $475.16
12% off Sold out
Tax included. Shipping calculated at checkout.



  • For 700C wheel with a width between 700*35C to 700*55C, 28 Inch wheel with a width between 1.75 to 2.25 Inch, 29 Inch wheel with a width between 1.75 to 2.25 Inch
  • Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
  • Torque: 65 N.M
  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 60 km/h
  • Display: Intelligent Colorful LCD Panel Display
  • Controller: Intelligent Motor Controller, the Current is 35±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
  • PAS Sensor: 12 Magnets Pedal Assist Sensor
  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor

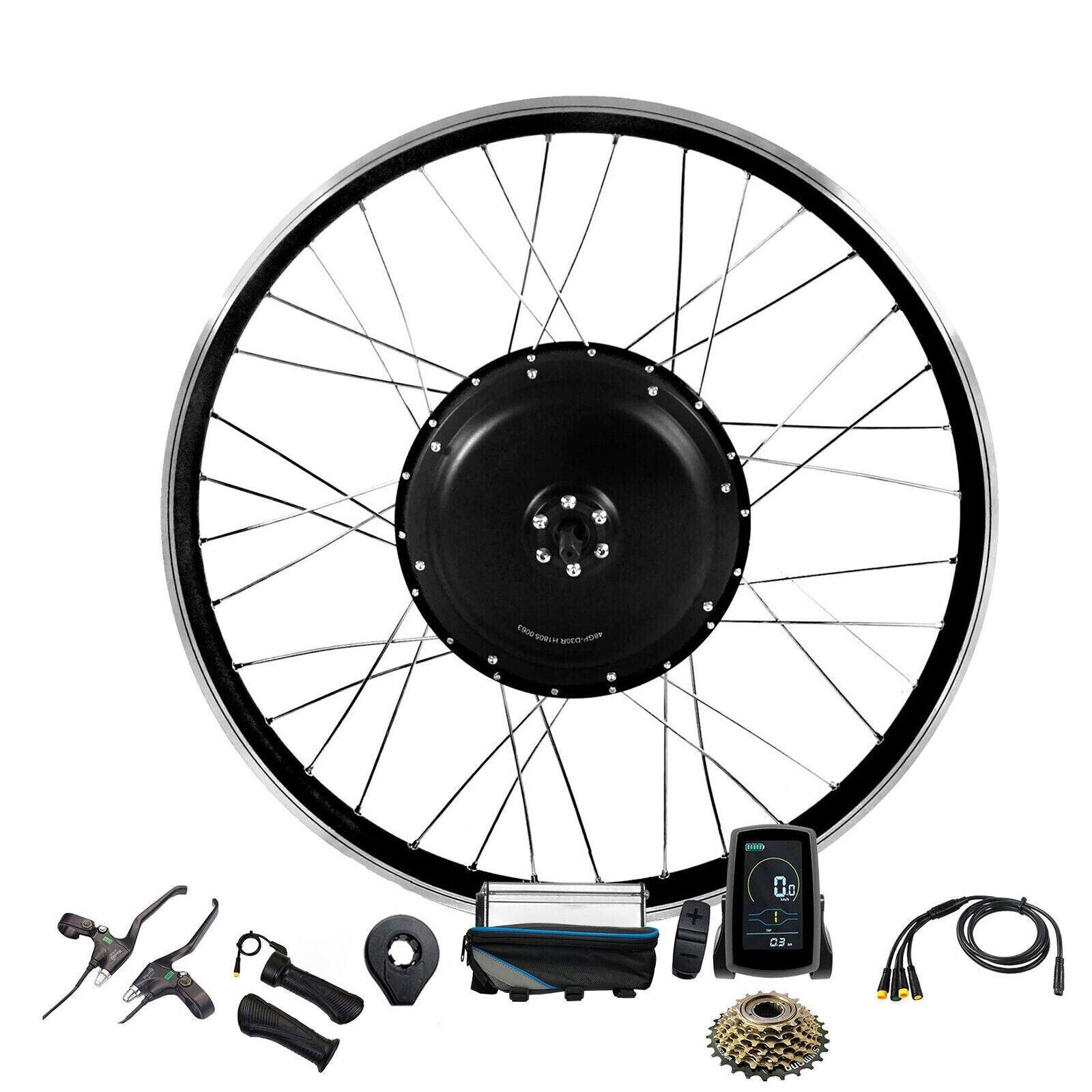

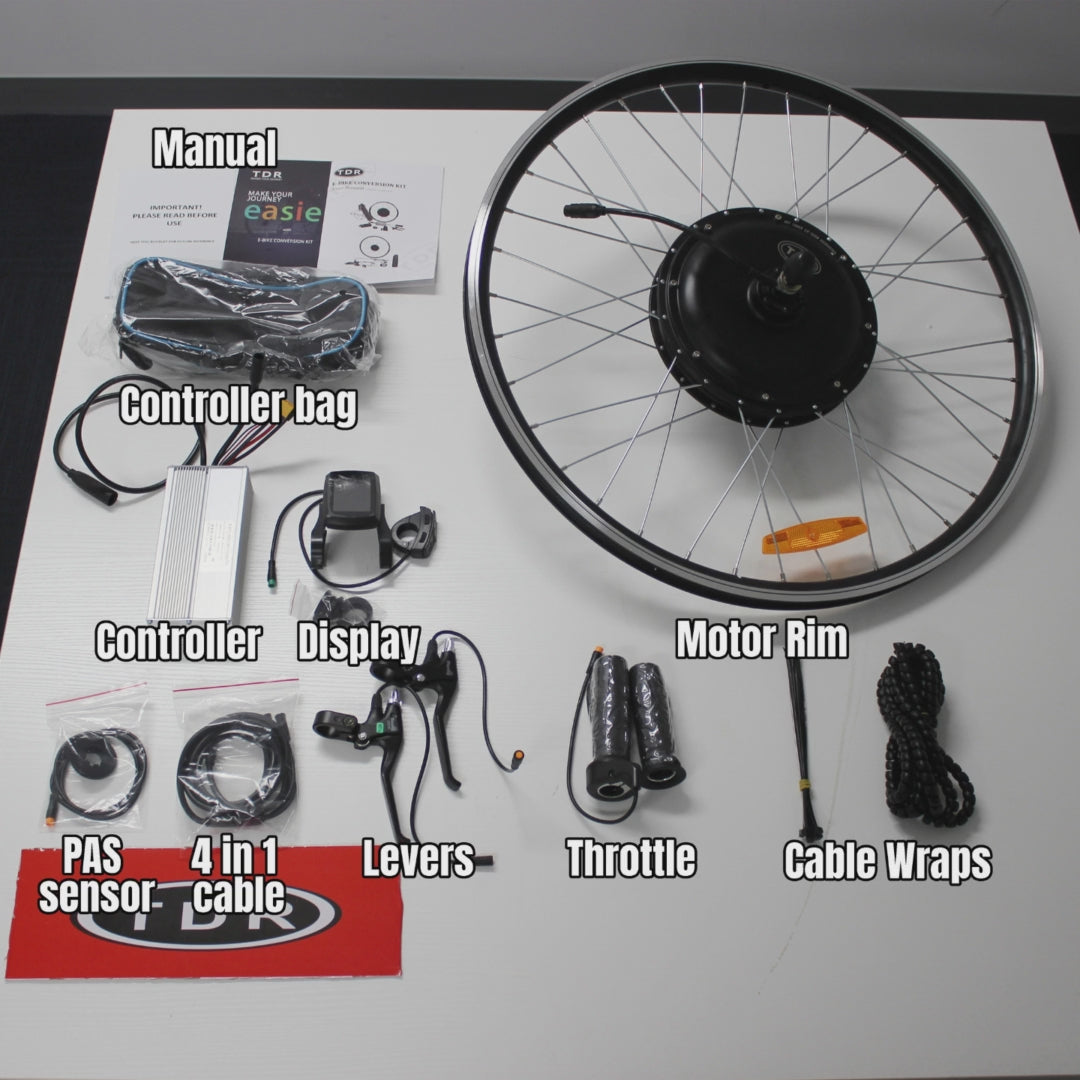

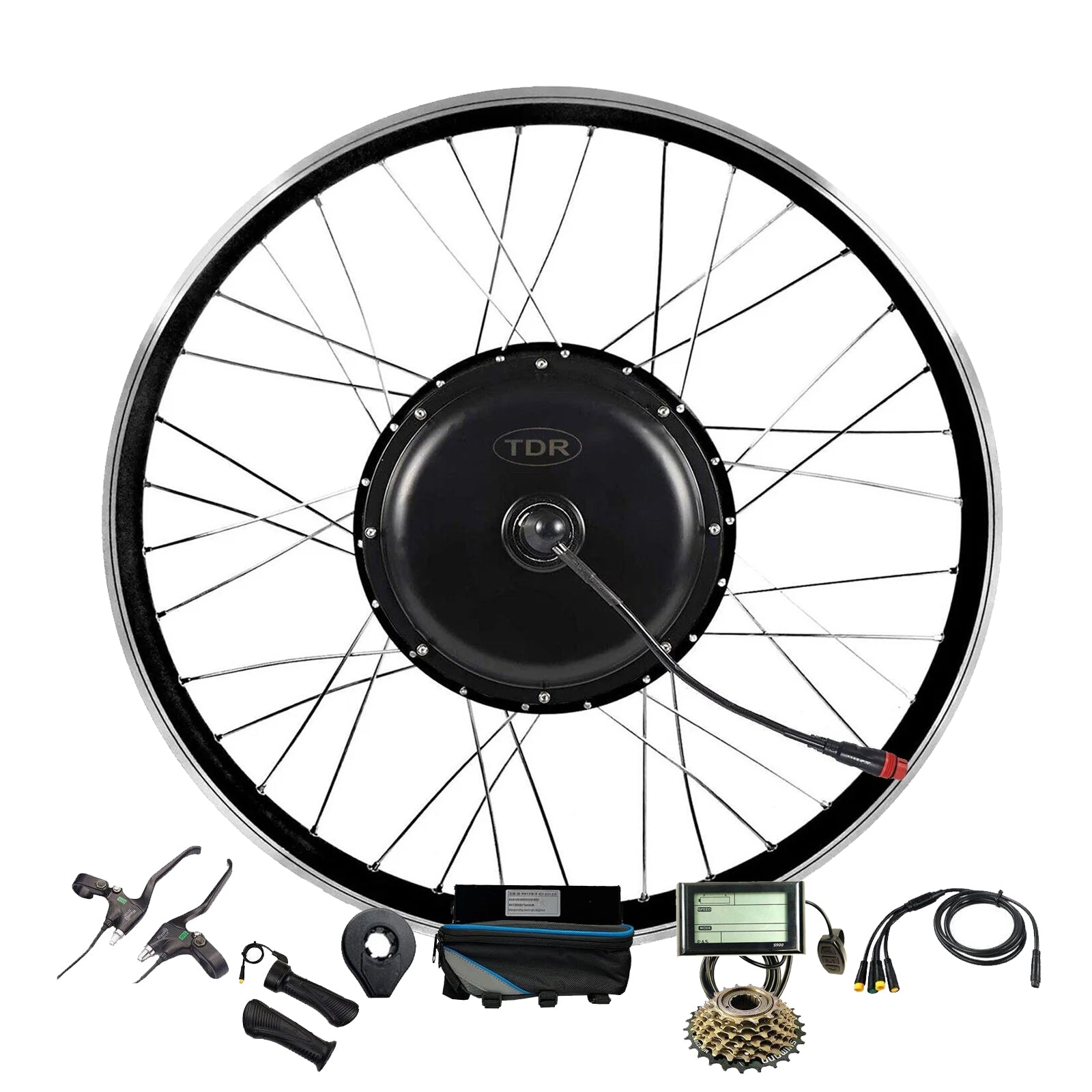

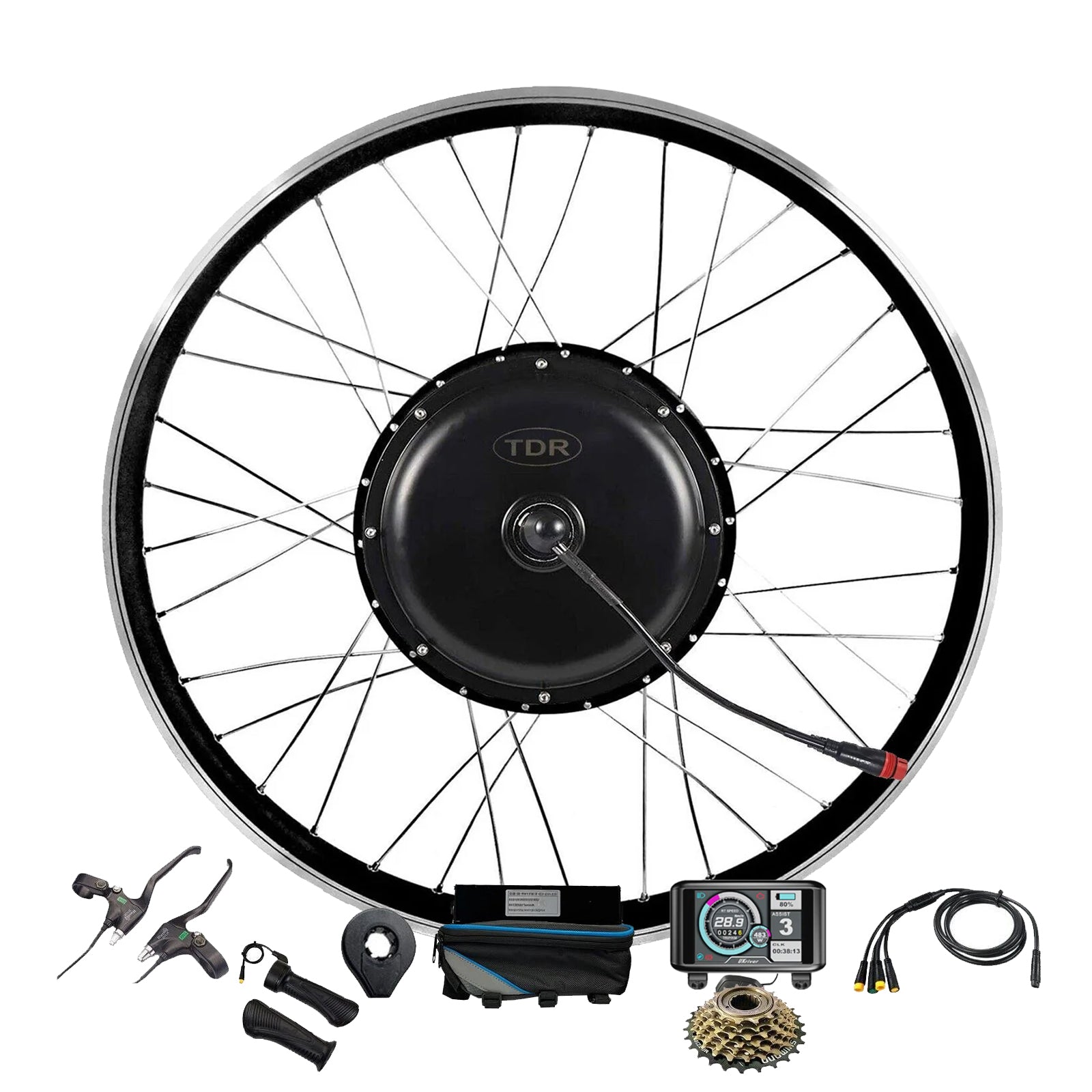

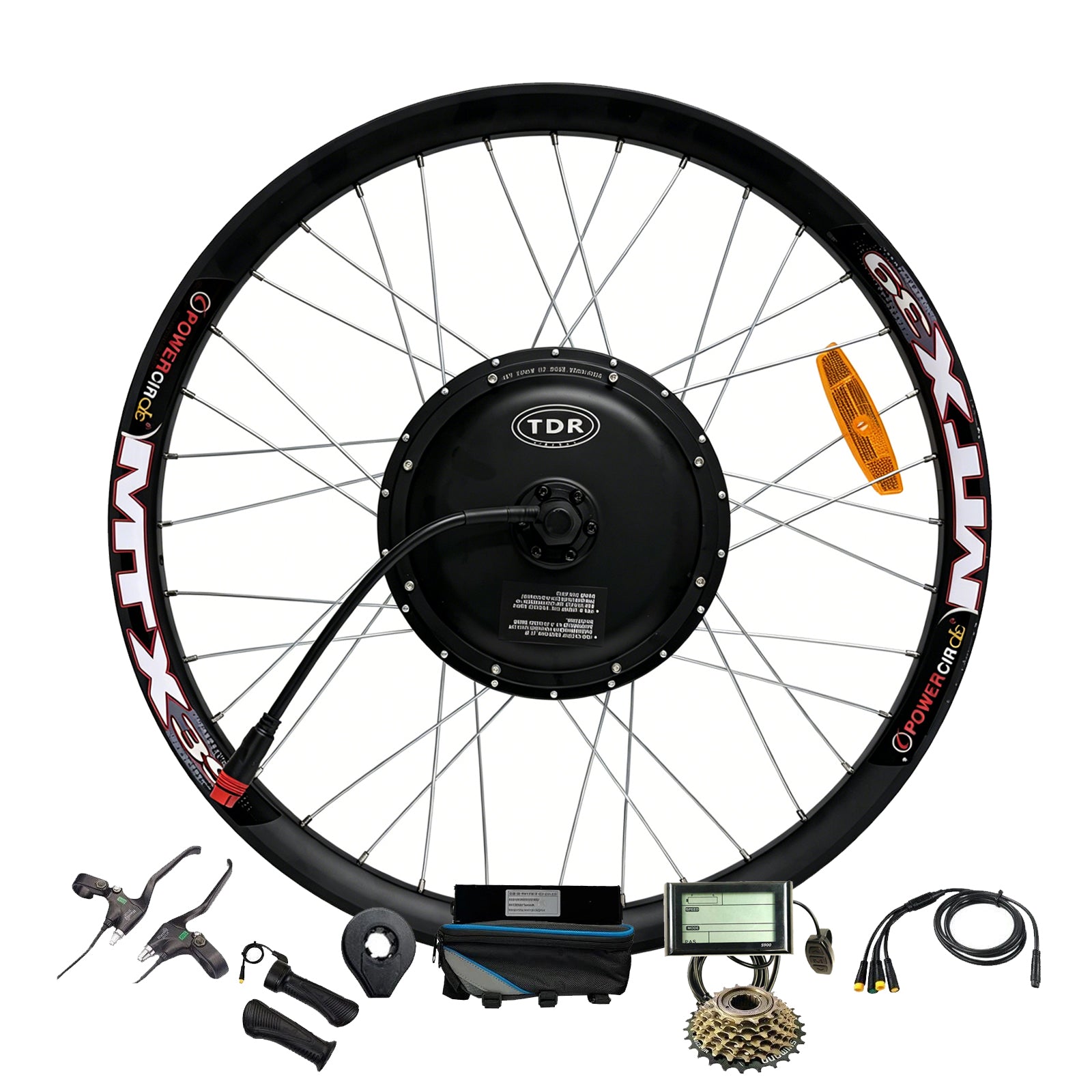

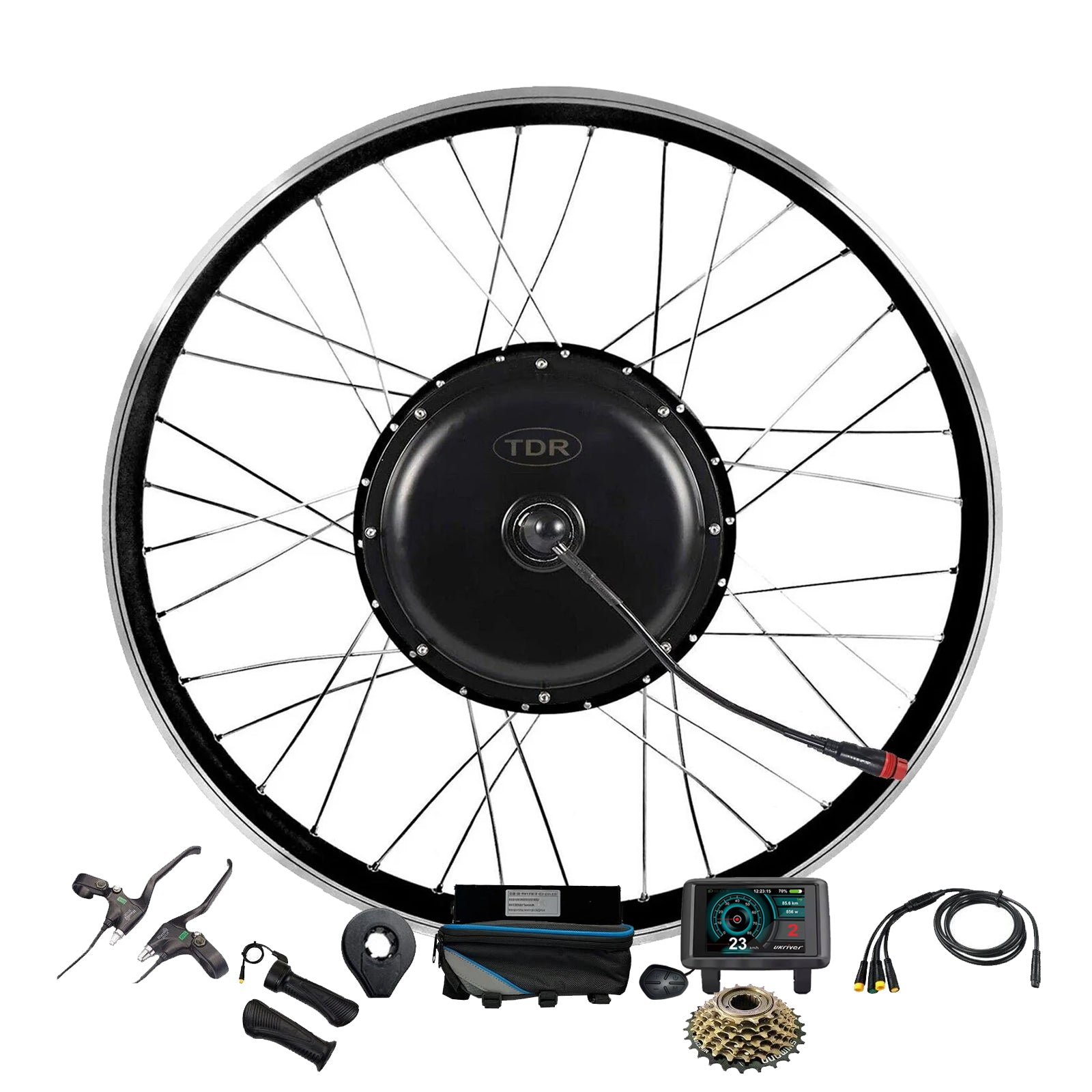

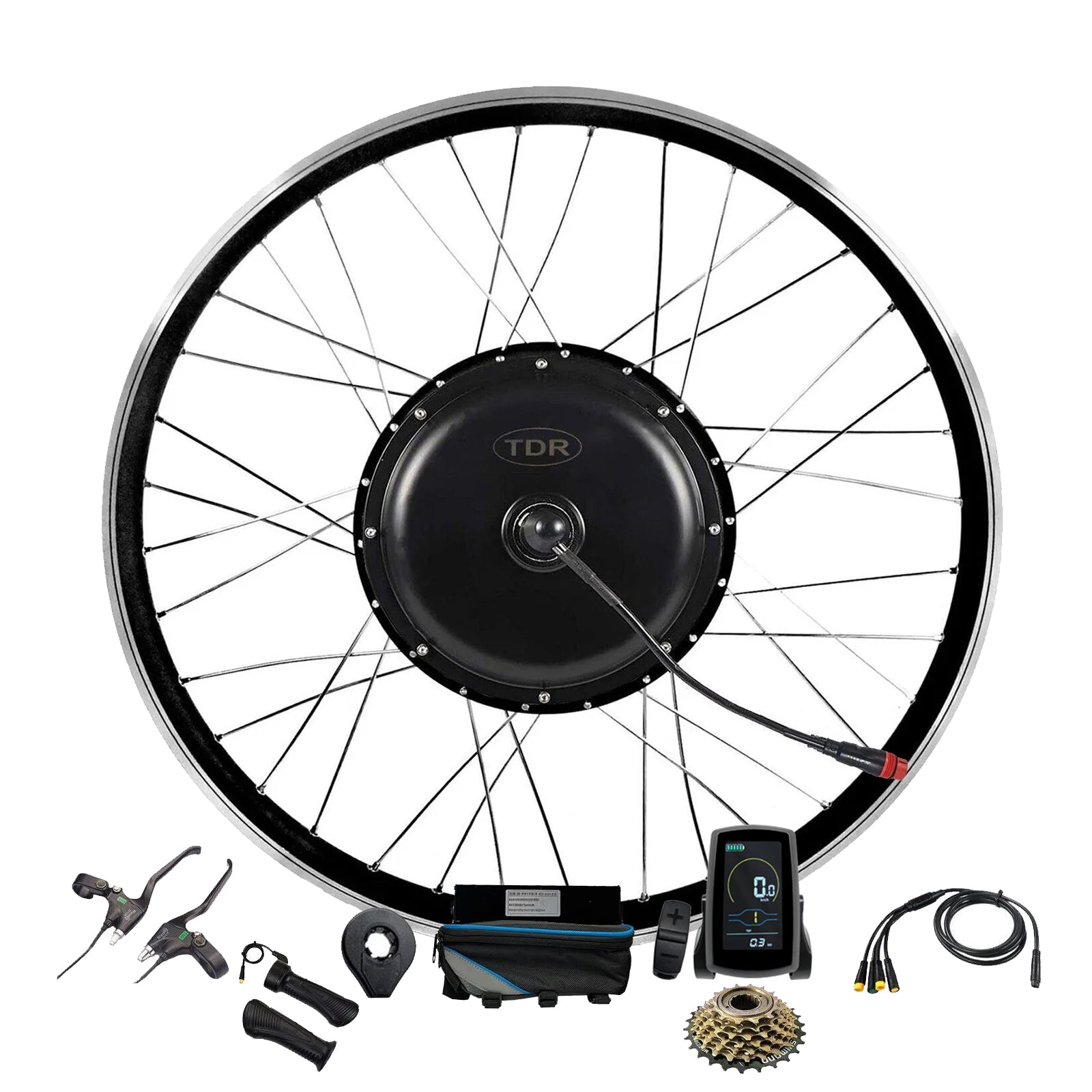

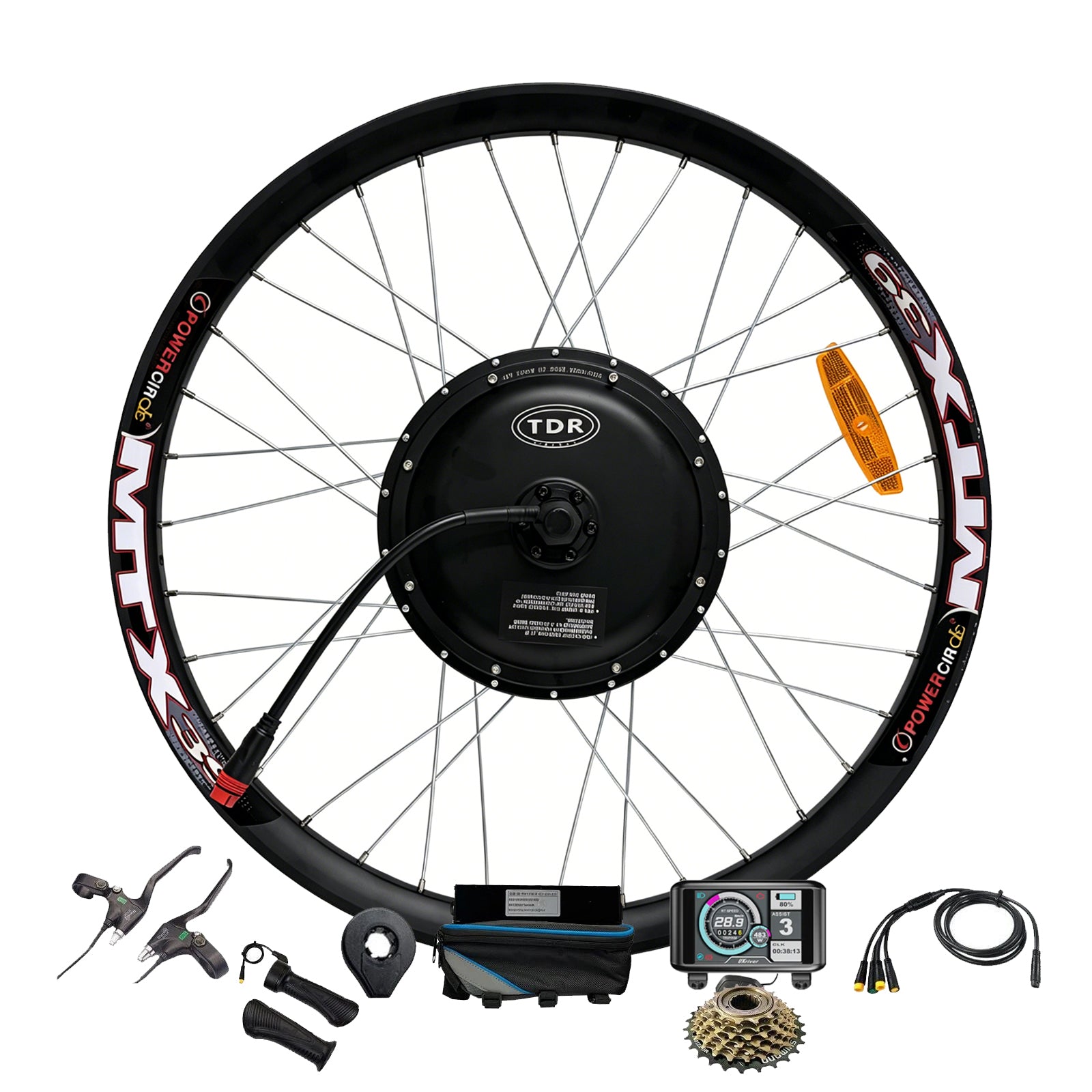

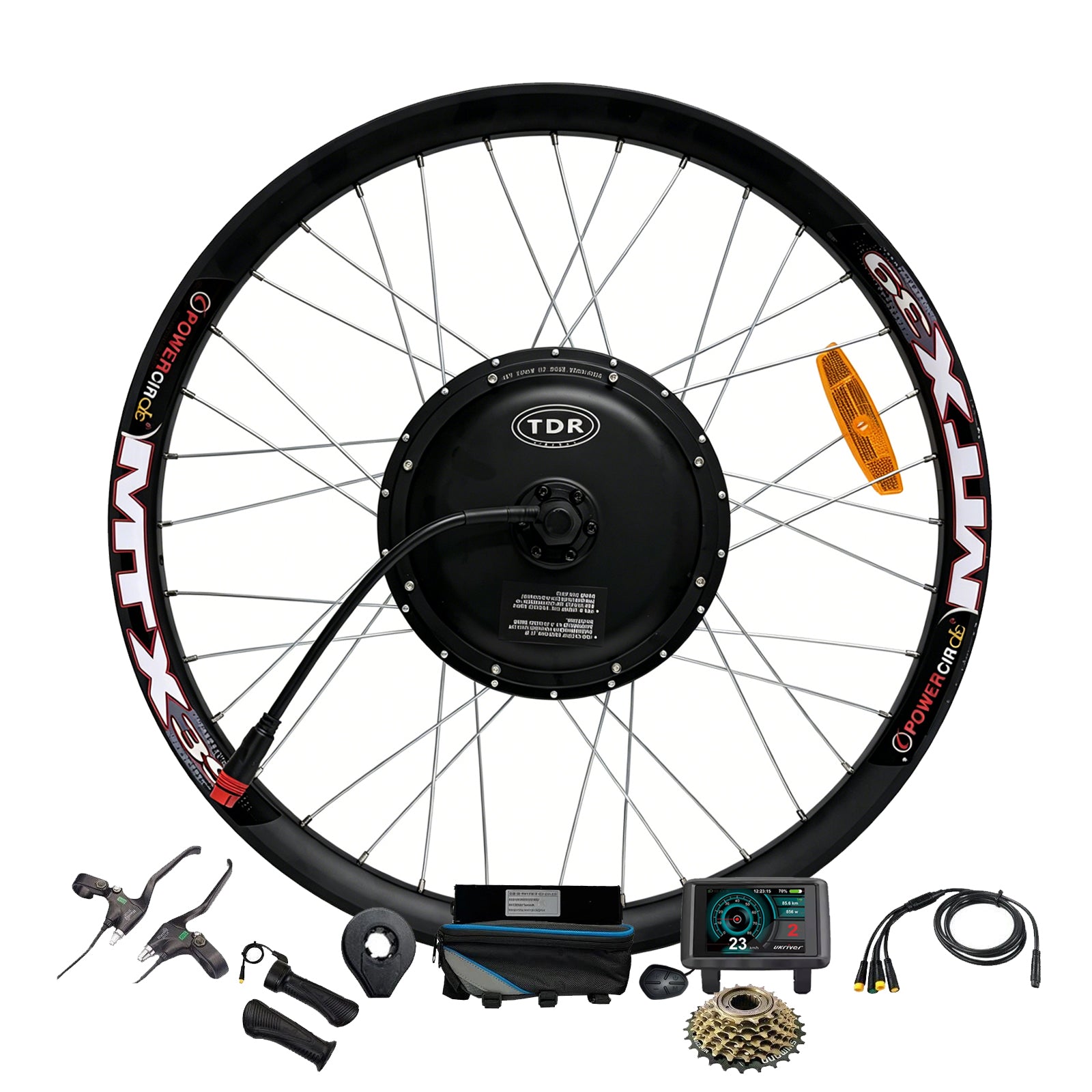

Package Include :

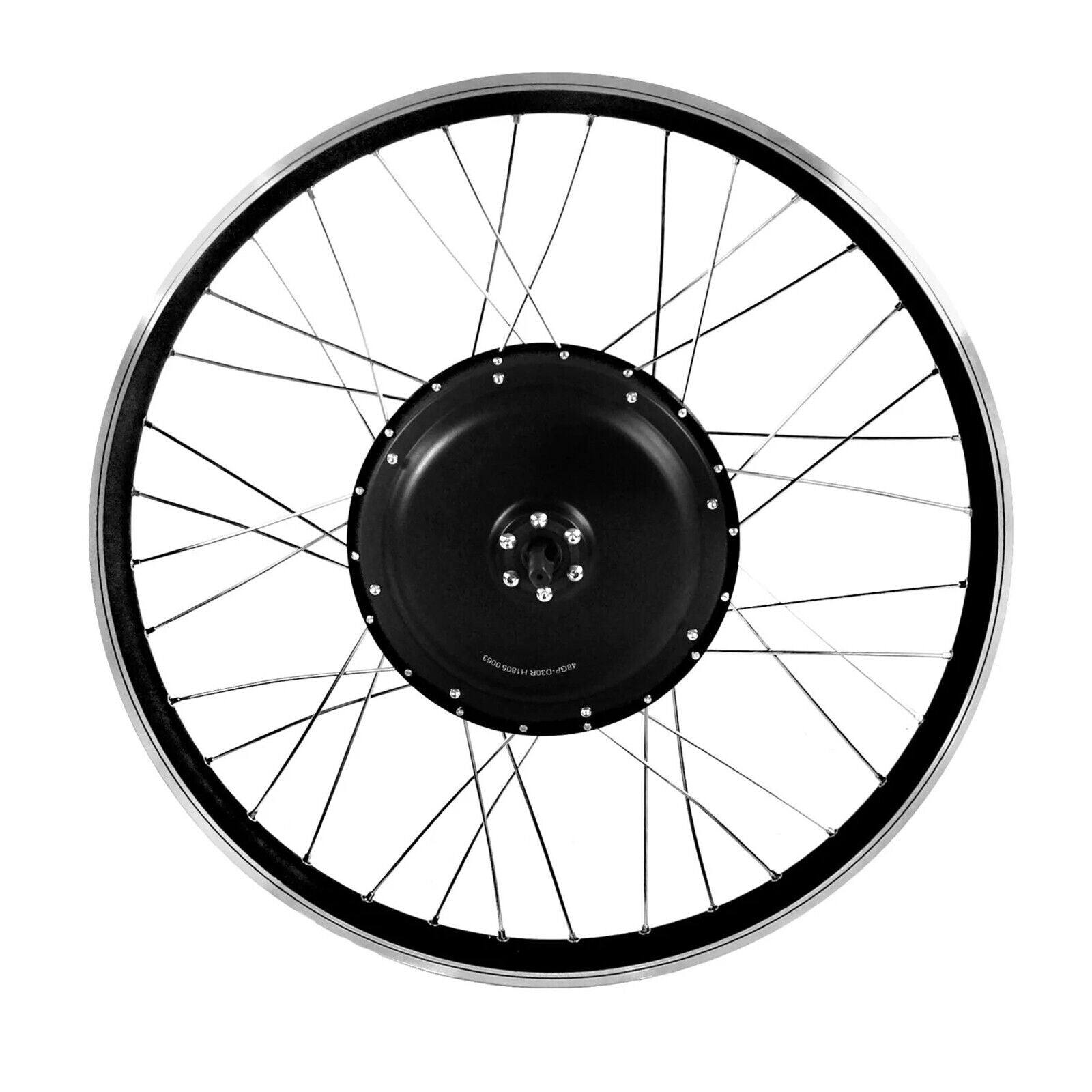

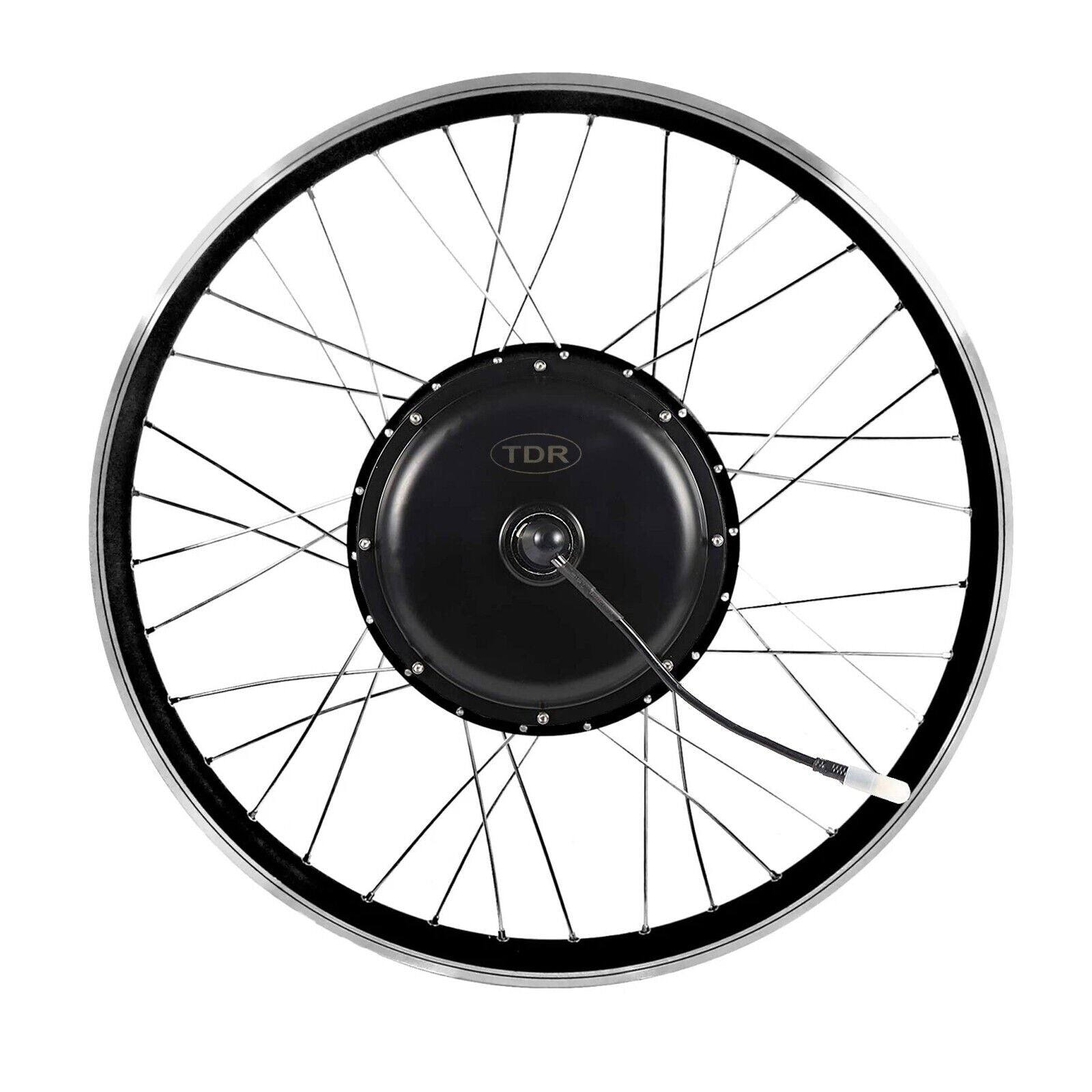

  • 1x 48V 1500W Rear Rim Motor

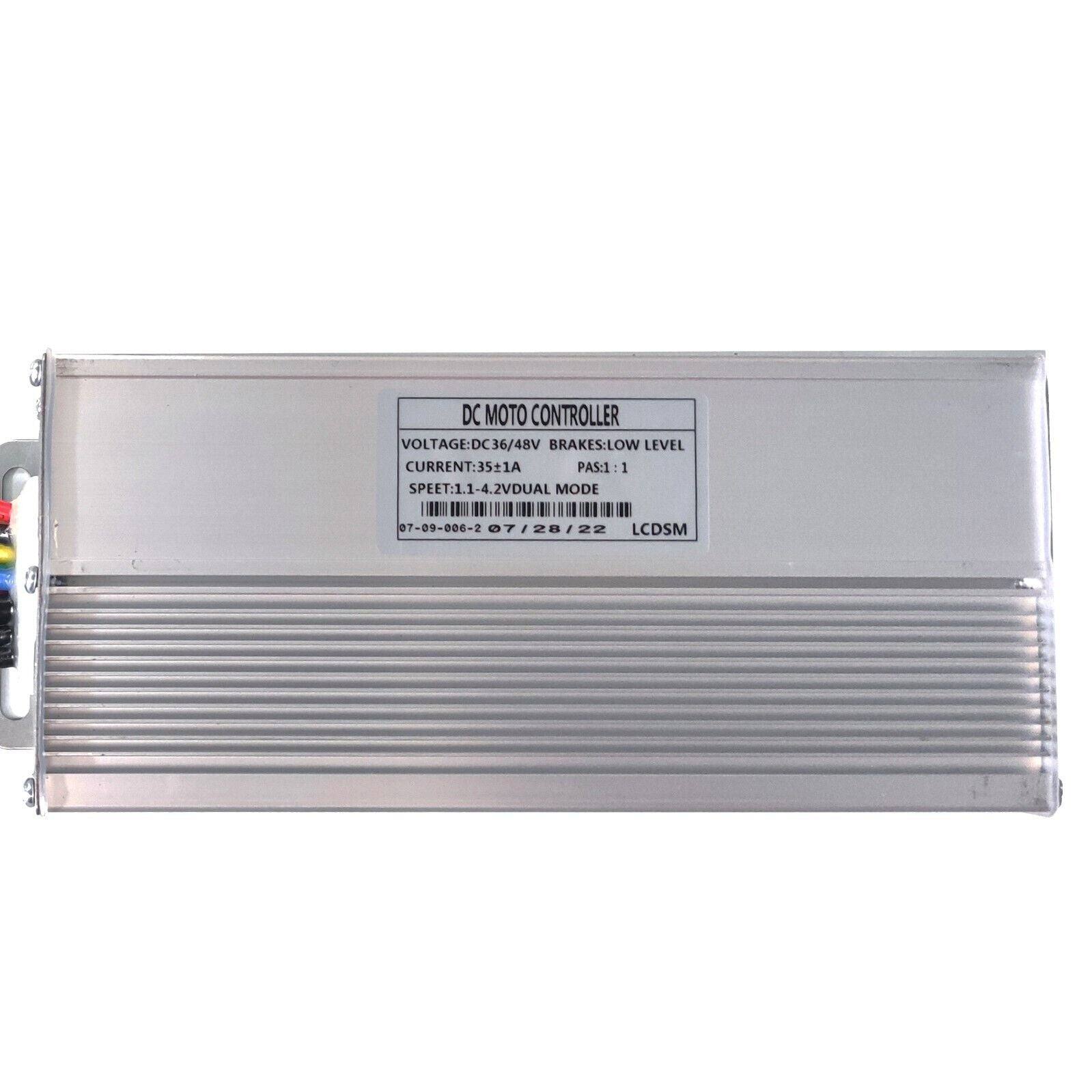

  • 1x Intelligent Motor Controller
  • 1x Controller Box

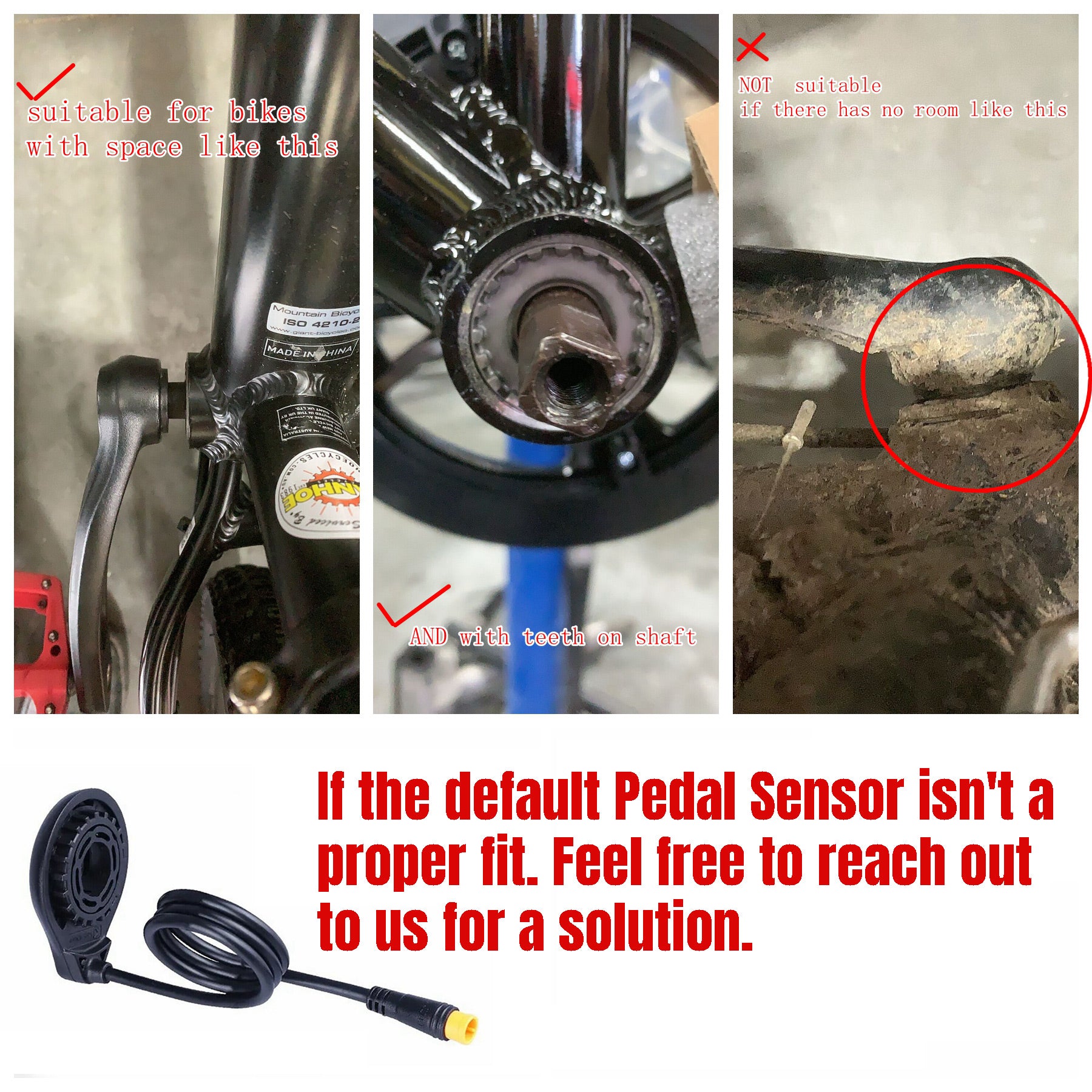

  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers
  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel

Important Notes

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

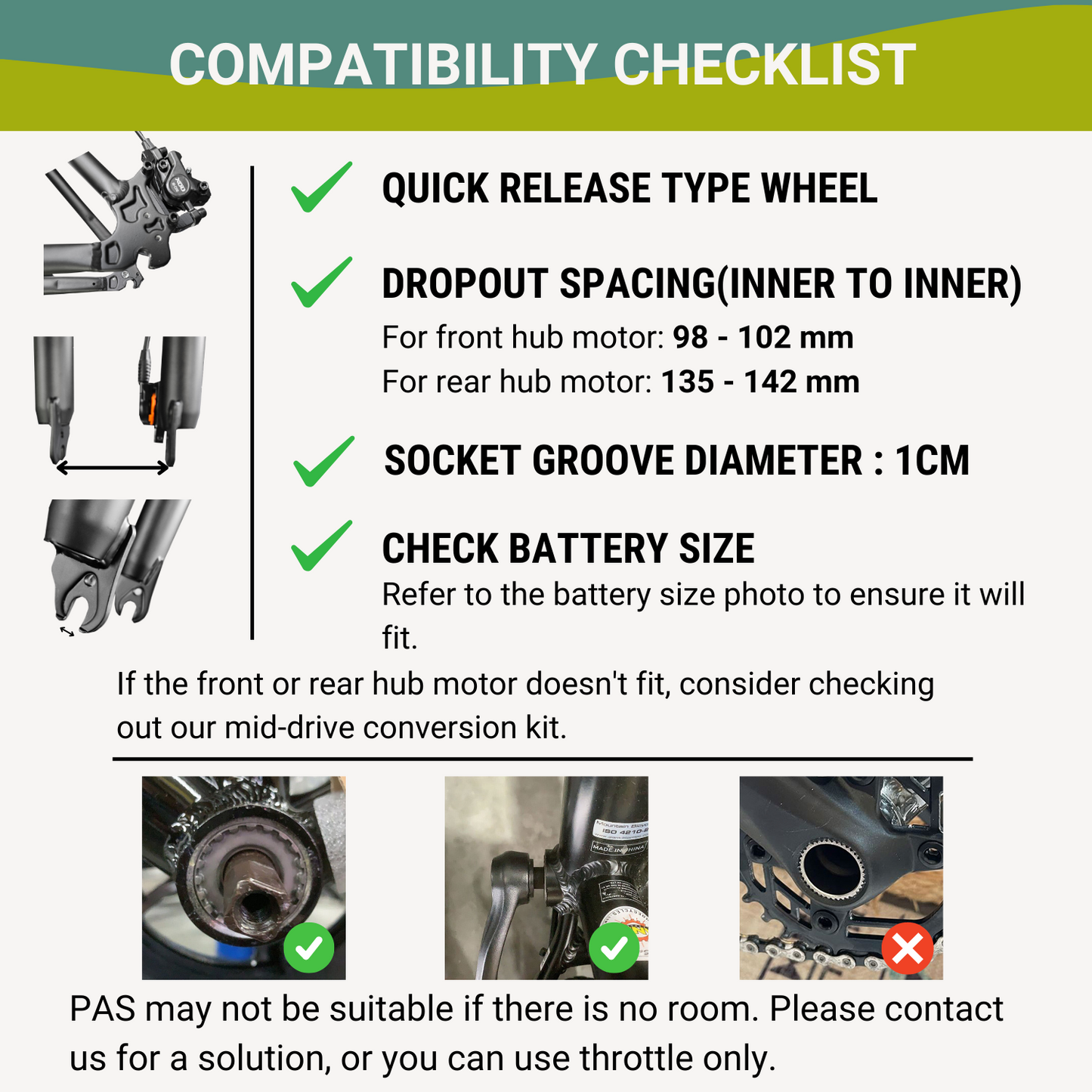

  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
