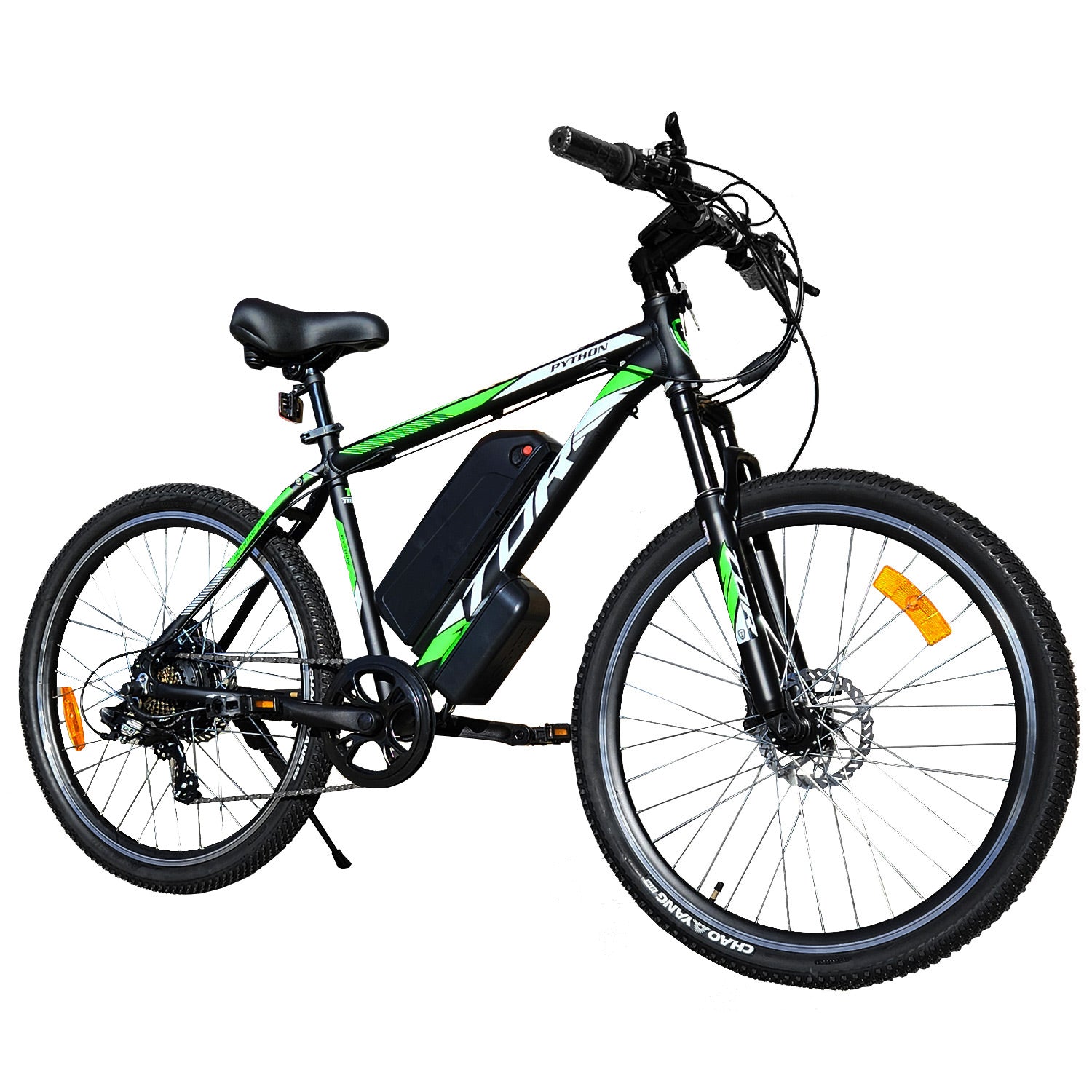

250W TDR Mountain Electric Bike 26'' 27.5'' 29" Downtube Battery
250W TDR Mountain Electric Bike 26'' 27.5'' 29" Downtube Battery
SKU:
Regular price
$975.92
Regular price
$1,109.00
Sale price
$975.92
Unit price
per
- Rim Motor: 36V-250W Brushless Gear Hub Motor
- Frame Materials: Alloy Lightweight Frame
- Wiring Method: Waterproof Wire Connection System
- Maximum Speed: 25 km/h
- Display: KT-LCD5 Panel Display

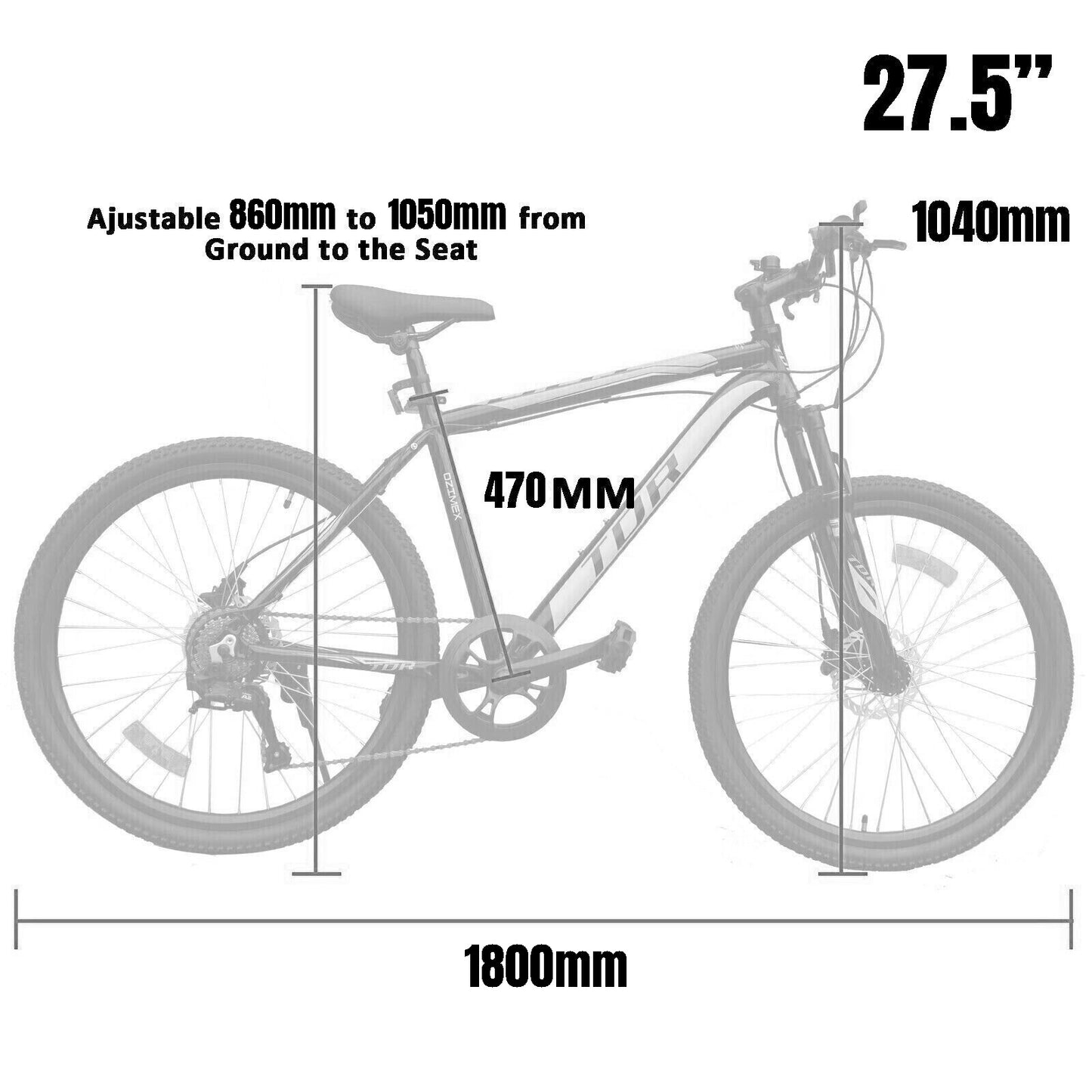

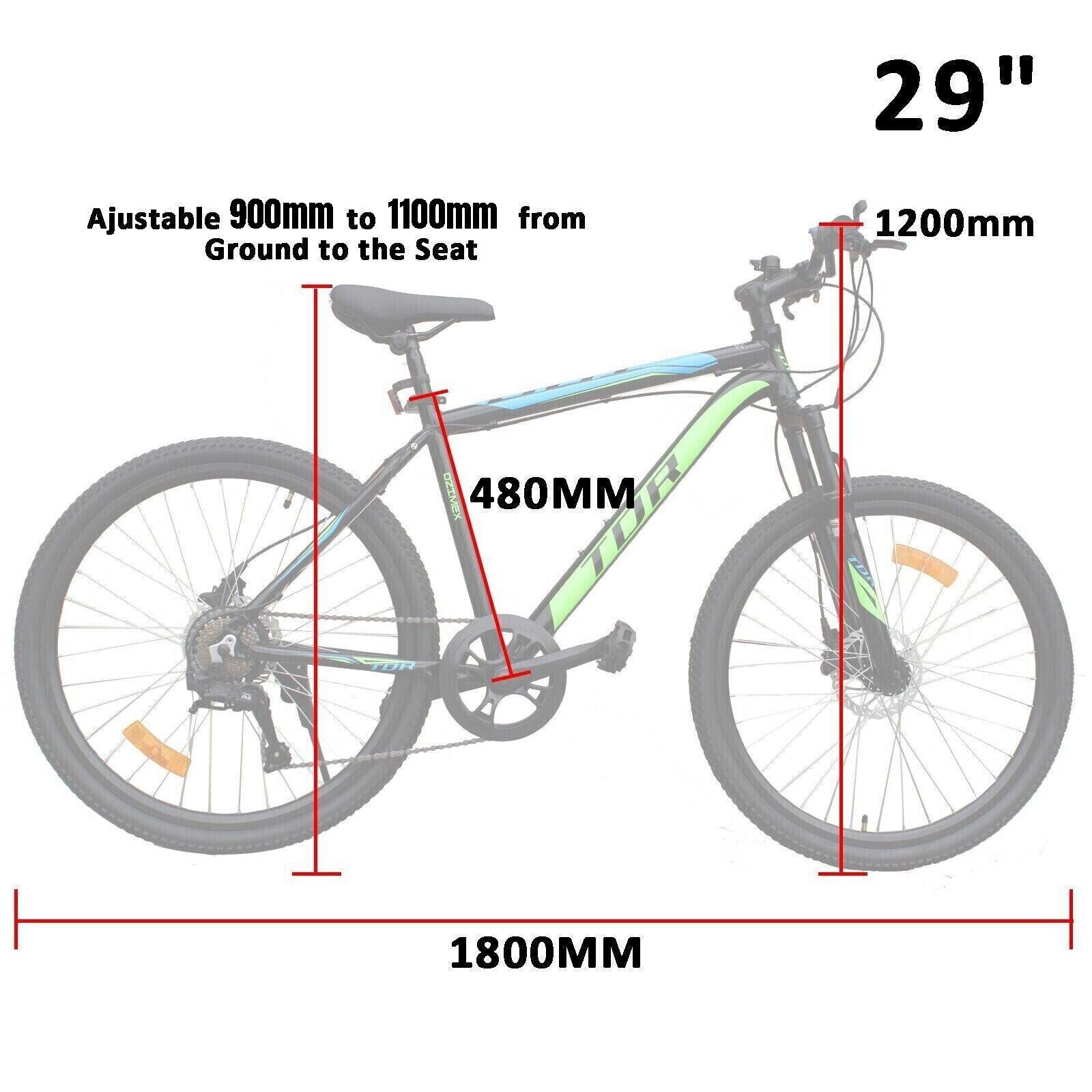

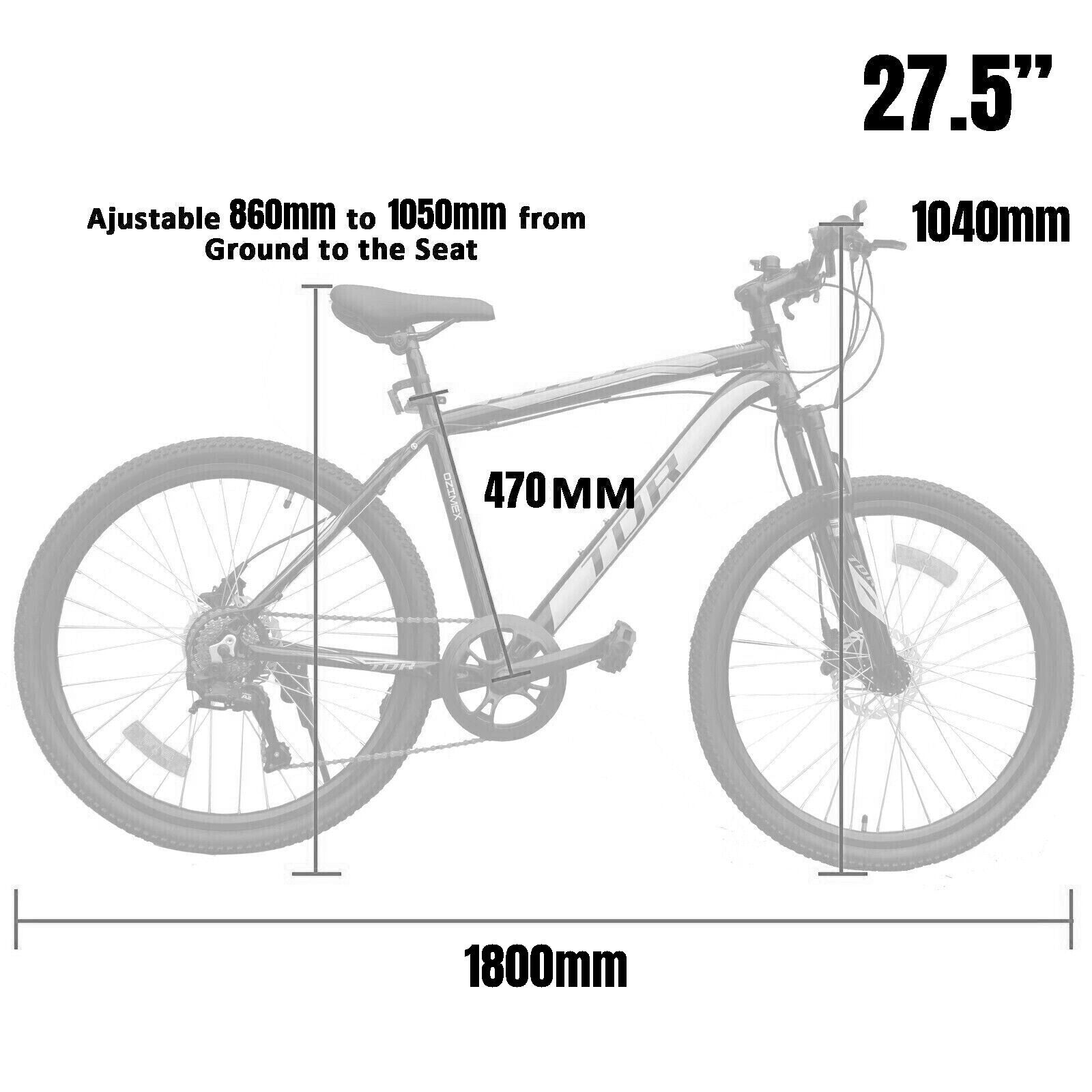

- Wheel Size: 26 / 27.5 x 1.95 or 29 x 2.1
- Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode
- E-Brake, Hydraulic Disc Brake System
- Front Suspension, 7-Speed Gear
- Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
- PAS Sensor: 8 Magnets Pedal Assist Sensor
- Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
- Riding Ranges: Up to 40km(10AH) / 50km(13AH) / 70km(18AH) with Pedal Assist Mode
- Wiring method: Waterproof wire connection system
- Quick Release Seat Post
- Quick Release Rear Wheel
- Downtube 36V 10AH /13AH /18AH Battery with Australian Approval Charger
- 12 Months Replacement Warranty on Motor, Battery
Important Notes:
- Shipping Surcharge may apply to some regional areas, please kindly contact us for confirmation. Otherwise, shipping invoices will be sent after purchase.
- This bike will be 70% assembled due to transportation regulations, it will be brand new in-box and 30% self assembly required
- Parts that require self-assembly are the front wheel, front and rear disc brake adjustment (skilled bike mechanic recommended), handlebar, LCD display.
- Installation guide is NOT provided and professional mechanic installation is highly recommended. Doesn't come with installation tools, you will need some basic tools to install this bike
- Actual colors of the product may vary slightly, due to different device screen settings, lighting conditions, slight differences in product finishes, and other factors
- Speed limit and range are for reference only, it depends on the weight of the rider, road, and weather conditions
- Laws regulating e-scooters and e-bikes vary by state. In Victoria, for on-road use, e-bikes must adhere to 250W and 25km/h restrictions. Please review local regulations, especially if you do not intend to use them off-road or on private property
Warranty:
- We offer one-year manufacture battery & motor replacement warranty for our electric bikes or e-bike kit under non-commercial use.
- We will not be held any responsible for theft, damage, or injury caused while using this product
- Warranty will not cover:
- Minor scratches, marks, or imperfections
- Damage due to external causes, e.g. damage by negligent use, incorrect use and tampering with the battery pack, damage by traffic accidents and damage during any transportation, e.g. by couriers
- Damage due to normal wear and tear and maintenance. Wear and tear items that are not covered includes tyres, tubes, brakes, brake pads, wheel spokes, derailleur tuning, gear adjustments, bottom bracket tightening, handlebar adjustments, seat, stand, foot pegs and etc
- If the bike doesn’t reach top speed this is not covered by warranty and if the distance per charge is not as advertised this is also not covered by warranty as this is only an estimation. Speed and range depends on weight, road and weather condition. Batteries lose capacity overtime naturally, so the distance per charge will decrease overtime
- Poor maintenance and any modifications to the product or components
