28'' 29'' 700C Inch 1500W Rear Ebike Electric Bicycle Conversion Kit 48v 28.8AH Battery

28'' 29'' 700C Inch 1500W Rear Ebike Electric Bicycle Conversion Kit 48v 28.8AH Battery

SKU:

$1,439.00
$1,439.00
Liquid error (snippets/price line 86): Computation results in '-Infinity'% off Sold out
Tax included. Shipping calculated at checkout.
  • For Rear 28 inch, 29 inch, 700C  wheel with a tire width between 1.75 - 2.25 Inches - Please note that the rim outer diameter is not the rim size, the writing on the side wall of your tire is the size of the wheel.
  • Torque: 65 N.M

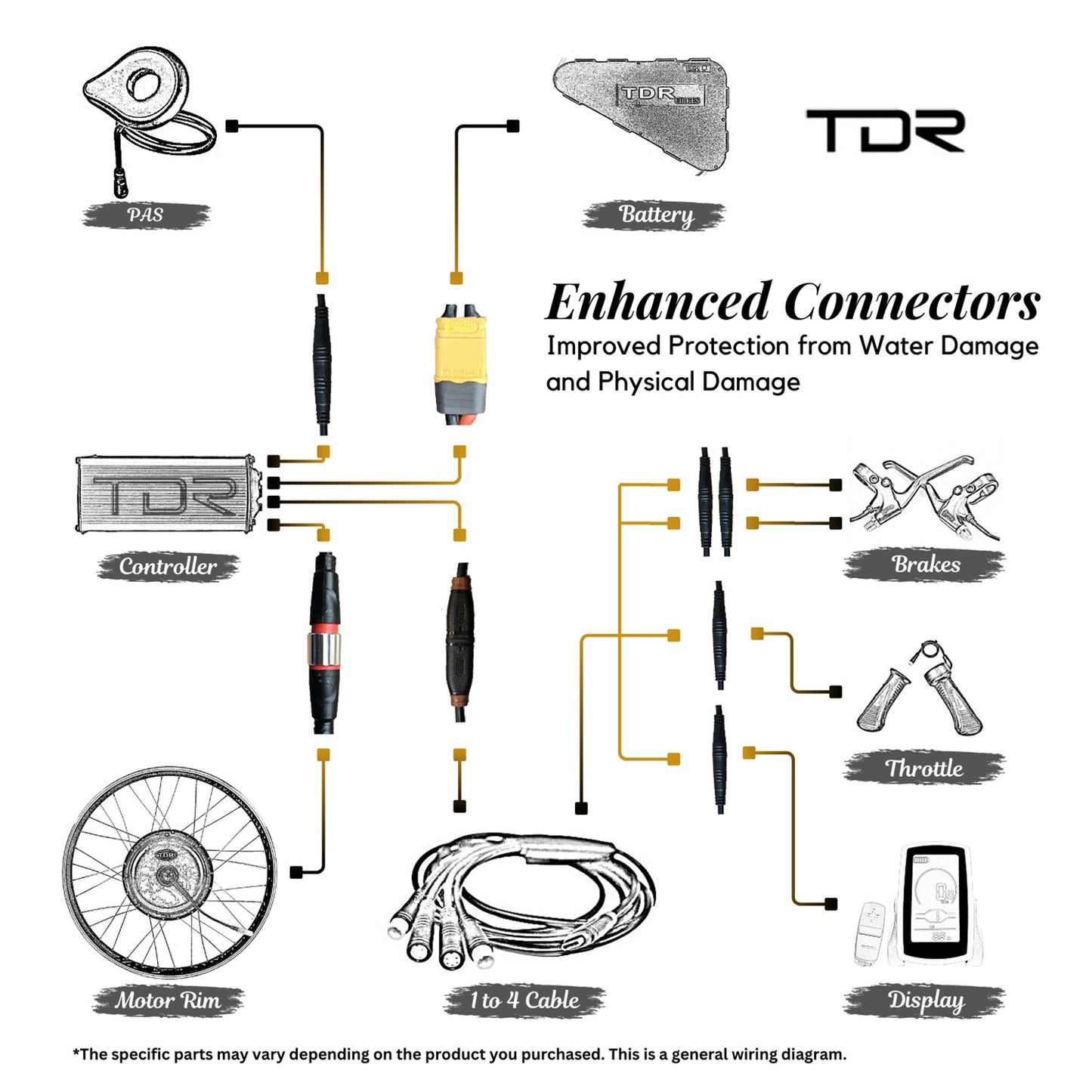

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 60 km/h
  • Display: Intelligent Colorful LCD Panel Display
  • Controller: Intelligent Motor Controller, the Current is 35±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
  • PAS Sensor: 12 Magnets Pedal Assist Sensor

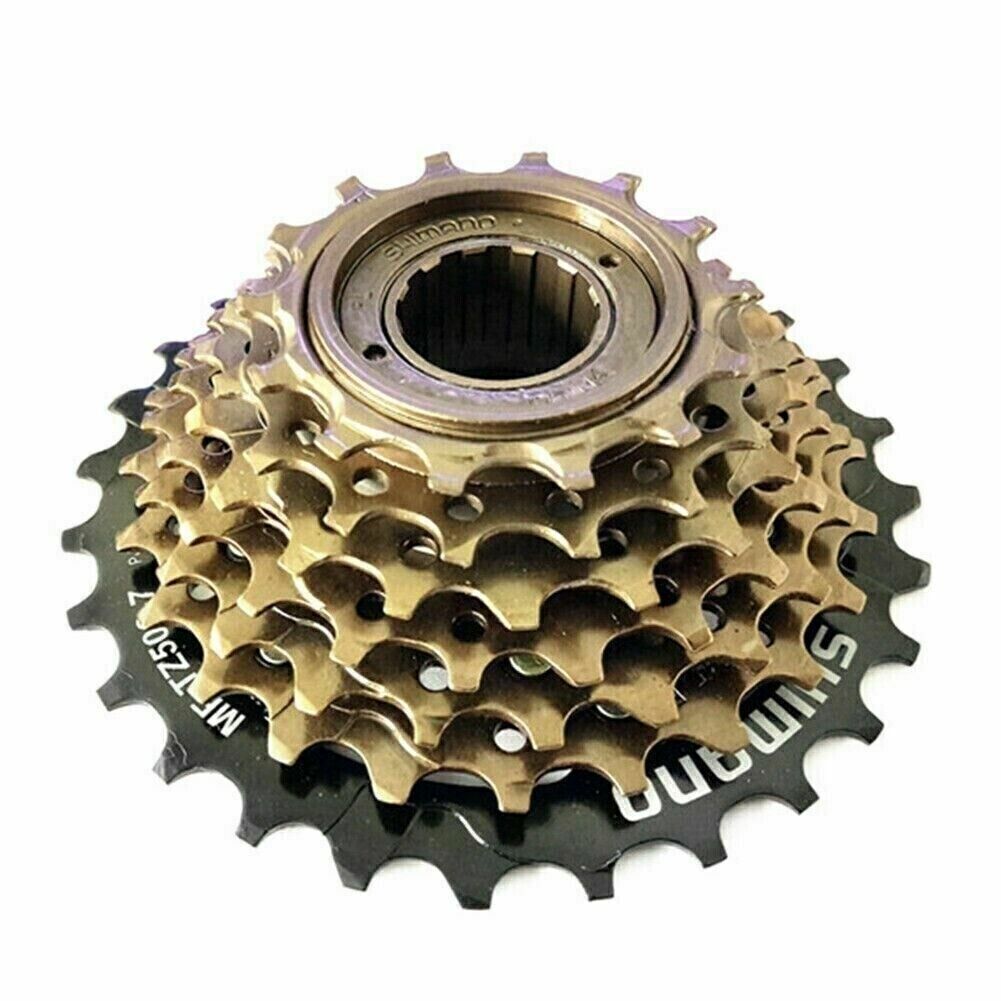

  • Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor & Battery

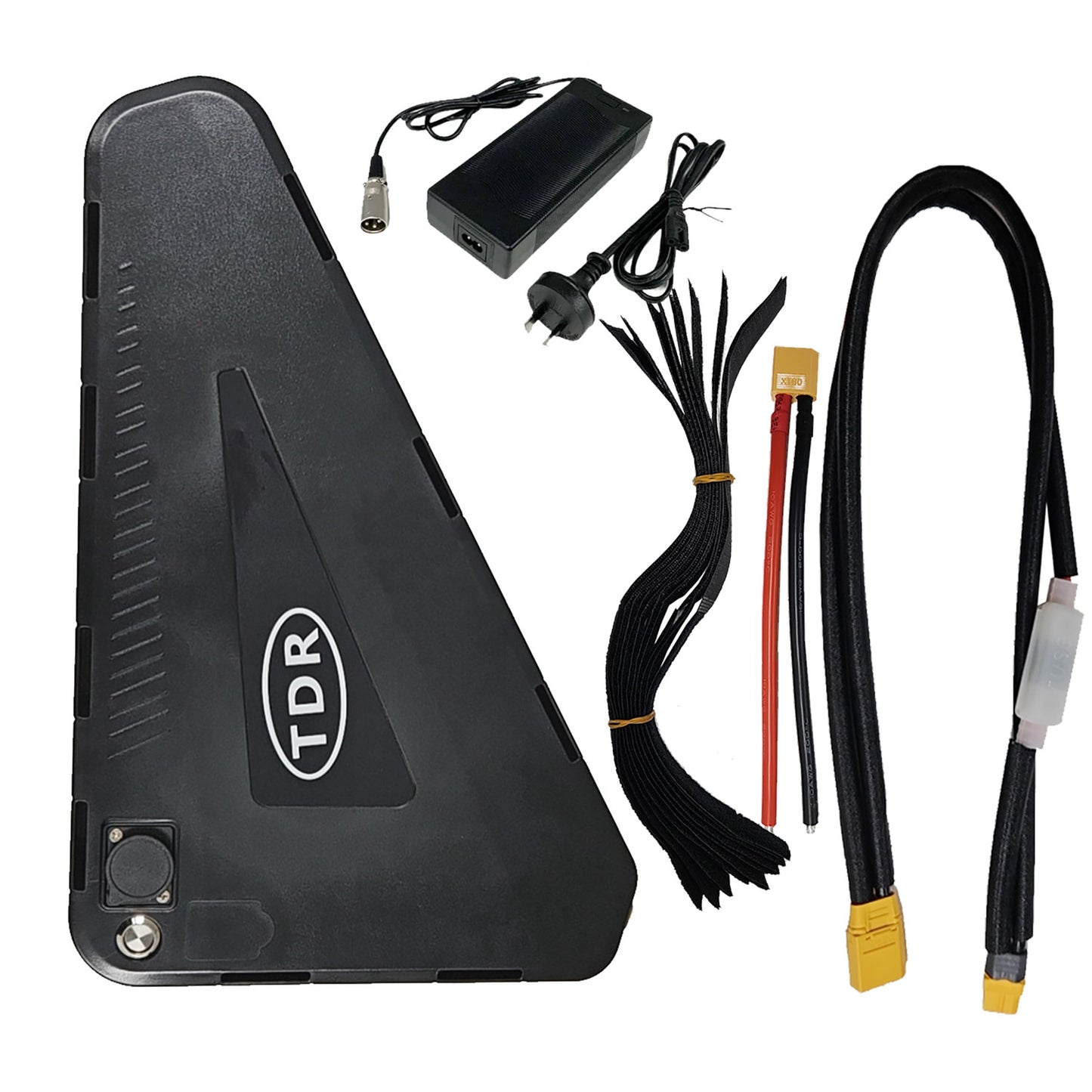

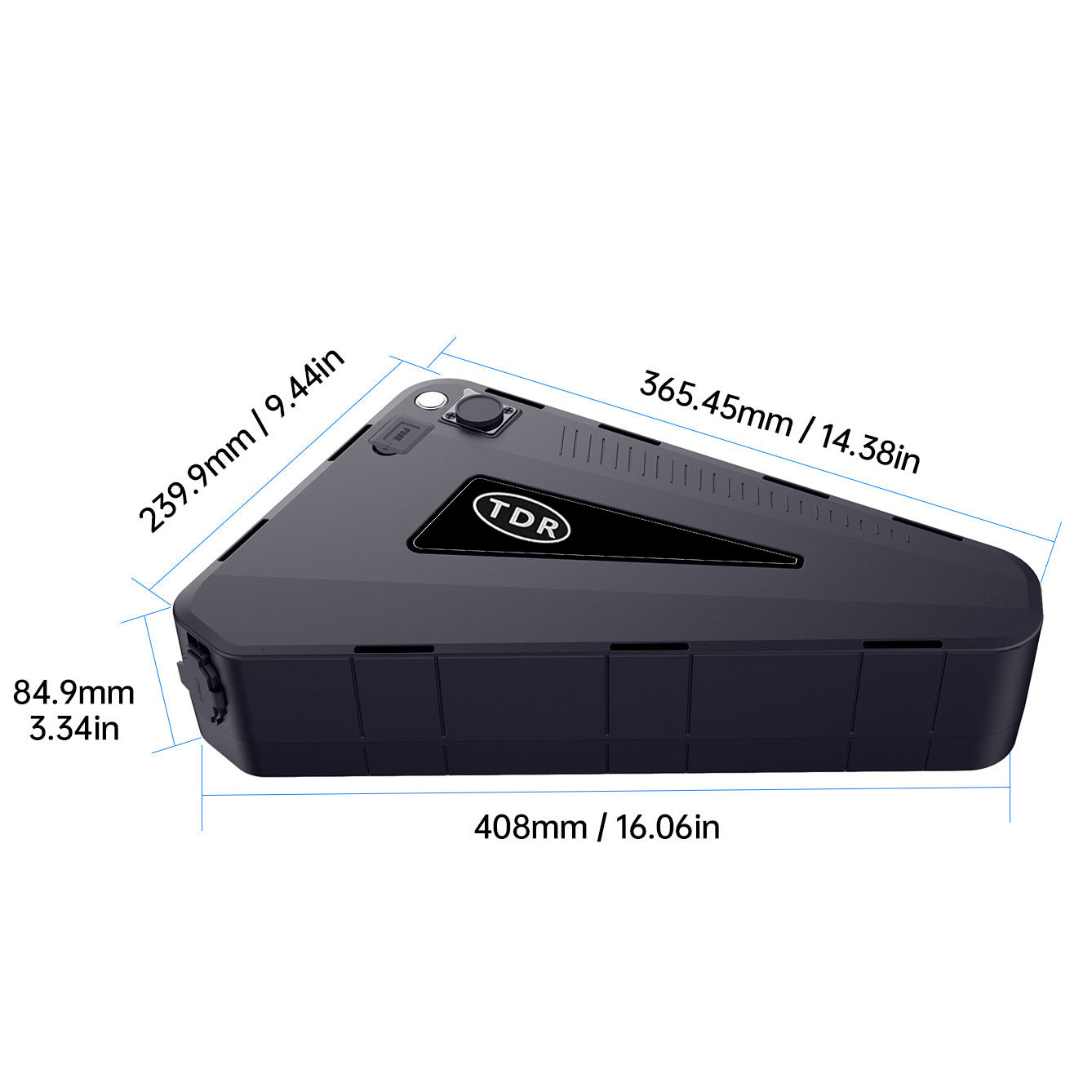

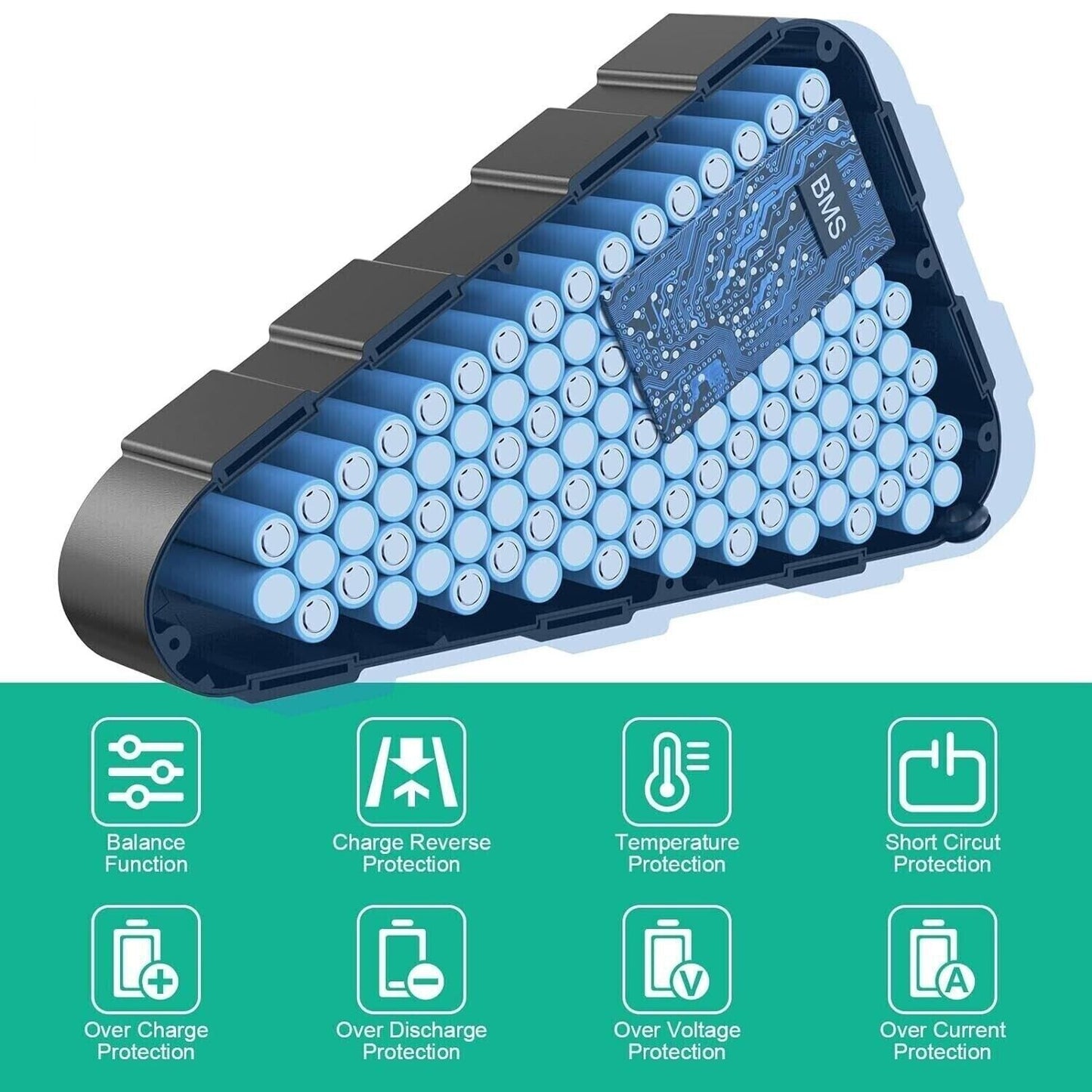

  • 48V 28.8AH Triangle Battery with case , LG cell 4800mah
  • Riding Range: Up to 110 km range with Pedal Assist Mode

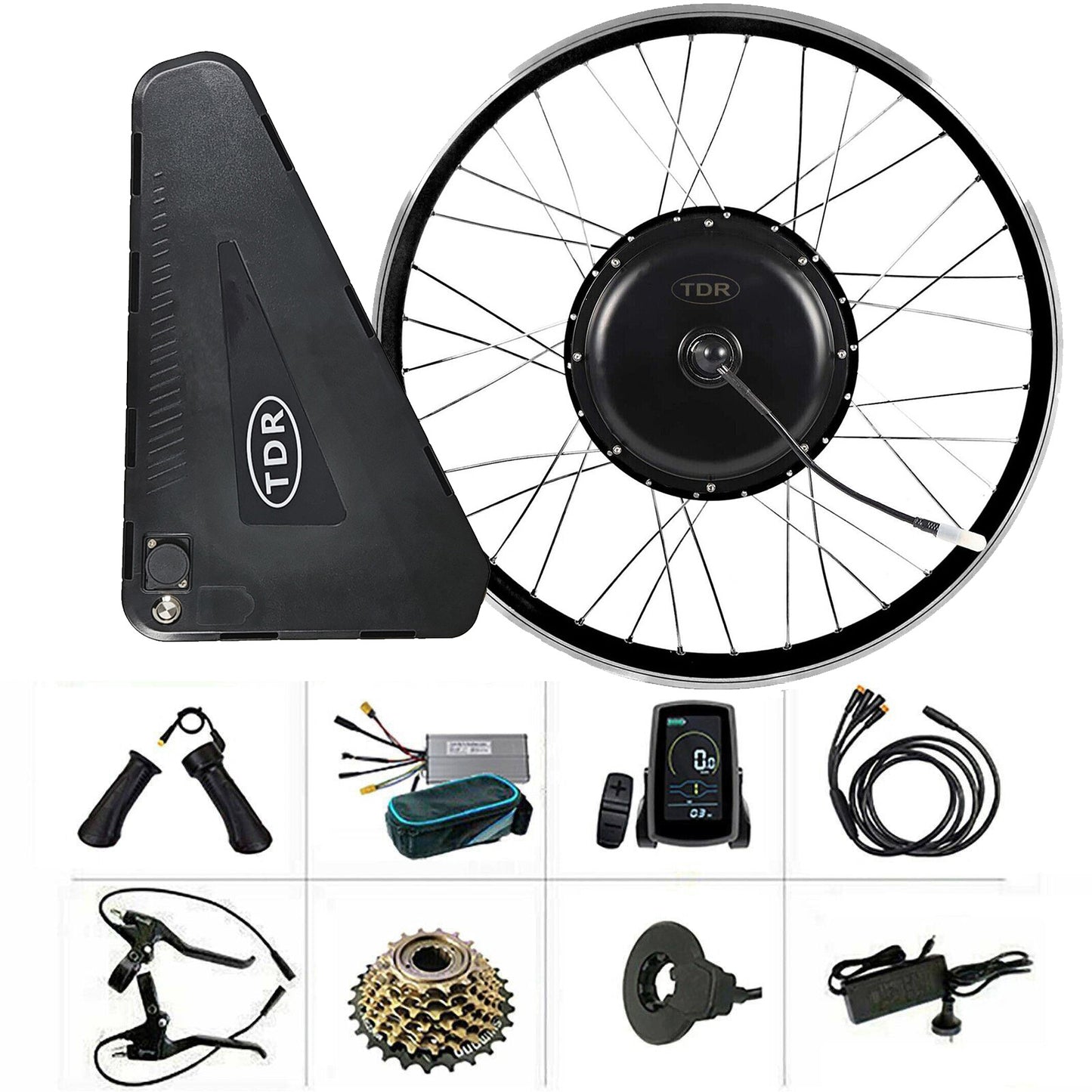

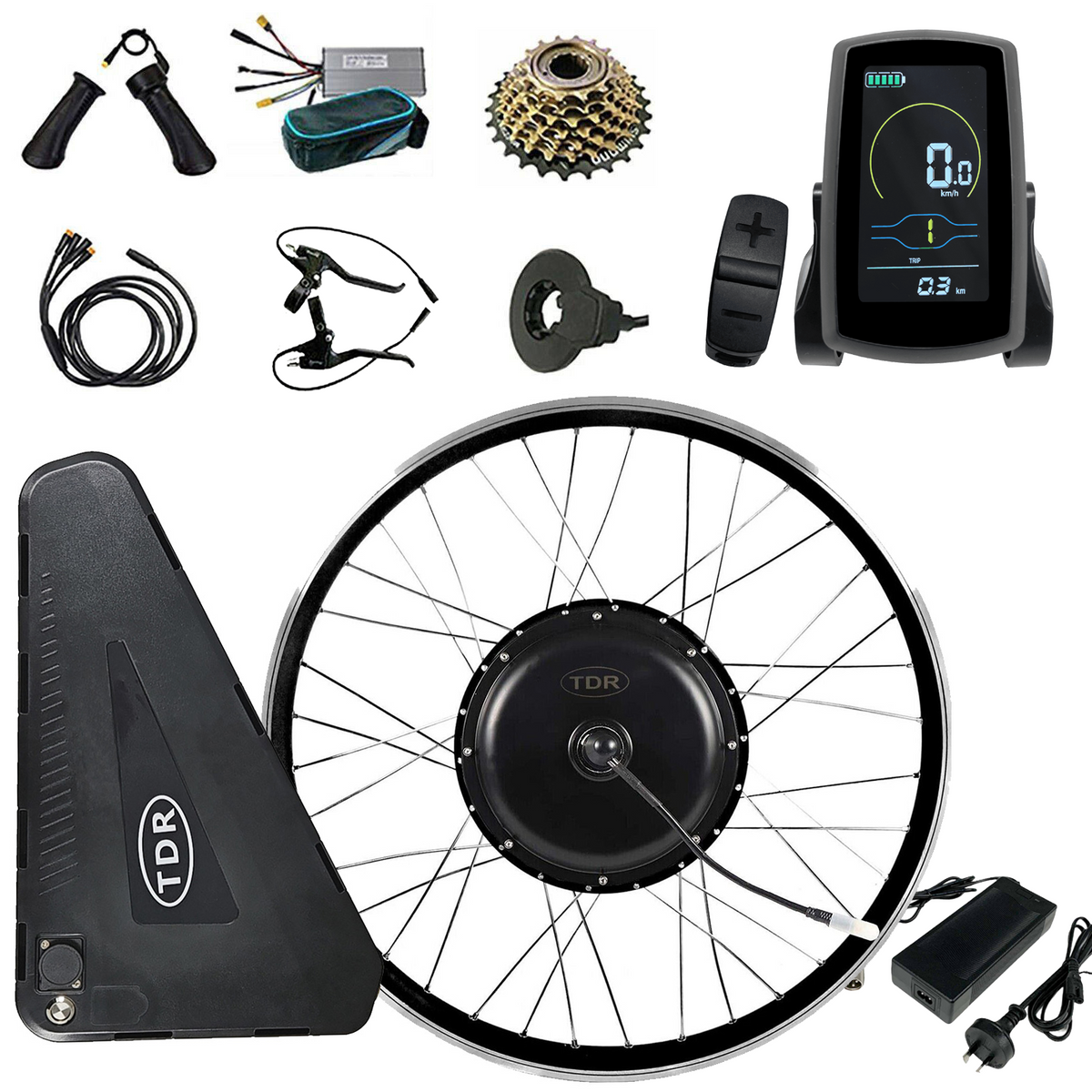

Package Include :
  • 1x 48V 1500W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers

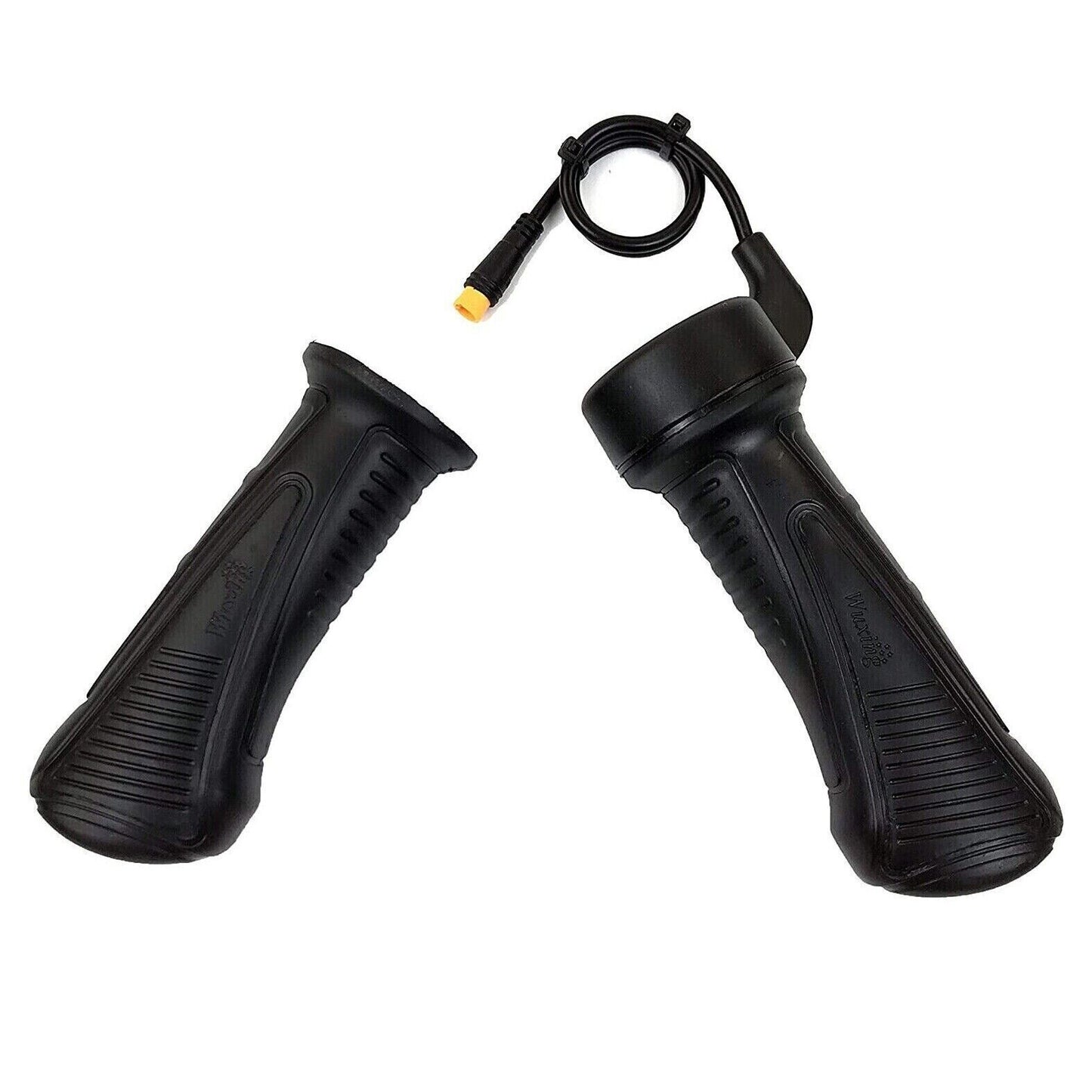

  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 7 Speed Freewheel

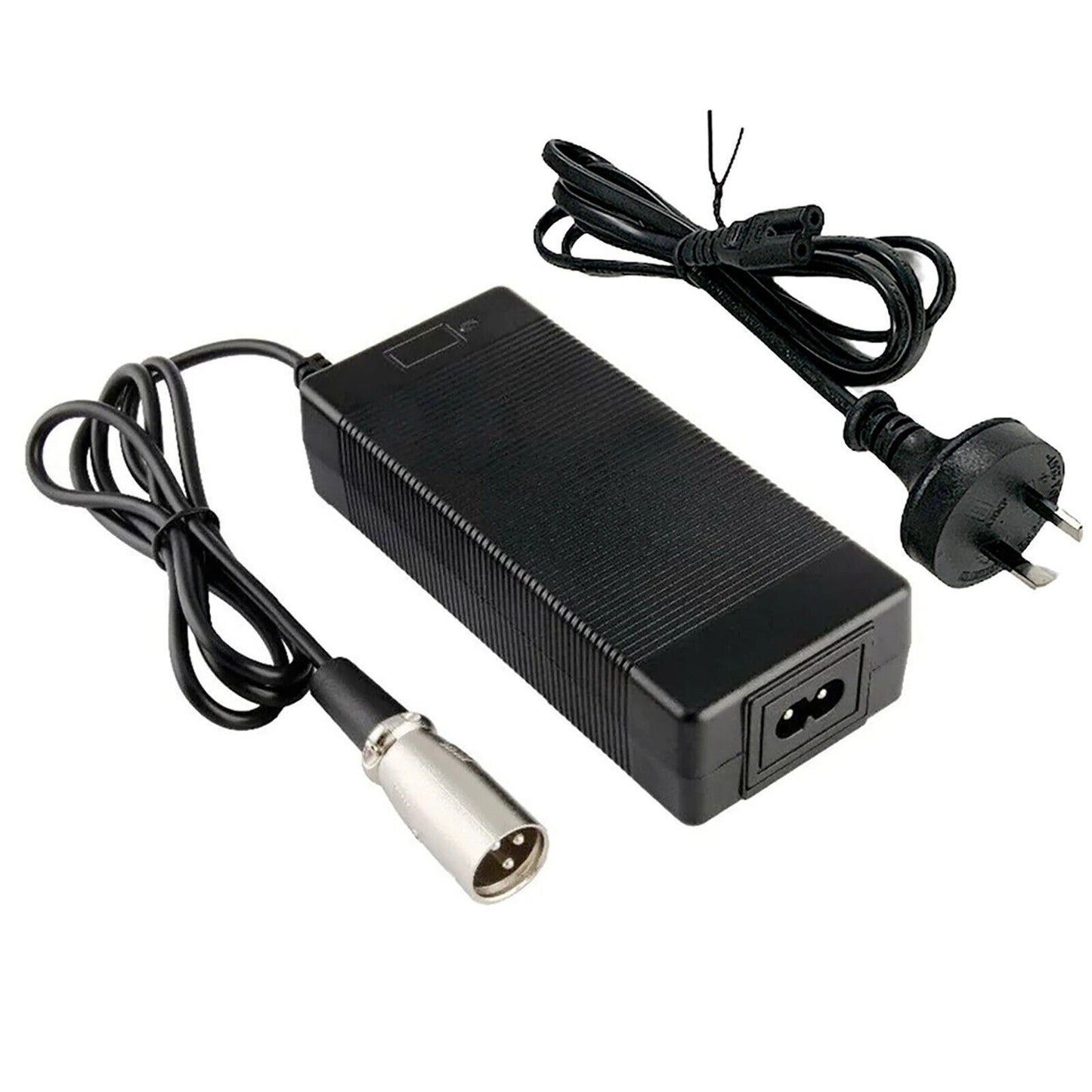

  • 1 x 48V 28.8AH Battery & Charger Set

Important Notes
  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

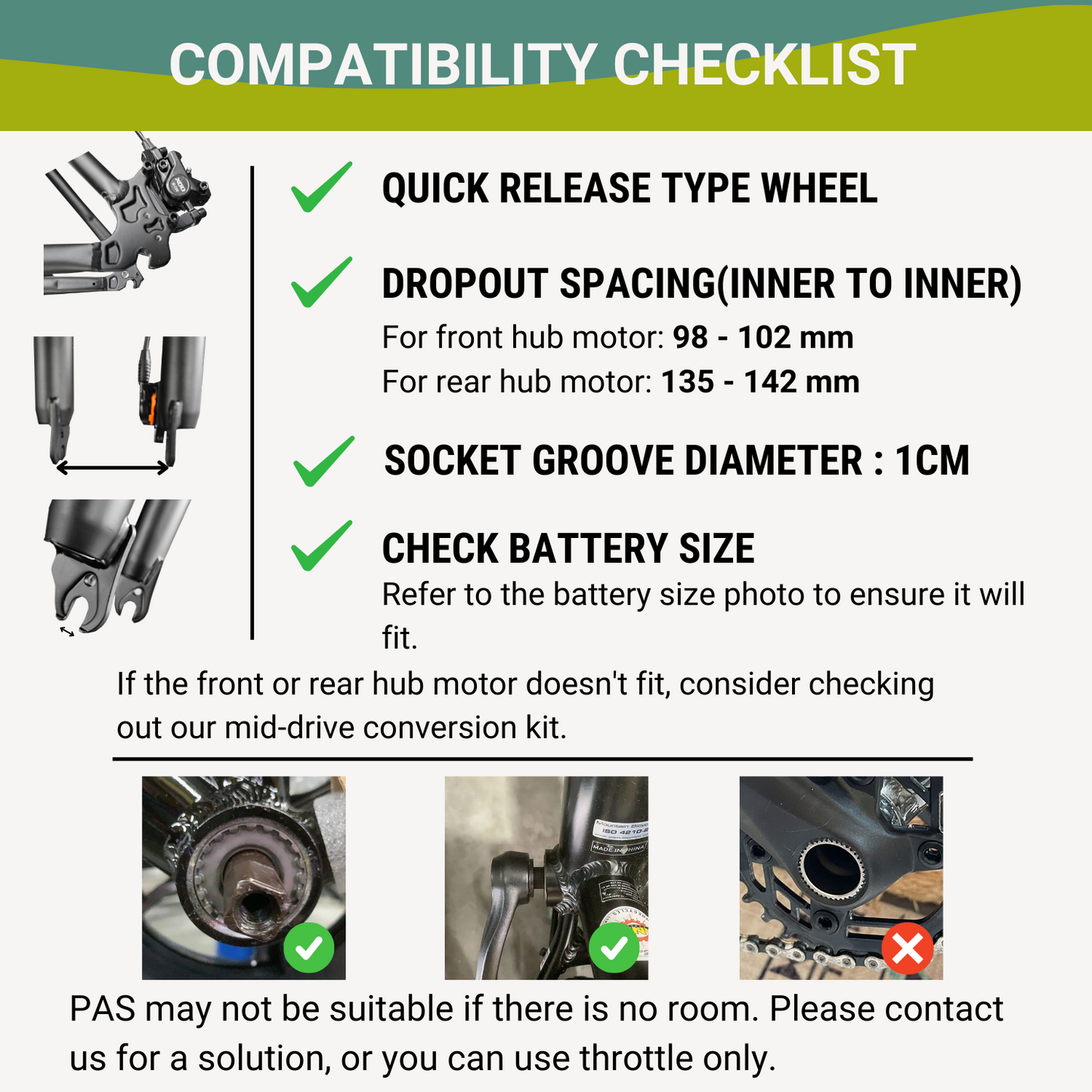

  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
E-Bike & E-Kit User Manuals, Installation Videos, Troubleshooting Guides View full details
