350W 27.5" Rear Hub Electric Bike Conversion Kit
350W 27.5" Rear Hub Electric Bike Conversion Kit
SKU:
Couldn't load pickup availability
- For Wheel Size: 27.5'' Rear Wheel with width size 1.50 to 2.25
- 350W Brushless Gear Hub Motor

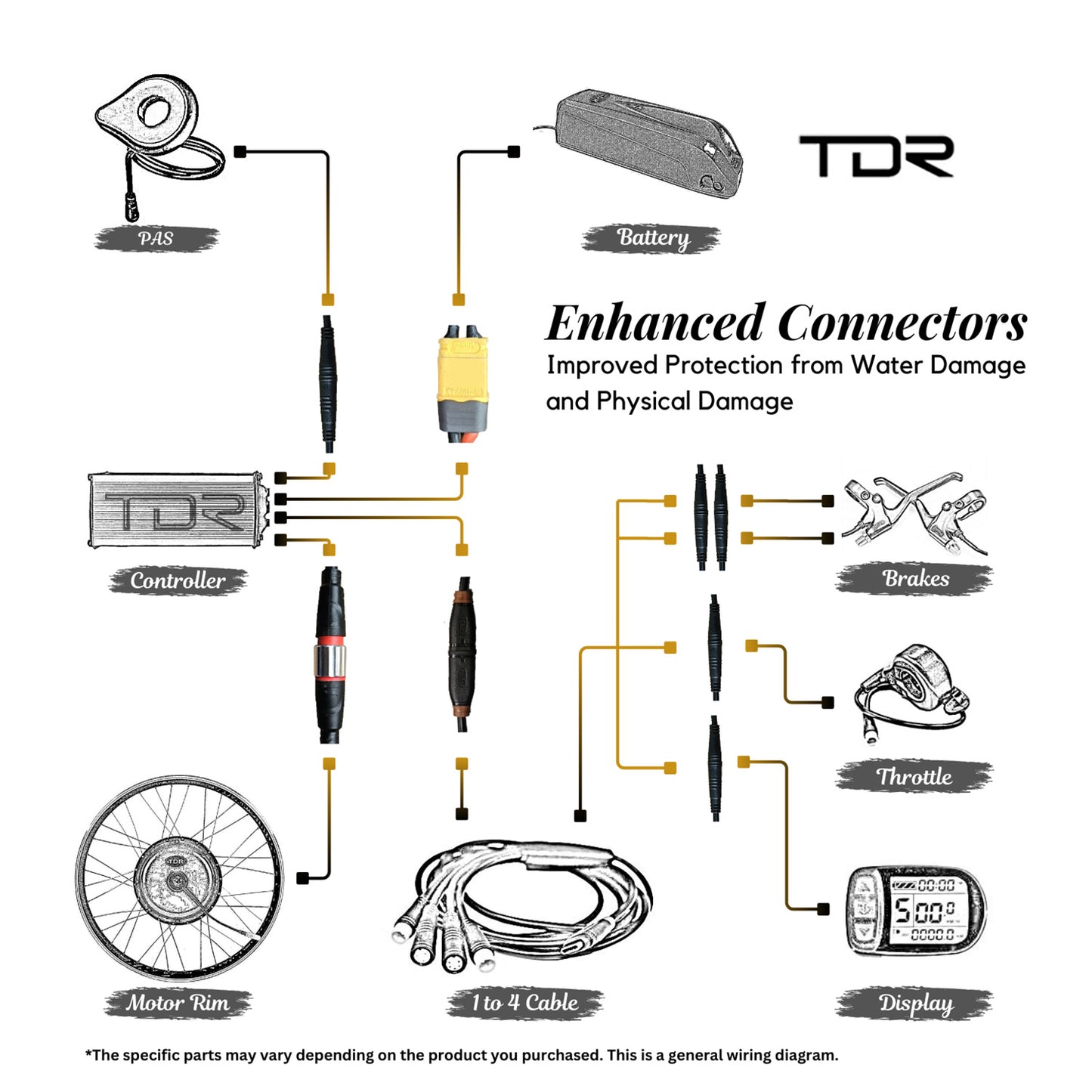

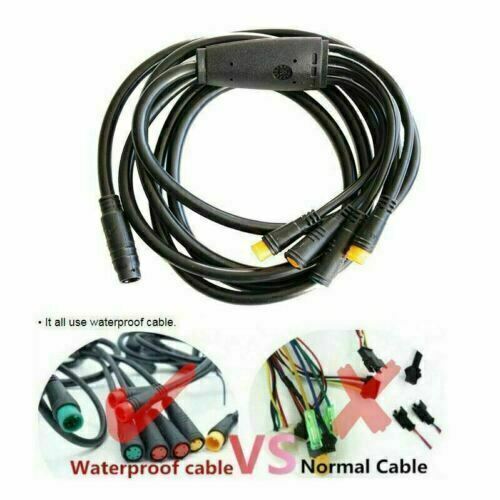

- Wiring method: Waterproof Wire Connection System
- Full Speed Up to 35 km/h
- Riding mode: Throttle Electric Assist Mode, Pedal Assist mode

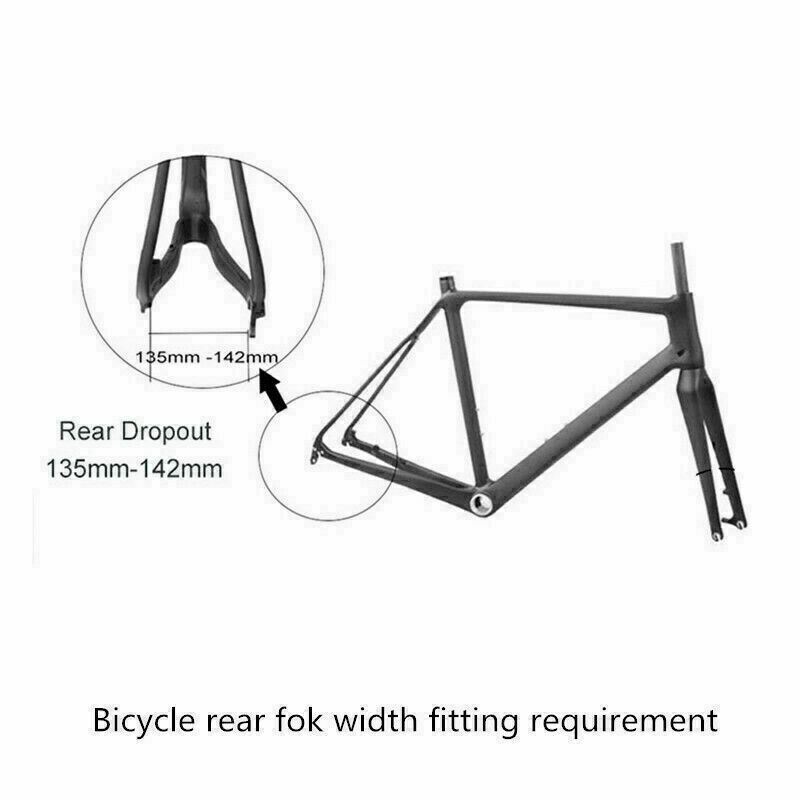

- Front fork width requirement: 135mm - 142mm
- Suitable for Disc Brake (6 holes to mount the disc rotor) and V brake to use
- Aluminum Alloy Wuxing E-brake Lever
- Alloy double wall rim CNC sidewalls, with 12g steel spokes
- KT Brand 36V Controller
- Throttle Throttle
- 8 Magnet PAS Sensor

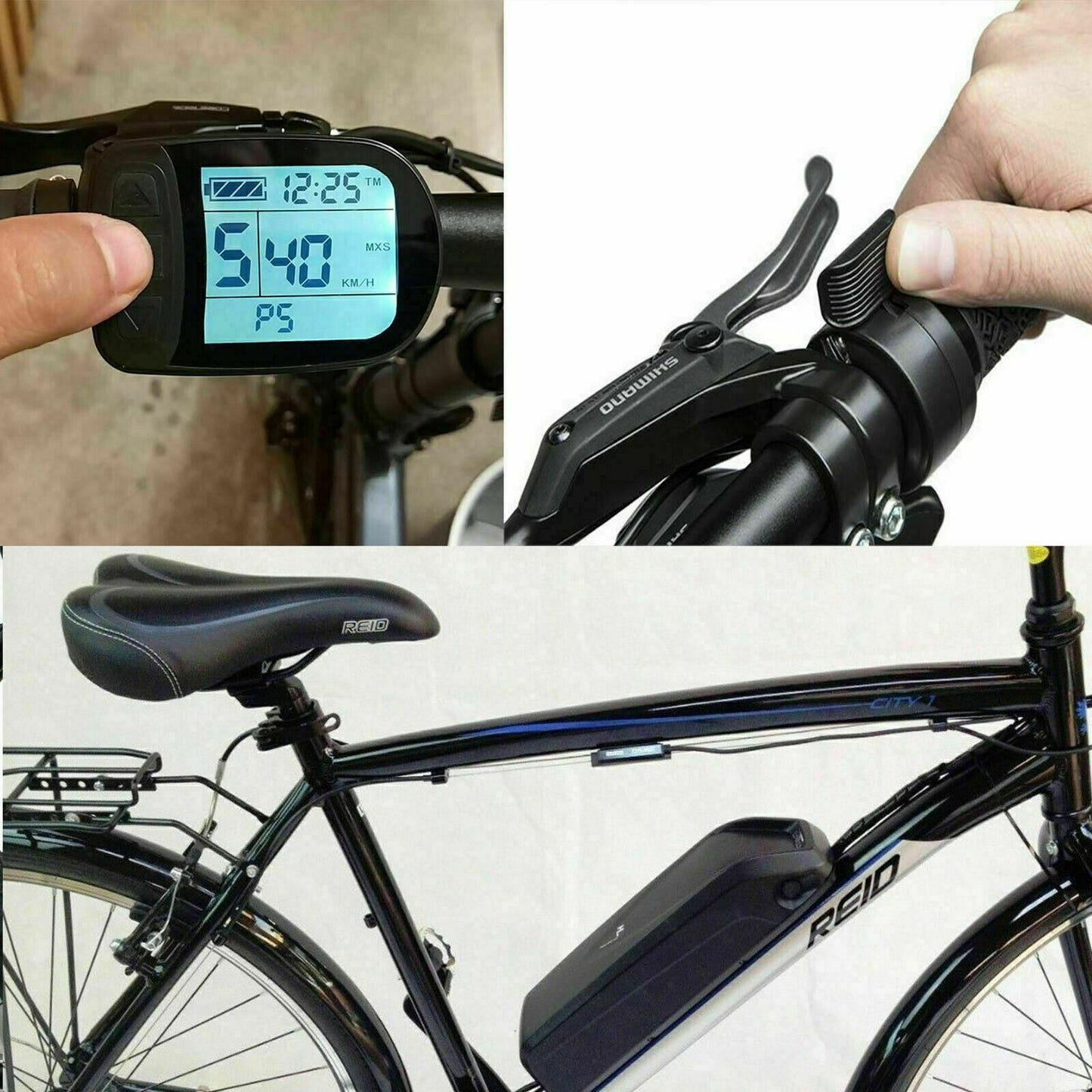

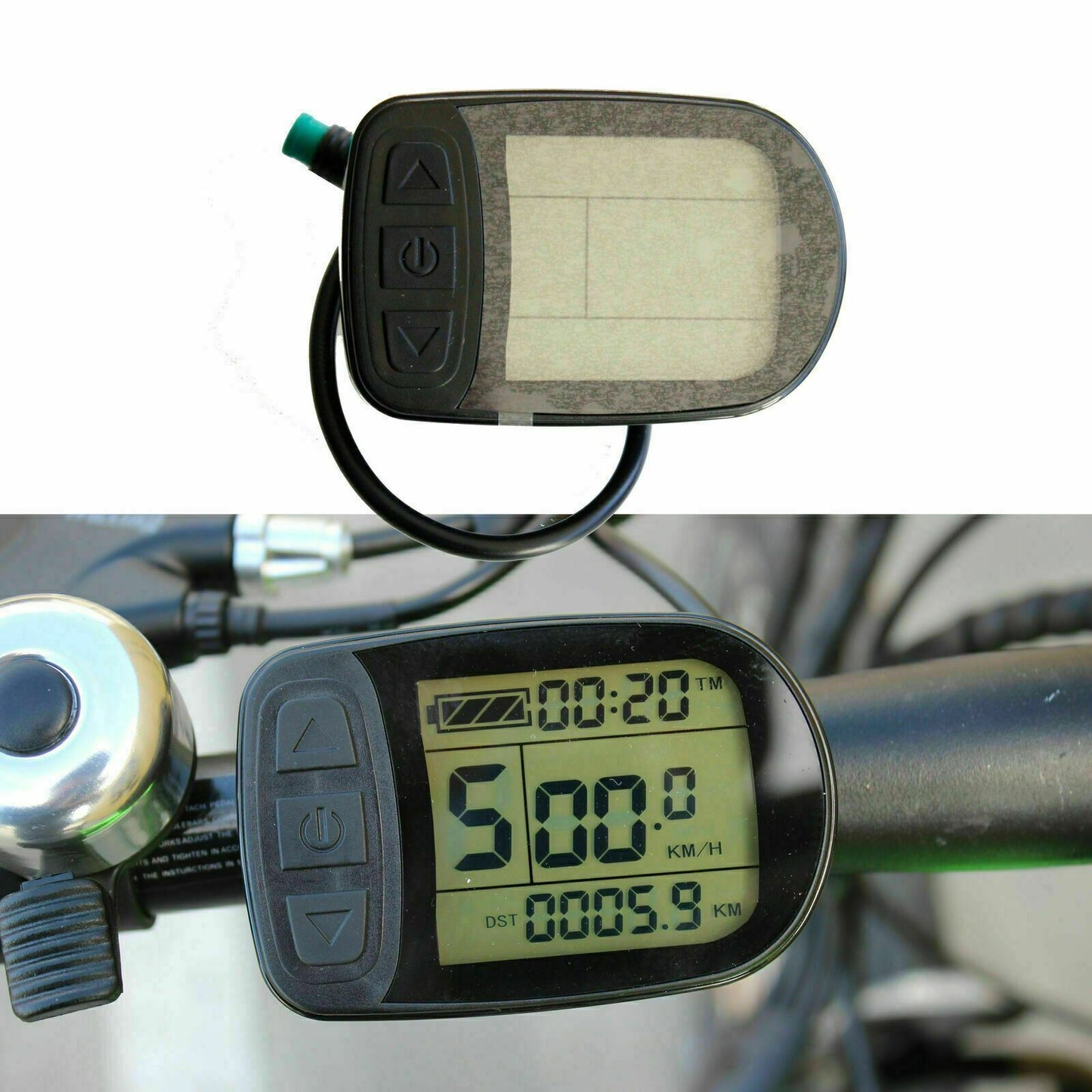

- KT LCD5 LCD Display Panel
- 36V Lithium-ion Battery
- Australia Approval Charger Set
Key Features:
- Built to the highest international standards, CE
- Powerful 350W 36V brushless hub motor
- Alloy rim & steel spoke & Aluminum alloy powerful controller
- Aluminum alloy powerful controller guarantee big current supply
- Thumb Throttle with waterproof cables has battery level and power-cut off
- Brake Levers cut off the power supply to the motor safely
- Riding Range: Max 40km(10AH)/ 50km(13AH) / 60km(15Ah) / 72km(18Ah)when using Pedal Assist Mode on our bicycles
- Australia Safety Standard Charger Set

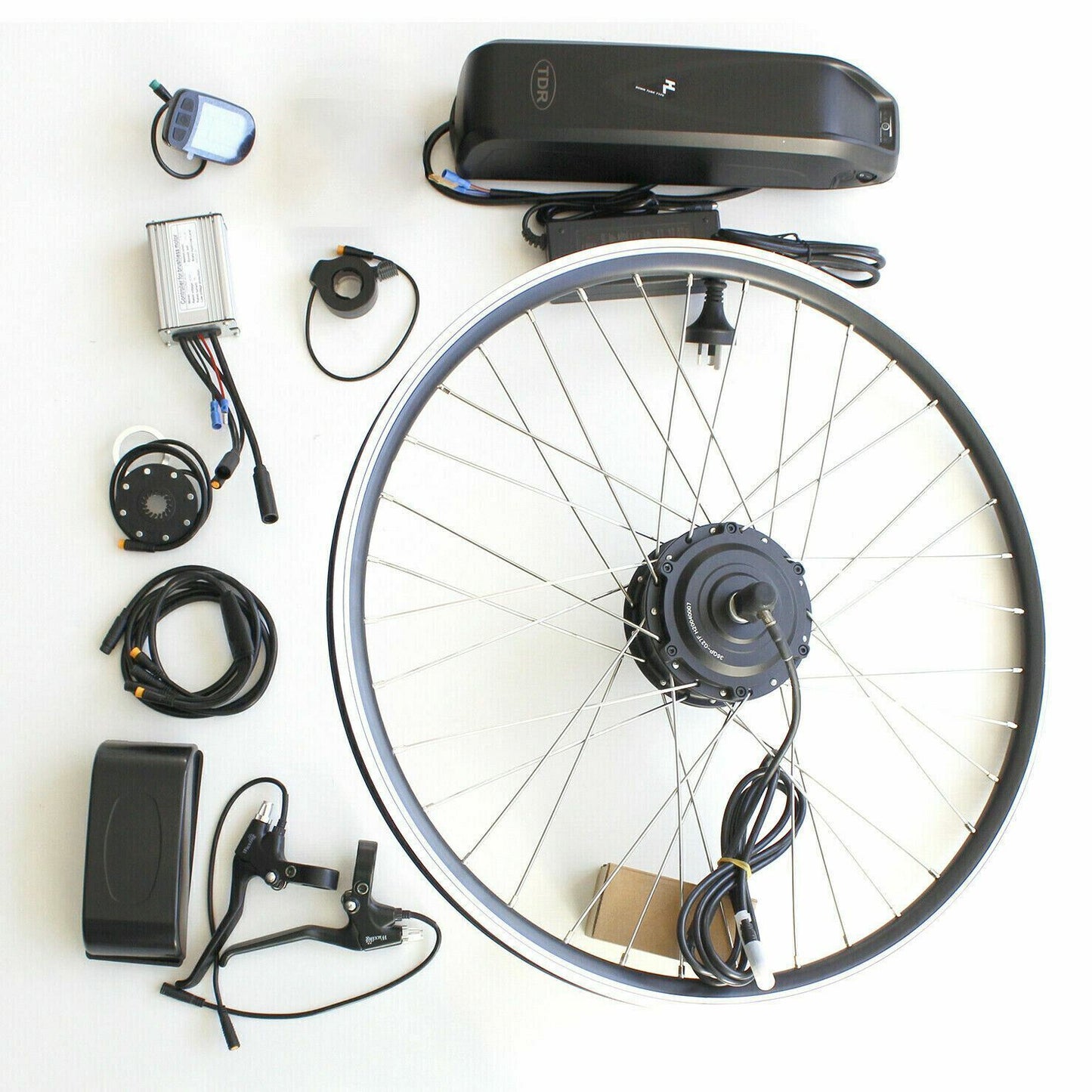

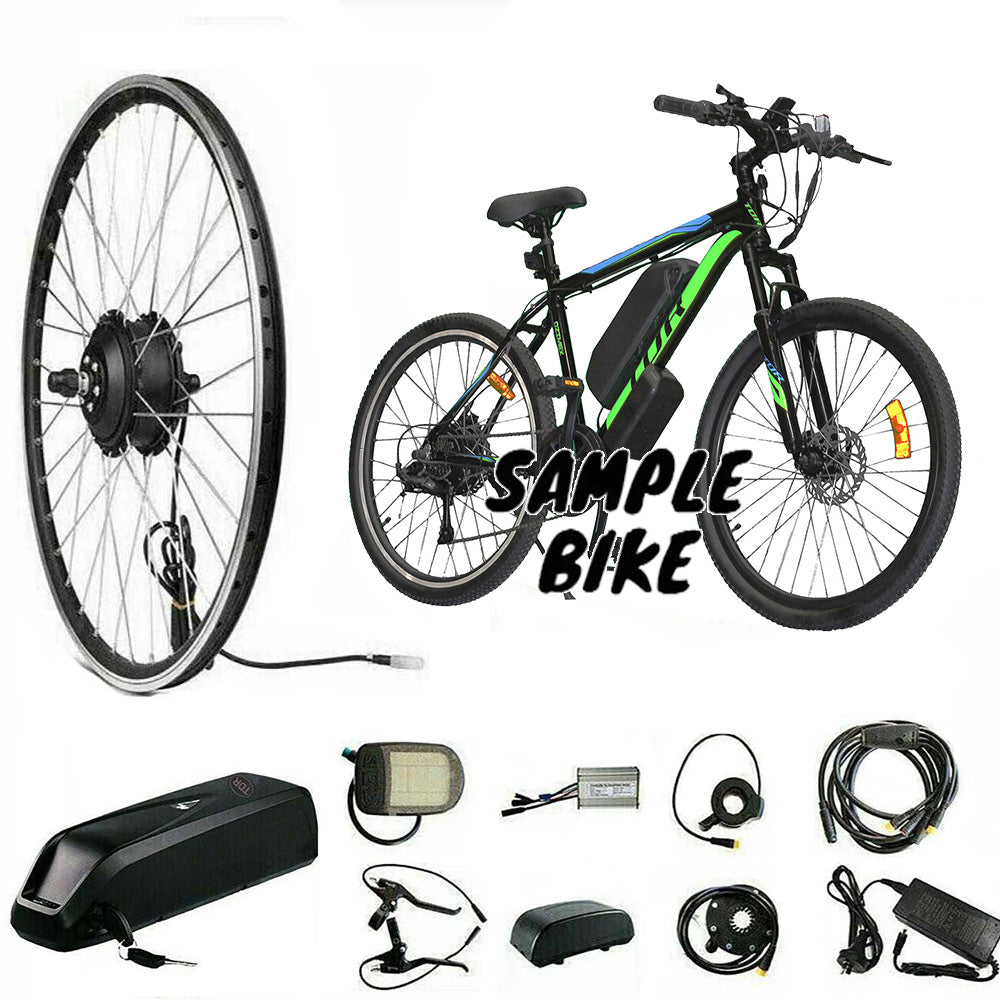

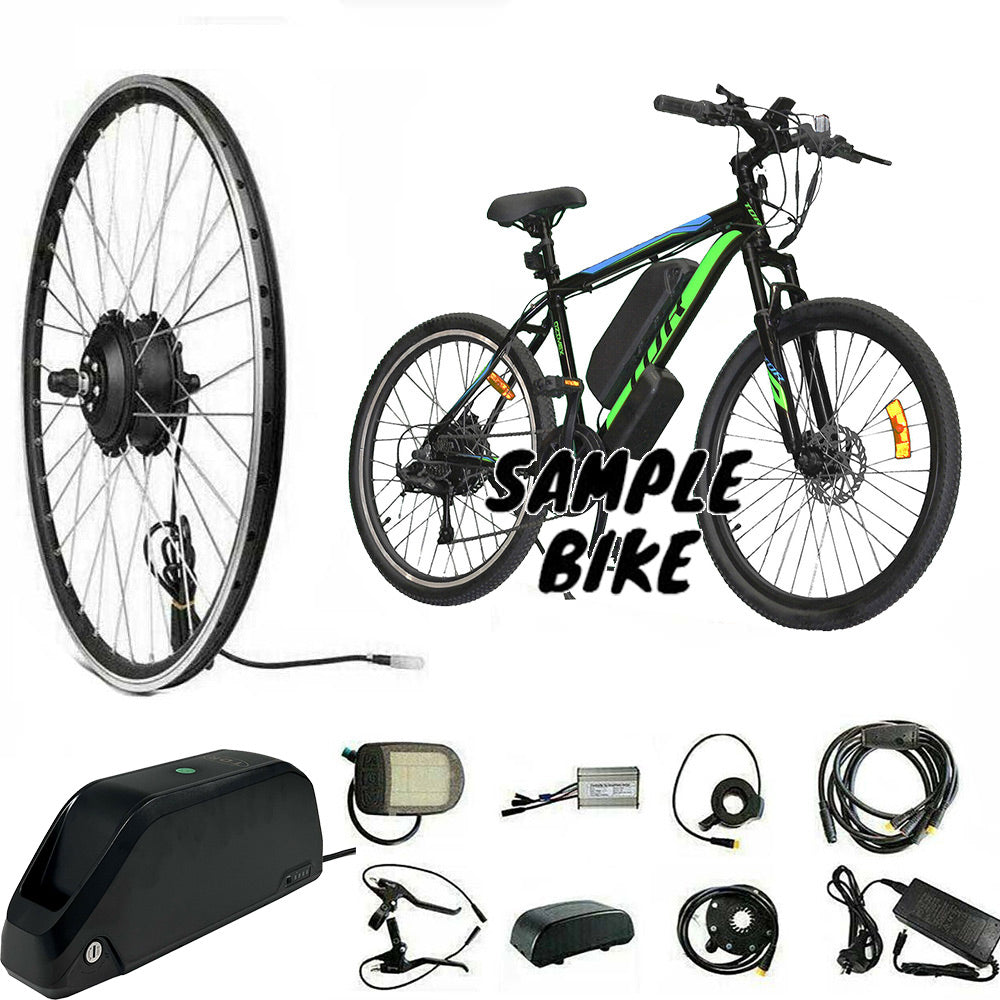

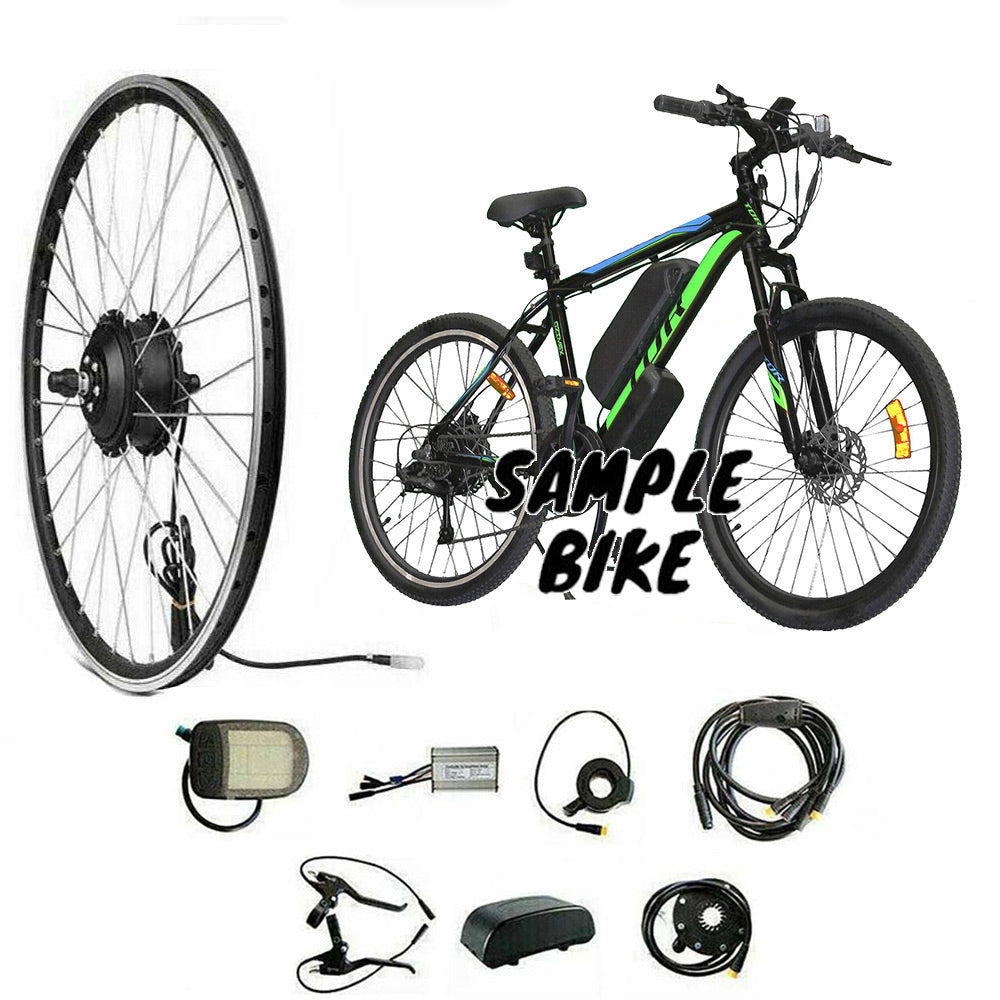

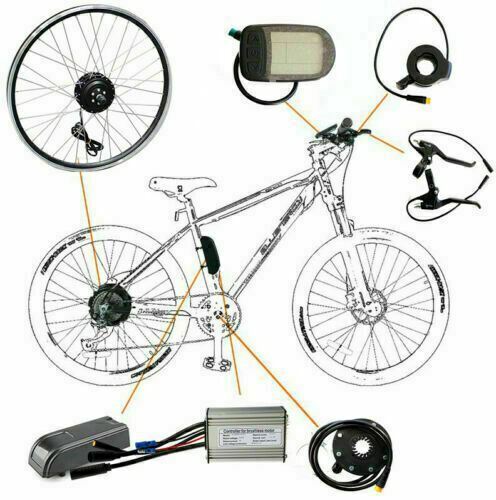

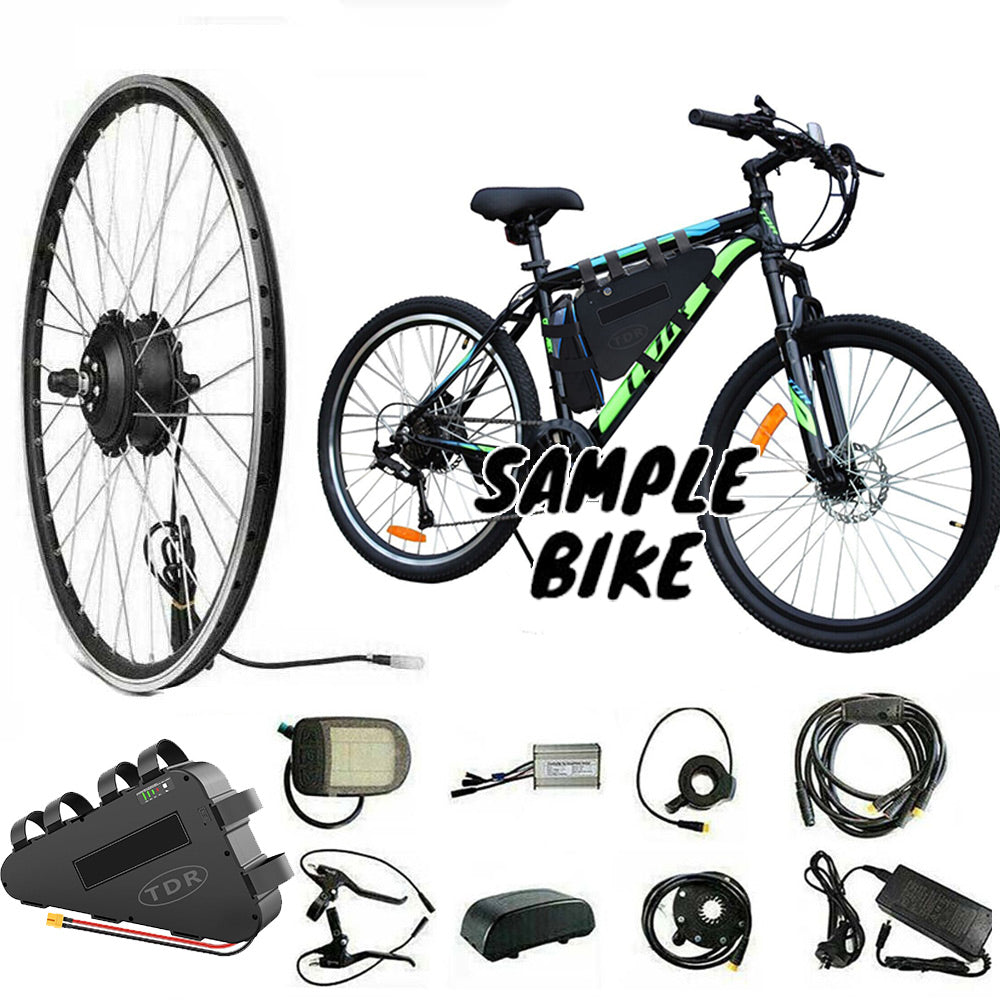

Package Included:

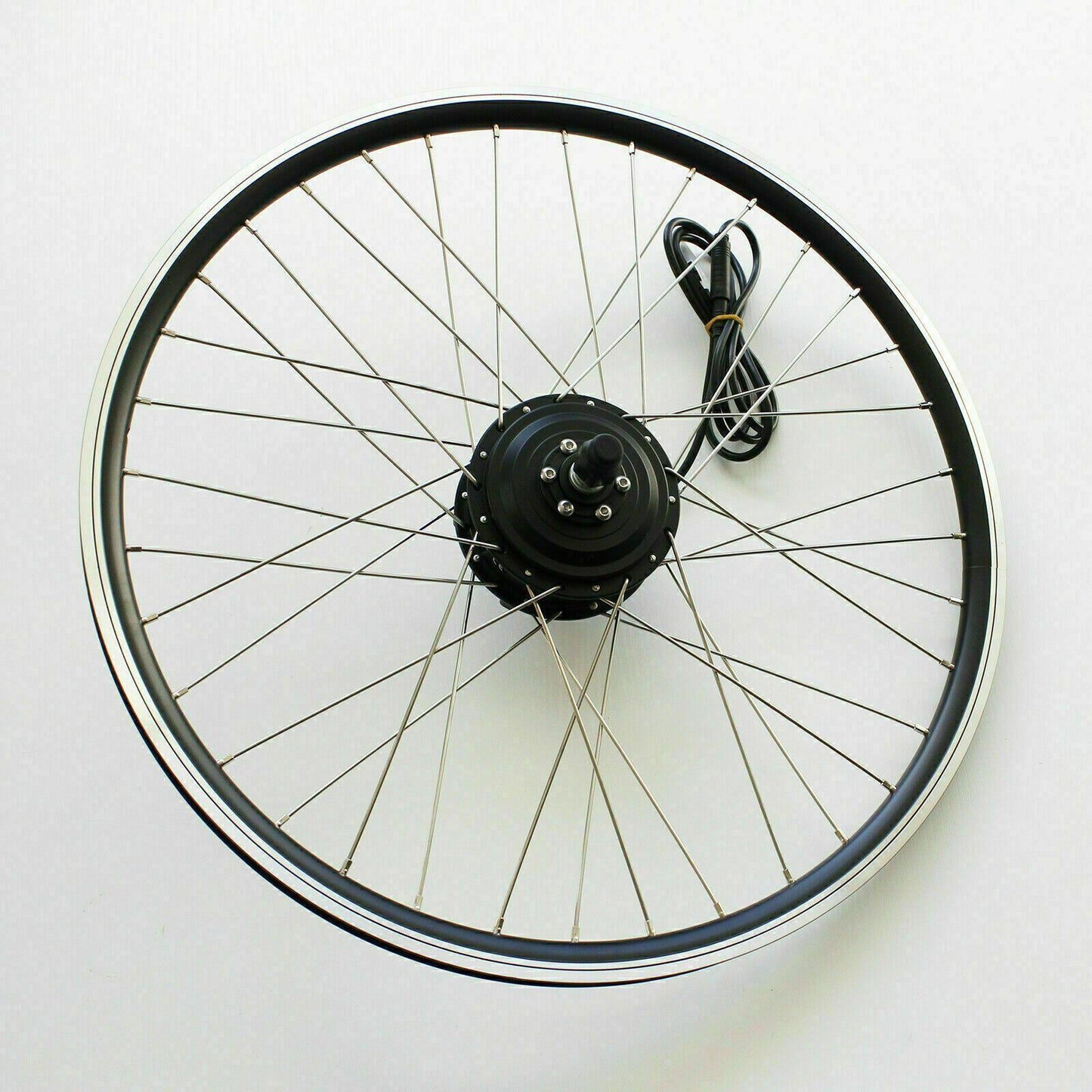

- 27.5'' Rear Wheel Rim Motor
- Controller
- LCD Display

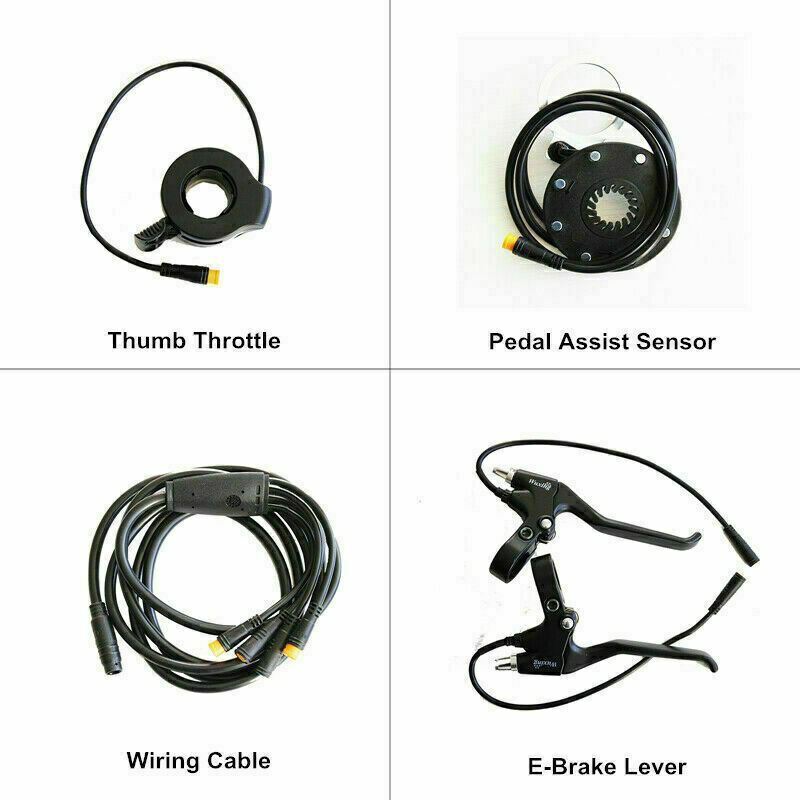

- Pair e-Brake Levers
- Thumb Throttle
- PAS sensor
- Wiring cable
- Controller box
- Installation manual
- Battery & charger (Optional)
Notes:

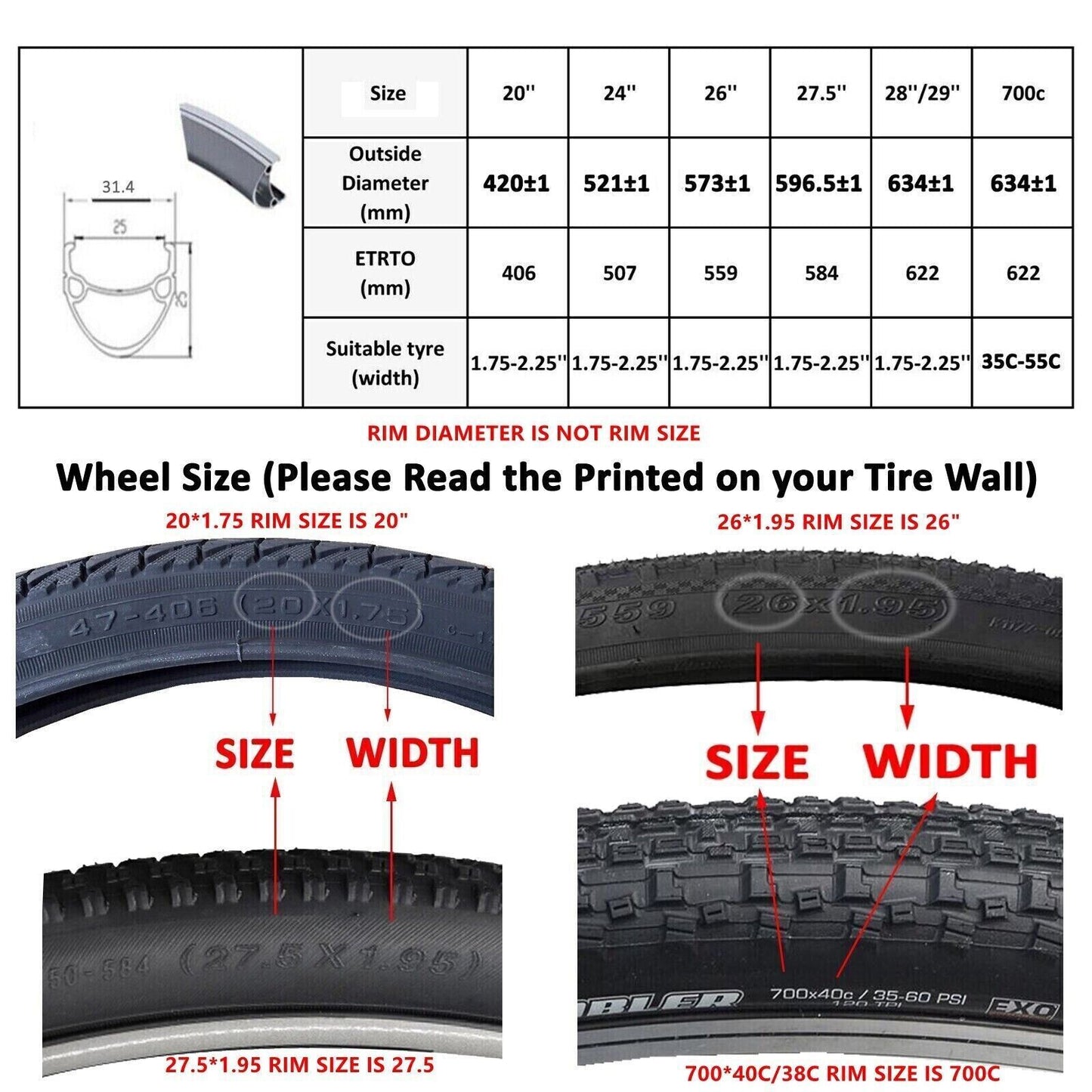

- Please check your wheel size before purchase to avoid purchasing the wrong size.

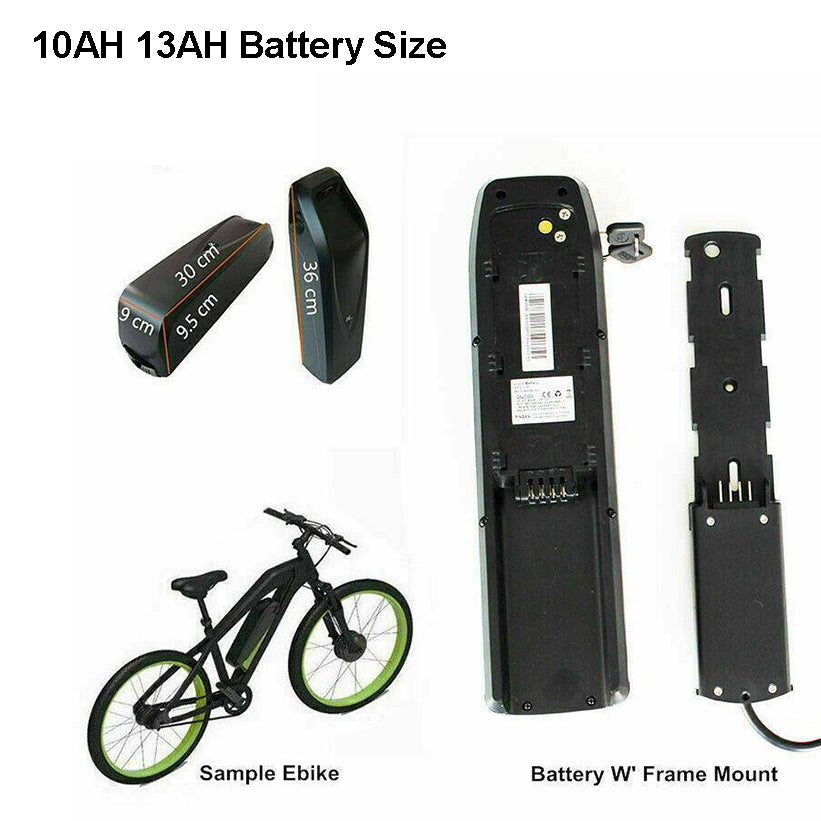

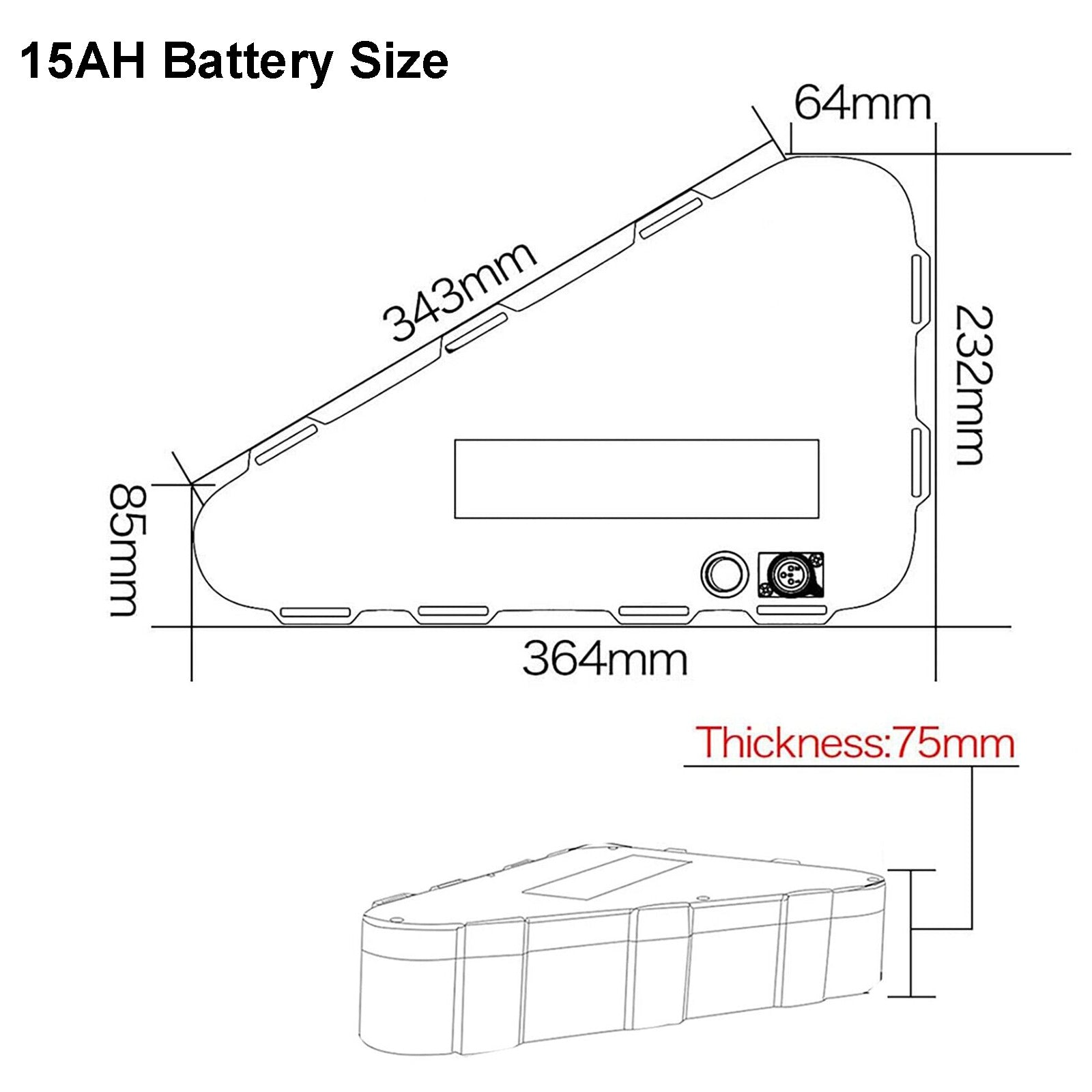

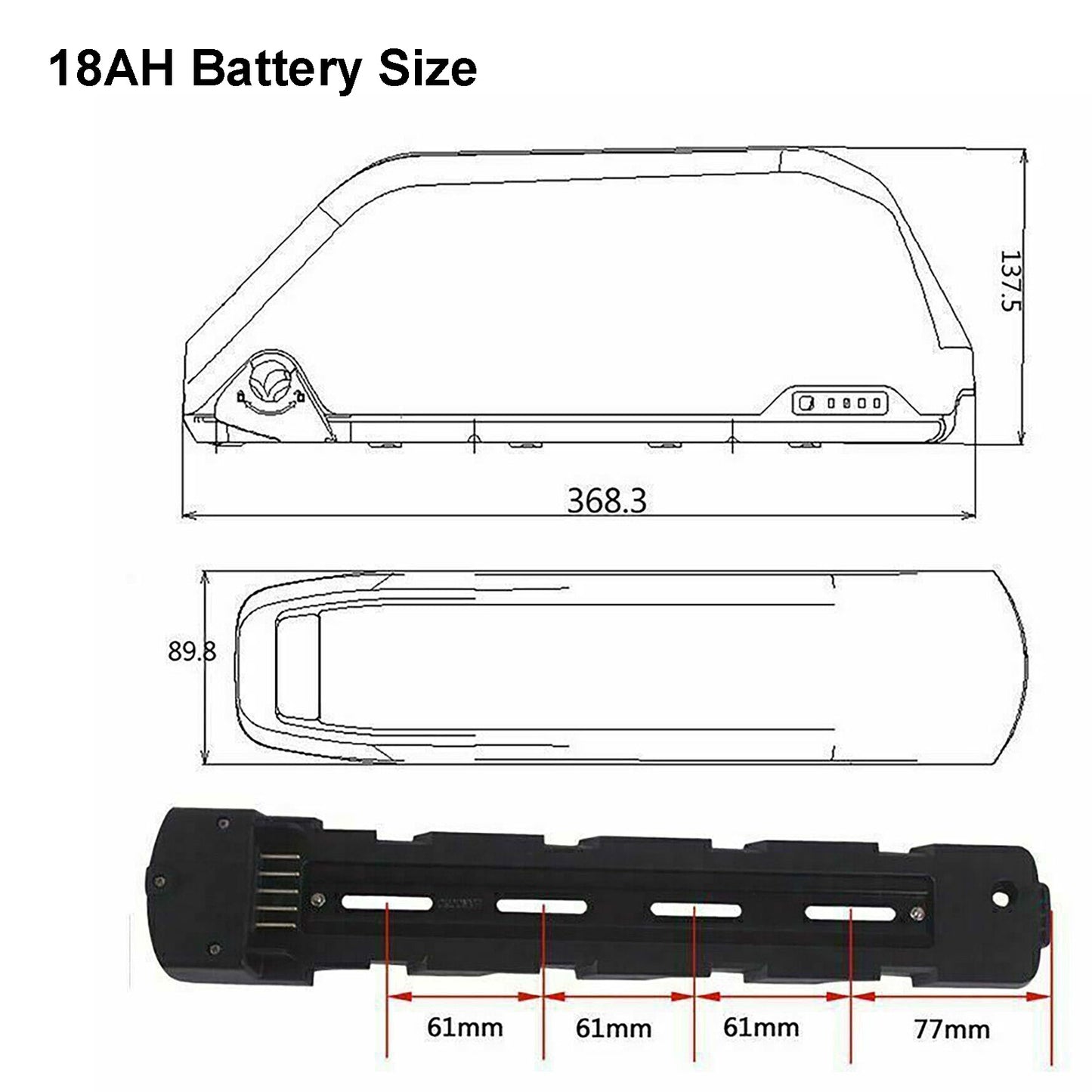

- Please check the battery size if it fits your bike's triangle frame and front fork width requirement.
- Please notice that basic tools will be required when installing this DIY Kit
- 36V 350W is not path legal, please be advised that in some jurisdictions or states it is for riding on private properties only! Please make sure you check with your local authority before purchasing. We recommend for off-road use only.
