36V 22.5AH Electric Bike Battery Down Tube Style for 200W 250W 300W 350W EBike

36V 22.5AH Electric Bike Battery Down Tube Style for 200W 250W 300W 350W EBike

SKU:

$447.92
$509.00 $447.92
12% off Sold out
$430.32 - $447.92
Tax included. Shipping calculated at checkout.
Package

36V 22.5AH Down Tube Lithium Battery and charger kit – Built with DMEGC 4500 Cell | Premium Power for eBikes
Upgrade your eBike performance with this high-quality IEC 62133-2 CERTIFIED down tube lithium-ion battery, designed for smooth, efficient and long-lasting rides.

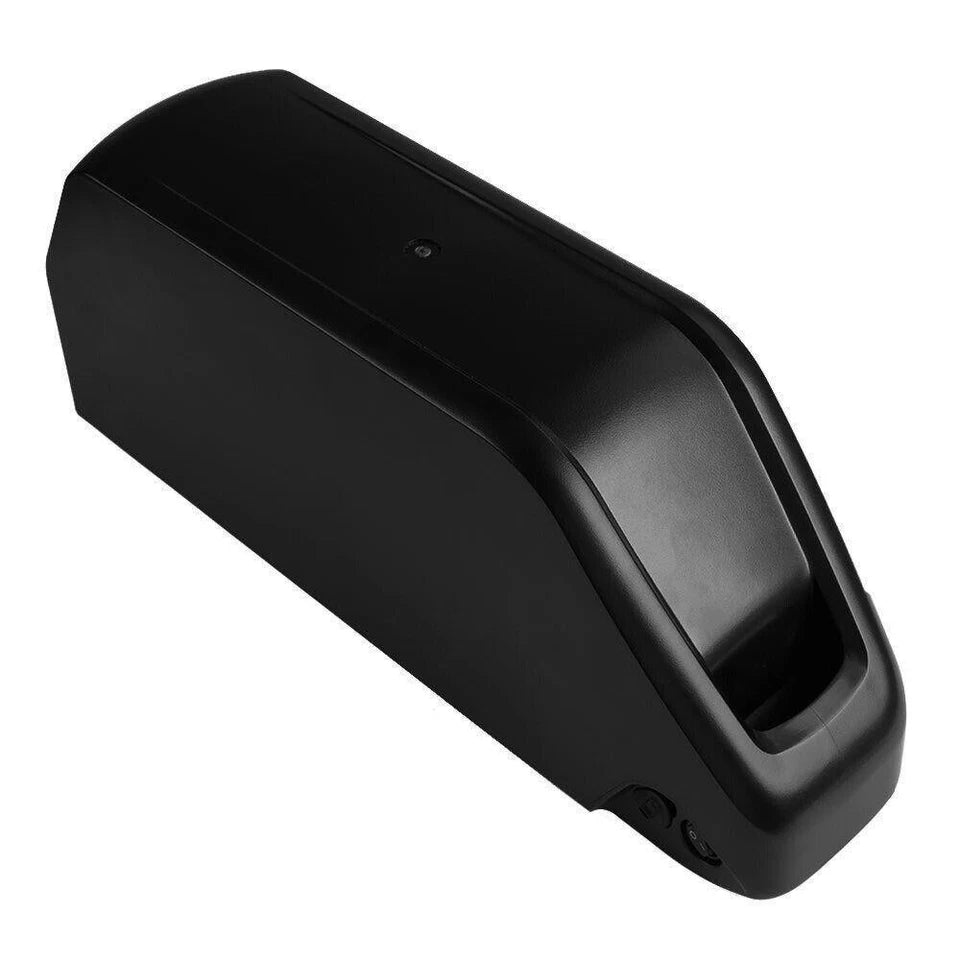

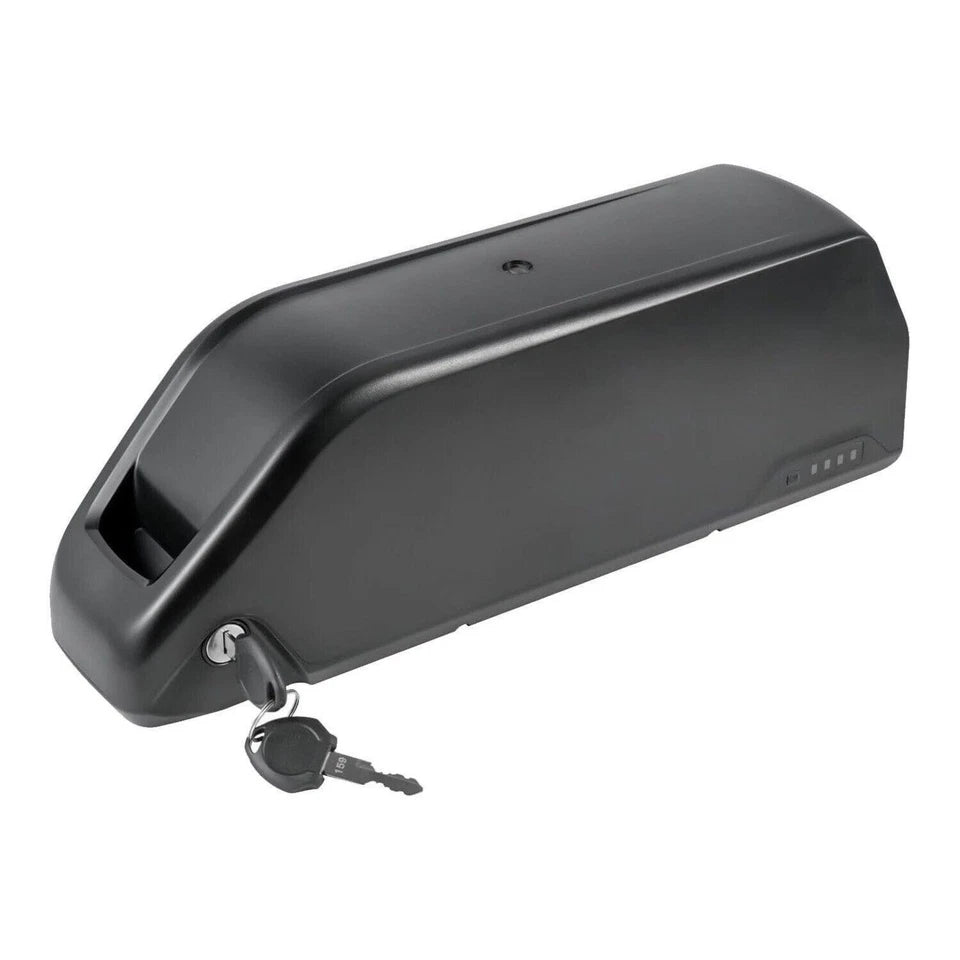

  • Battery Type: Down Tube Lithium-ion Battery
  • Rated Voltage / Capacity: 36V / 22.5Ah
  • Weight App: 4500g

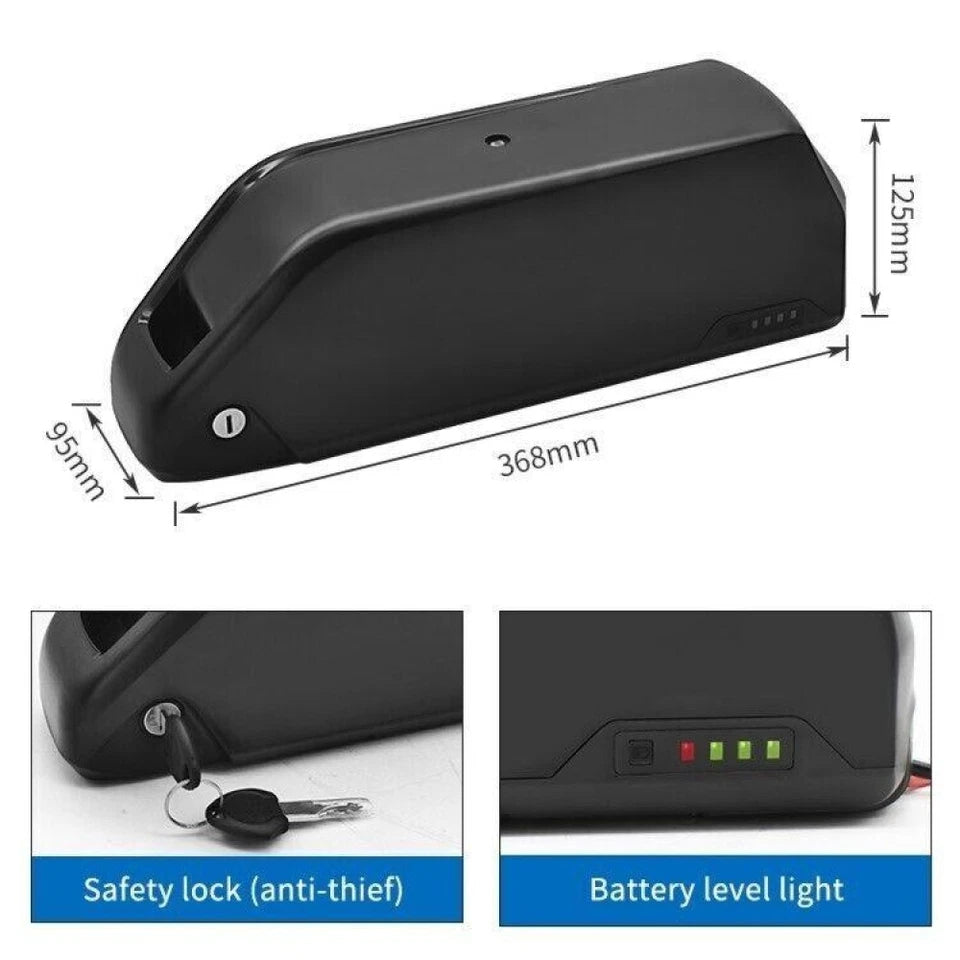

  • Dimensions: Approx. L368mm W95mm H125mm
  • Battery Color: Black
  • Cell Type: 21700 45E 3C High Capacity Discharge
  • Recommend to use: 200W 250W 300W 350W 500W 750w
  • Discharge cycle life: about 800 times
SPECS:
  • Nominal Voltage：     36V
  • Typical Capacity：     22.5Ah
  • Peak discharge current：     20A (2 second)
  • Discharge cut-off voltage：     27V±0.5V
  • Maximum Charger voltage：     42±0.5V
  • Charge current：     ≤3A

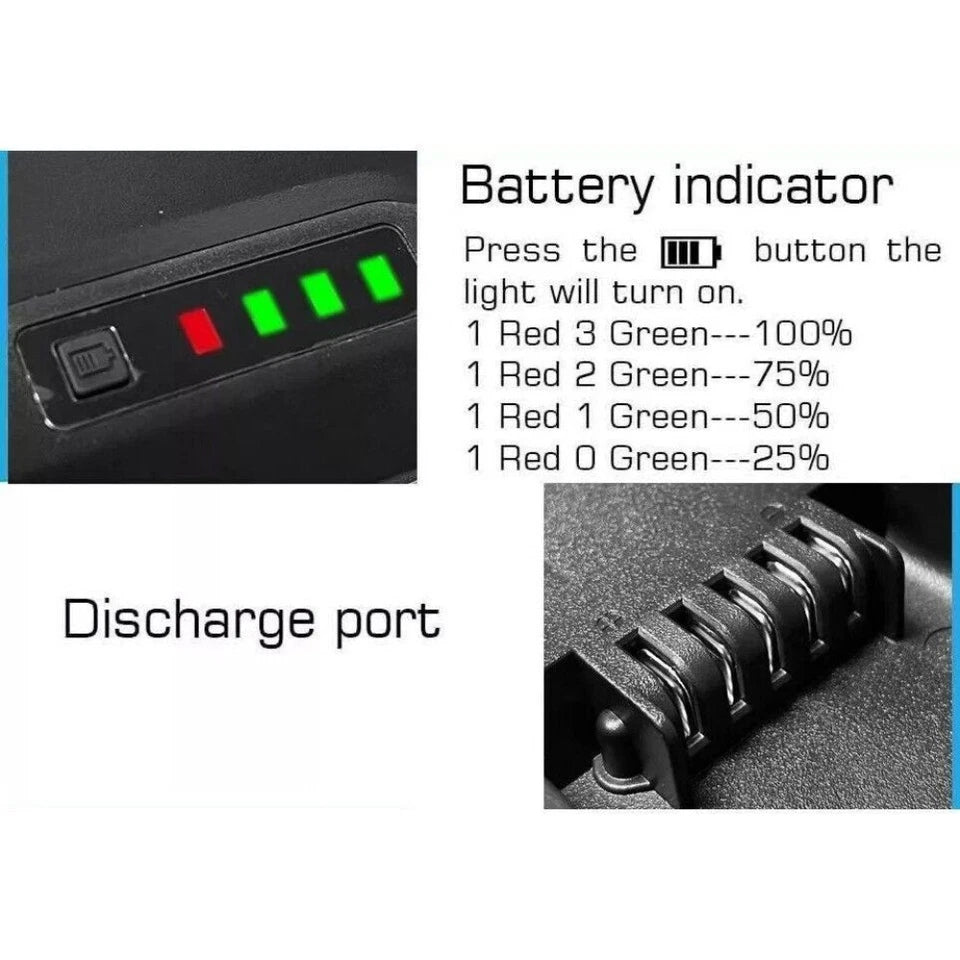

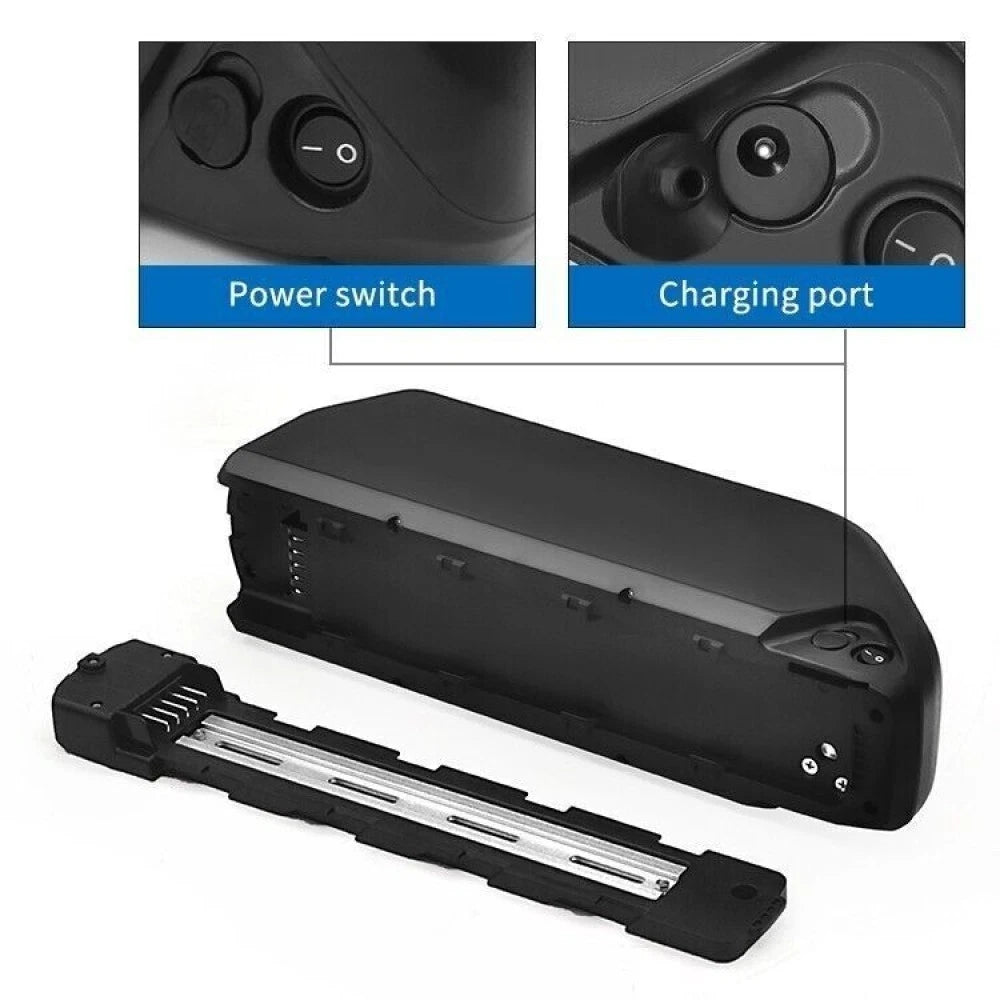

  • Charging port type: DC  - please check photo for details
  • Cell：2170045E (10S45) comply with IEC 62133-2:2017 Standard

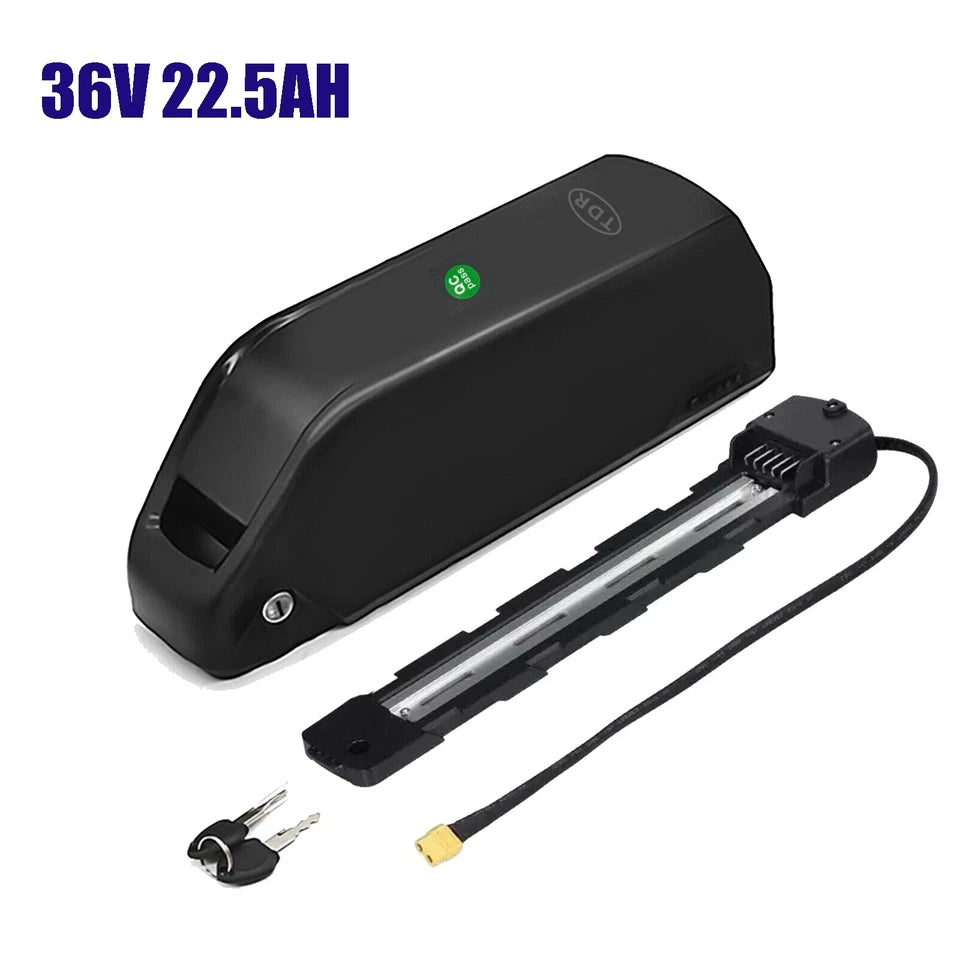

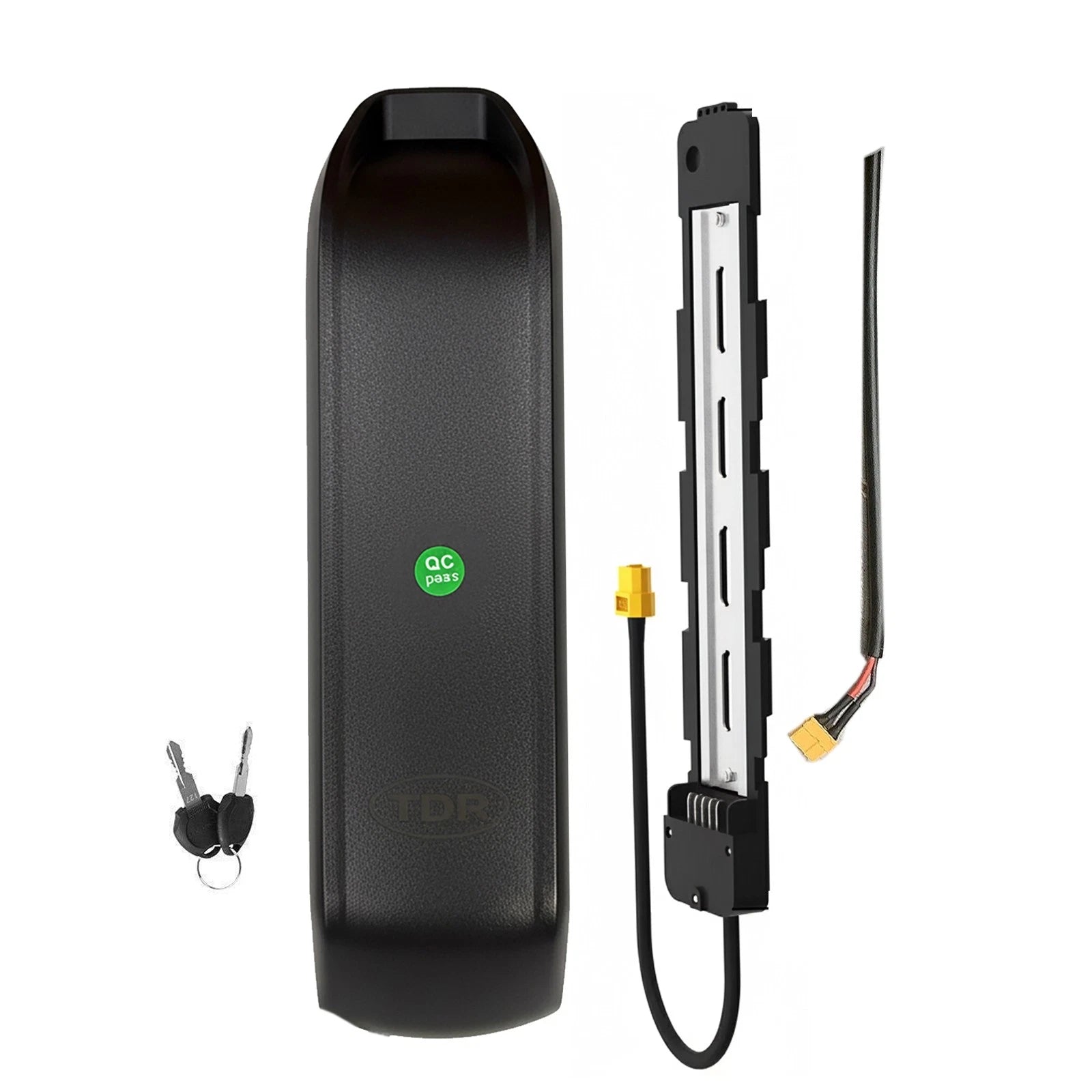

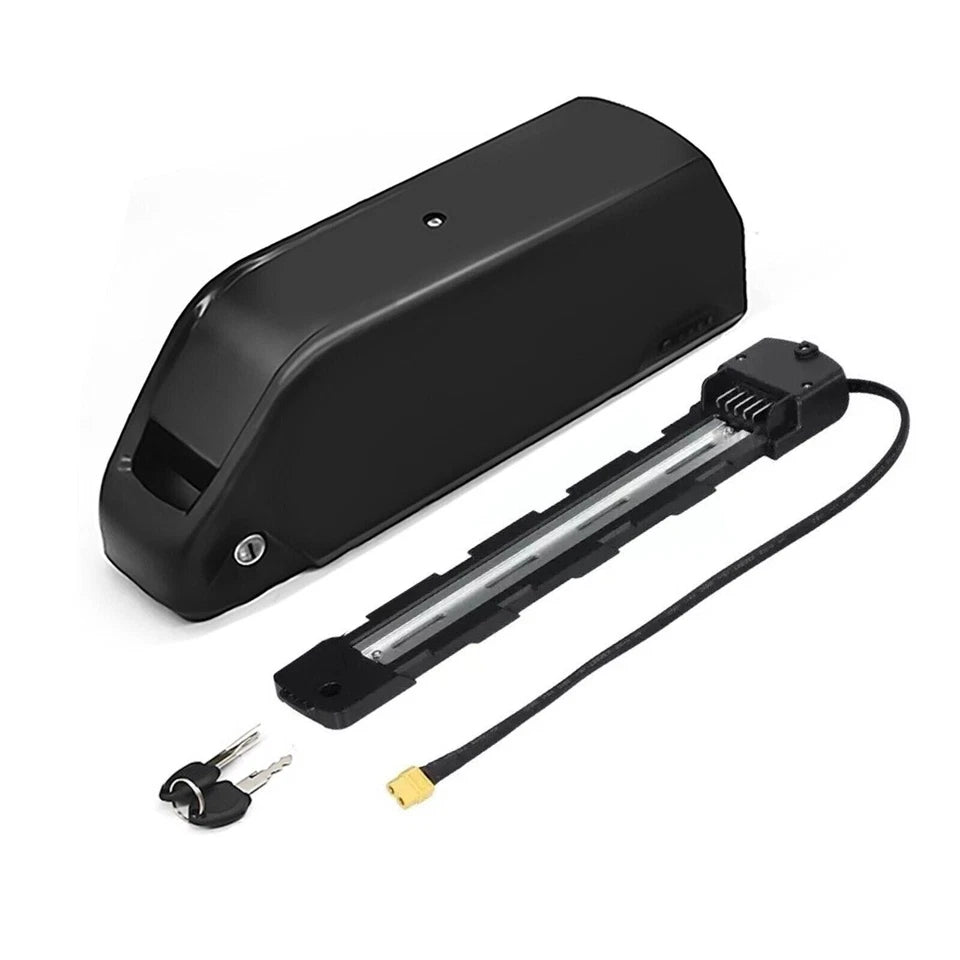

Package Included:
  • 1 x 36V 22.5 Ah Battery

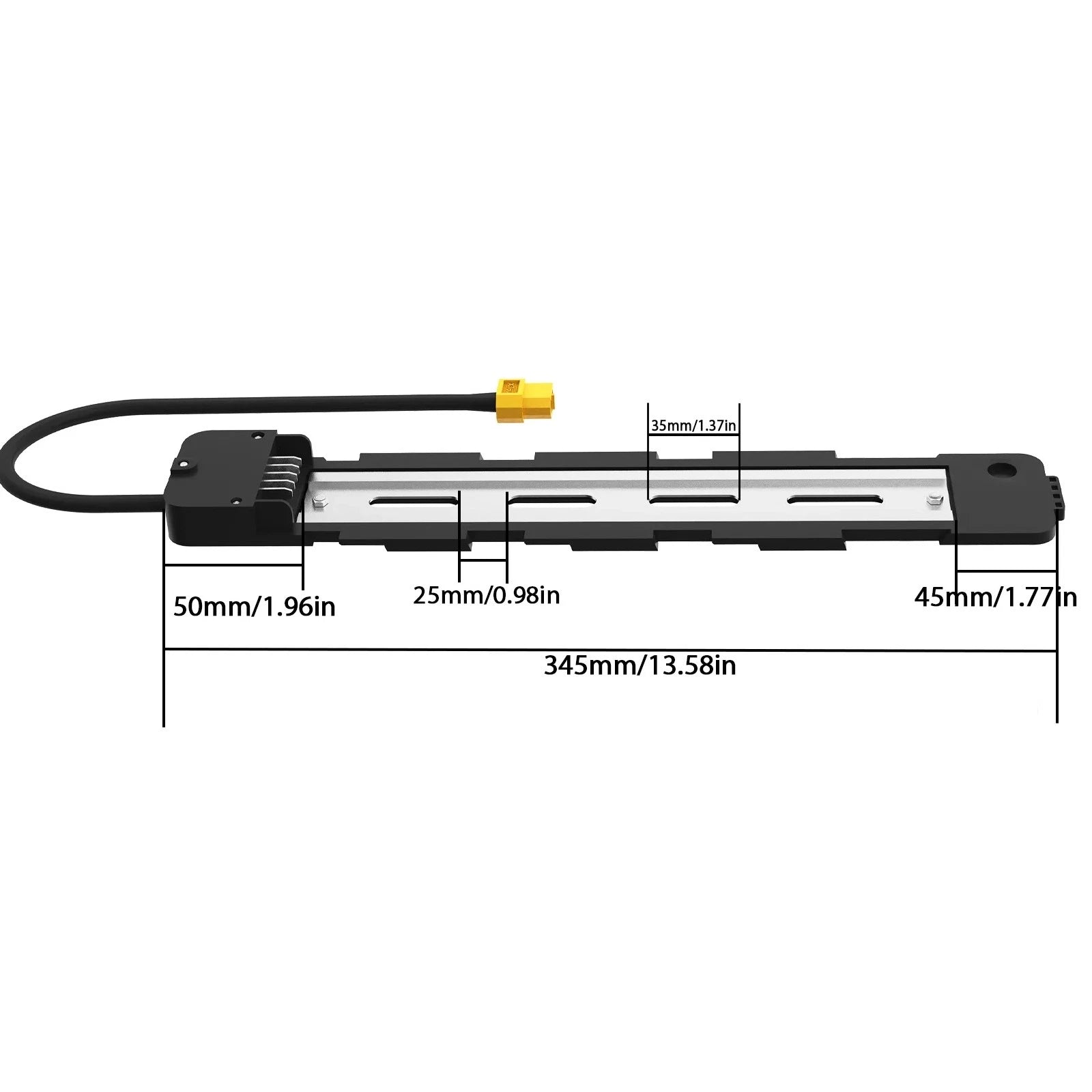

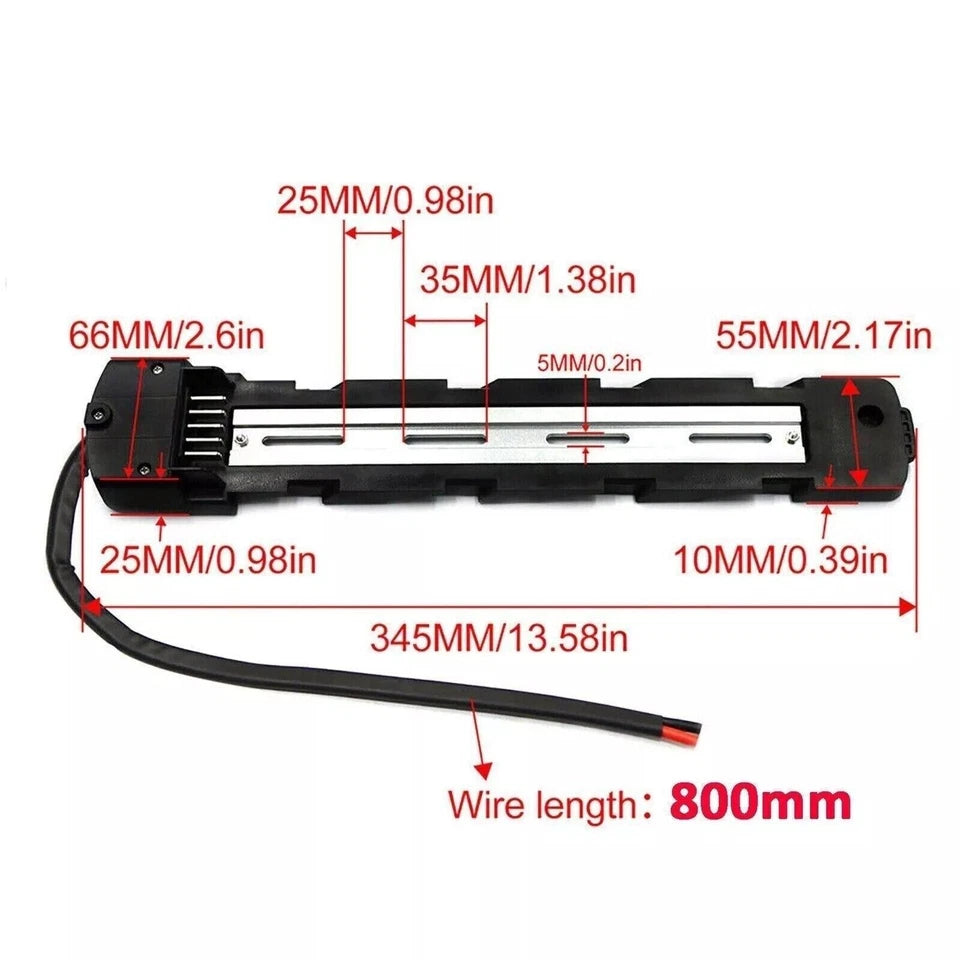

  • 1 x Frame Mount
  • 2 x Keys
Important Notes:
  • Please check the connectors, voltage and size of the battery before purchase, it is important to ensure this battery can be allocated into your bike frame.

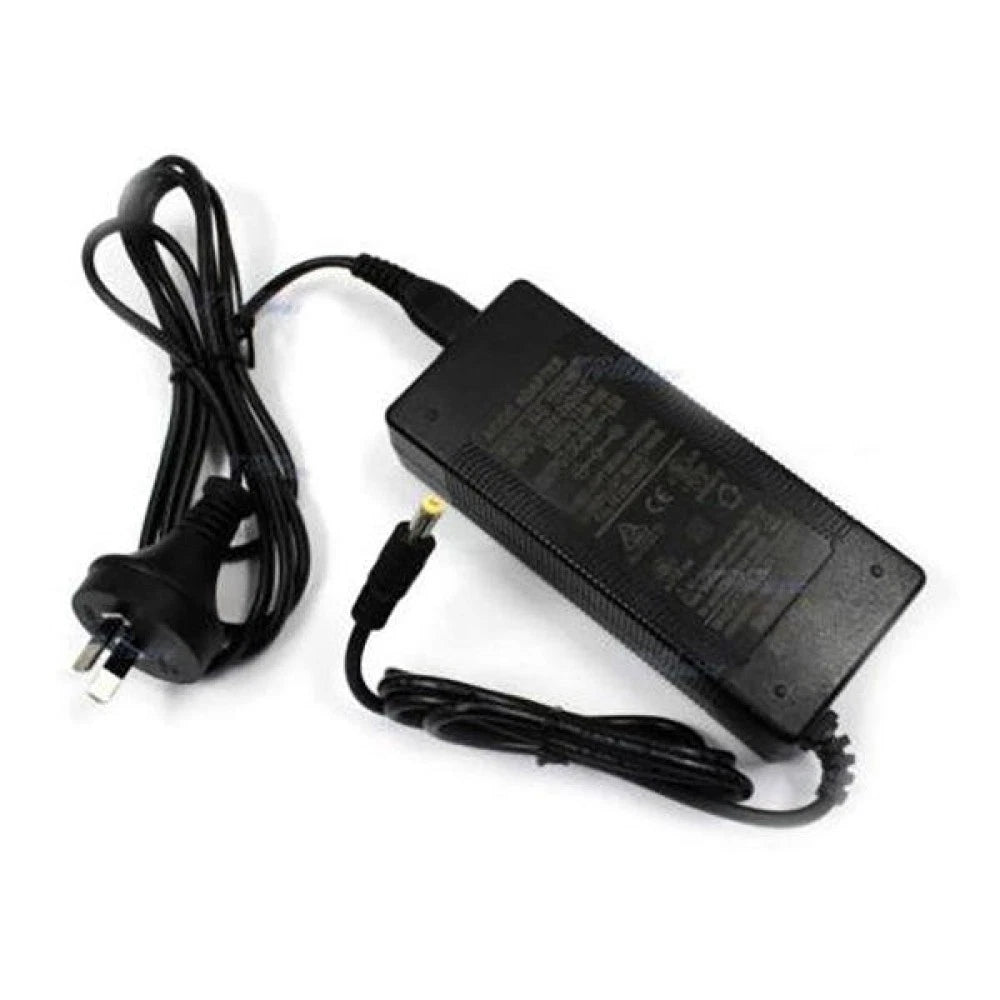

  • The charger is not included, please kindly contact us if you need a matching charger.
