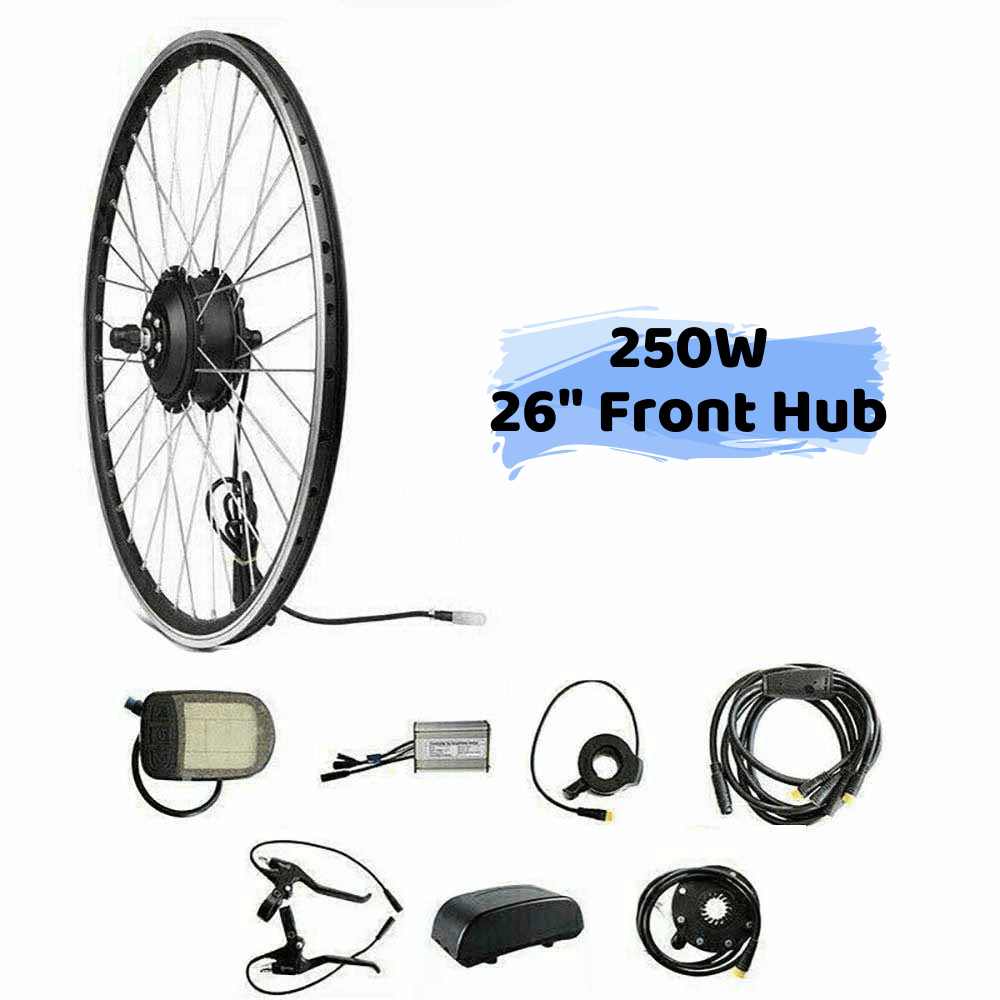

Road Legal 250W 26" Front Hub Electric Bike Conversion Kit
Road Legal 250W 26" Front Hub Electric Bike Conversion Kit
SKU:
- Wheel Size: 26" Front wheel (Suitable for tyre width size 1.50 to 2.25)
- Motor: 36V 250W Brushless gear hub motor in black colour
- Wiring method: waterproof wire connection system
- Battery range: +/-50km per power in pedal assist mode
- Max. Speed: Up to 25 km/h
- Display: KT LCD5
- Controller: KT Brand Controller
- Riding mode: Thumb throttle electric assist mode /Pedal Assist mode

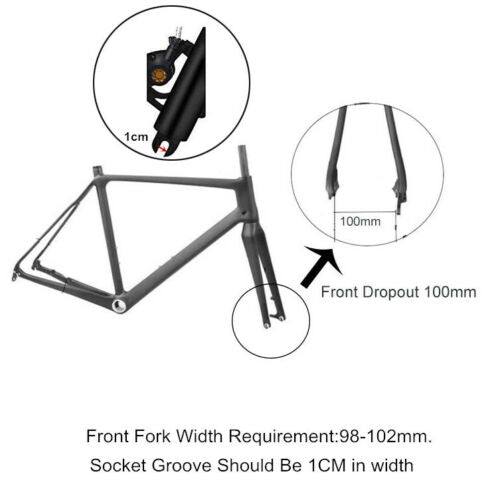

- Front fork width requirement: 98-102mm
- Suitable for Disk Brake and V brake to use
Specifications:
- Motor: 36V 250W Front hub brushless gear motor, bending magnet and more efficient
- Brake levers: aluminium alloy, Wuxing E-brake lever
- Rim and spokes: P25DE Alloy double wall rim CNC sidewalls, with 12g steel spokes
- Controller: KT Brand 36V controller in controller box, maximum current rate: 14±1A
- Throttle: Thumb(Finger) Throttle, Wuxing brand
- PAS Sensor: 8 Magnet
- Display: KT LCD5, Show all basic information and DIY setting
- Battery: 36V Lithium-ion Battery, light weight and reliable
- Riding Range: Max 40km(10AH)/ 50km(13AH) / 60km(15Ah) / 72 km(18Ah)when using Pedal Assist Mode on ou
- Charger: More than 1000 times cycle-life and Australia safety standard
Key feature:
- Built to the highest international standards, CE
- Powerful 250W36V brushless hub motor
- Alloy rim & steel spoke & aluminium alloy powerful controller
- Aluminium alloy powerful controller guarantee big current supply
- Thumb Throttle with waterproof cables has battery level and power-cut off
- Brake Levers cut off the power supply to the motor safely
- Downtube battery 36V gives more power and runs more distance w' reliable quality
- Charger with more than 1000 times cycle-life. Australia Safety standard .
KT brand controller features:
- Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
- Electric power assist is with fast response and always consistent with the riders pedal action to achieve the effect of the torque boost
- With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic

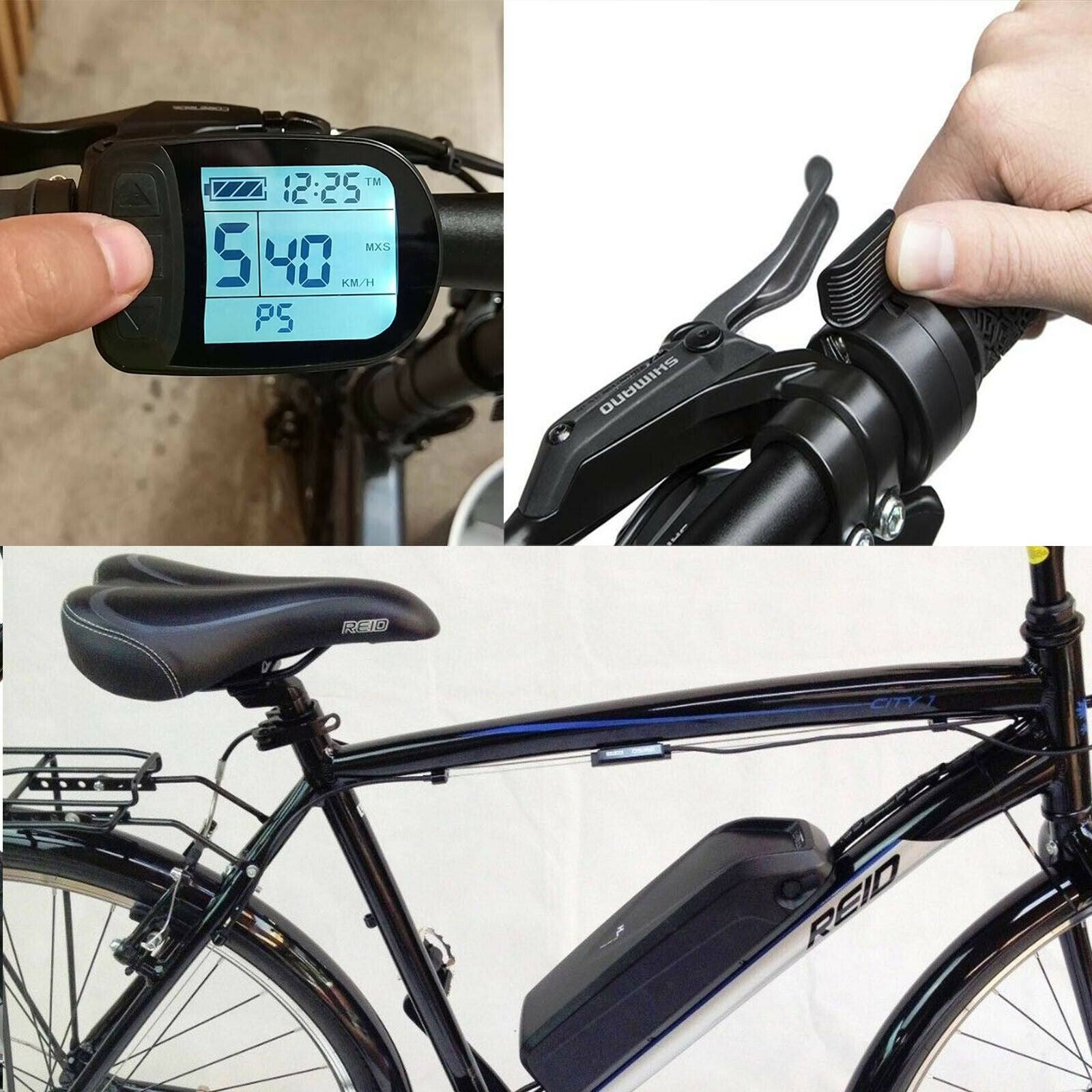

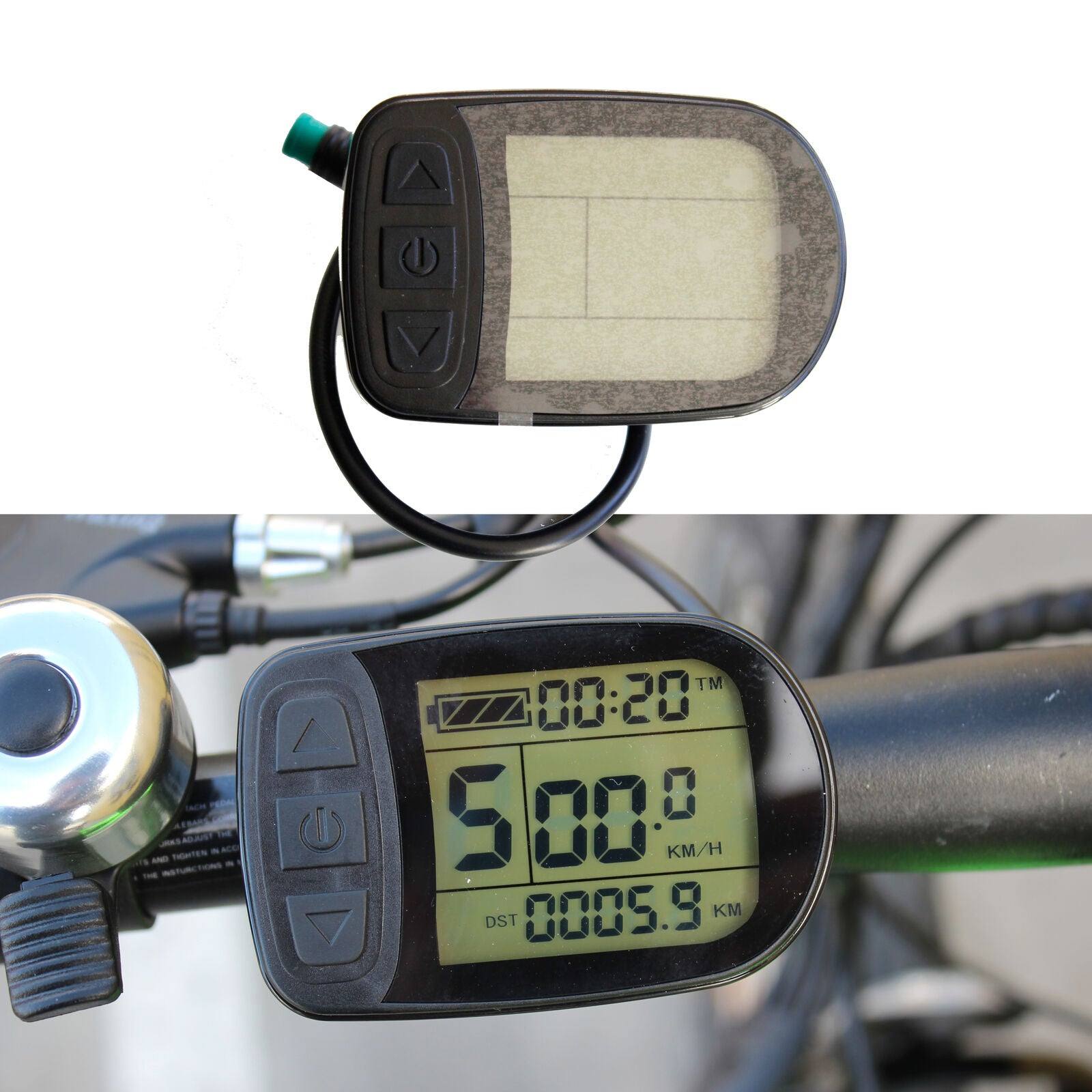

- KT LCD5 Display functions: battery level indicator (4 bars), 3 speed display modes (current, maximum, average), traction help up to 6km / h, odometer, trip duration display

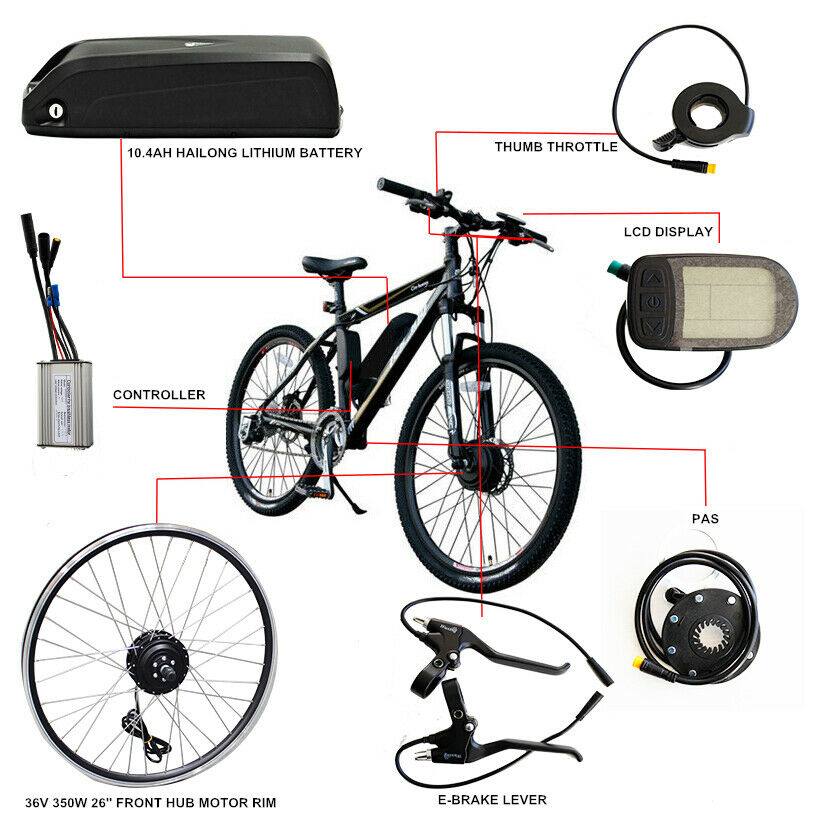

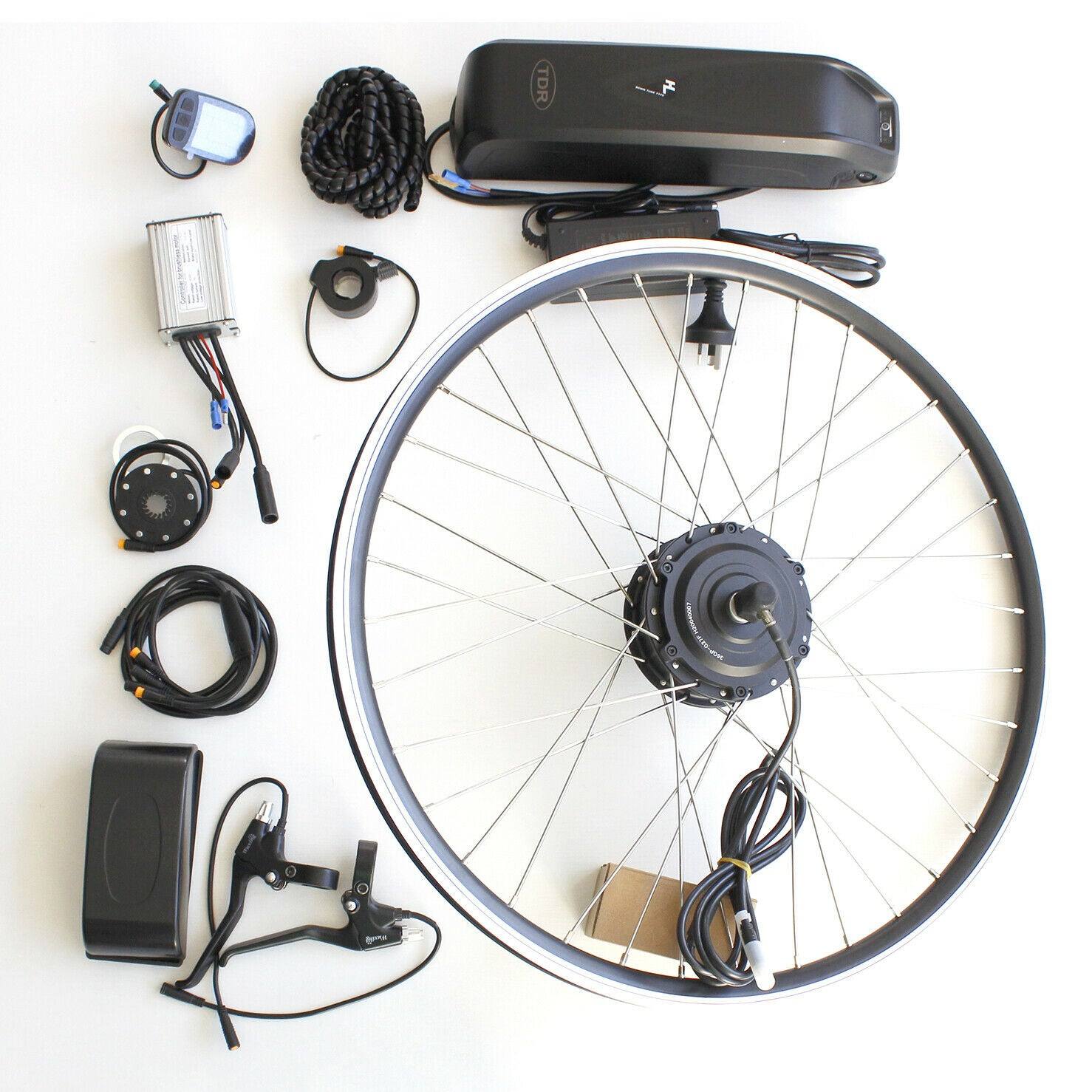

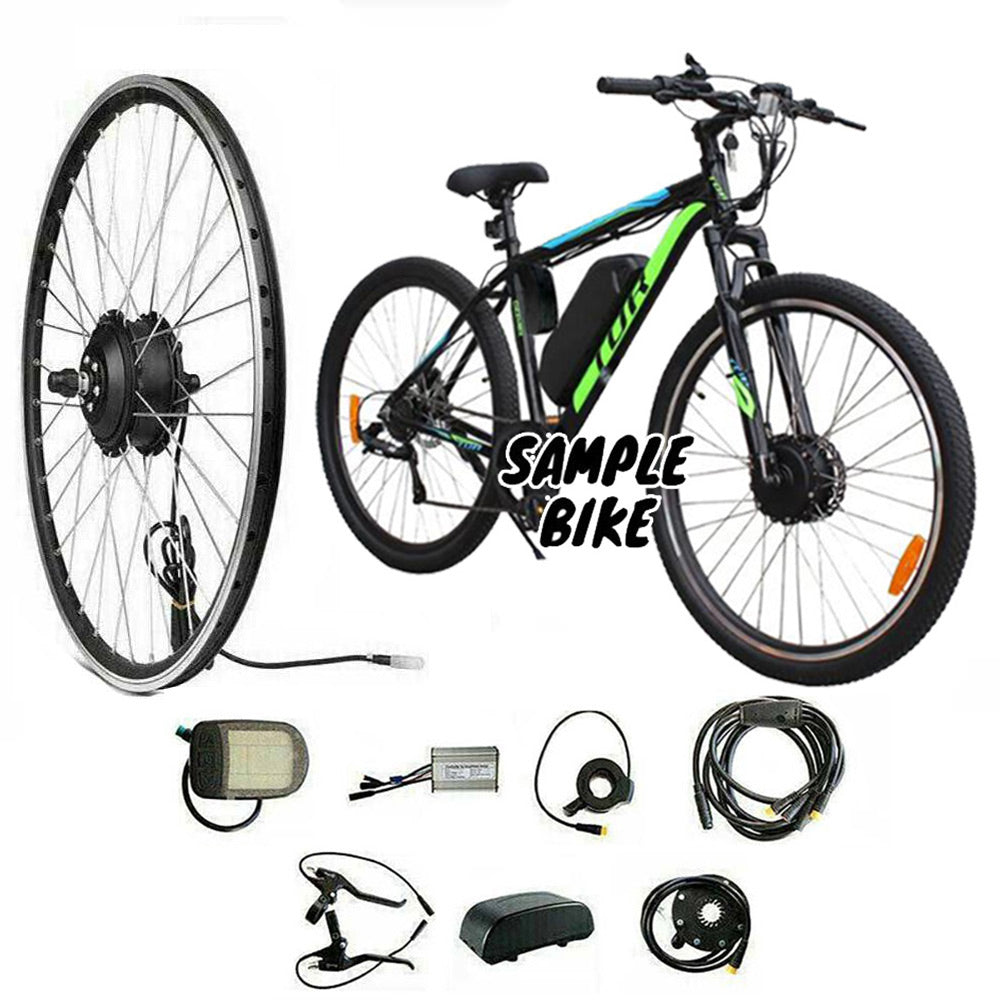

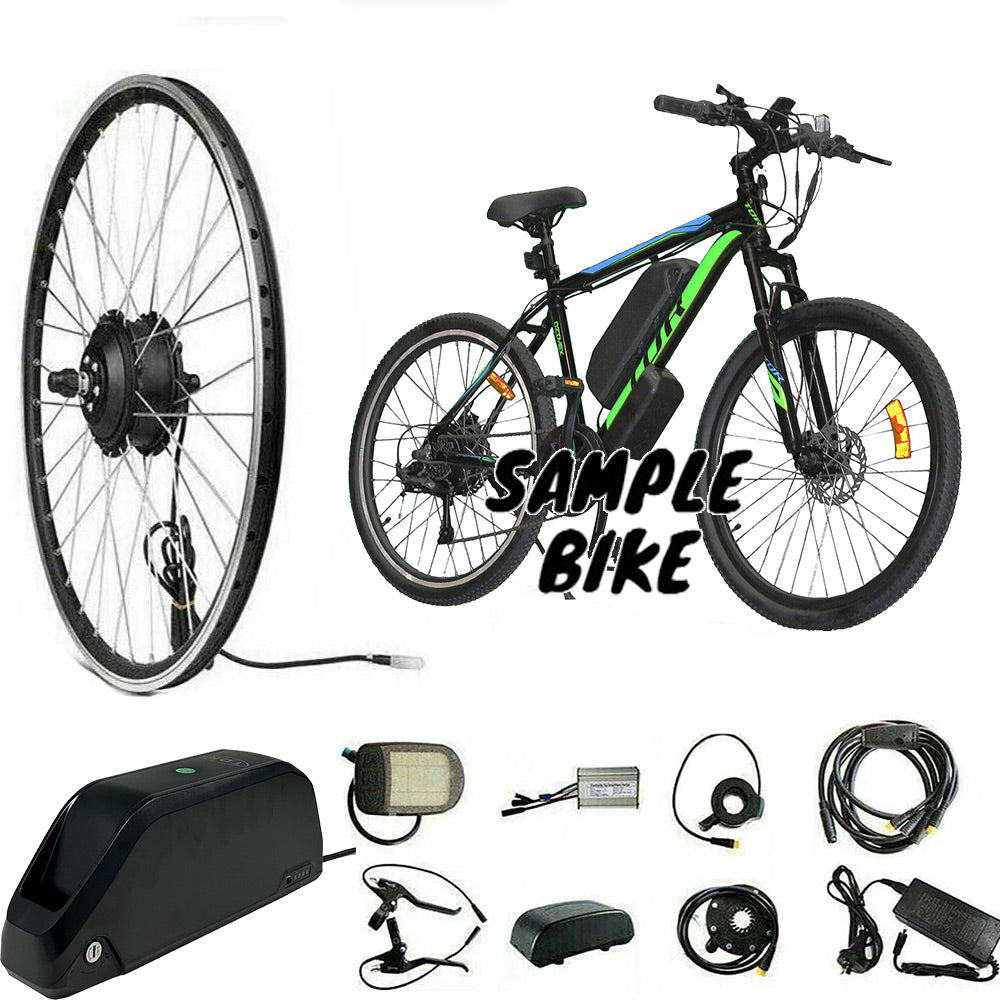

What's in the box:

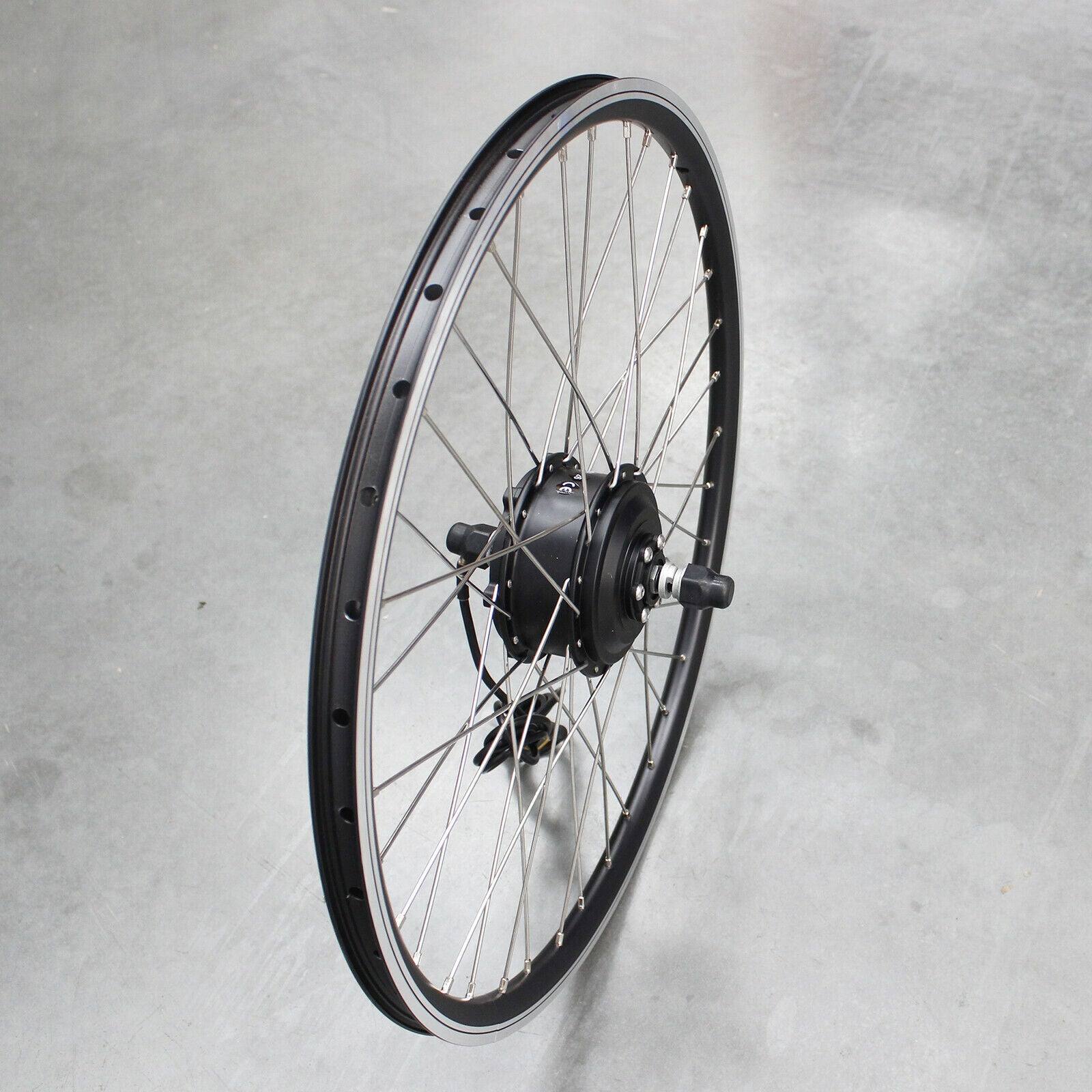

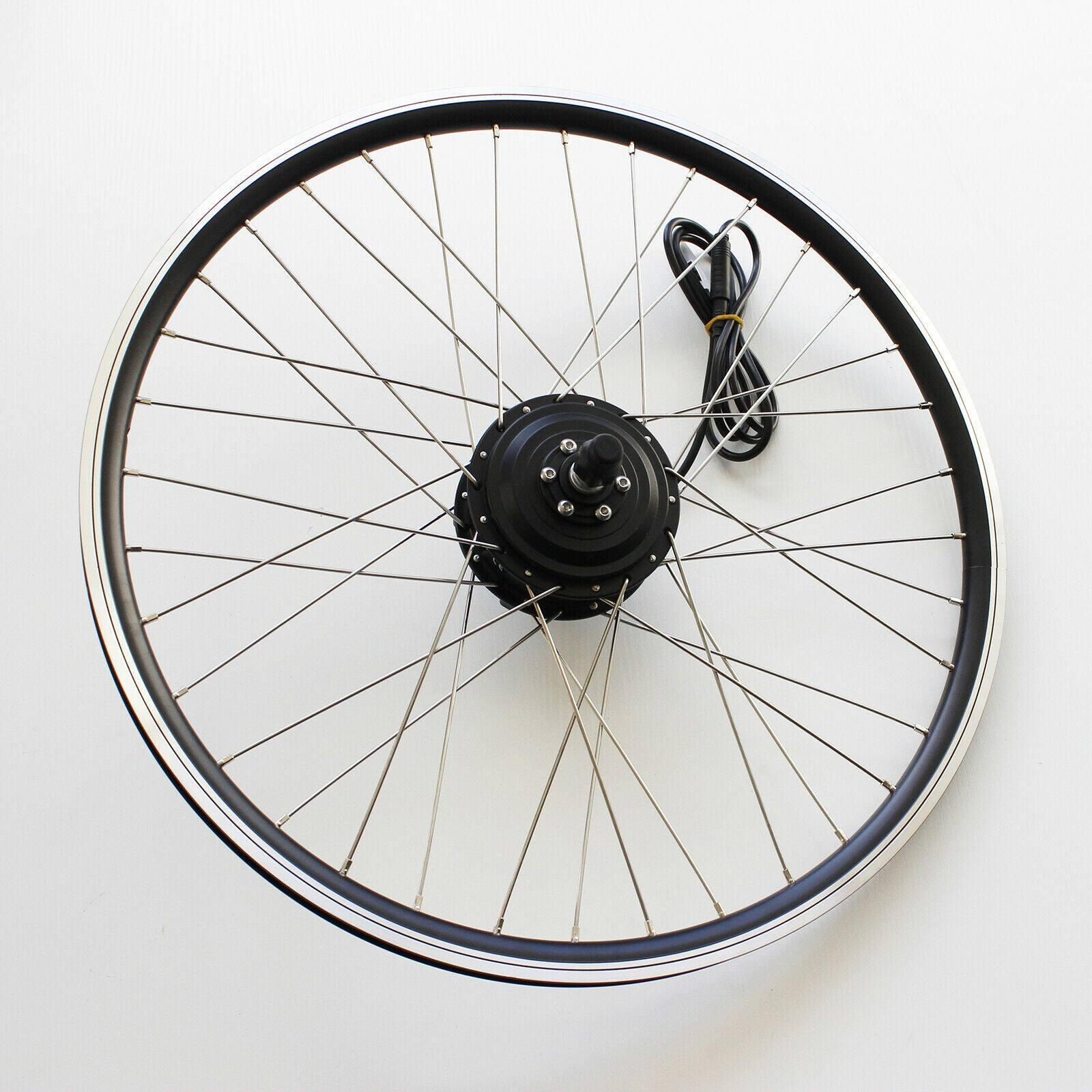

- 1 x 26" front rim (36V 250W motor)
- 1 x Controller
- 1 x LCD display

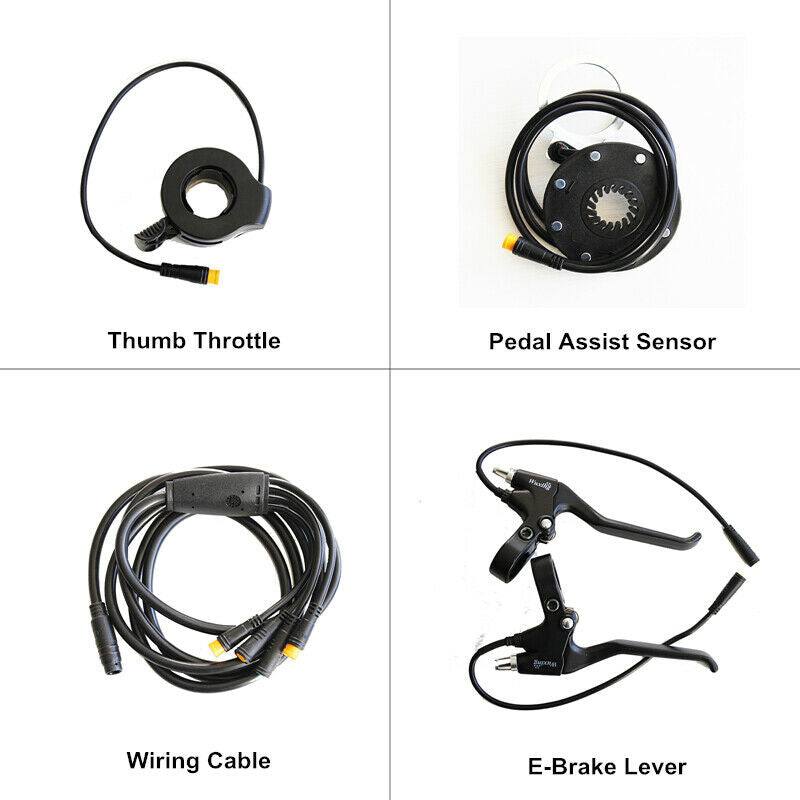

- 1 x Pair e-brake levers
- 1 x Thumb throttle
- 1 x PAS sensor set
- 1 x Wiring cable
- 1 x Controller box
- 1 x Installation manual
- 1 x Battery & charger (Optional)
Important notes:
- Professional installation is highly recommended, some basic tools will be required to install this DIY kit

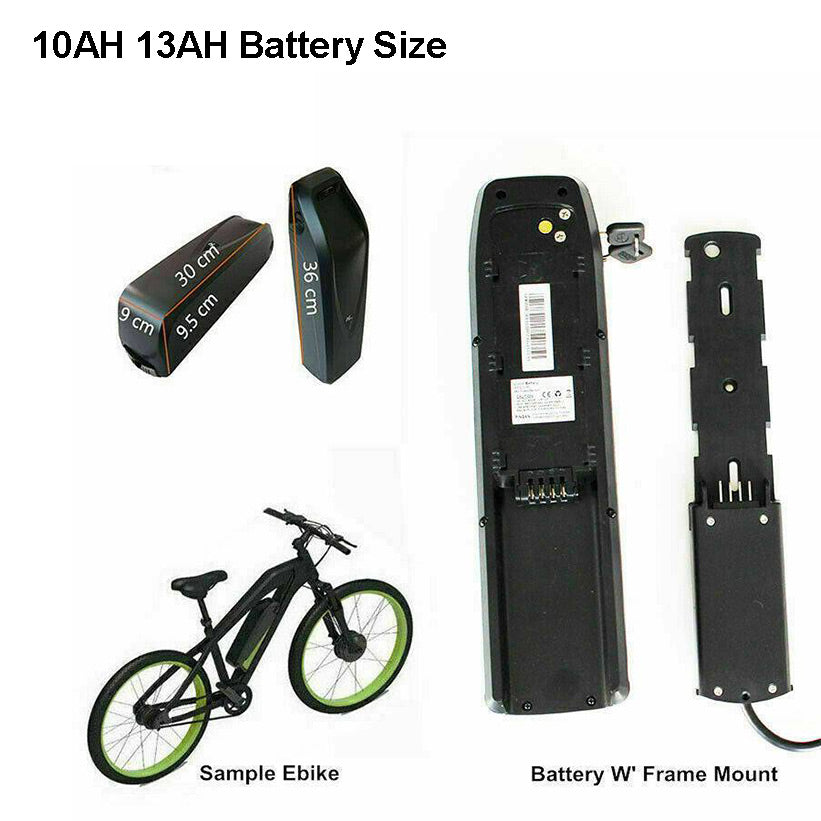

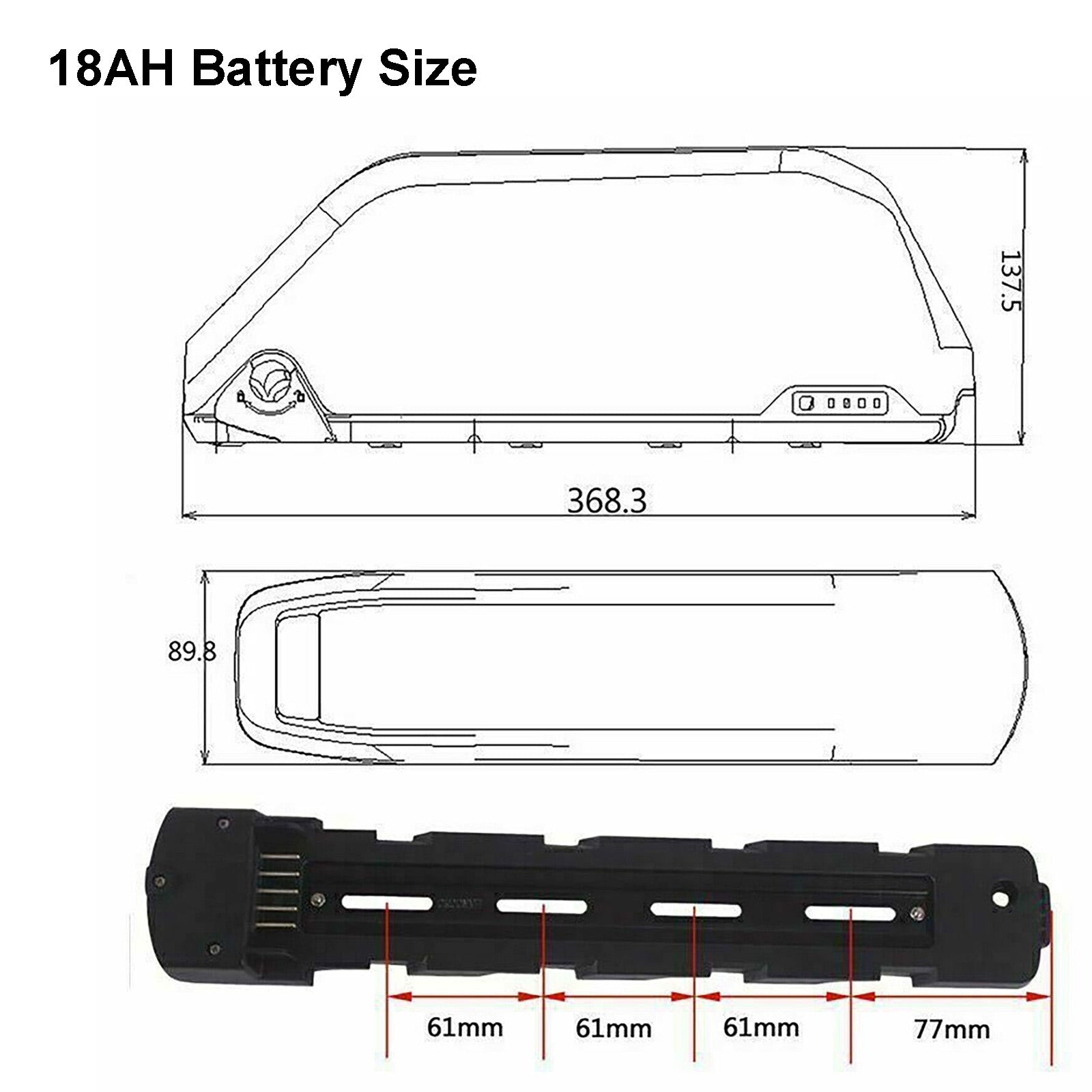

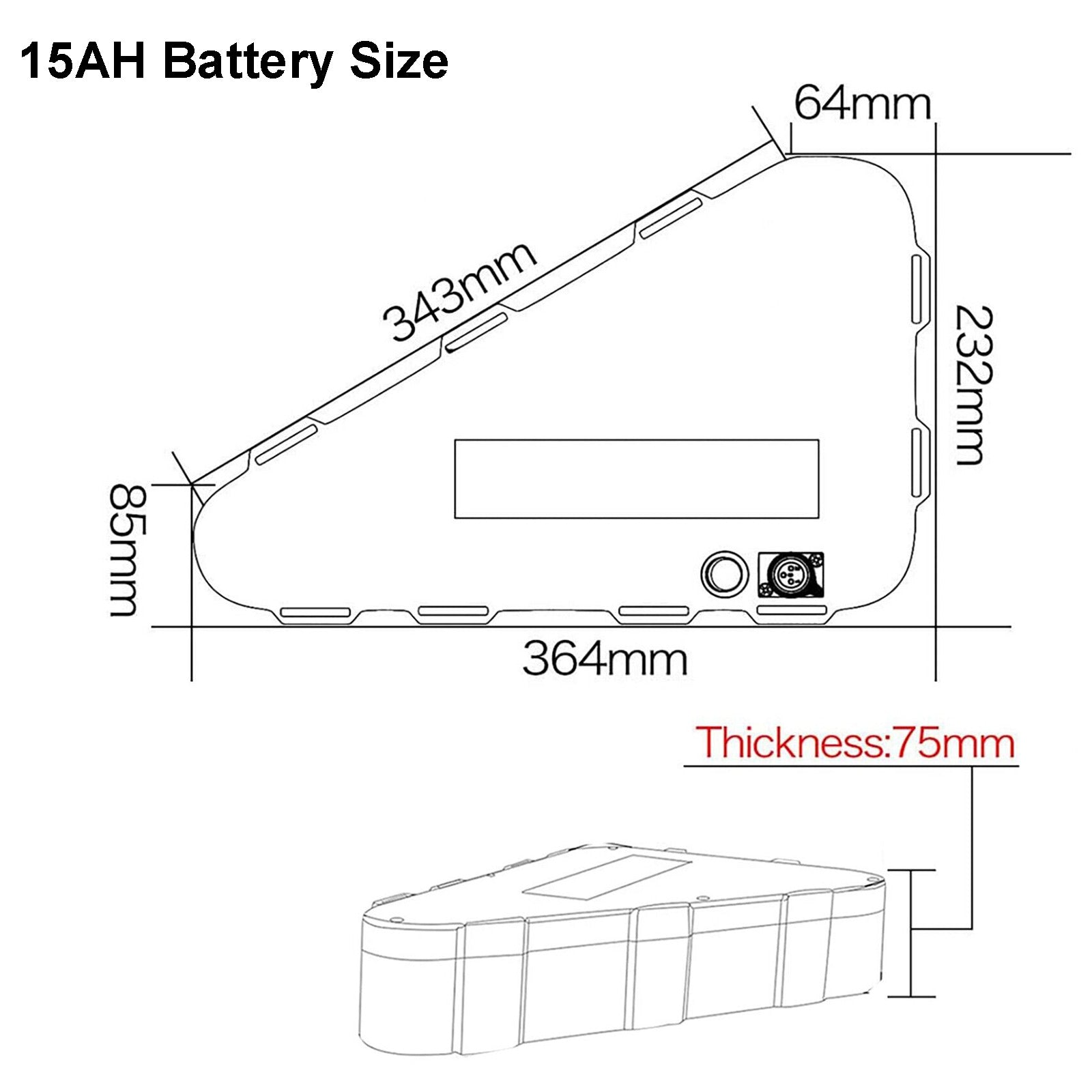

- Please check the battery sizes and make sure it can fit your bike triangle frame
