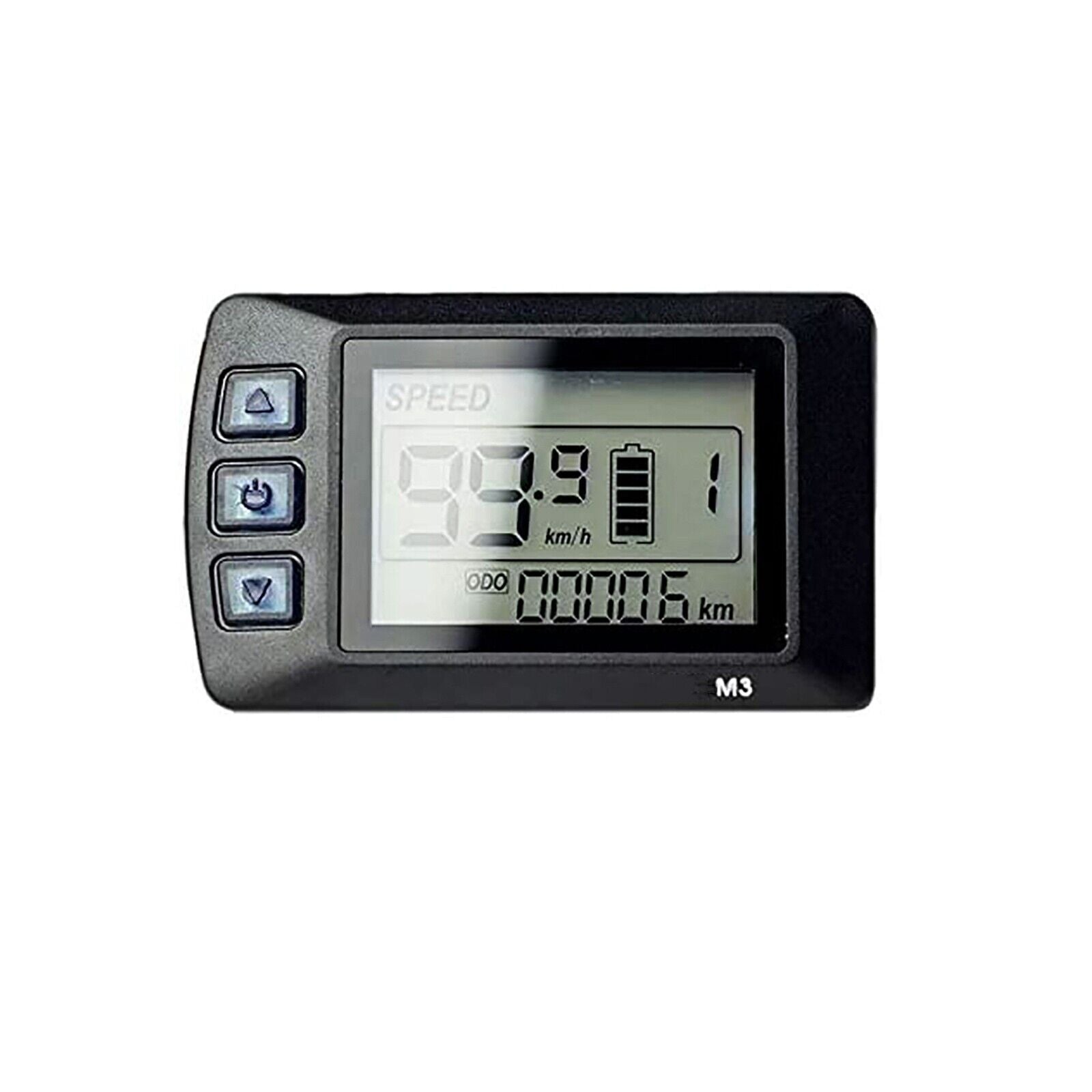

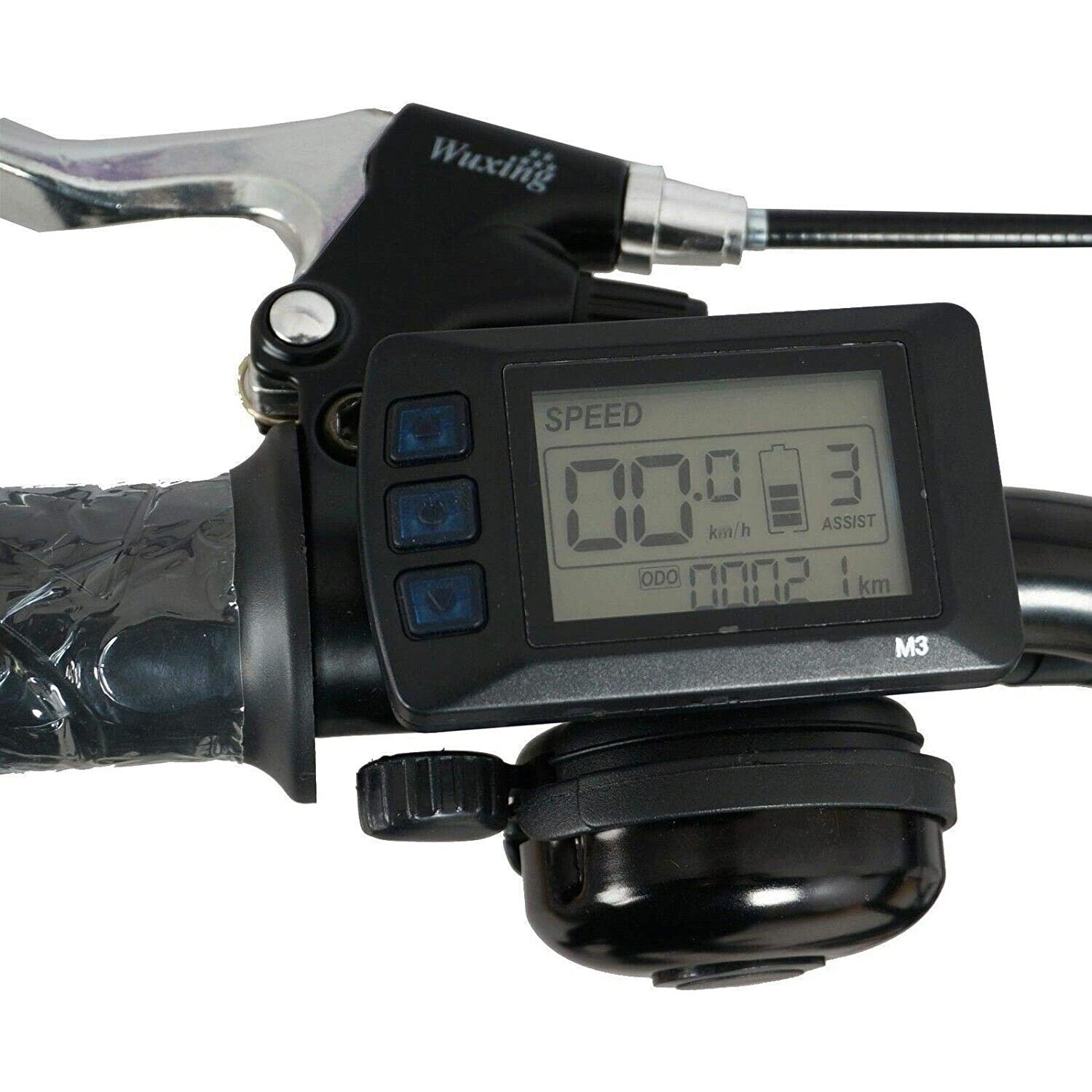

36V Speed LCD Digital Control Panel/Display Meter for Ebike Scooter

36V Speed LCD Digital Control Panel/Display Meter for Ebike Scooter

  • Product SKU: TJ171#
  • Availability: In Stock
  • SHIPPING:  FREE SHIPPING
$77.95 $70.00
Hurry! only 4 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

or make 4 interest-free payments of $17.50 AUD fortnightly with More info

Volt:36V



Material:

Case&Cover&Press button:ABS

LCD window: PMMA

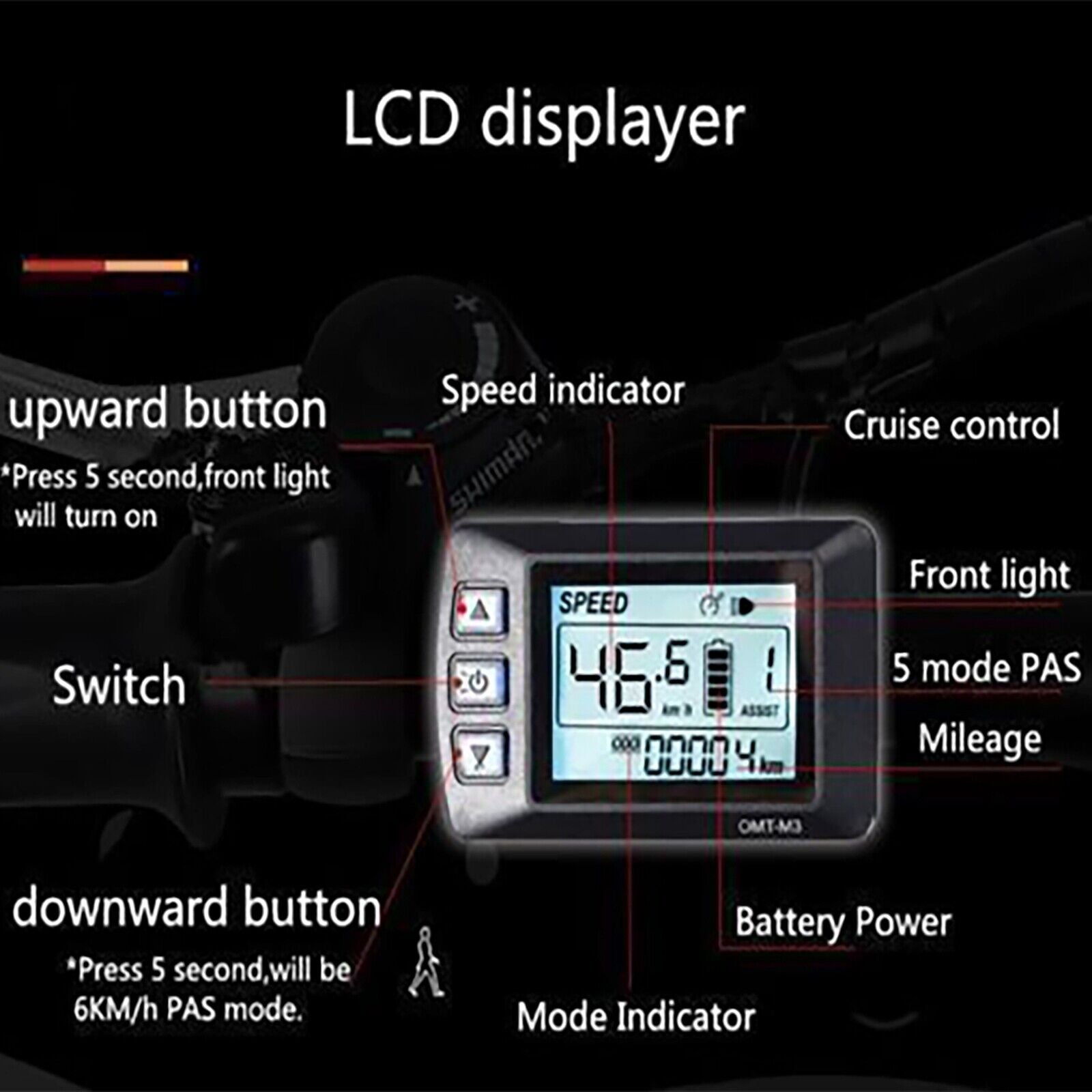

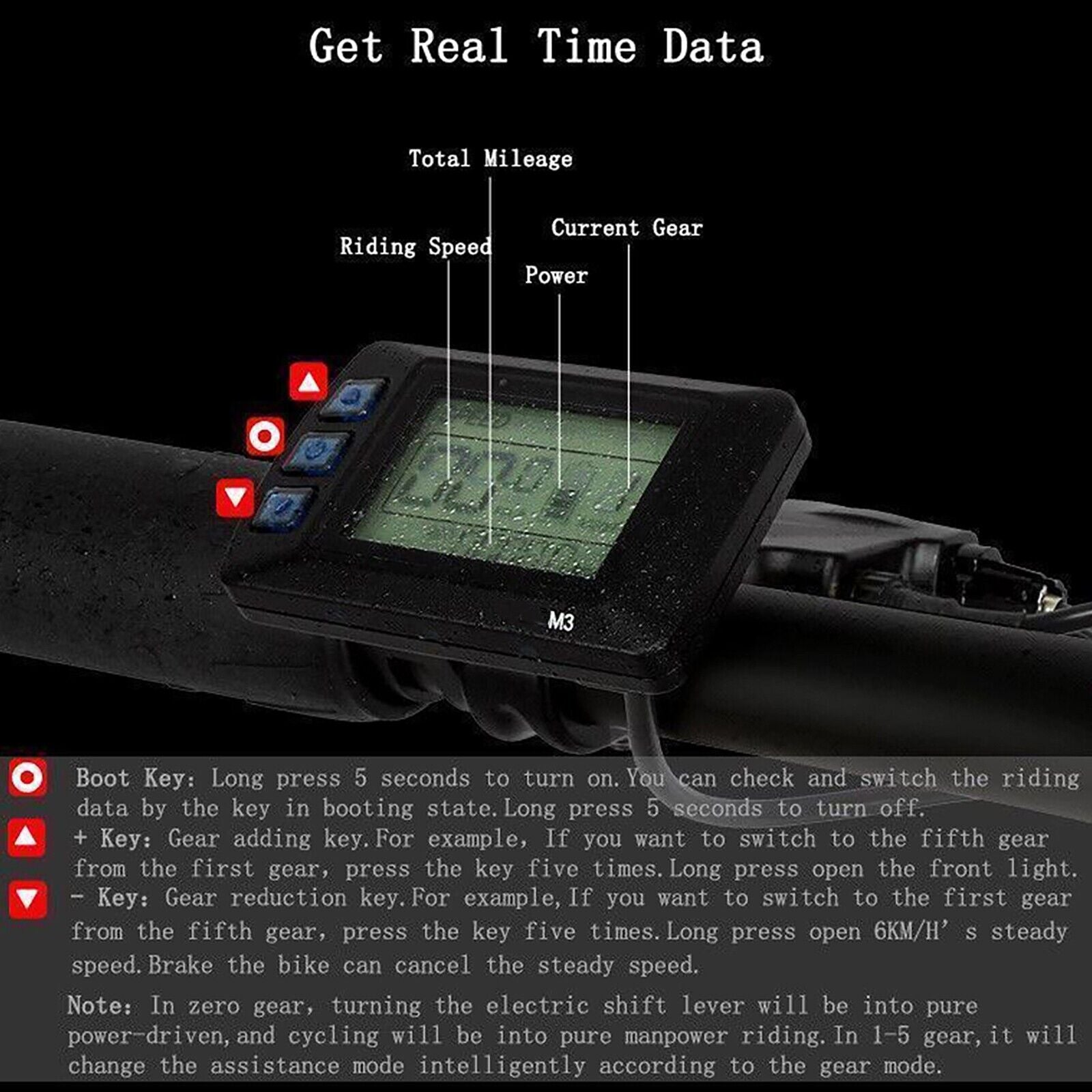

Functions:

1: UART communication

2: SPEED-Max/Average/Real time

3: ODO/TRIP Distance

4: Kmh/MPH

5: PAS level

6: Battery level indicator

7: Head light control

8: ERROR CODE

9: PARAMETER SETTING

10:Back light adjustment



11: 6KM mode

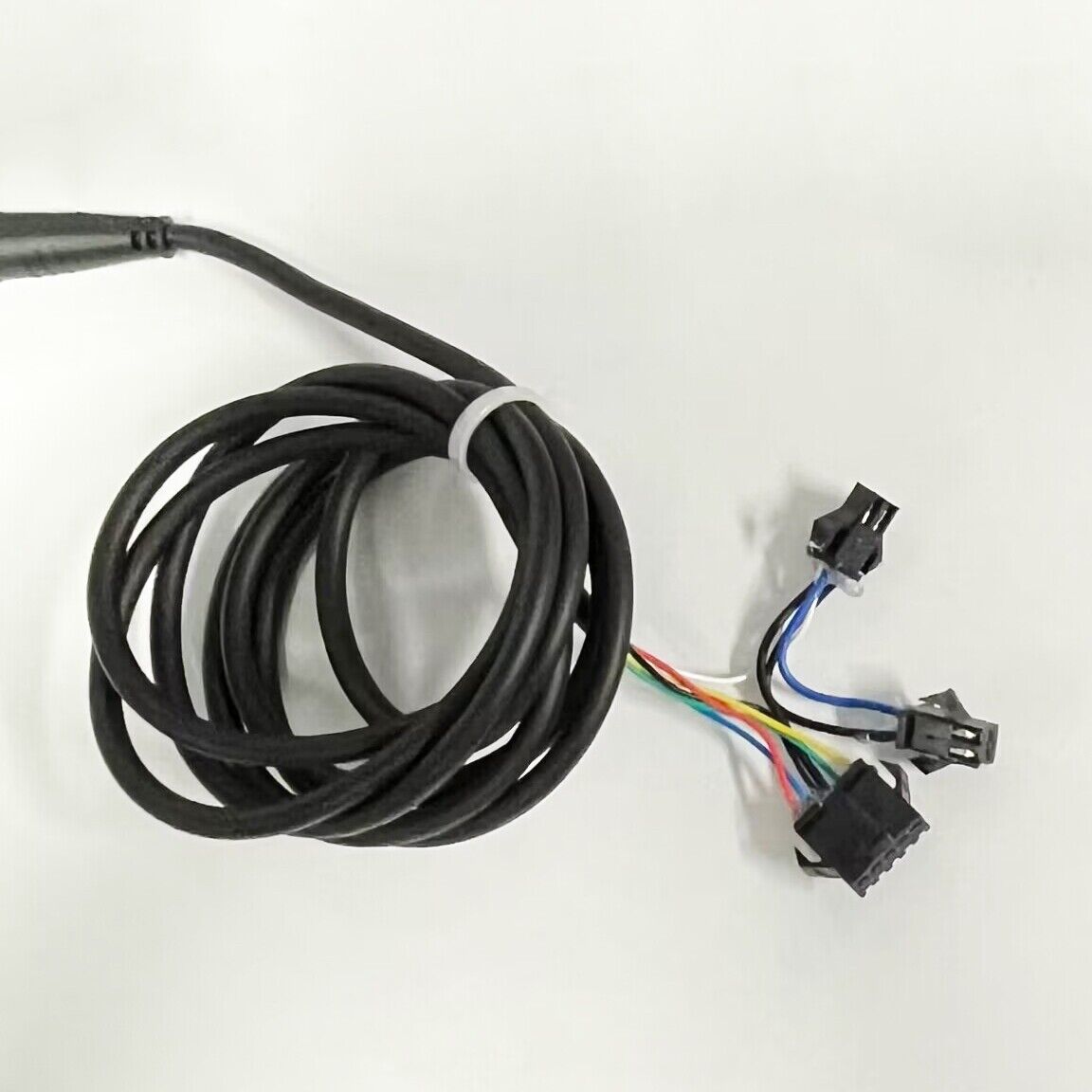

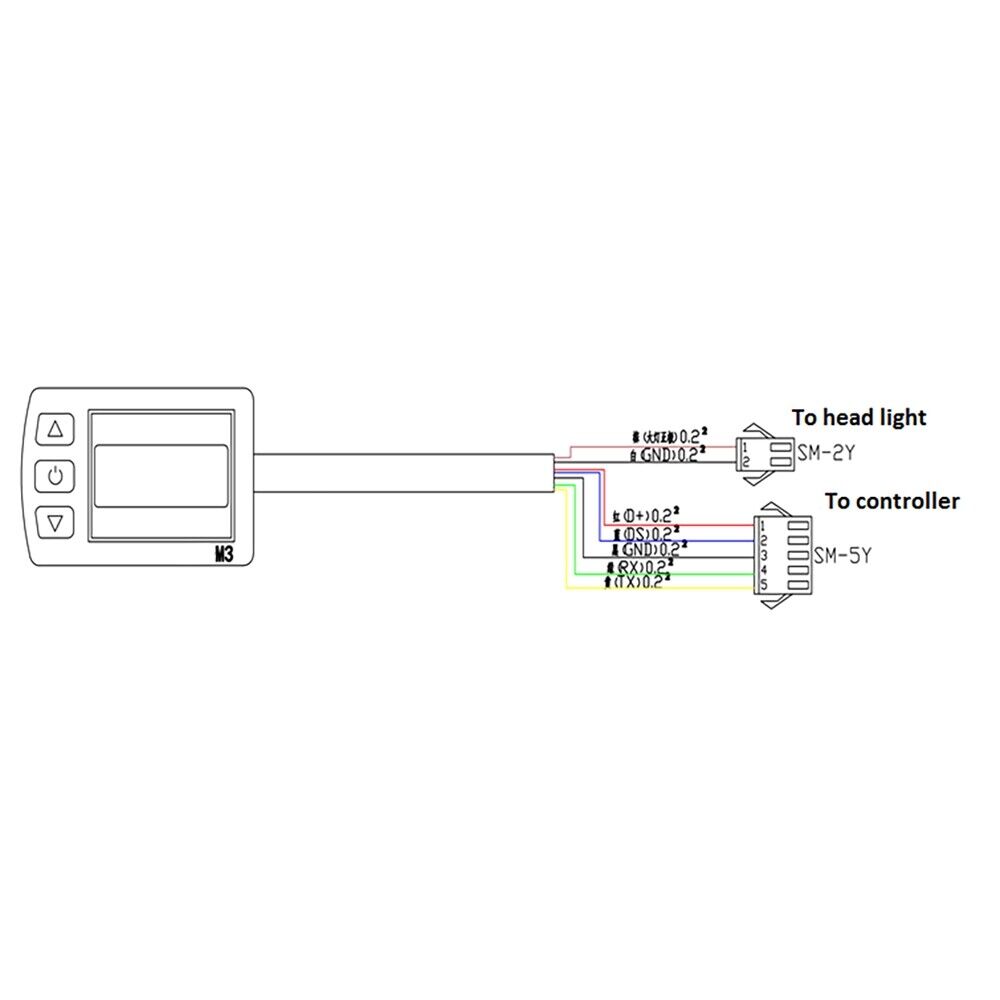

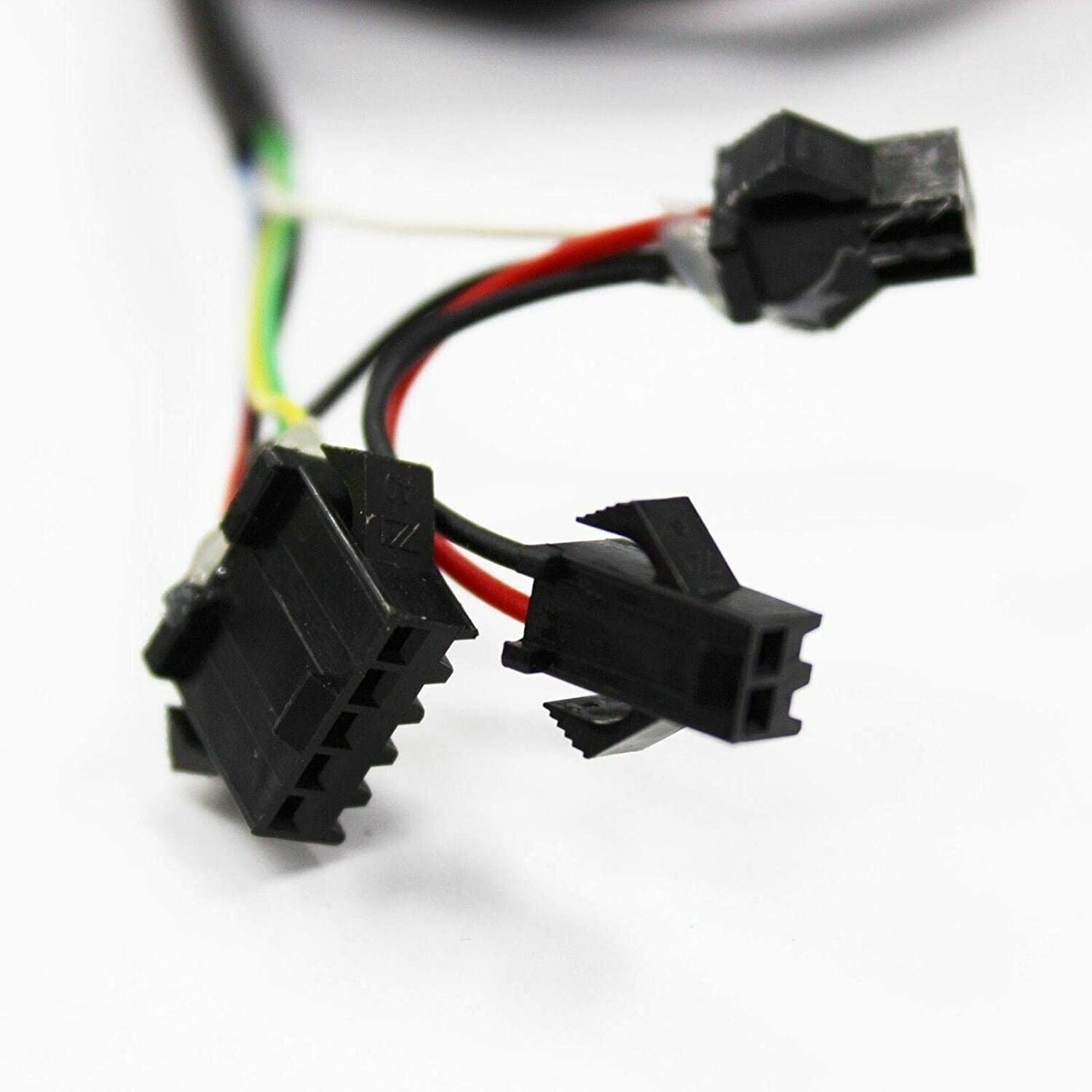

Wire definition:






Red:Power supply-VCC
Blue:Electronic lock-DS
Black:GND
Green:Data RXD
Yellow:Data TXD
BROWN:Head light(+) -DD

White:Head light(-)-GND
Remark:Connectors and Wire color could be customized



NOTE :PLEASE NOTE ITEM FITS 36V ELECTRIC BIKE ONLY



Please contact seller if you need PDF file manual
