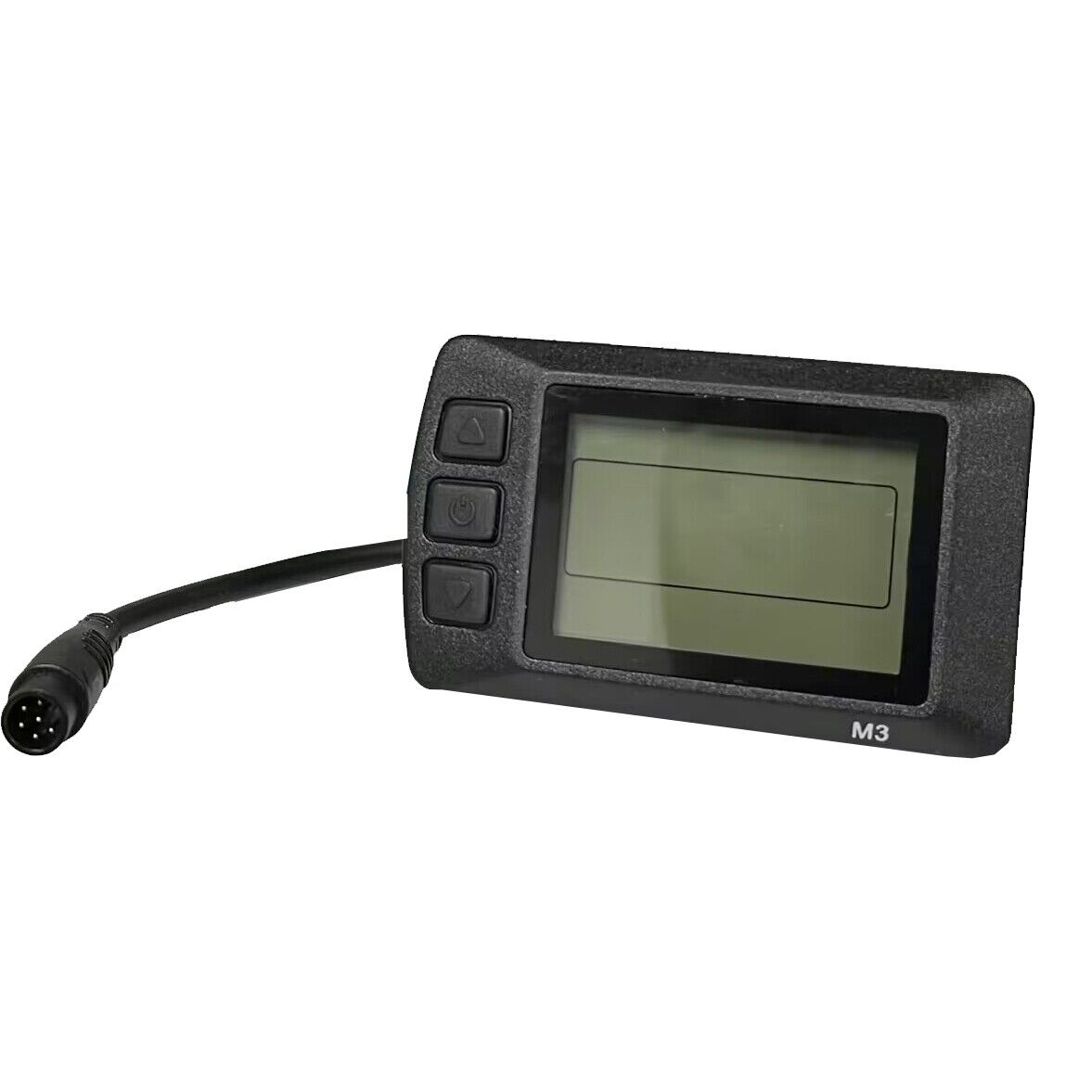

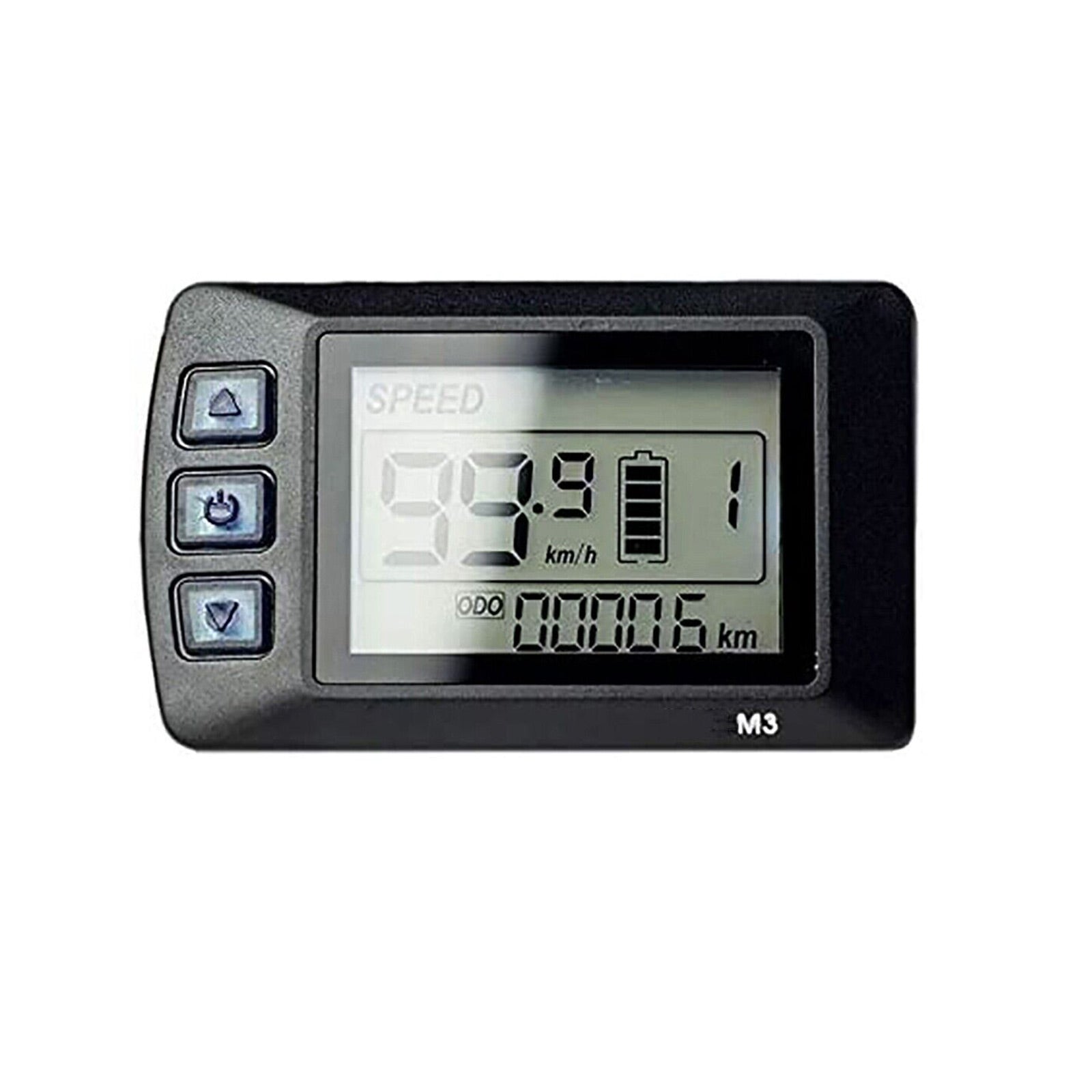

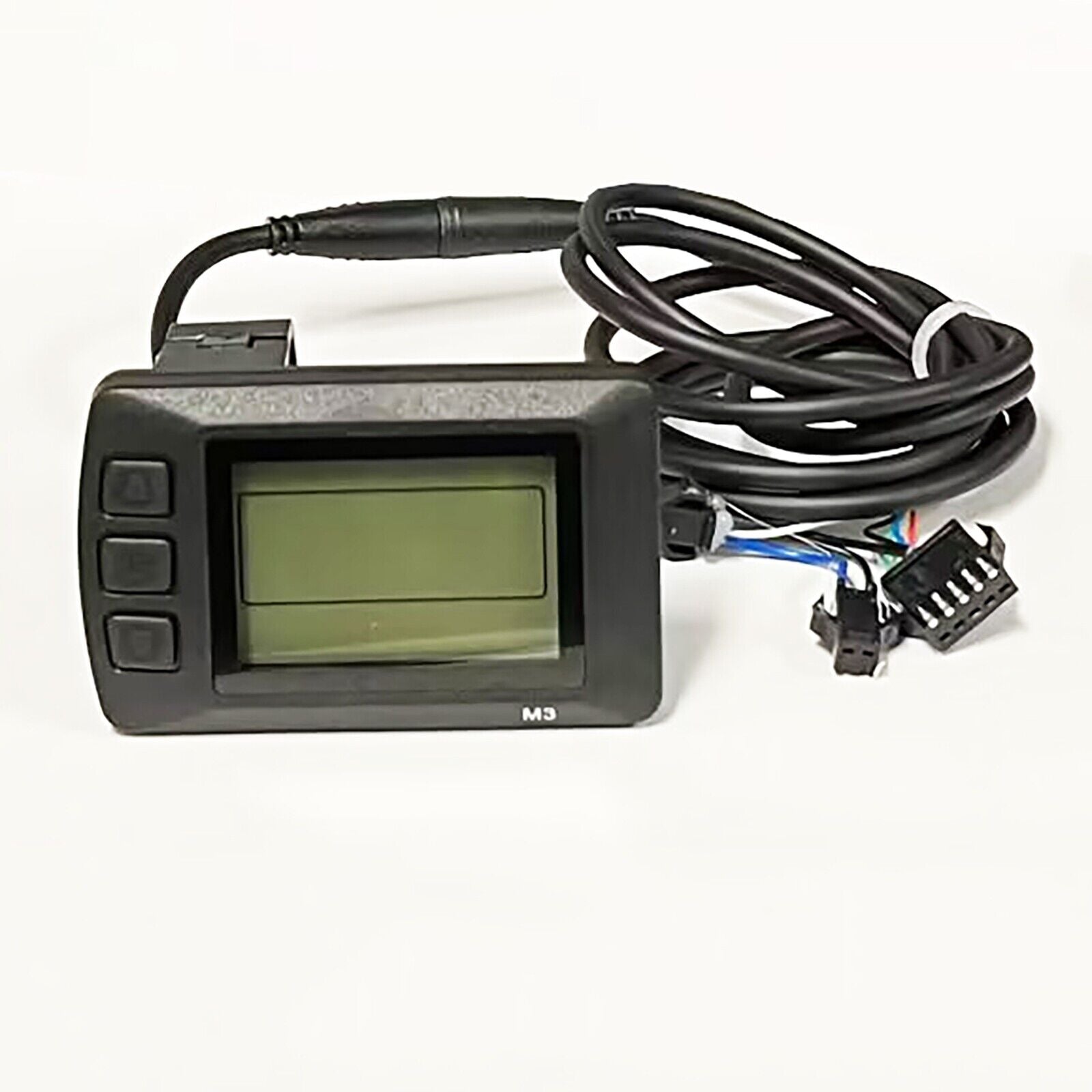

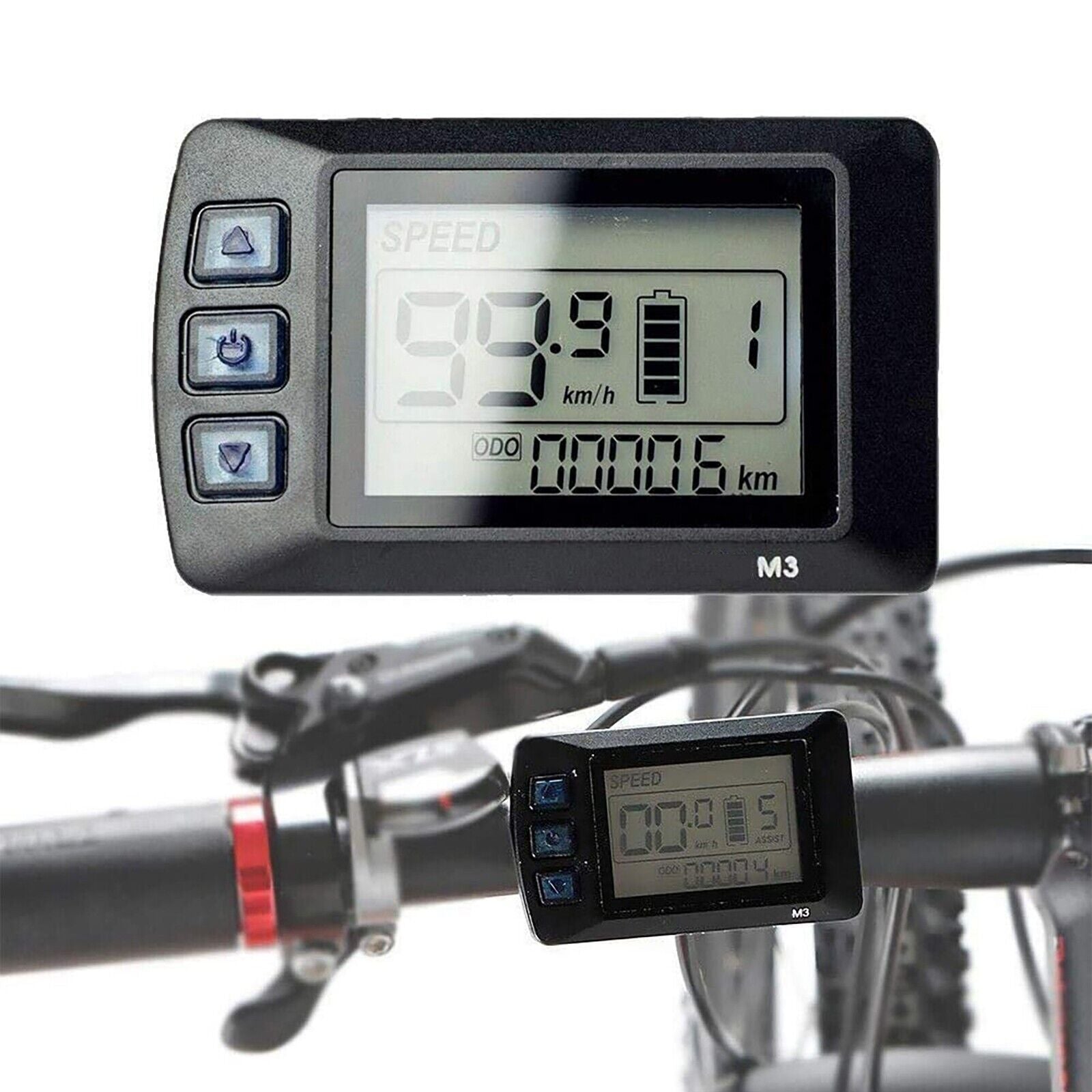

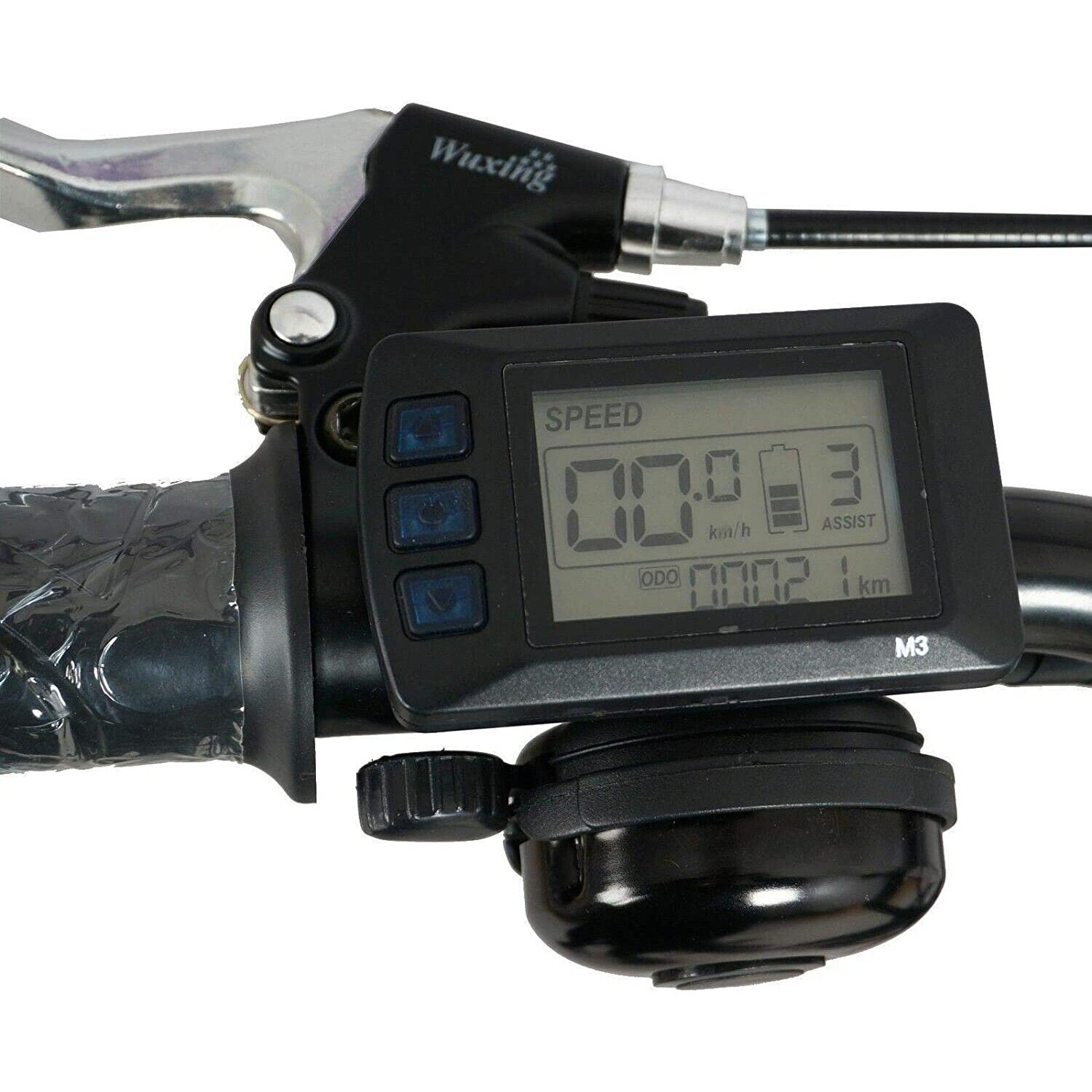

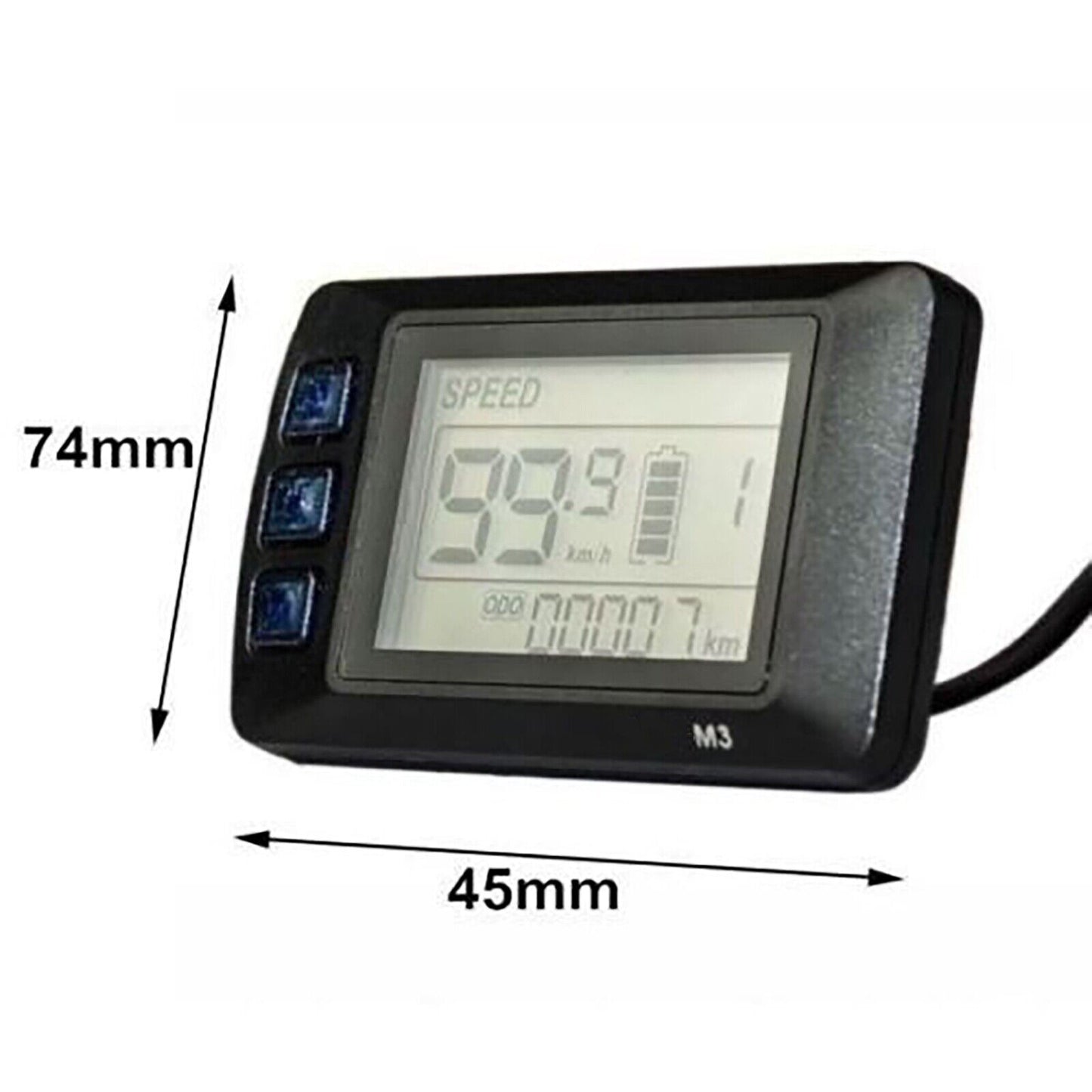

48V OMT3 eBike Speed LCD Display Panel Electric Bicycle Controller Ebike

• Voltage: 48V
• Materials: Case, Cover & Press button: ABS; LCD window: PMMA
• Front Plug Pins Type: 6 Pins

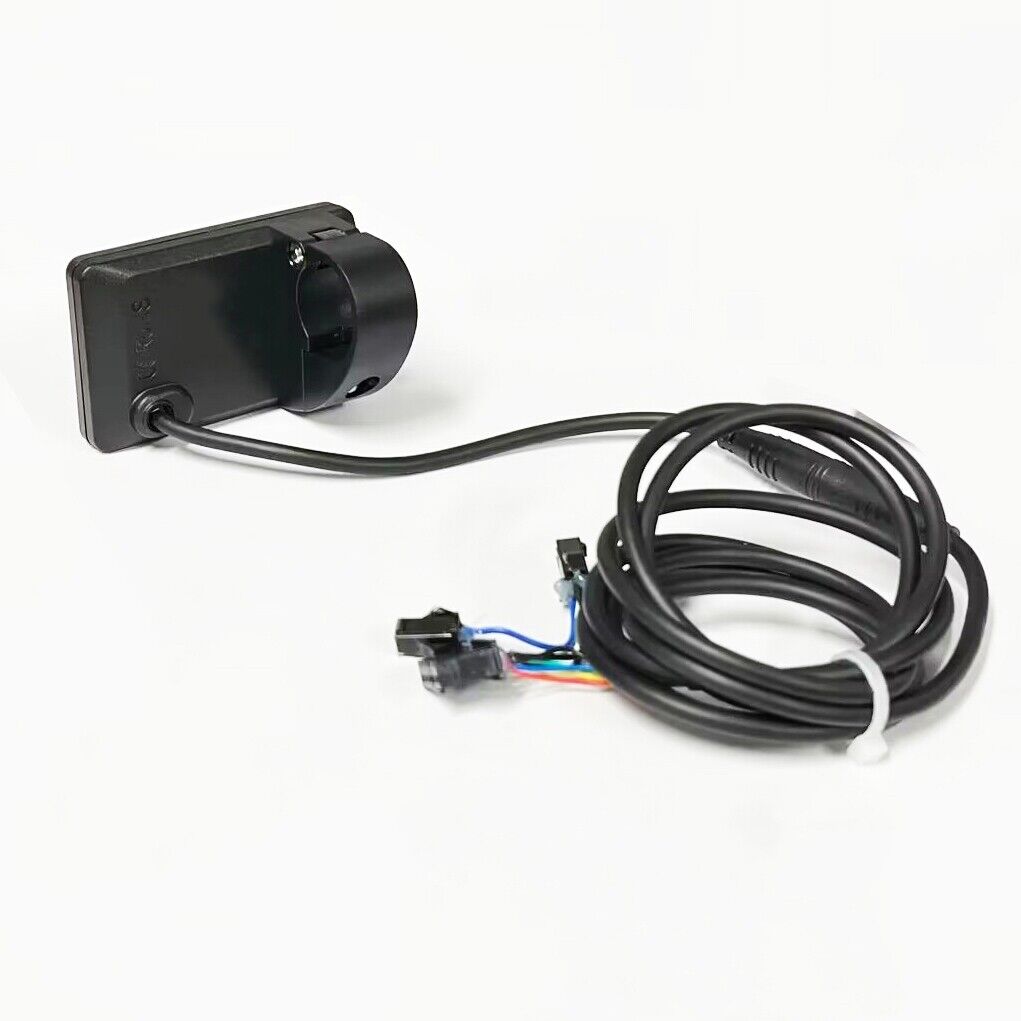

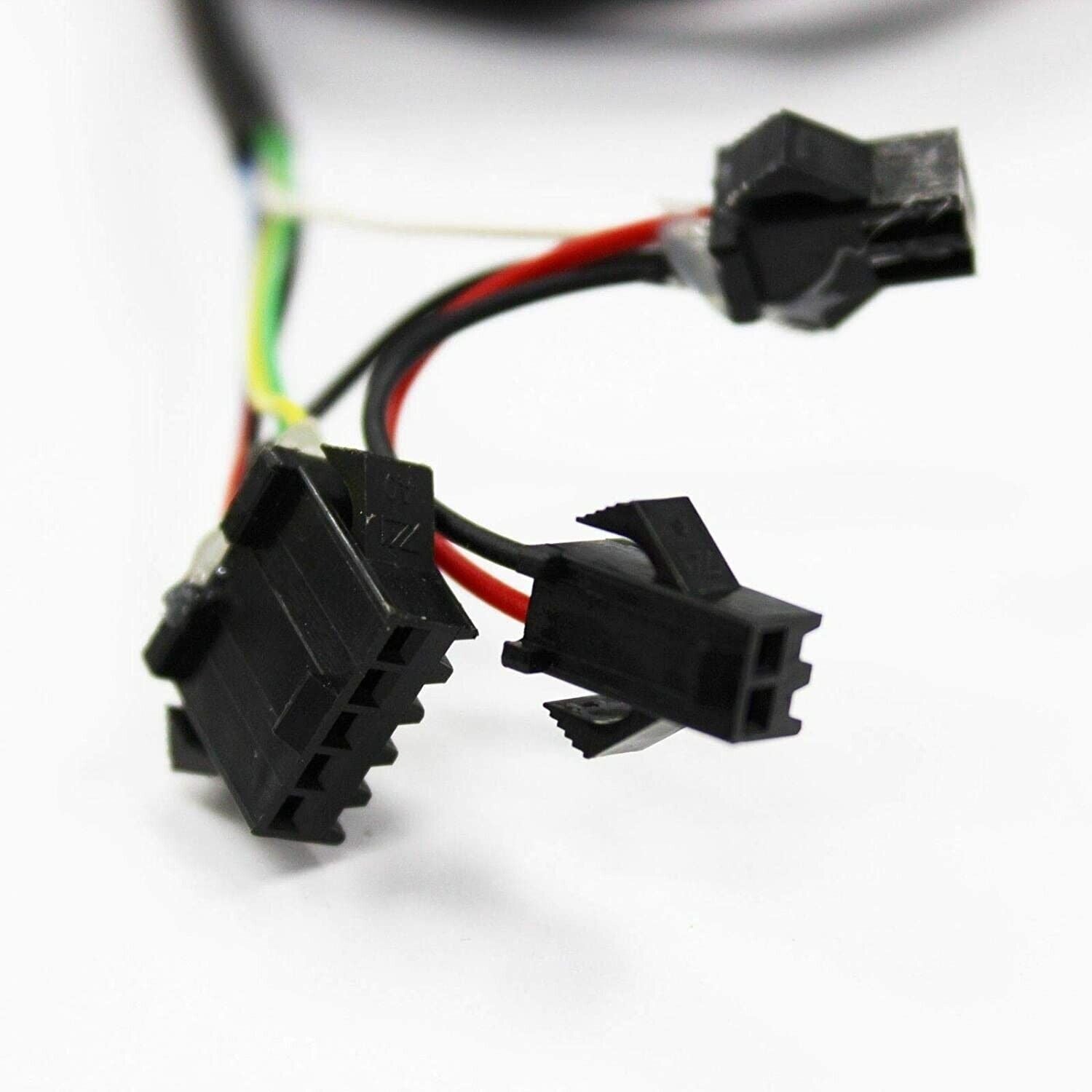

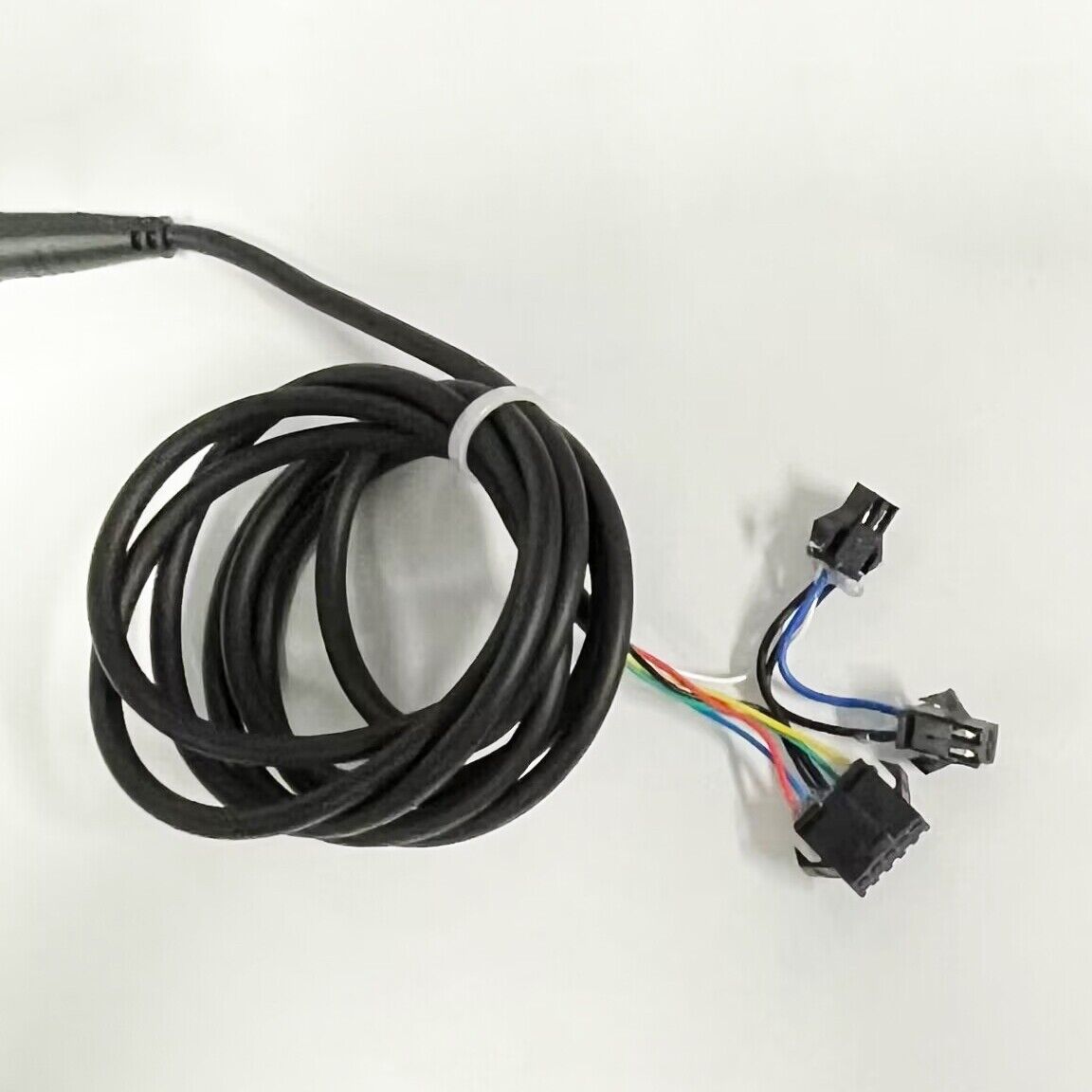

• End Wire Connection: 5 Pins Plug + 2 x SM Plugs (Lighting)

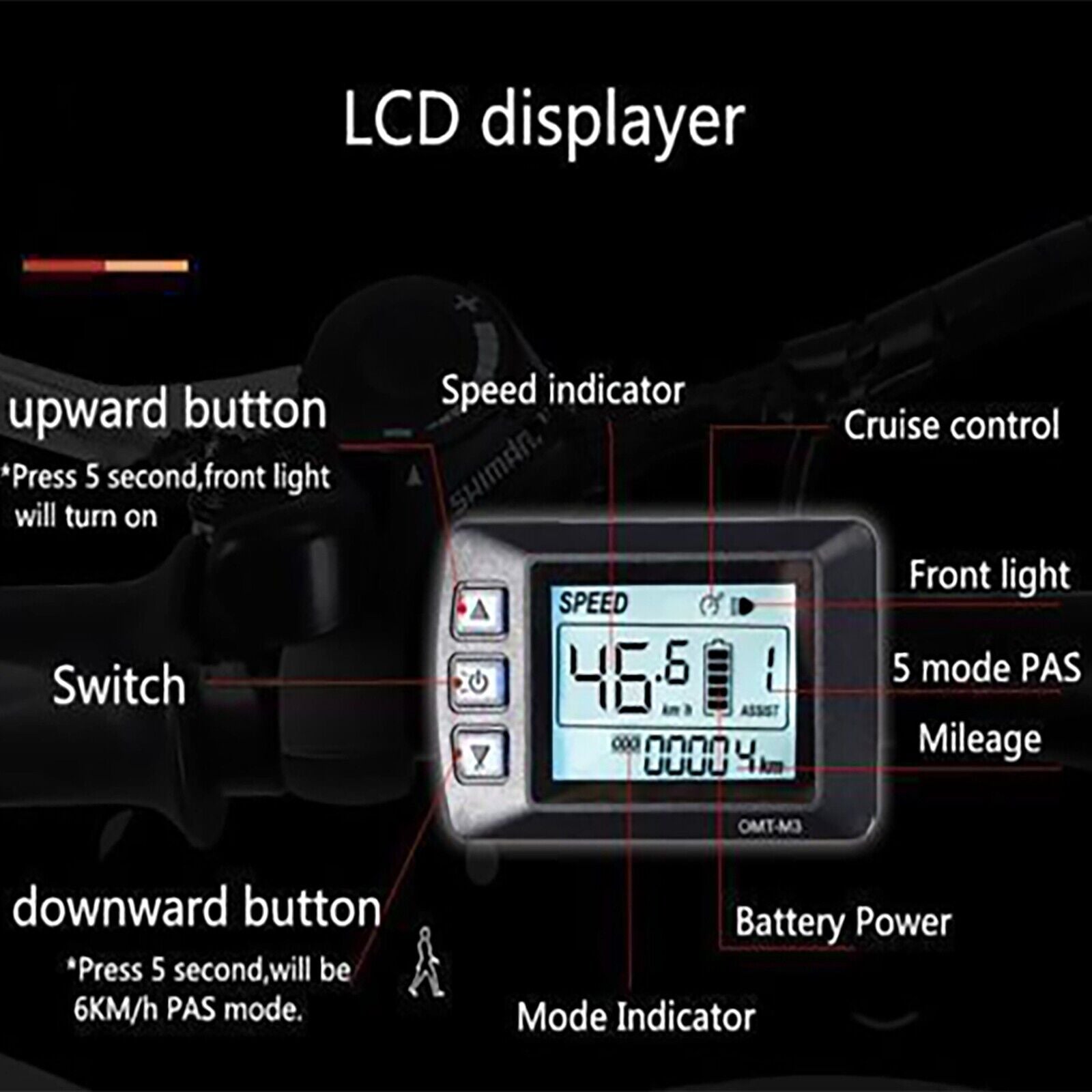

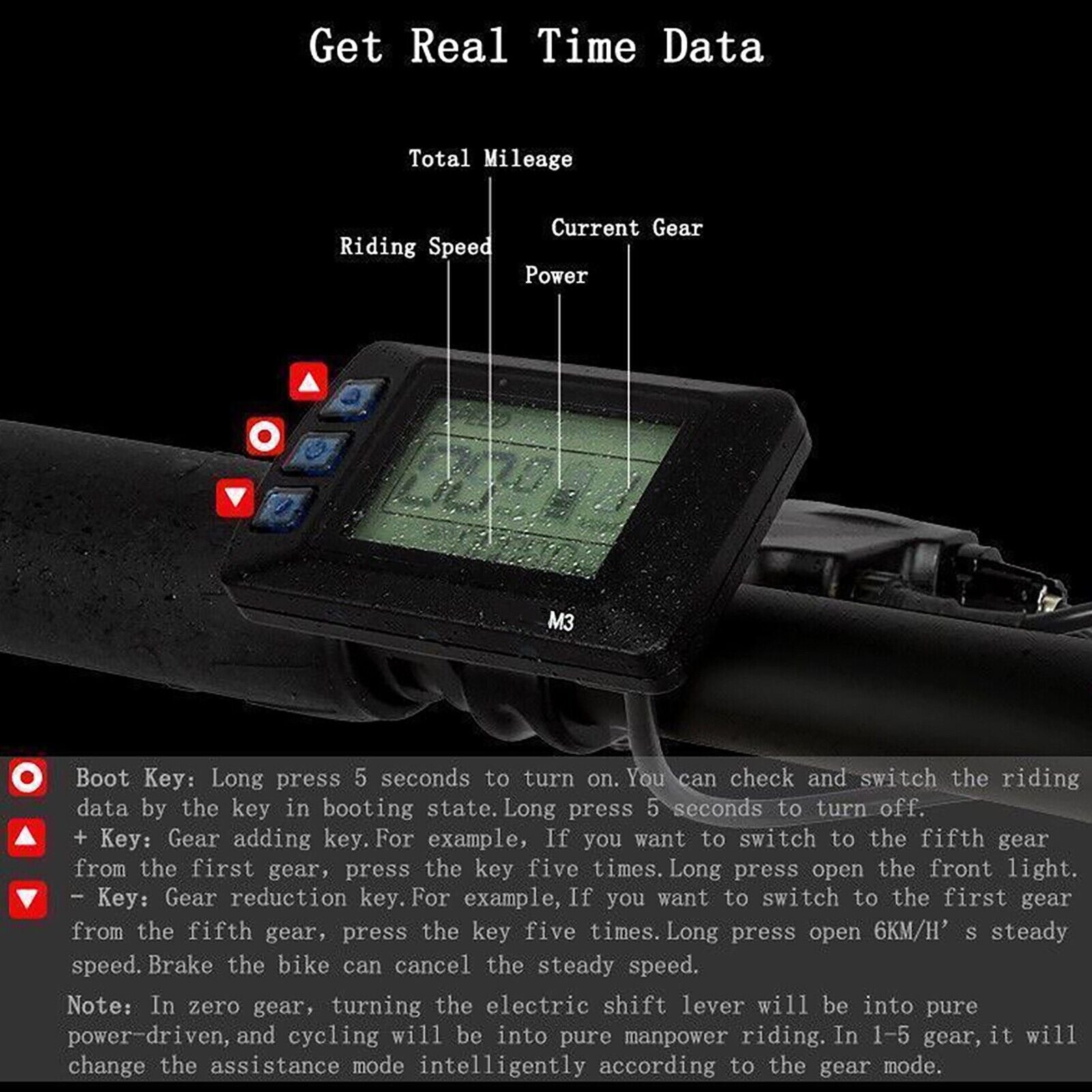

Functions:

• UART communication
• SPEED-Max/Average/Real time
• ODO/TRIP Distance
• Kmh/MPH
• PAS level
• Battery level indicator
• Head light control
• ERROR CODE
• PARAMETER SETTING
• Back light adjustment
• 6KM mode

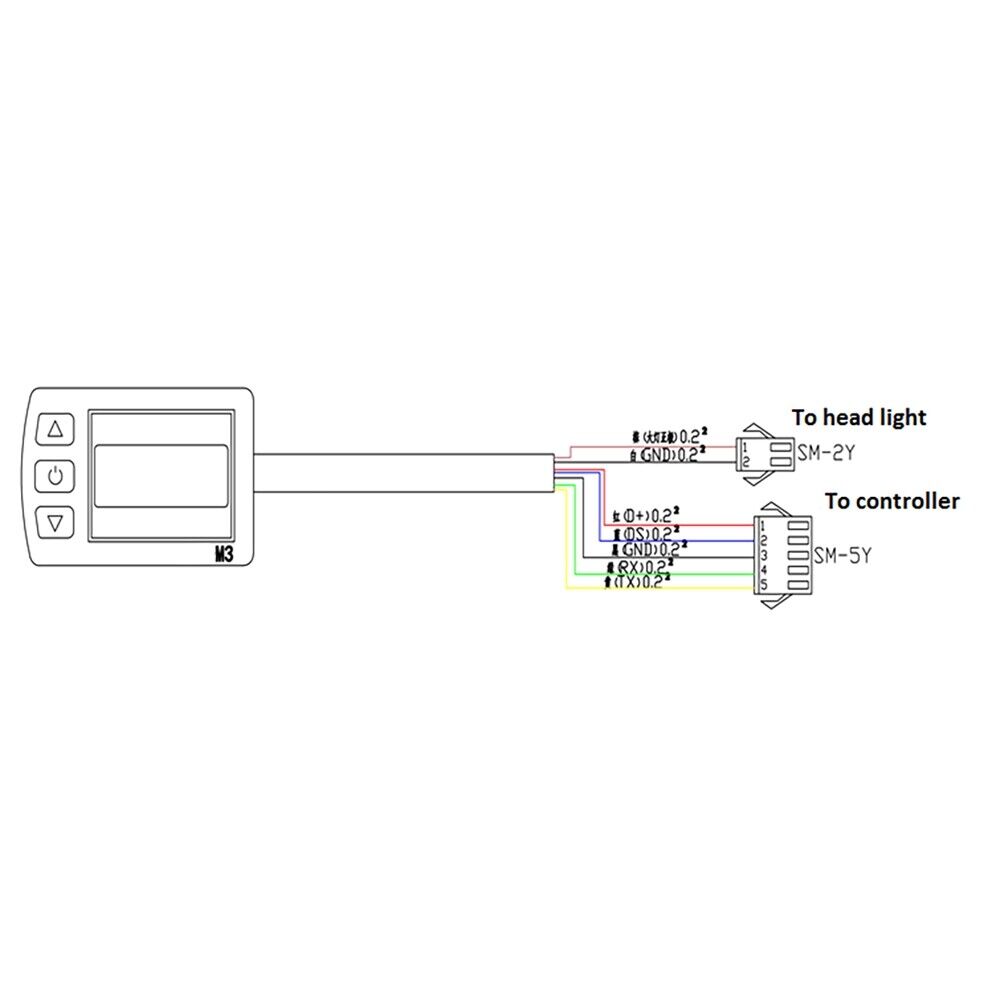

Wires definition:

• Red: Power supply-VCC
• Blue: Electronic lock-DS
• Black: GND
• Green: Data RXD
• Yellow: Data TXD
• Brown: Head light(+) -DD
• White: Head light(-)-GND

Notes:

• Please make sure item fits your bike before purchase
• Color shown on your monitor may be slightly different from the real product depending on your monitor settings.
