48V 1000W Electric Bike eBike Controller with OMT-M3 LCD Control Panel

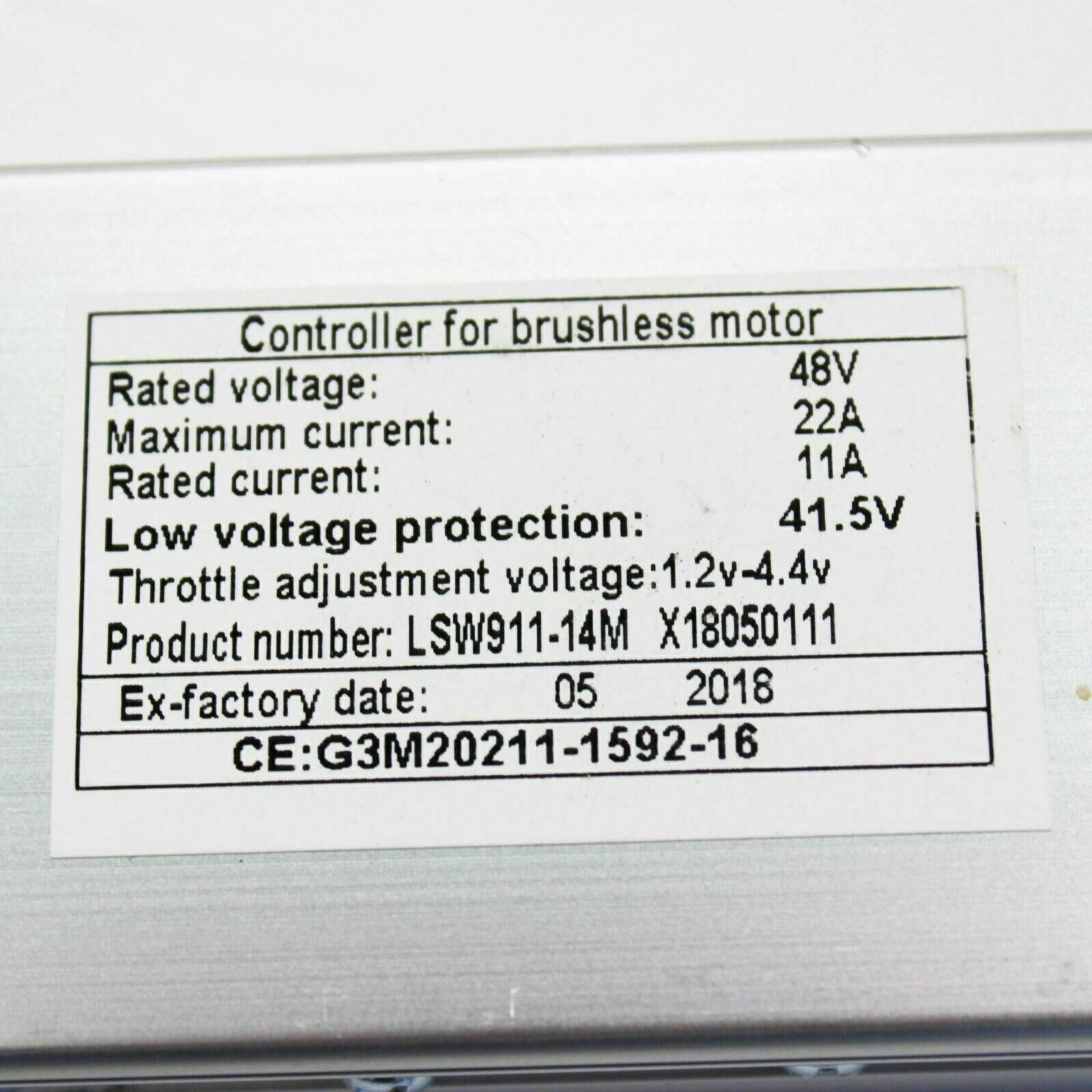

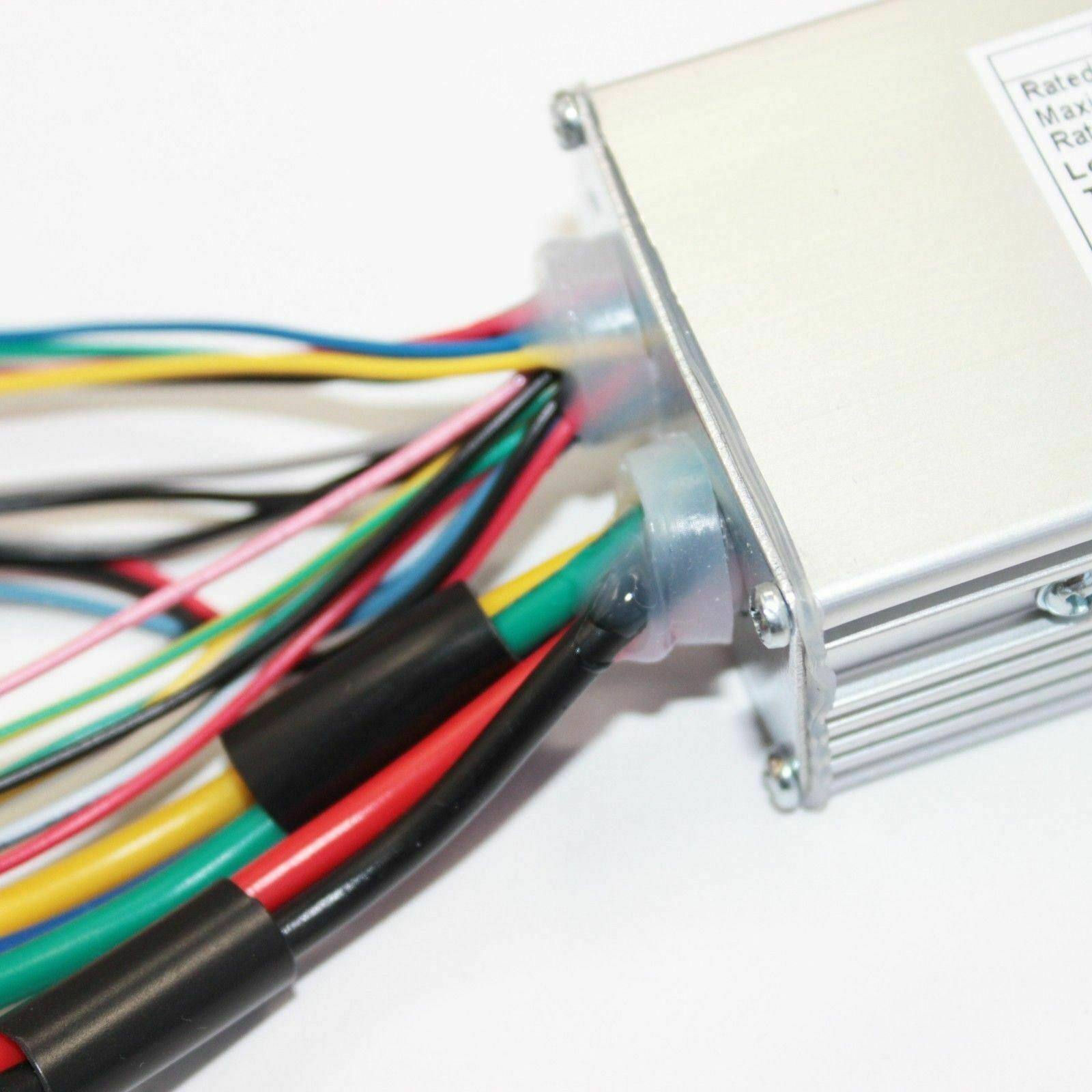

Controller:

• Type: 48V 1000W
• Material: Aluminium alloy
• Working Voltage: 48V
• Rated Power: 1000W
• Maximum Current: 22A
• Low Voltage Protection: 41.5V
• Suitable for: 1000W electric bicycle, scooter, etc

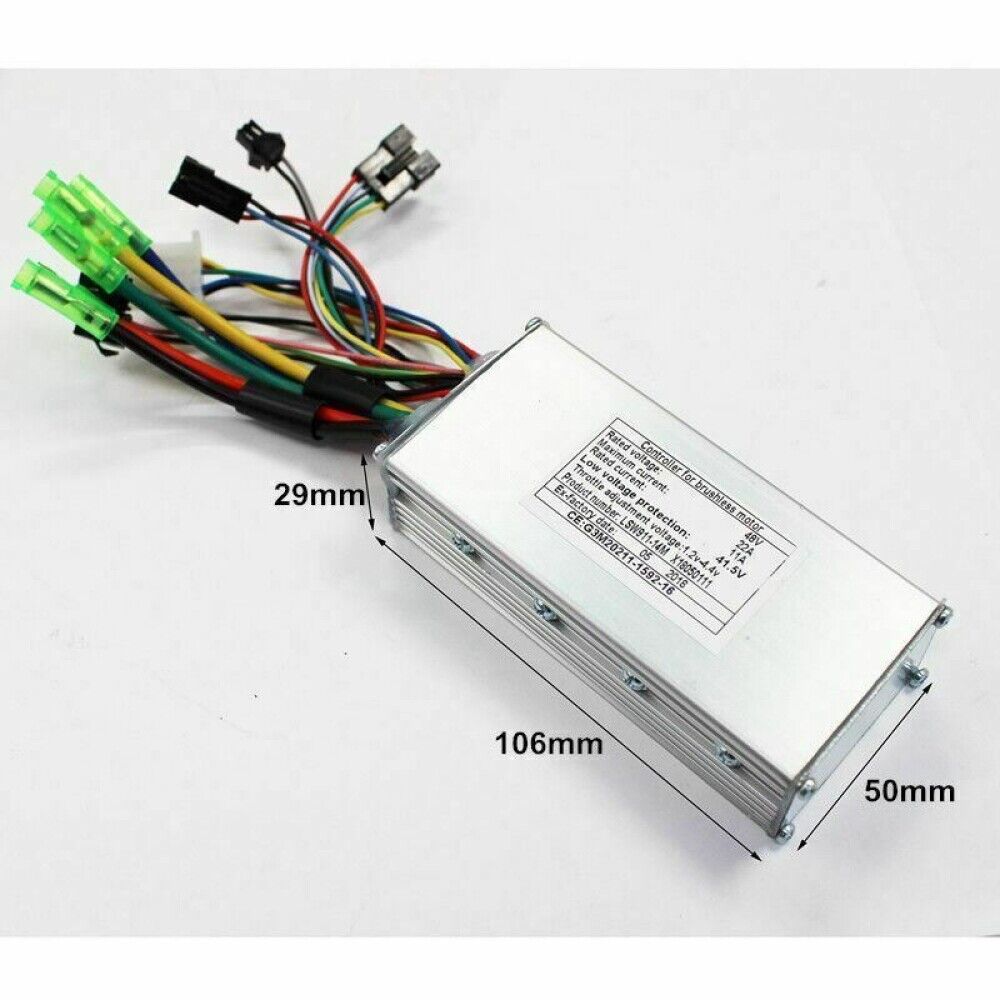

• Size: Approx. 106x50x29mm

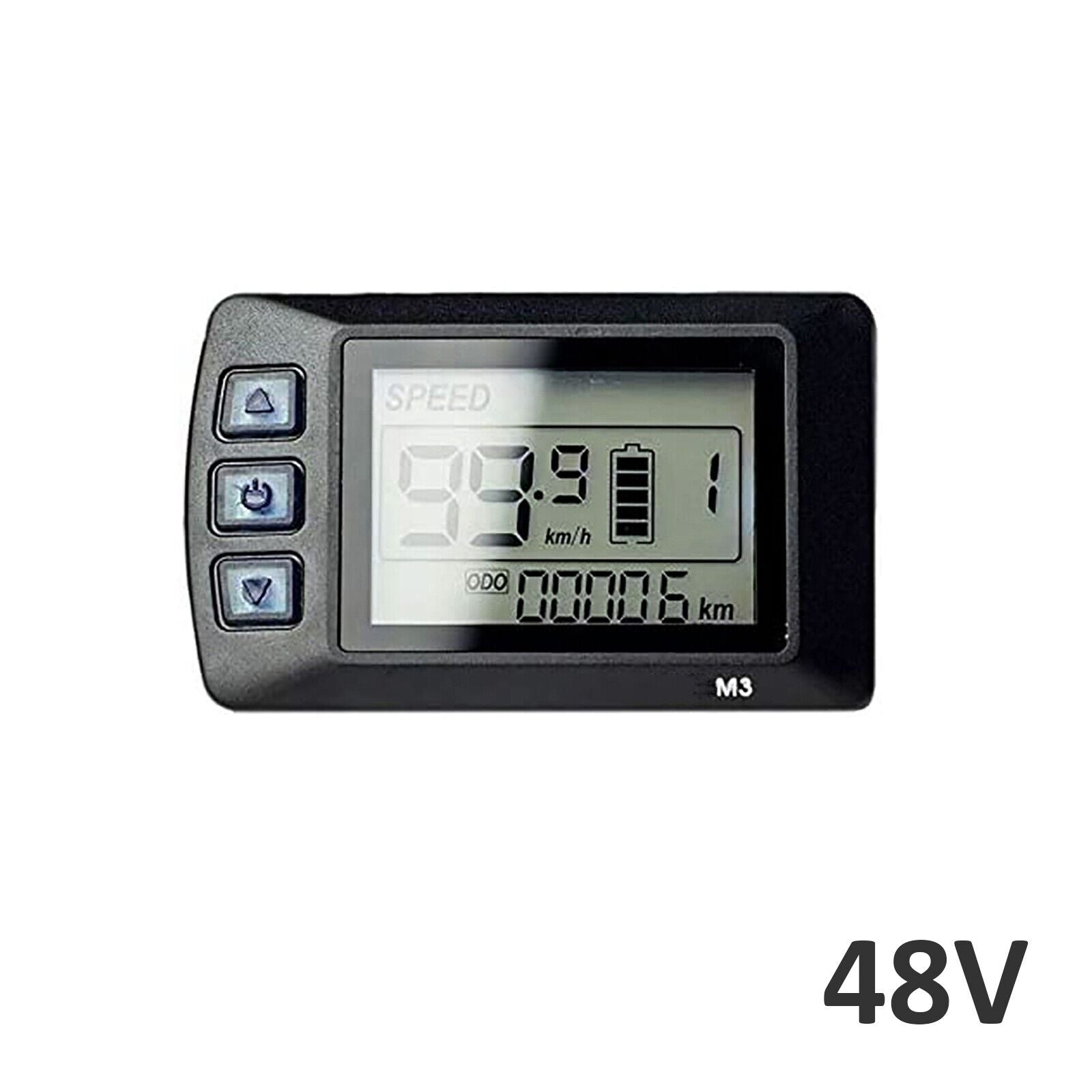

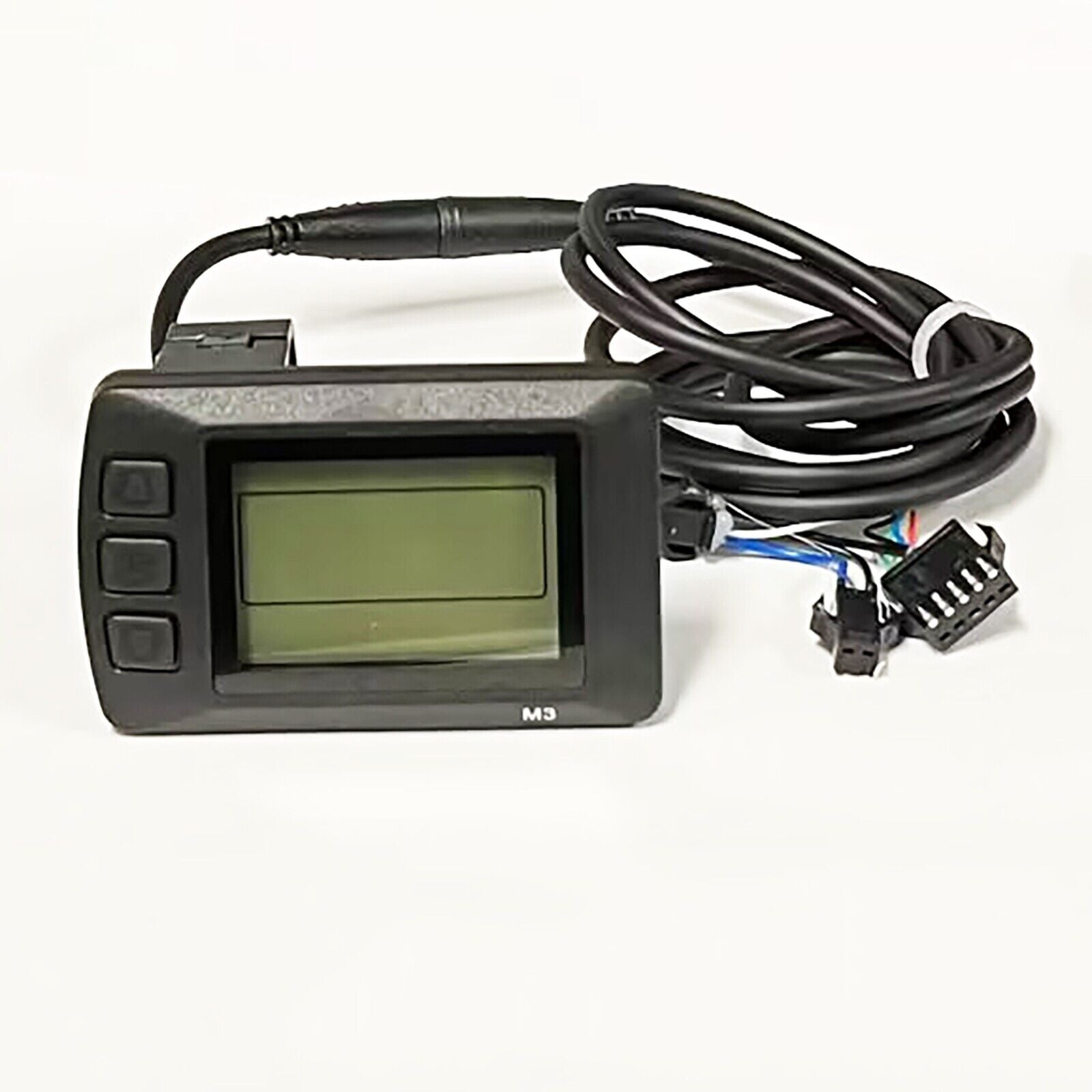

LCD display specifications:

• Volt: 48V
• Material: Case & Cover & Press button: ABS
• LCD window: PMMA

LCD display functions:

• UART communication
• SPEED-Max/Average/Real time
• ODO/TRIP Distance
• Kmh/MPH
• PAS level
• Battery level indicator
• Head light control
• ERROR CODE
• PARAMETER SETTING
• Back light adjustment
• 6km/h mode

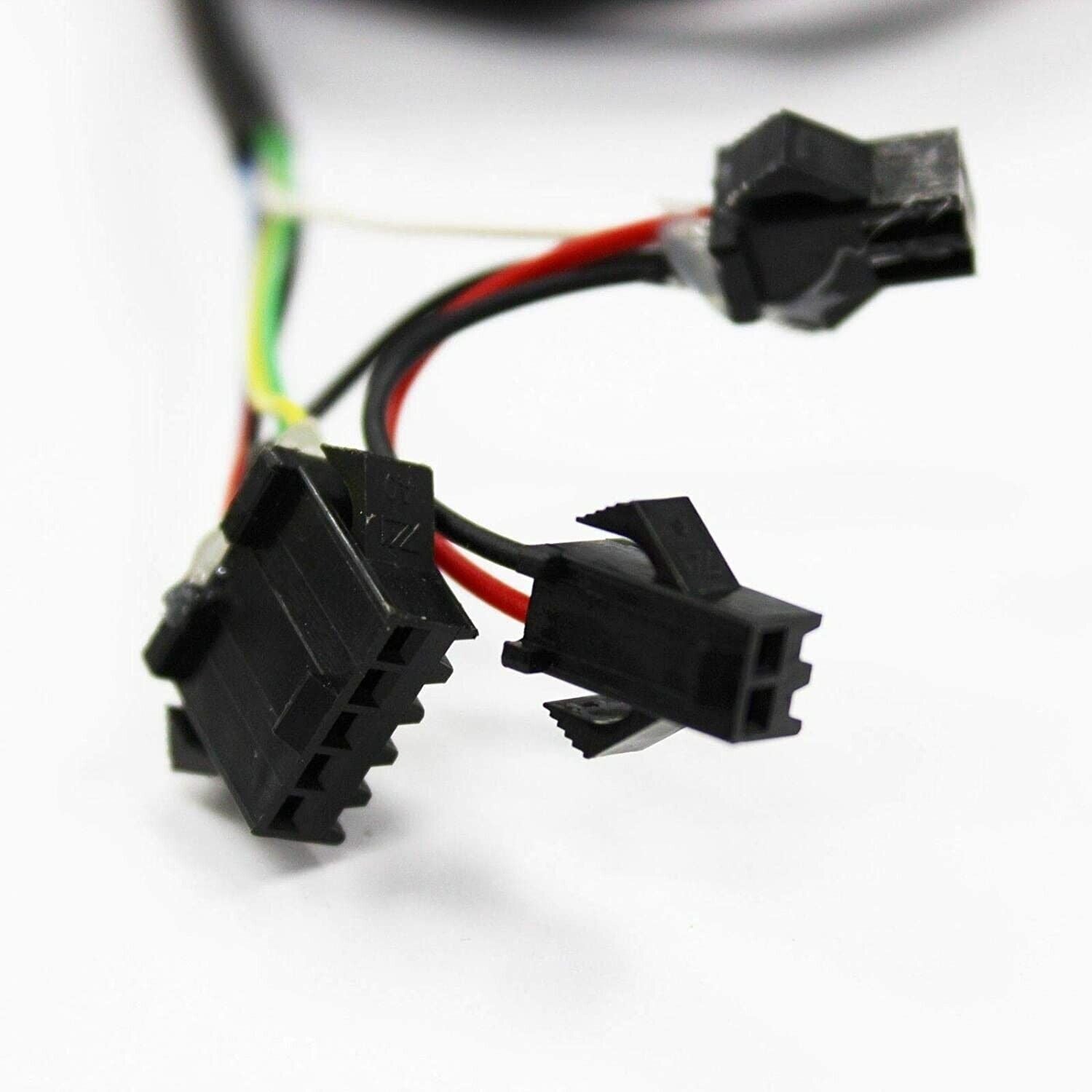

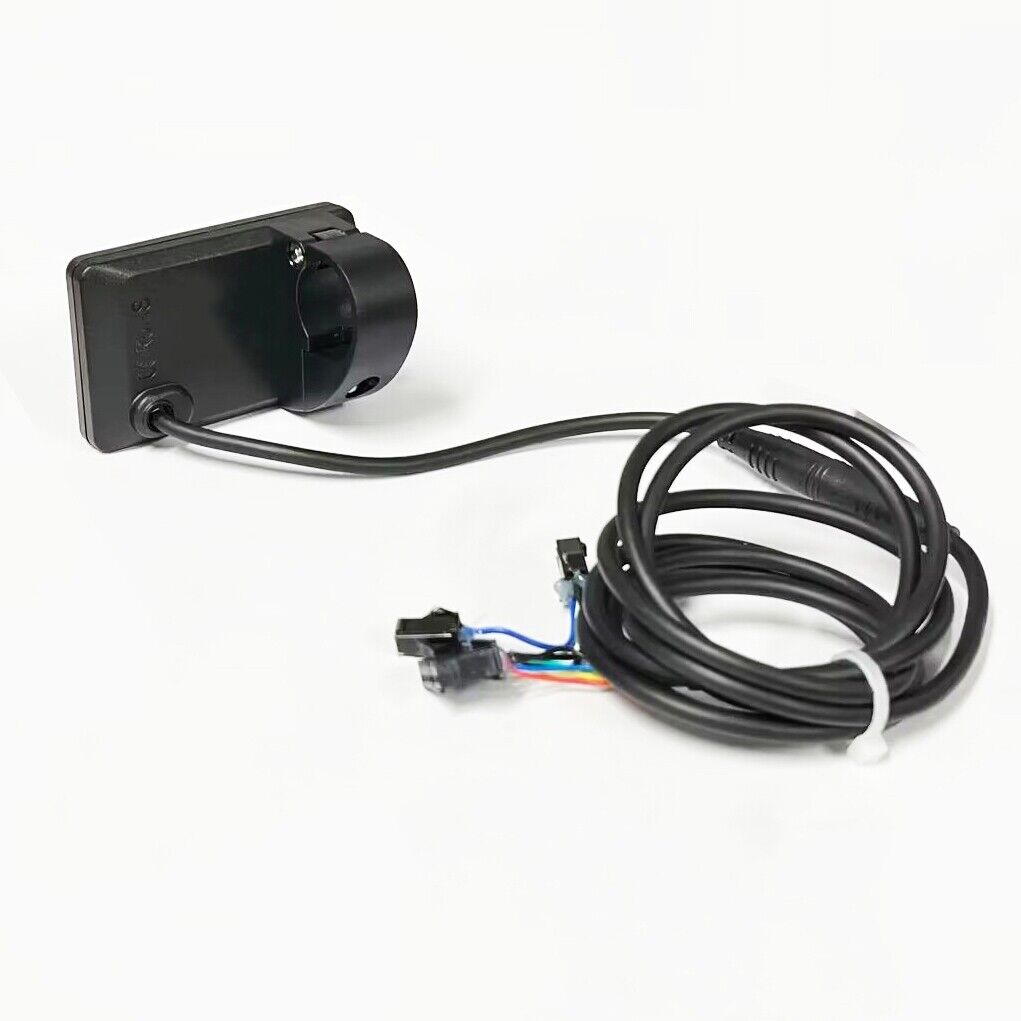

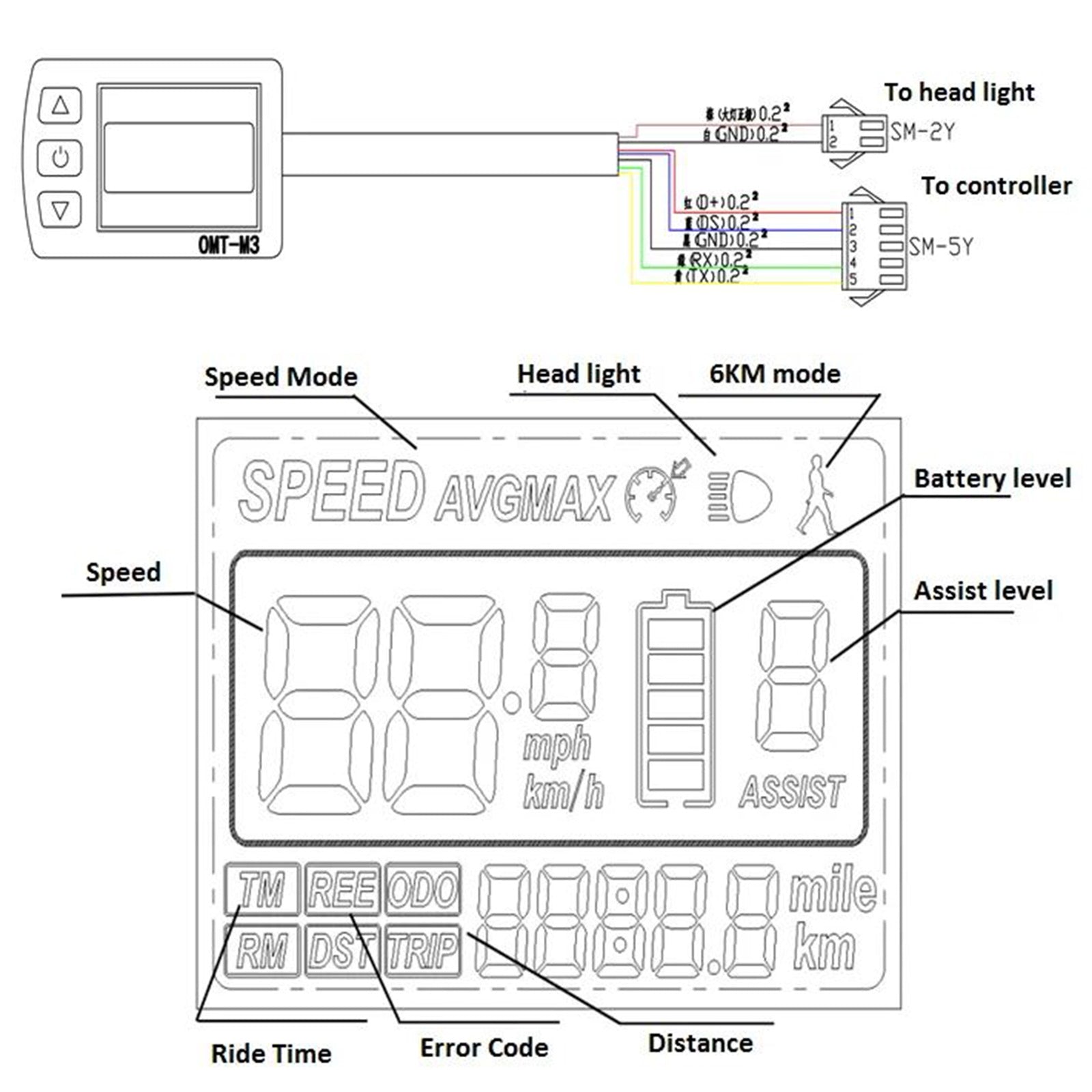

Display Wiring:

• Red:Power supply-VCC
• Blue:Electronic lock-DS
• Black:GND
• Green:Data RXD
• Yellow:Data TXD
• BROWN:Head light(+) -DD
• White:Head light(-)-GND
• Remark:Connectors and Wire color could be customized

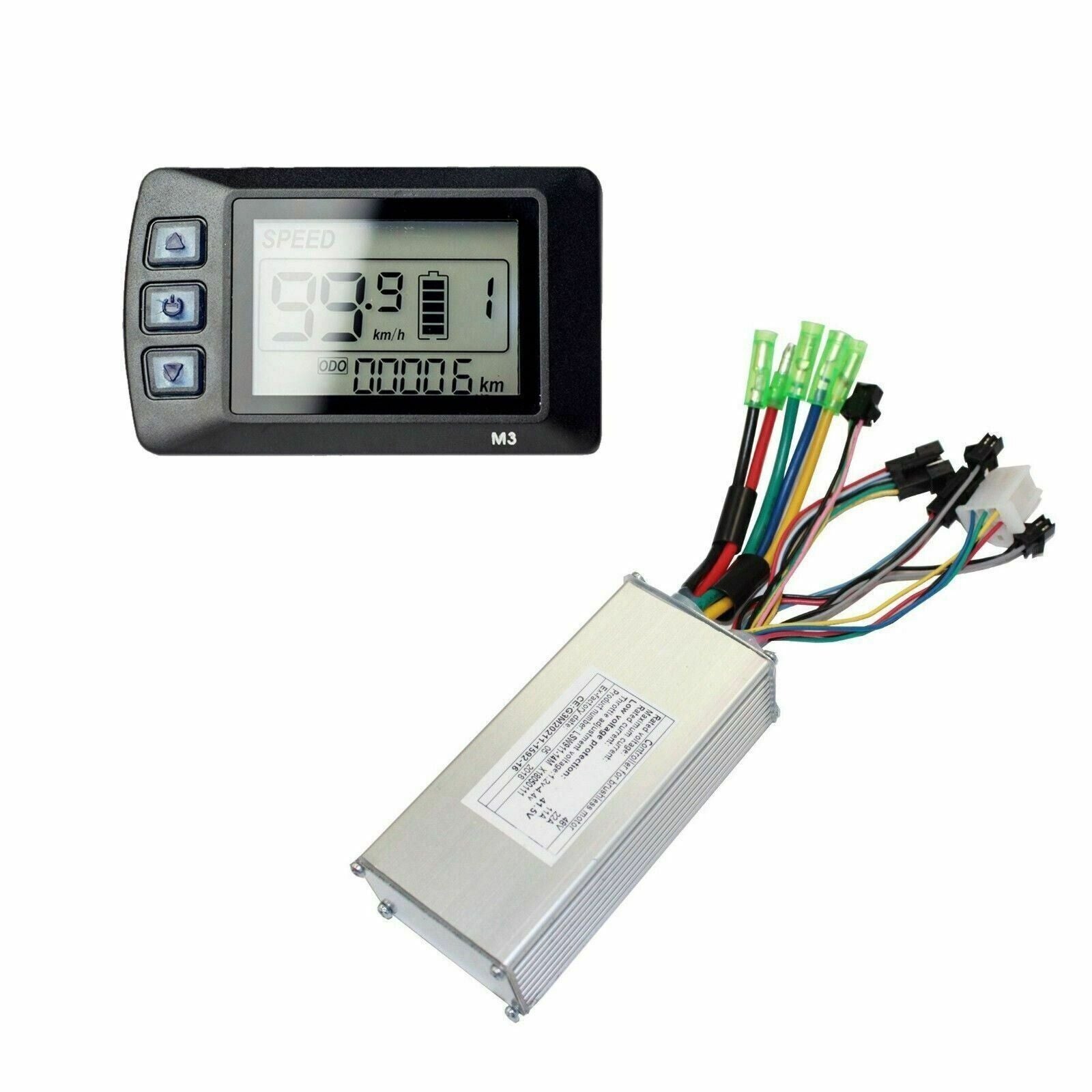

Package includes:

• 1 x Controller
• 1 x OMT-M3 Display

Important note:

• Installation instruction not included, please make sure this controller is same as your original one before purchase
• This controller is not for KT brand
