48V 15Ah Li-ion Lithium Battery Pack W/BMS for Motor 500W 750W 1000W 1500W E-bike

Care Instructions and Warranty

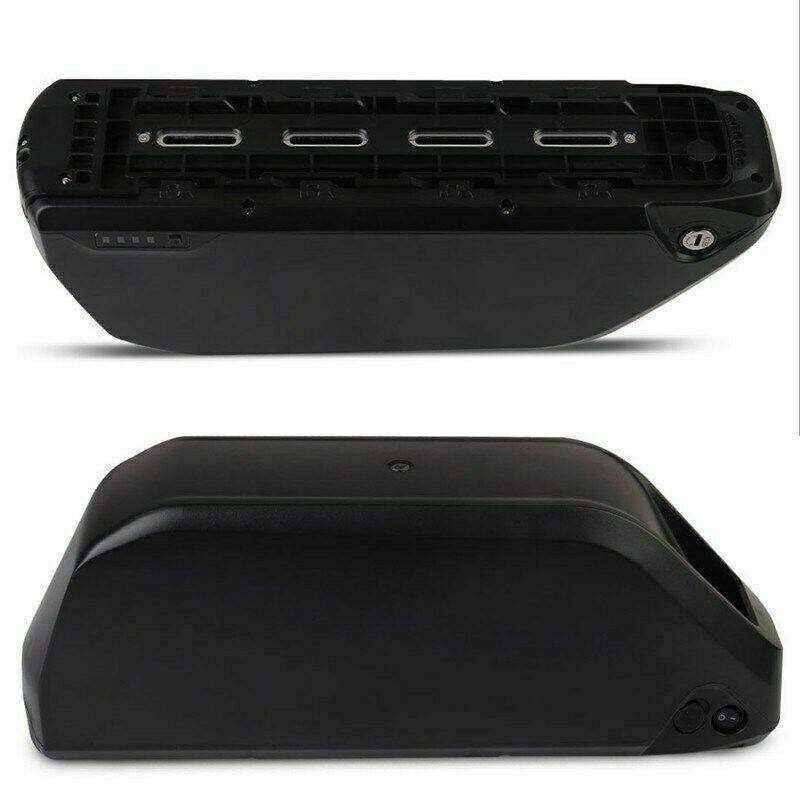

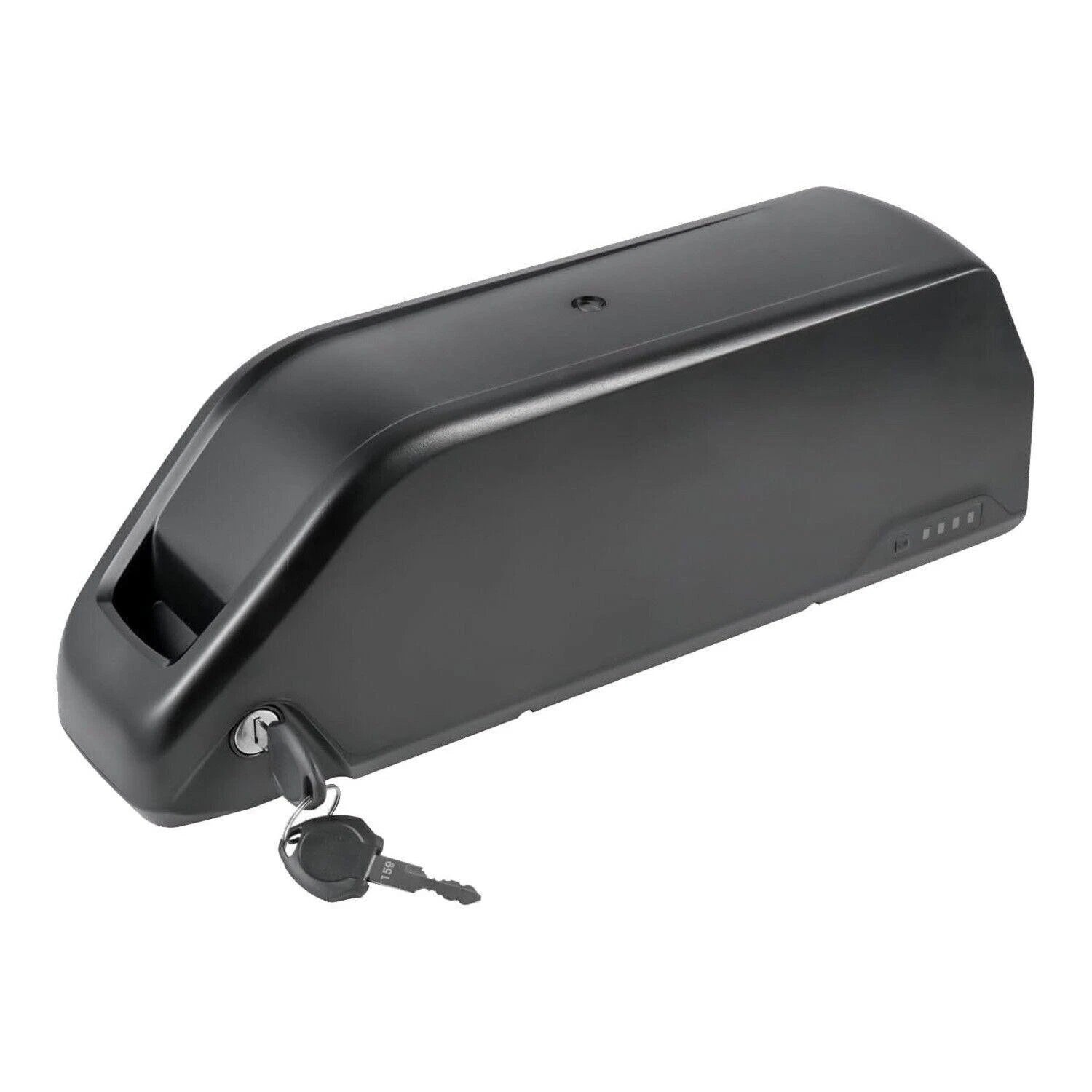

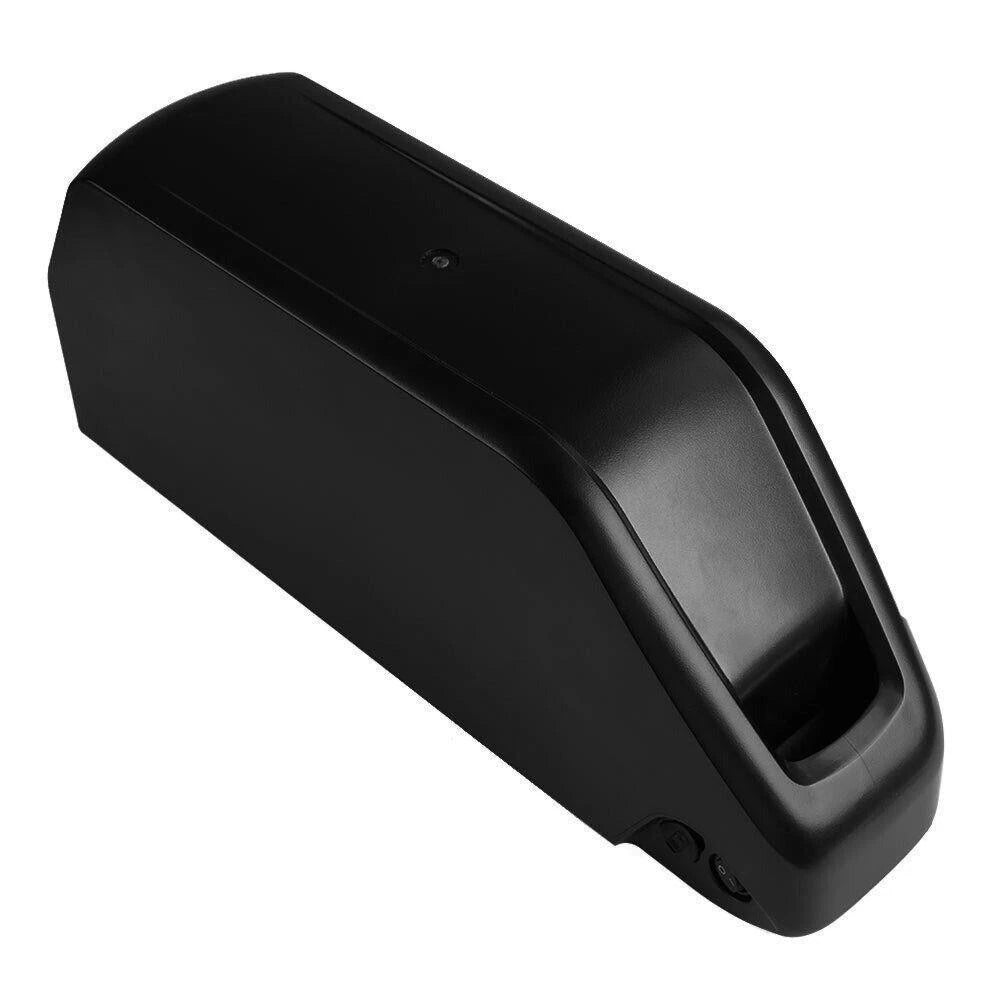

• 48V 15Ah Down Tube Lithium Battery and charger kit – Built with EVE 5000 Cells | Premium Power for eBikes
• Upgrade your eBike performance with this high-quality IEC 62133-2 CERTIFIED down tube lithium-ion battery, designed for smooth, efficient and long-lasting rides.
• Perfect for 500W–1500W motors, this battery delivers smooth acceleration, extended range, and dependable performance for both commuters and off-road riders.

Specs;

• Model:DP-2170-5 down tube battery
• Nominal Voltage:48V
• Nominal Capacity:15AH

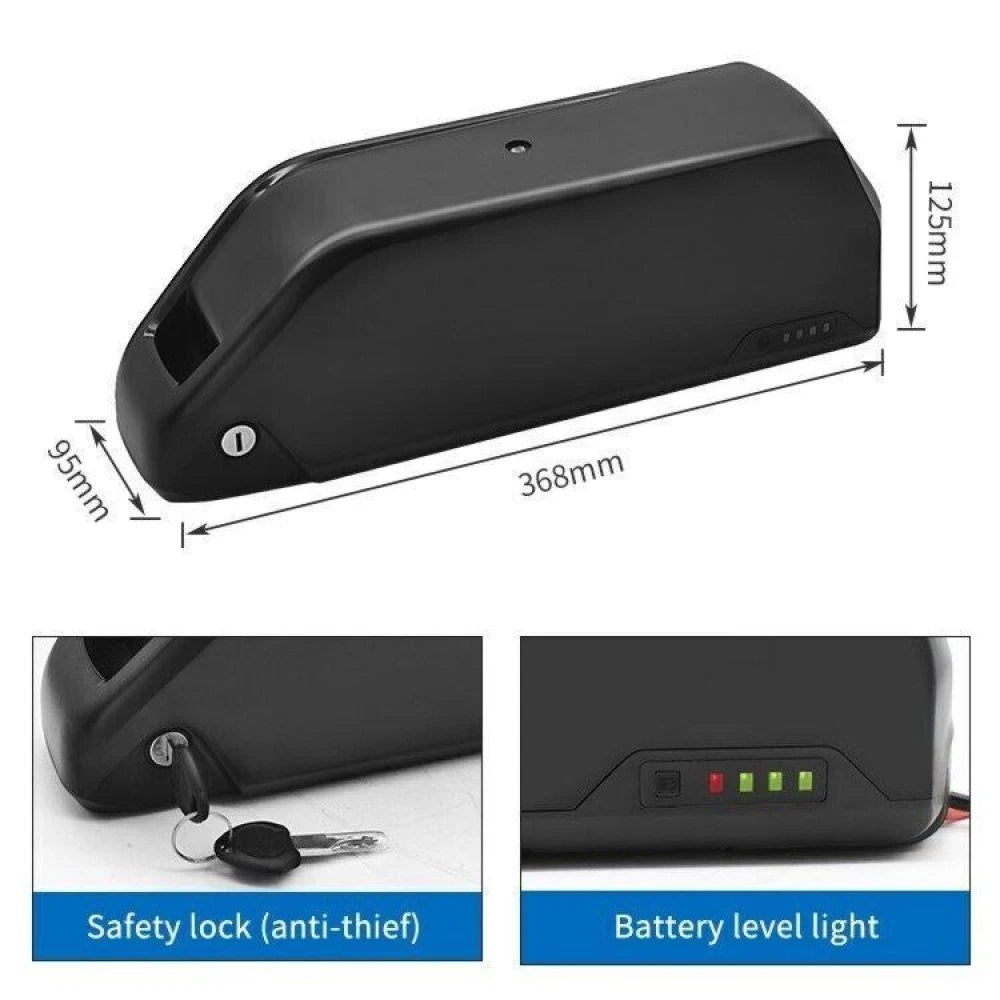

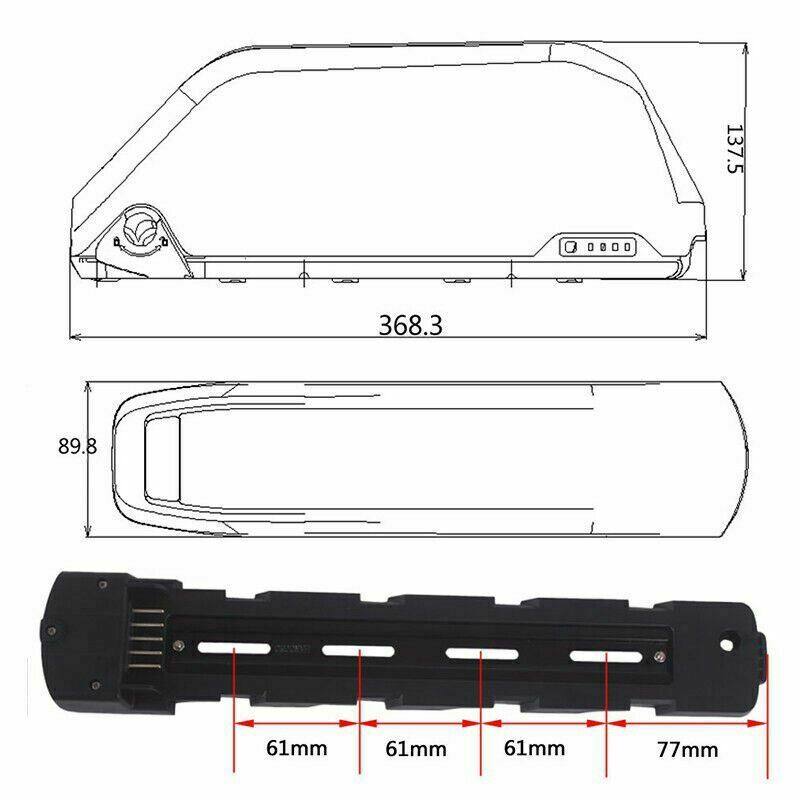

• Dimension: 125mm x 95mm x 368mm
• Weight: about 4.5kg

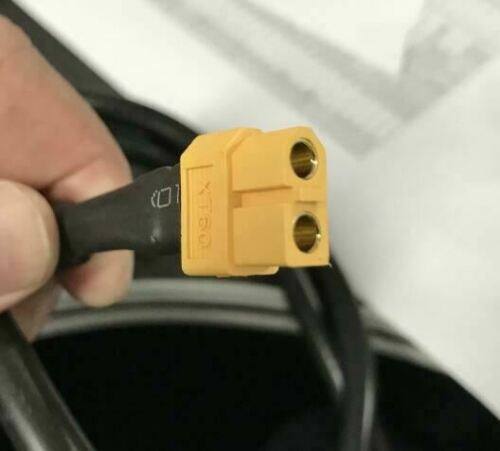

• Discharge port : 5 pin, Output Connector: Anderson / XT60

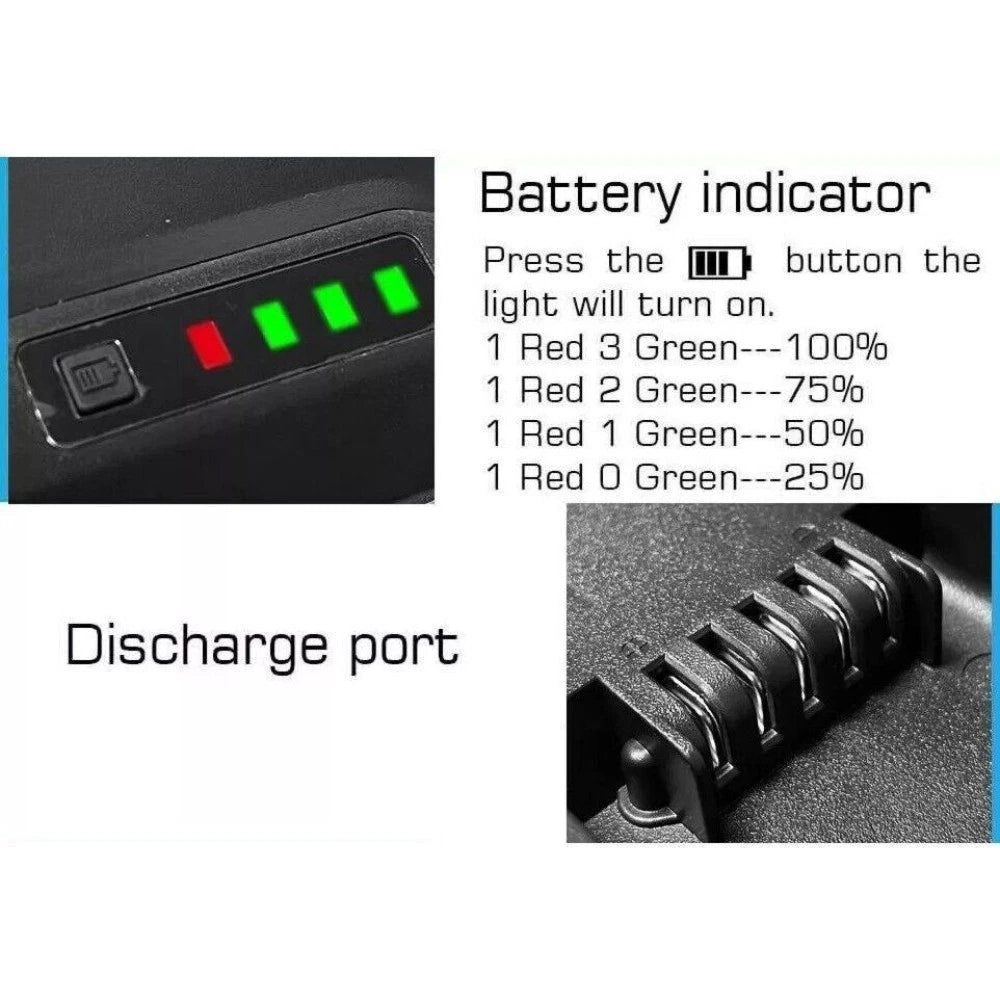

• LED indicators : 4 LED lights

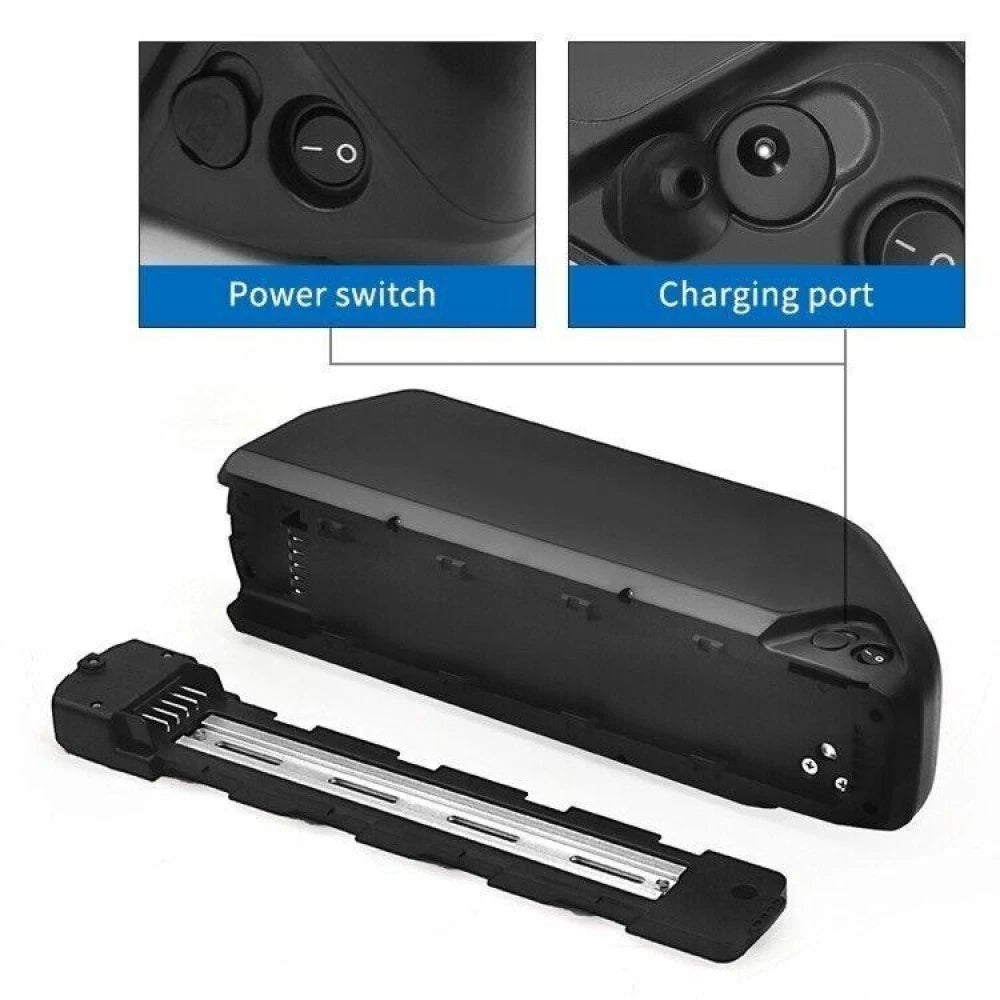

• Power switch : Yes

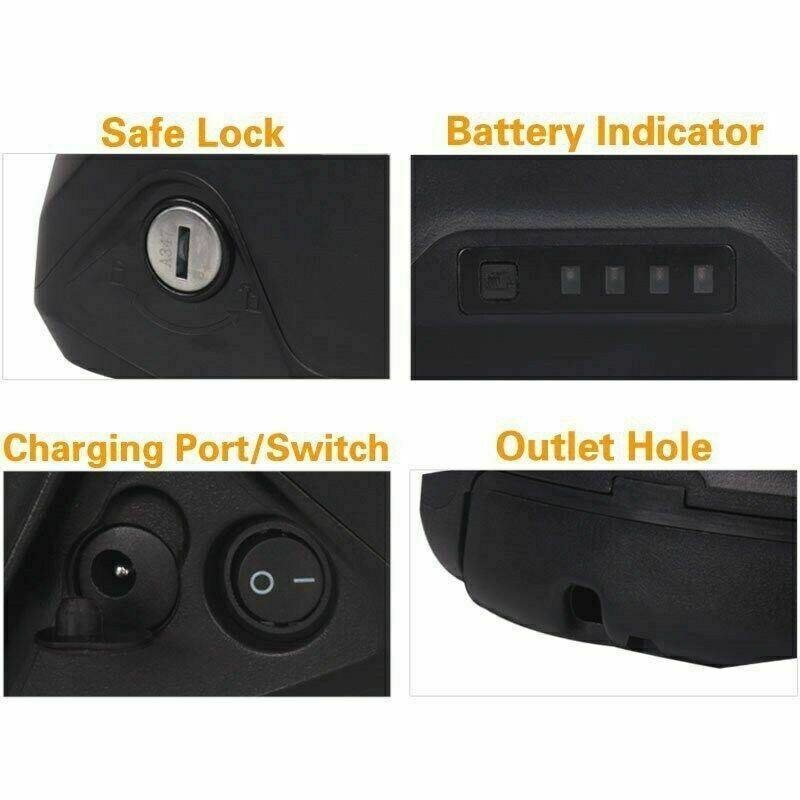

• Lockable:  Yes
• BMS: Built-in Battery Management System with: Overcharge / Over-discharge protection, Over-current & short-circuit protection and Temperature protection
• Max. discharge current :40A
• Max.  Charging Voltage: 54.6v
• Charge current:2A
• EVE cell：21700 5000mah （13S3P）– High energy density, long cycle life
• Capable for motor :48V 500W/750W /1000W /1500W

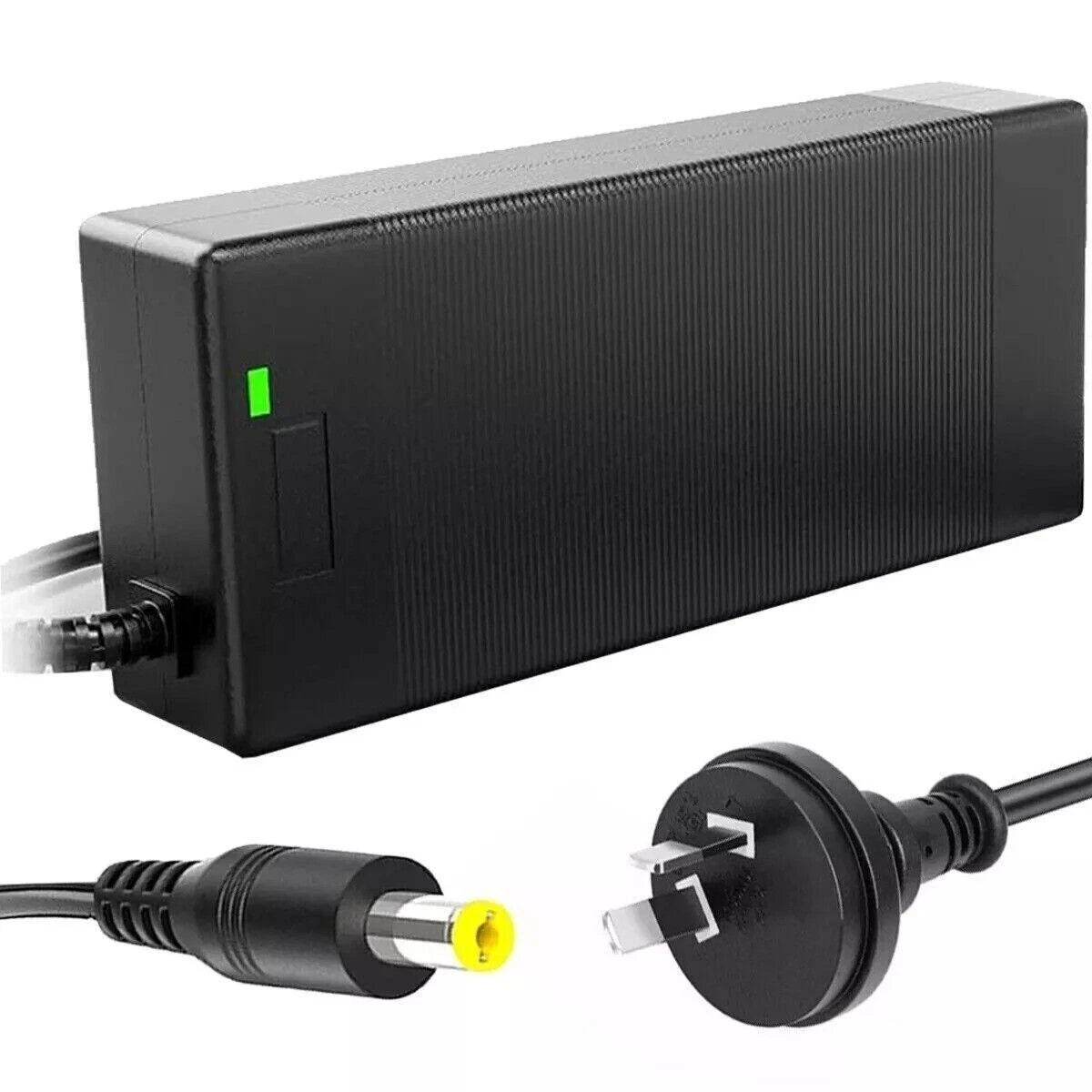

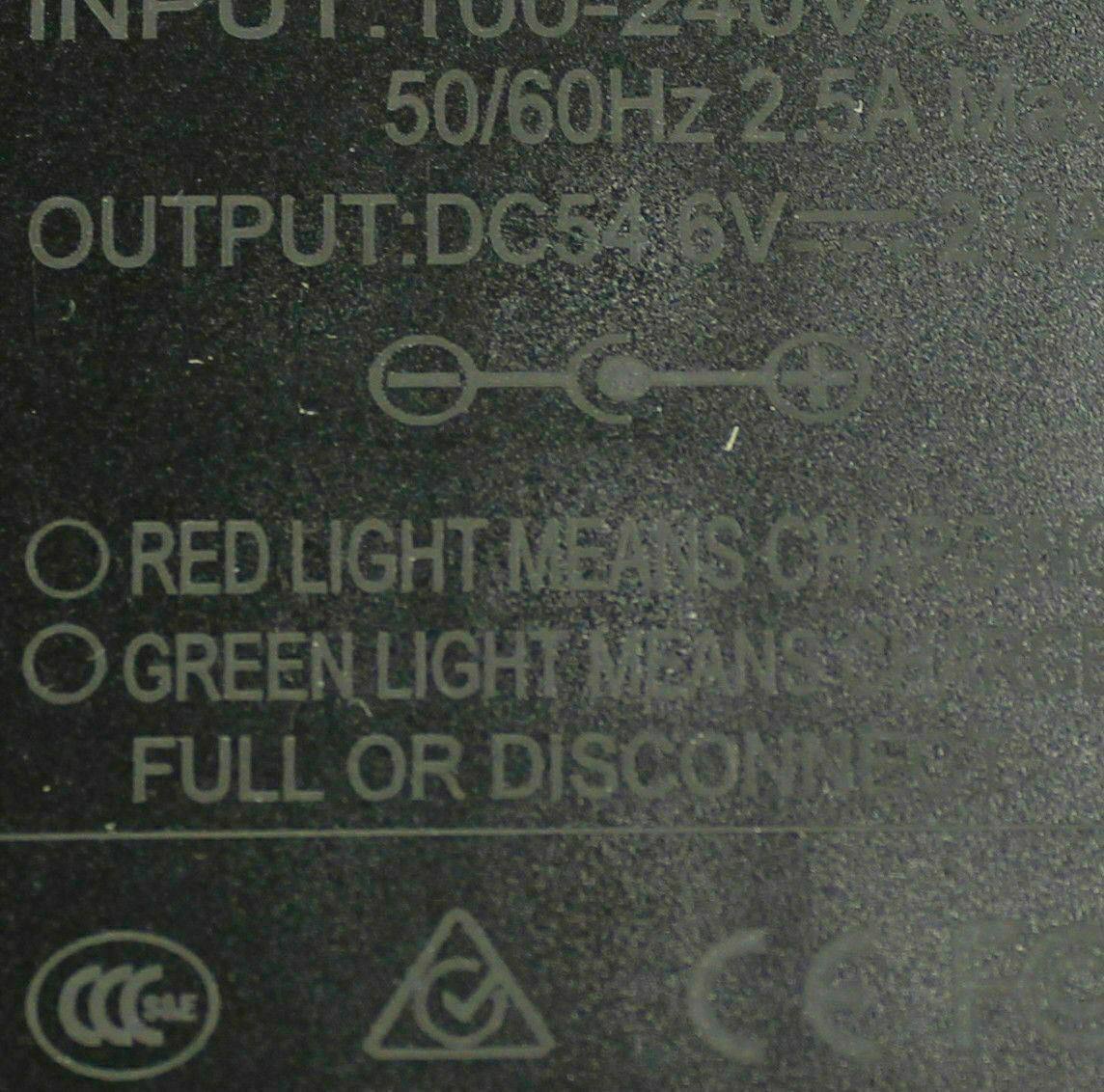

• Charger Input: 100V-240VAC 50/60Hz 2.5A Max
• Charger Output: DC54.6V-2.0A

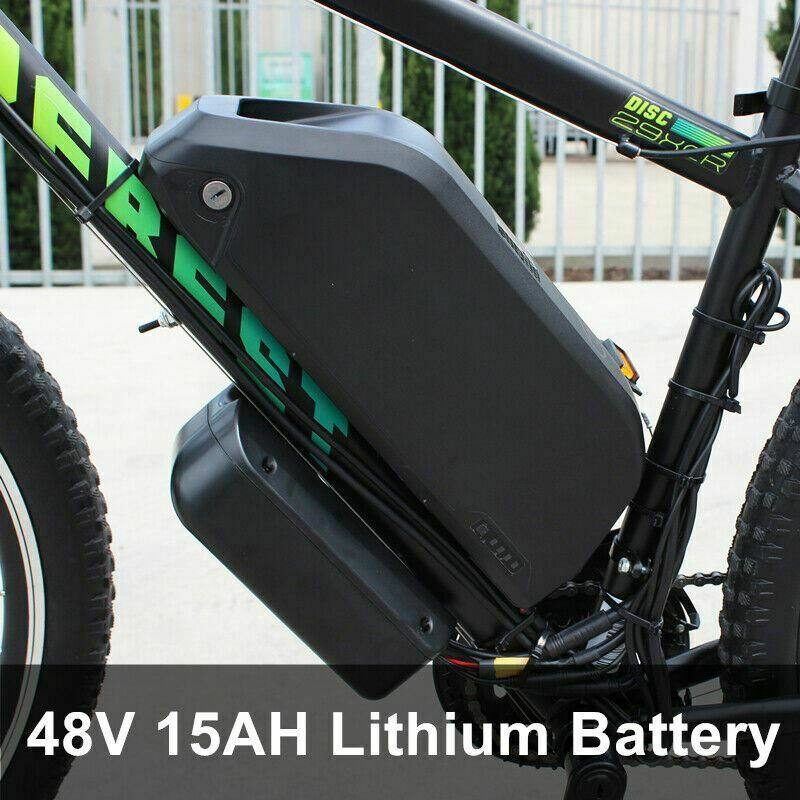

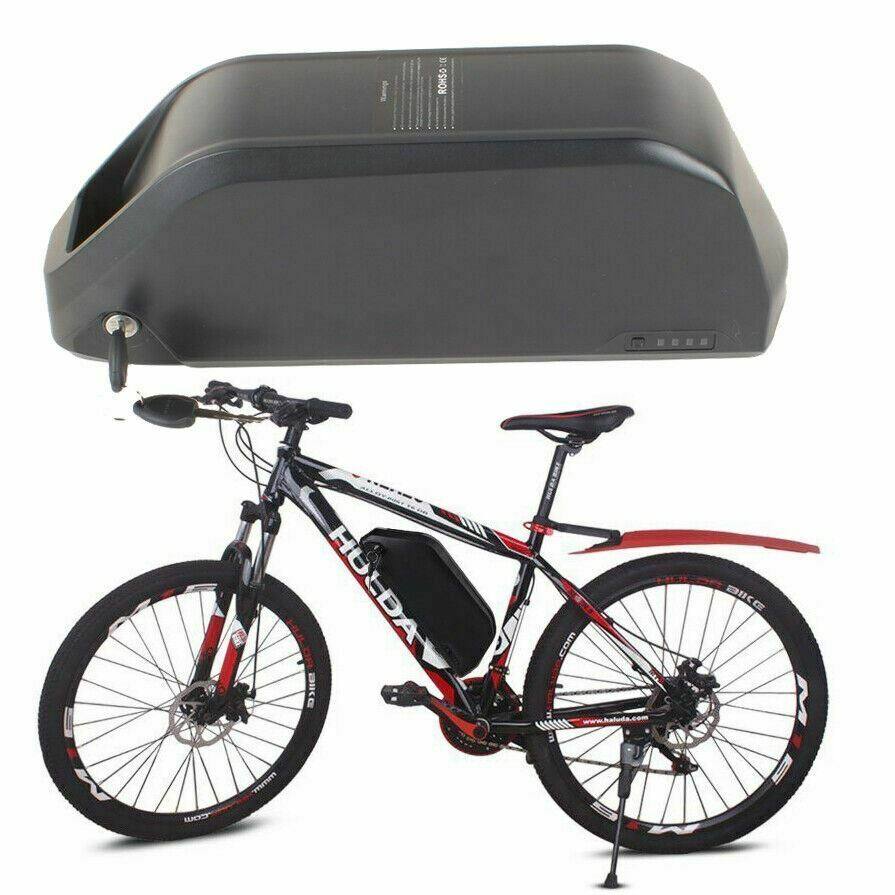

• Fit bike: City bike, mountain bike, cruiser bike, fat bike, Tricycle/Trike, scooter etc
  12 Months battery warranty

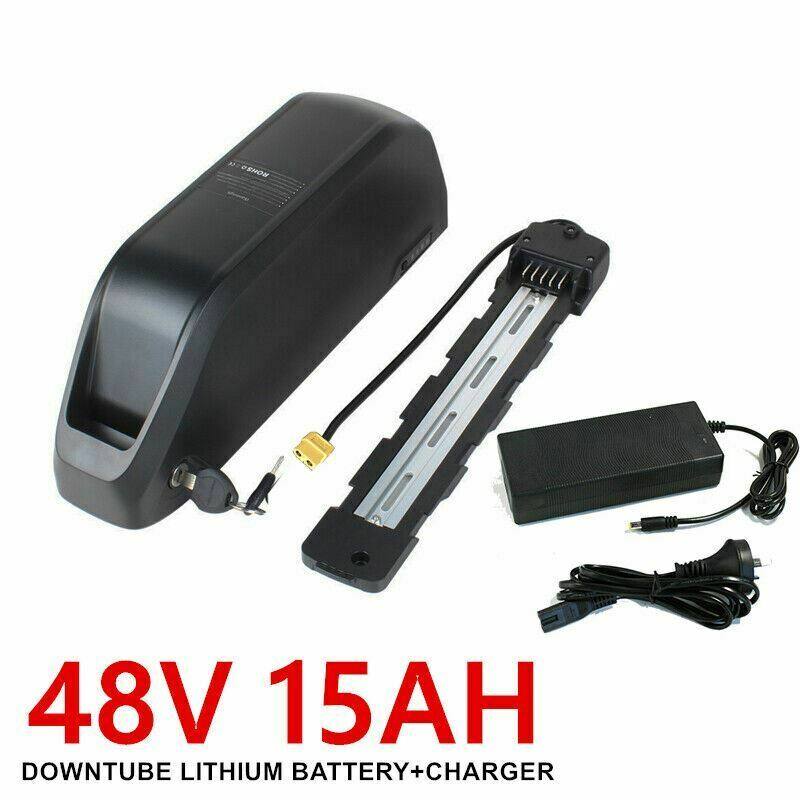

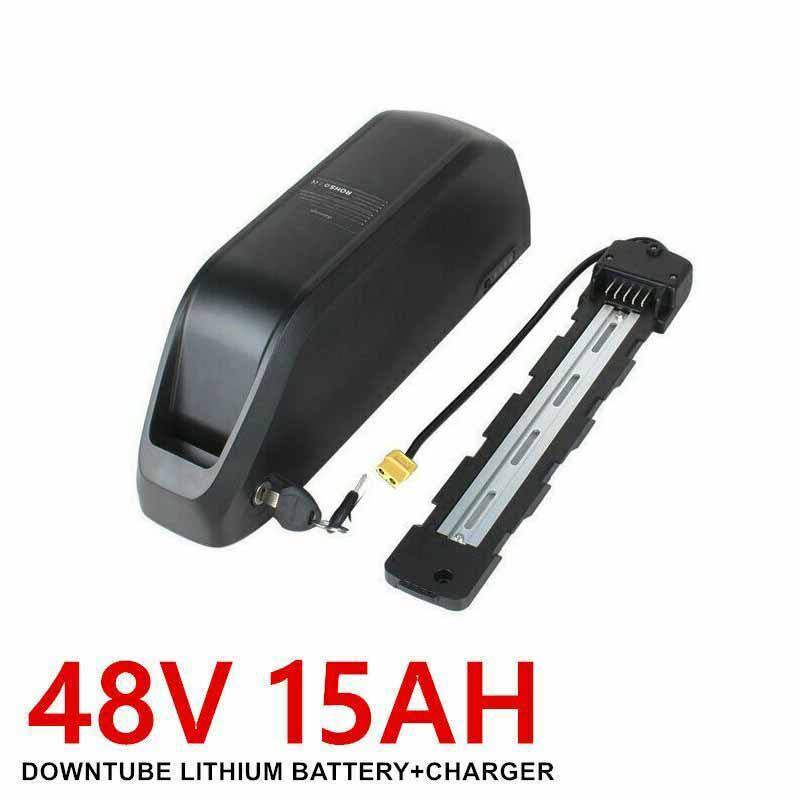

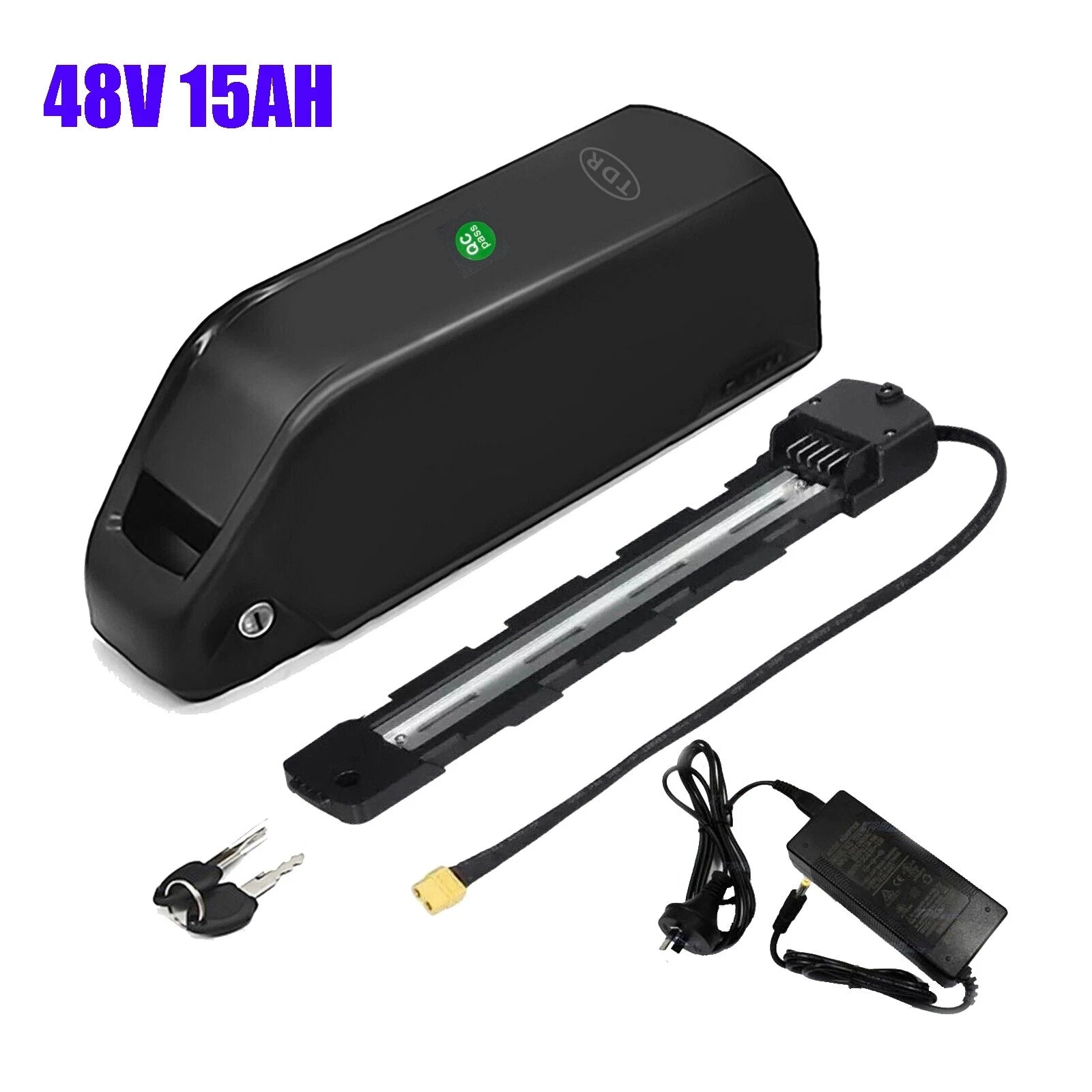

Package includes:

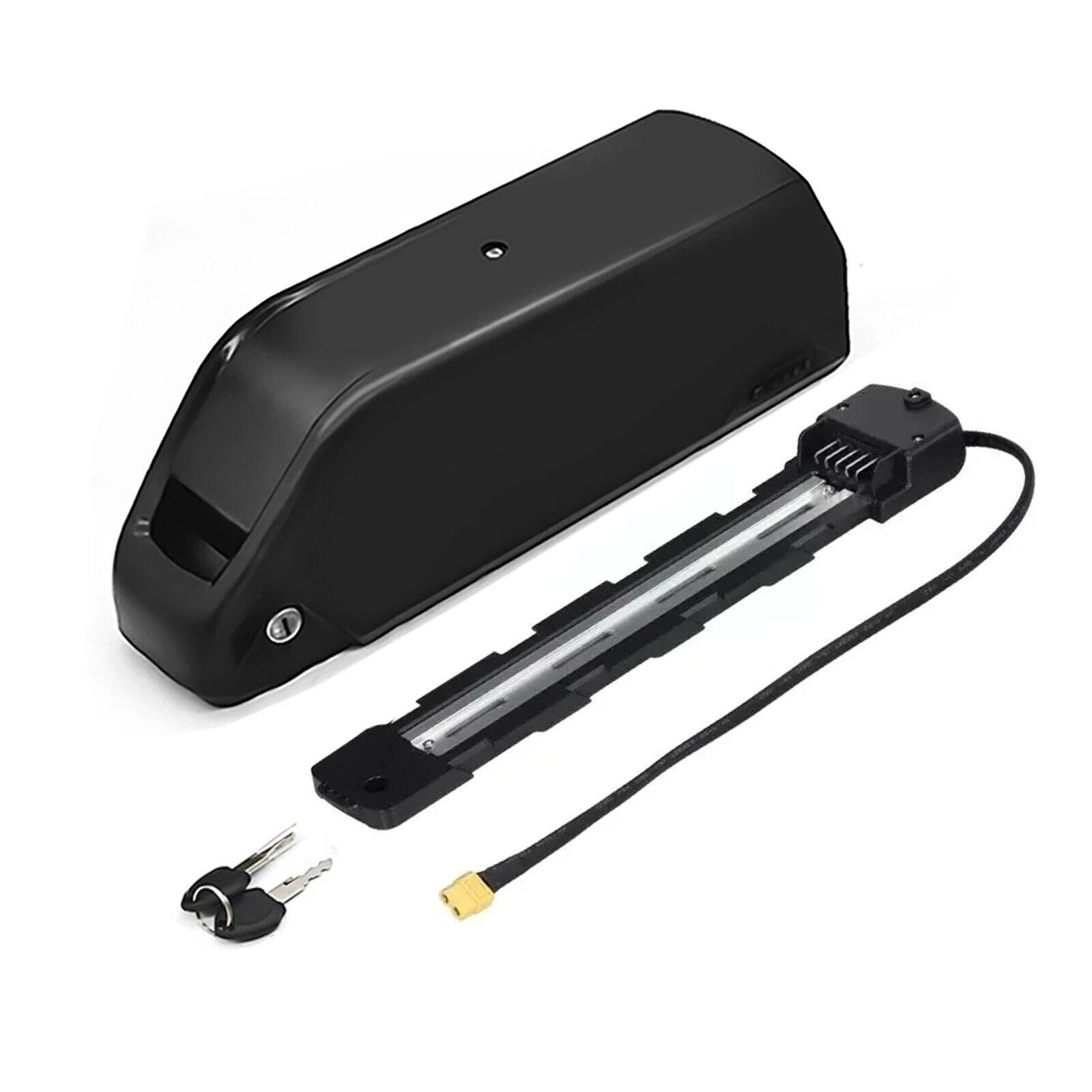

• 1 x battery (frame mount +2 keys are included )

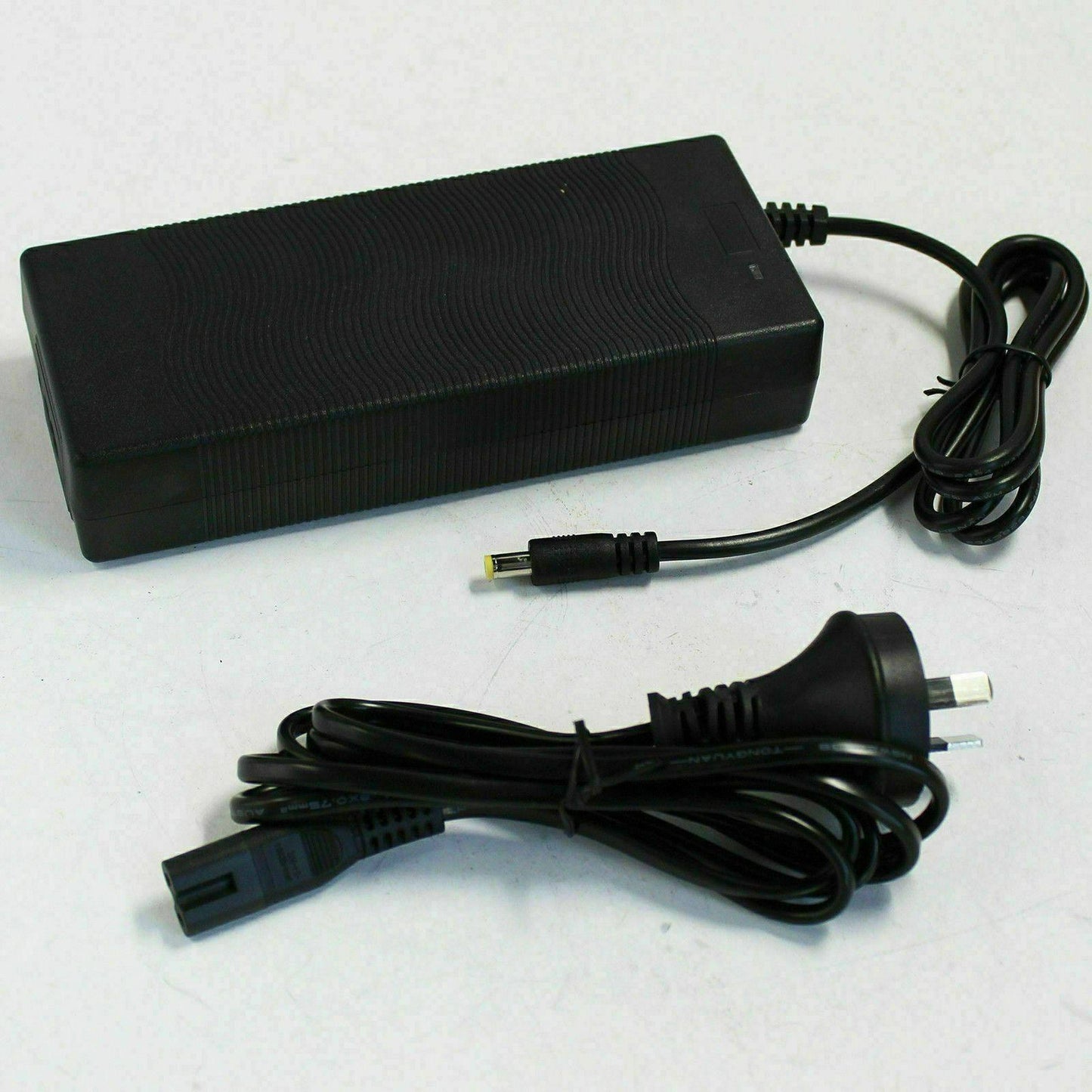

• (Optional) 1 x charger 54.6v smart charger

Notes:

• Please check the size of battery before purchase

• One year warranty for normal household use only
