48V 20A Controller for the Electric Bike S522 500W

SKU: TJ145
$69.96
$79.50
$69.96
10 customers are viewing this product
48V 20A Controller for the Electric Bike S522 500W

48V 20A Controller for the Electric Bike S522 500W

$79.50 $69.96

48V 20A Controller for the Electric Bike S522 500W

$79.50 $69.96

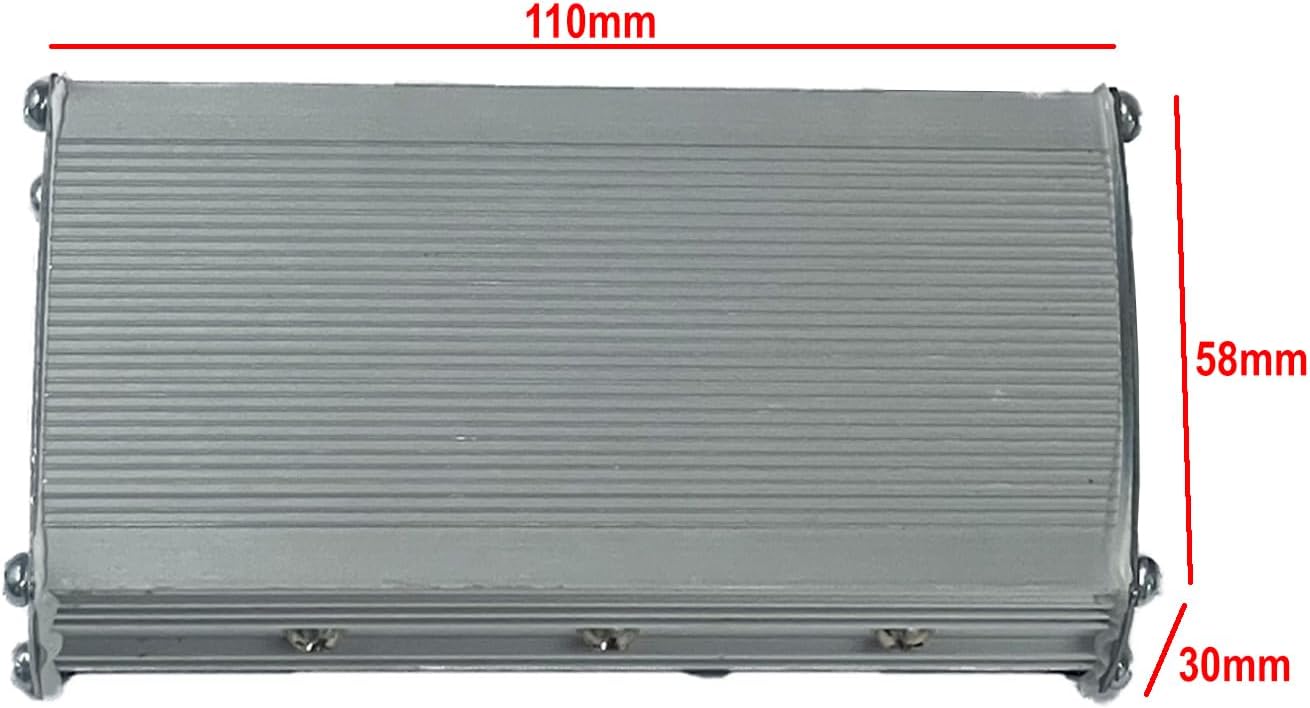

  • Controller dimension in mm :  110*58*30mm (l*w*h)
  • Weight: 650g
  • Sine Wave

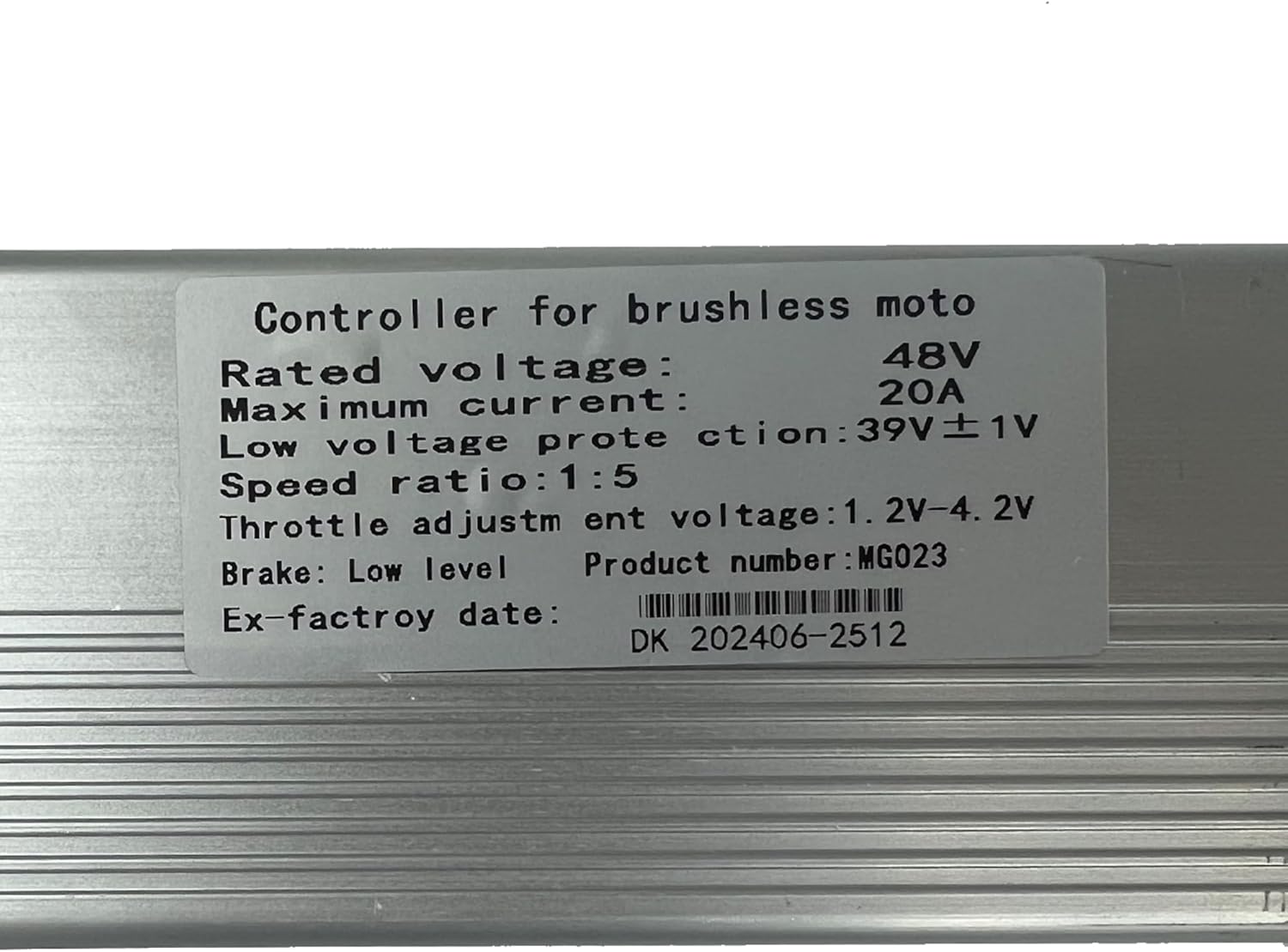

  • Rated voltage: DC 48V
  • Speed set:1.1 - 4.2V DUAL MODE
  • Maximum current 20A
  • Brake input :Low-Level
  • Booster: 1:5
  • Low voltage protection: 39 +_1 V

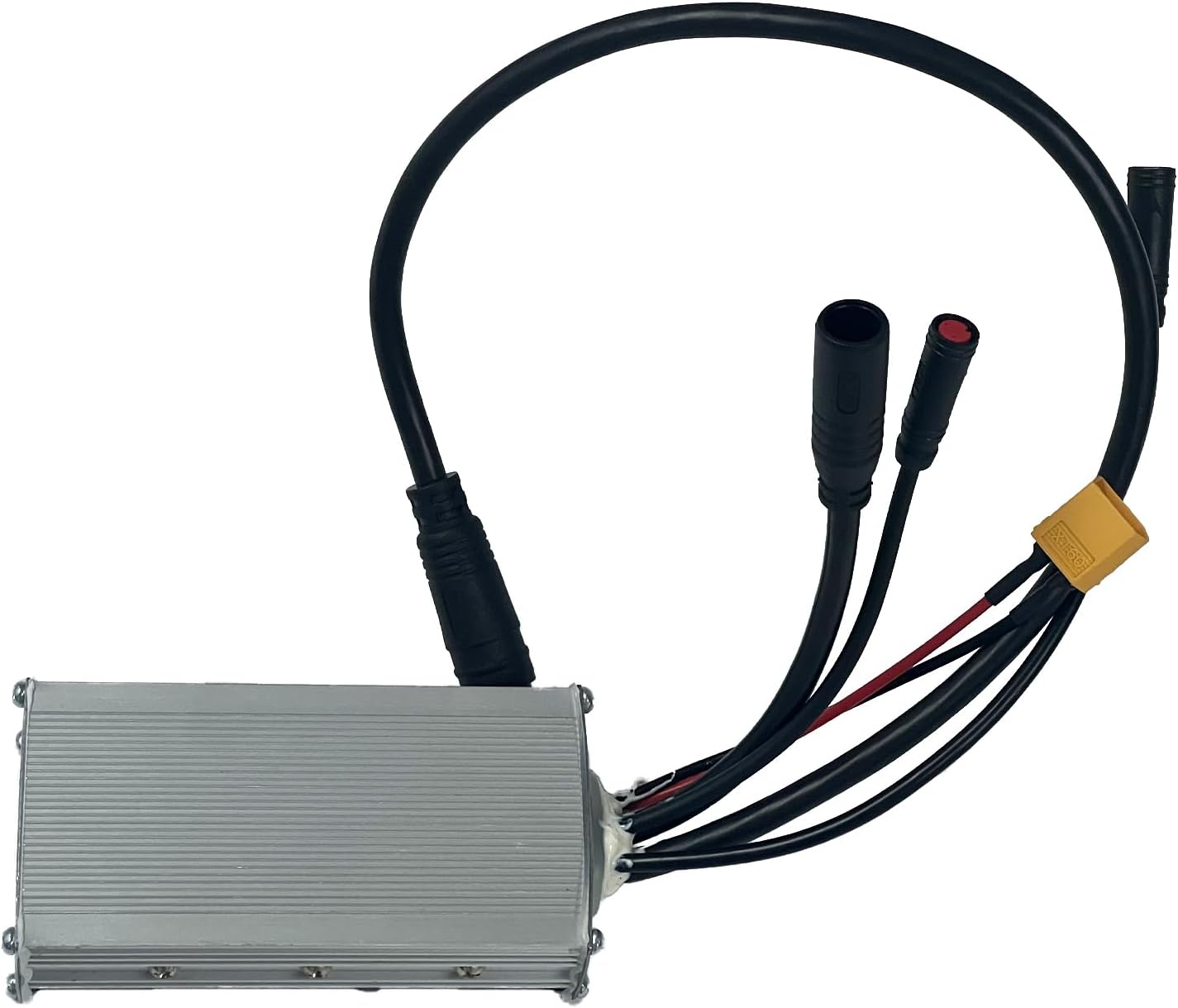

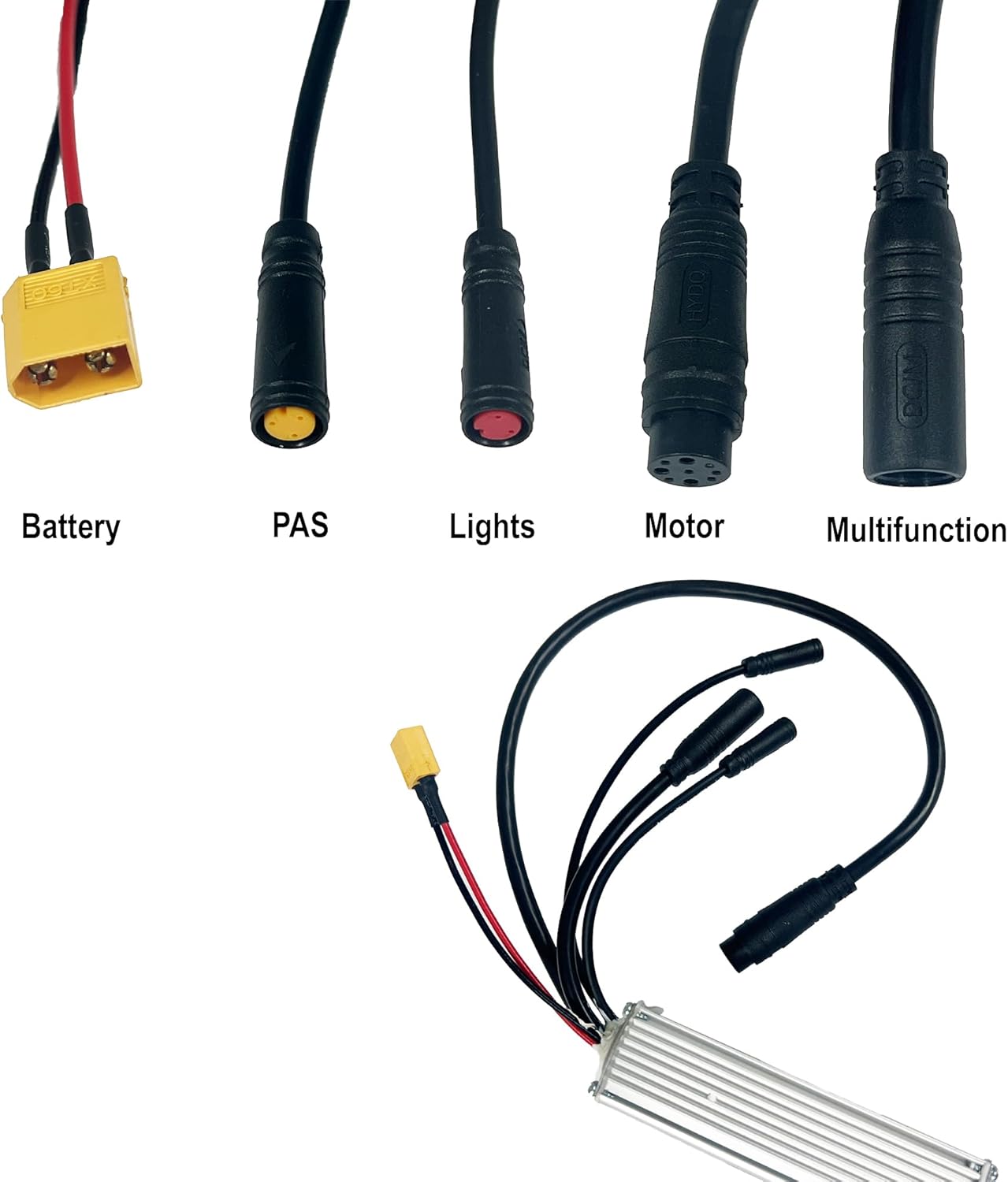

Connectors:
  • motor (9 pins waterproof plug, please check photo)
  • Power connector  xt60
  • PAS (3 pins waterproof plug)
  • 9 Pins connector to multi-function cable
