48V 20Ah Ebike Battery for 48V 500W 750W 1500W Electric Bicycle E-Bike

SKU: TE125~TE514~TE508
$588.72
$669.00
$588.72
(-12%)
Charger: Battery with charger
10 customers are viewing this product
48V 20Ah Ebike Battery for 48V 500W 750W 1500W Electric Bicycle E-Bike - TDRMOTO

48V 20Ah Ebike Battery for 48V 500W 750W 1500W Electric Bicycle E-Bike

$669.00 $588.72

48V 20Ah Ebike Battery for 48V 500W 750W 1500W Electric Bicycle E-Bike

$669.00 $588.72
Charger: Battery with charger

Care Instructions and Warranty

Battery Certification

Battery Safety Standard:
EN 50604-1:2016 +A1:2021

NSW Approval Number:
NSW29786

  • 48V 20Ah Down Tube Lithium Battery and charger kit – Built with EVE 5000 Cells | Premium Power for eBikes
  • Upgrade your eBike performance with this high-quality EN 50604-1 CERTIFIED down tube lithium-ion battery, designed for smooth, efficient and long-lasting rides.

Specs;

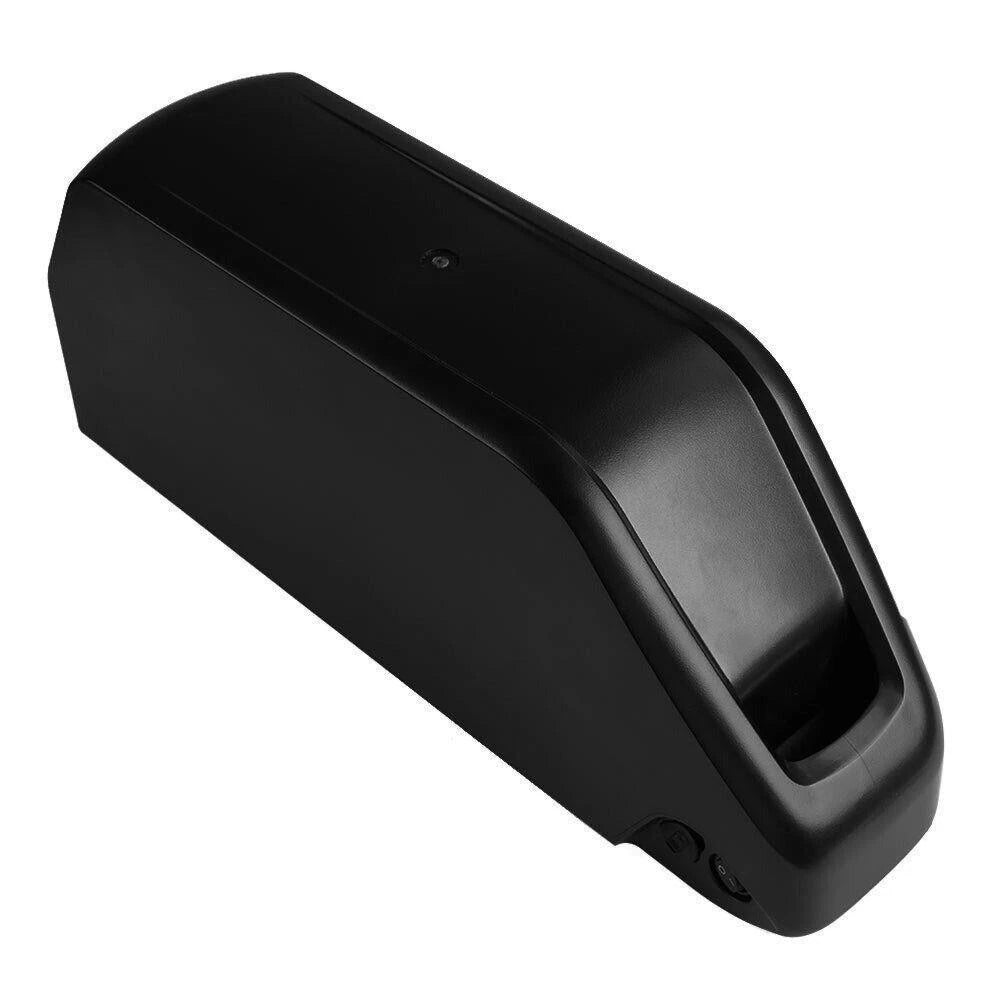

  • Model:DP-2170-5 down tube battery
  • Nominal Voltage:48V
  • Nominal Capacity:20AH

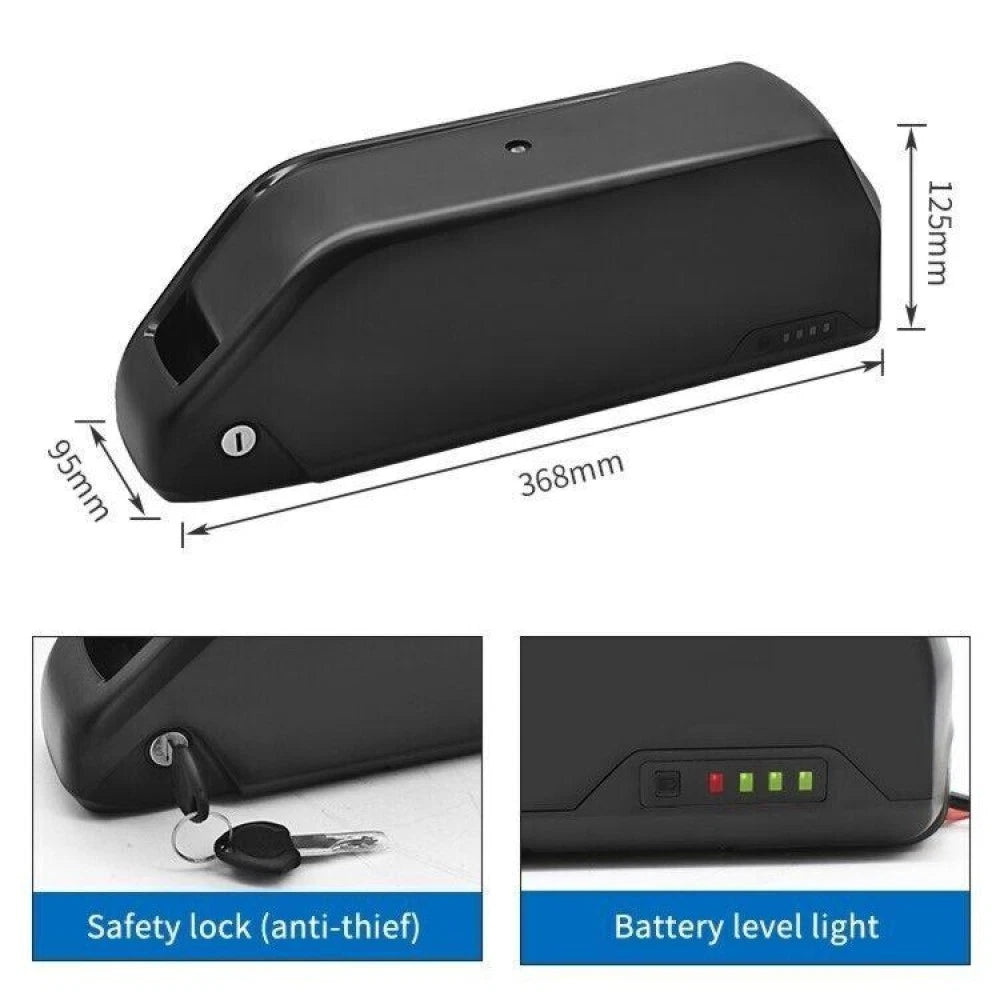

  • Dimension: 125mm x 95mm x 368mm
  • Weight: about 5kg

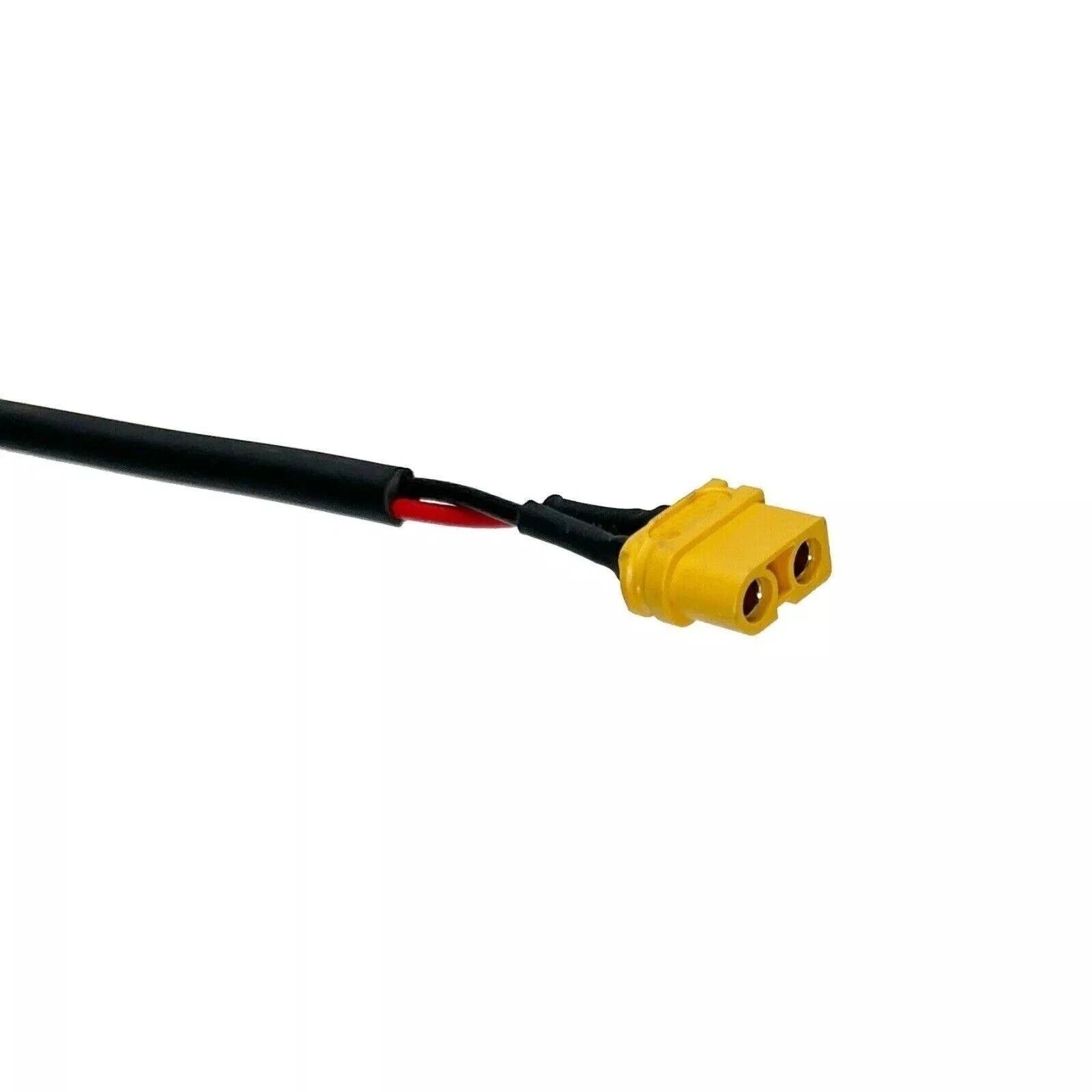

  • Discharge port : 5 pin, Output Connector: Anderson / XT60

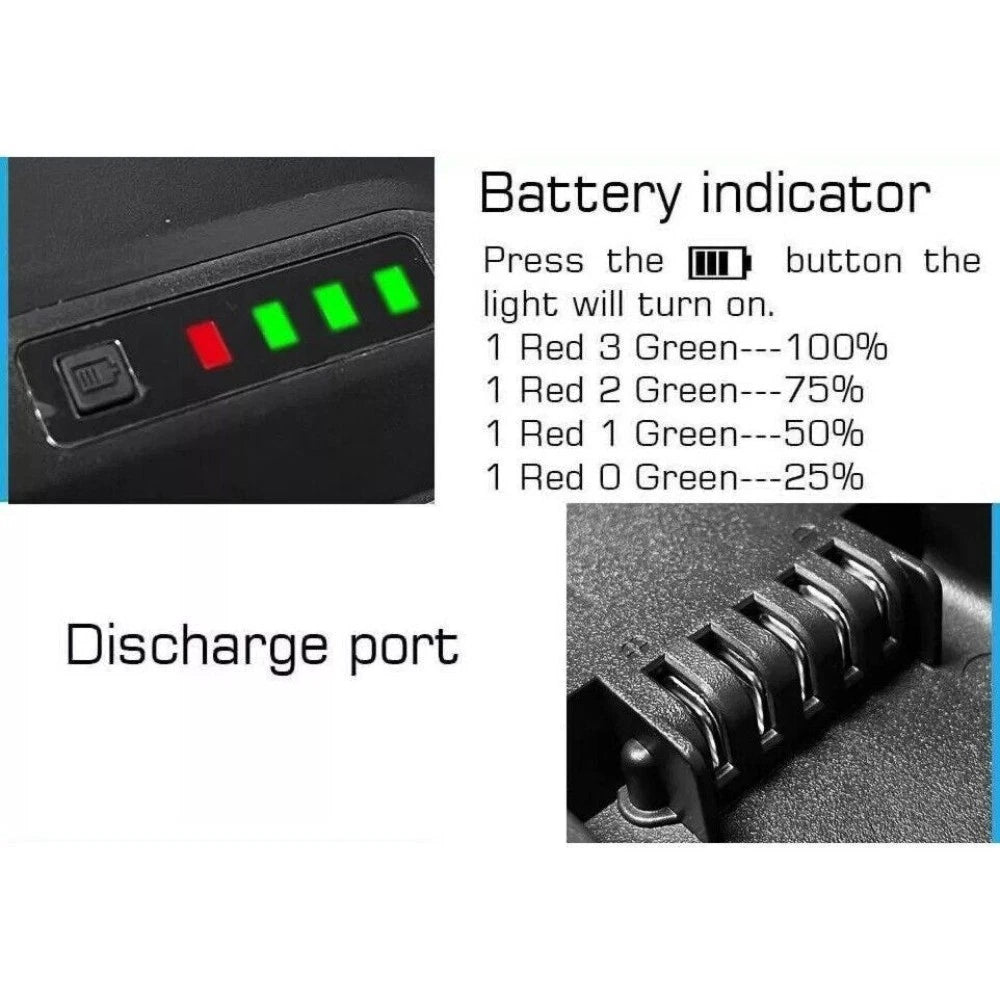

  • LED indicators : 4 LED lights

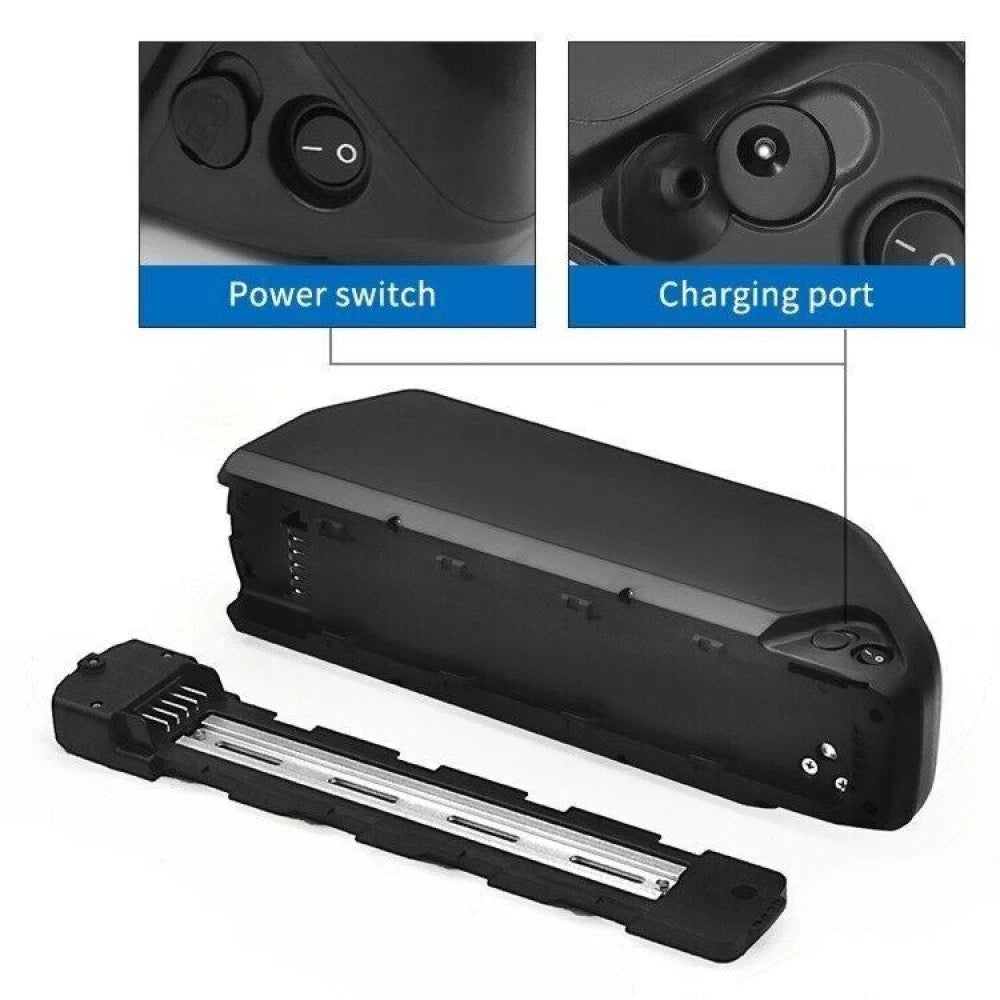

  • Power switch : Yes

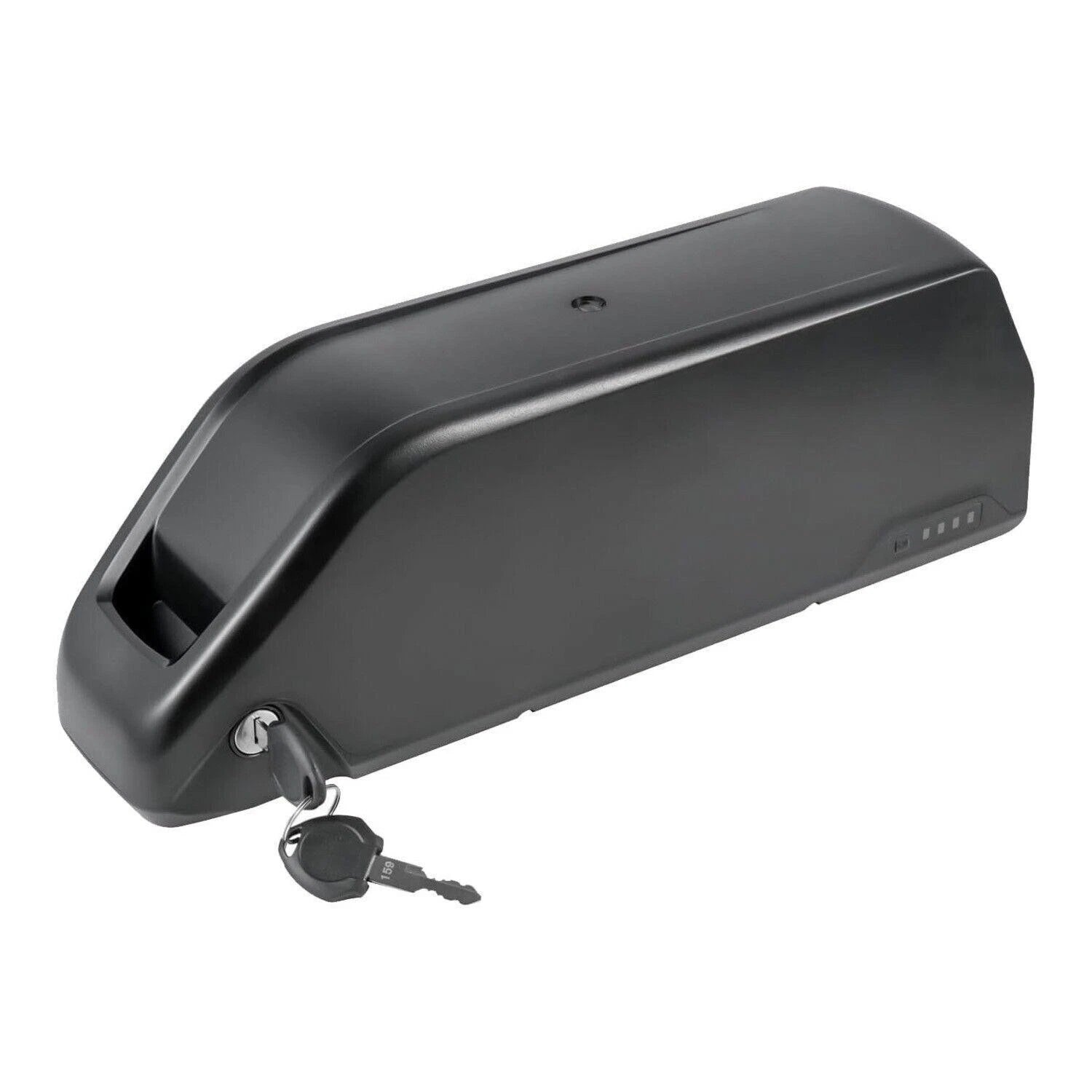

  • Lockable:  Yes
  • BMS: Built-in Battery Management System with: Overcharge / Over-discharge protection,
  • Over-current & short-circuit protection and Temperature protection
  • Max. discharge current :40A
  • Max.  Charging Voltage: 54.6v
  • Charge current:2A
  • Battery Cell: EVE 5000 CELL
  • Suitable for motor :48V 500W/750W /1000W /1500W
  • Fit bike: City bike, mountain bike, cruiser bike, fat bike, Tricycle/Trike, scooter etc
  • 12 Months battery warranty
  • Charger: DC connector,  Charger Input: 100V-240VAC 50/60Hz 2.5A Max ,  Charger Output: DC54.6V-2.0A

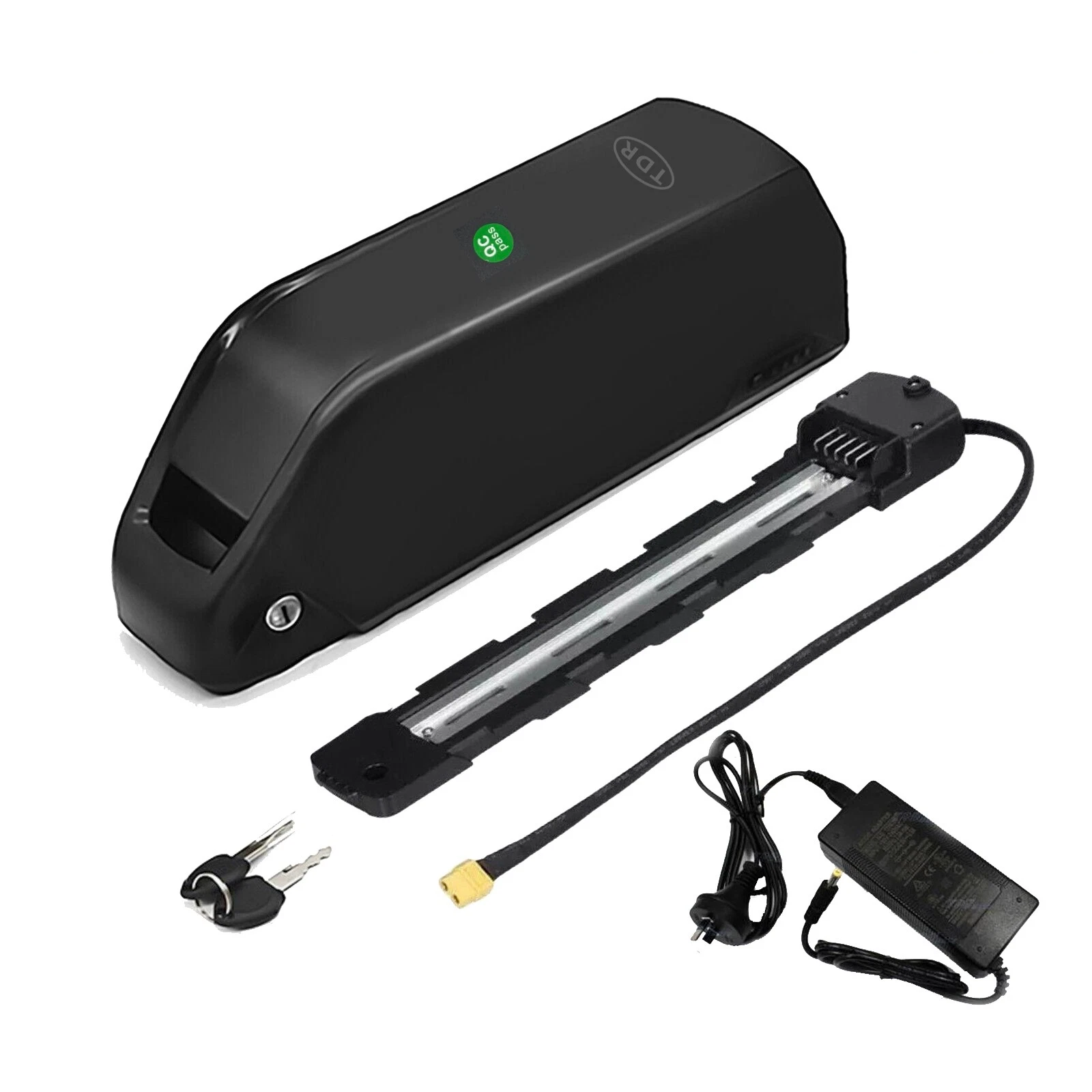

Package includes:

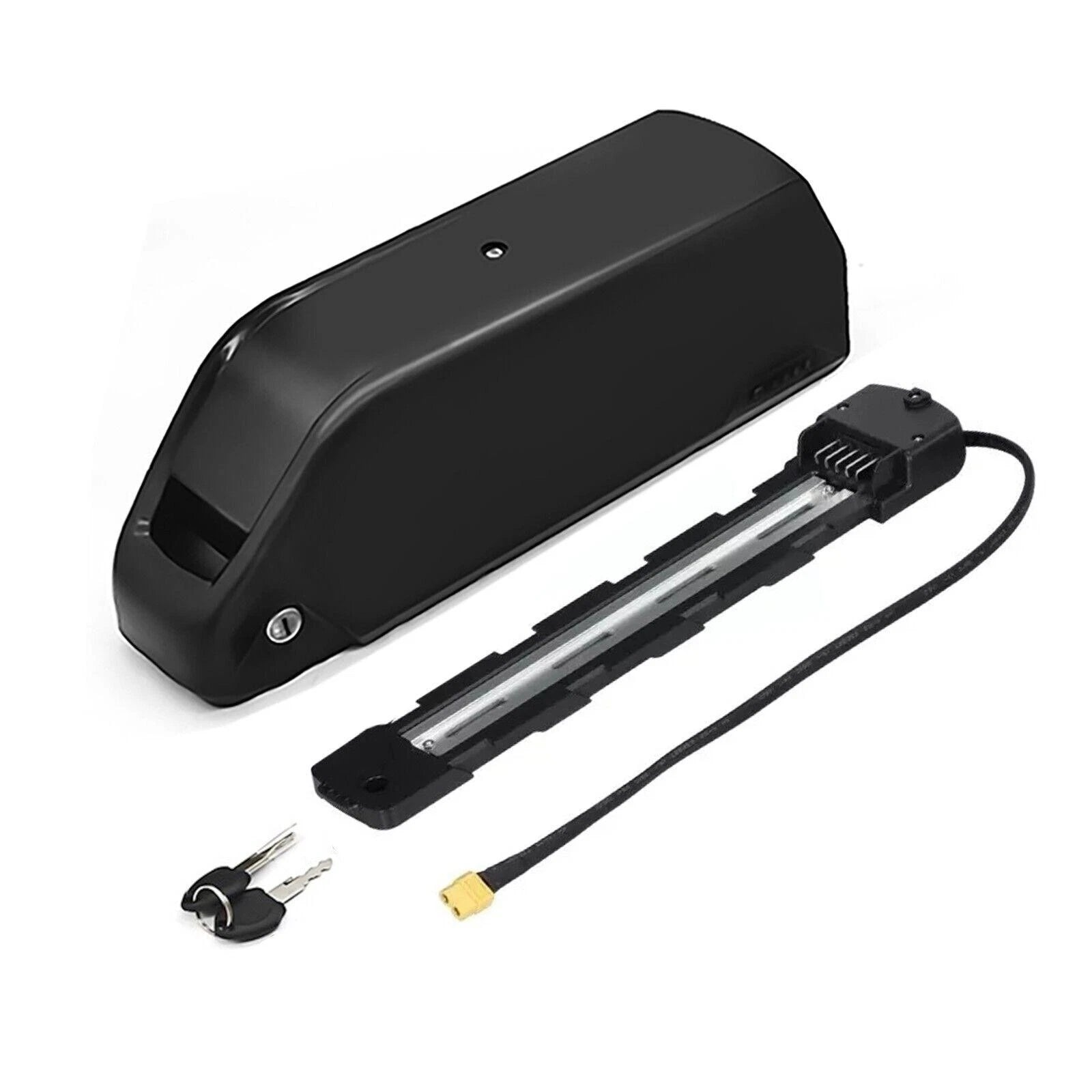

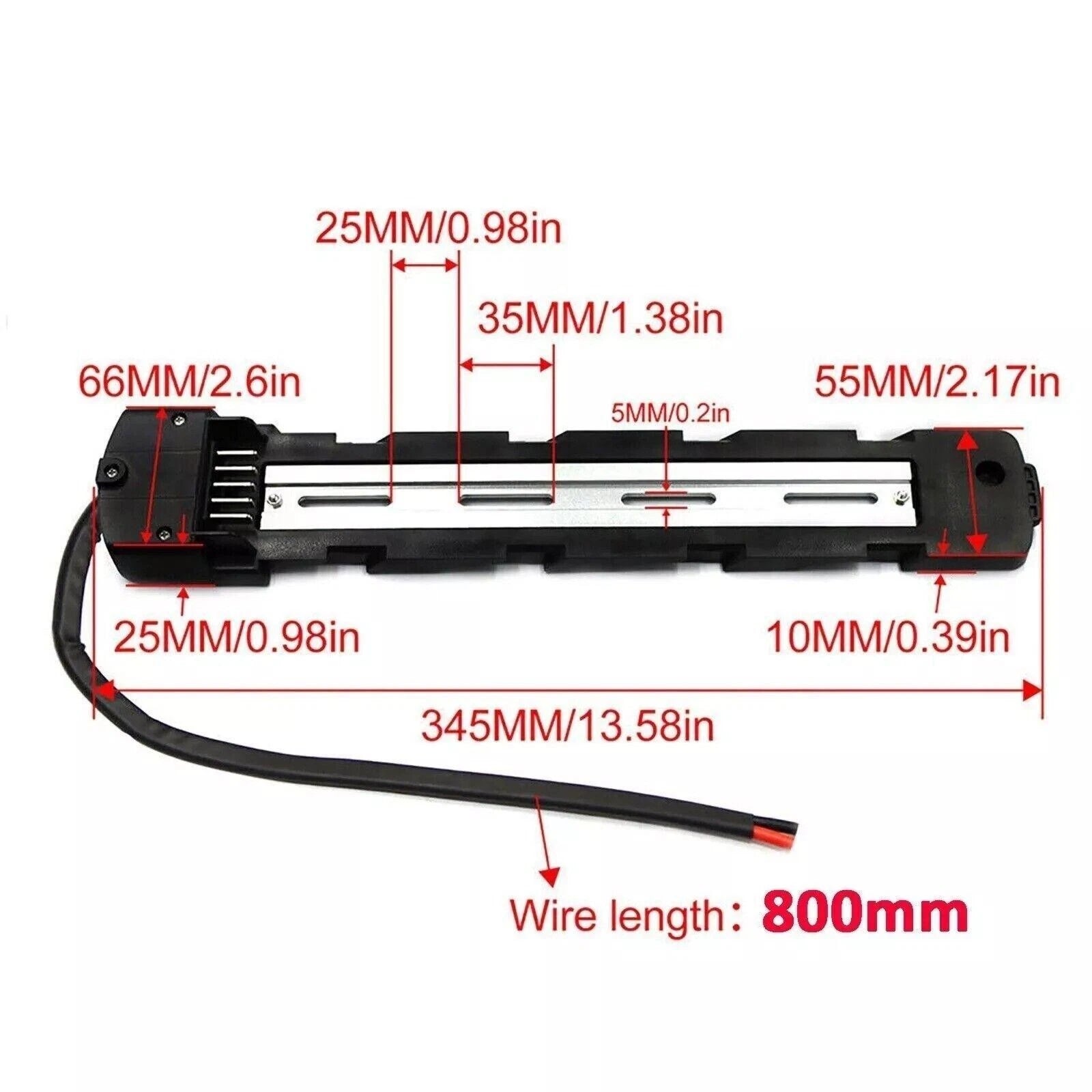

  • 1 x battery (frame mount +2 keys are included )
  • (optional) 1 x charger

Notes:

  • Please check the size of battery before purchase
  • One year warranty for normal household use only
