Battery Certification

Battery Safety Standard:
IEC 62133-2:2017+A1

NSW Certificate Number:
NSW29762

48V 20Ah Lithium Battery and charger kit – Built with EVE 5000 Cells | Premium Power for eBikes
Upgrade your eBike performance with this high-quality IEC 62133-2 CERTIFIED down tube lithium-ion battery, designed for smooth, efficient and long-lasting rides.

  • BMS Features with Balance function, Overcharge protection, Over current protection, Short circuit protection, Over voltage protection, Temperature protection, Over discharge protection and Reverse charging protection.
    Come with Australian Standard Certified Charger, Solid RED light means charging, Solid GREEN Light means Full Charged or Disconnected.

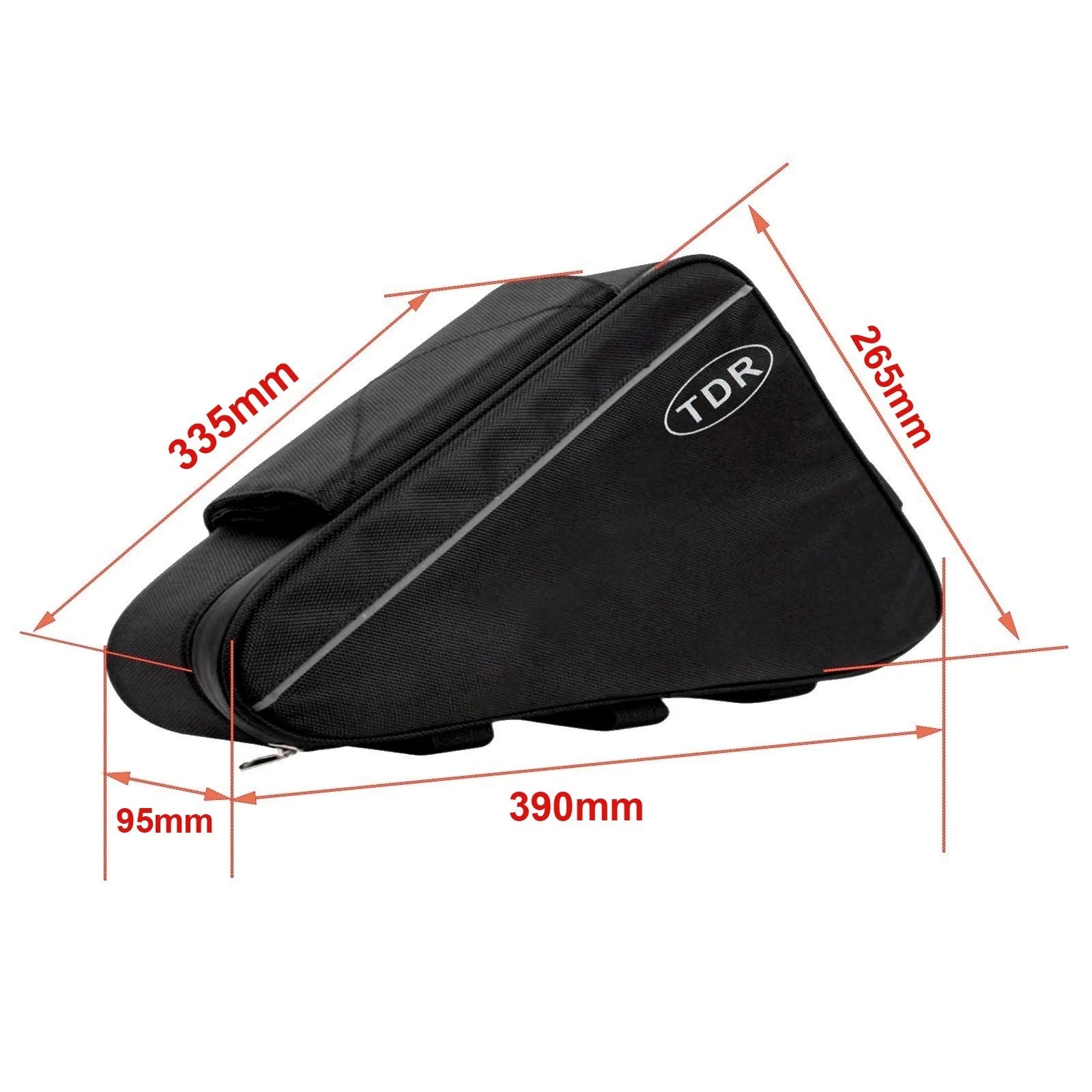

  • The blue battery pack made of water resistant PVC material, insulation, anti-corrosion and wear resistance, place inside the black triangle bag.
  • Each lithium battery has passed the QC test for appearance and function before shipment. High-quality electric cells and a built-in BMS protection board prevent over-charge, over-discharge, over-current and short-circuit, ensuring long service life.
  • Monitor your battery's charge level using intuitive light indicators for seamless riding.
  • Encased in a sturdy, thick case, this battery withstands substantial weight, ensuring longevity and unwavering.

Specifications:

  • Battery type: Triangle Lithium Ion Ebike Battery Pack with Bag
  • Rated Voltage: 48V
  • Rated Capacity (Optional): 20Ah
  • Cell Type: EVE Cells 5000mAh
  • Max. Discharge Current: 50A
  • Max. Charge Current: 5A
  • Max. Charge Voltage: 54.6V
  • Discharge Cut-off Voltage: 36.4V
  • Cycles life: ≥1000
  • Charger Output: DC54.6V, 2.0A
  • Discharge Plug: XT60
Fitment
  • Our battery fits most of 500W-1800W motor kits in 48V, for example: TDR, Bafang, Voilamart, CSC, Tongsheng, Ebikling, but exclude these four: Bosch, SHIMANO, Yamaha, Panasonic.
Important Notes:
  • Please check the size of the battery, battery connection type, and frame size before purchasing.
  • Please check your controller rate before purchase, the maximum continuous discharge current of this battery is 50A.
  • The battery must be fully charged before first use.
Package Include:
  • 1 x 48V Triangle Blue Pack Lithium Ion Battery with Bag
  • 1 x Charger Set (Australian Standard)
