48V 35A 15 Mosfet Controller + usb Main Cable fit 750w 1000w 1500w Motor Ebike

48V 35A 15 Mosfet Controller + usb Main Cable fit 750w 1000w 1500w Motor Ebike

SKU:

$107.50
$122.00 $107.50
12% off Sold out
Tax included. Free shipping.

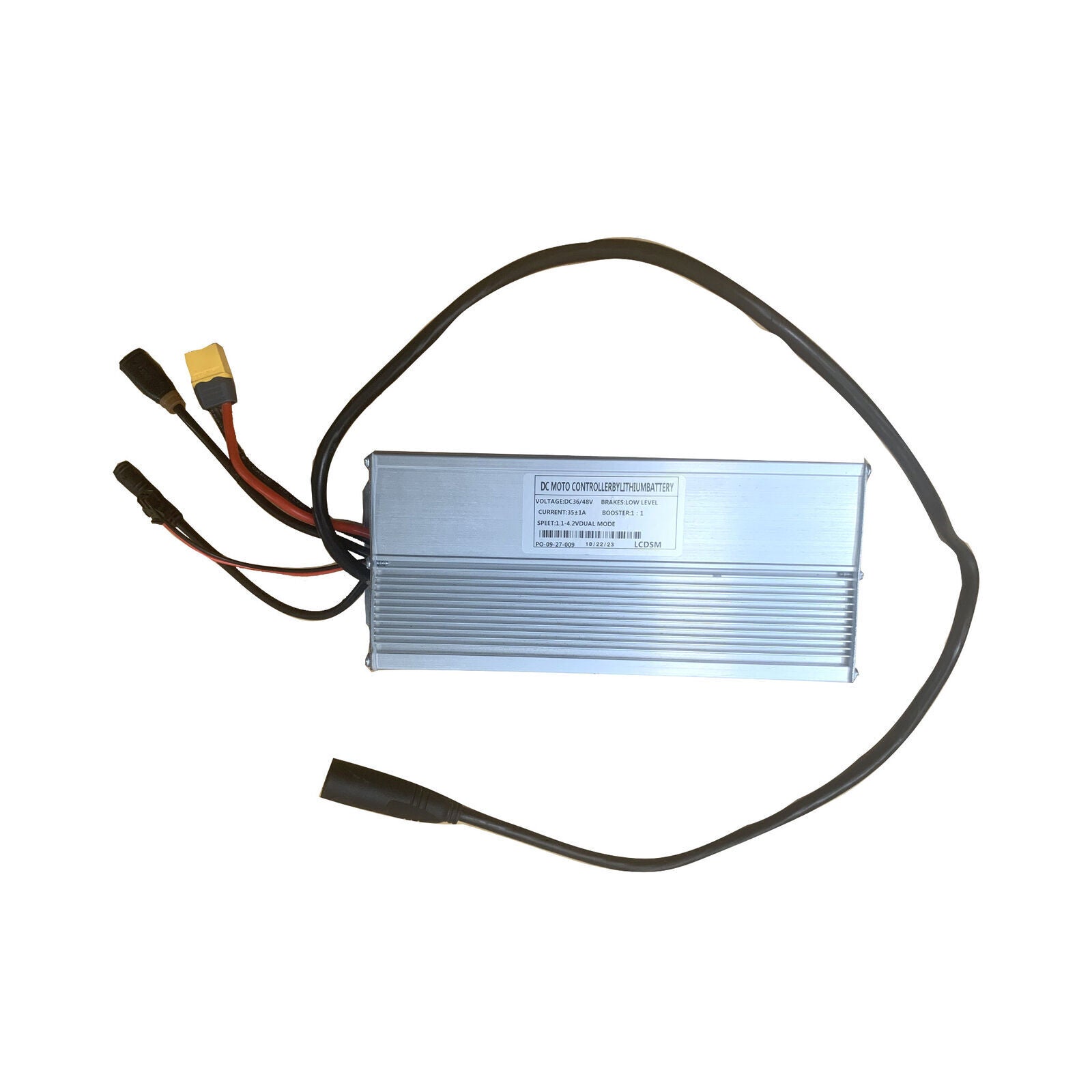

Feature for  Controller:

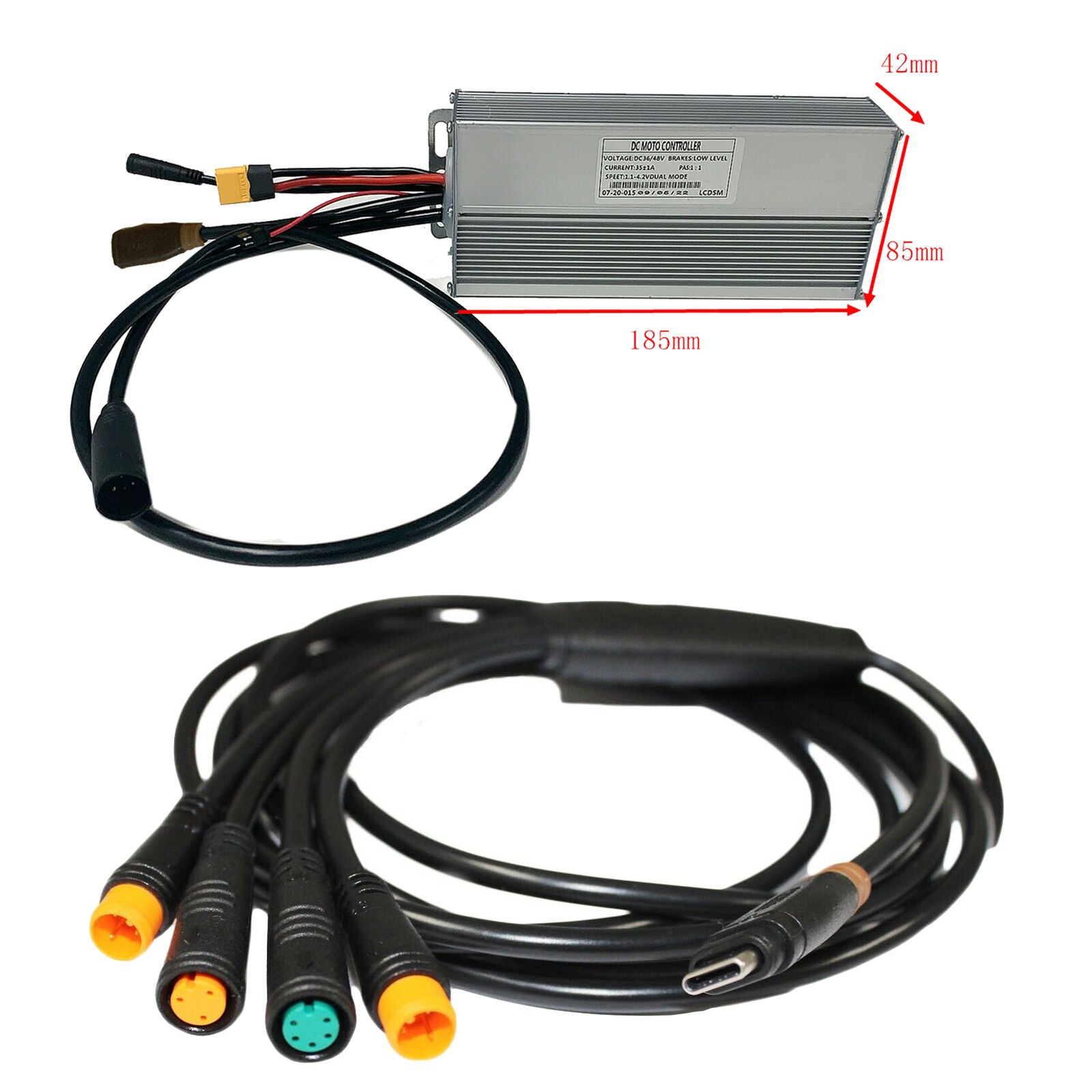

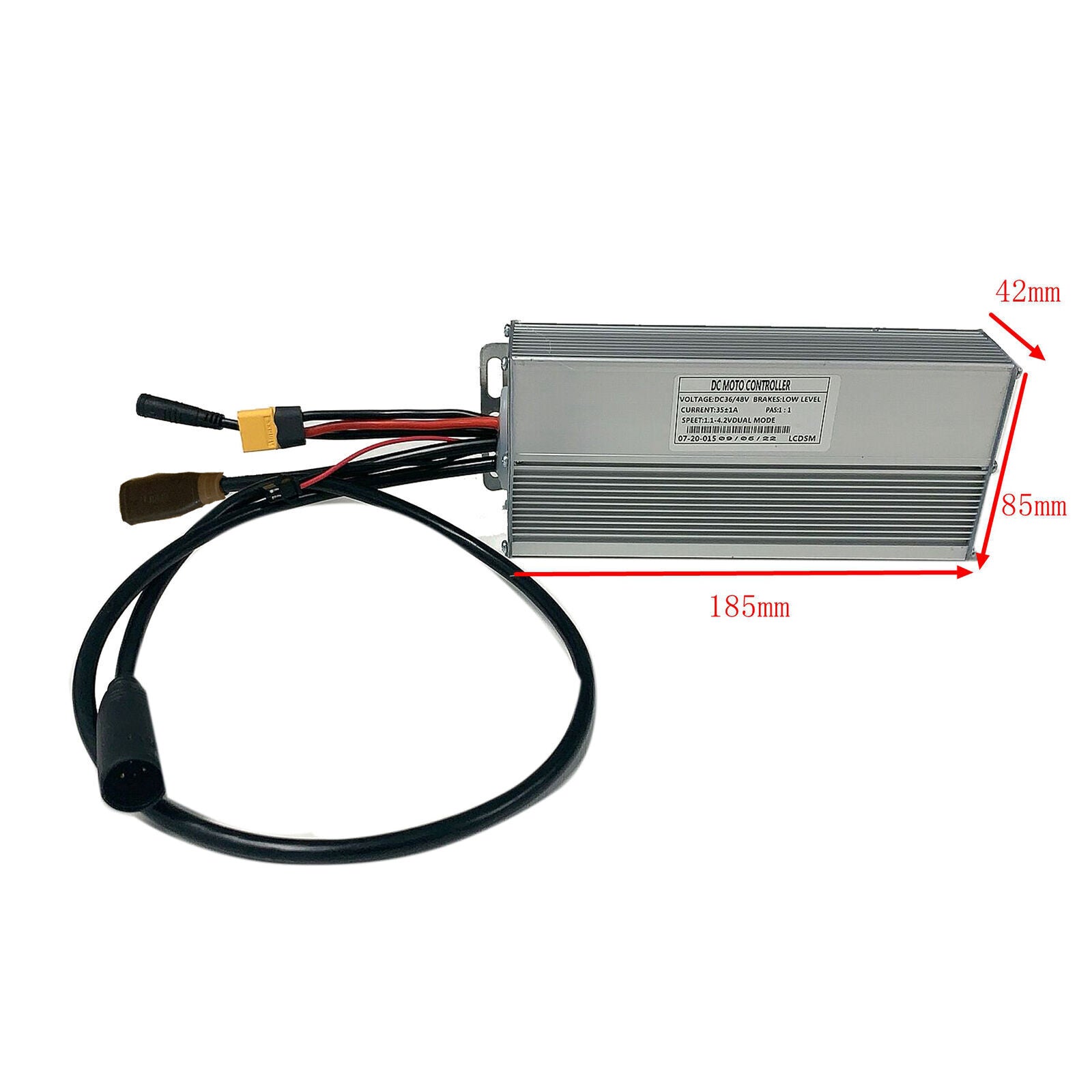

  • Controller dimension in mm :  185*42*85 (l*w*h)
  • Weight: 650g
  • Motor cable length: about 730mm
  • 15mosfets
  • Sine Wave
  • Maximum current: 35±1A
  • Rated voltage:DC/48V
  • Speed set:1.1 - 4.2V DUAL MODE
  • Rated current:17A
  • Brake input :Low-Level
  • PAS: 1:1
  • Low voltage protection: DC40±0.5V

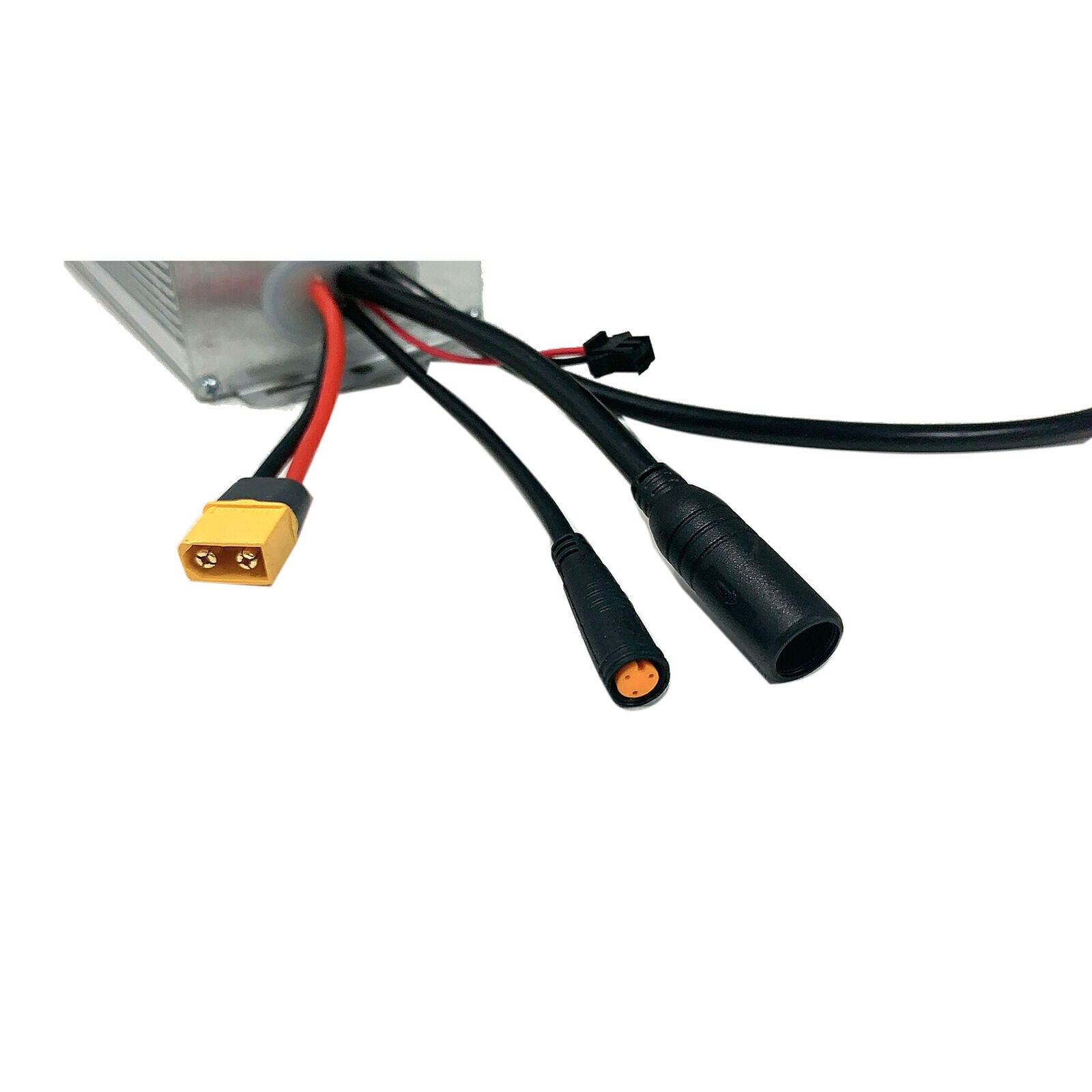

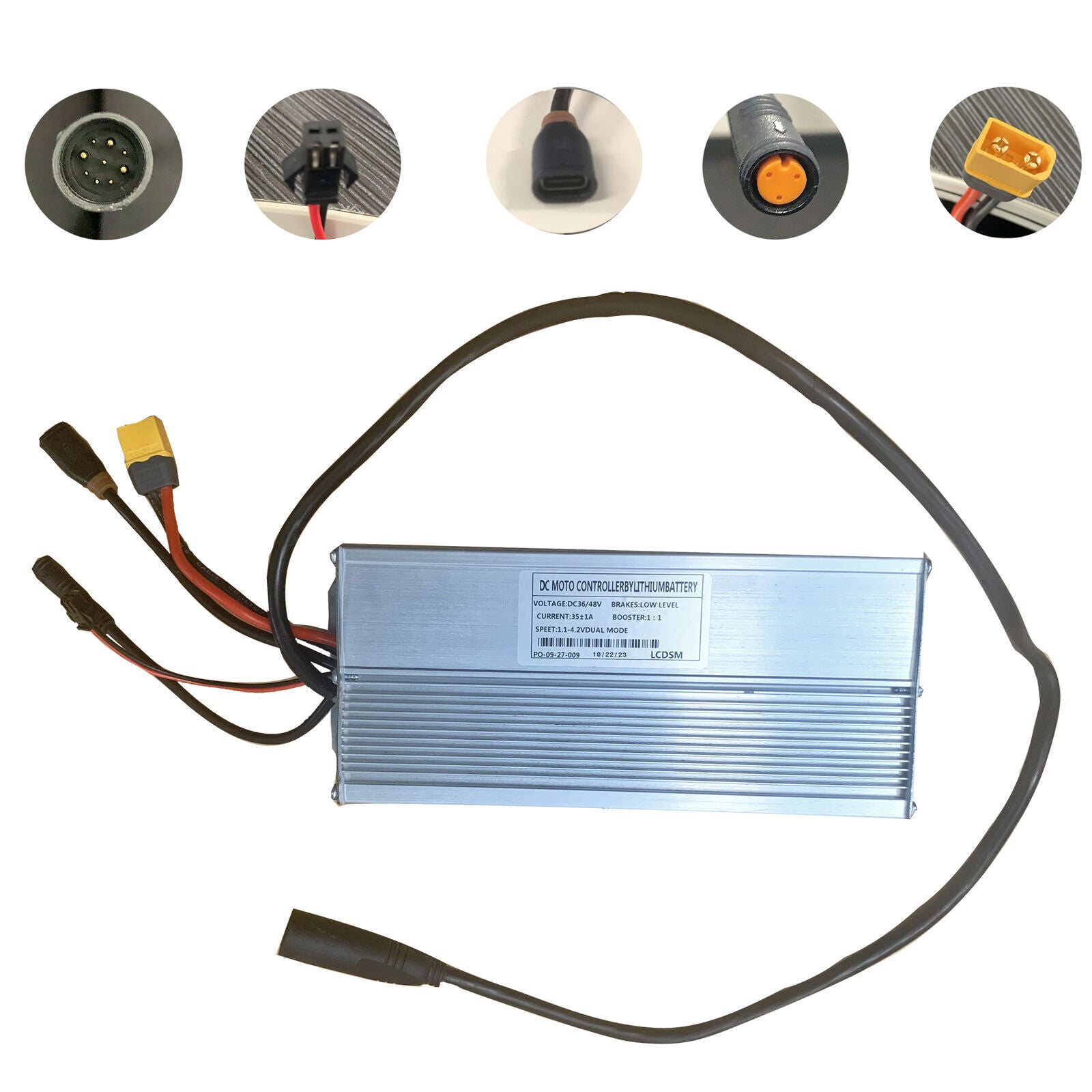

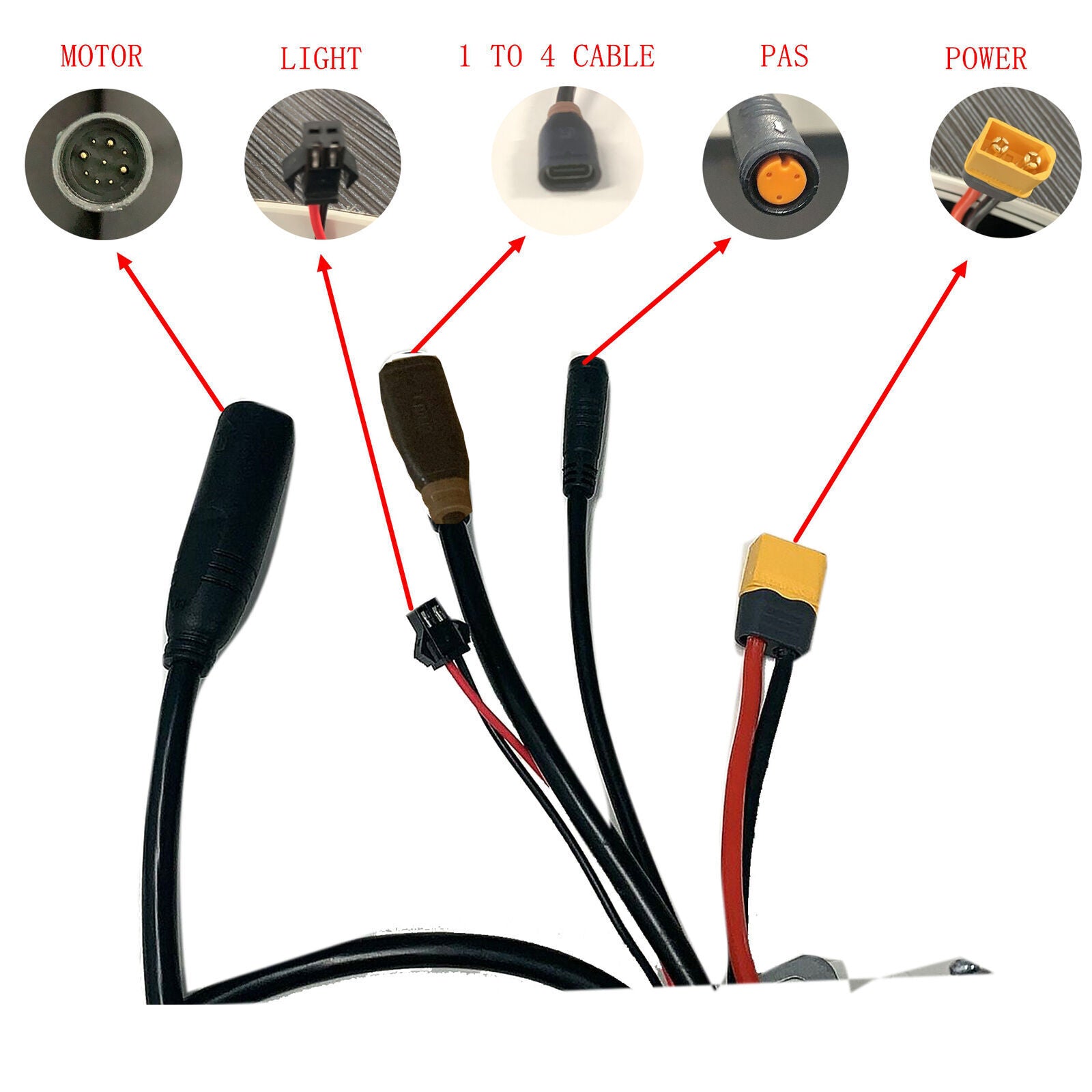

Connectors for controller：
  • motor (9 pins waterproof plug )
  • Power connector  xt60
  • PAS (3 pins waterproof plug)
  • USB connector to multi-function cable
  • Front light connector - suitable for light less than 80MAH

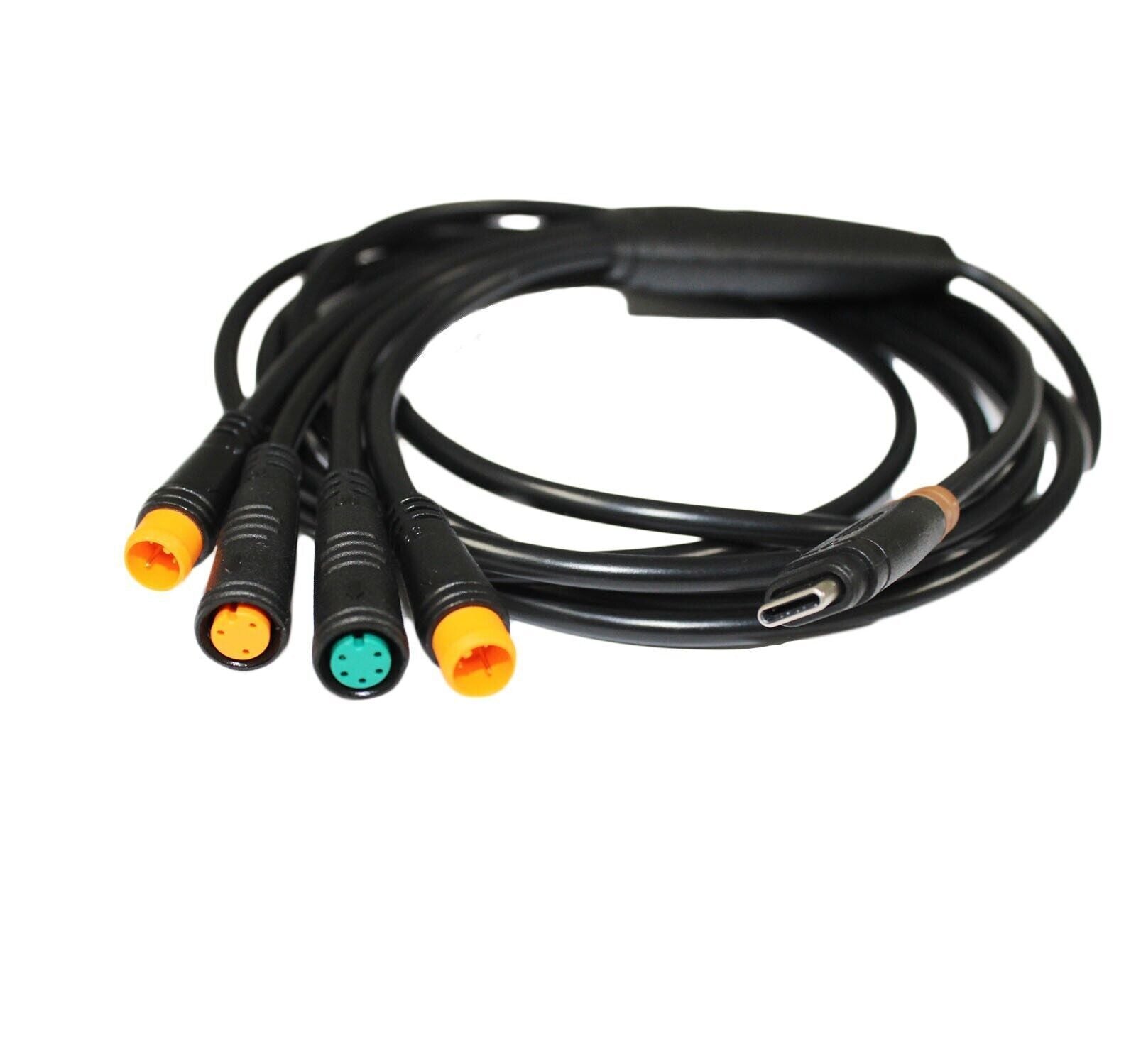

Feature for Main Cable

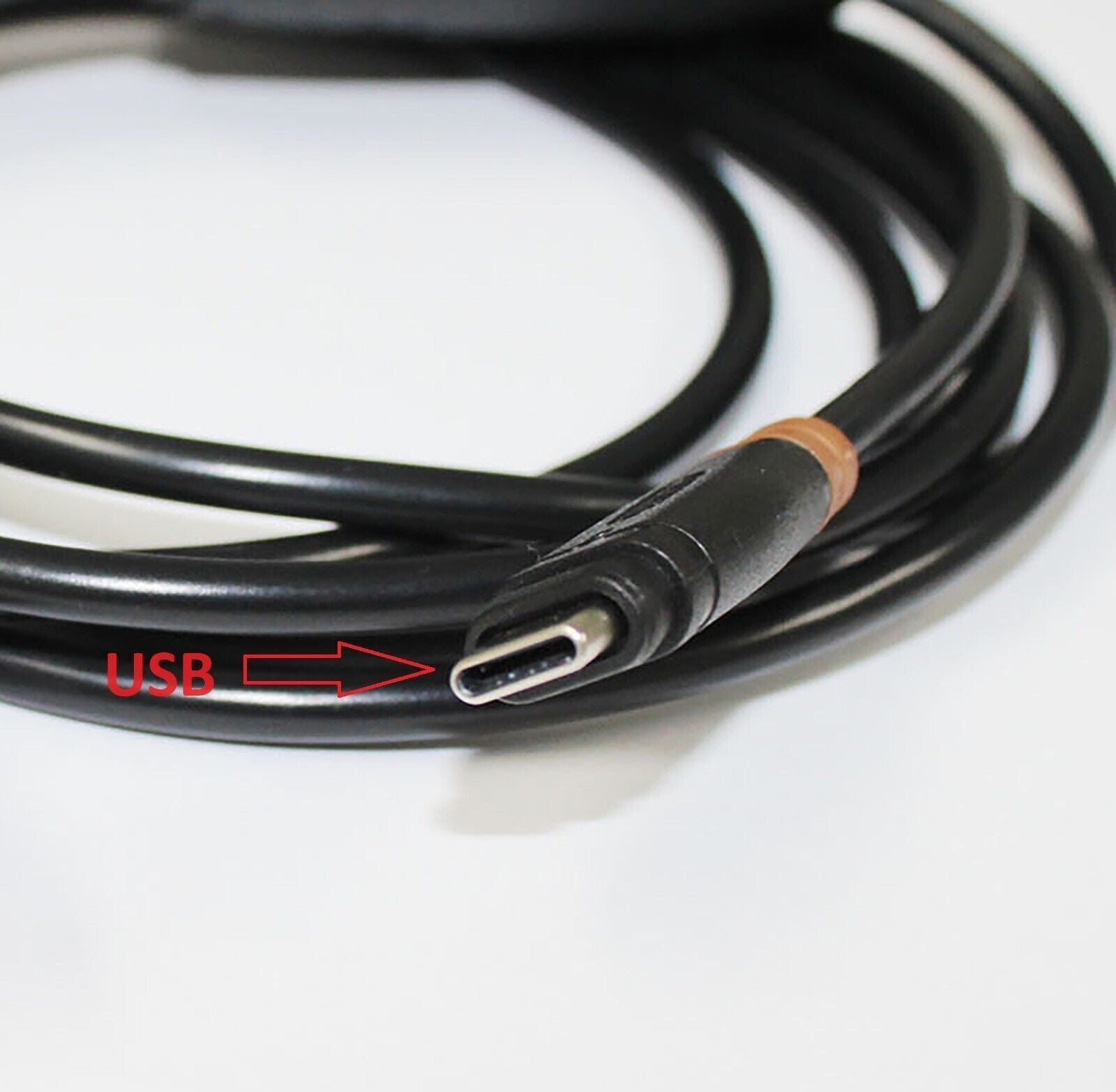

  • 1 (USB-Type C) to 4 cable extension cords for electric bike ebike conversion kit
  • Waterproof and dust-proof connector
  • Length: approx 160cm

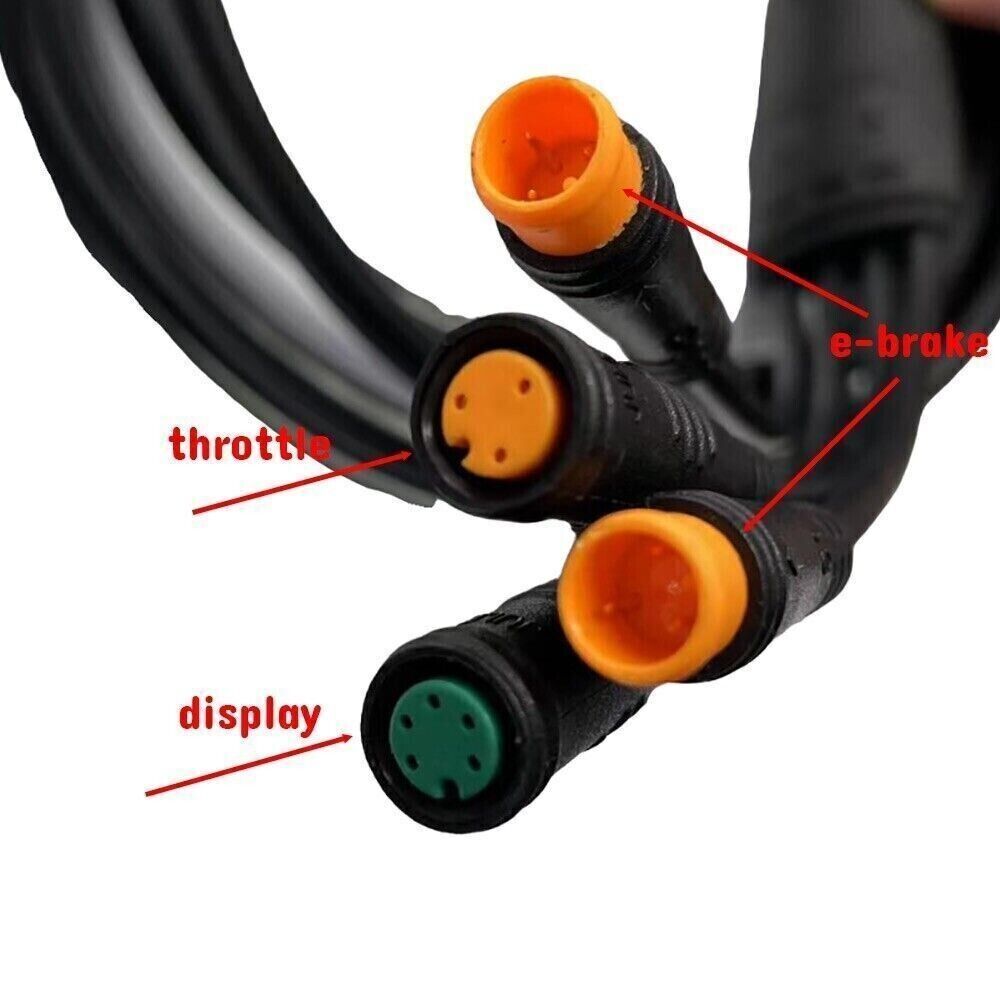

Connectors for Main Cable
  • USB side to controller
  • 3 holes to  throttle
  • 5 holes to  display
  • 3 pins to  left and right brake

Package includes:
  • 1 to 4 cable
  • 1 controller
