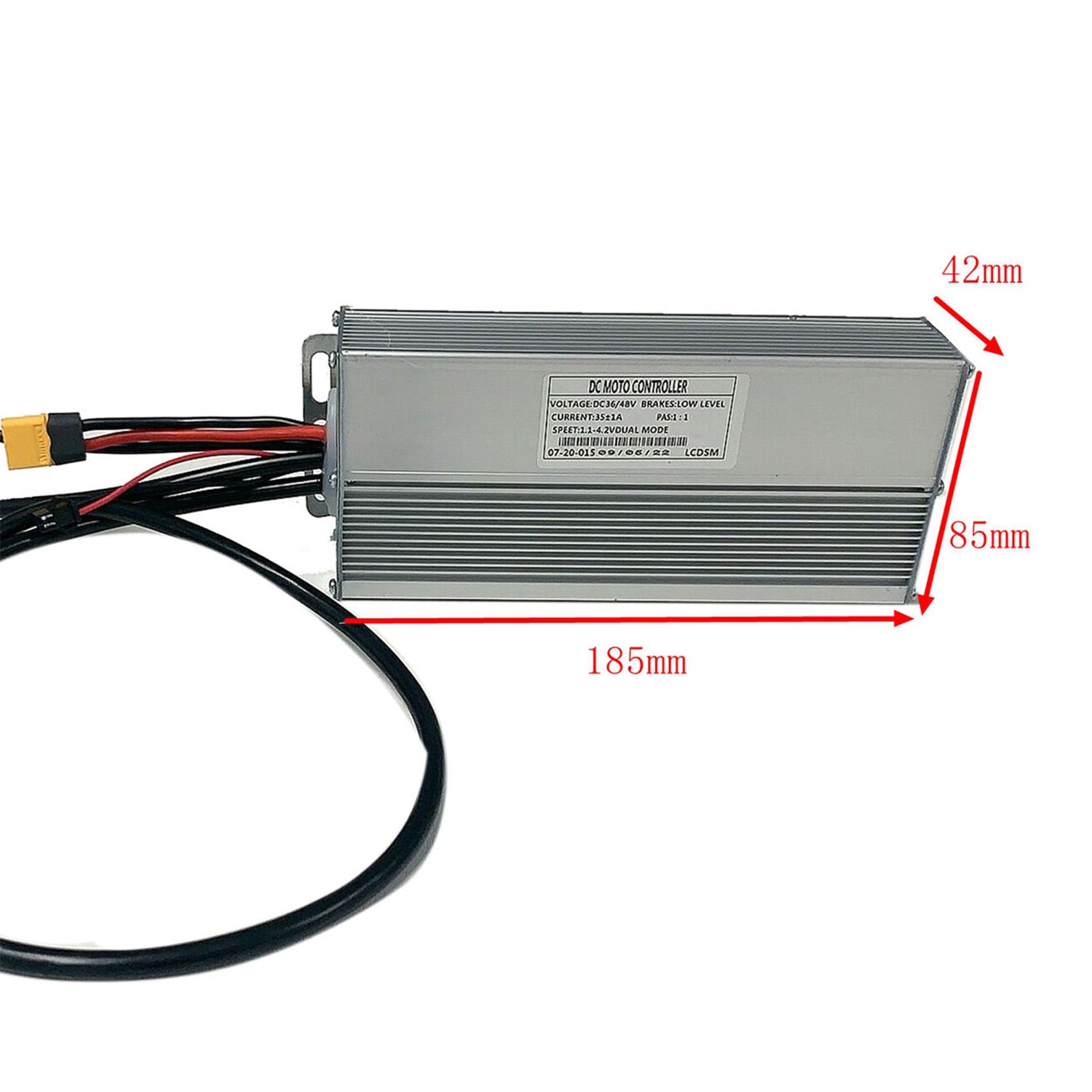

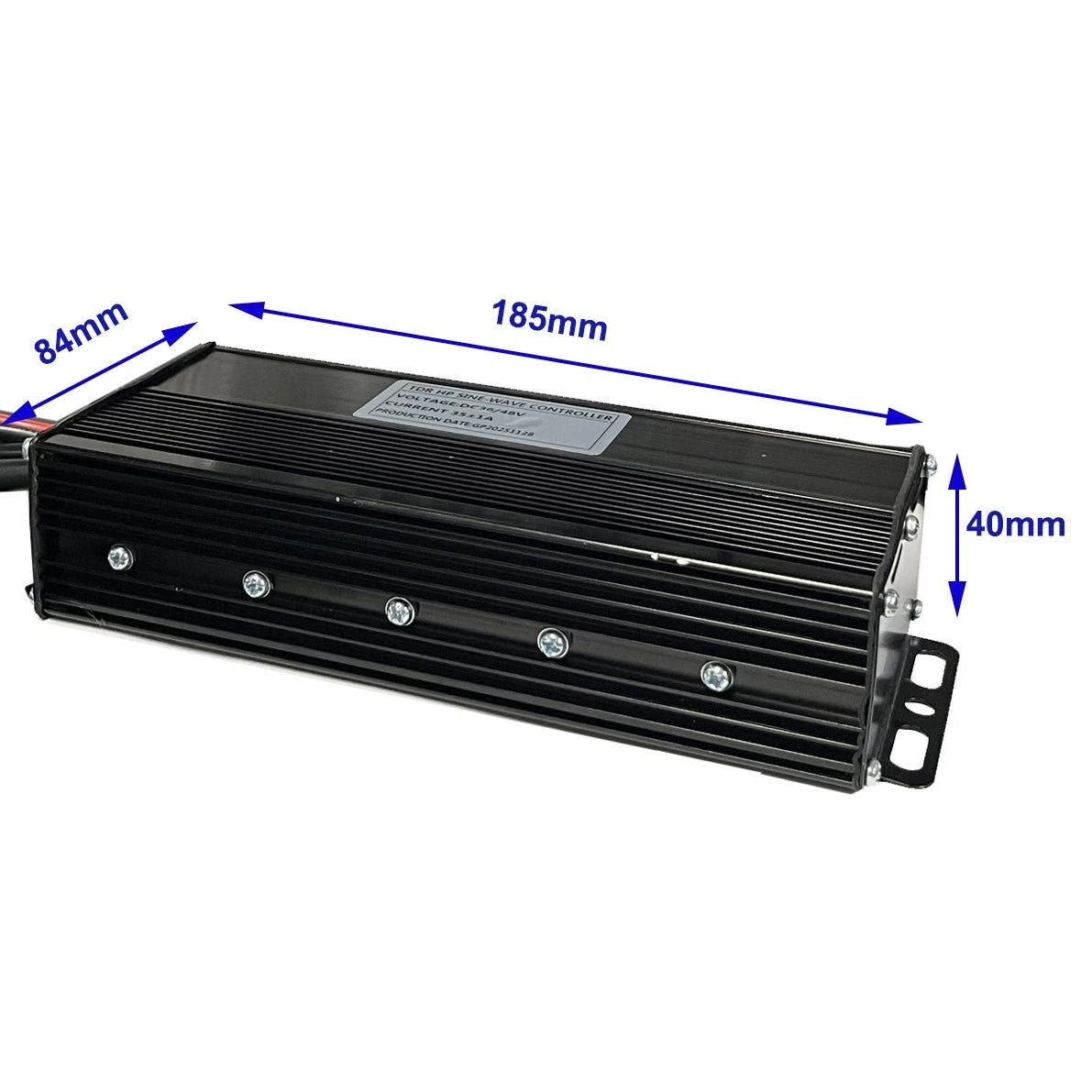

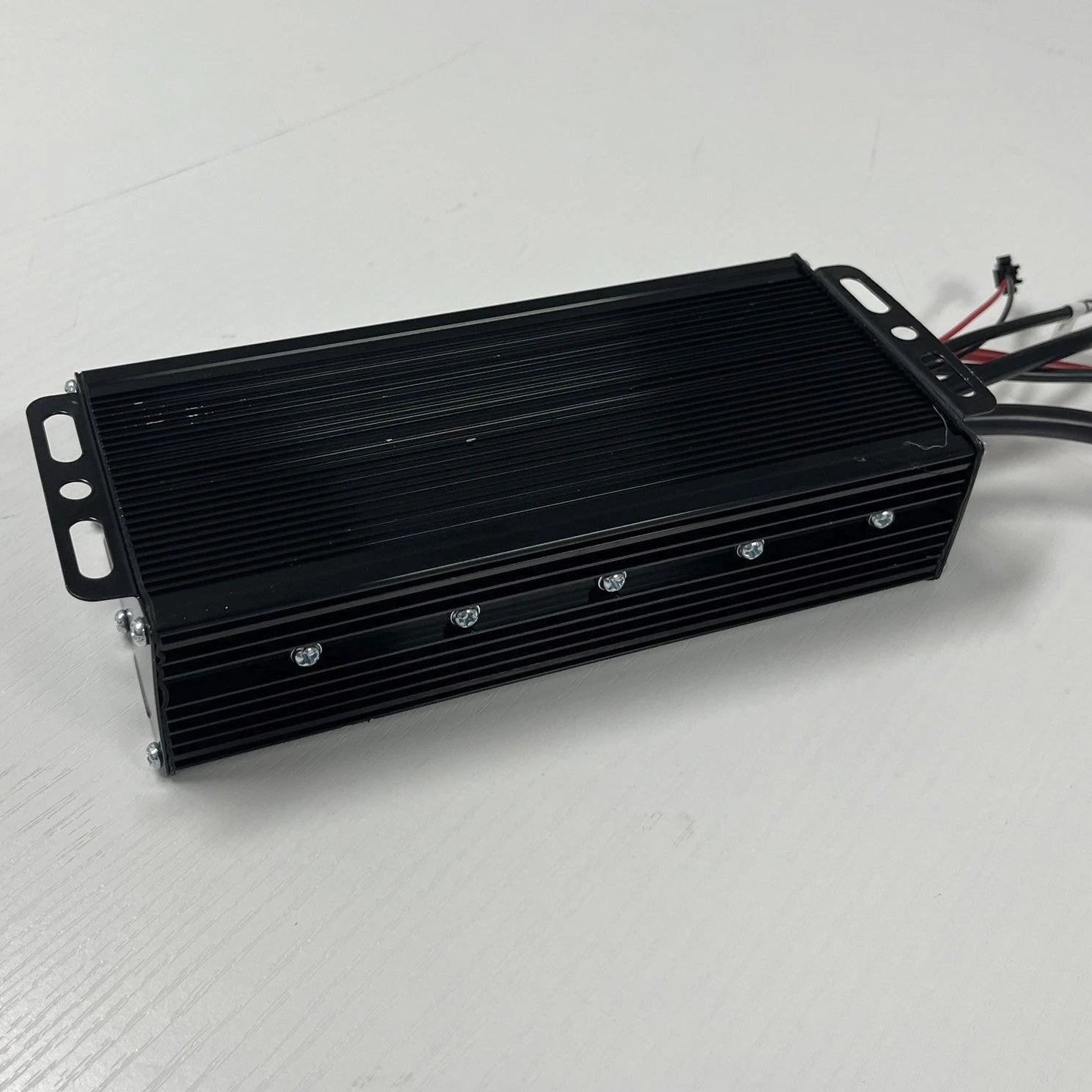

Controller dimension in mm : 185*42*85 (l*w*h)
Motor cable length: about 730mm
15 mosfets

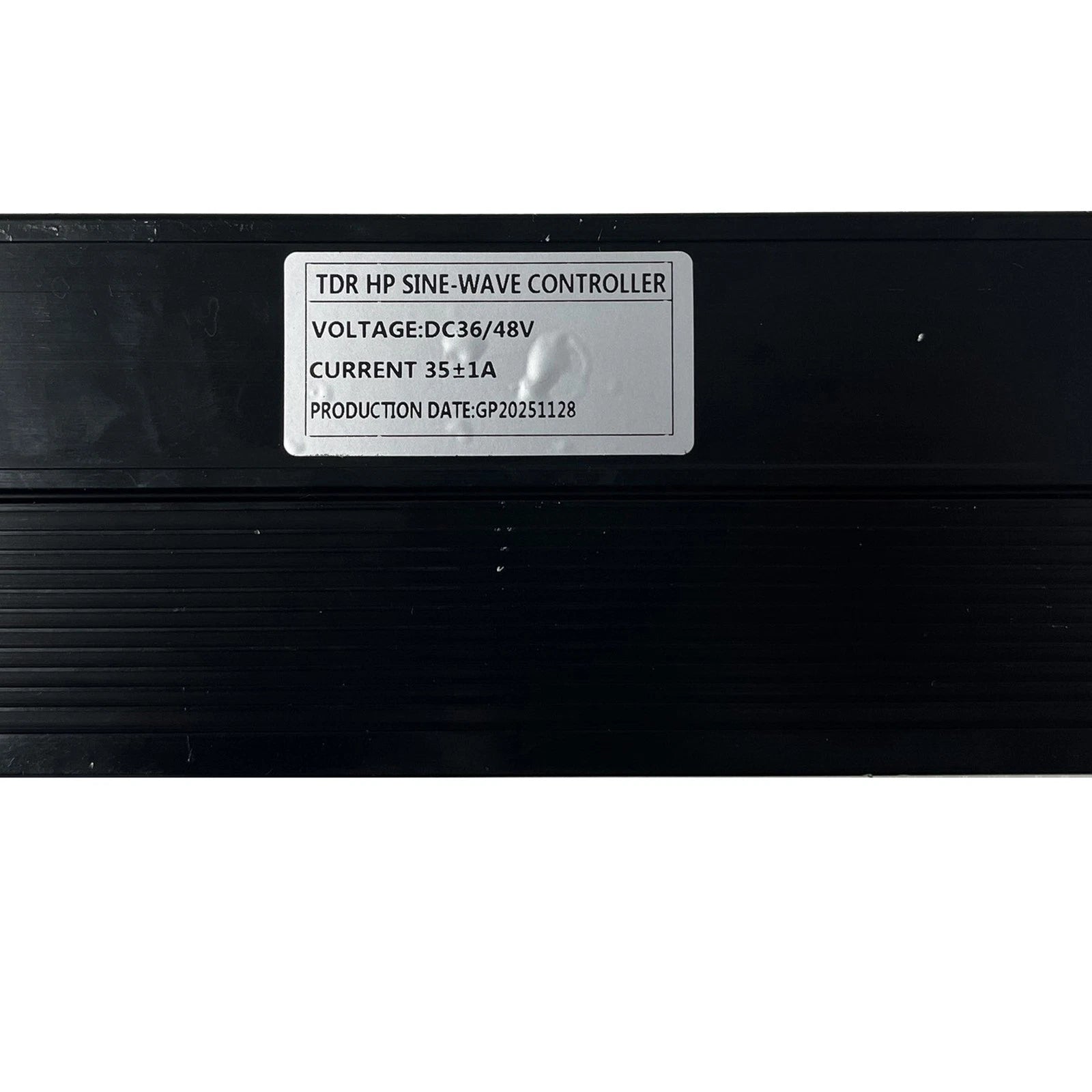

Sine Wave
Maximum current: 35±1A
Rated voltage: DC36/48V

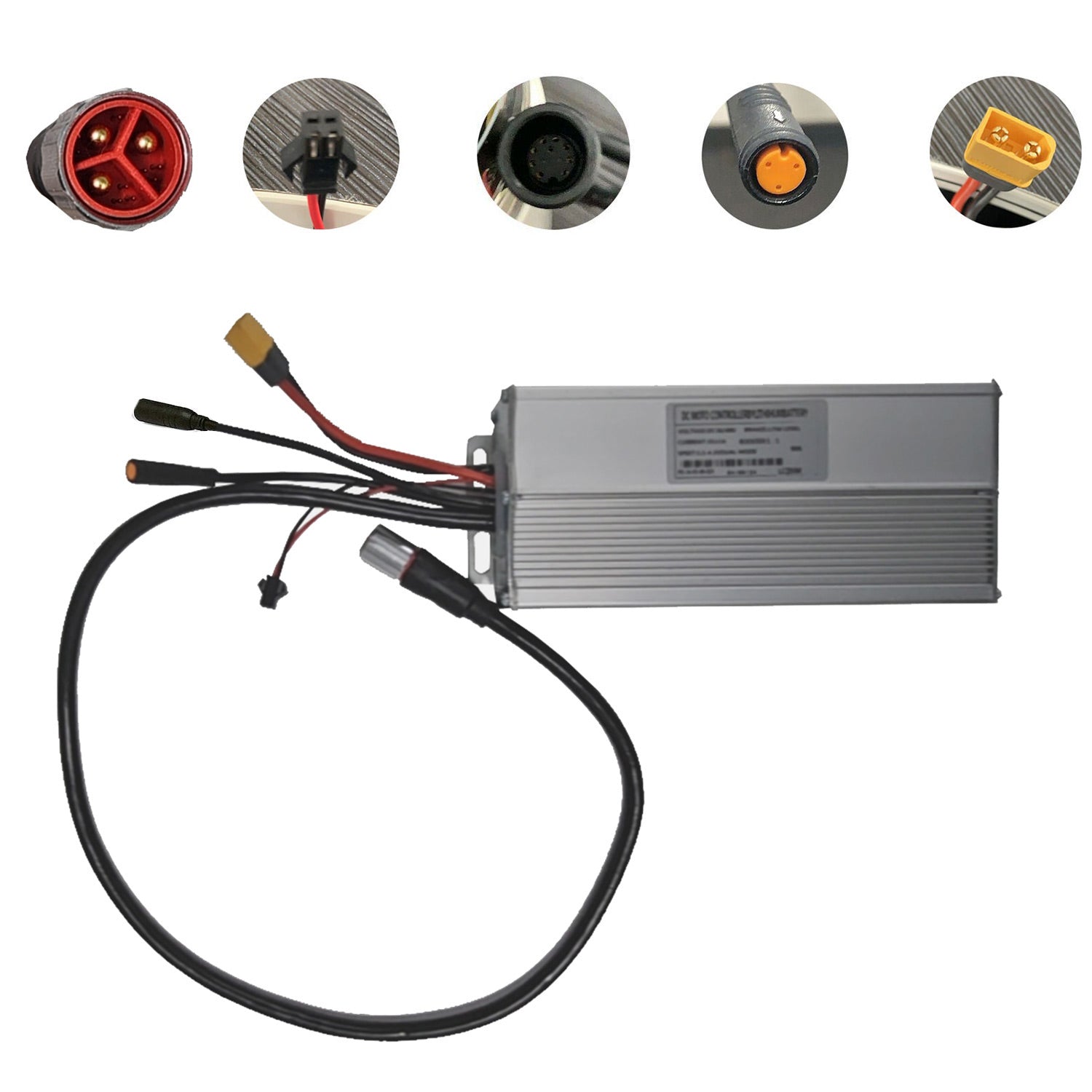

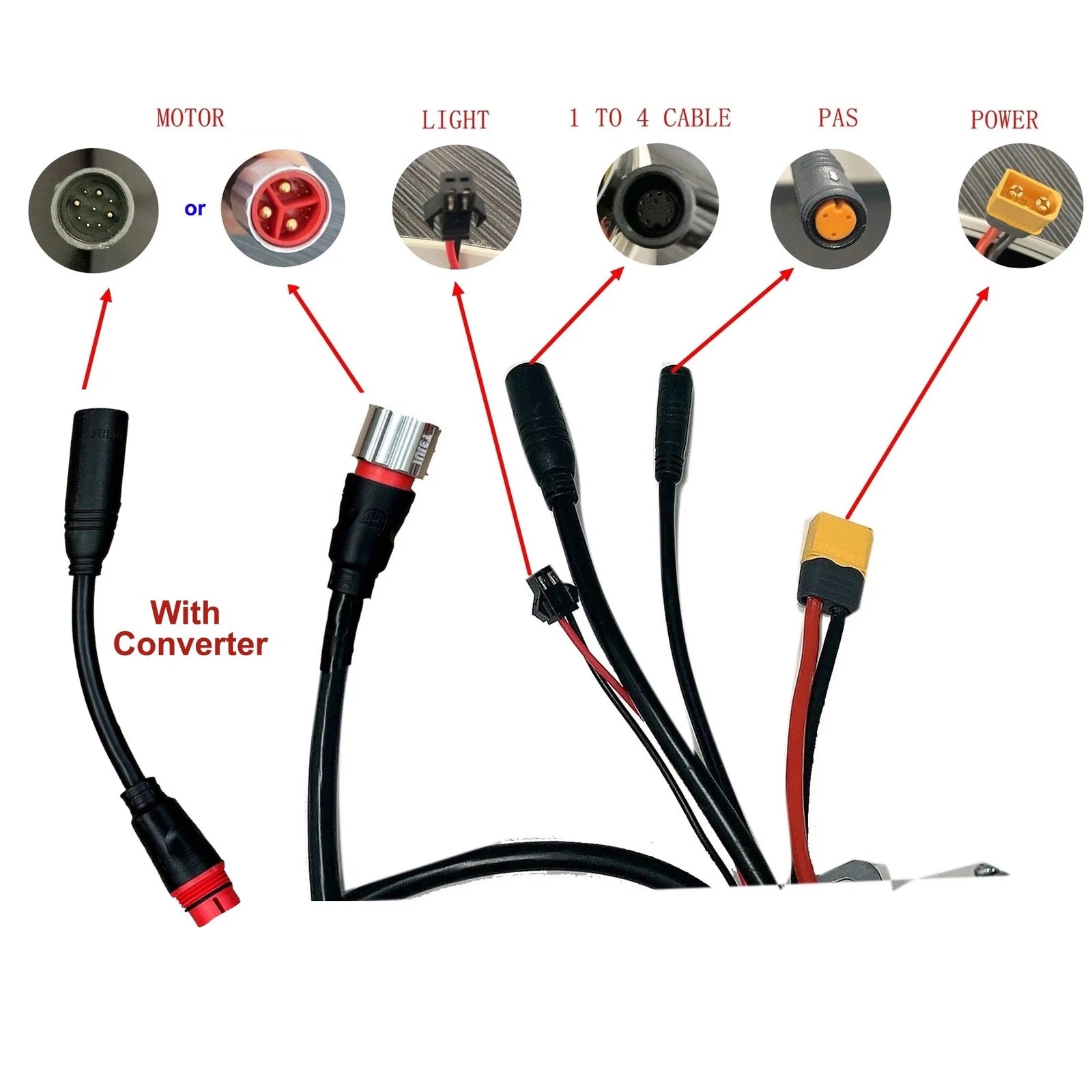

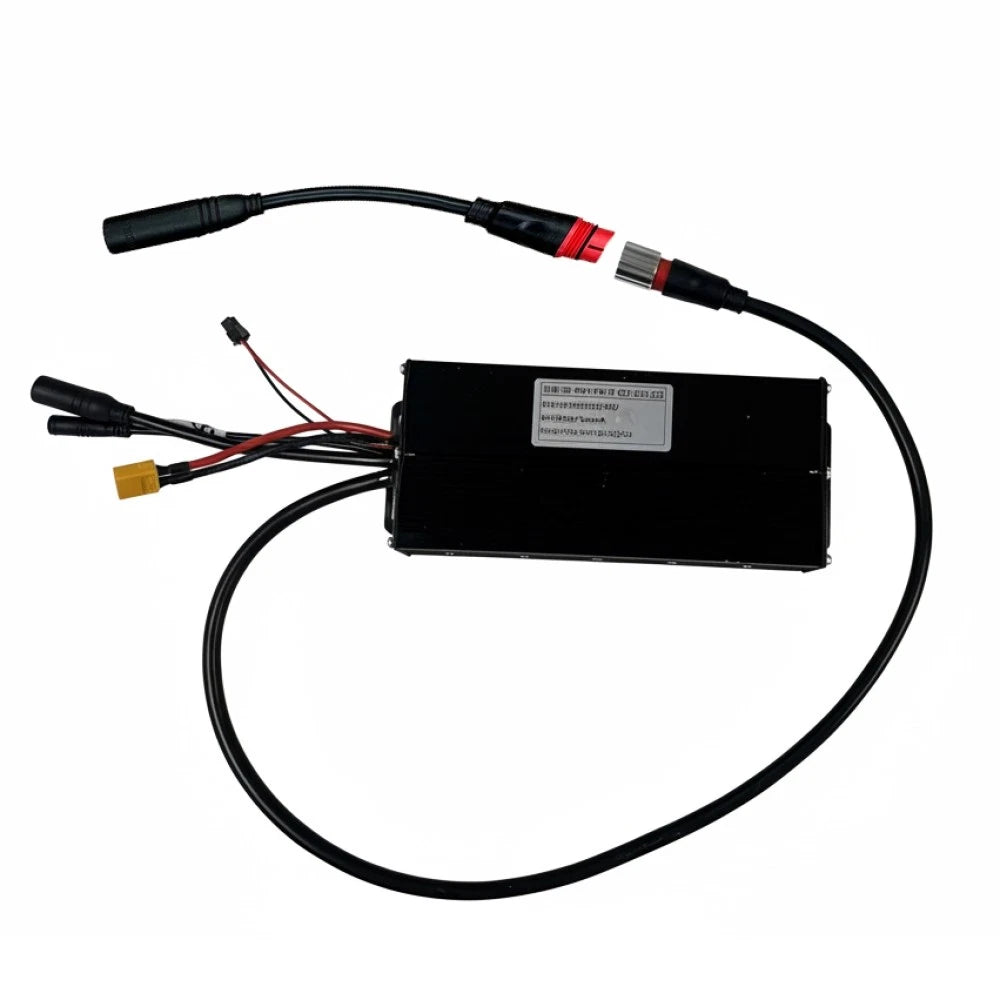

Connectors：

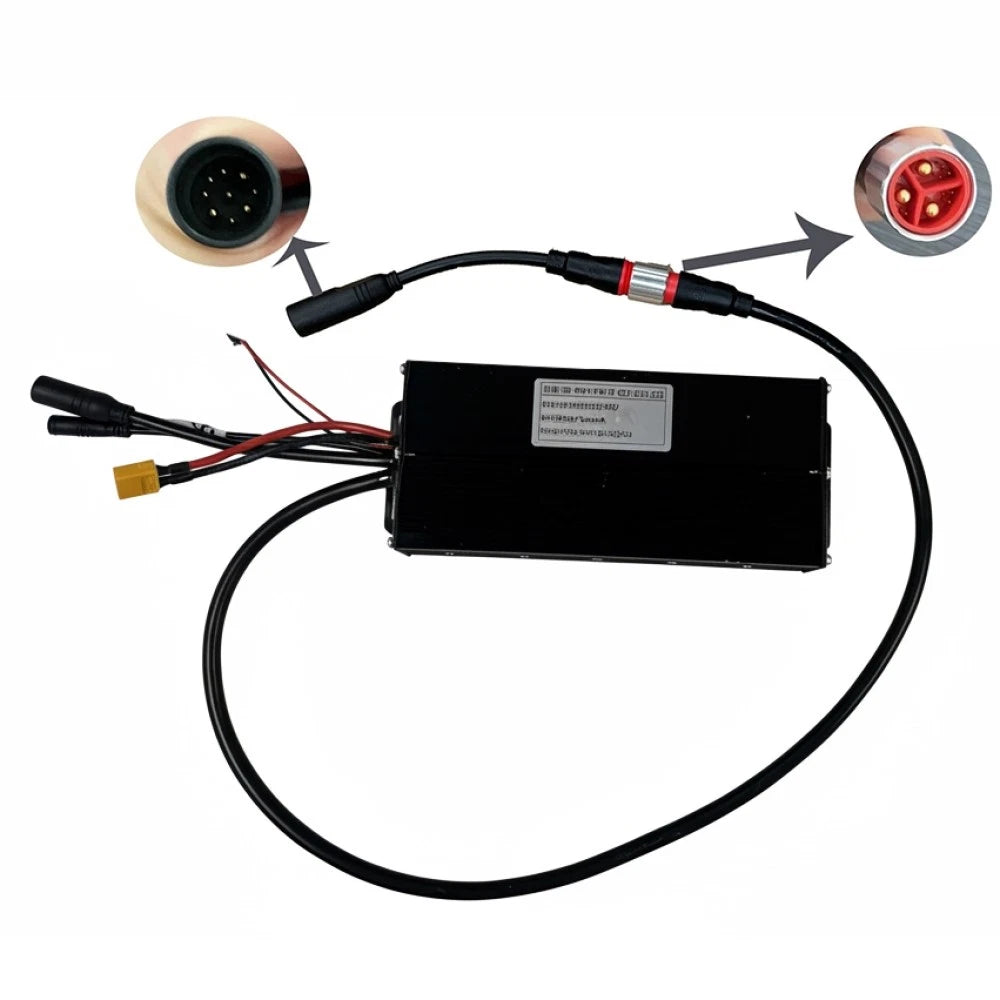

To motor - 1121 AG + Converter lead with plug for 9 pins (optional)
Power connector xt60
PAS (3 pins waterproof plug)
1 to 4 cable(9 pins for throttle, e-bike, display)
Front light connector - suitable for light less than 80MAH
Notes:
Please ensure that this item remains identical to your original and confirm that this will be rectified prior to purchase.
We typically dispatch orders on the next business day. Occasionally, delays may occur. If you choose bank transfer, we’ll dispatch once payment clears.
Place orders before 8:50 AM AEST to ship the same day.
Rates are calculated at checkout—just add items to your cart, enter your address, and view costs. For remote or island locations, a rare surcharge may apply, and we will contact you if needed.
Pickup is only available if payment is made via bank transfer.
You’ll receive a tracking number via email once your order is packed. It usually becomes active on the courier's site between 4–5 PM.
If your package arrives with any physical damage, please email us within 2 business days and include clear photos of both the damaged item and the packaging.
Fitted the new throttle and controller and it all works ok the new controller doesn't need the adaptor cable like the old one which is one less connection.
Really quick and great quality bike runs perfect now the kit/hub motor was lagging last time becase the controller got fried
