48V 35A EBike Controller & LCD Display Kit For 1000W 1500W Hub Brushless Motor

48V 35A EBike Controller & LCD Display Kit For 1000W 1500W Hub Brushless Motor

SKU:

Regular price $186.95
Regular price Sale price $186.95
Liquid error (snippets/price line 87): Computation results in '-Infinity'% off Sold out
Tax included. Shipping calculated at checkout.
48V 35A EBIKE CONTROLLER

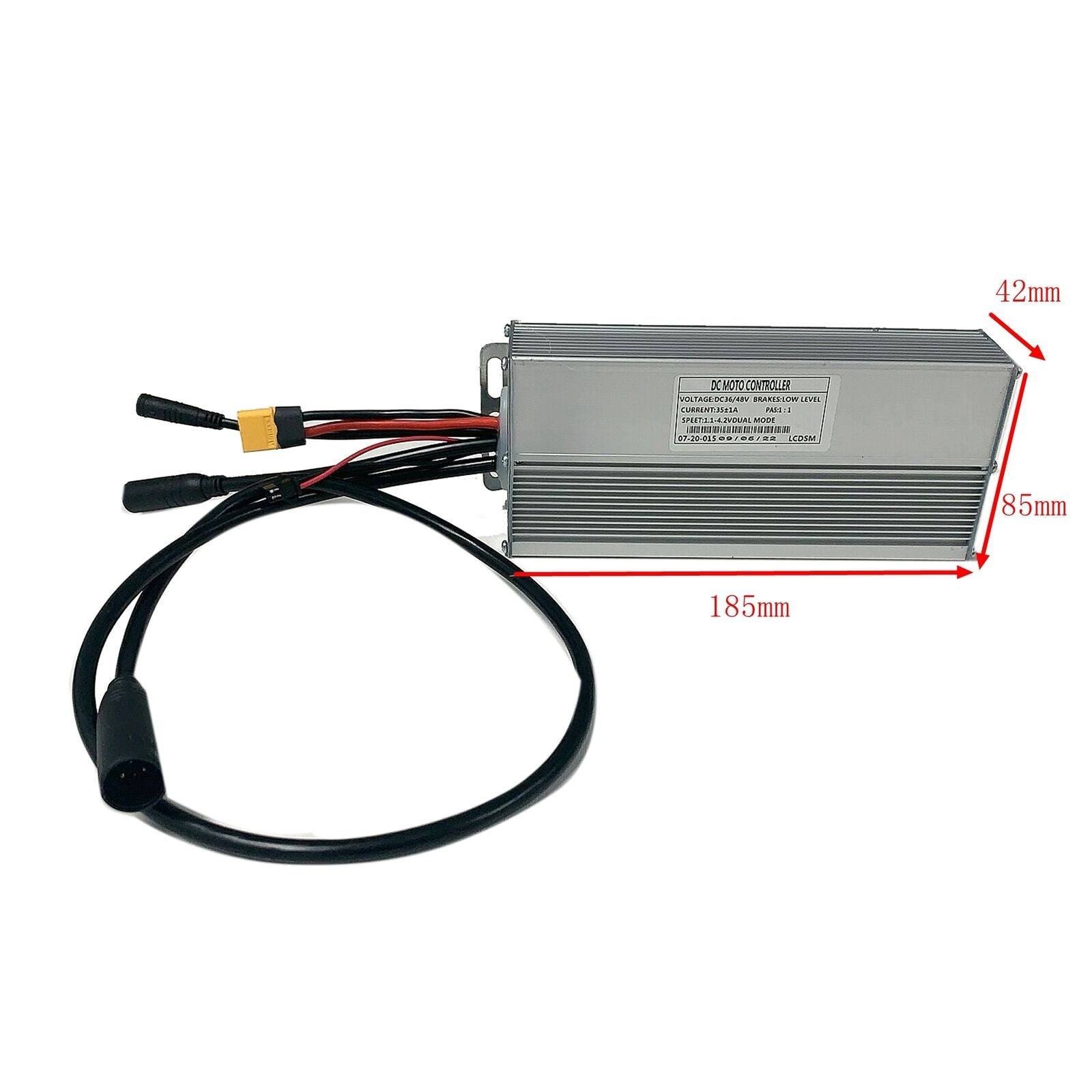

  • Controller dimension in mm :  185*42*85 (l*w*h)
  • Weight: 650g
  • Motor cable length: about 730mm
  • 15mosfets
  • Sine Wave
  • Maximum current: 35±1A
  • Rated voltage:DC/48V
  • Speed set:1.1 - 4.2V DUAL MODE
  • Rated current:17A
  • Brake input :Low-Level
  • PAS: 1:1
  • Low voltage protection: DC40±0.5V

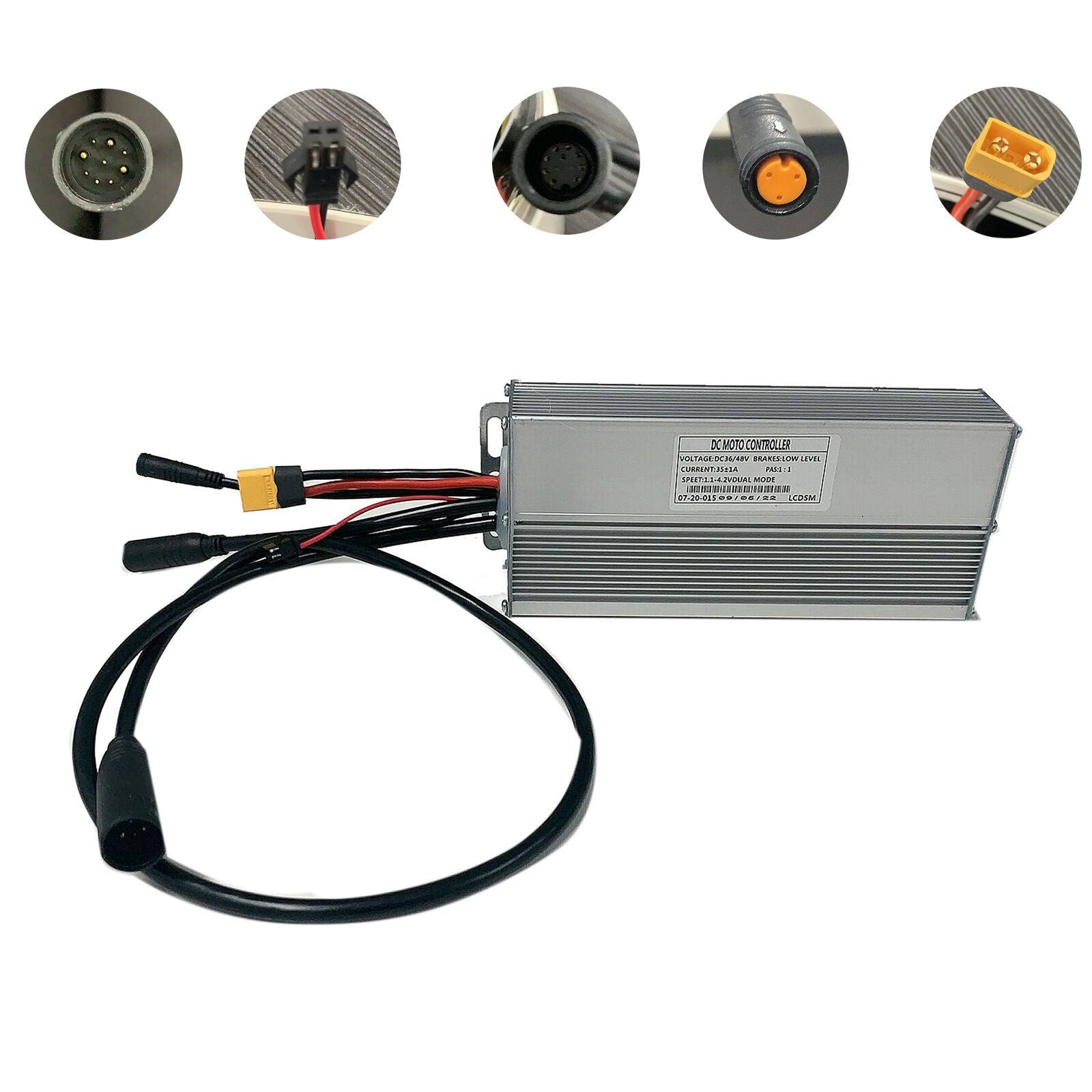

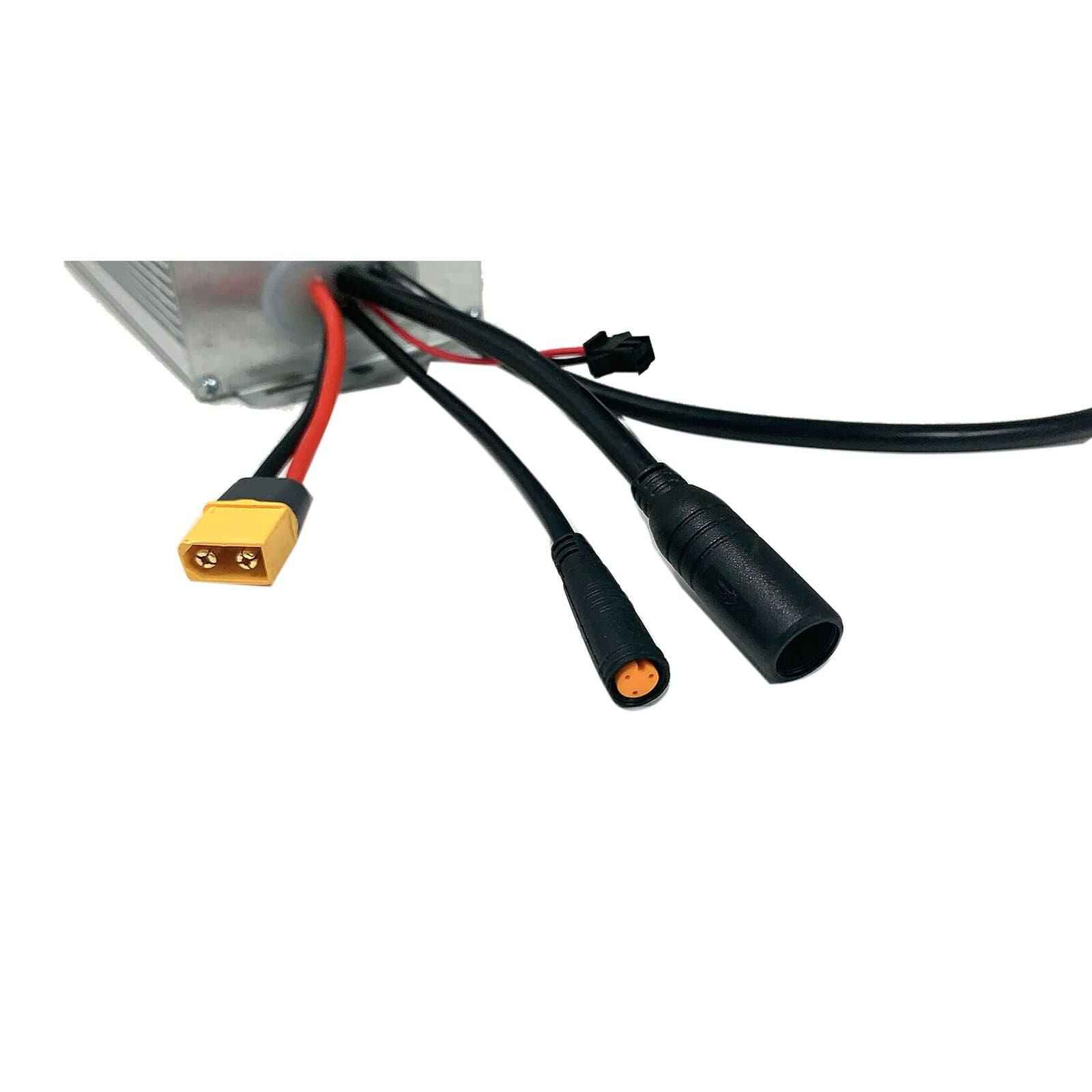

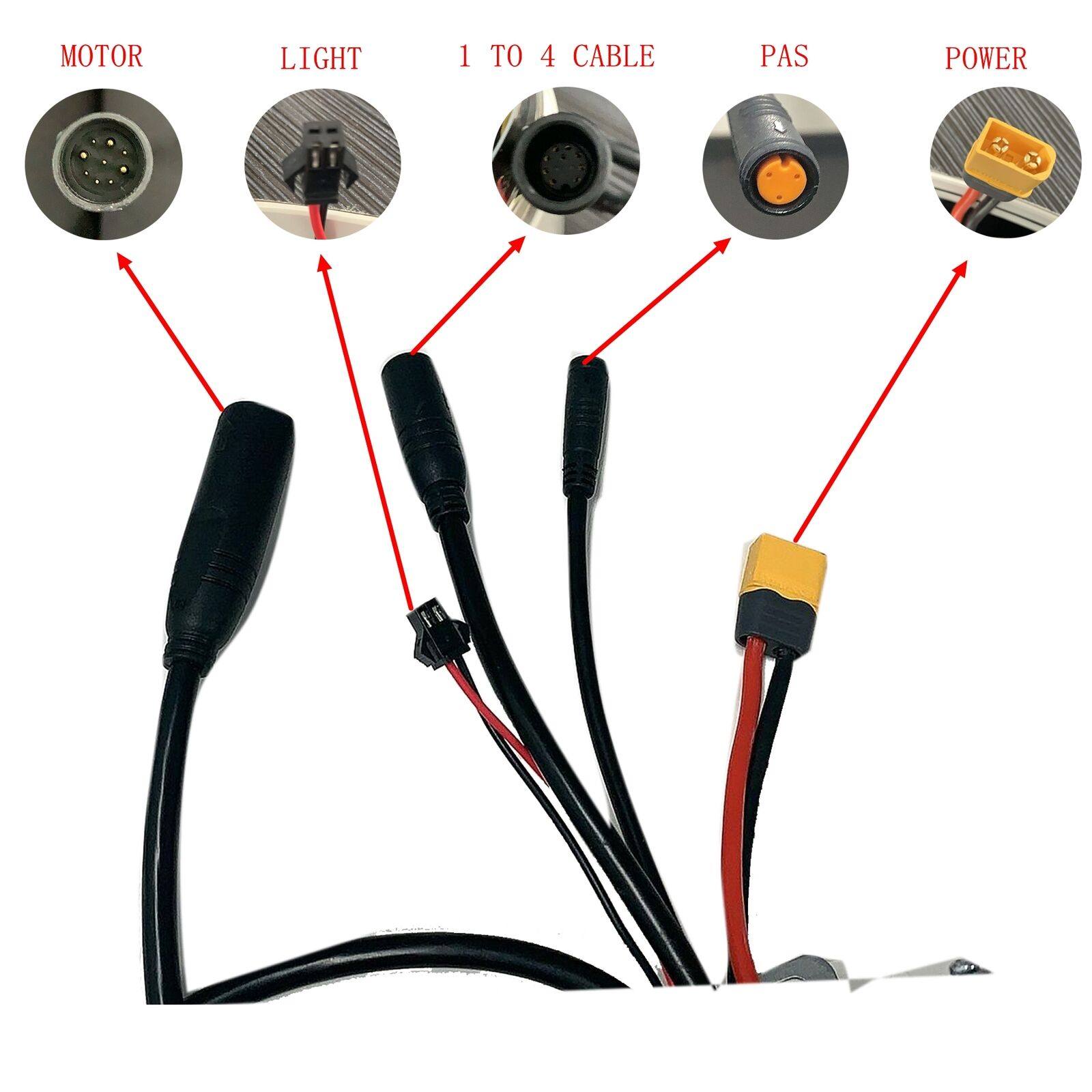

Connectors:
  • motor (9 pins waterproof plug )
  • Power connector  xt60
  • PAS (3 pins waterproof plug)
  • 1 to 4 cable(9 pins for throttle, e-bike, display)
  • Front light connector - suitable for light less than 80MAH

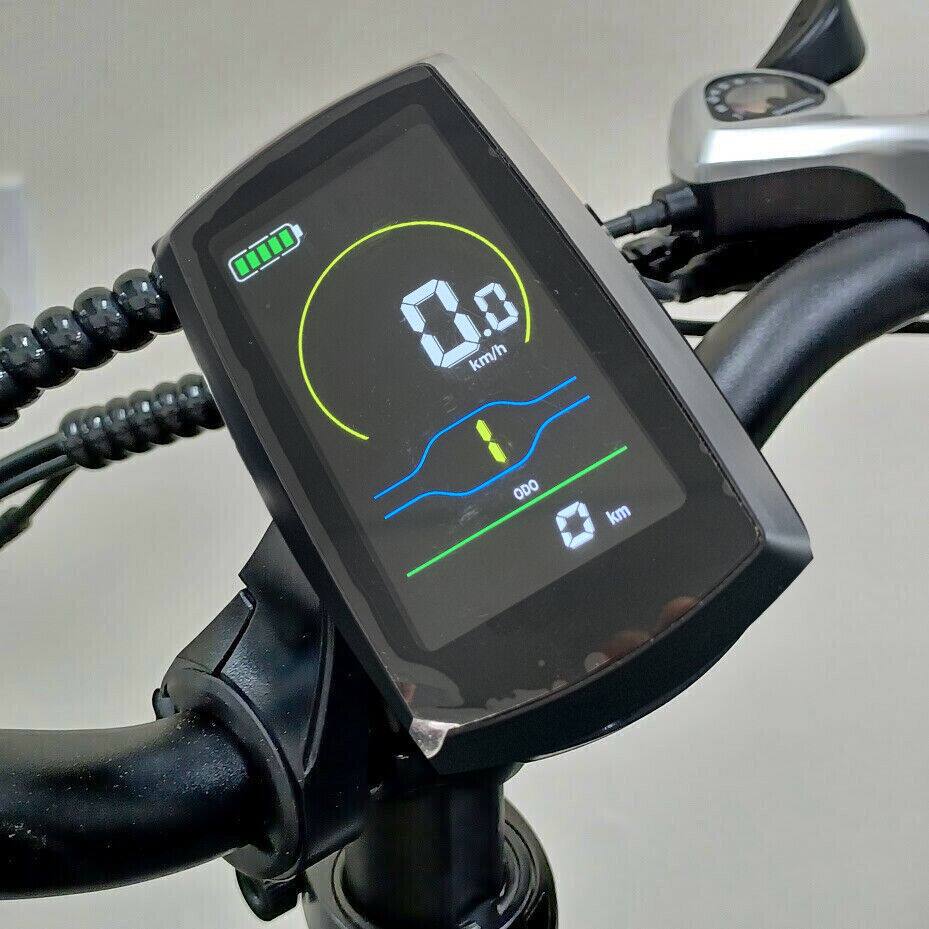

LCD
  • Specification
  • Color: Black
  • Material: ABS Plastic

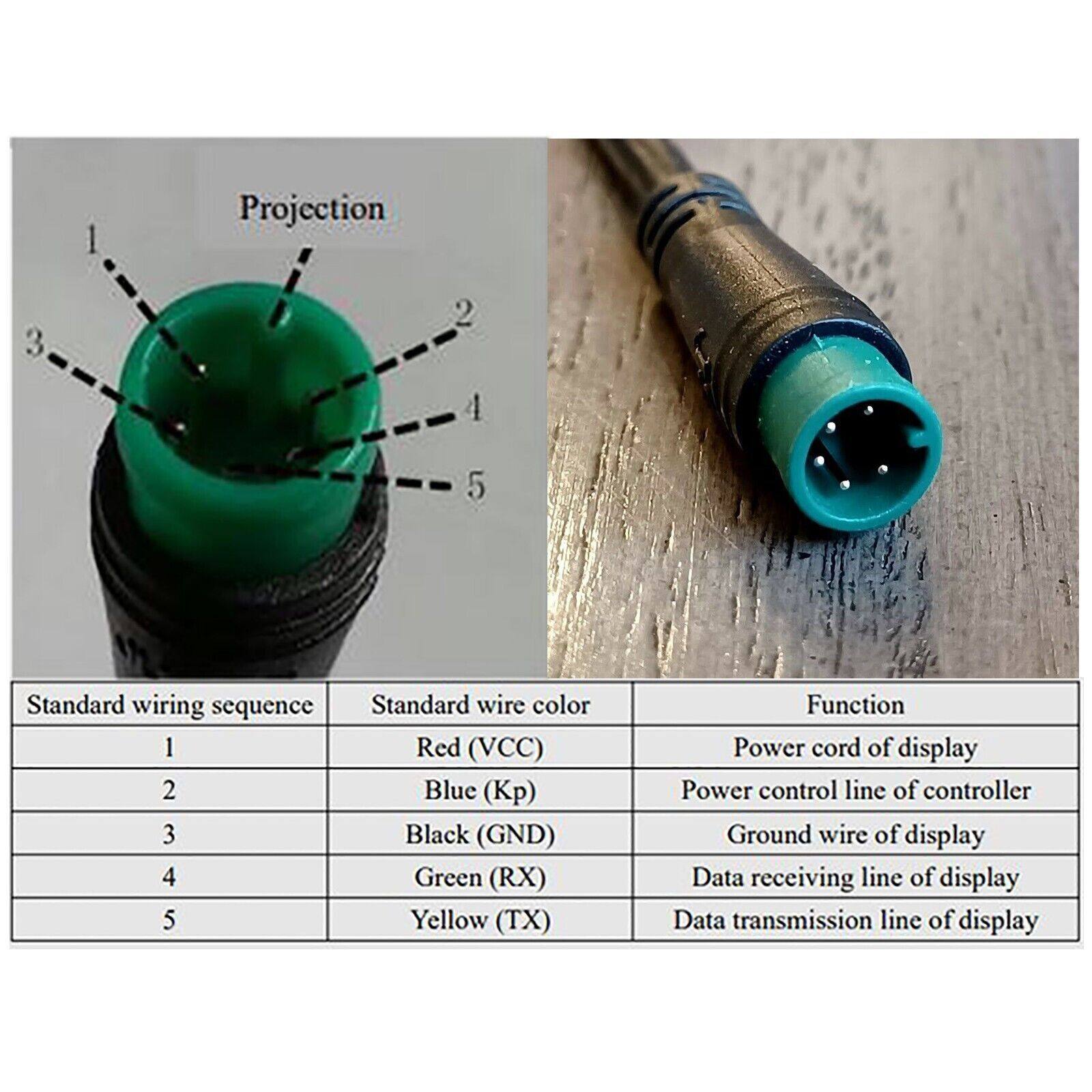

  • Connector Type: JULIET waterproof 5 Pins
  • 36V/48V power supply
  • Rated working current 15mA
  • Maximum working current 30mA
  • Leakage current at power-off <1uA
  • Working current at the supply controller end 50mA
  • Working temperature -20~60

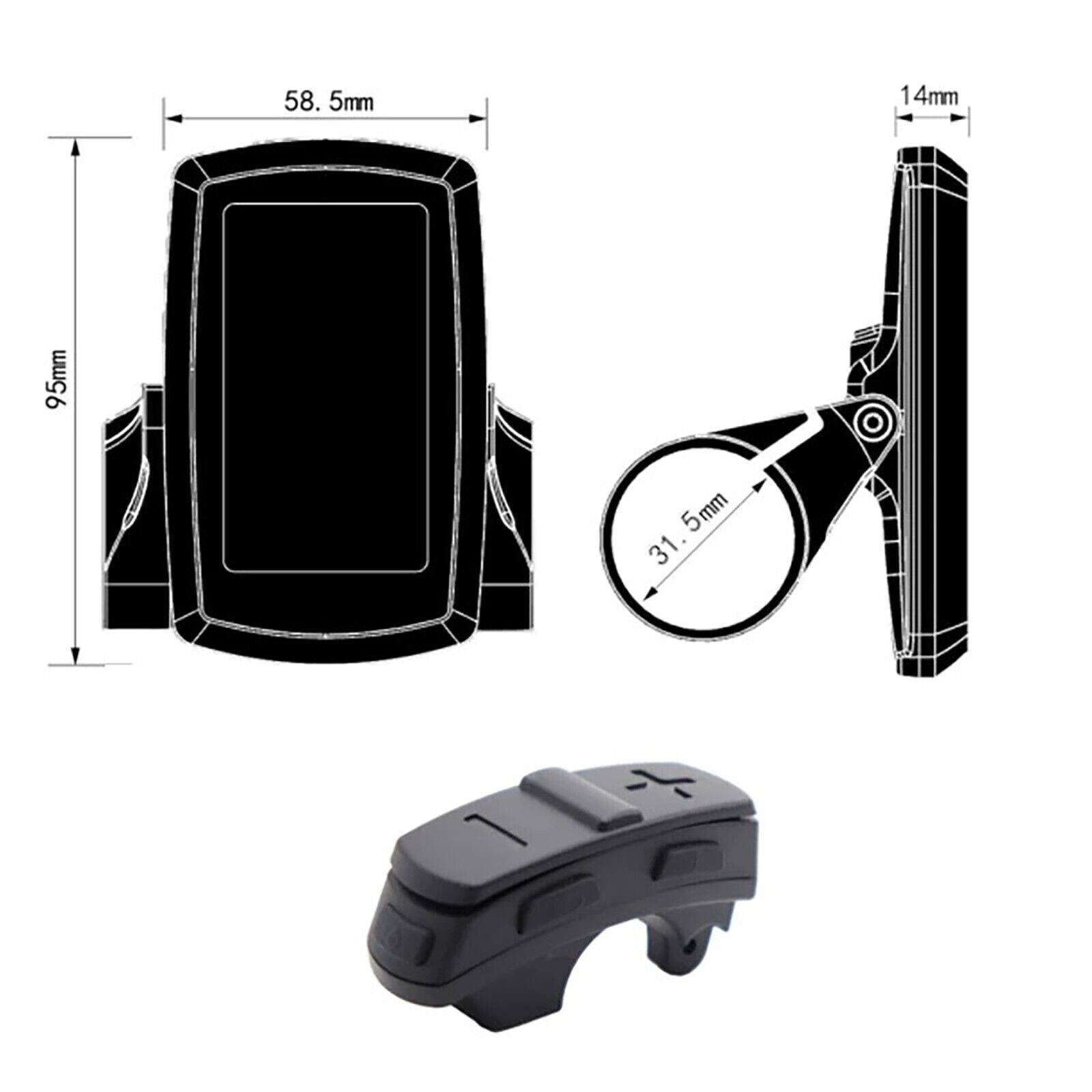

  • Dimensions:  95*58.5*14mm
  • Functions: To show speed, mileage, battery level  etc.
  • Parameter settings such as  wheel  diameter,  speed limit,  battery power setting etc.

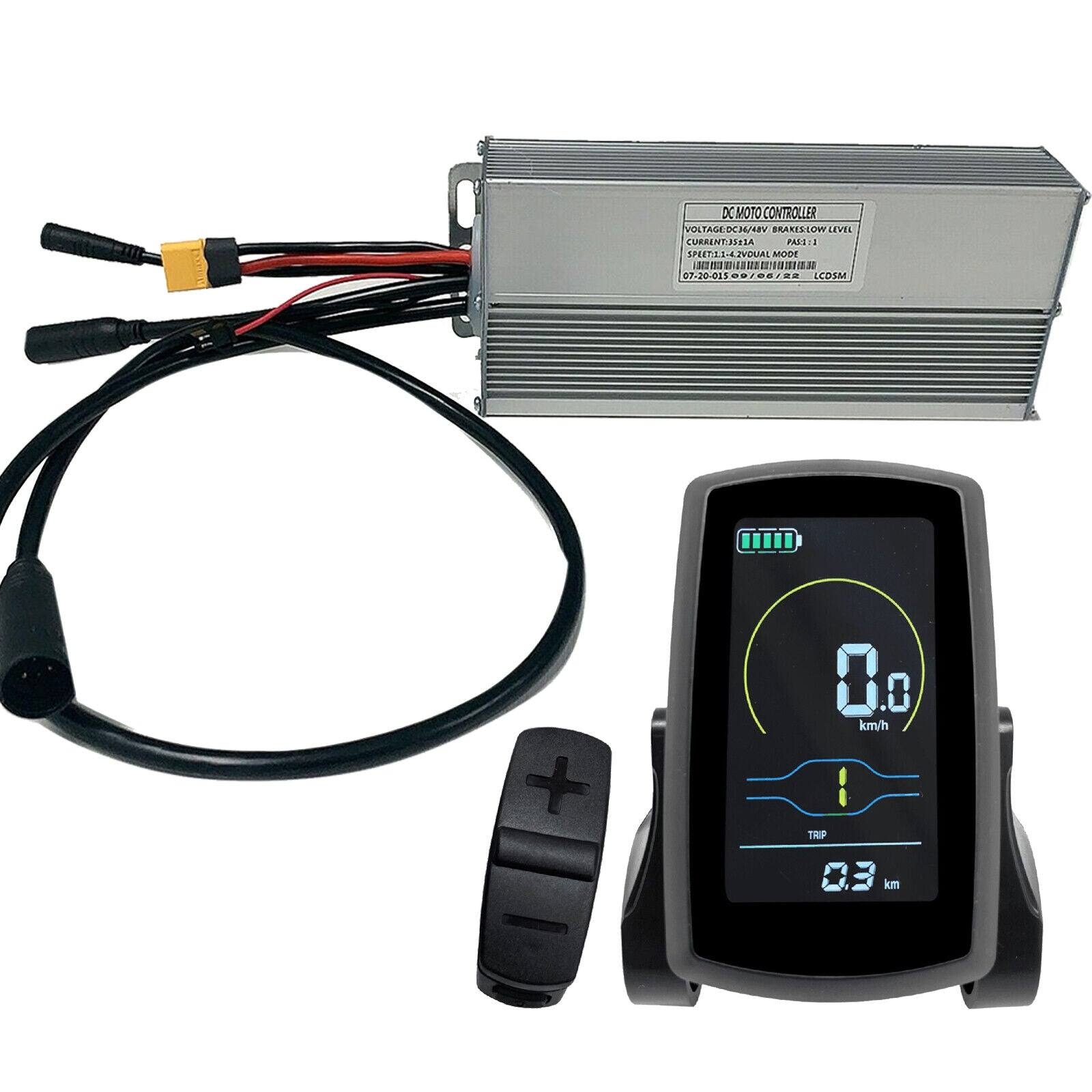

Package Contents:
  • 1 x colored LCD display.
  • 1 x 48V 35A Controller
