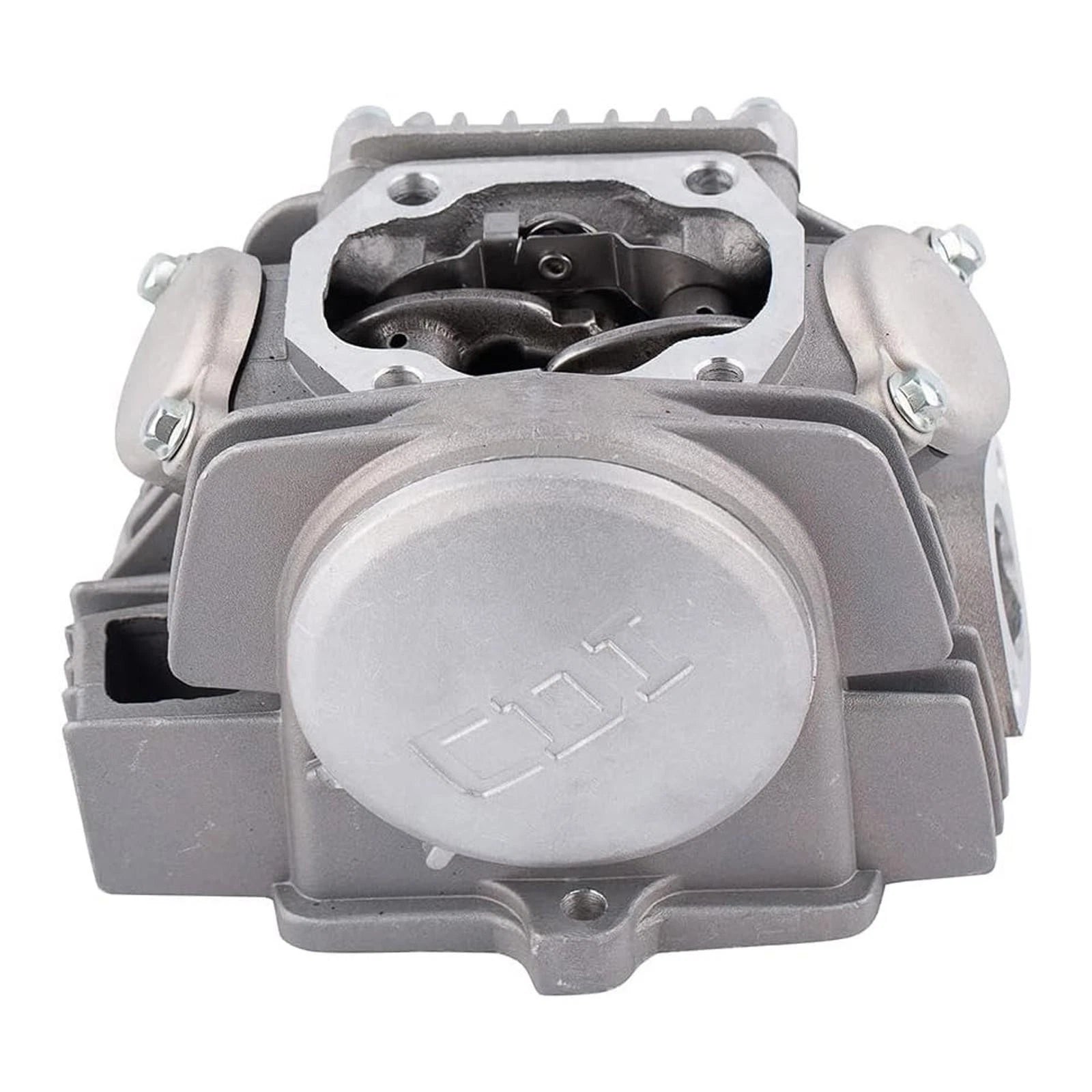

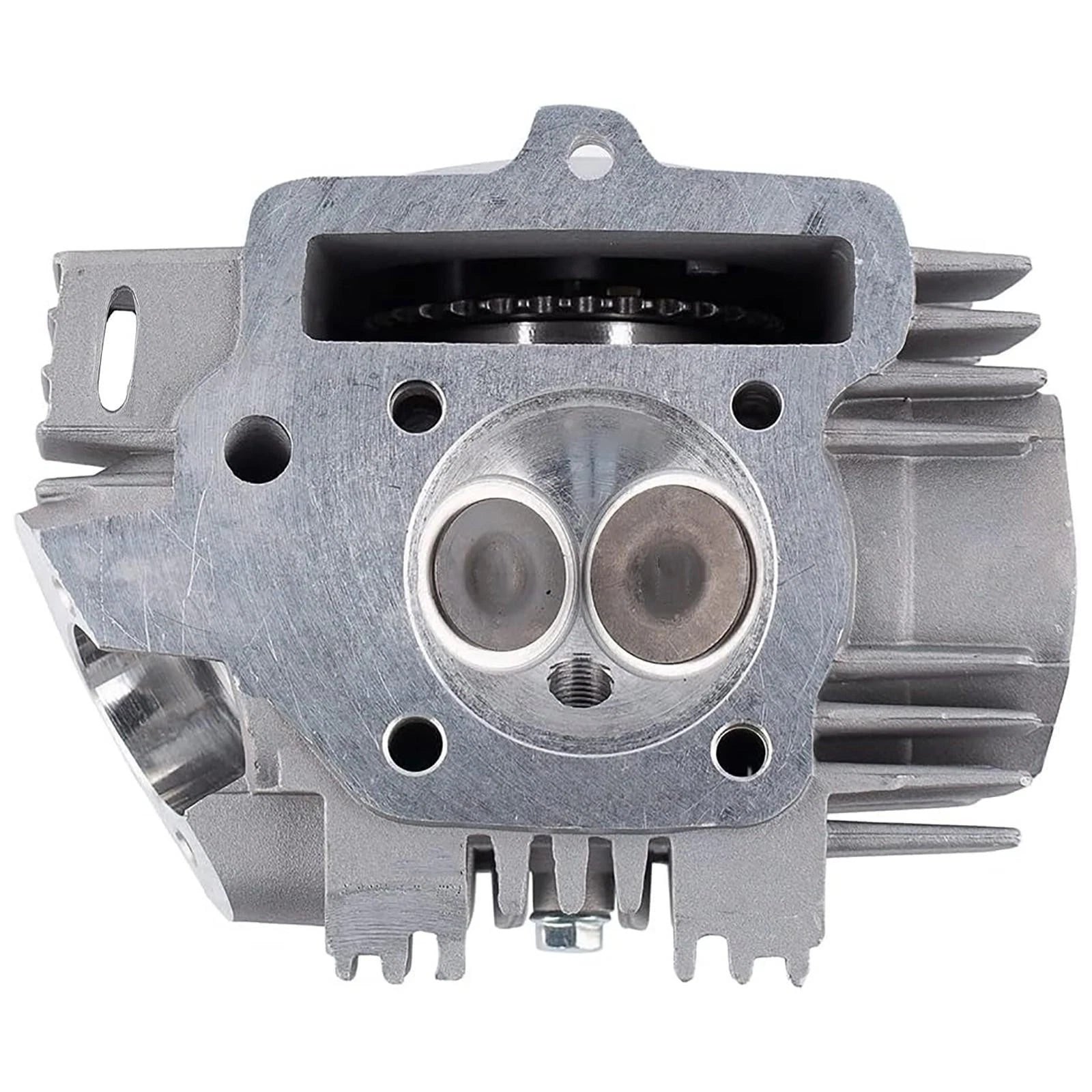

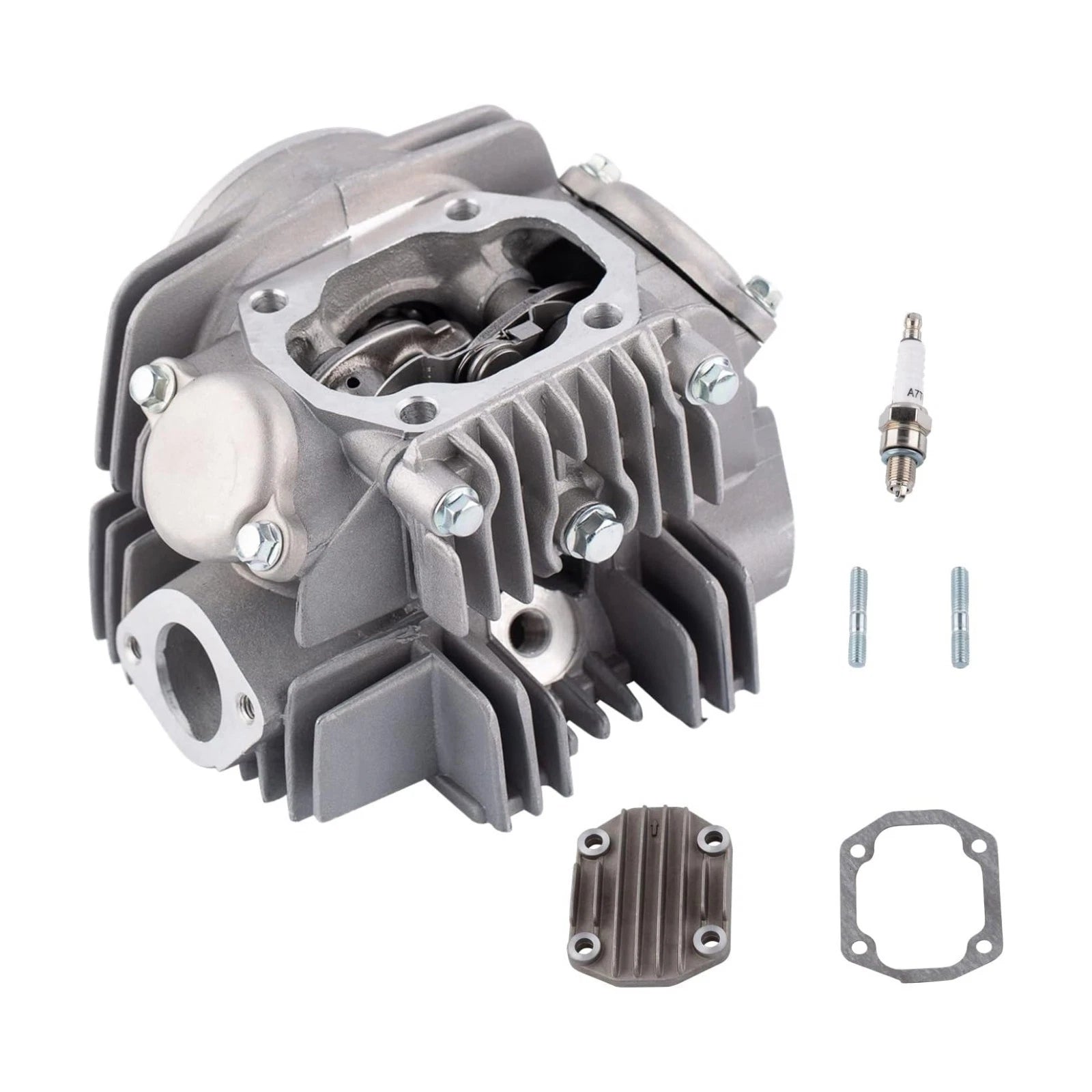

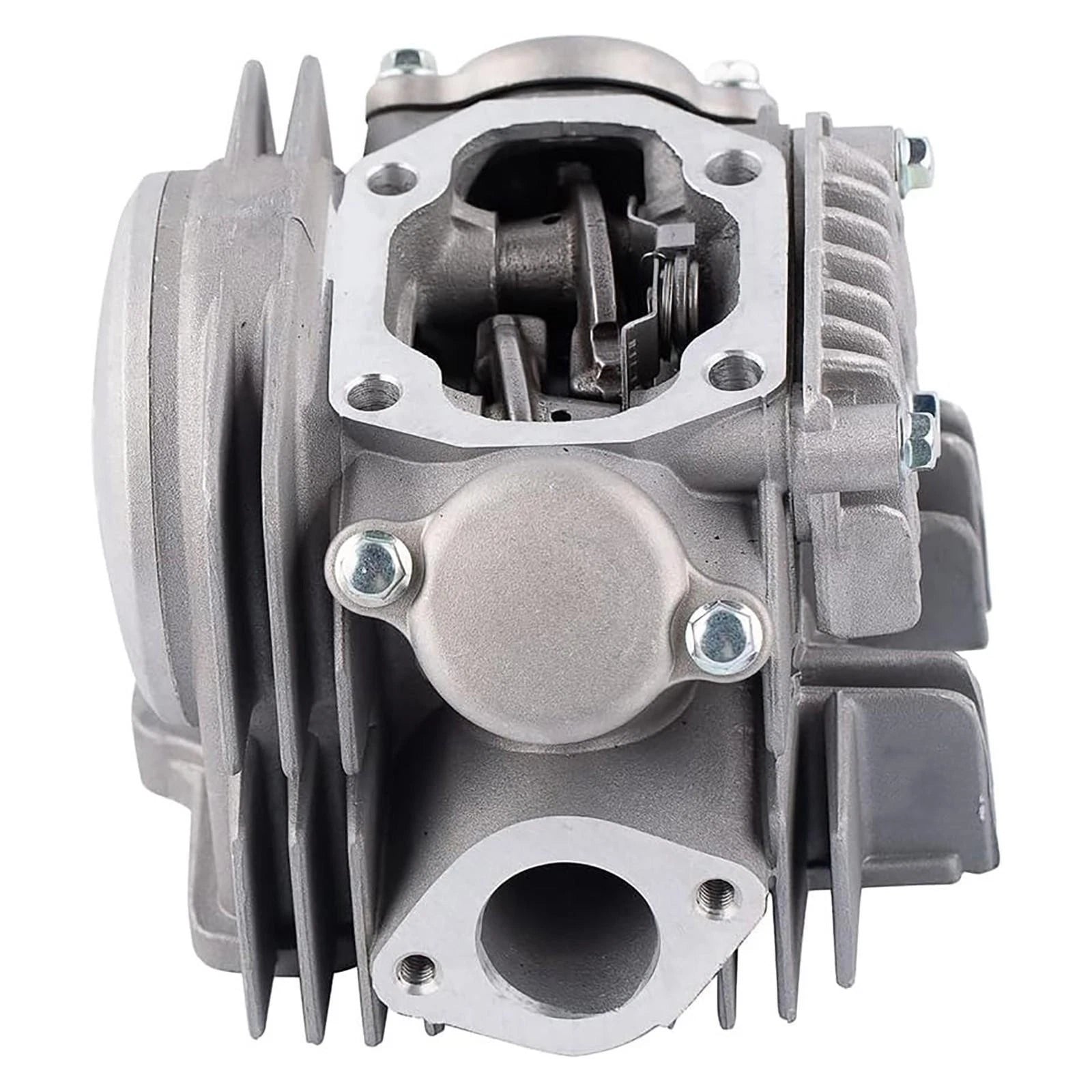

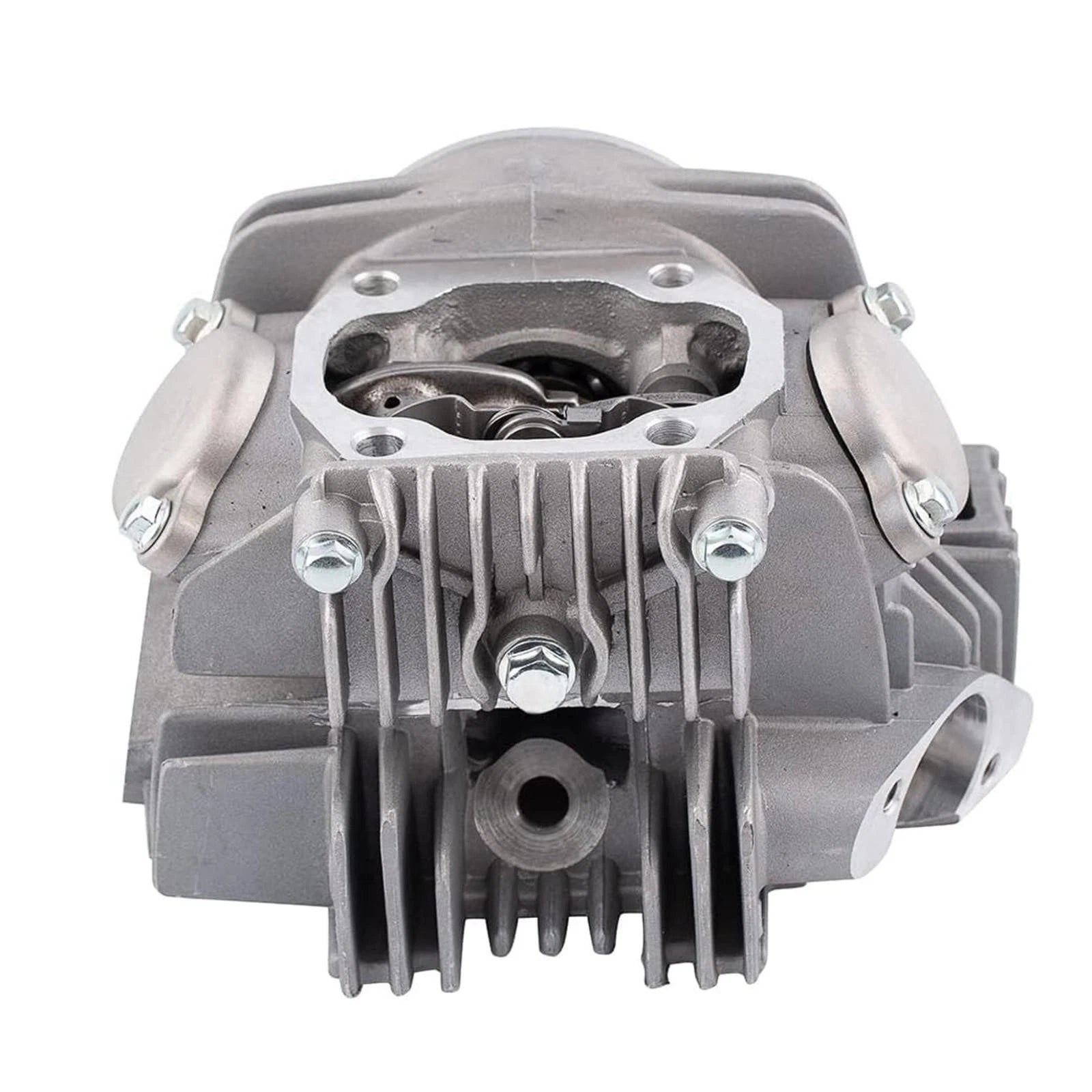

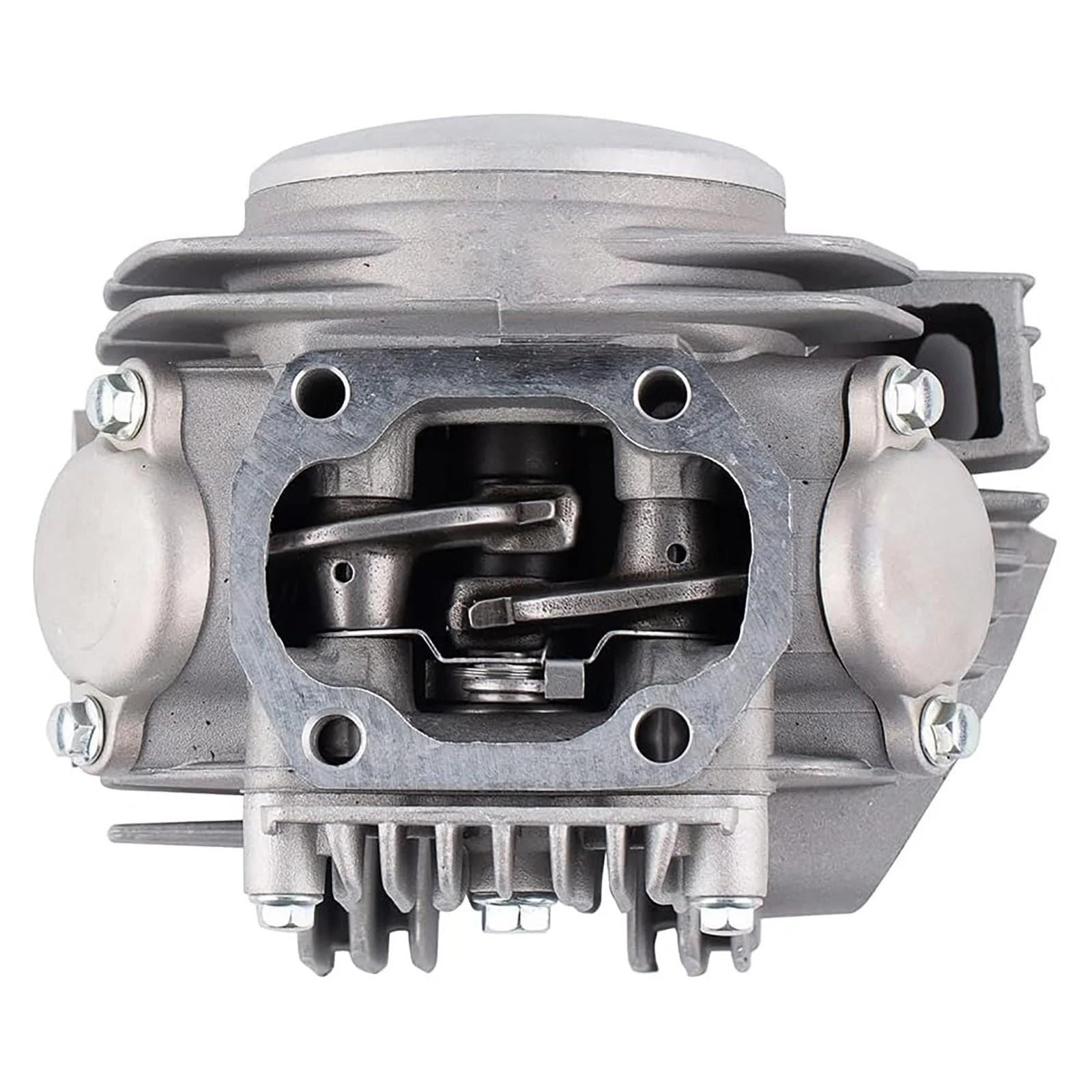

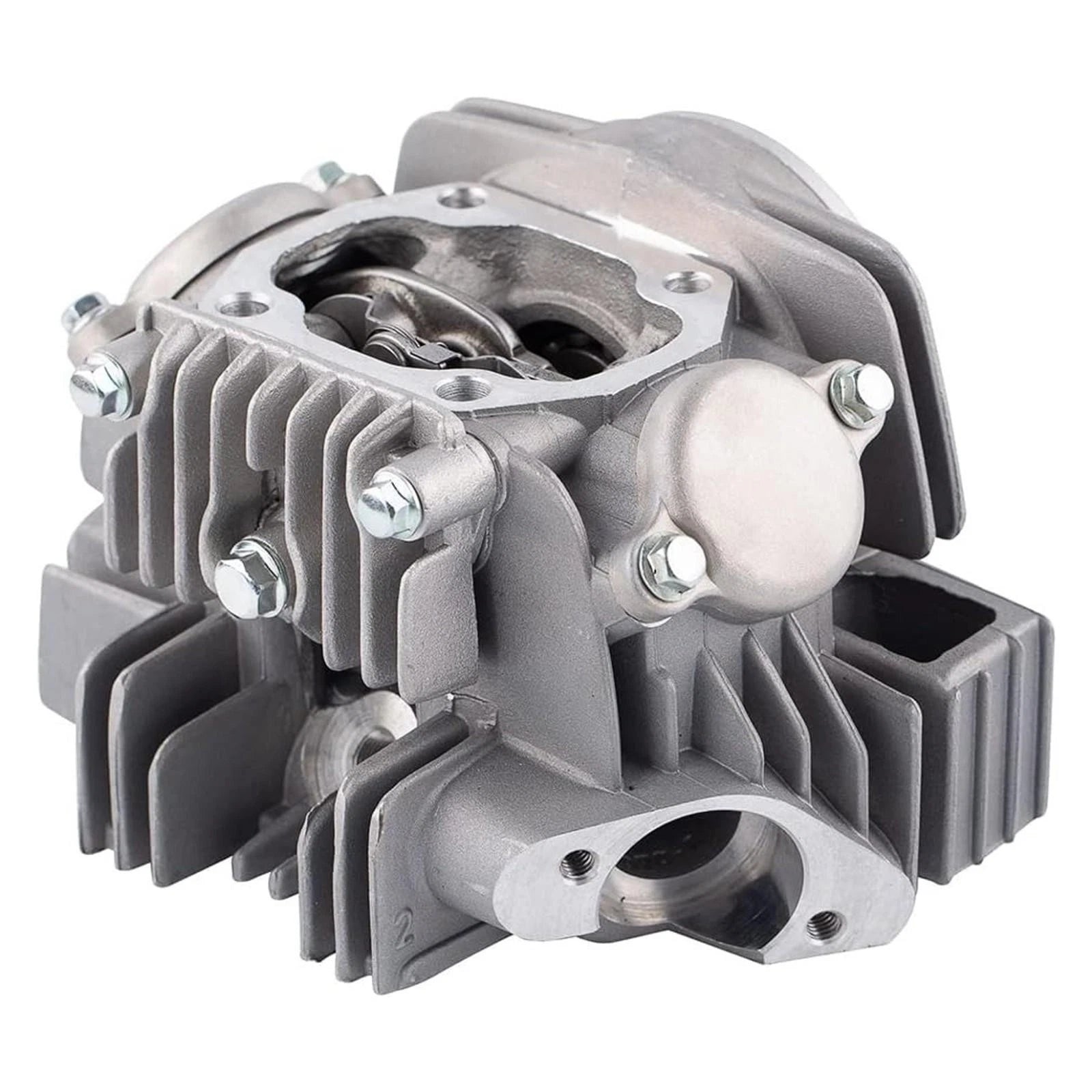

Genuine Lifan 125cc Complete Cylinder Head Assembly Kit
This replacement cylinder head is designed for 52.4mm Bore Lifan 125cc Horizontal Engines (Kick Starter) and is constructed from aluminium.
A specialized heat treatment process enhances the cylinder's robustness and durability.
Specifications:
Bore Diameter: 52.4mm
Intake Valve: 33mm
Exhaust Valve: 26mm
Exhaust Mounting Holes (Hole Centre To Hole Centre): 45mm
Intake Mounting Holes (Hole Centre To Hole Centre): 45mm
Top Bolt Hole spacing (Center to center): Approximately 50mm
Timing Drive Sprocket: 32 Teeth
Notes:
It is recommended to confirm the dimensions and your original components before proceeding with a purchase.
All products were captured in their original form; however, variations in color may occur due to factors such as camera settings, lighting conditions, display parameters, and other influences.
