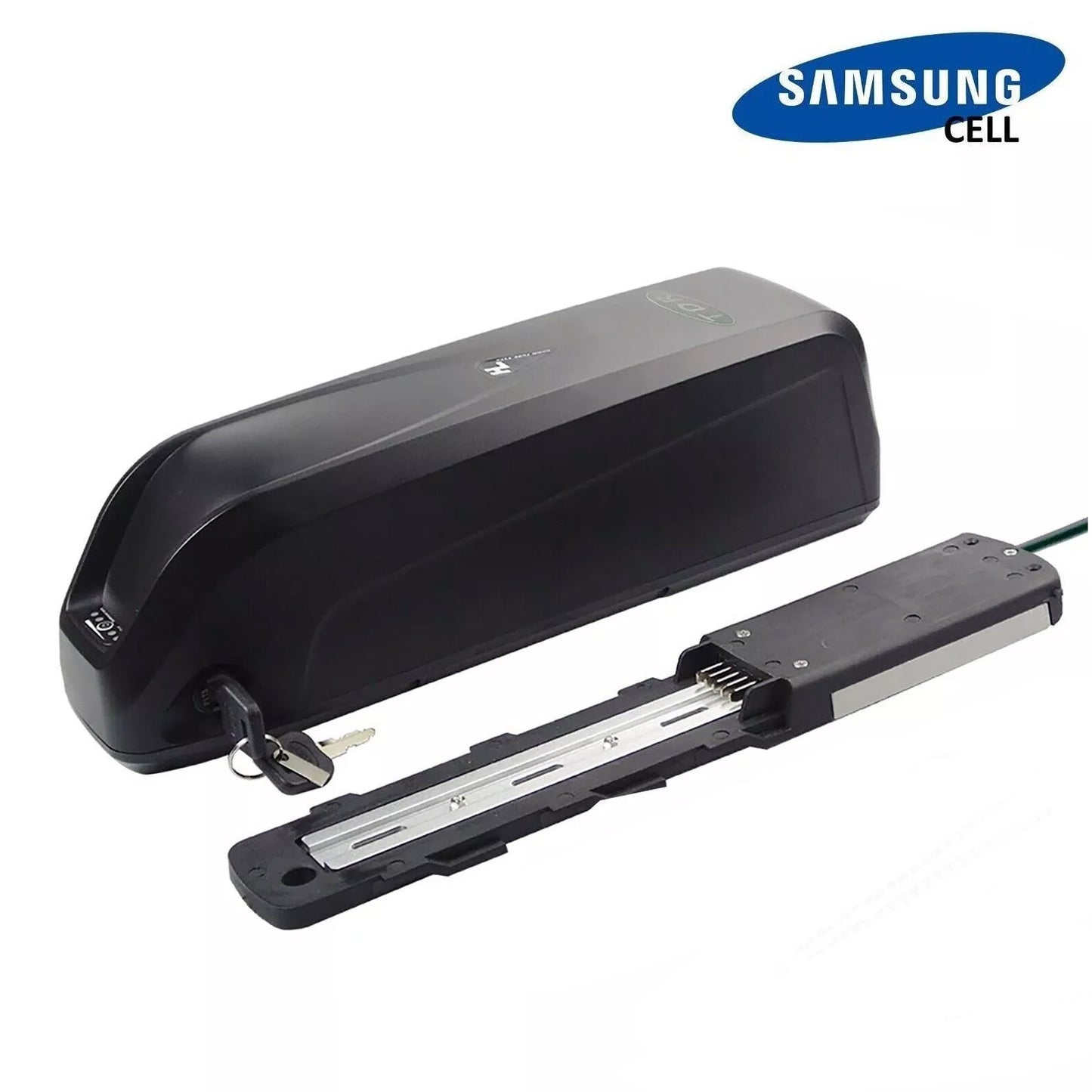

52V 15Ah Ebike Battery Samsung Cell for52V Electric Bicycle E-Bike

 Care Instructions and Warranty

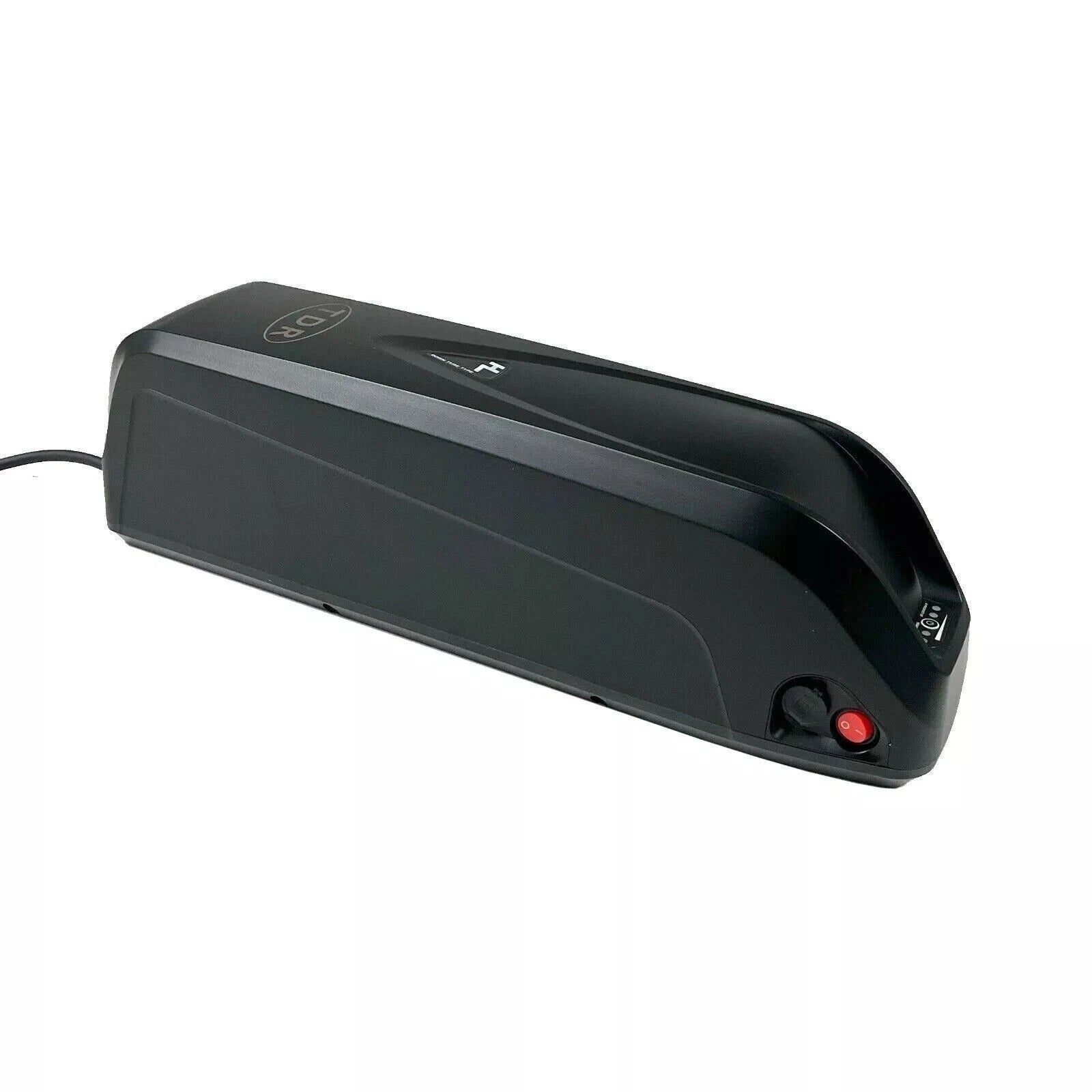

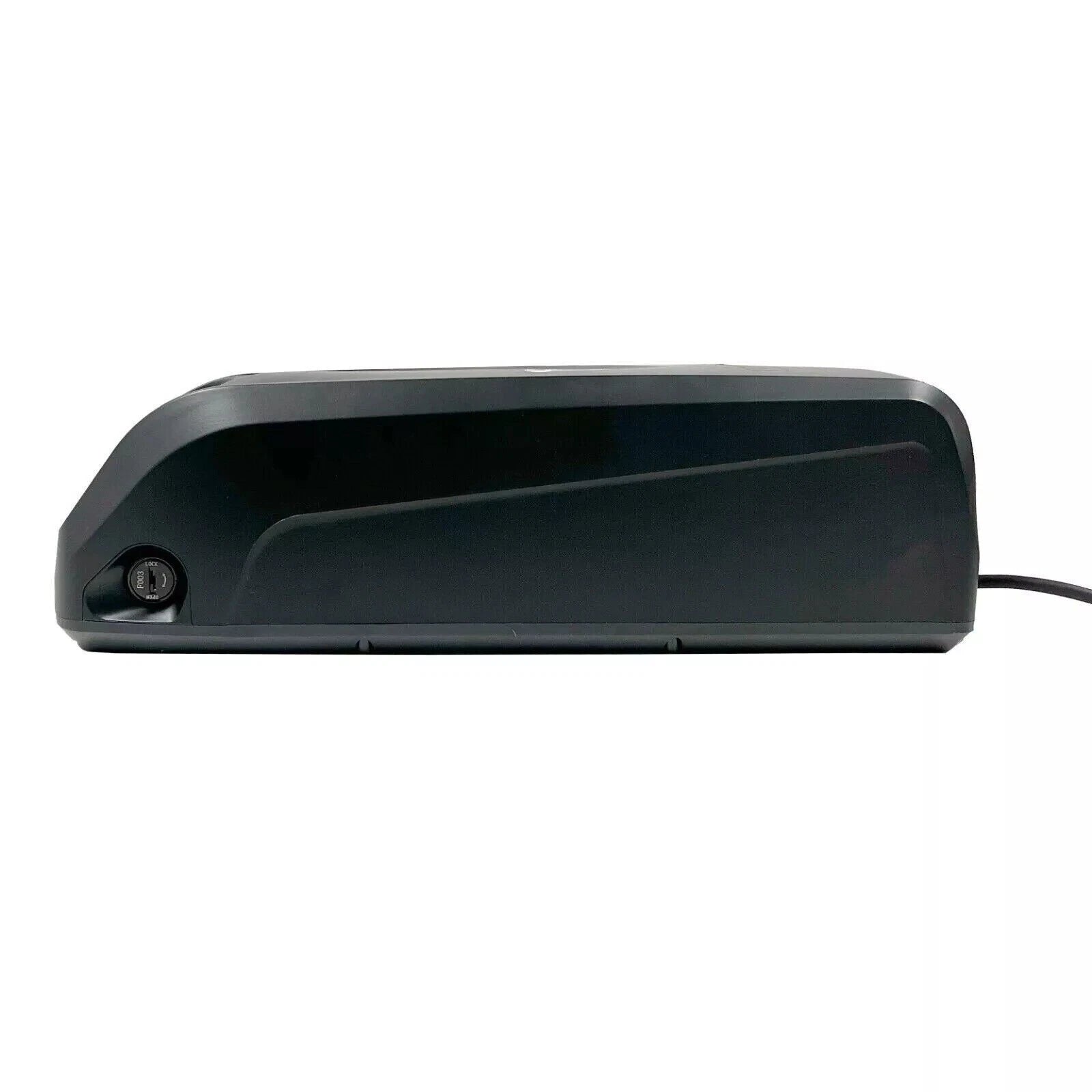

• Model: HAILONG PLUS Down-tube Battery
• Nominal Voltage: 52V
• Nominal Capacity: 15AH

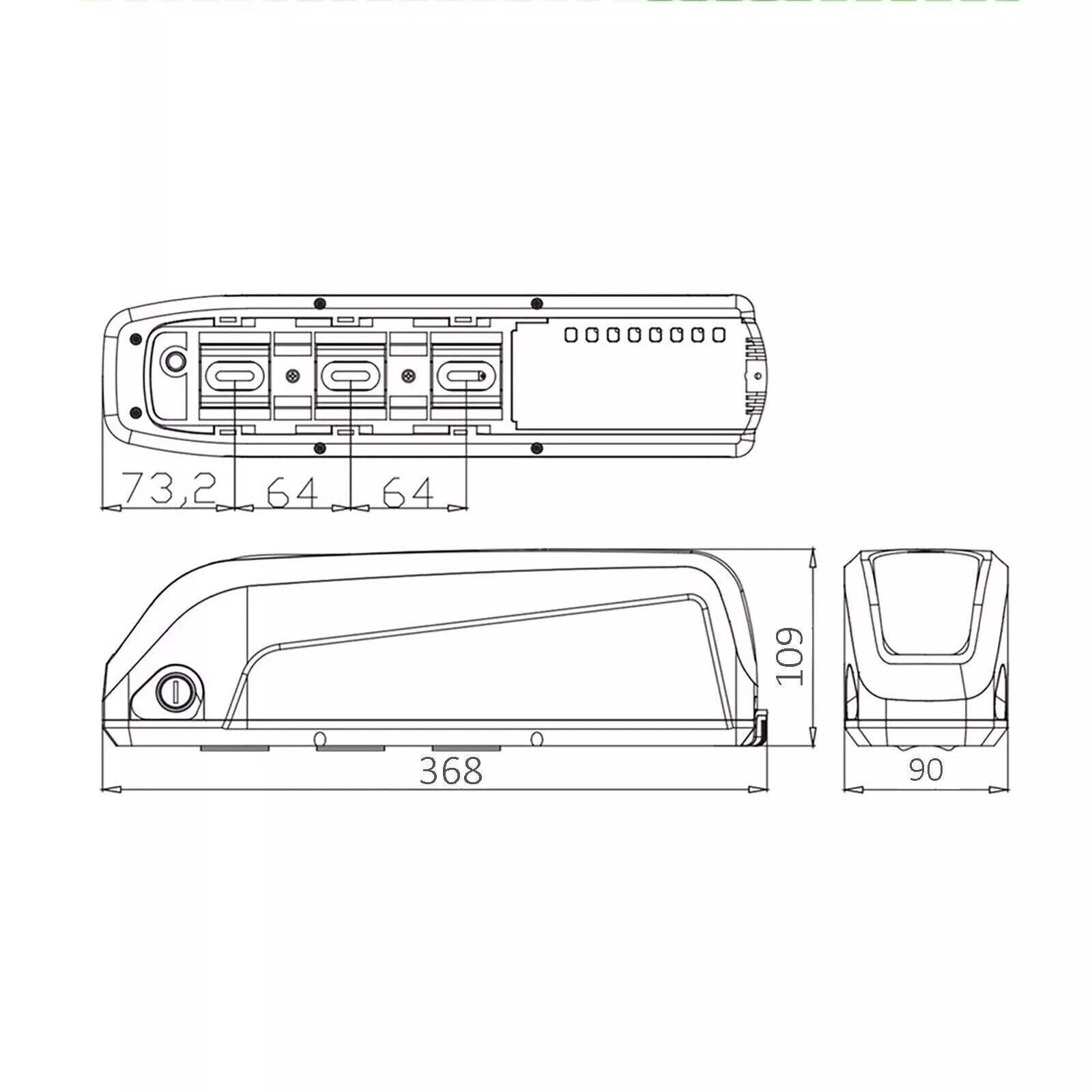

• Dimension: 109mm x 90mm x 368mm

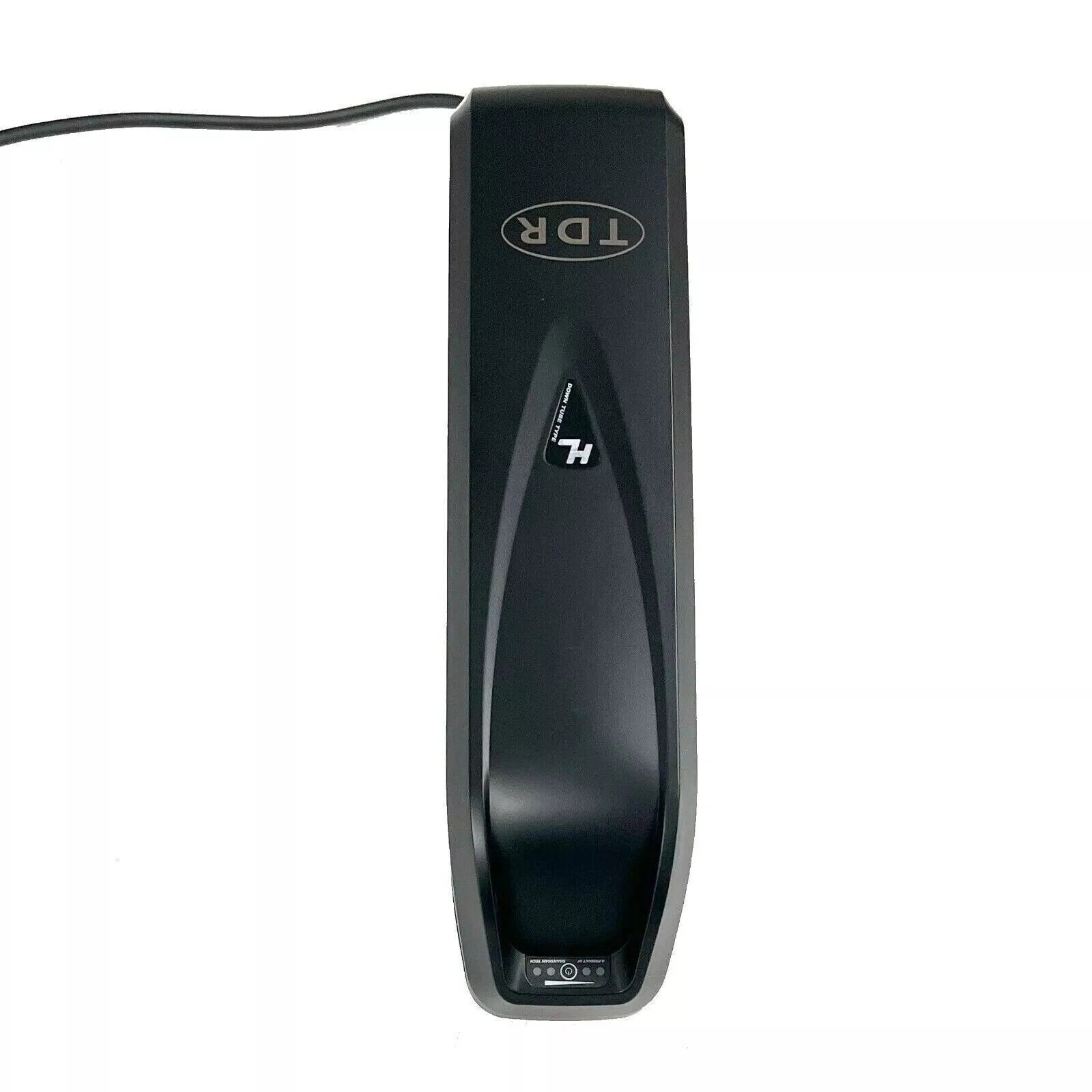

• Outer Case: SSE086 HL-P Downtube
• Battery Weight: 4.6kg
• Chemistry: LiNiCoMn
• Samsung Cells 5000mAh

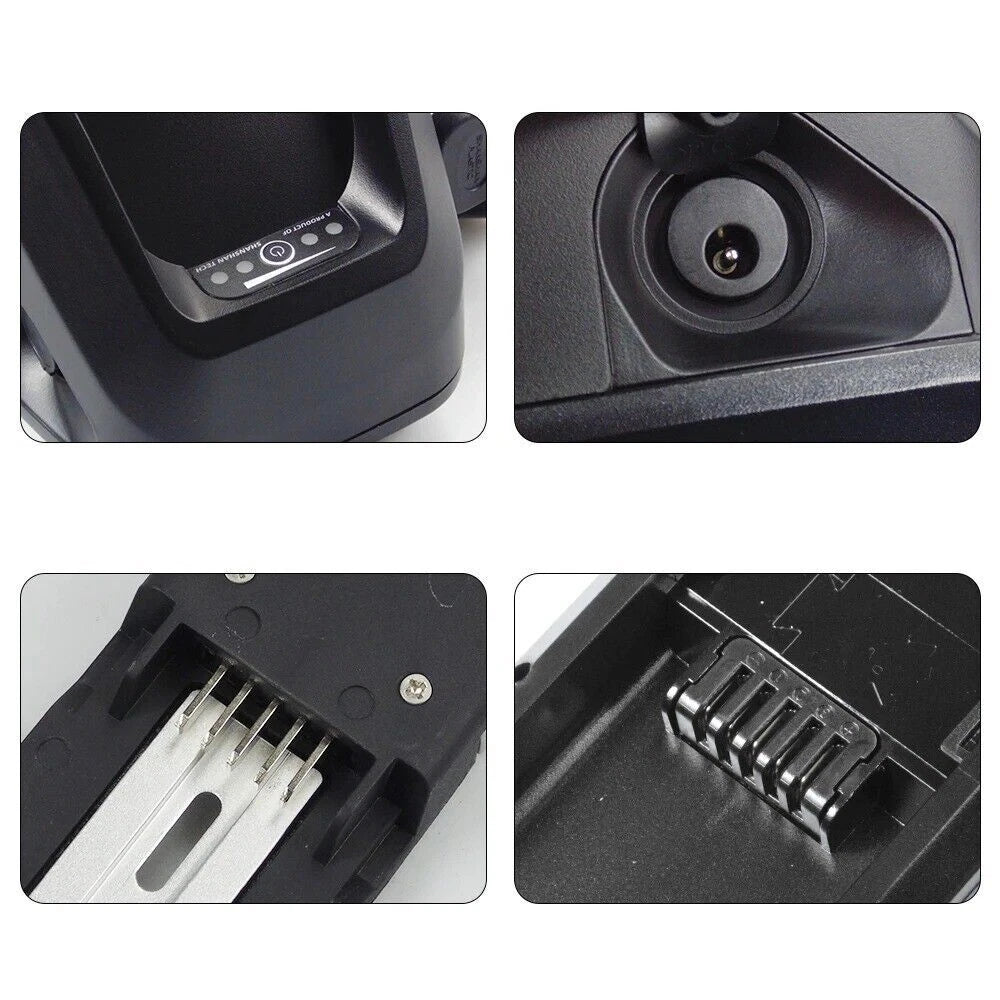

• Discharge port: 5 Pins
• LED indicators: 4 LED Lights

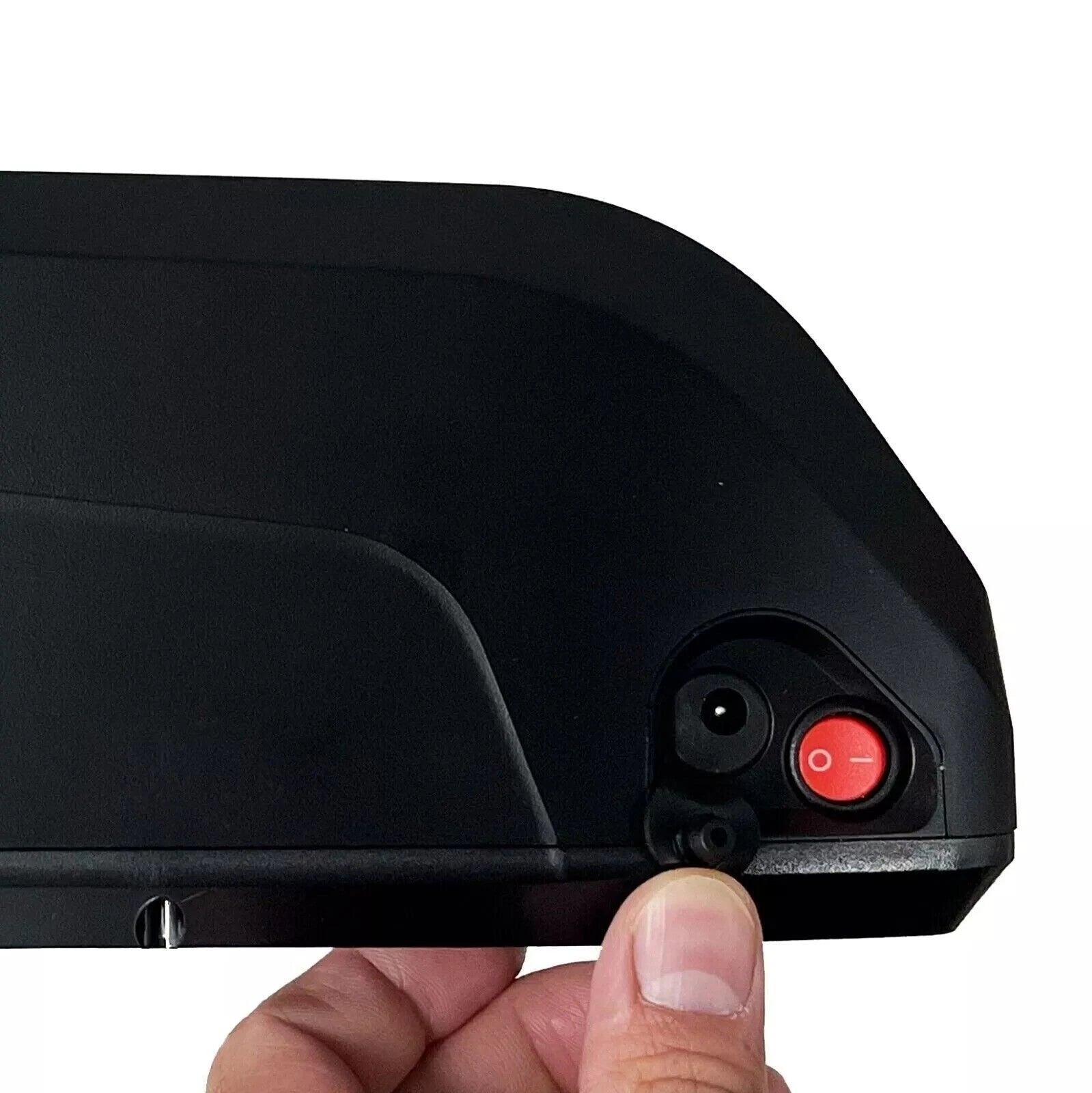

• Power Switch: Yes
• BMS: Internal BMS
• Max. Continuous Discharge Current: 40A (BMS)
• Charge Cut-off Voltage : 58.8V
• Discharge Cut-off Voltage : 39.2V~42V
• Charge Current: ≤5A

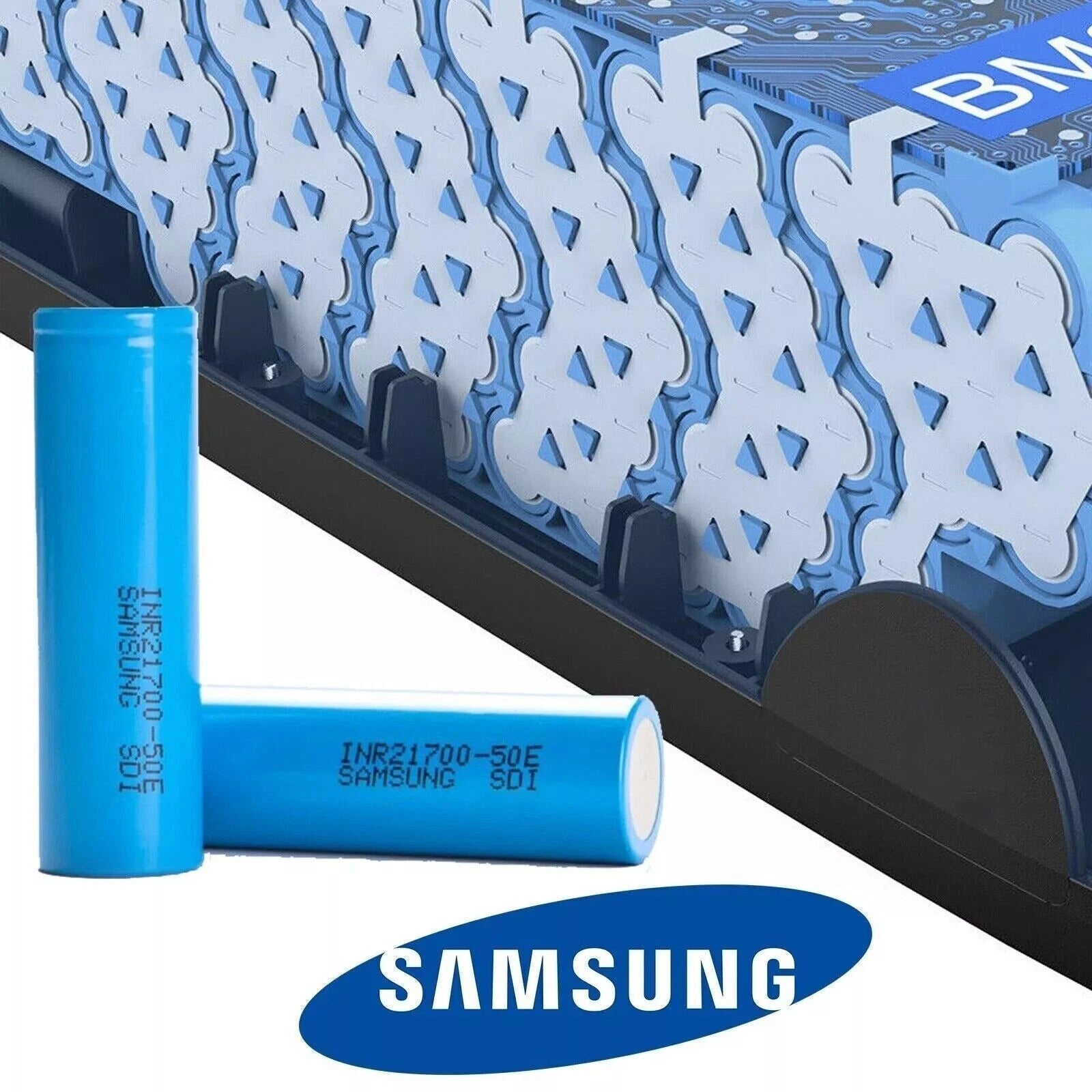

• LEP Cell: INR21700-50E
• Capable for Motor: 52V 500W 750W 1000W 1500W 2000W
• Fit bike: City bike, Mountain Bike, Cruiser Bike, Fat bike, Tricycle/Trike, Scooter etc

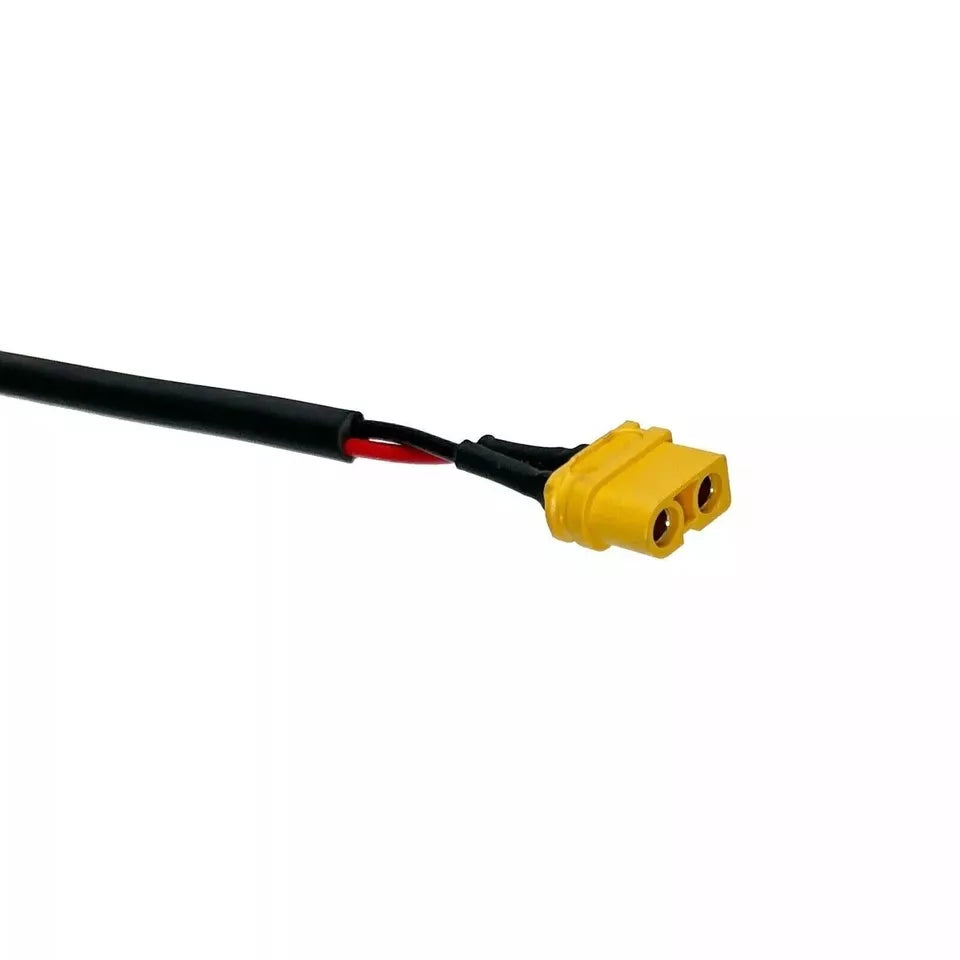

• Discharge Connector: XT60
• 12 Months Battery Replacement Warranty

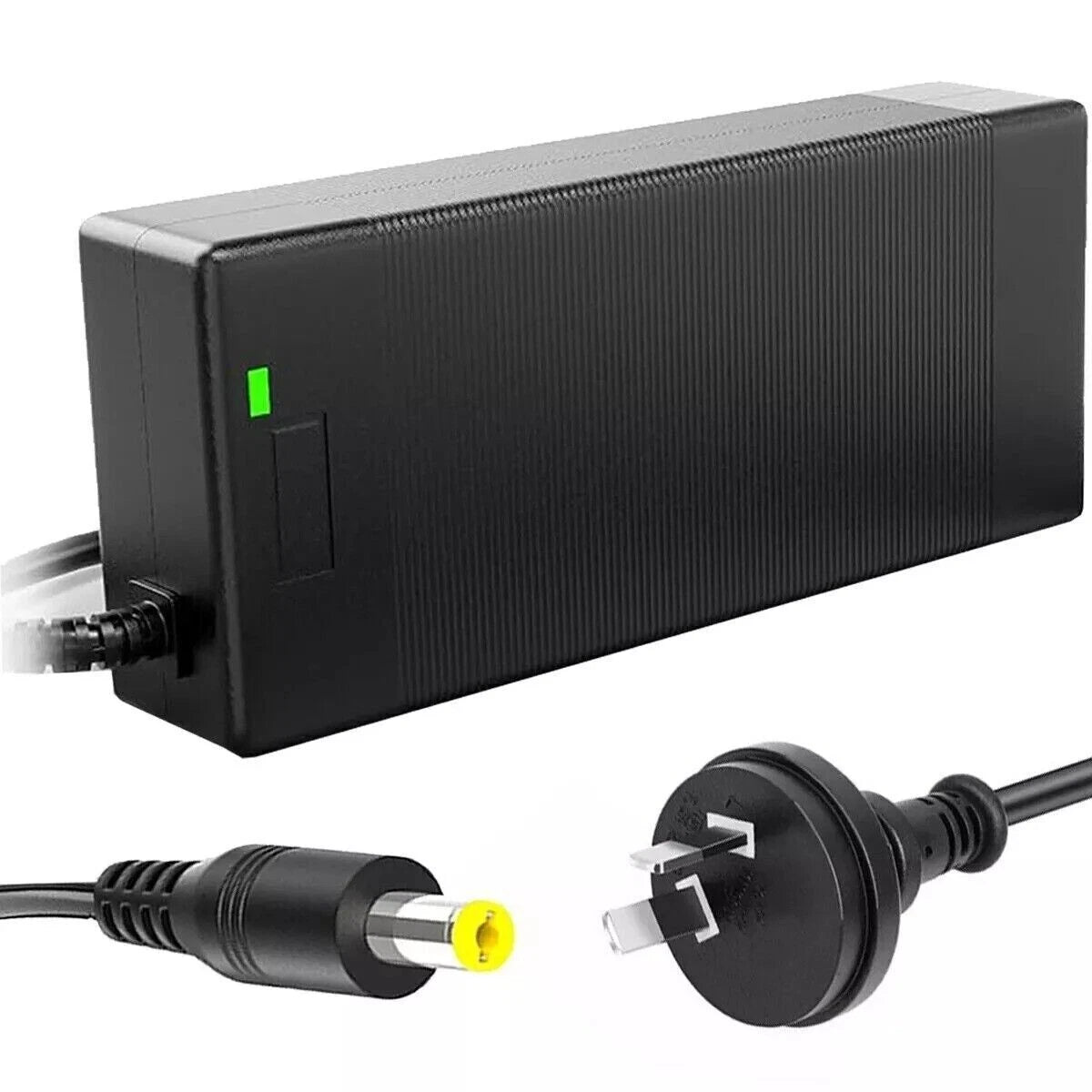

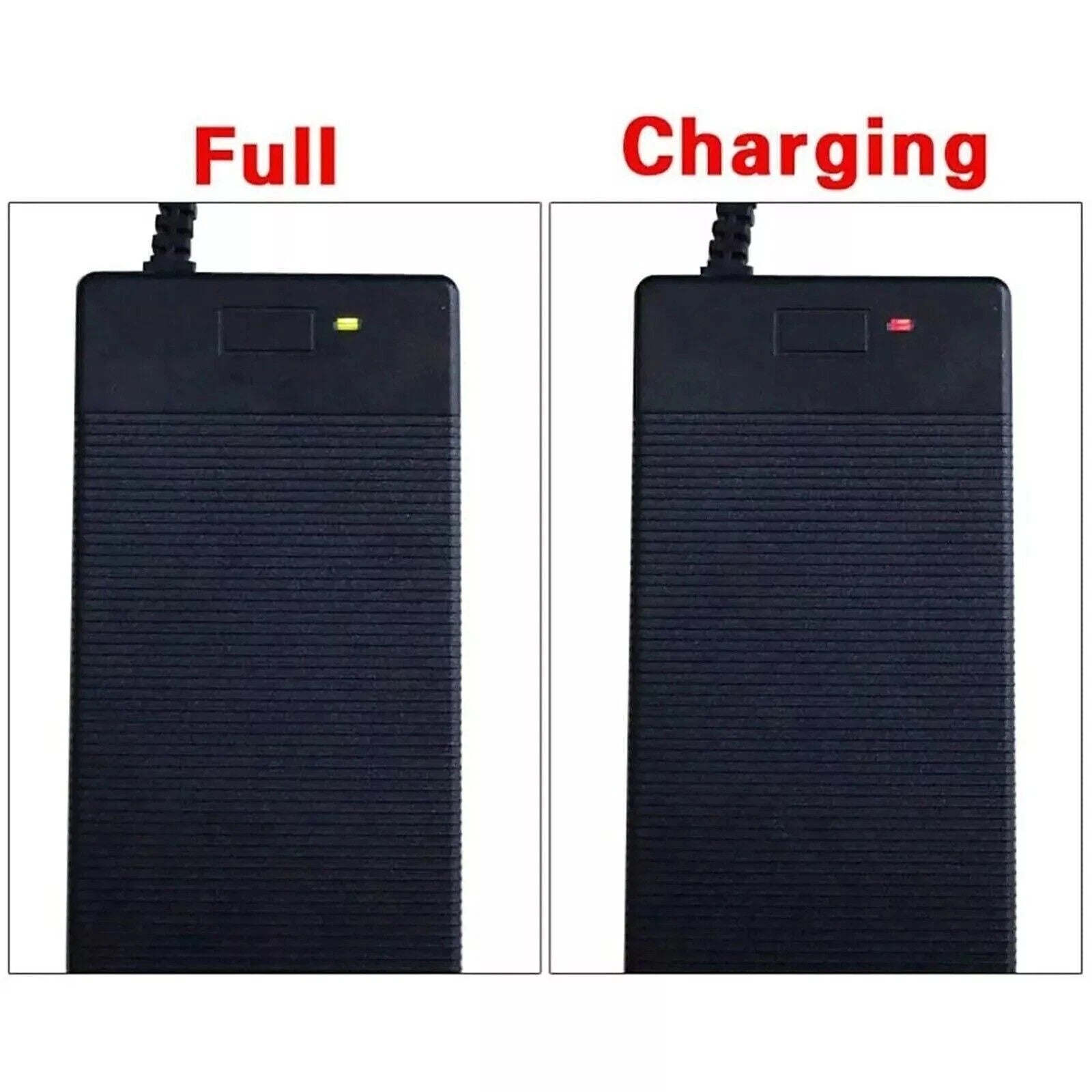

• Australian Standard Charger

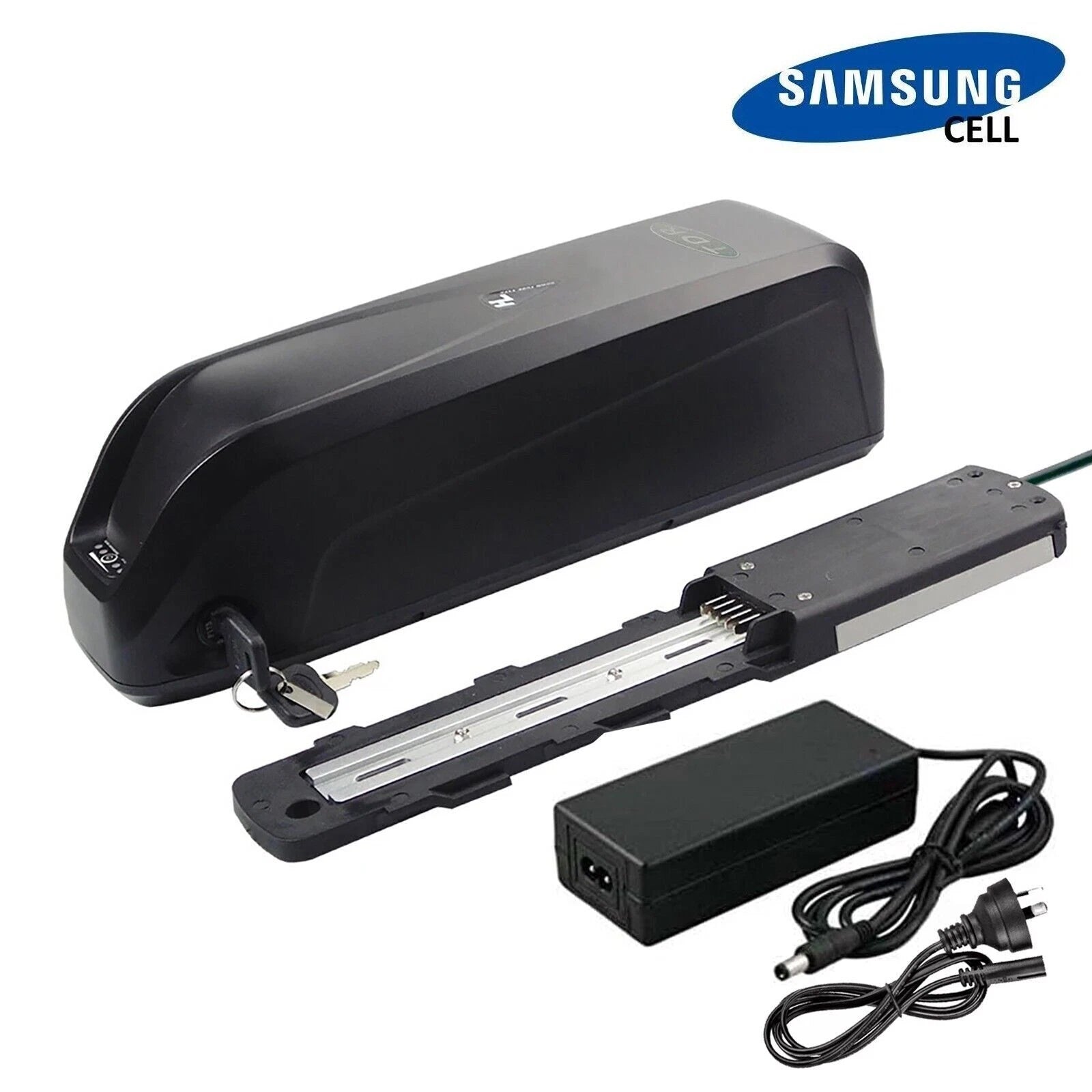

Package Included:

• 1 x Battery

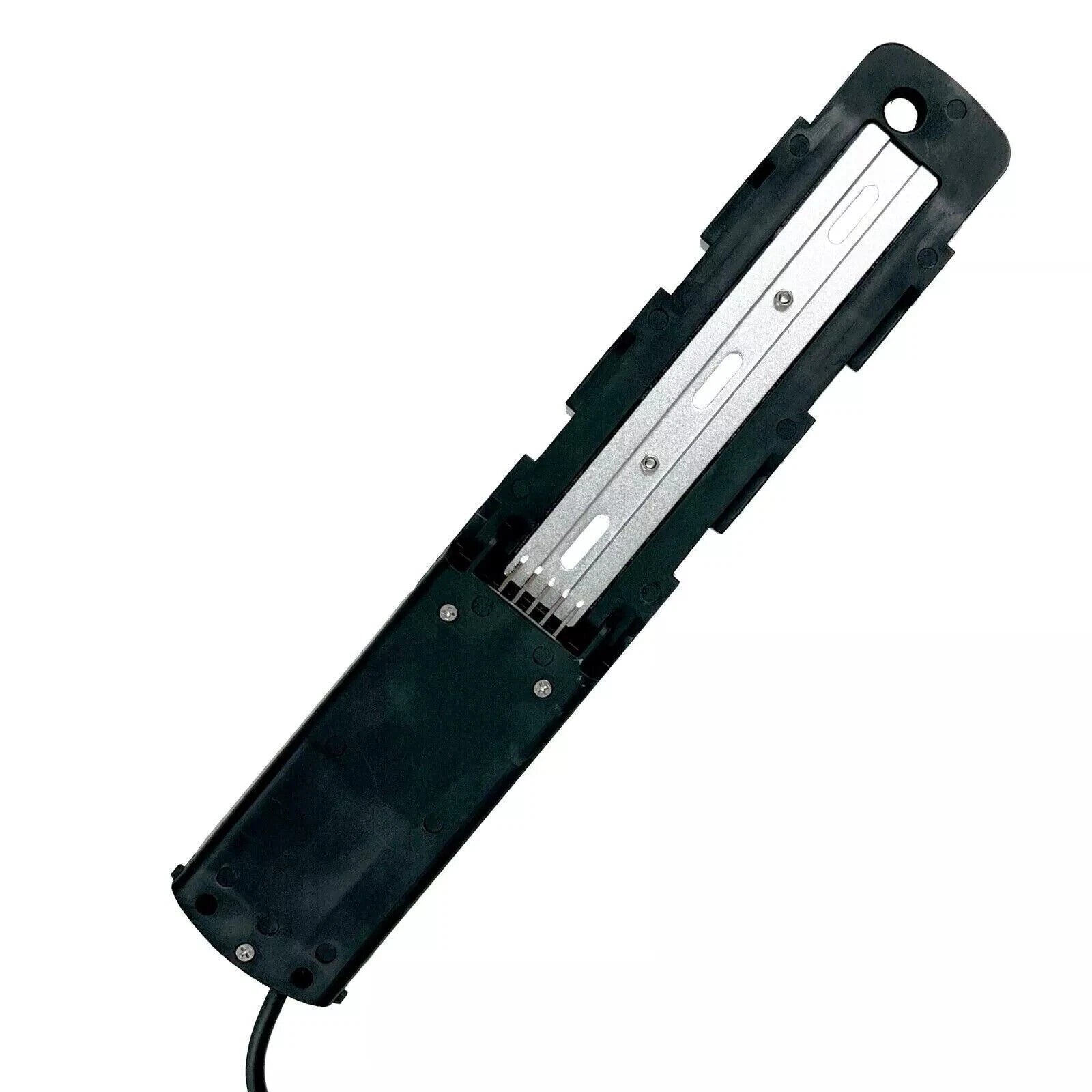

• 1 x Frame Mount

• 2 x Keys

• 1 x Australian Standard Charger (Optional)

Important Notes:

• Please check the size of battery, discharge wiring, charging ports before purchase.

• Please check your controller rate before purchase, the maximum continuous discharge current of this battery is 40A.

• No installation instruction provided, professional electrician installation recommended.
