700C 28'' 29'' 750W Electric Conversion EBike Motor Rear Hub Kit, Samsung Cell Battery

700C 28'' 29'' 750W Electric Conversion EBike Motor Rear Hub Kit, Samsung Cell Battery

SKU:

$1,091.16
$1,239.95 $1,091.16
12% off Sold out
Tax included. Shipping calculated at checkout.

Things to know before you ride

Before riding, check your local road and usage laws. Our information is general and may not cover your specific circumstances. You’re responsible for confirming legal compliance.

Ride with caution and always wear a helmet and protective gear. Don’t bin this product or its parts in household/curbside bins. Follow your local waste regulations when disposing.

  • For 700C wheel with a width between 700*35C to 700*55C, 28 Inch wheel with a width between 1.75 to 2.25 Inch, 29 Inch wheel with a width between 1.75 to 2.25 Inch

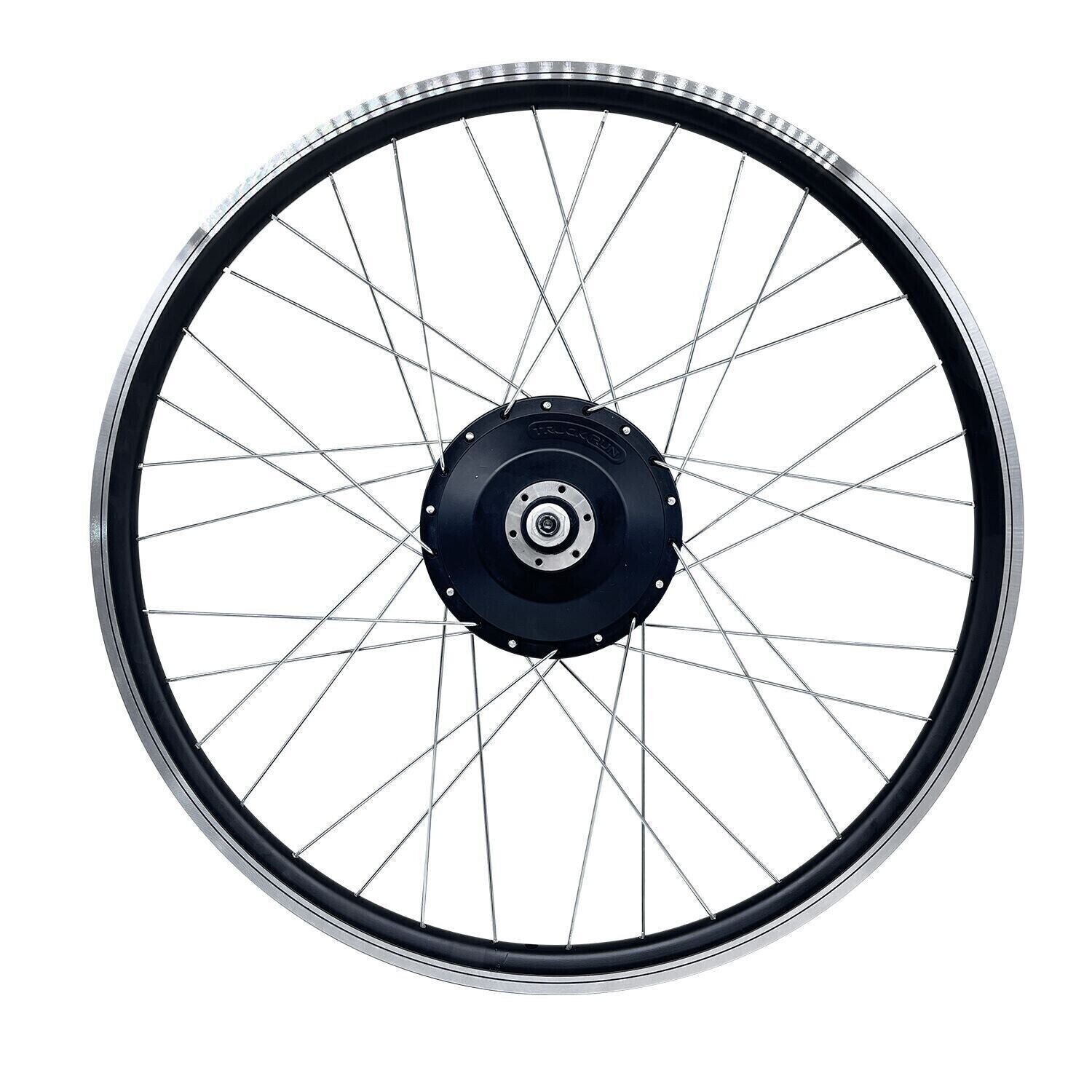

  • Rim Motor: 48V 750W Brushless Gear Hub Motor
  • Torque: 55 N.M

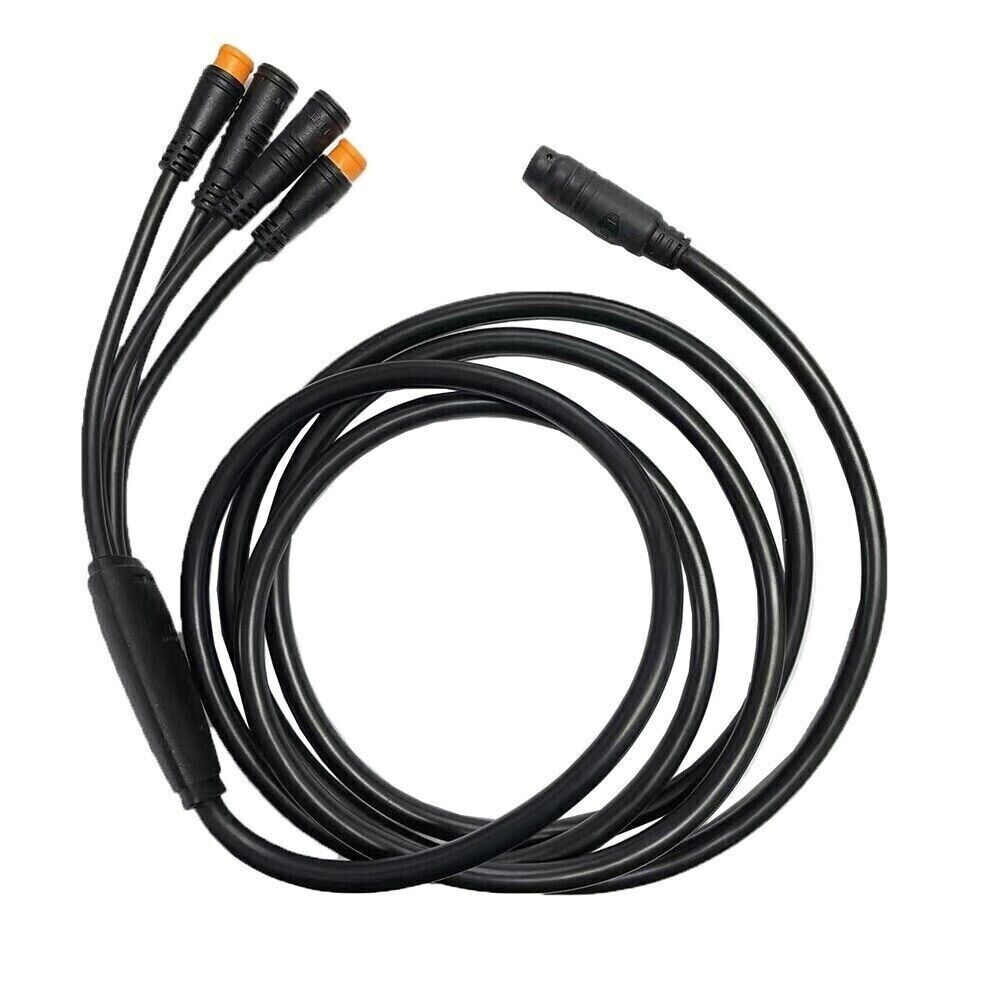

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 50 km/h

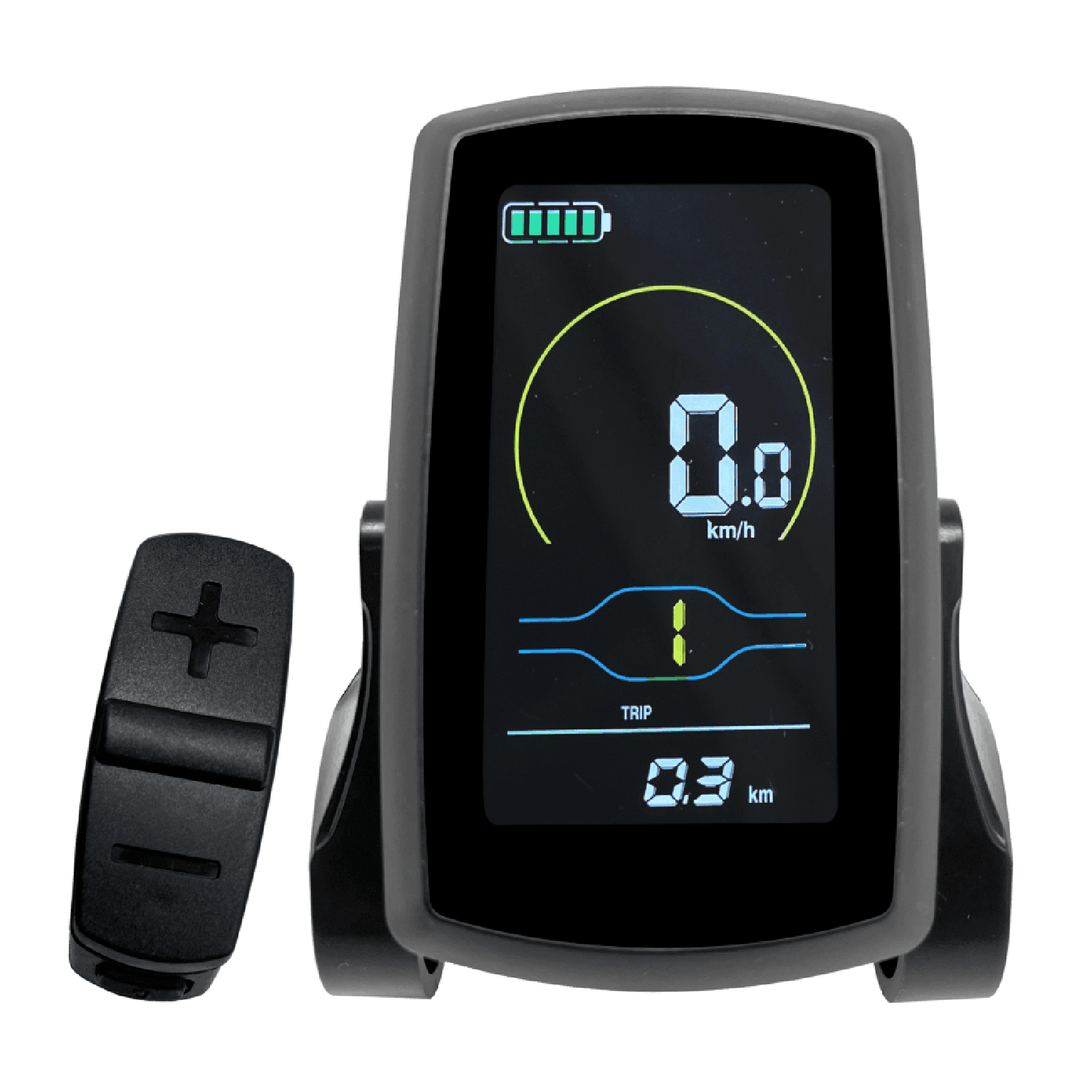

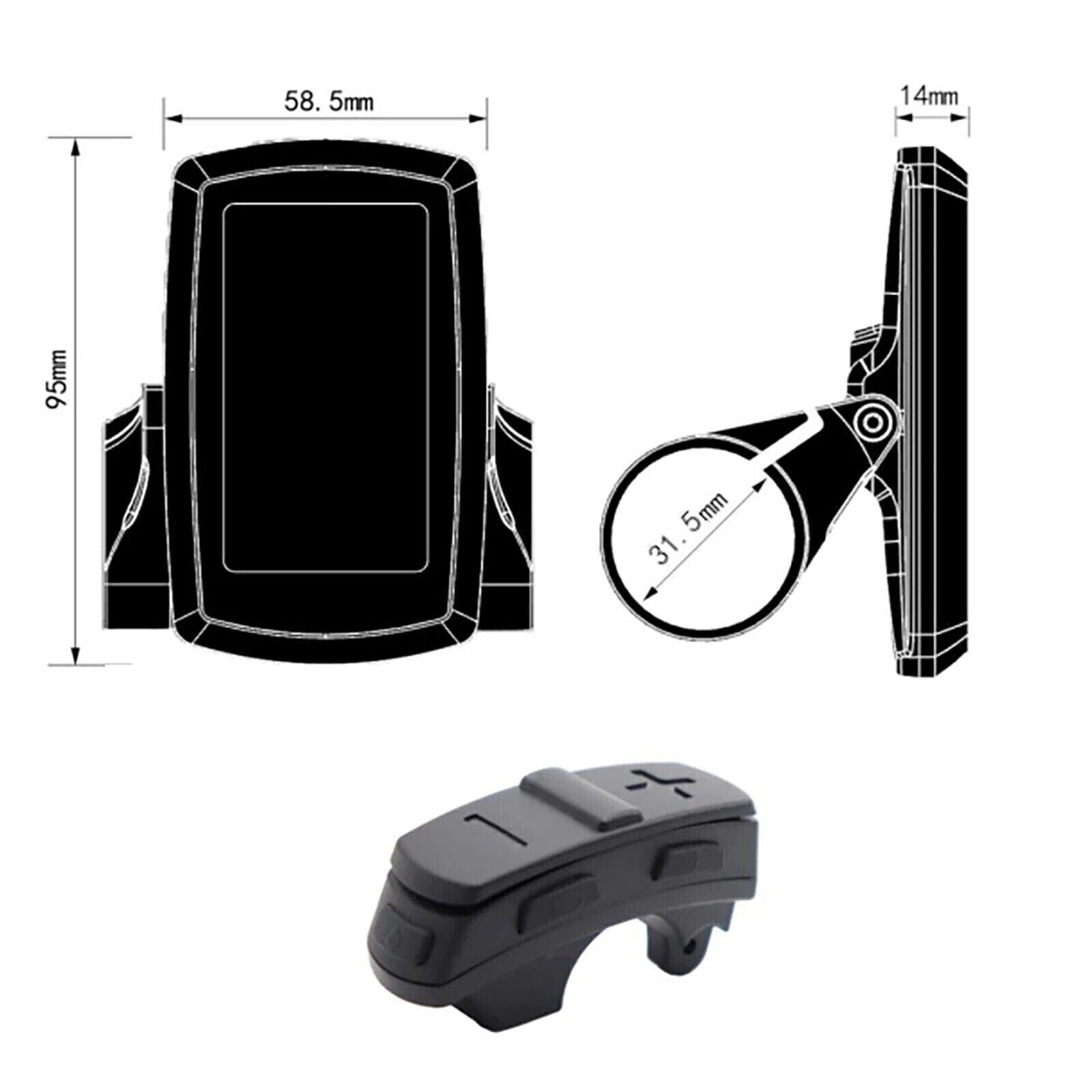

  • Display: Intelligent Colorful LCD Panel Display

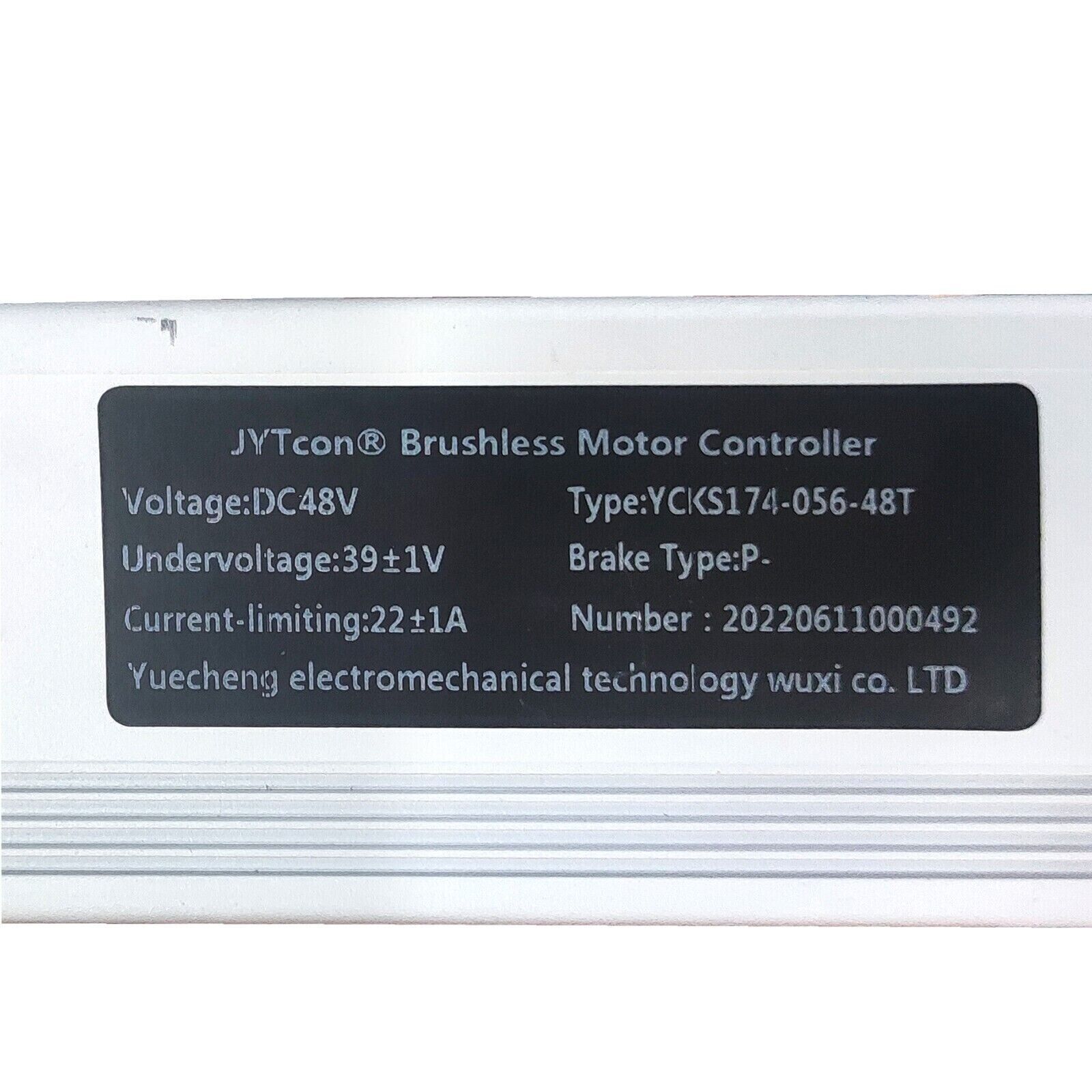

  • Controller: Intelligent Motor Controller, the Current is 22±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

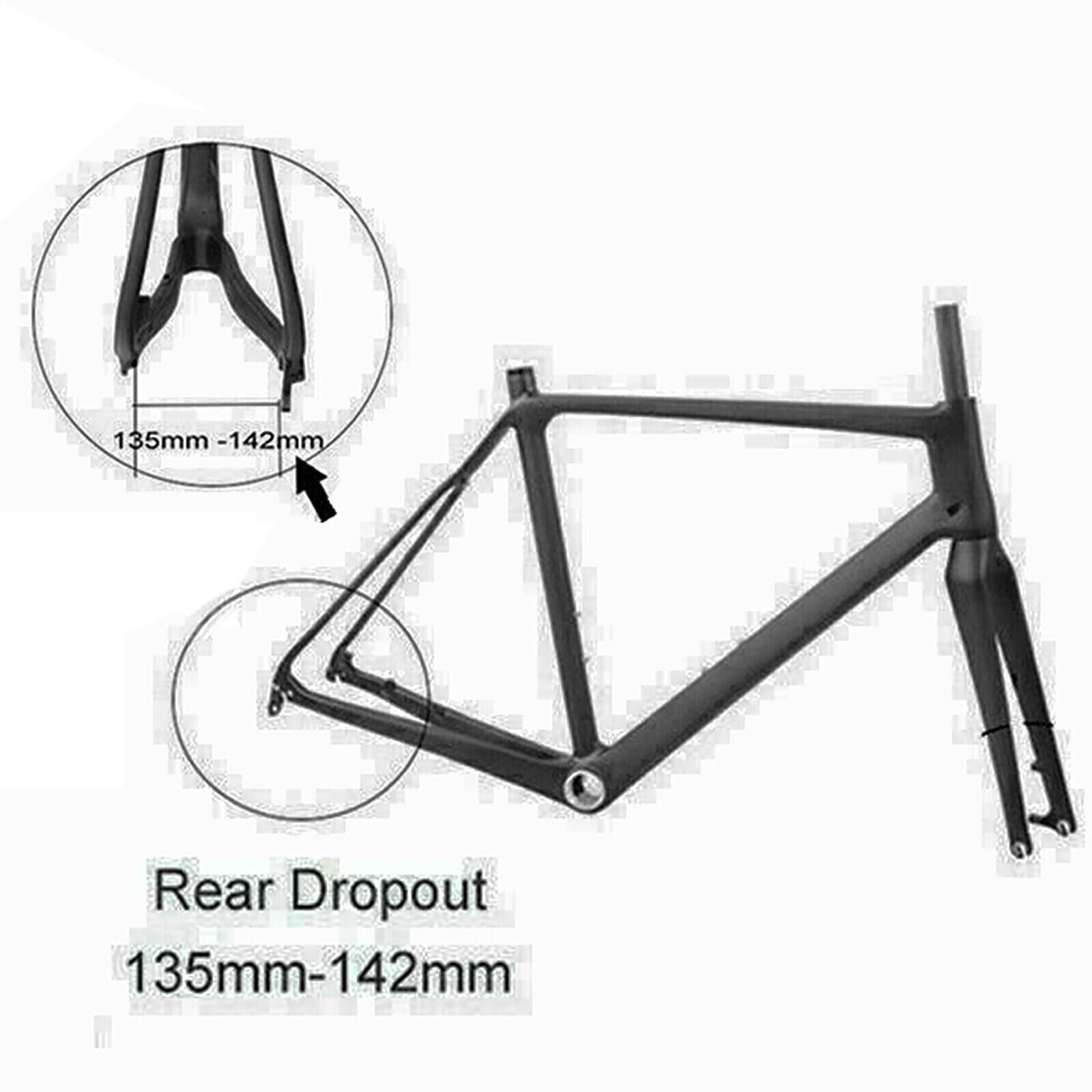

  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

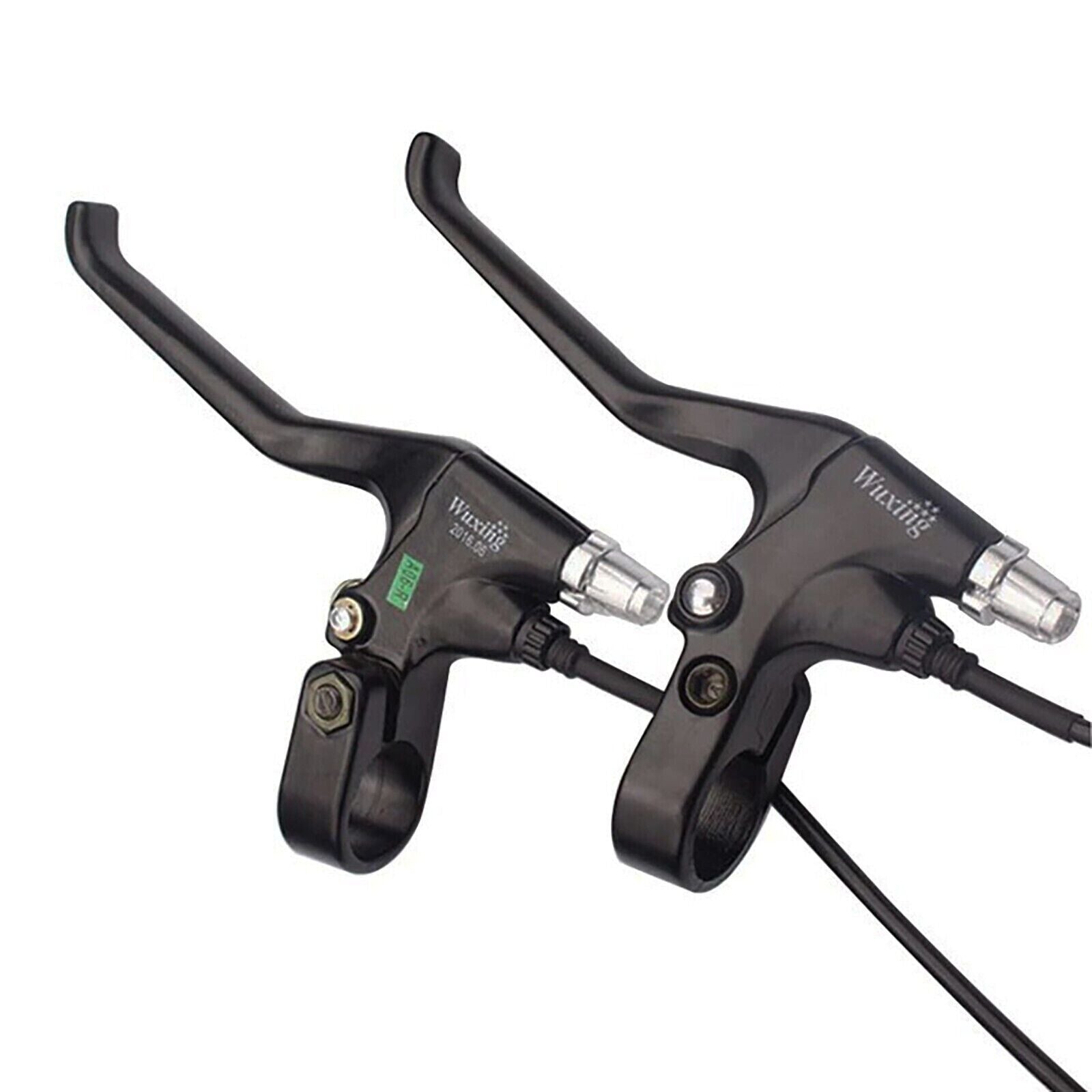

  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

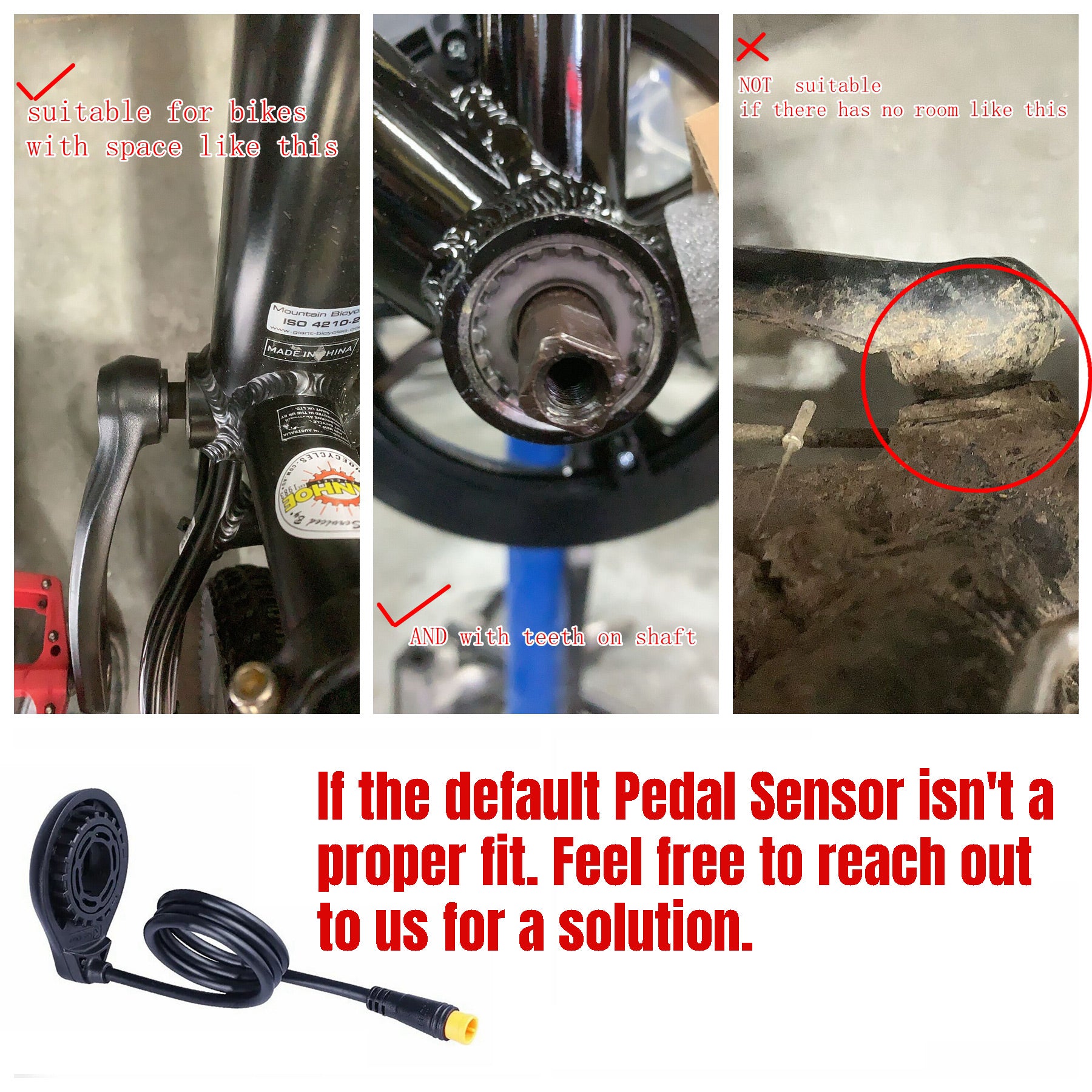

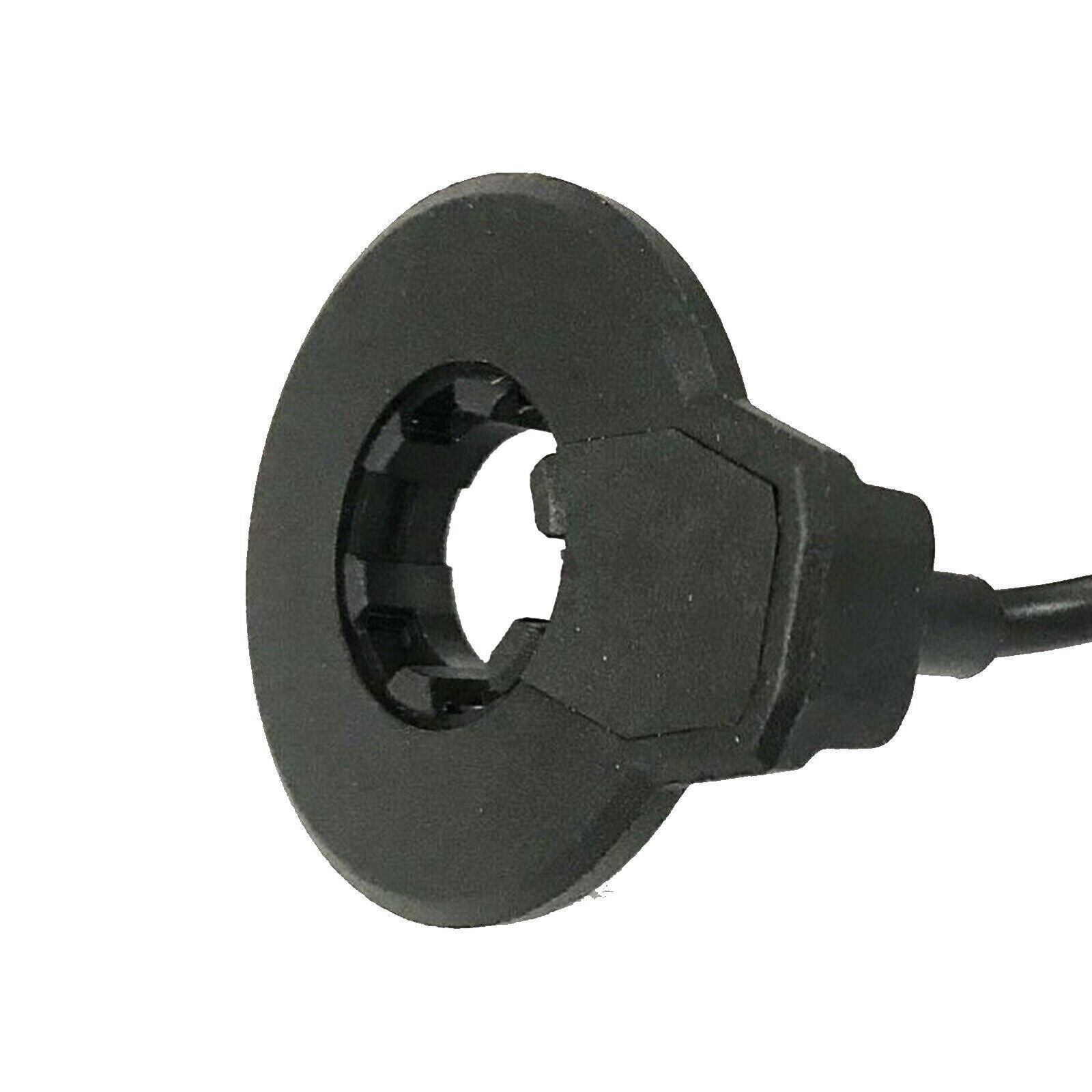

  • PAS Sensor: 12 Magnets Pedal Assist Sensor
  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor & Battery

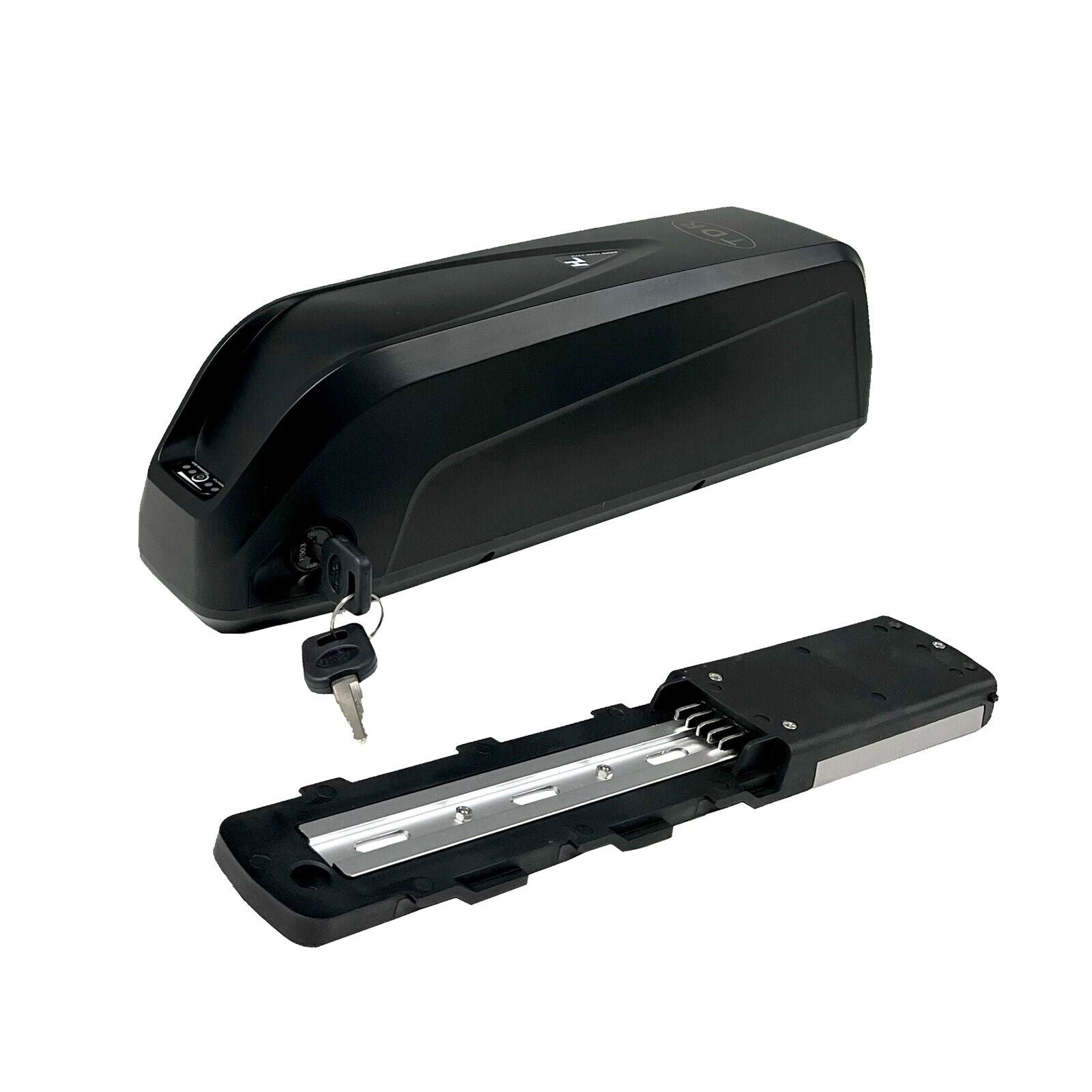

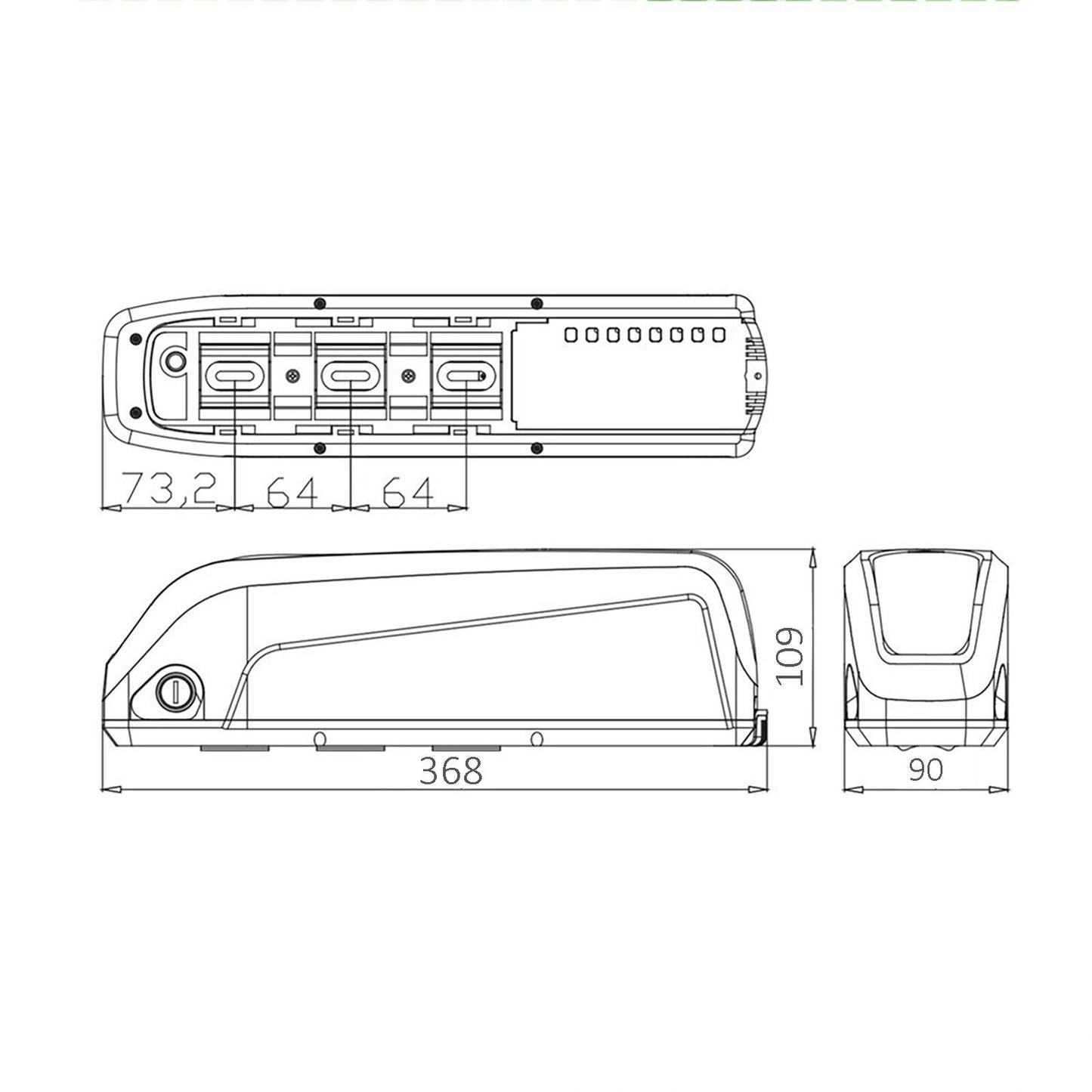

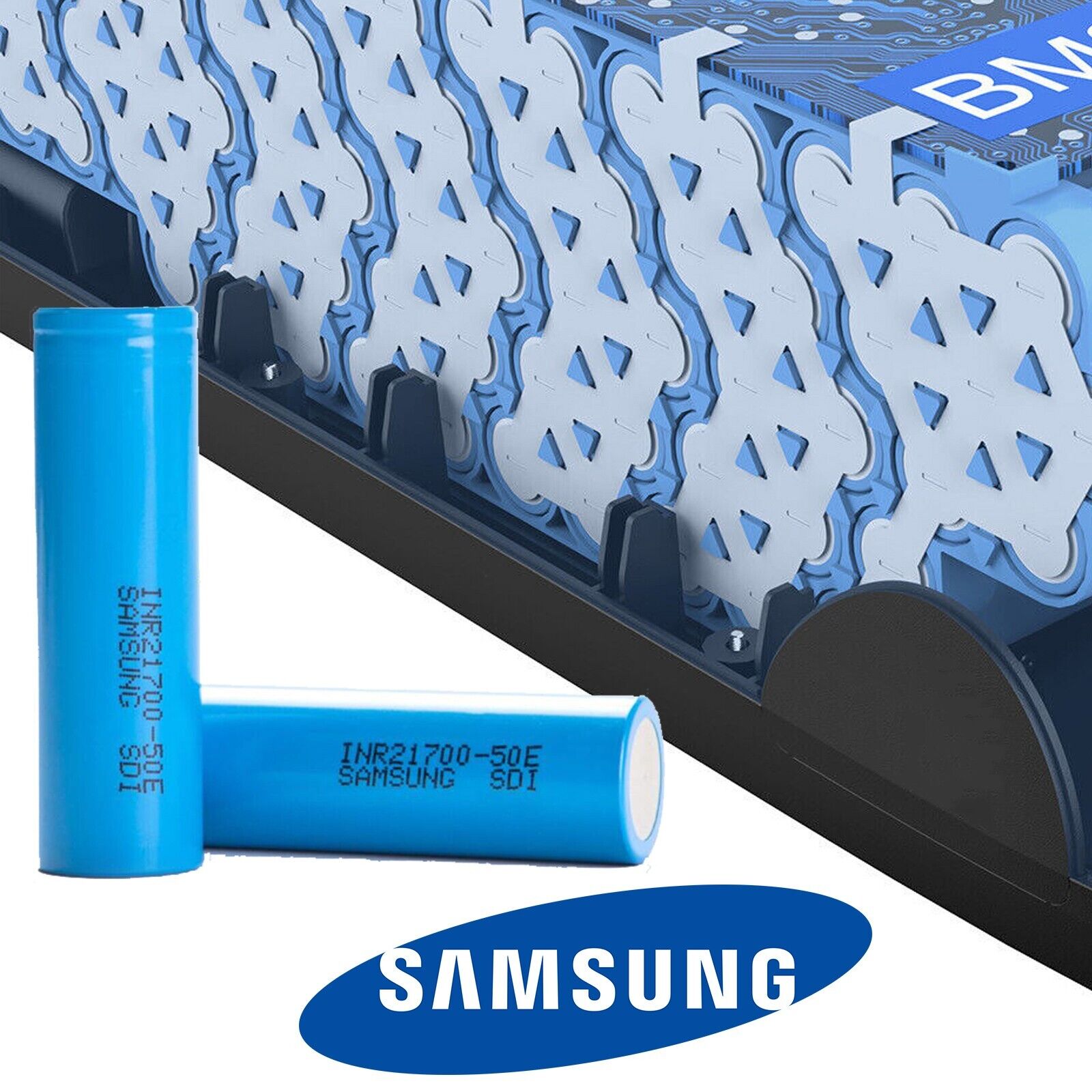

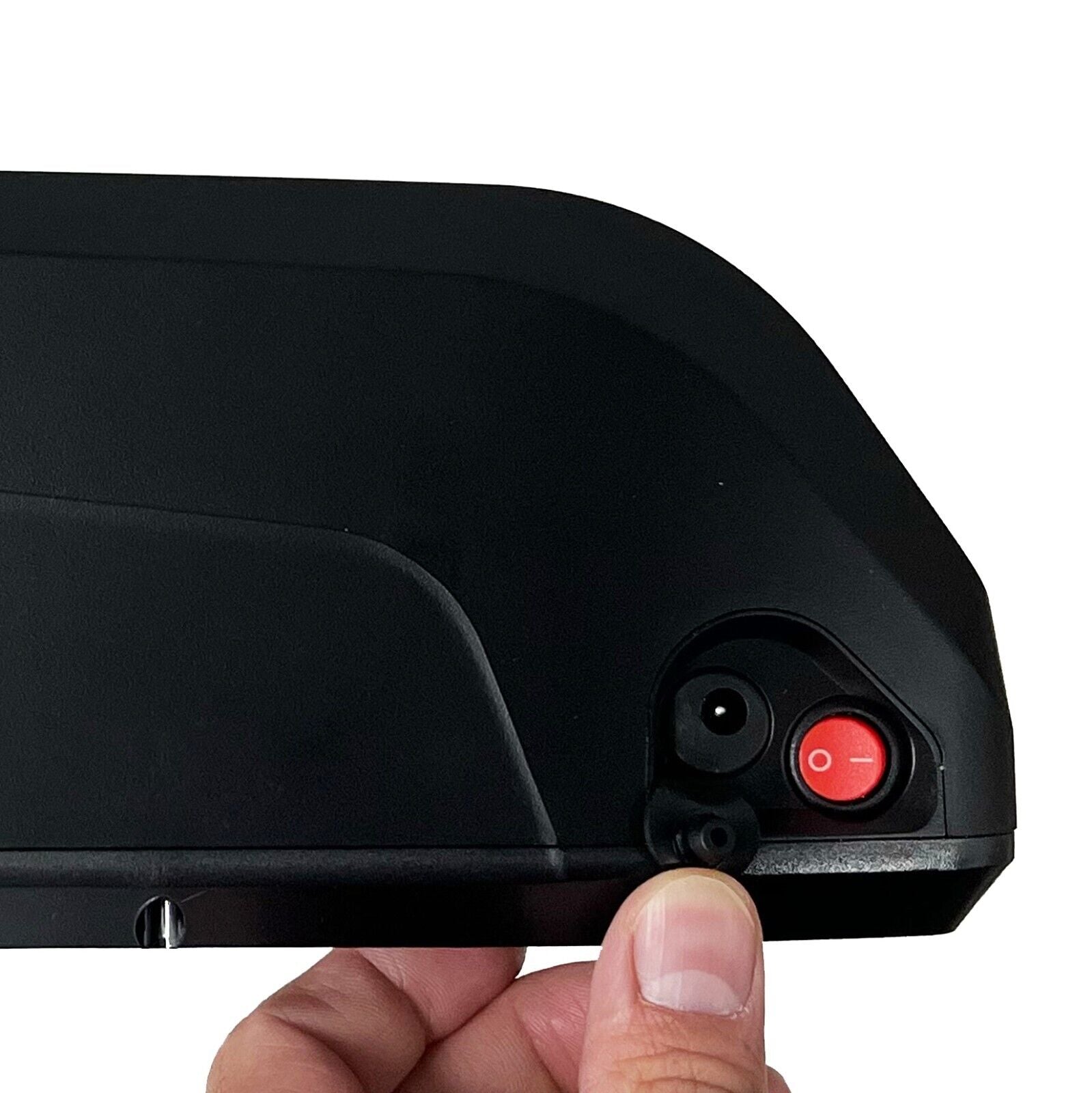

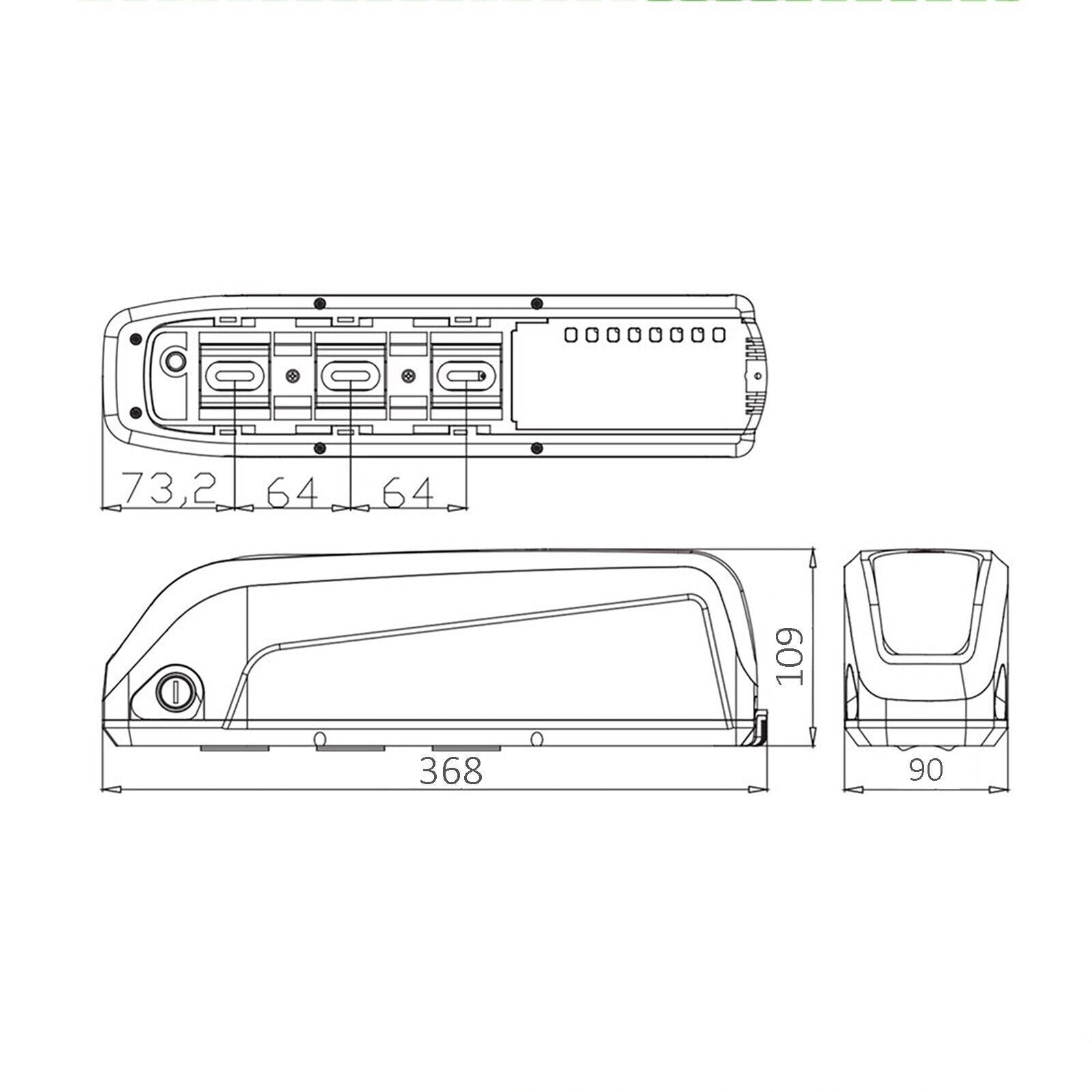

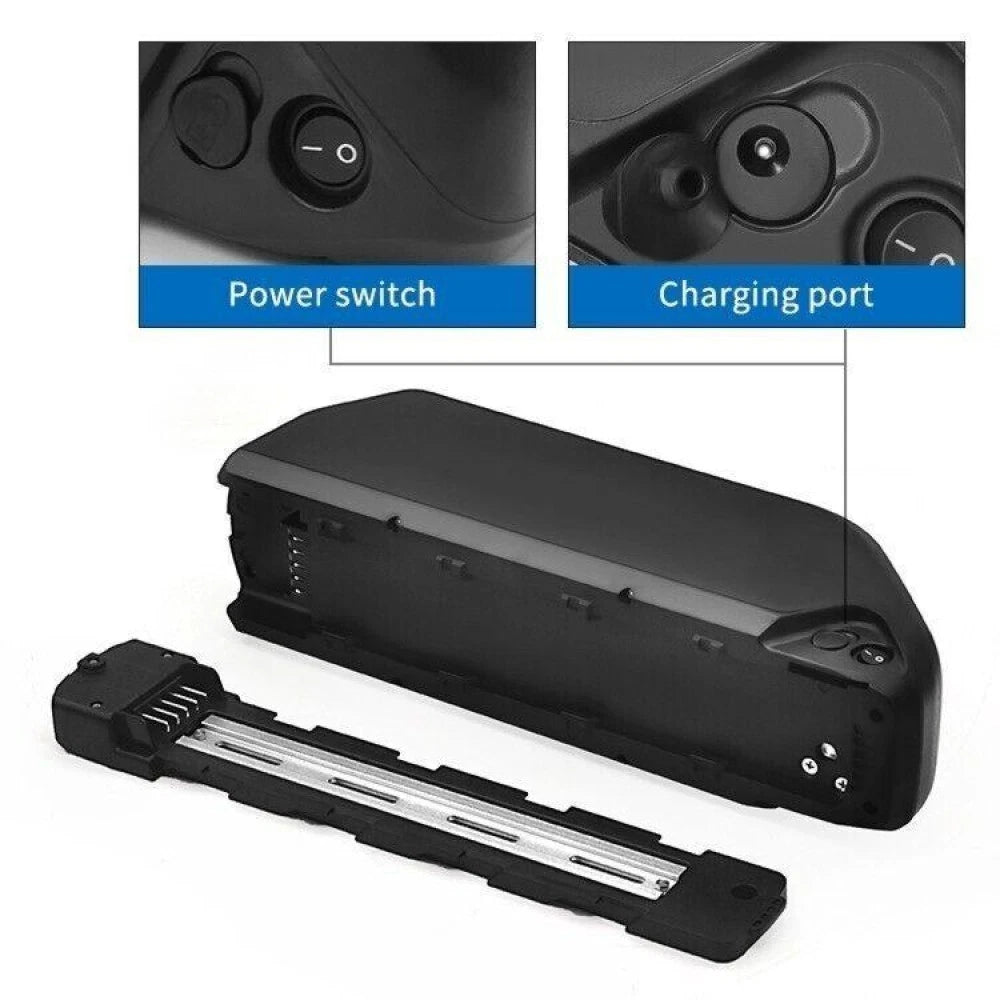

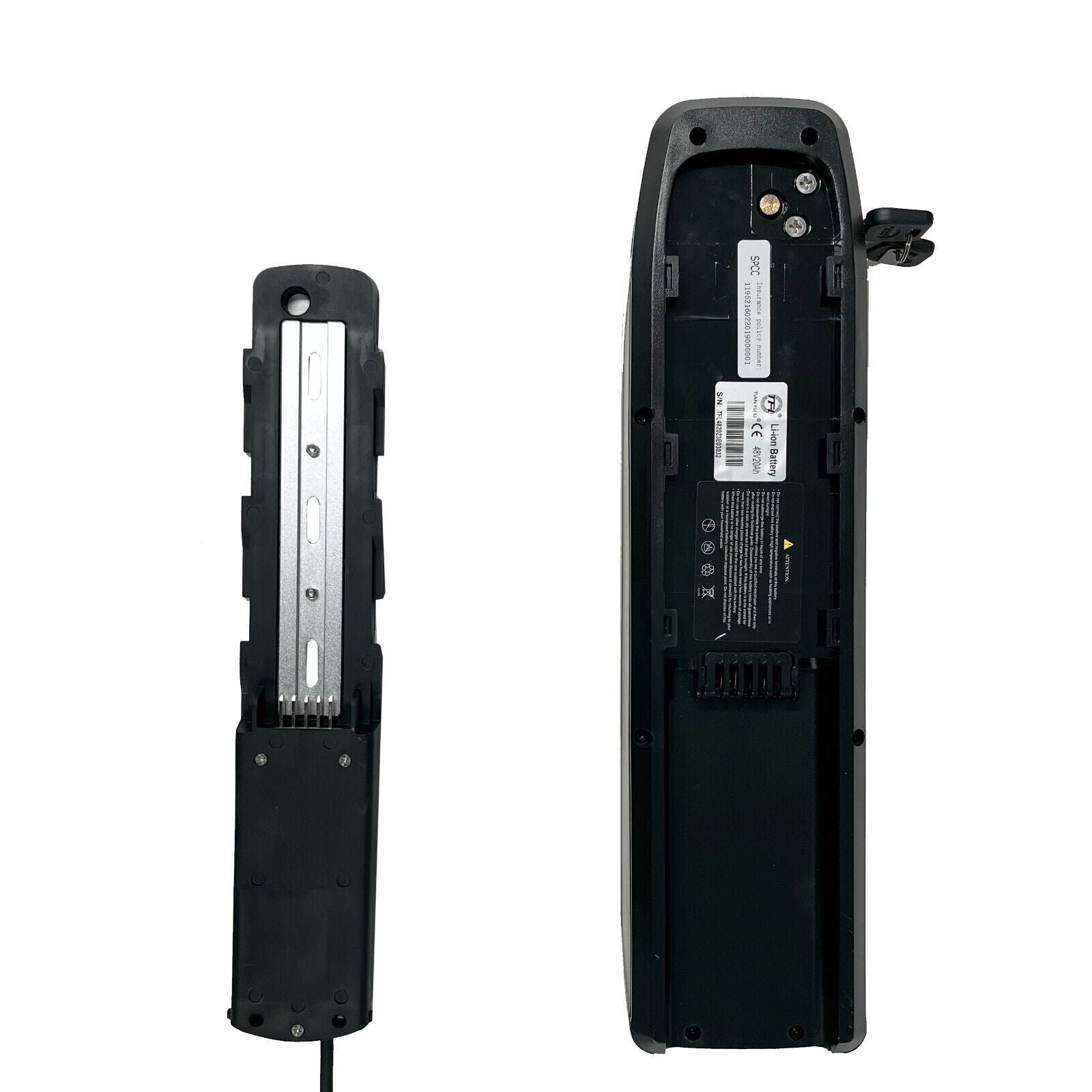

  • 48V 20AH Samsung 5000mAh Cell Downtube Battery with Bottom Mount
  • Riding Range: Up to 80 km range with Pedal Assist Mode

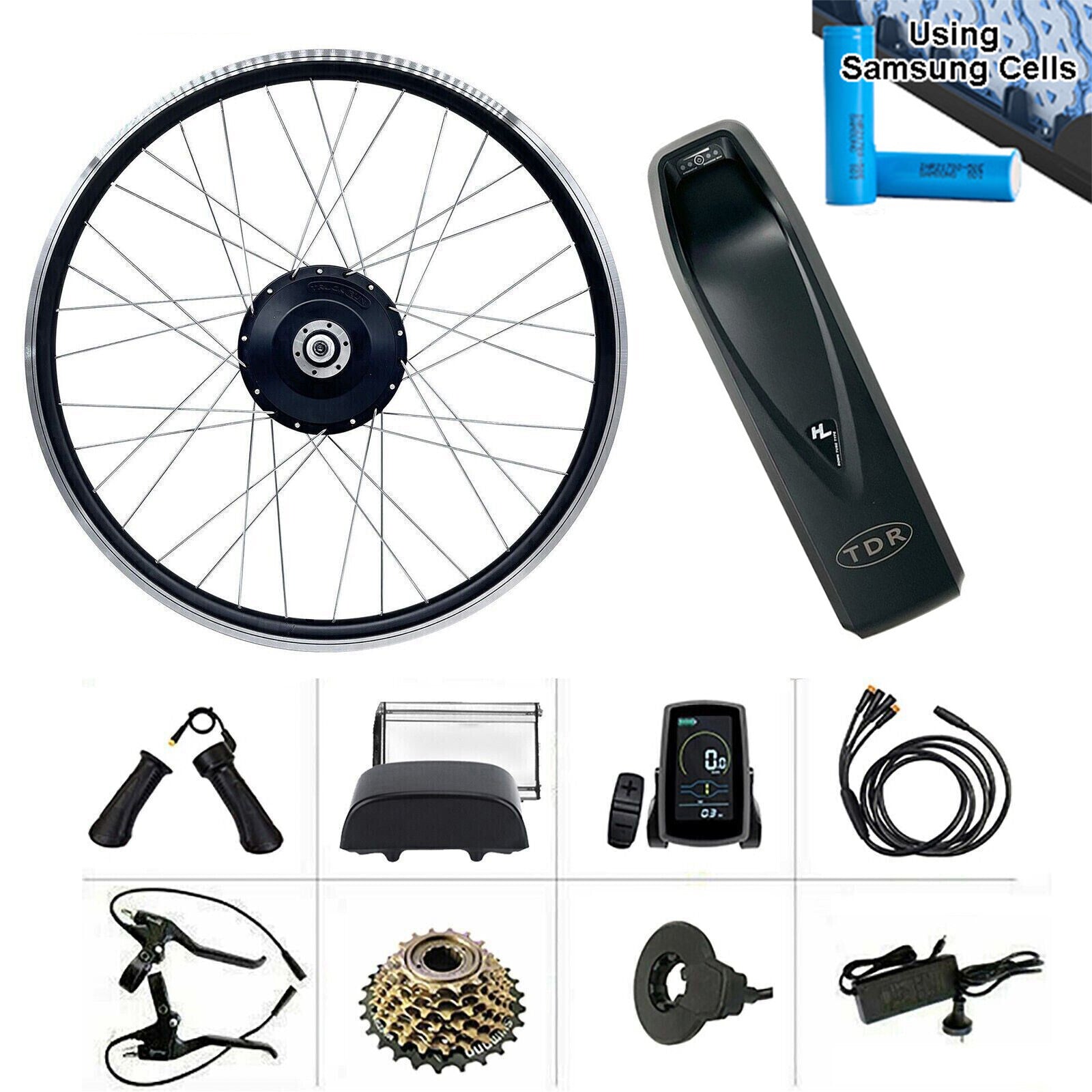

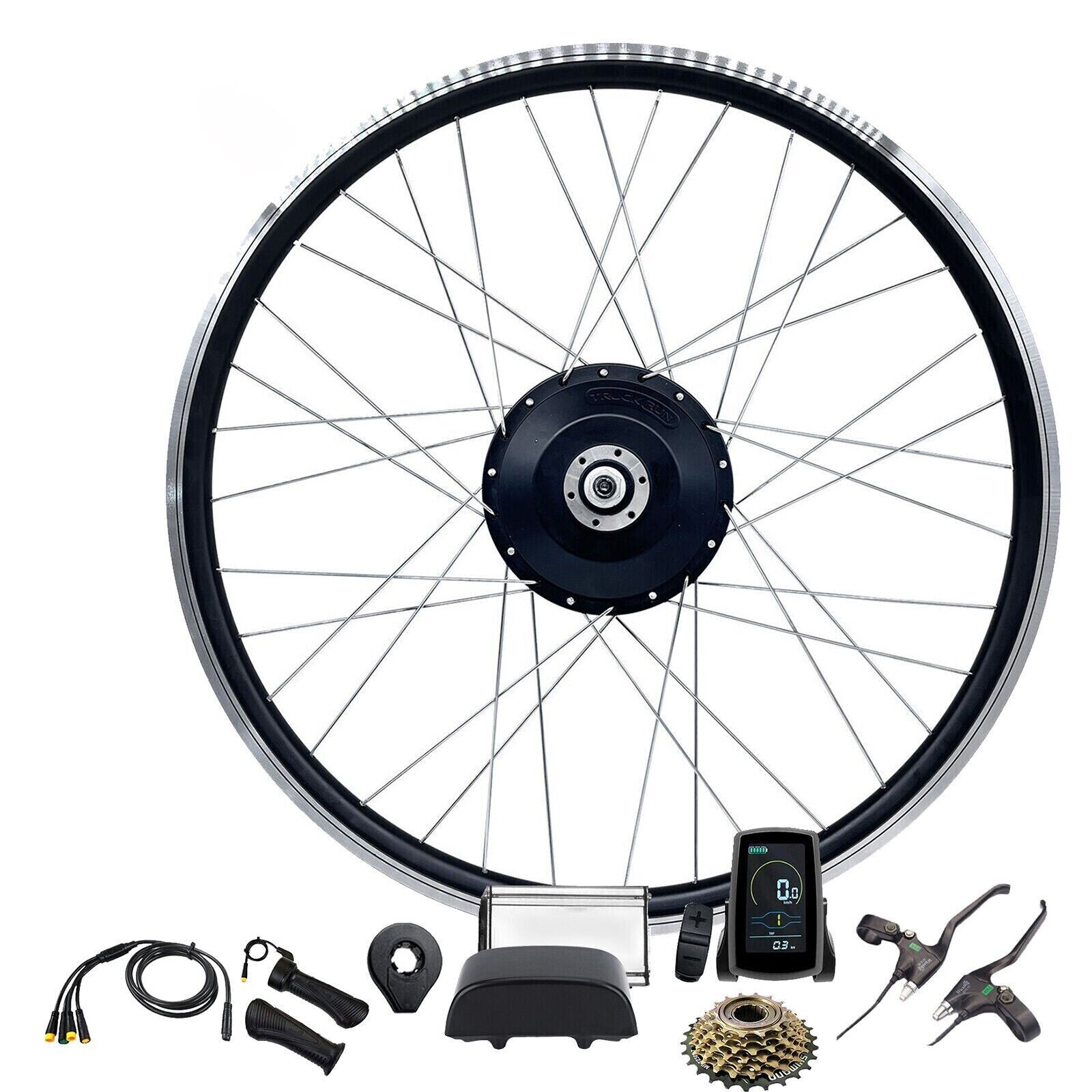

Package Include :

  • 1x 48V 750W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers
  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel
  • 1 x 48V 20AH Downtube Battery (Samsung Cell) & Charger Set


Important Notes

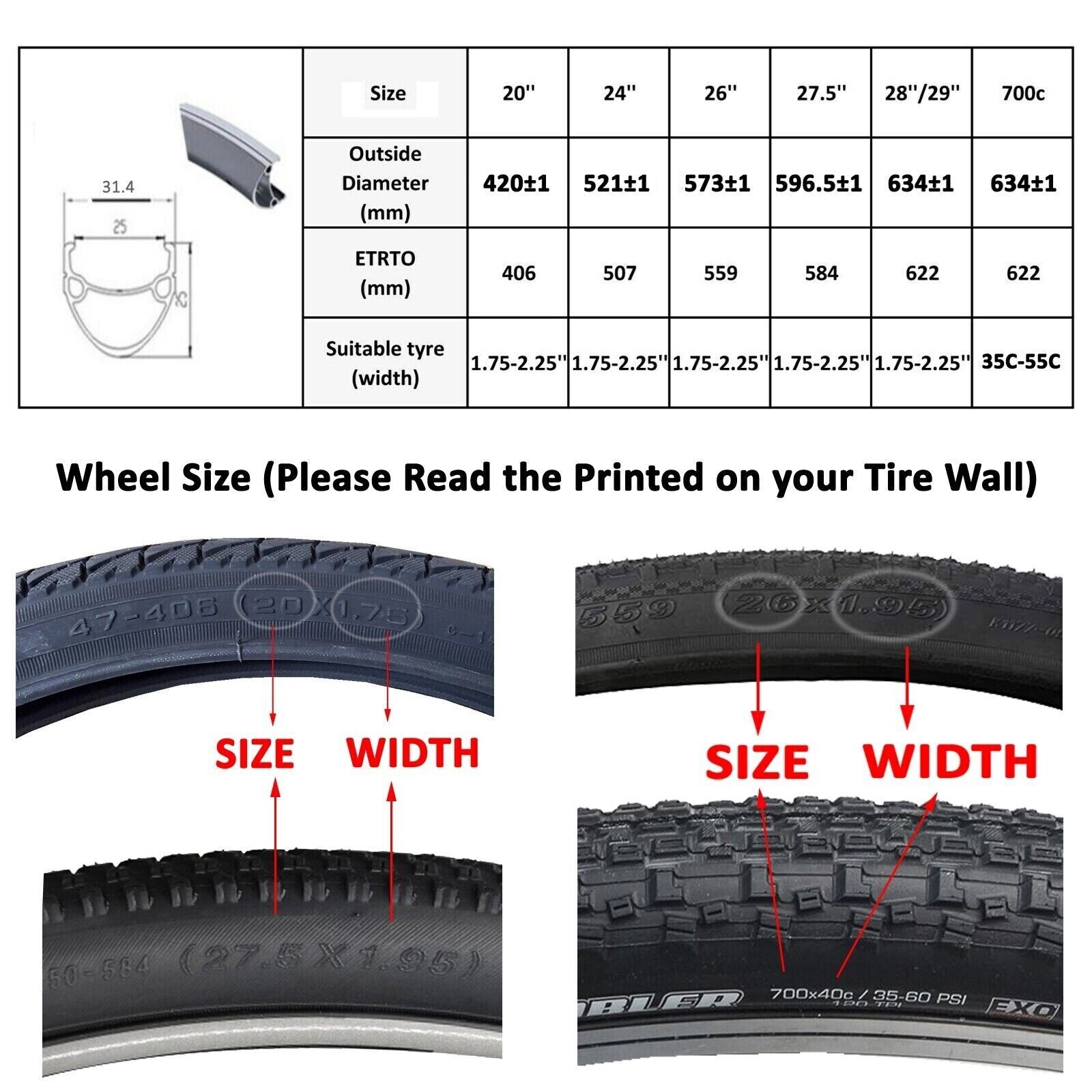

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

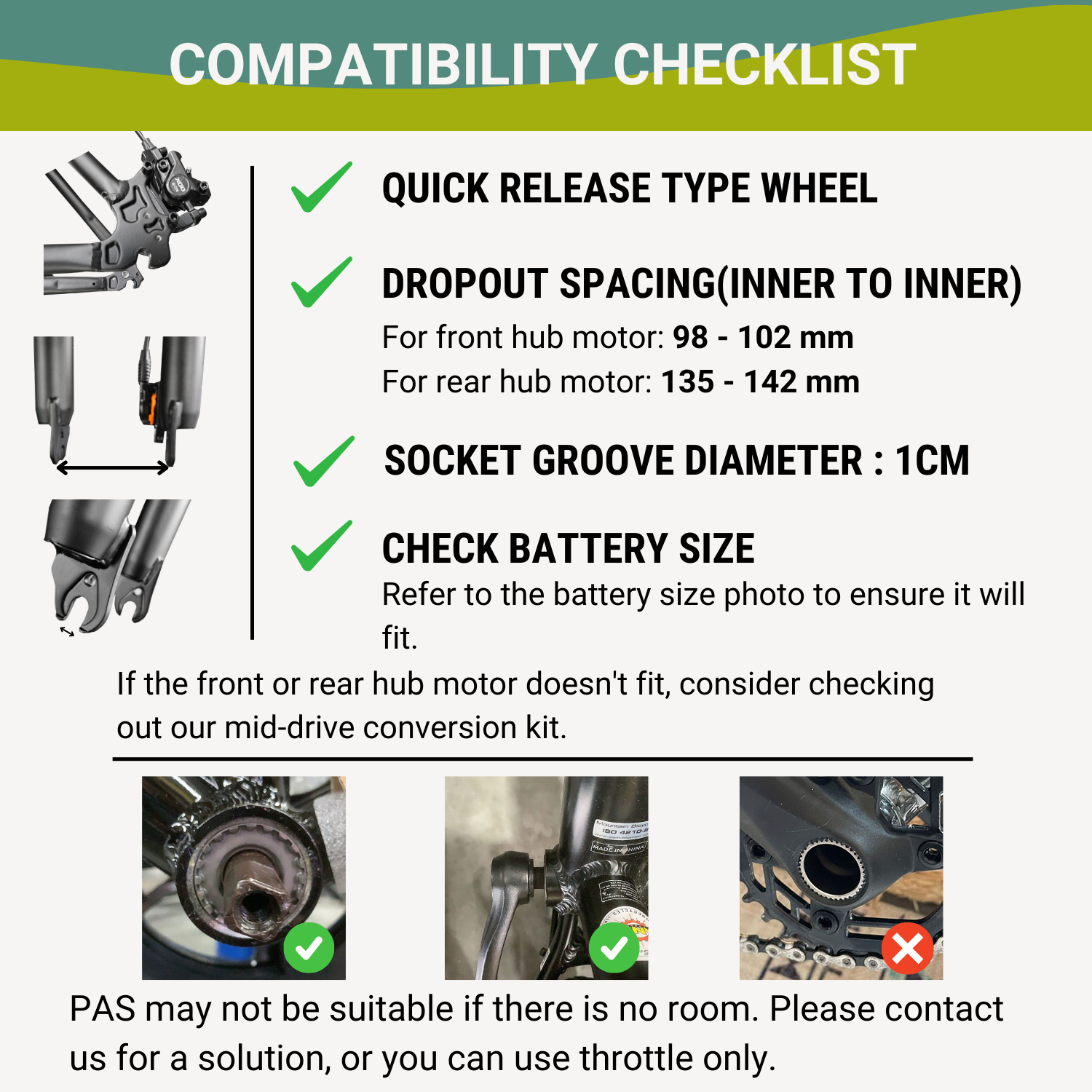

  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
