72V 3000W Rear Hub Electric Bike Conversion Kit Max 90km/h with 72V 30Ah Battery

Wheel Size (Please Read the Printed on The Tire Wall) Option:

• For 26 Inch
  26 Inch wheel with a width between 1.75 - 2.25 Inch

• For 27.5 Inch
  27.5 Inch wheel with a width between 1.75 to 2.25 Inch

• For 700C / 28 Inch / 29 Inch
  700C wheel with a width between 700*35C to 700*55C
  28 Inch wheel with a width between 1.75 to 2.25 Inch
  29 Inch wheel with a width between 1.75 to 2.25 Inch

Specifications

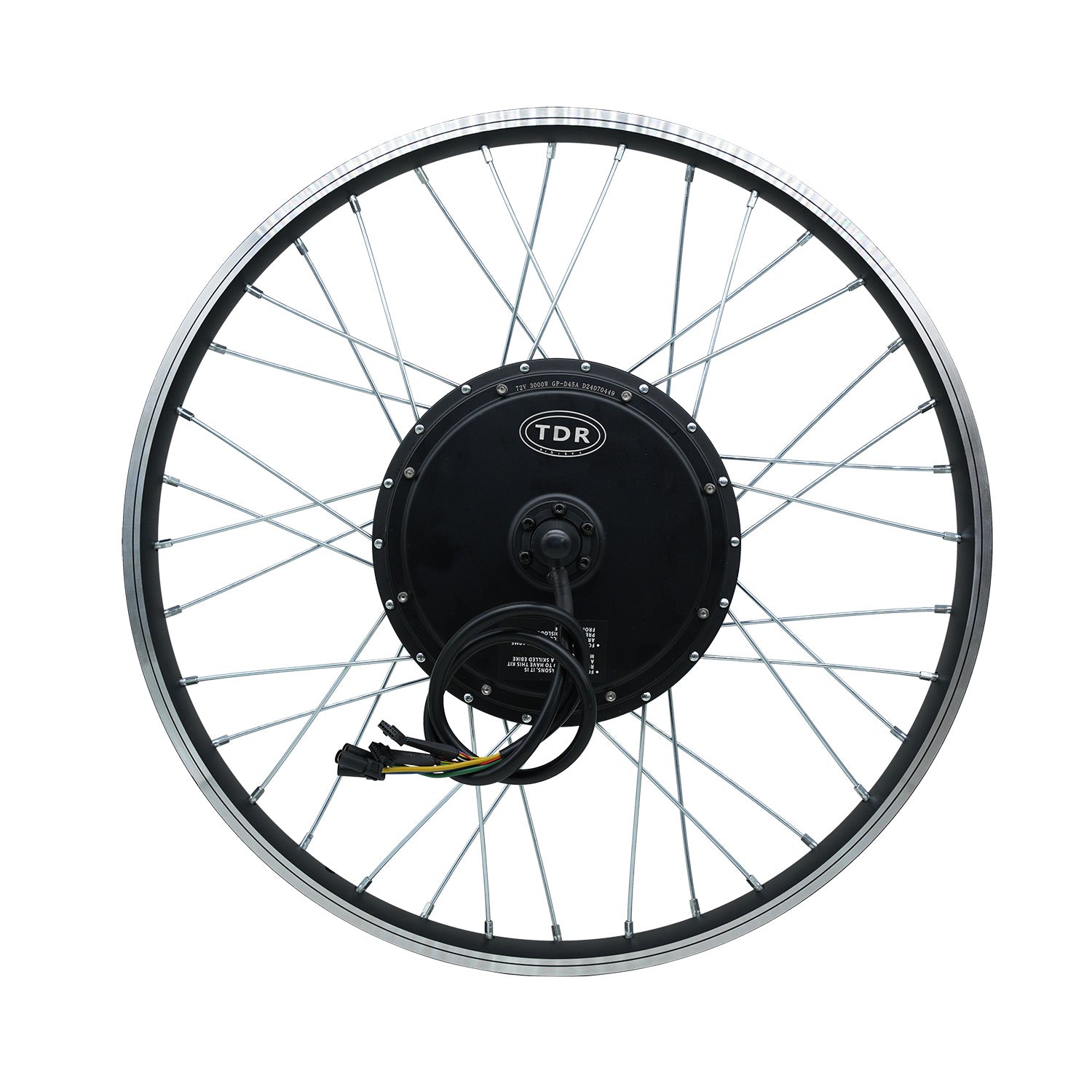

• Rim Motor: 72V 3000W Brushless Direct-Drive Hub Motor
• Torque: 90 N.M
• Maximum Speed: 90 km/h

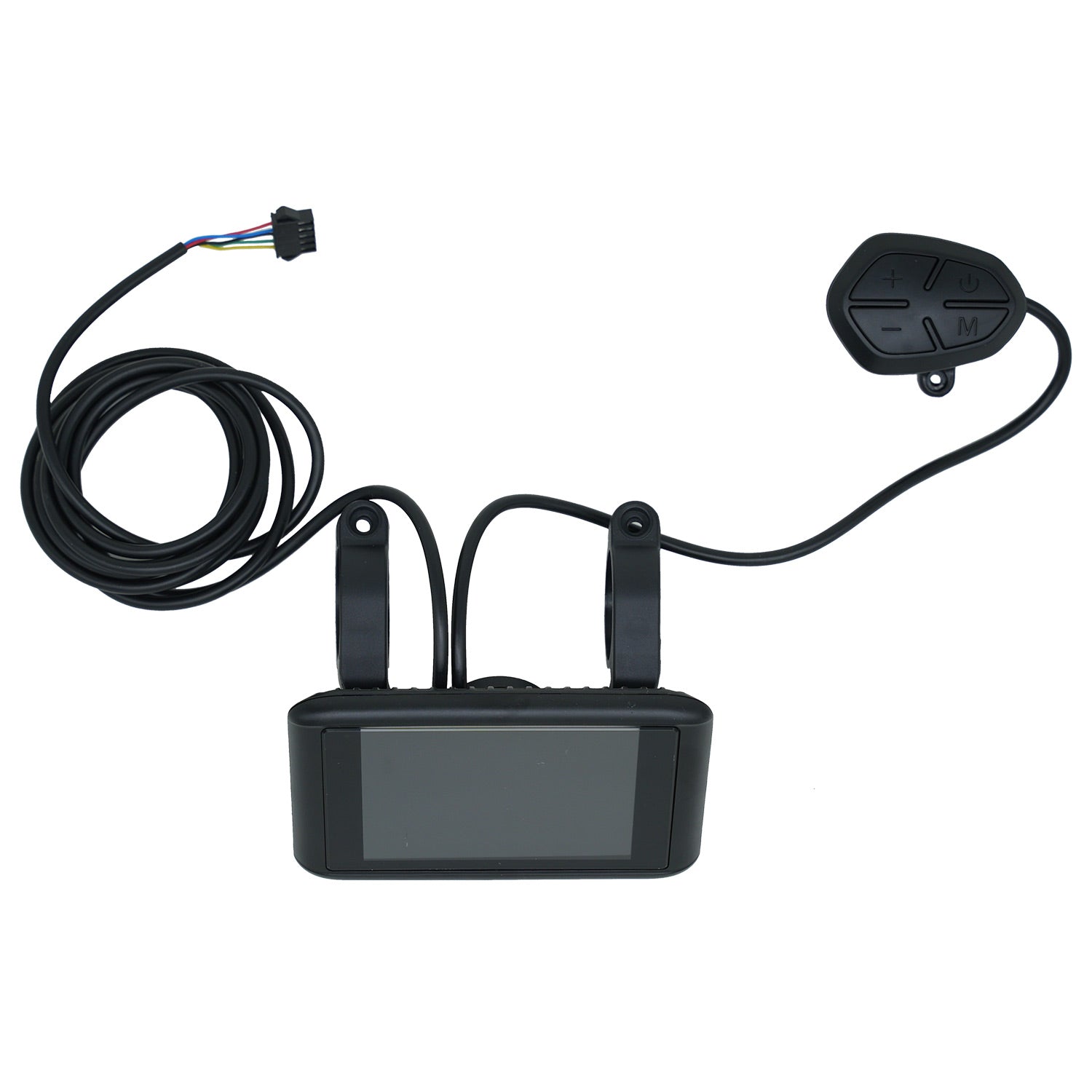

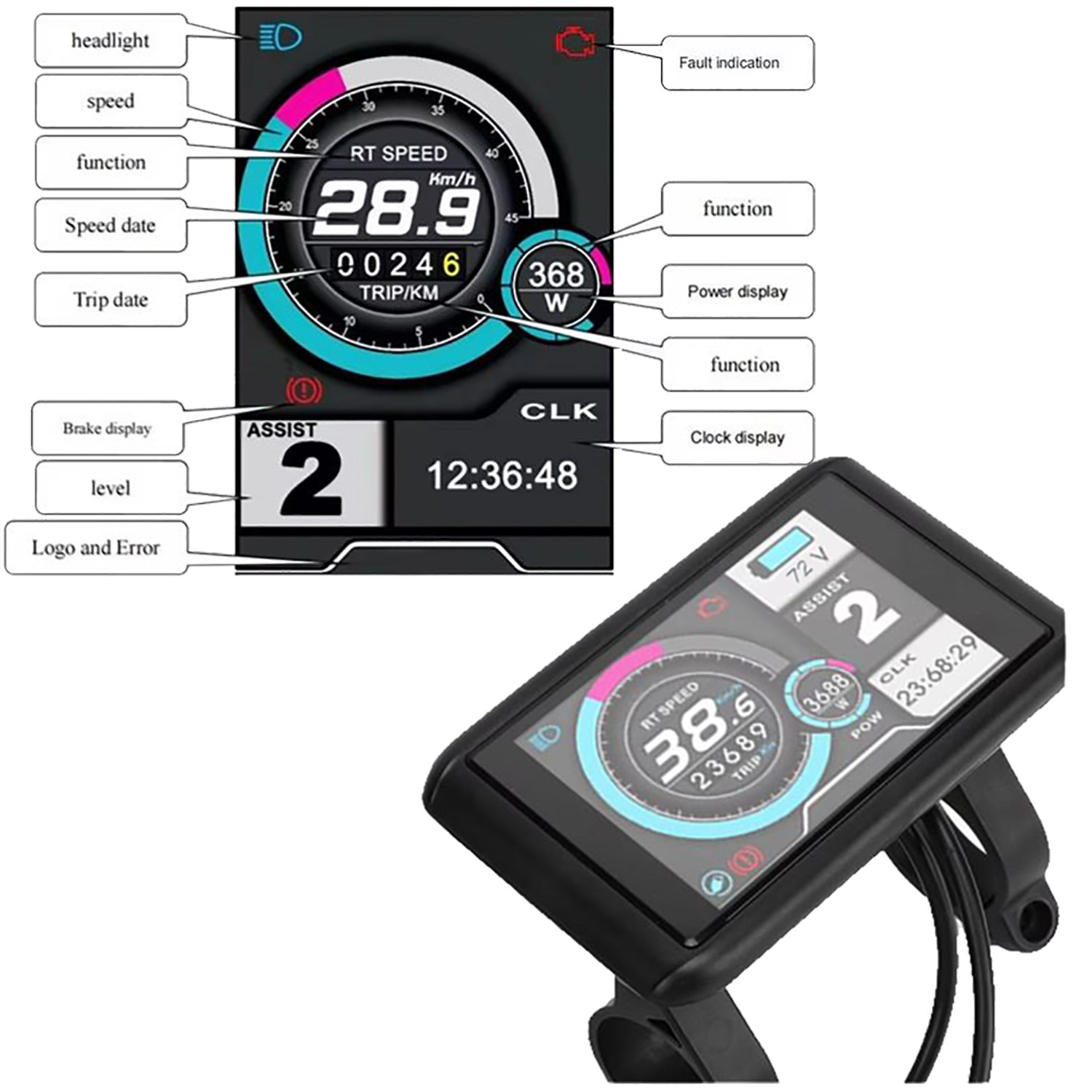

• Display: Intelligent Colorful LCD Panel Display

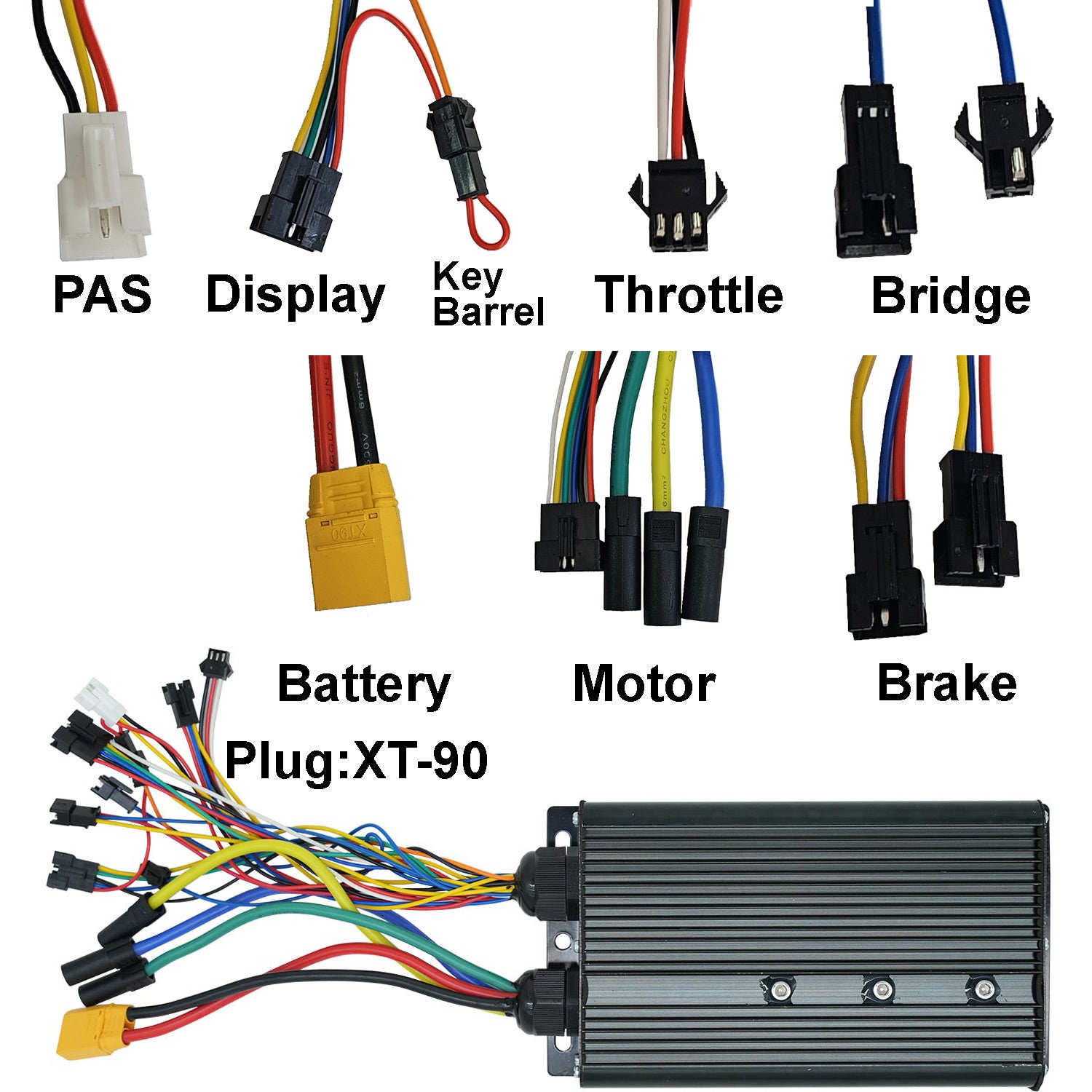

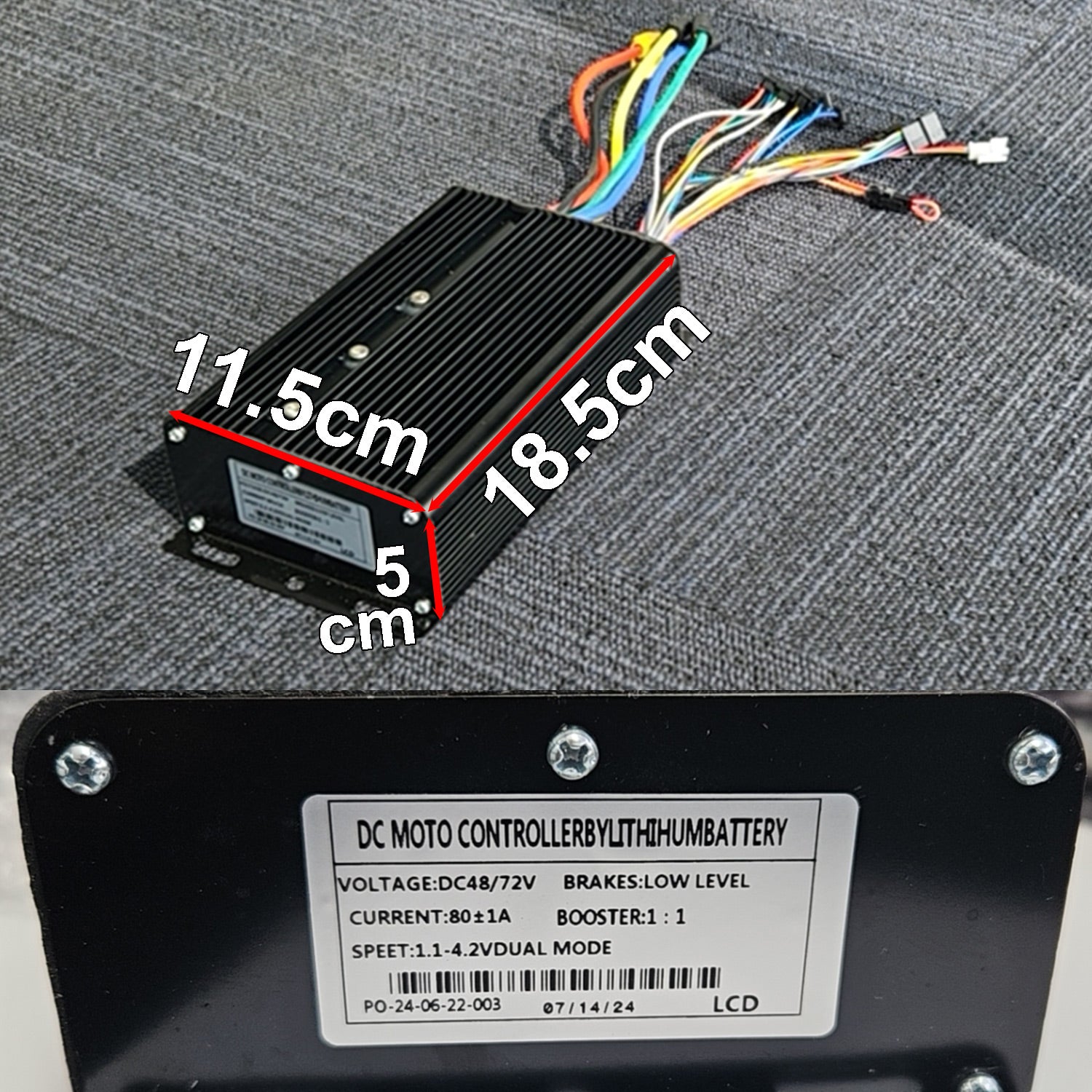

• Controller: Intelligent Motor Controller, Power Current is 80A
• Riding mode: Twist Throttle Electric Assist Mode
• Rear Fork Width Requirement:135 - 142mm
• Suitable for Disk Brake (6 Holes to Mount the Disc Rotor)

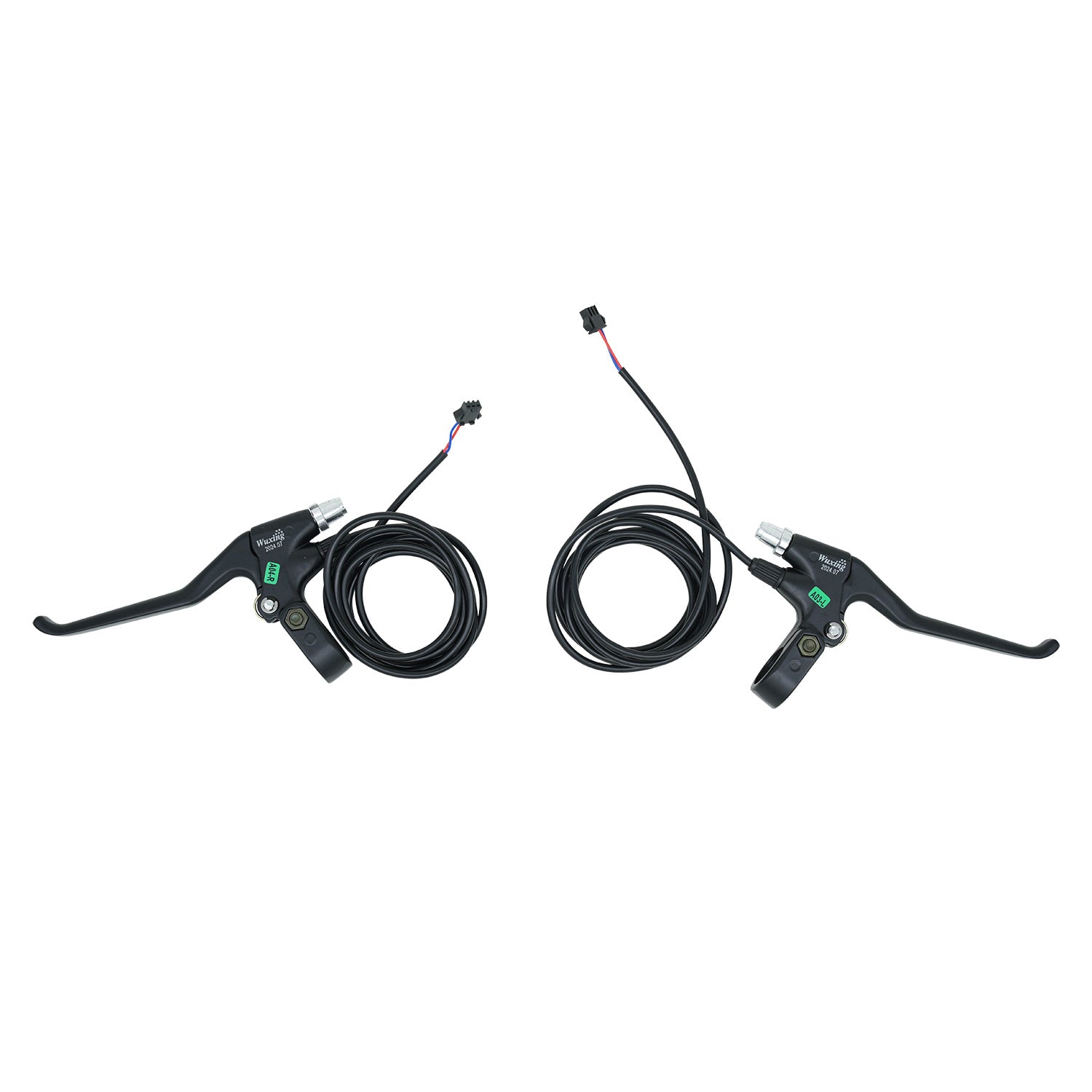

• Brake levers: Aluminum Alloy Wuxing E-brake Lever
• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

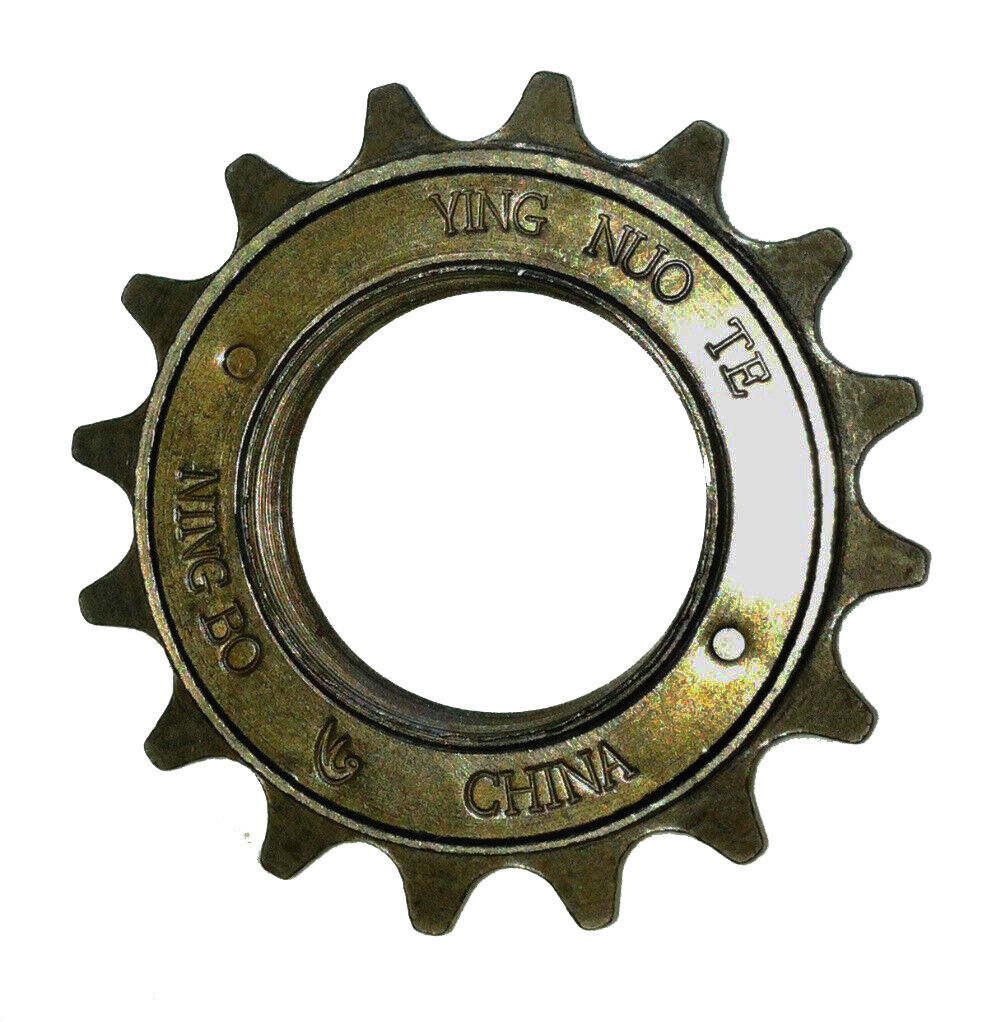

• Freewheel: 16T Single Speed Freewheel

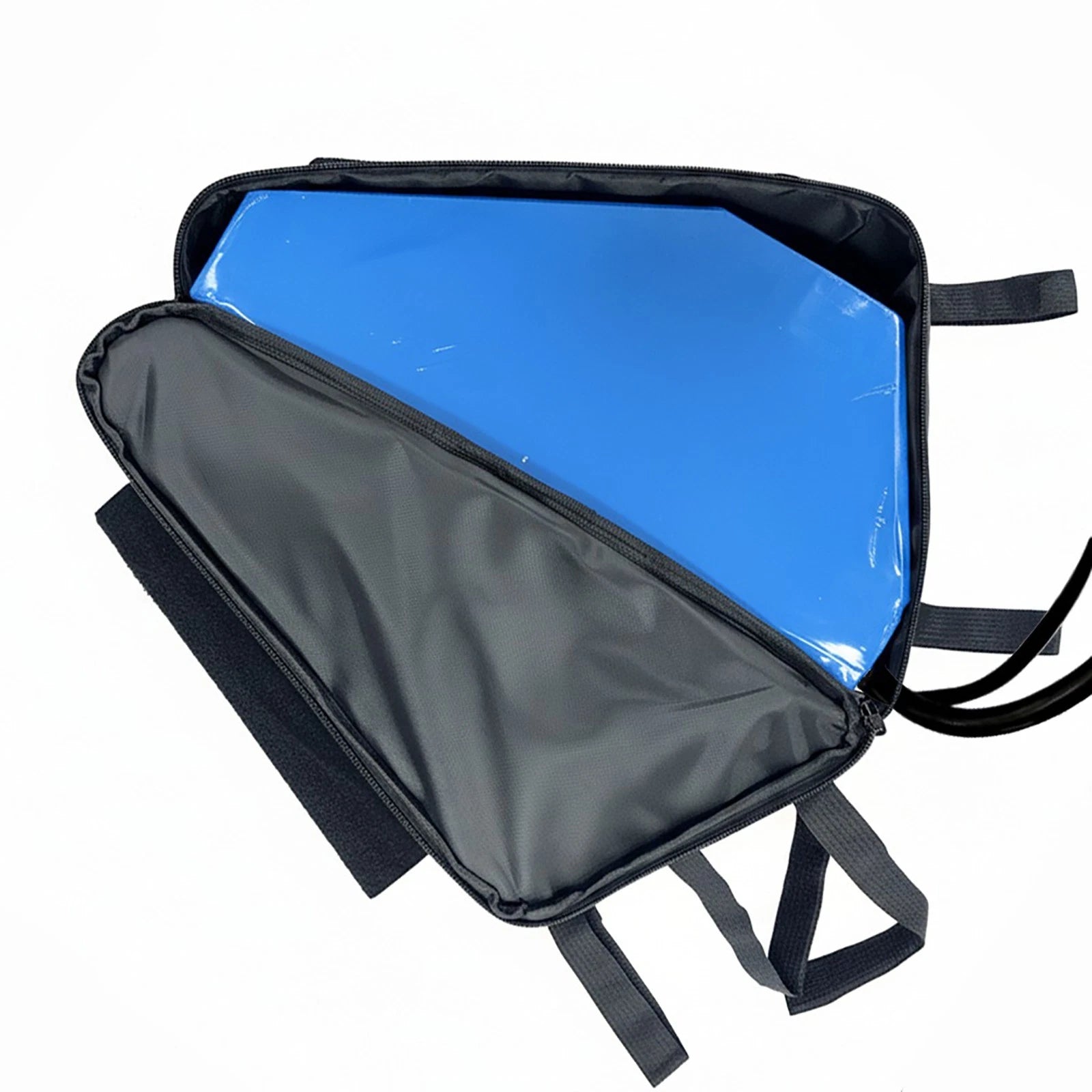

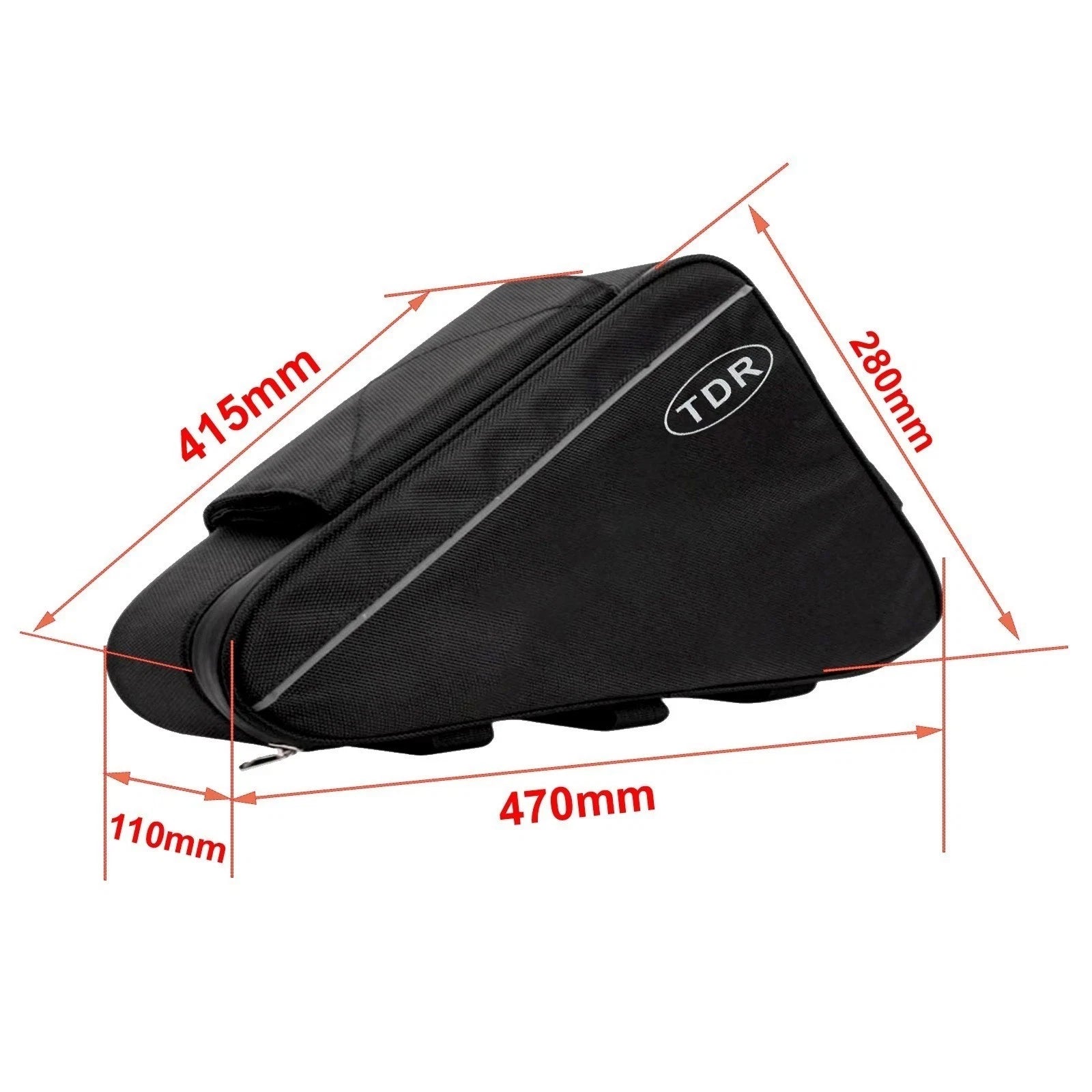

• 72V 30AH Triangle Frame Bagged Battery
• Riding Range: Up to 50 km
• 12 Months warranty on Motor & Battery

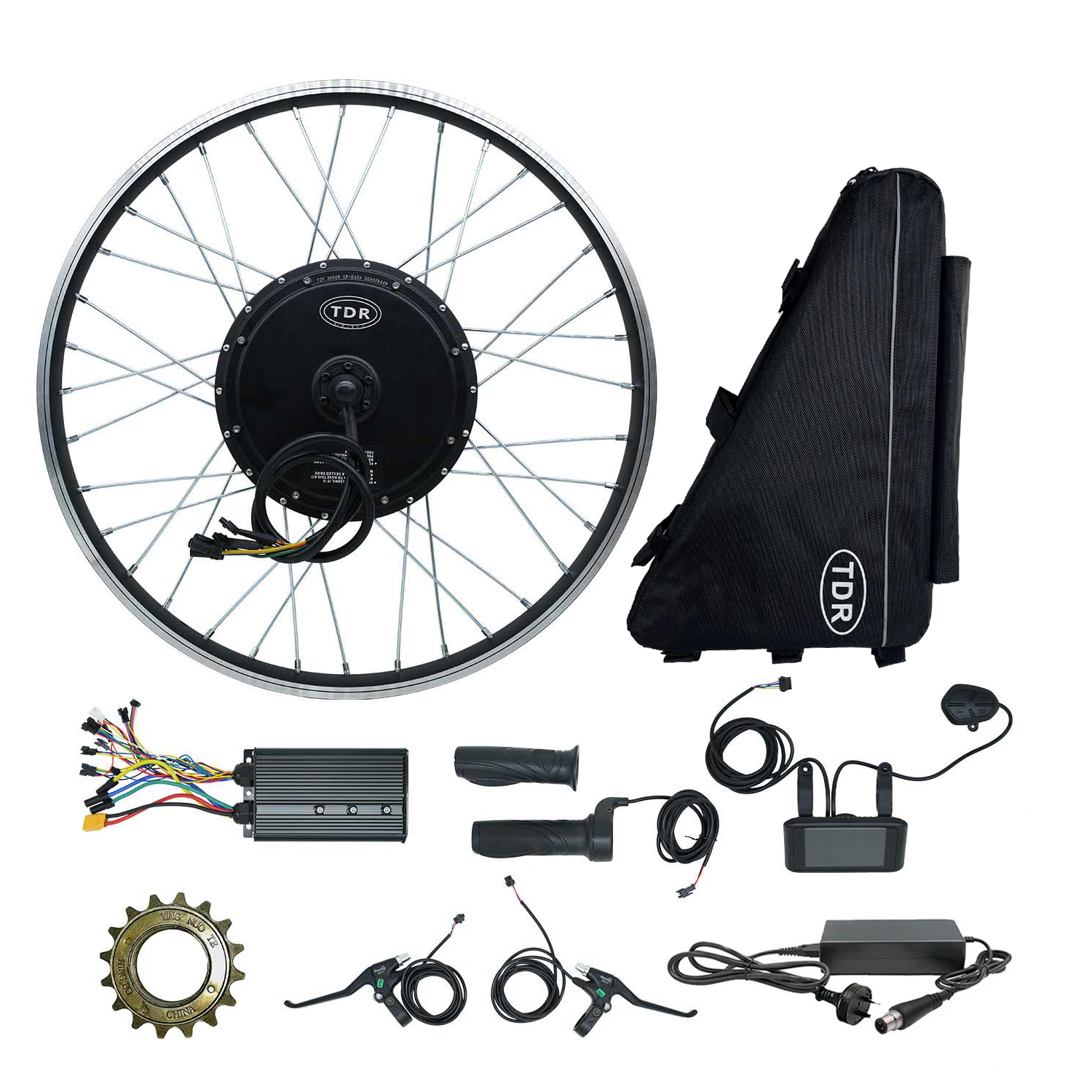

Package Included :

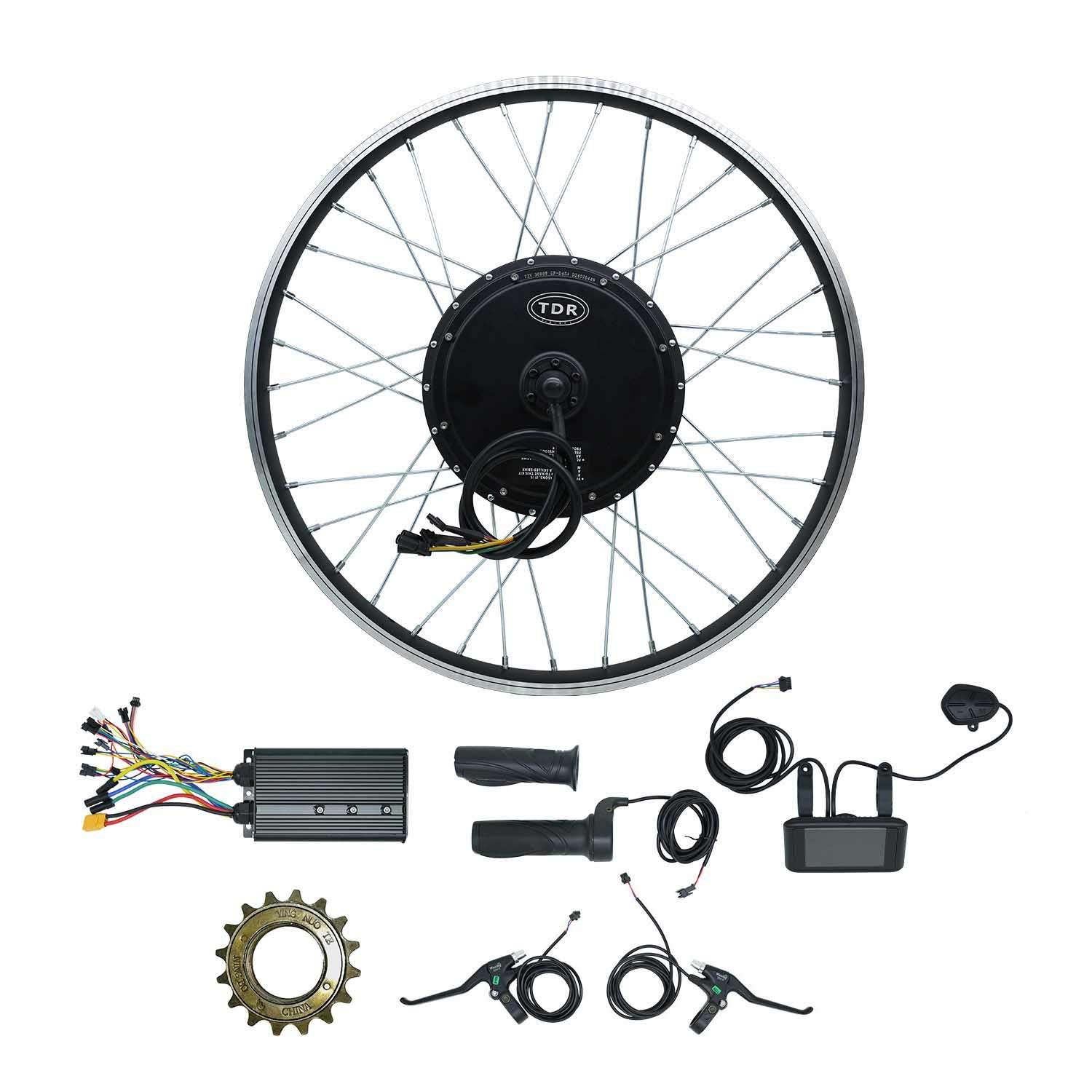

• 1 x 72V 3000W Rear Rim Motor

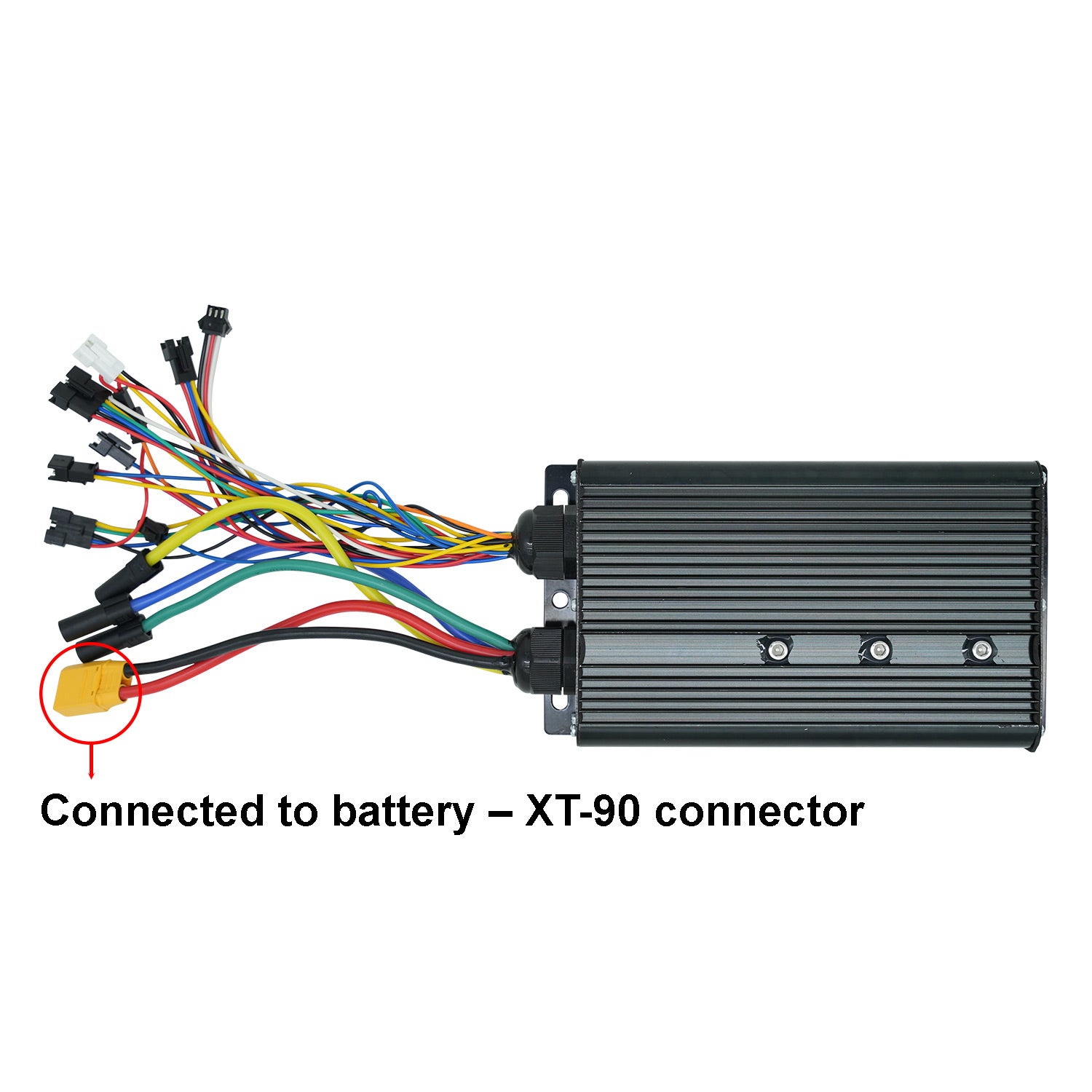

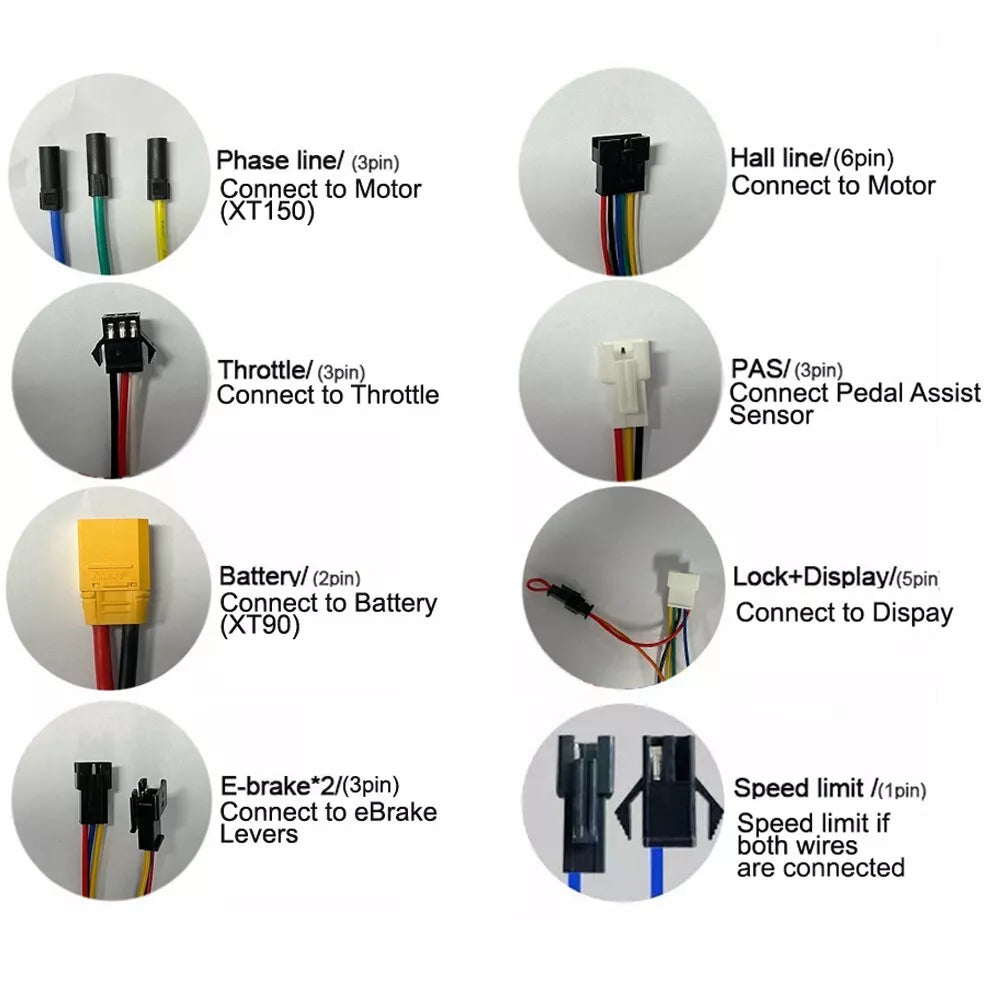

• 1 x Intelligent Motor Controller - Connection XT90 Plug
• 1 x Pair of E-Brake Levers

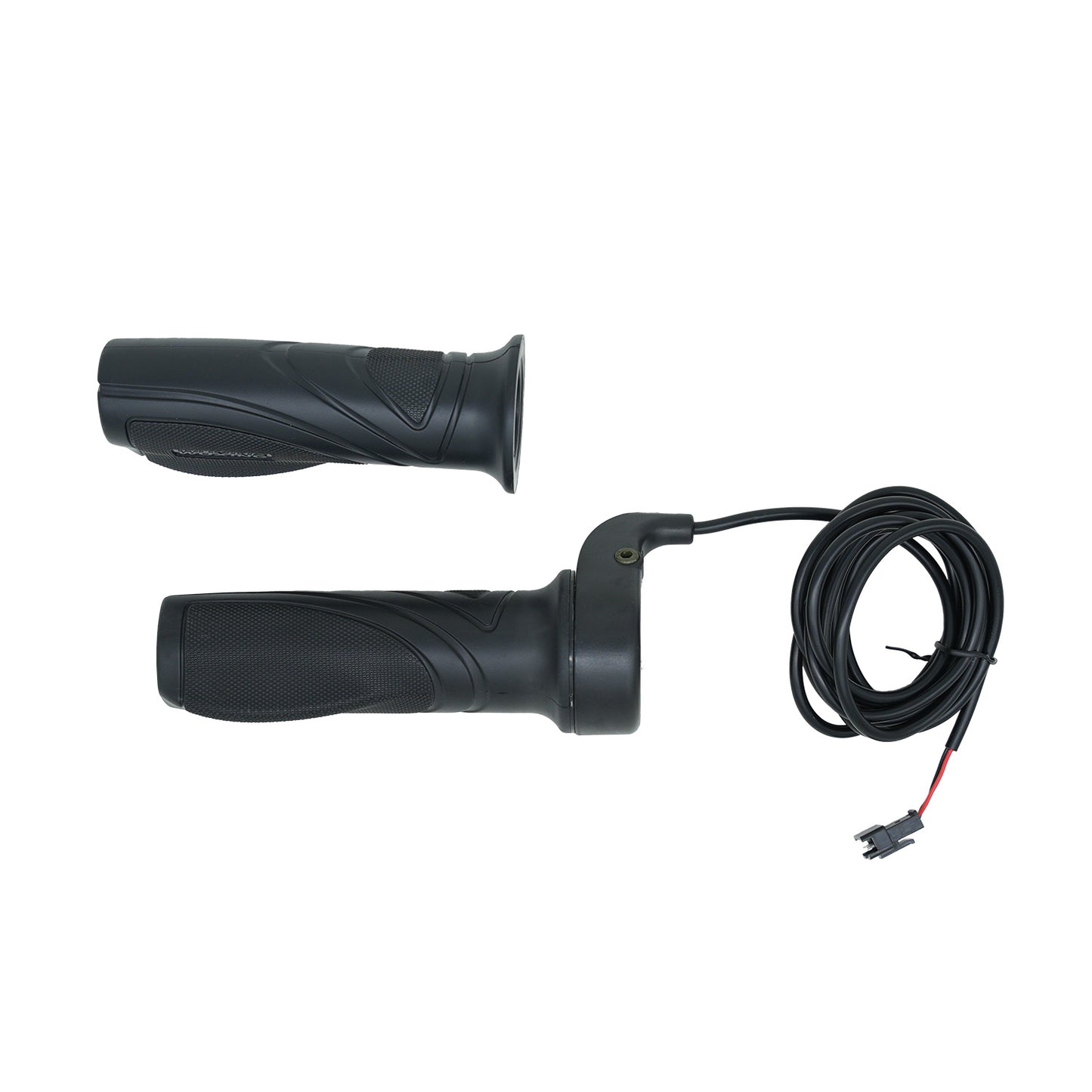

• 1 x Twist Throttle
• 1 x LCD Display
• 1 x Cable Ties Set
• 1 x Manual
• 1 x 16T Single Speed Freewheel
• 1 x 72V 30AH Triangle Frame Bagged Battery
• 1 x Australian Approval Charger


Important Notes

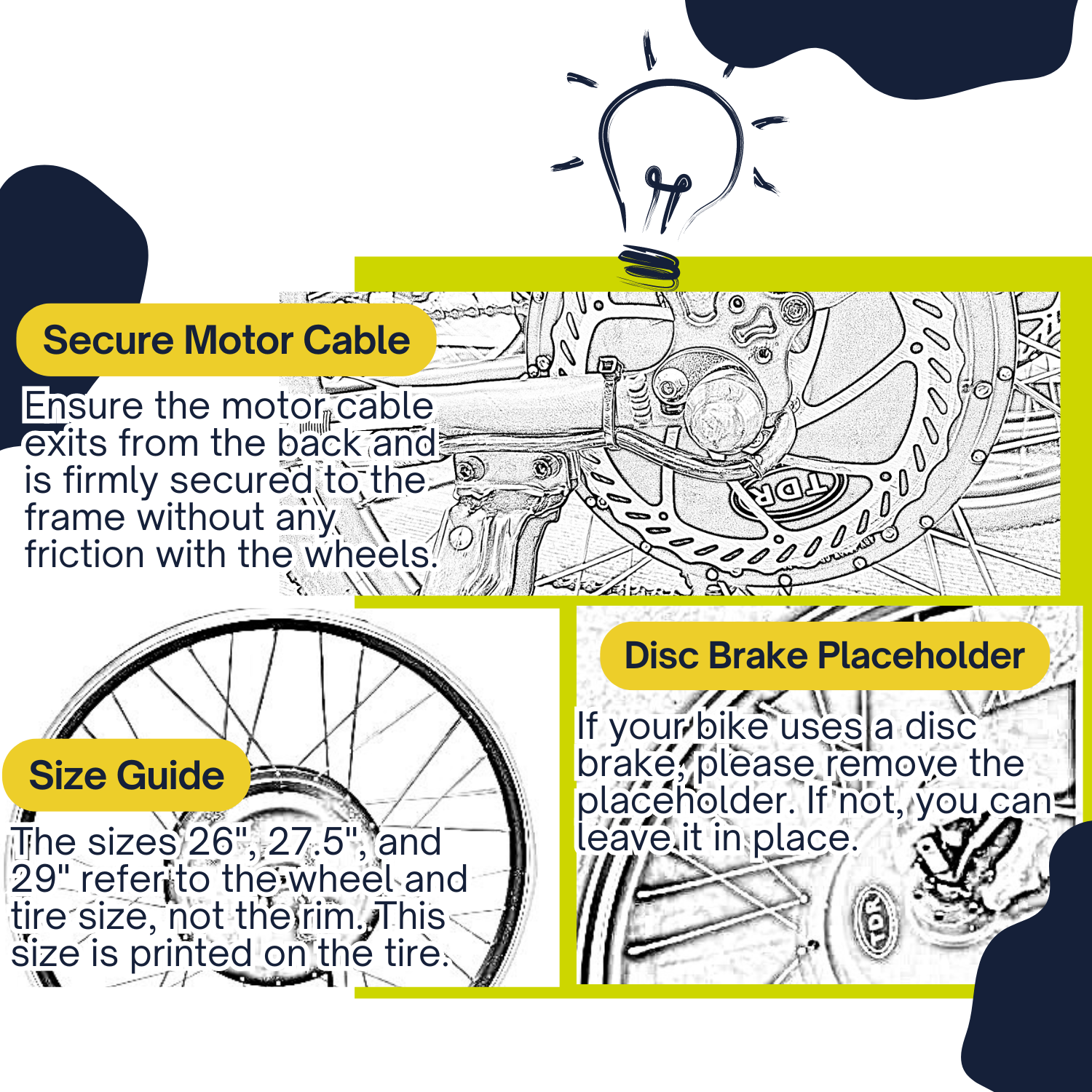

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

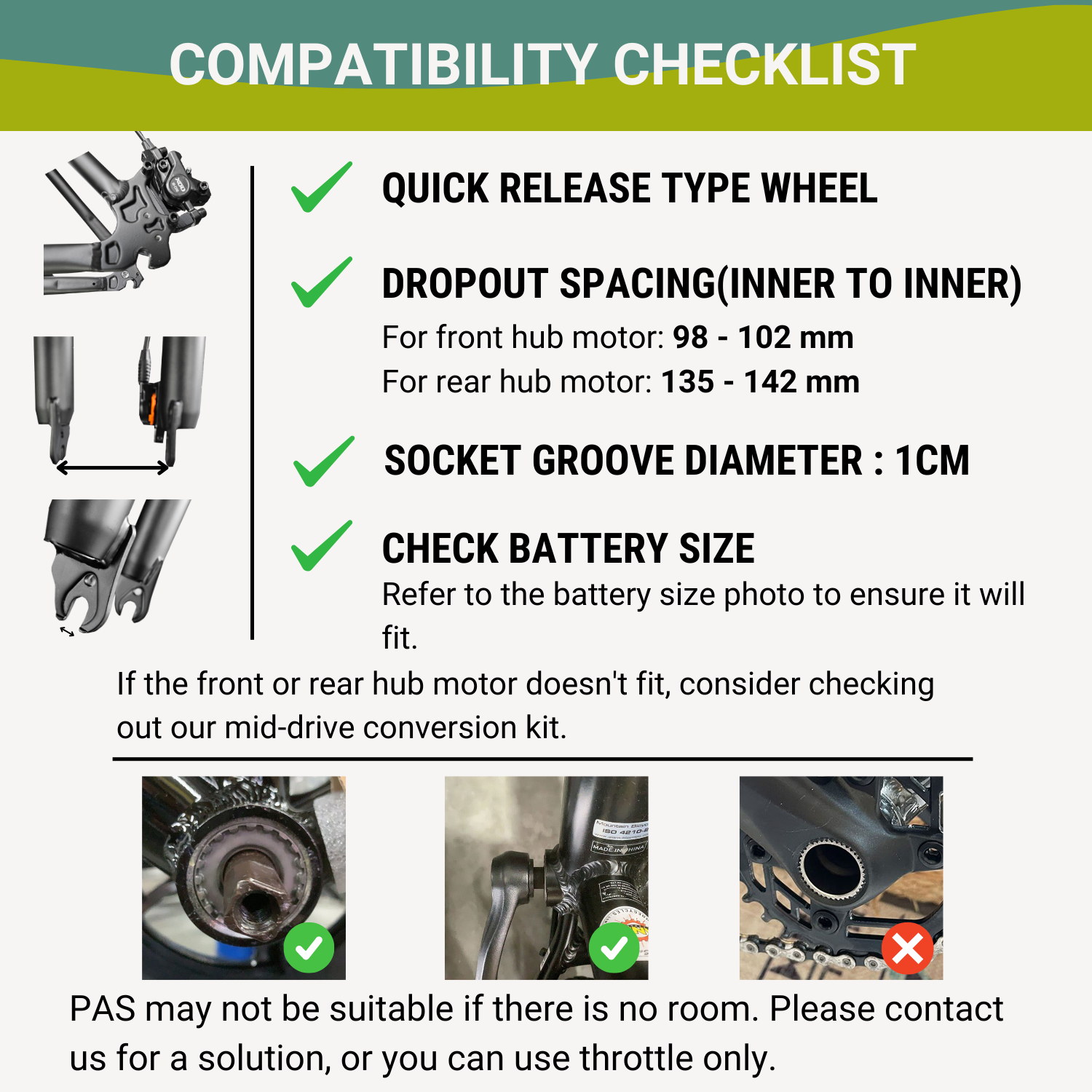

• Please check your rear fork width (135 - 142mm) to make sure the motor hub can be fitted into it.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 3000W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit single-speed thread-on freewheel
  Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
  It is strongly advised to utilize twin piston calipers on bicycles to enhance braking performance and safety.

Warranty Information

• We offer a 12 Months warranty on the Motor for our electric bike kit for non-commercial use.
• Warranty will not cover:
  Minor scratches, marks, or imperfections.
• Damage due to external causes, e.g. damage by negligent use, incorrect use, and tampering with the battery pack, damage by traffic accidents, and damage during any transportation, e.g. by couriers.
• Damage due to normal wear and tear and maintenance. Wear and tear items that are not covered include tires, tubes, brakes, brake pads, wheel spokes, derailleur tuning, gear adjustments, bottom bracket tightening, handlebar adjustments, seat, stand, footpegs, etc.
  If the bike doesn’t reach top speed this is not covered by warranty and if the distance per charge is not as advertised this is also not covered by warranty as this is only an estimate. Batteries lose capacity naturally.
• Poor maintenance and any modifications to the product or components.
  We will not be held responsible for theft, damage, or injury caused while using this product.
