750W 26" Rear Hub Motor Conversion Electric Bike Kit - 48V 20AH Battery

750W 26" Rear Hub Motor Conversion Electric Bike Kit - 48V 20AH Battery

SKU:

Regular price $895.23
Regular price $1,029.00 Sale price $895.23
13% off Sold out
Tax included. Shipping calculated at checkout.
  • For 26 Inch wheel with a width between 1.75 - 2.25 Inch

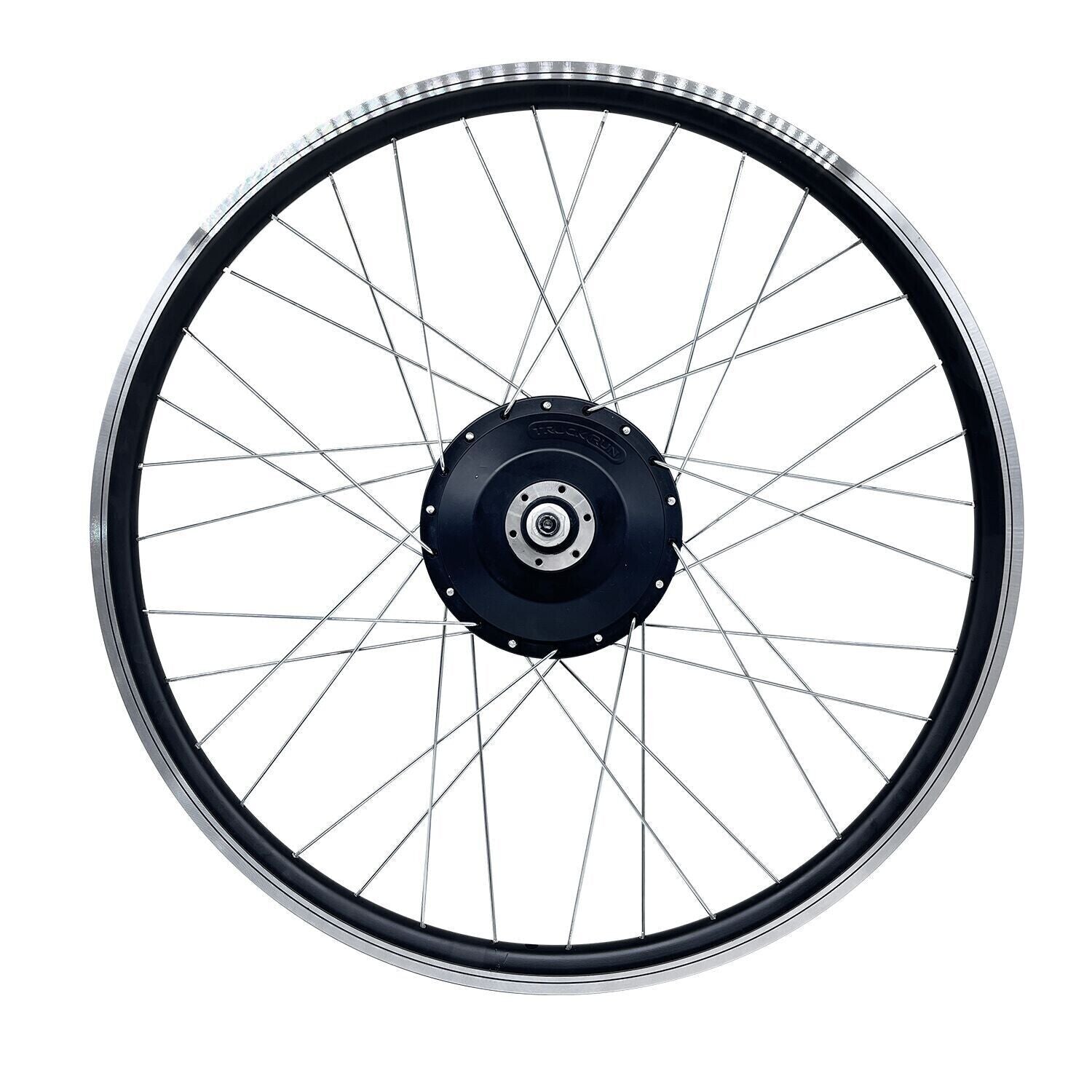

  • Rim Motor: 48V 750W Brushless Gear Hub Motor
  • Torque: 55 N.M

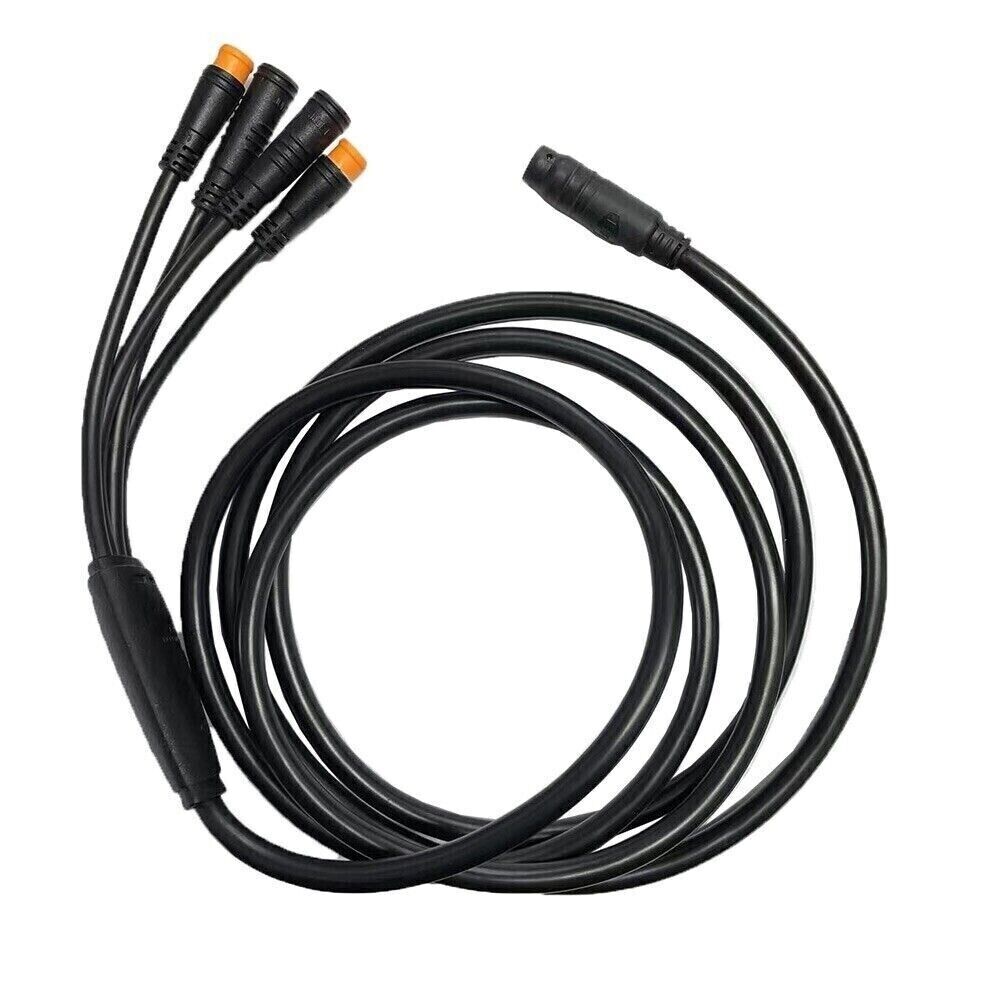

  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 50 km/h

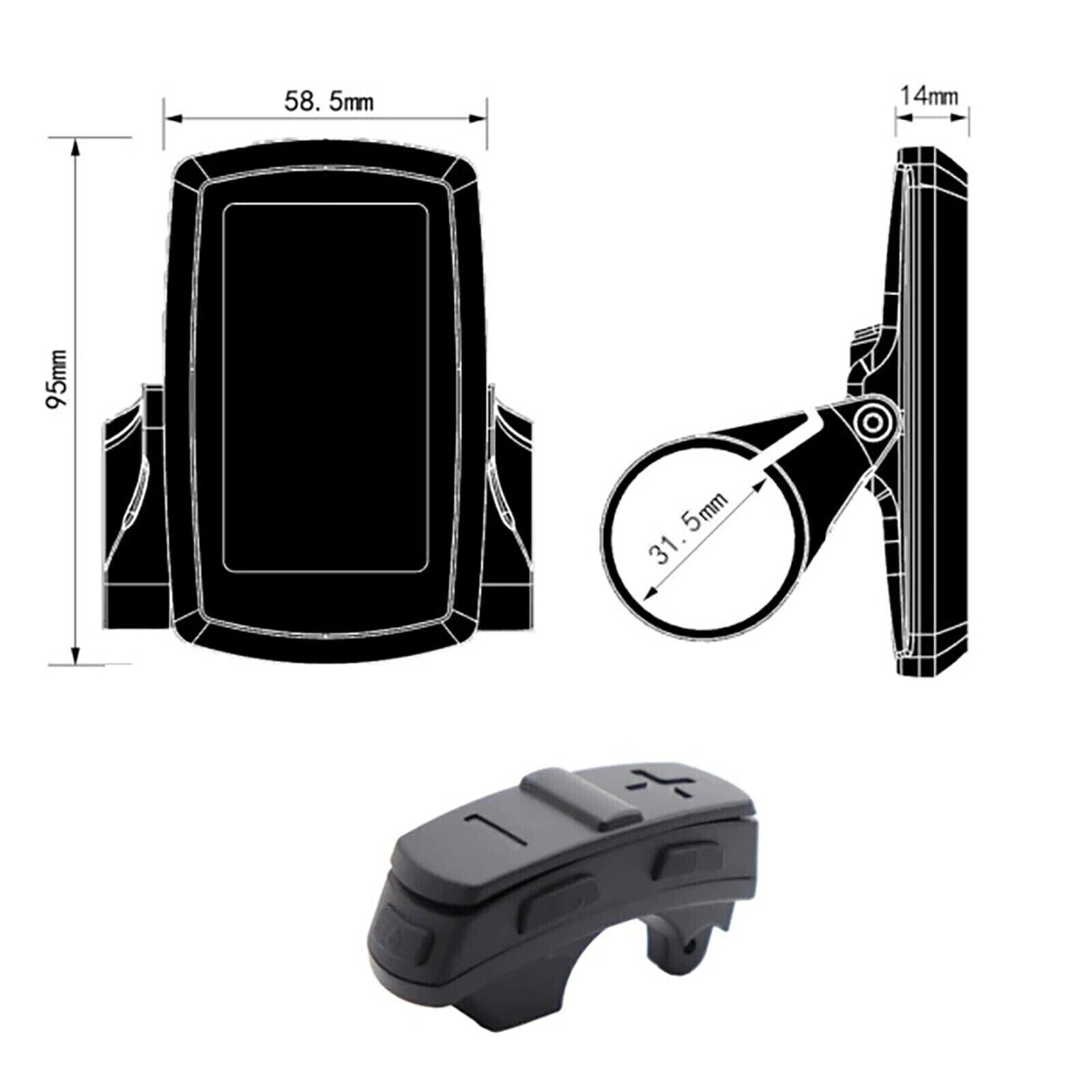

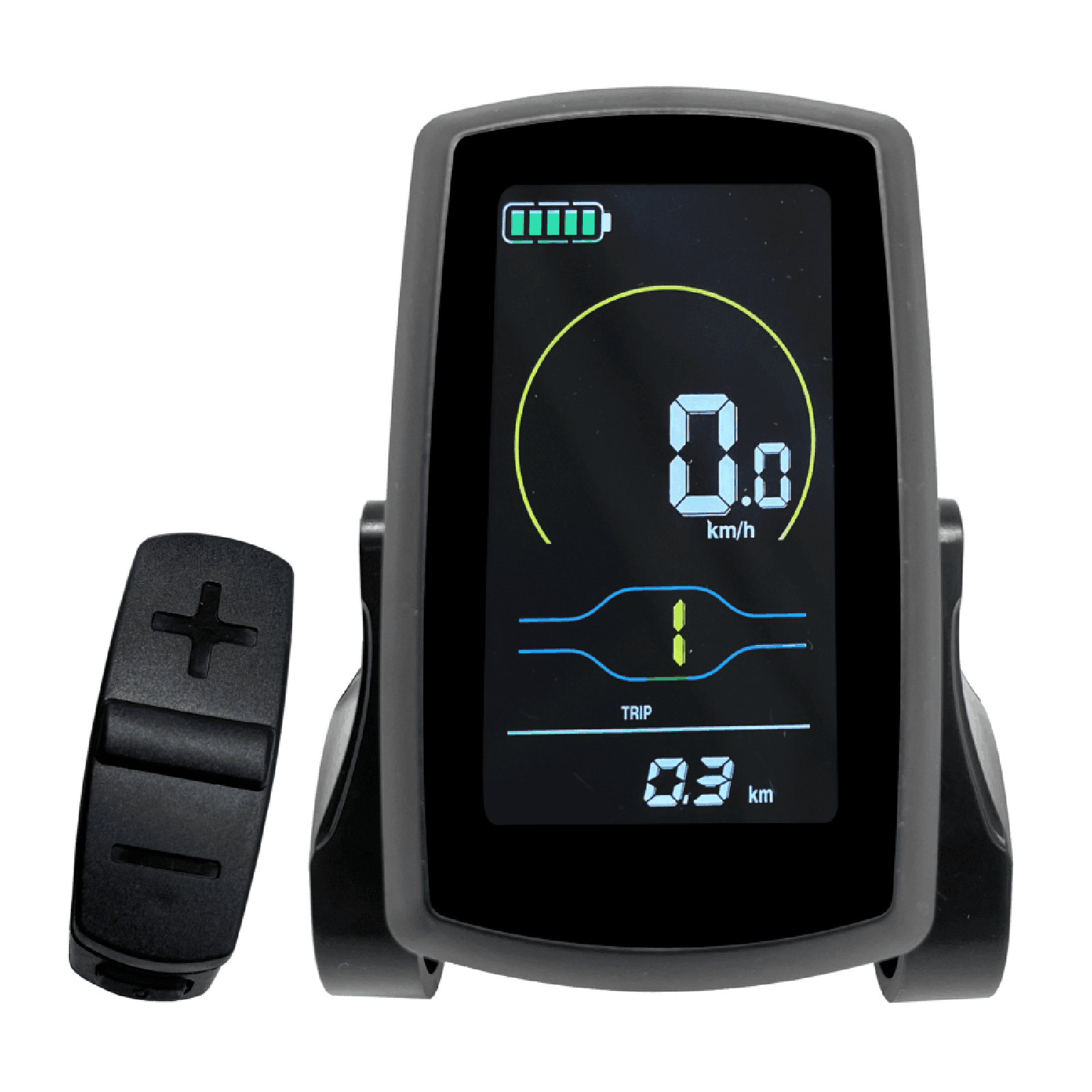

  • Display: Intelligent Colorful LCD Panel Display
  • Controller: Intelligent Motor Controller, the Current is 22±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

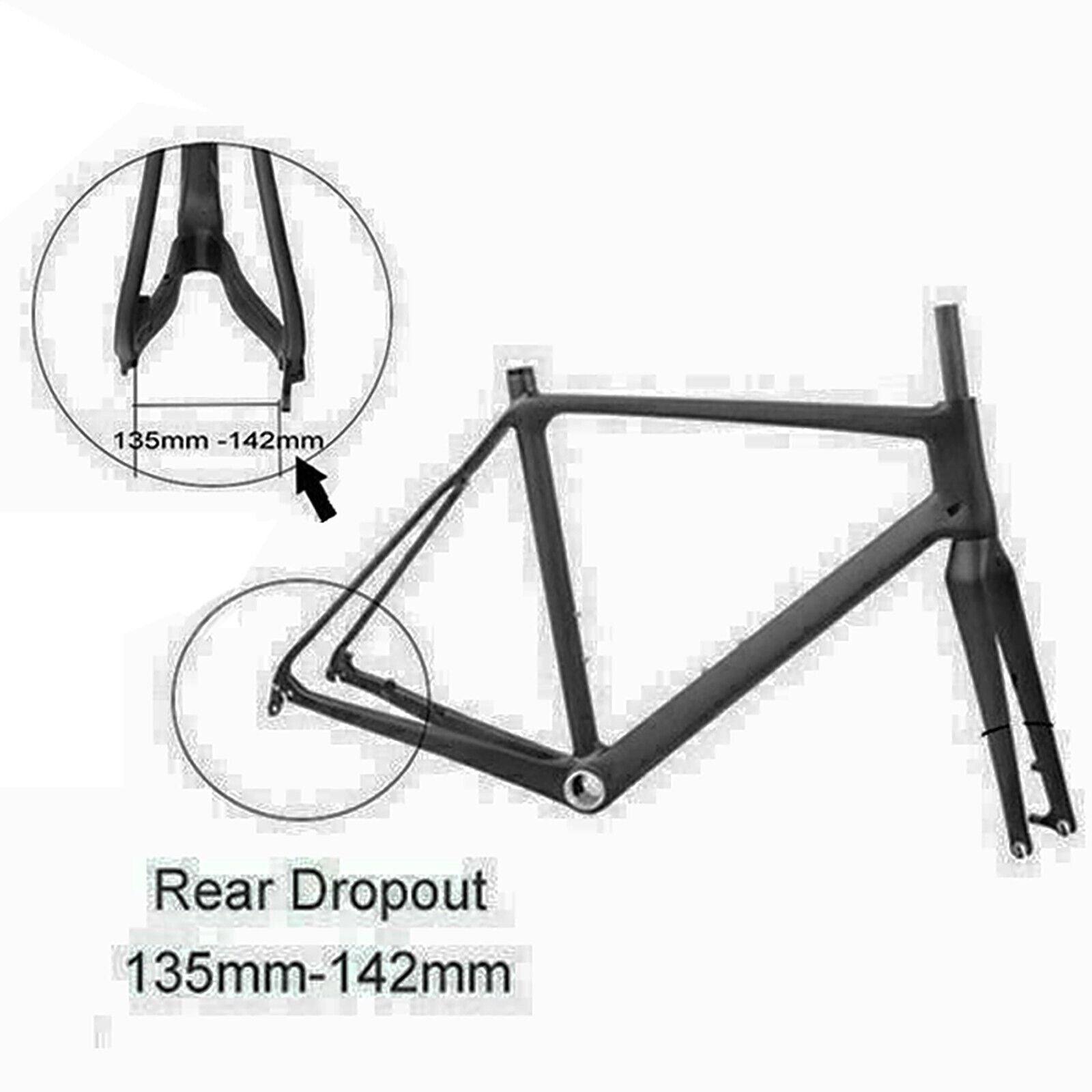

  • Rear Fork Width Requirement:135 - 142mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

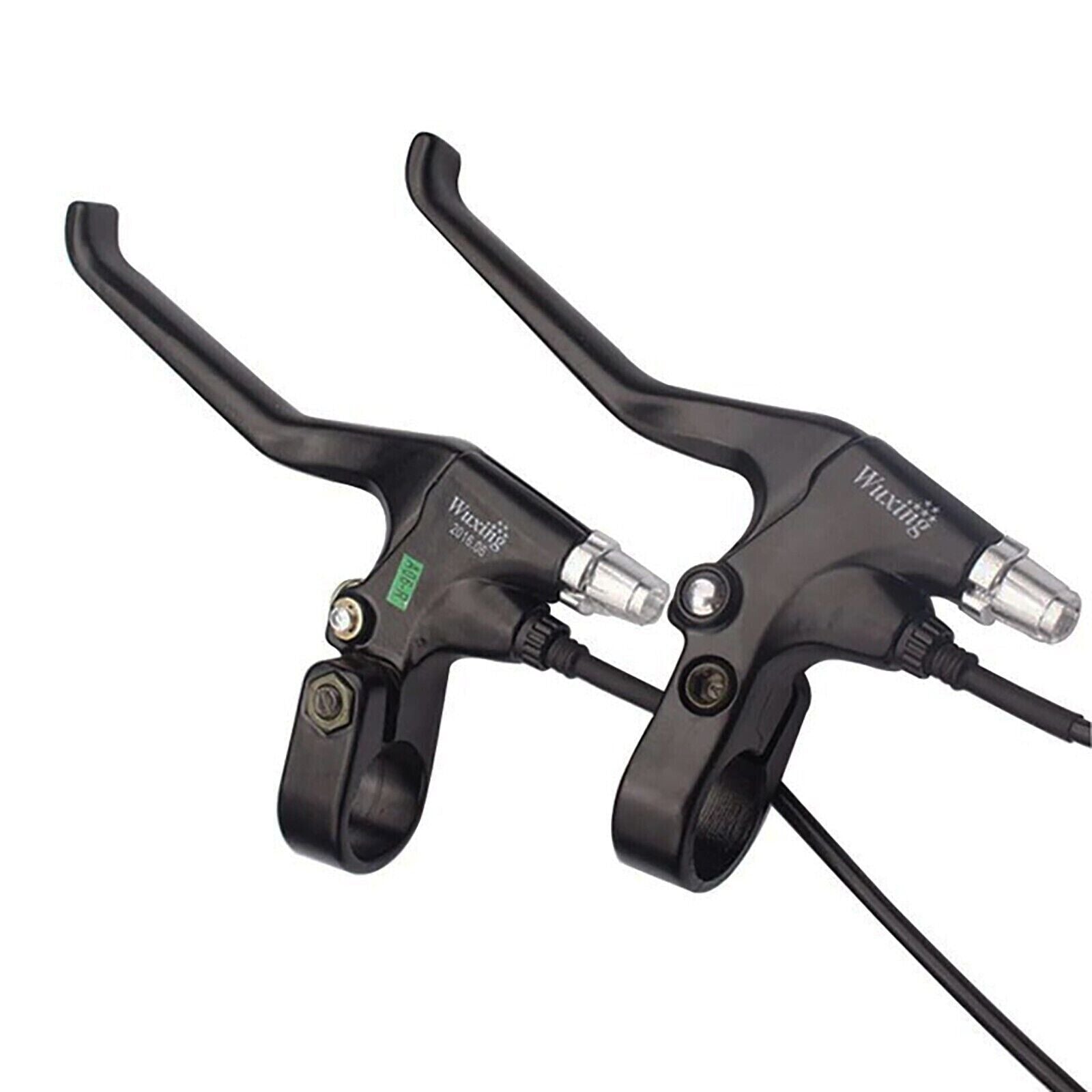

  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

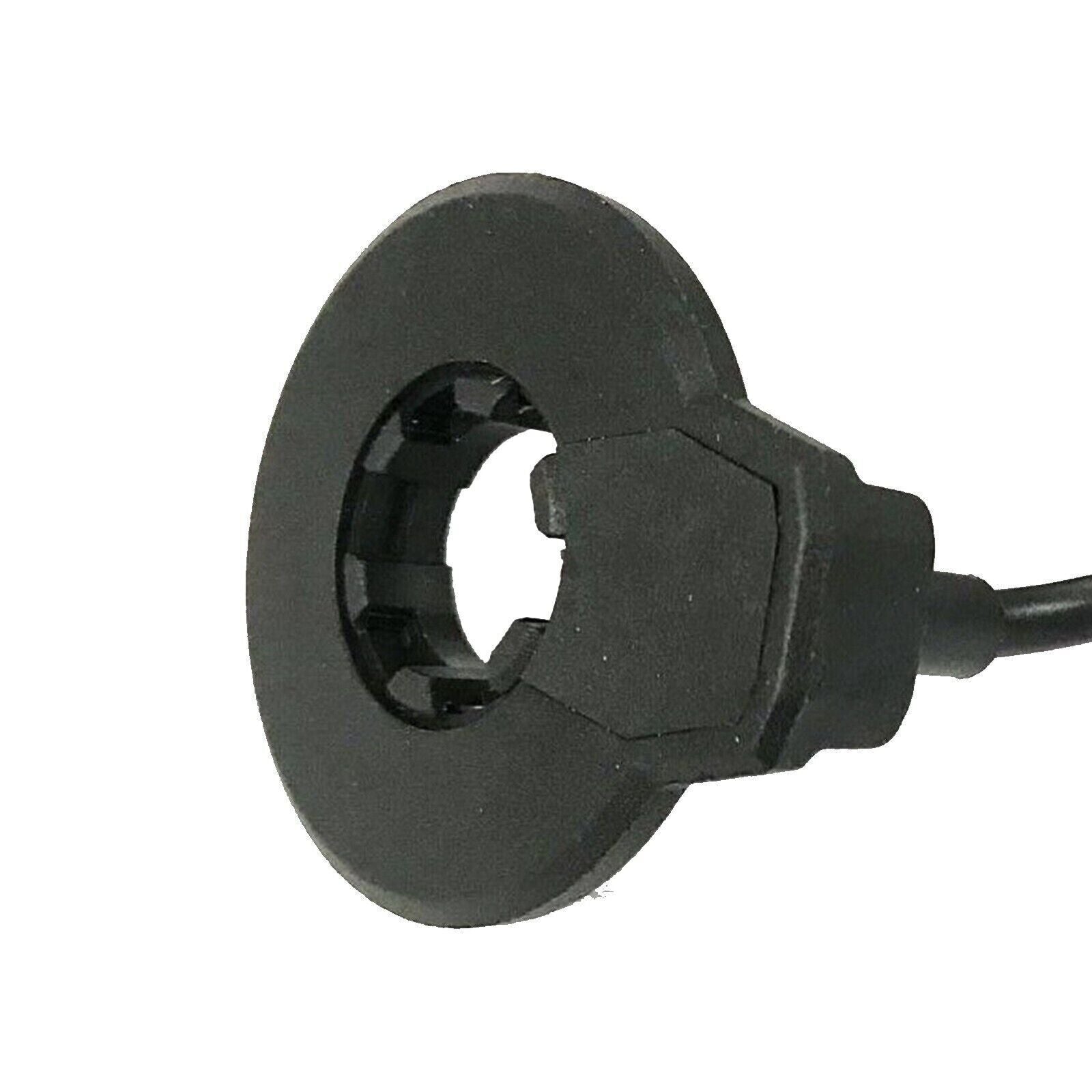

  • PAS Sensor: 12 Magnets Pedal Assist Sensor

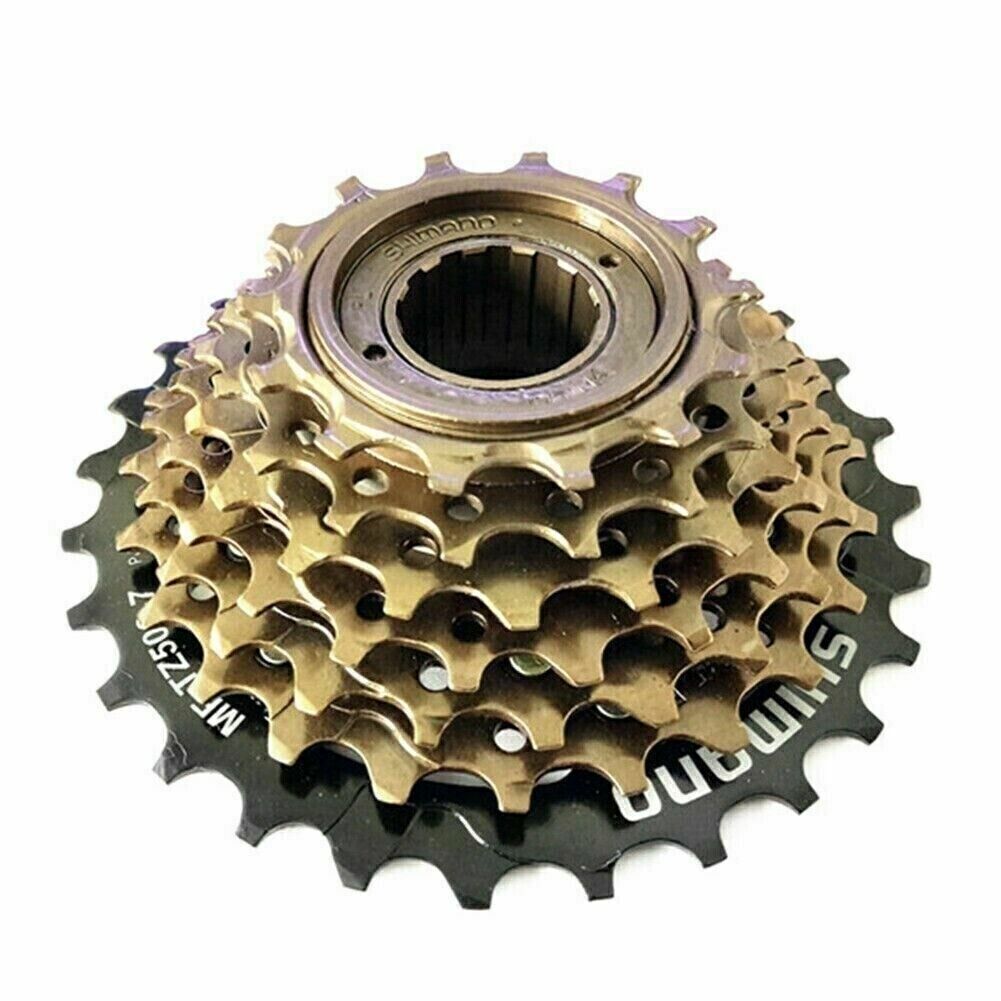

  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
  • 12 Months Replacement Warranty on the Motor & Battery

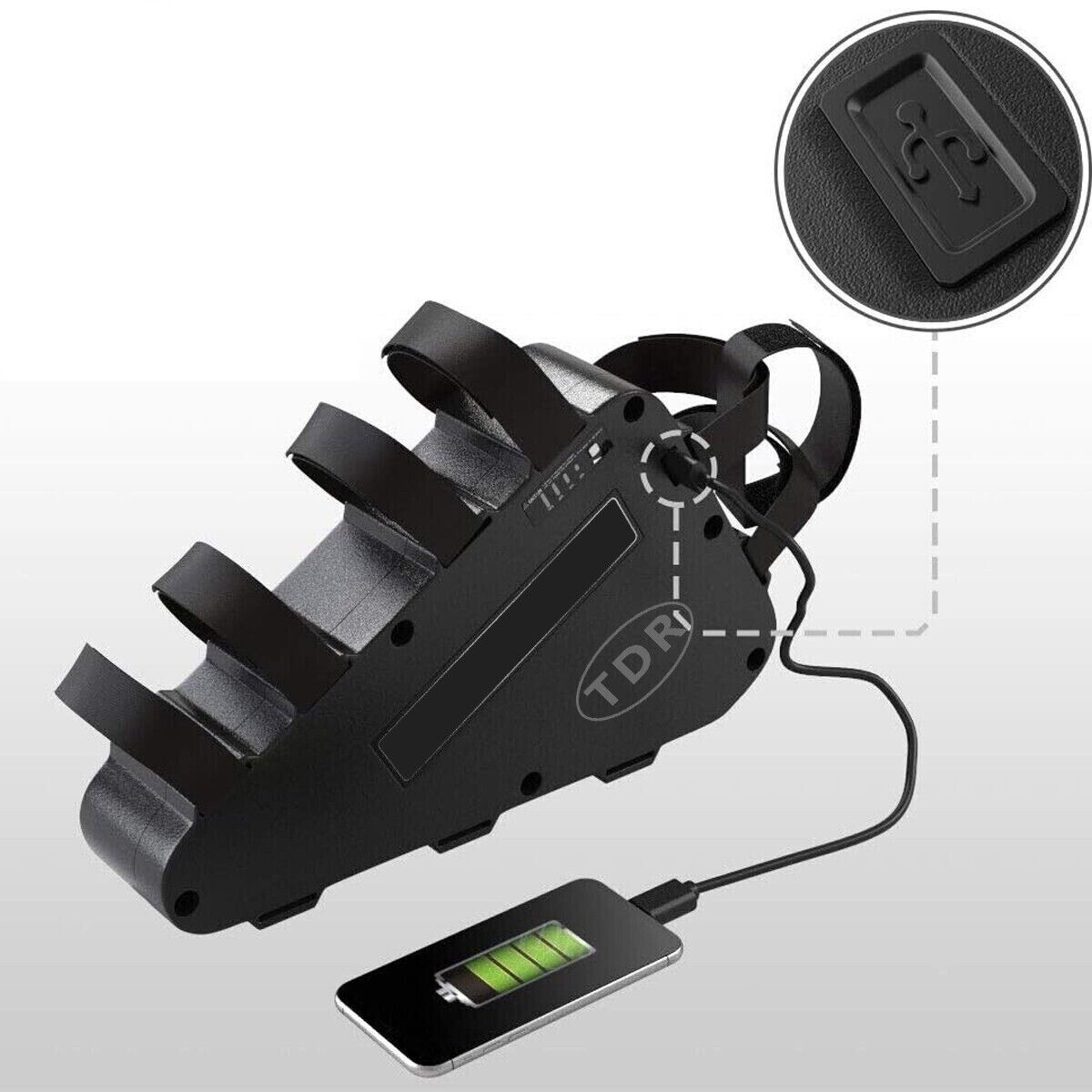

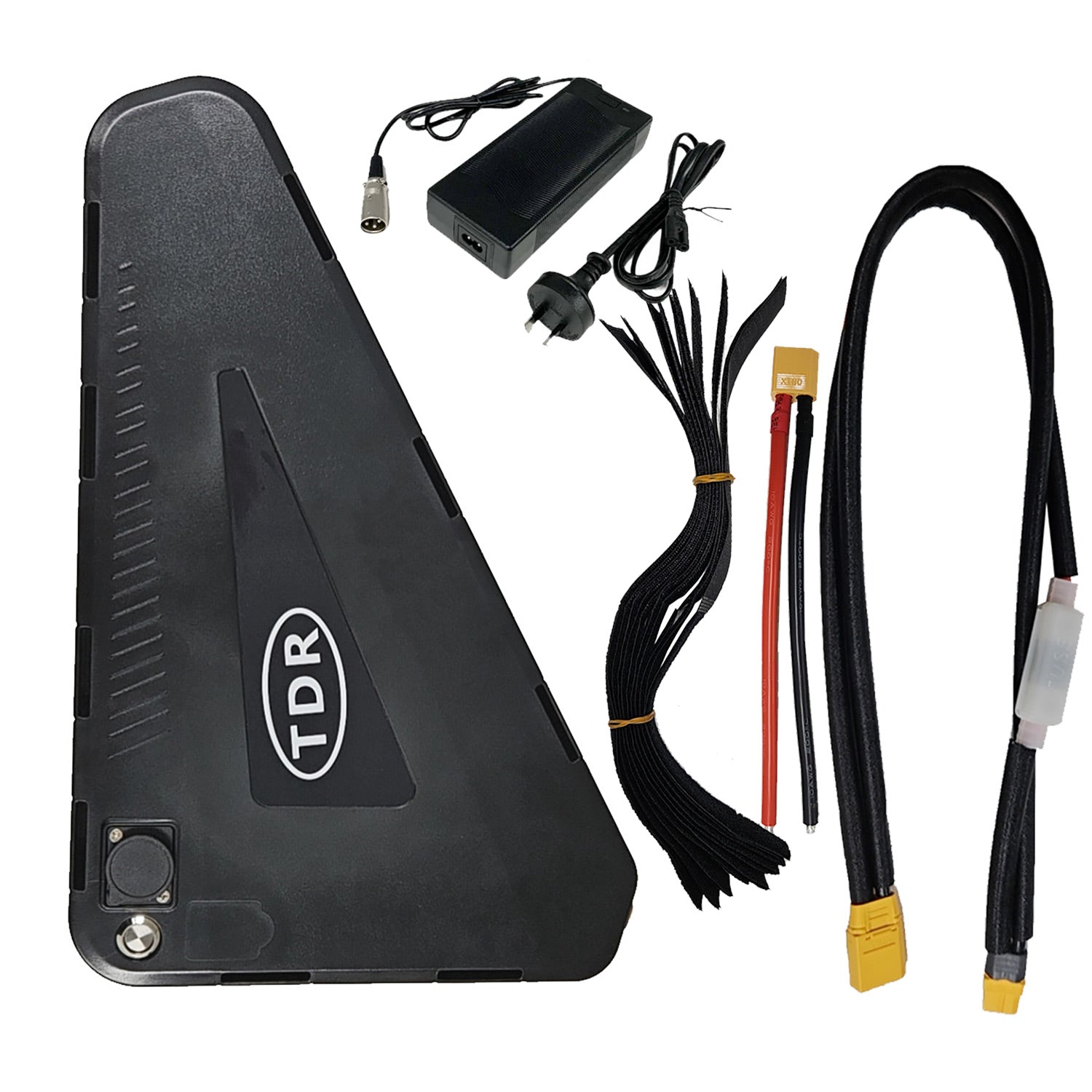

  • 48V 20AH Triangle Battery
  • Riding Range: Up to 80 km range with Pedal Assist Mode

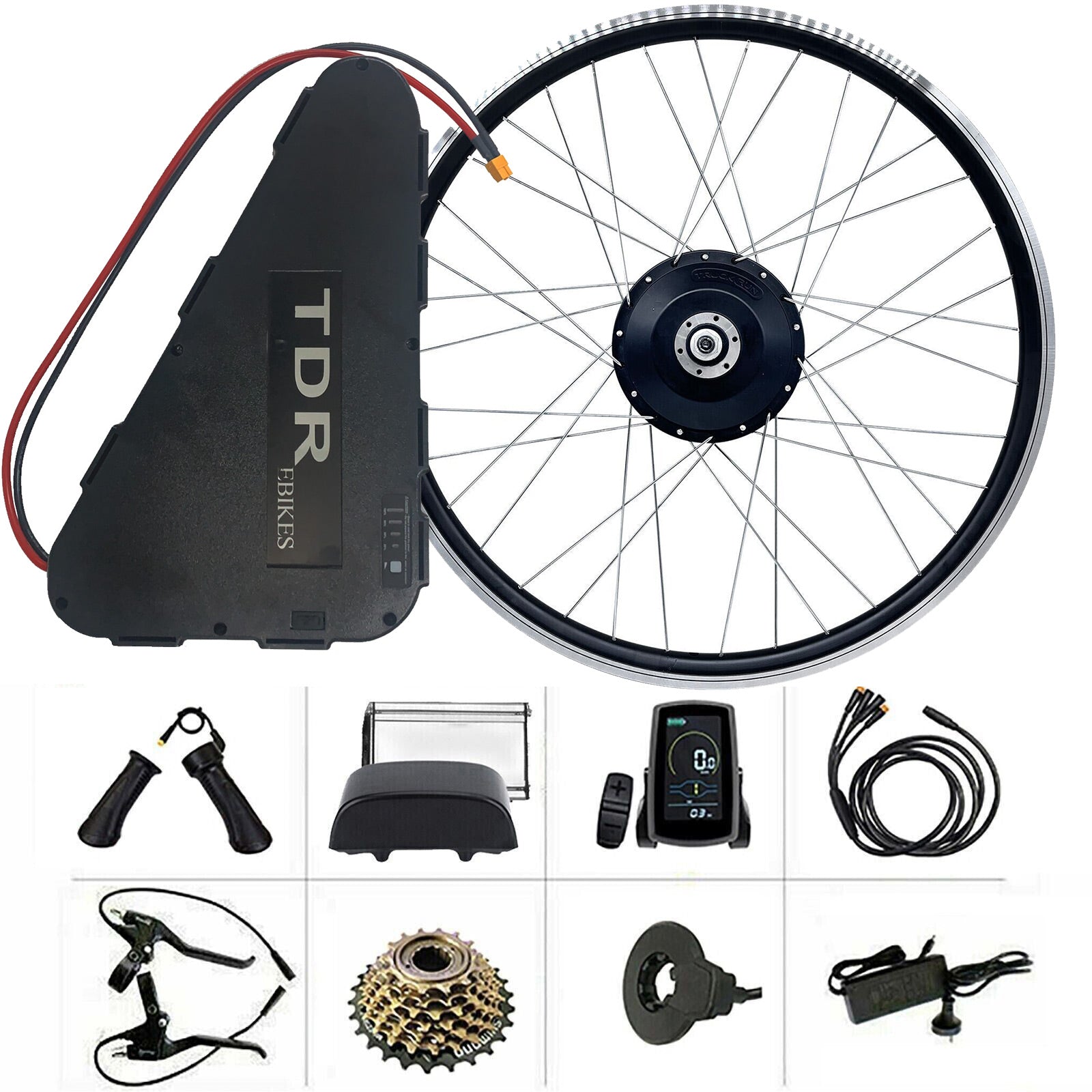

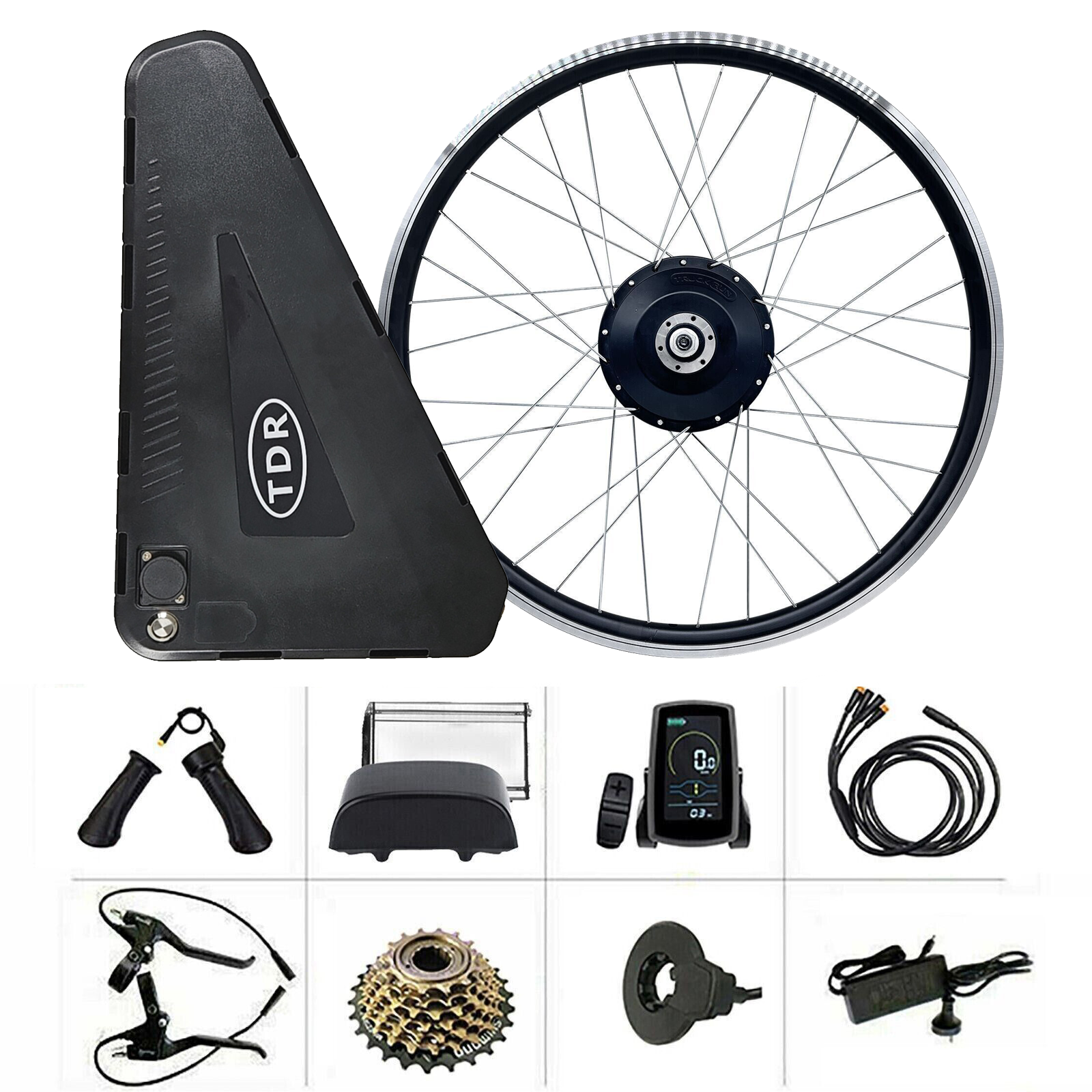

Package Include :

  • 1x 48V 750W Rear Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers

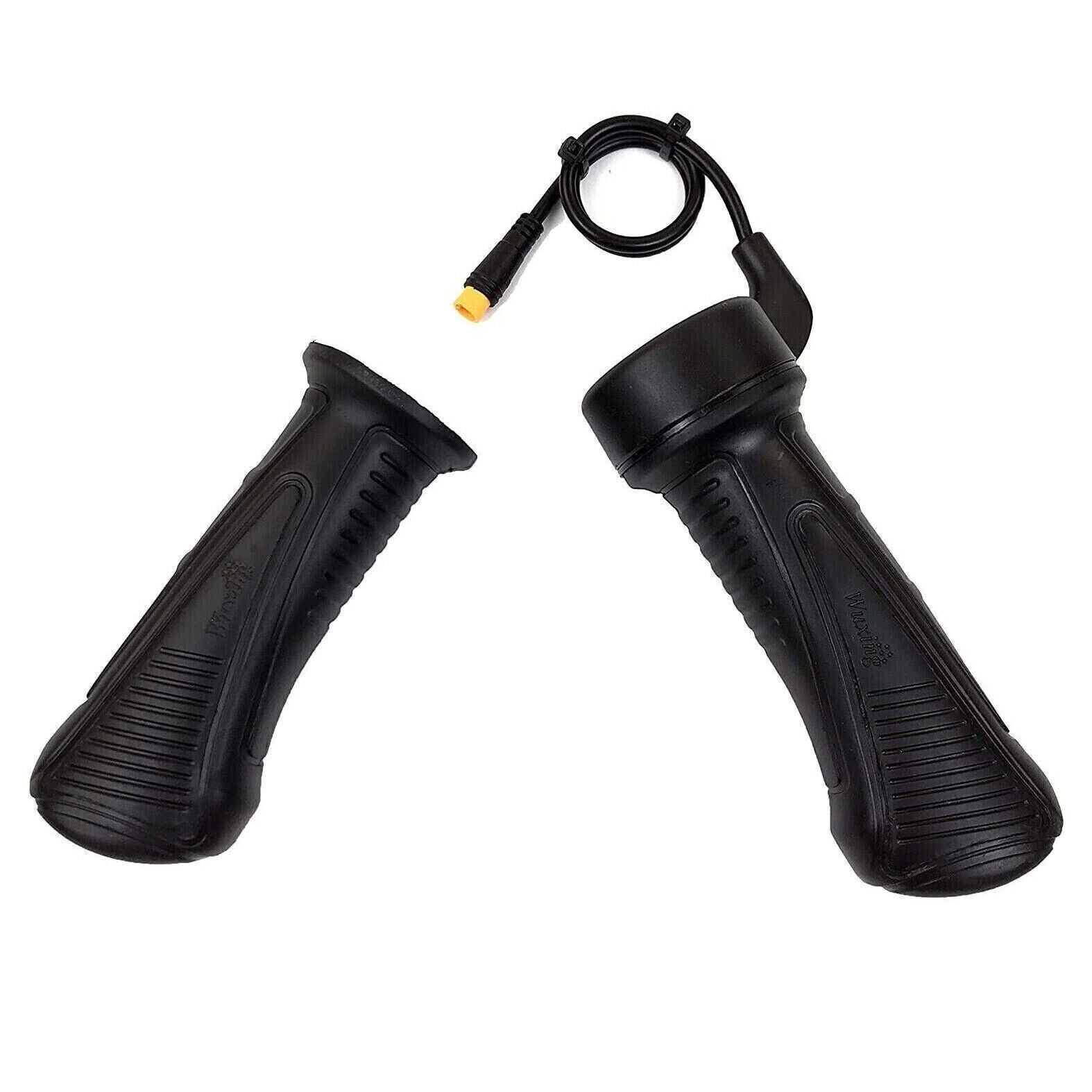

  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 6 or 7 Speed Freewheel
  • 1 x 48V 20AH Triangle Battery

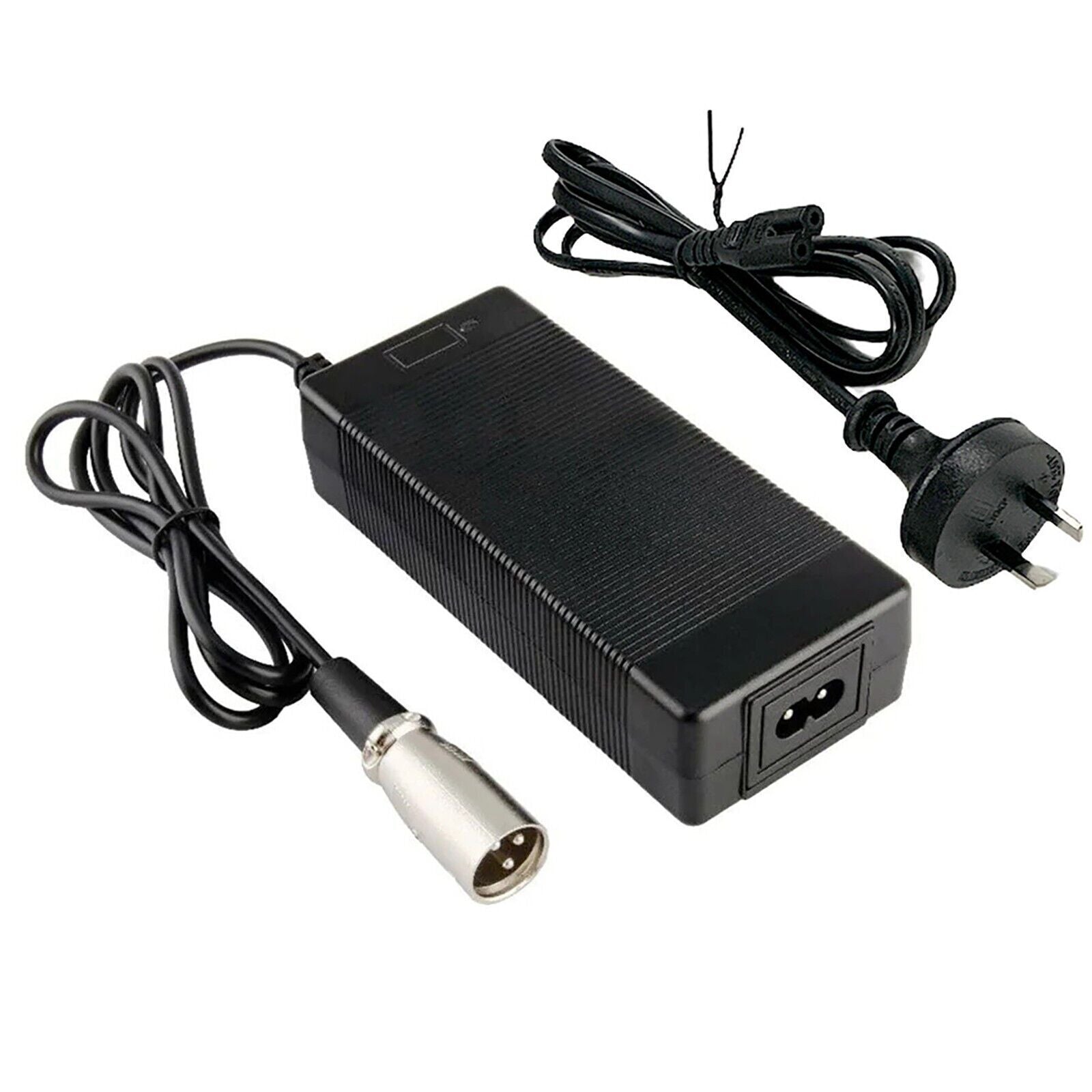

  • 1 x Charger Set

Important Notes

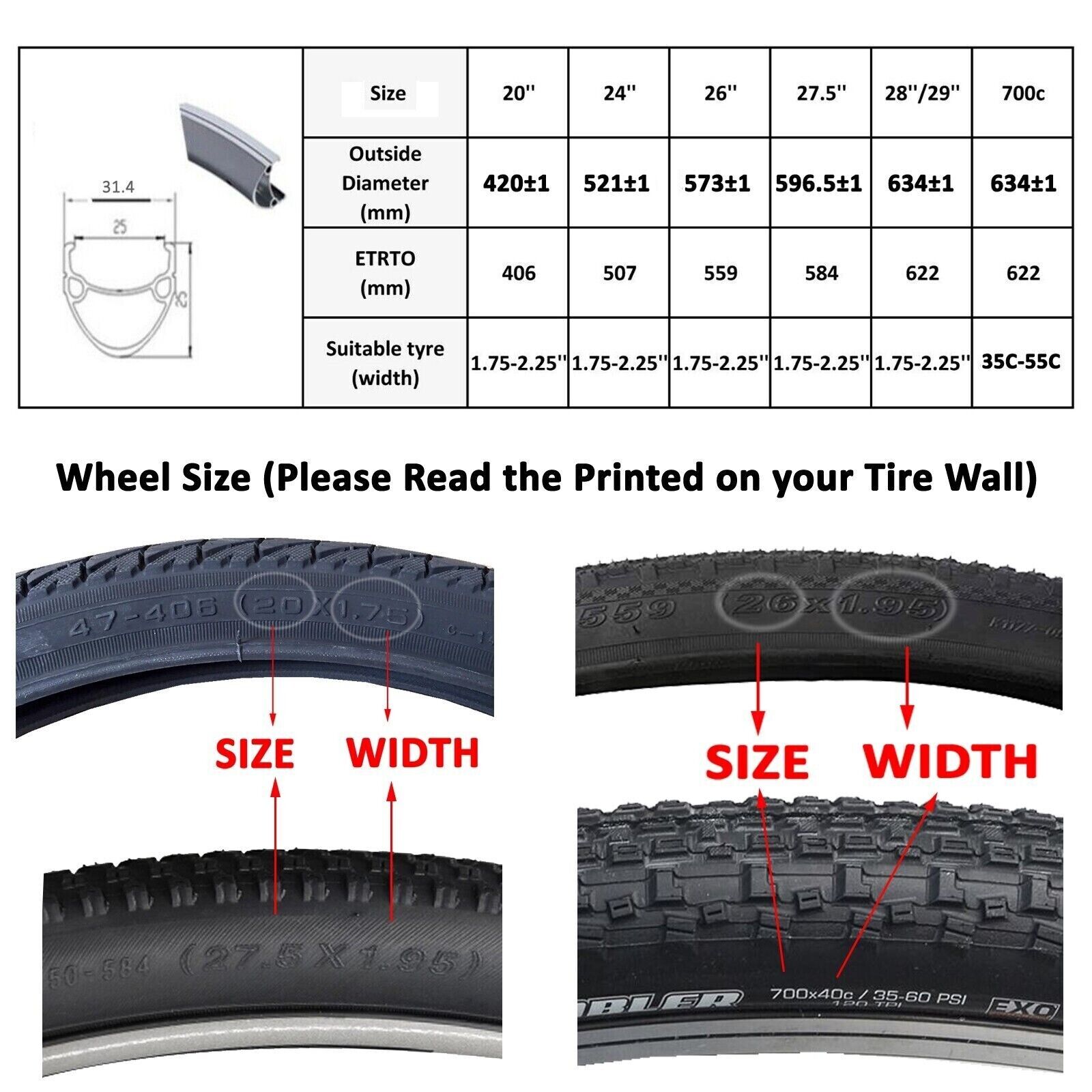

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
  • Please check the size of the battery and frame size before purchasing to make sure the Triangle Battery can be fitted into your bike frame.

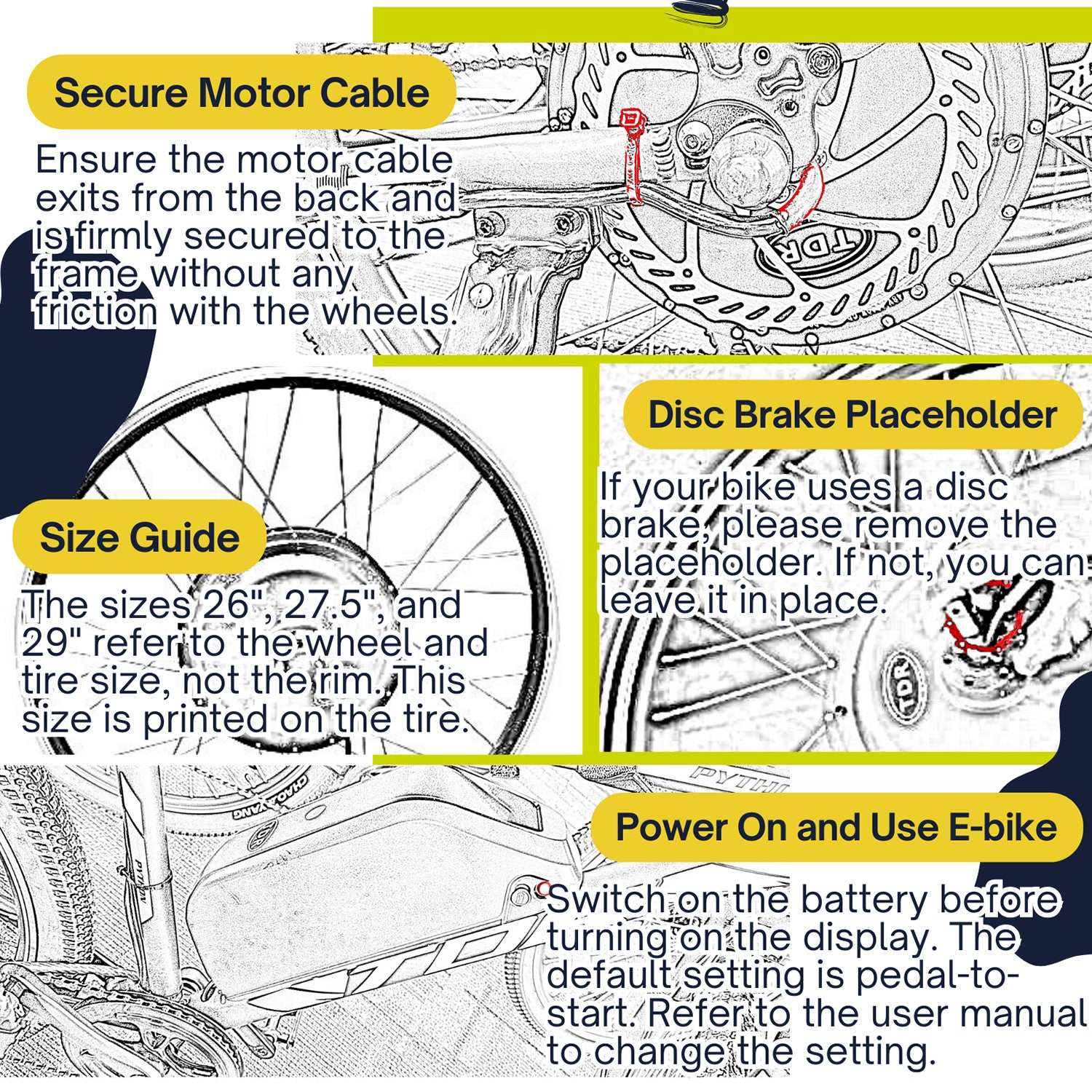

  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
