750W 700C 28" 29" Rear Hub 48V 15Ah Battery Electric Bike Conversion Kit
750W 700C 28" 29" Rear Hub 48V 15Ah Battery Electric Bike Conversion Kit
SKU:
- For 700C wheel with a width between 700*35C to 700*55C, 28 Inch wheel with a width between 1.75 to 2.25 Inch, 29 Inch wheel with a width between 1.75 to 2.25 Inch
- Rim Motor: 48V 750W Brushless Gear Hub Motor
- Torque: 55 N.M

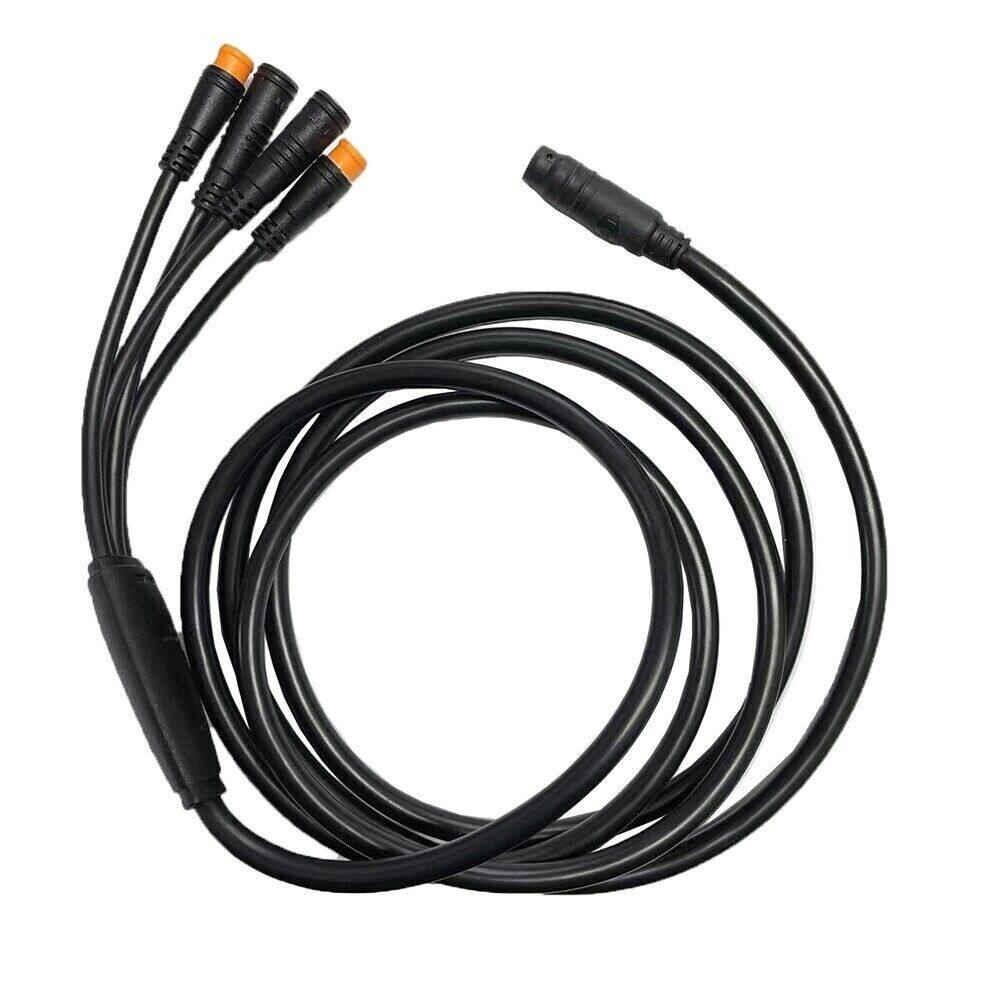

- Wiring Method: Waterproof Wire Connection System
- Maximum Speed: 50 km/h

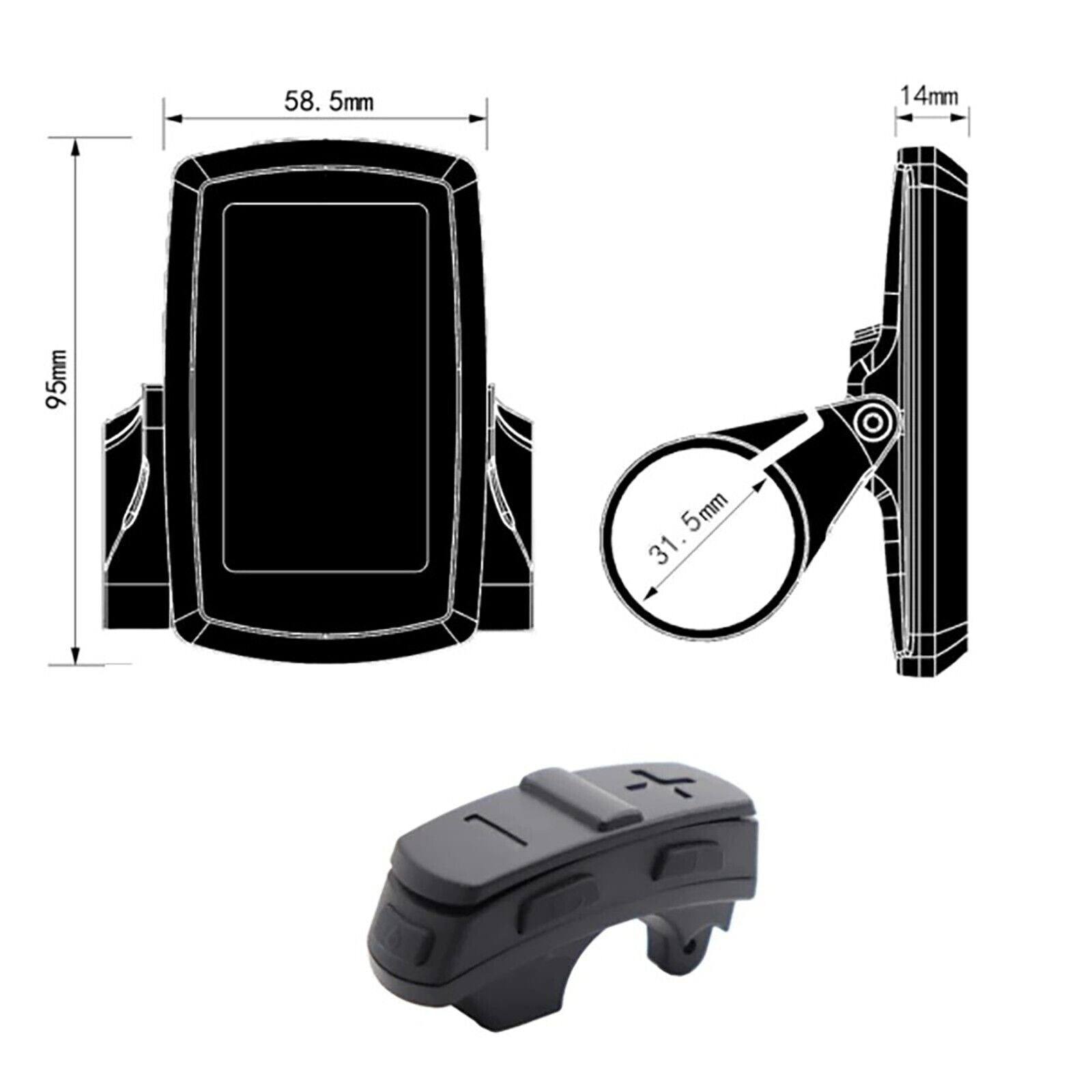

- Display: Intelligent Colorful LCD Panel Display
- Controller: Intelligent Motor Controller, the Current is 22±1A
- Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

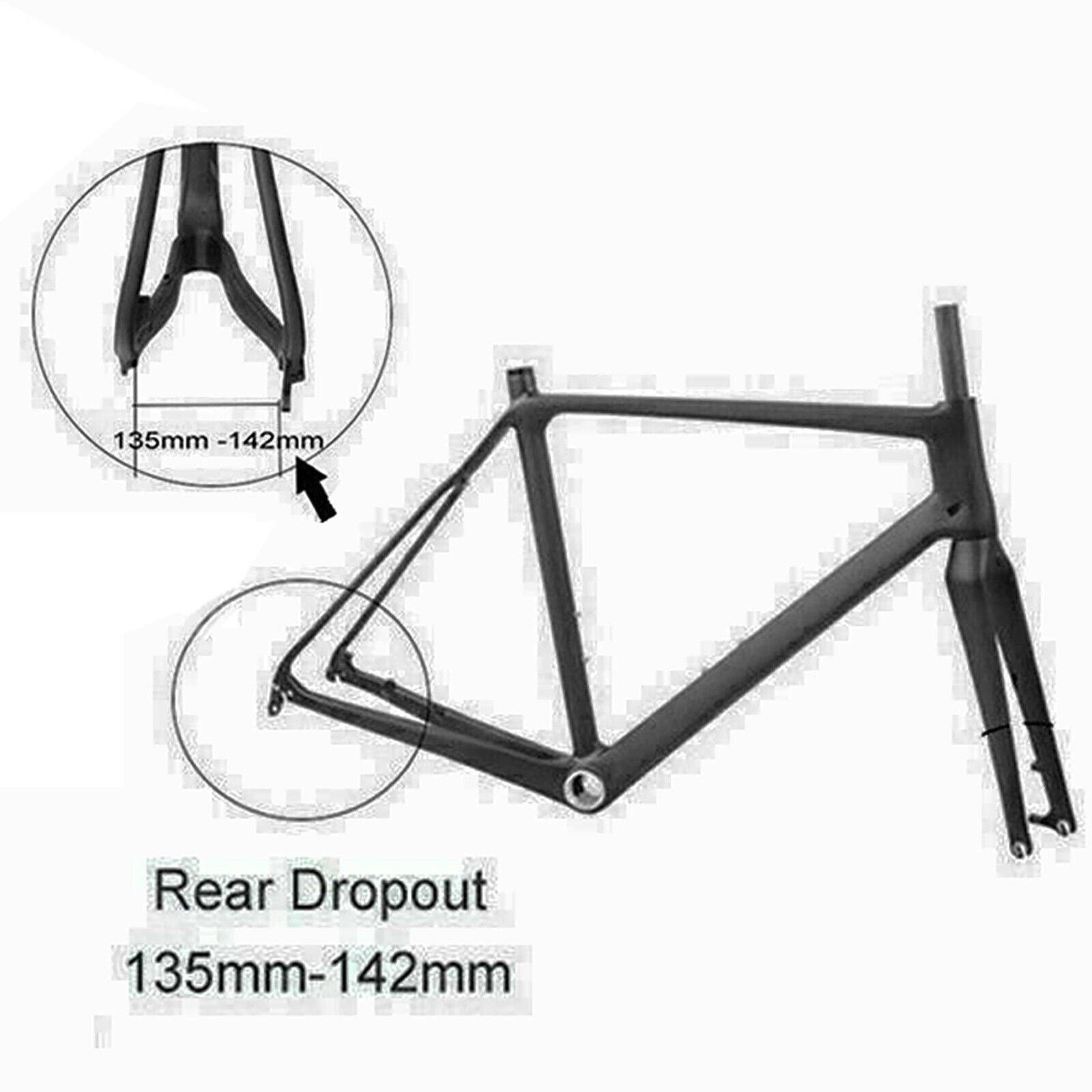

- Rear Fork Width Requirement:135 - 142mm
- Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

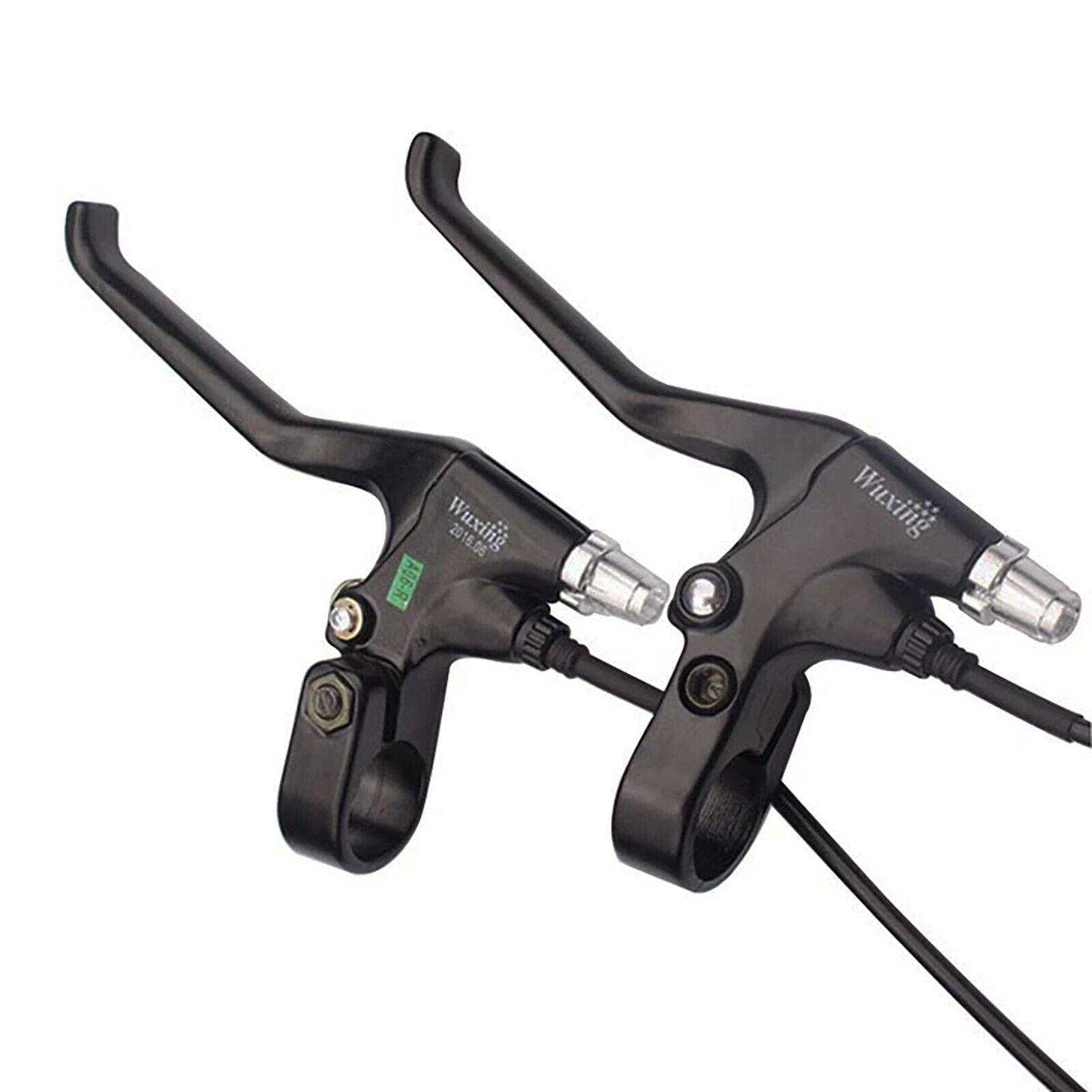

- Brake levers: Aluminum Alloy Wuxing E-brake Lever

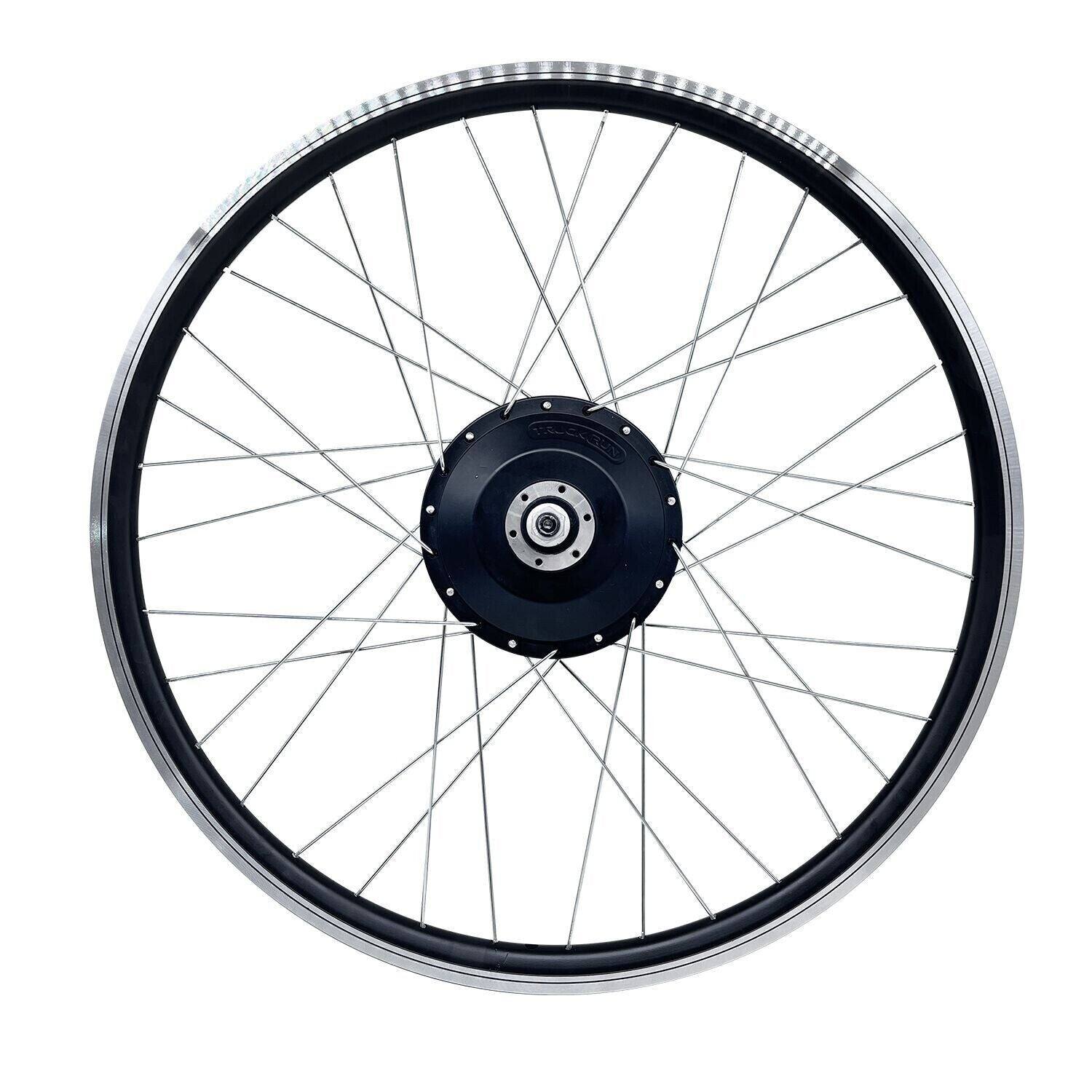

- Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

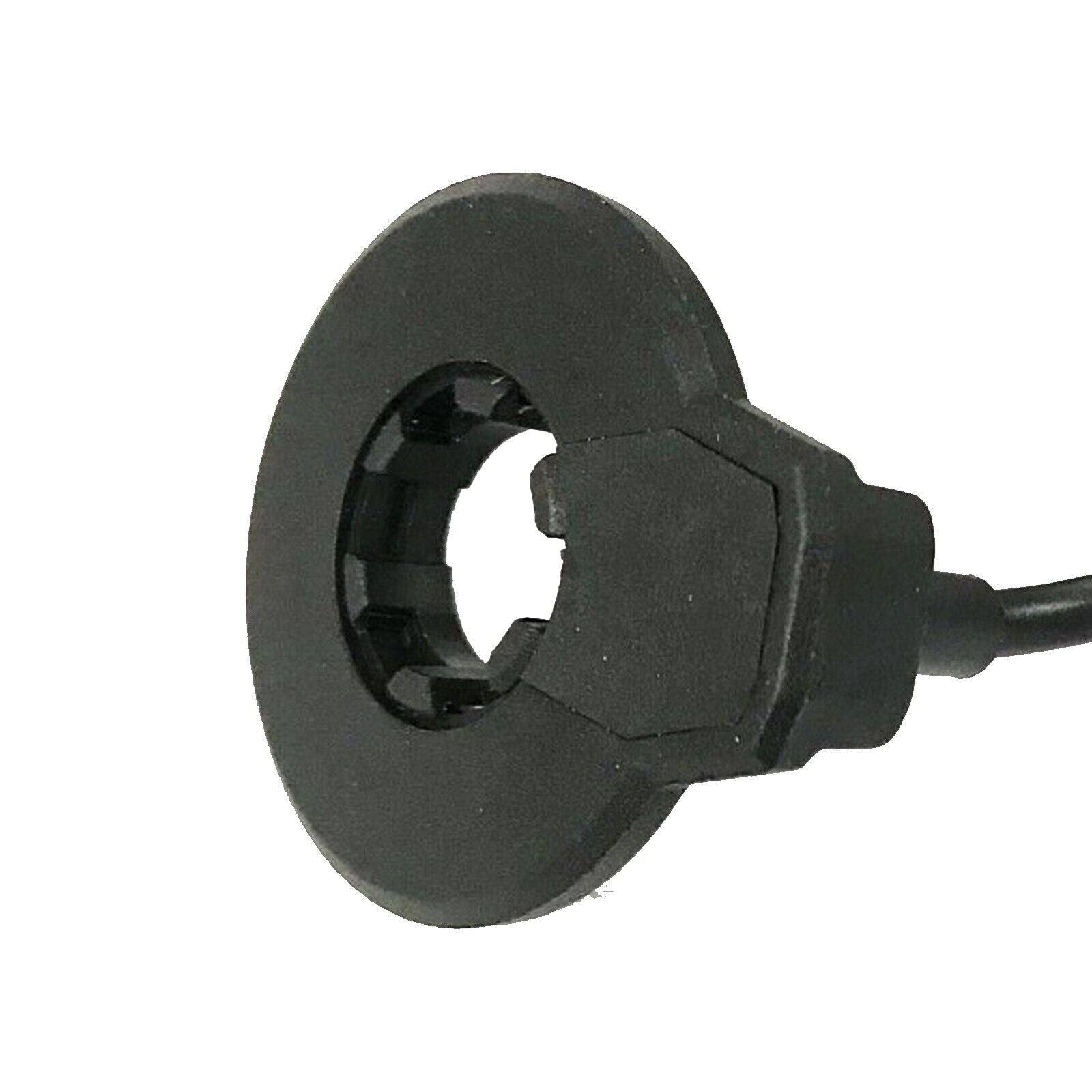

- PAS Sensor: 12 Magnets Pedal Assist Sensor
- Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
- 12 Months Replacement Warranty on the Motor & Battery

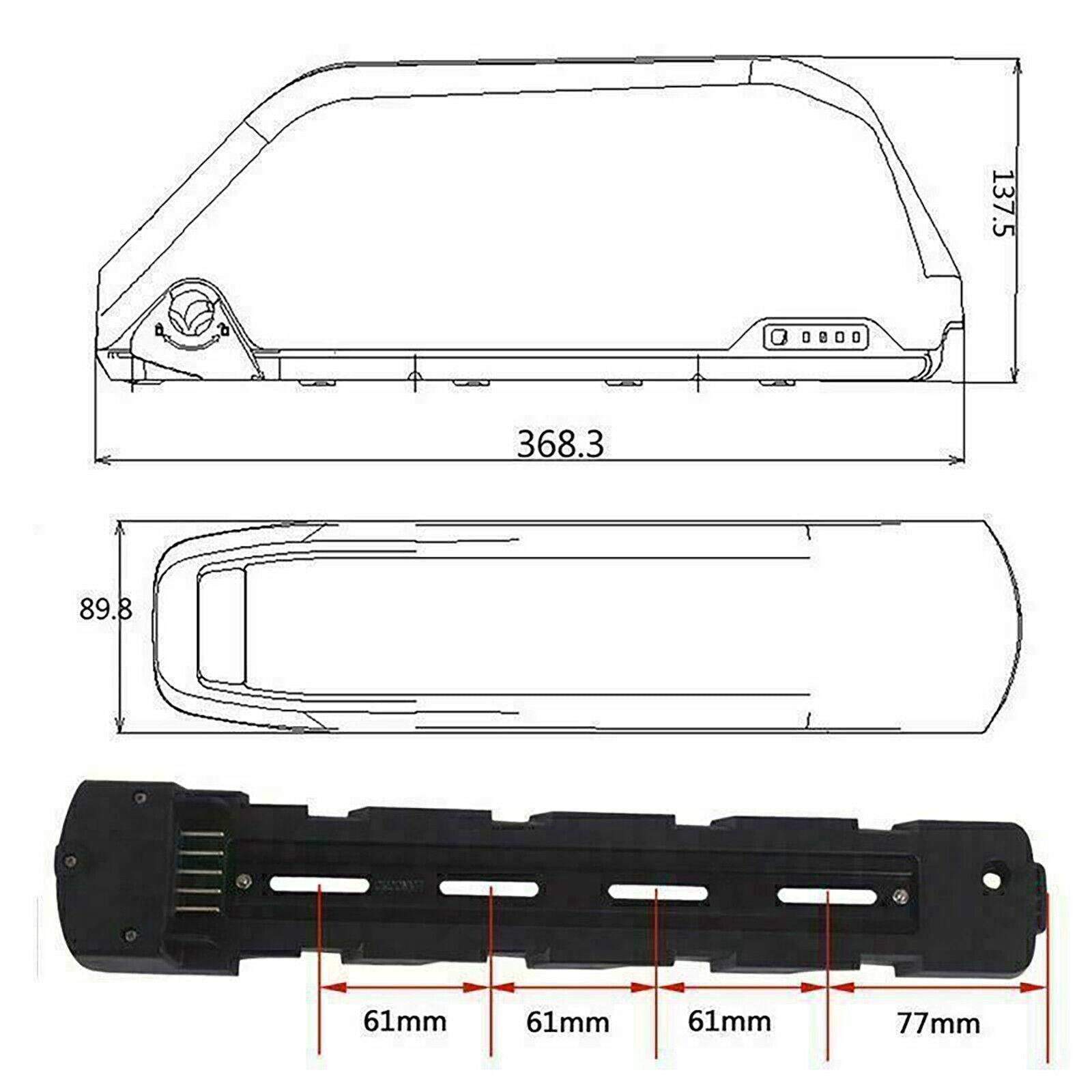

- 48V 15AH Downtube Battery with Bottom Mount
- Riding Range: Up to 60 km range with Pedal Assist Mode
Package Include :
- 1x 48V 750W Rear Rim Motor

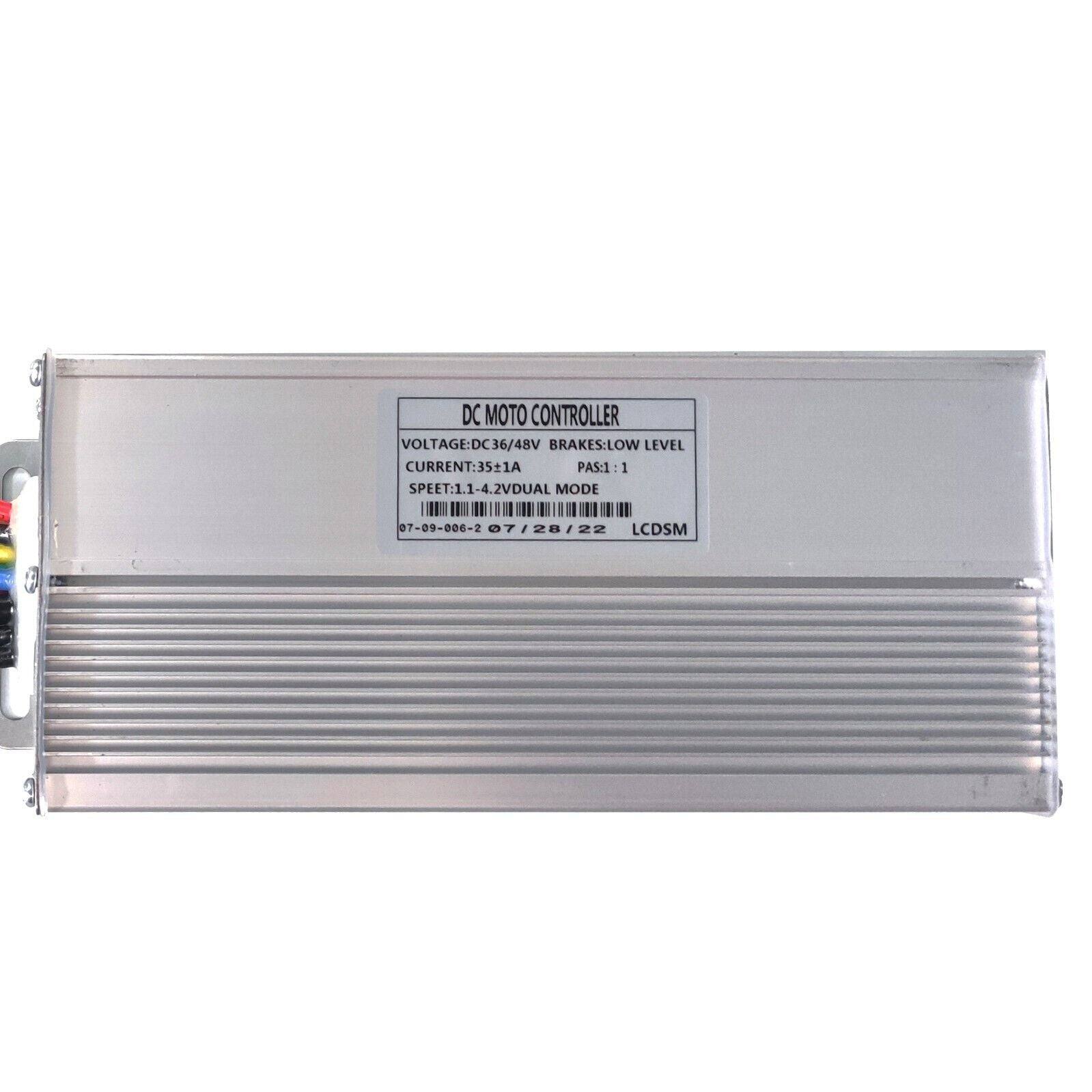

- 1x Intelligent Motor Controller
- 1x Controller Box

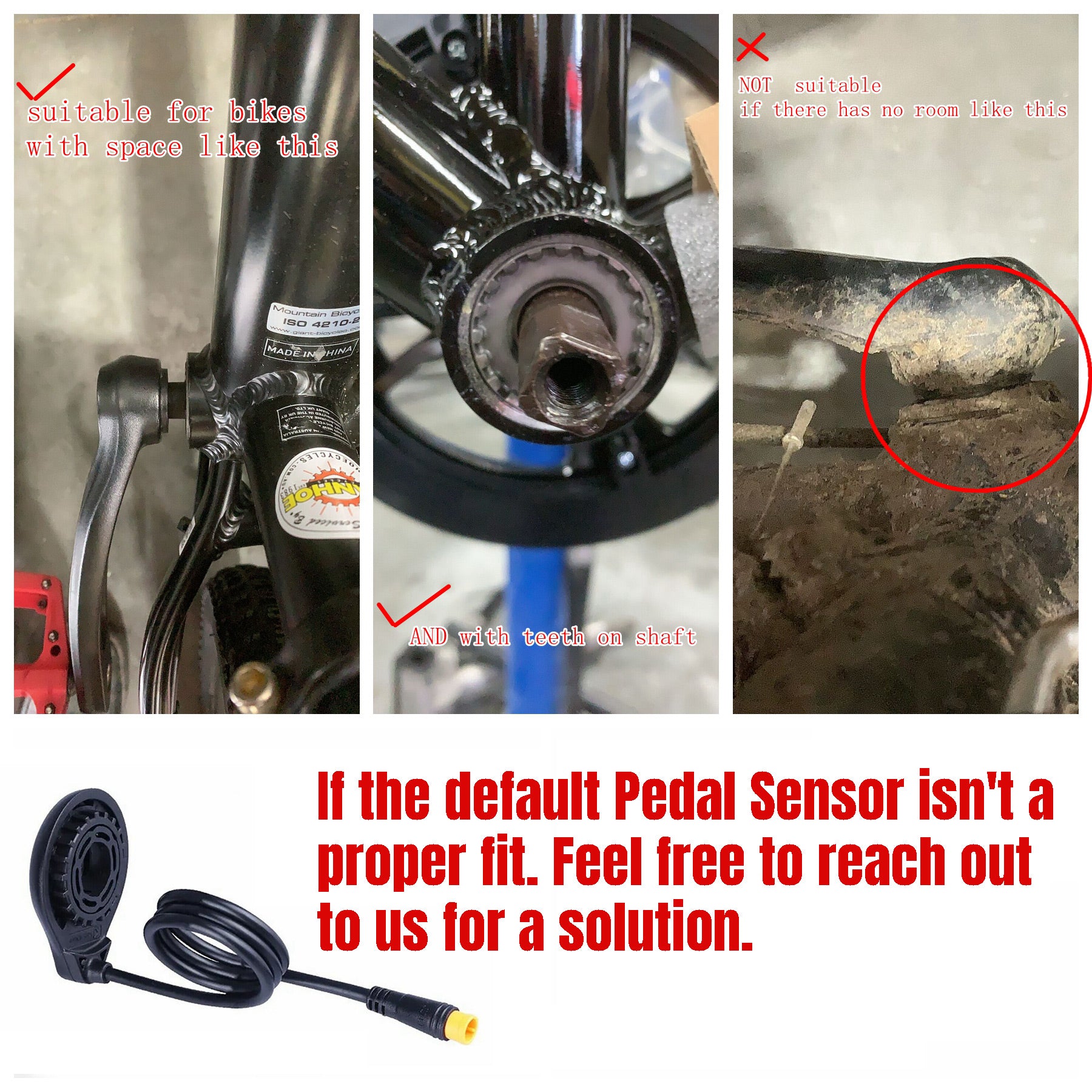

- 1x Pedal Assist Crank Sensor
- 1x Pair of E-Brake Levers
- 1x Twist Throttle

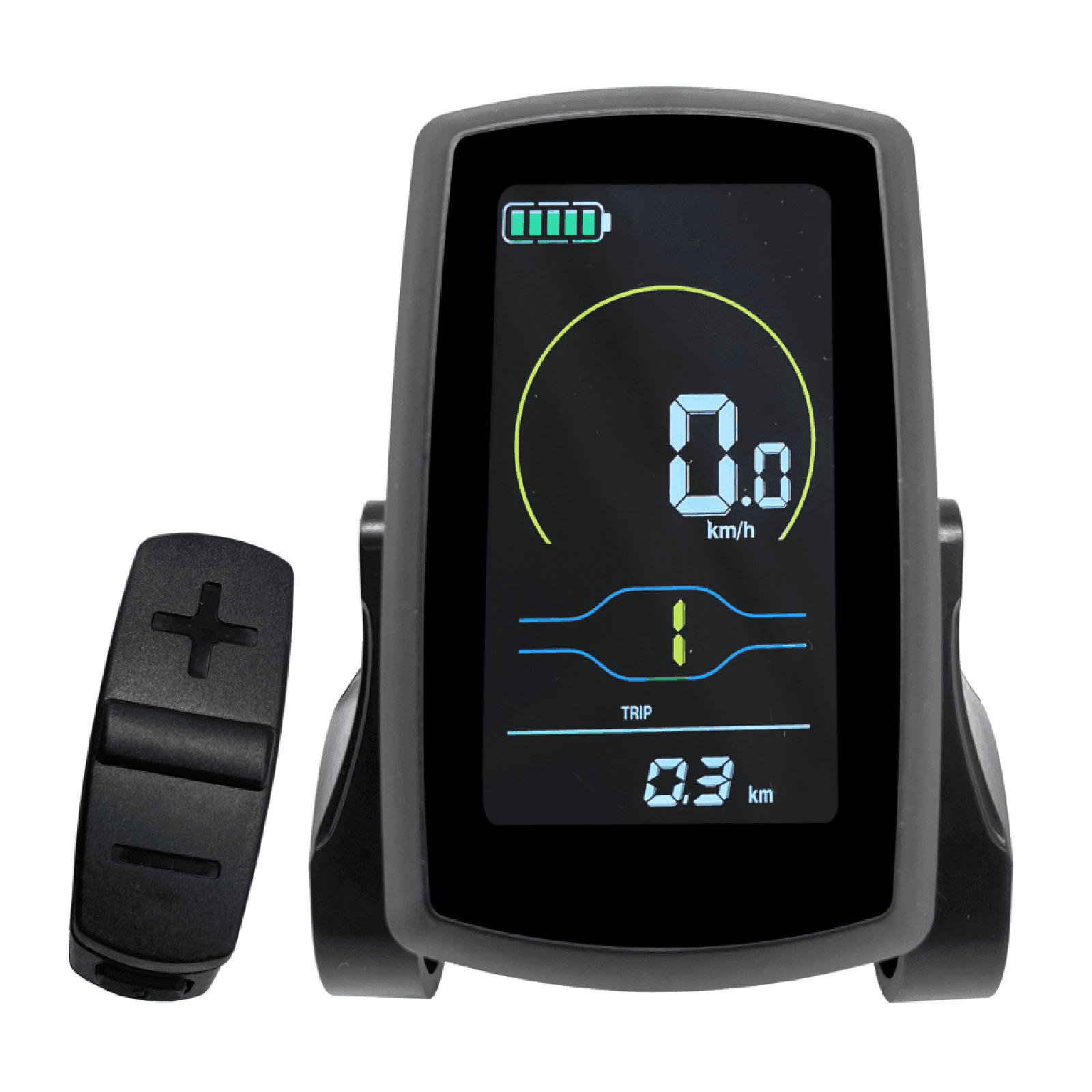

- 1x LCD Display
- 1x Cable Ties Set
- 1x Manual
- 1x 6 or 7 Speed Freewheel
- 1 x 48V 15AH Downtube Battery & Charger Set
Important Notes

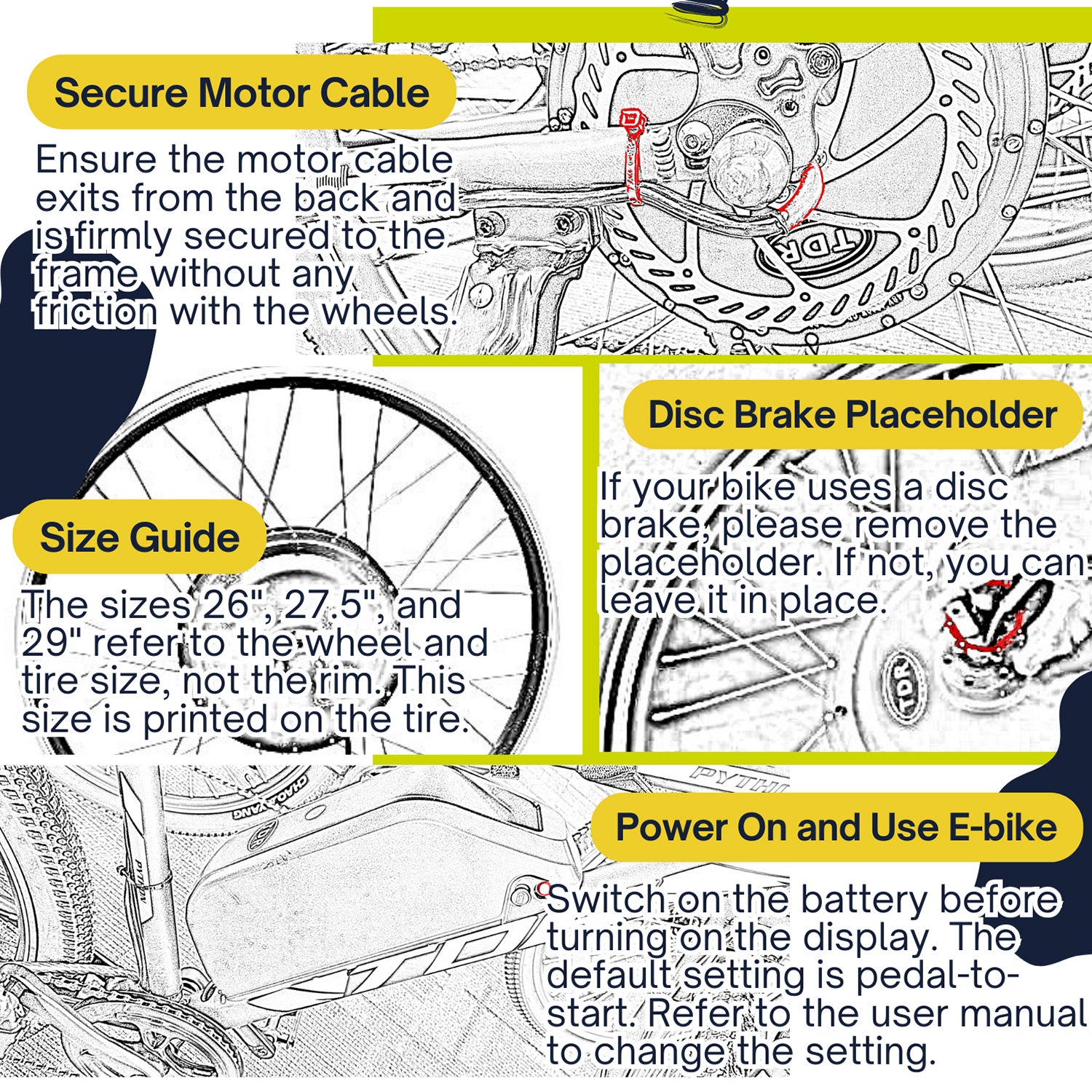

- Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
- Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
- Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
- The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
- Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
- Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
