Electric Bike Rear Conversion Kit 2000W 26" 20Ah FAT TYRE Battery Bicycle EBike

Specifications

• For Fat Bike with 26-inch x 4-inch Wheel

• Rim Motor: 52V 2000W Brushless Direct-Drive Hub Motor

• Wiring Method: Waterproof Wire Connection System

• Maximum Speed: 65 - 69 km/h

• Display: Intelligent Colorful LCD Panel Display

• Controller: Intelligent Motor Controller, the Current is 40A

• Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

• Rear Fork Width Requirement: 170mm

• Disk Brake Only with 6 Holes to Mount the Disc Rotor

• Brake levers: Aluminum Alloy Wuxing E-brake Lever

• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

• PAS Sensor: 12 Magnets Pedal Assist Sensor

• Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
• 52V 20AH Triangle Case Battery (LG Cell)
• 12 Months warranty on the Motor & Battery
• Riding Range: Up to 80 km range with Pedal Assist Mode

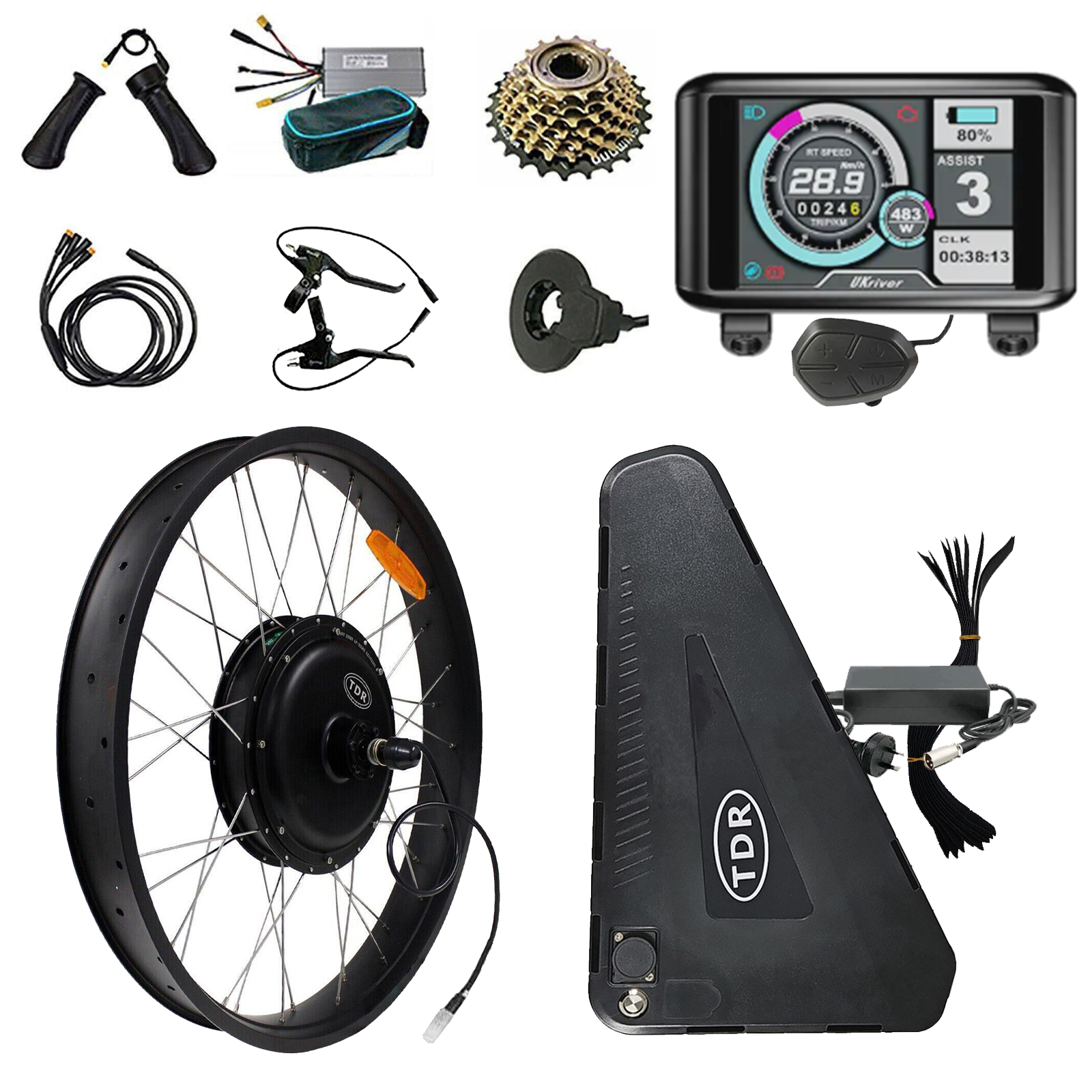

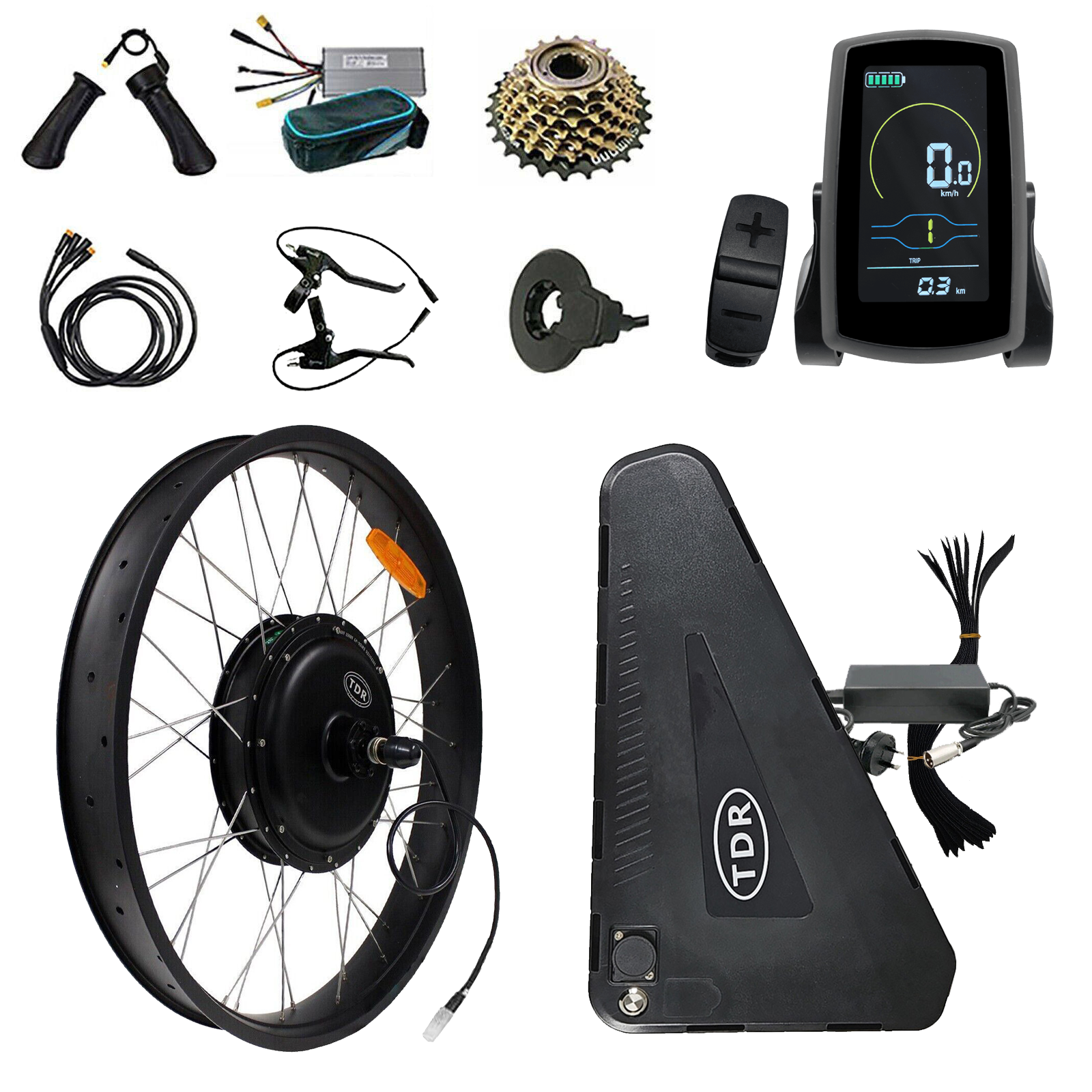

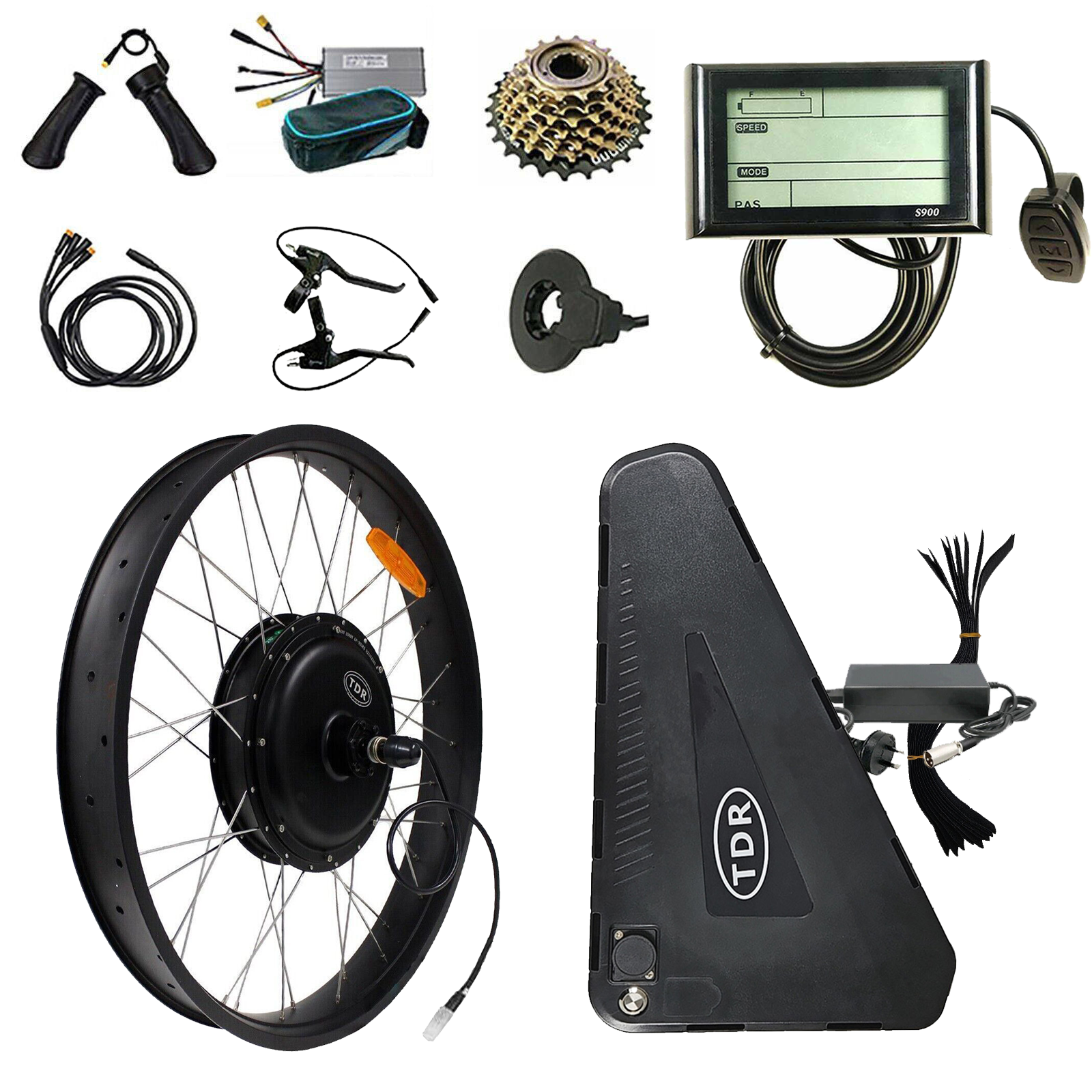

Package Include :

• 1 x 52V 2000W Rear Rim Motor

• 1 x Intelligent Motor Controller

• 1 x Controller Bag

• 1 x Pedal Assist Crank Sensor

• 1 x Pair of E-Brake Levers

• 1 x Twist Throttle

• 1 x LCD Display

• 1 x Cable Ties Set

• 1 x Manual

• 1 x 7 Speed Freewheel
• 1 x 52V 20AH Battery & Charger Set

Important Notes

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
• Please check your rear fork width (170mm) to make the motor hub can be fitted into it.

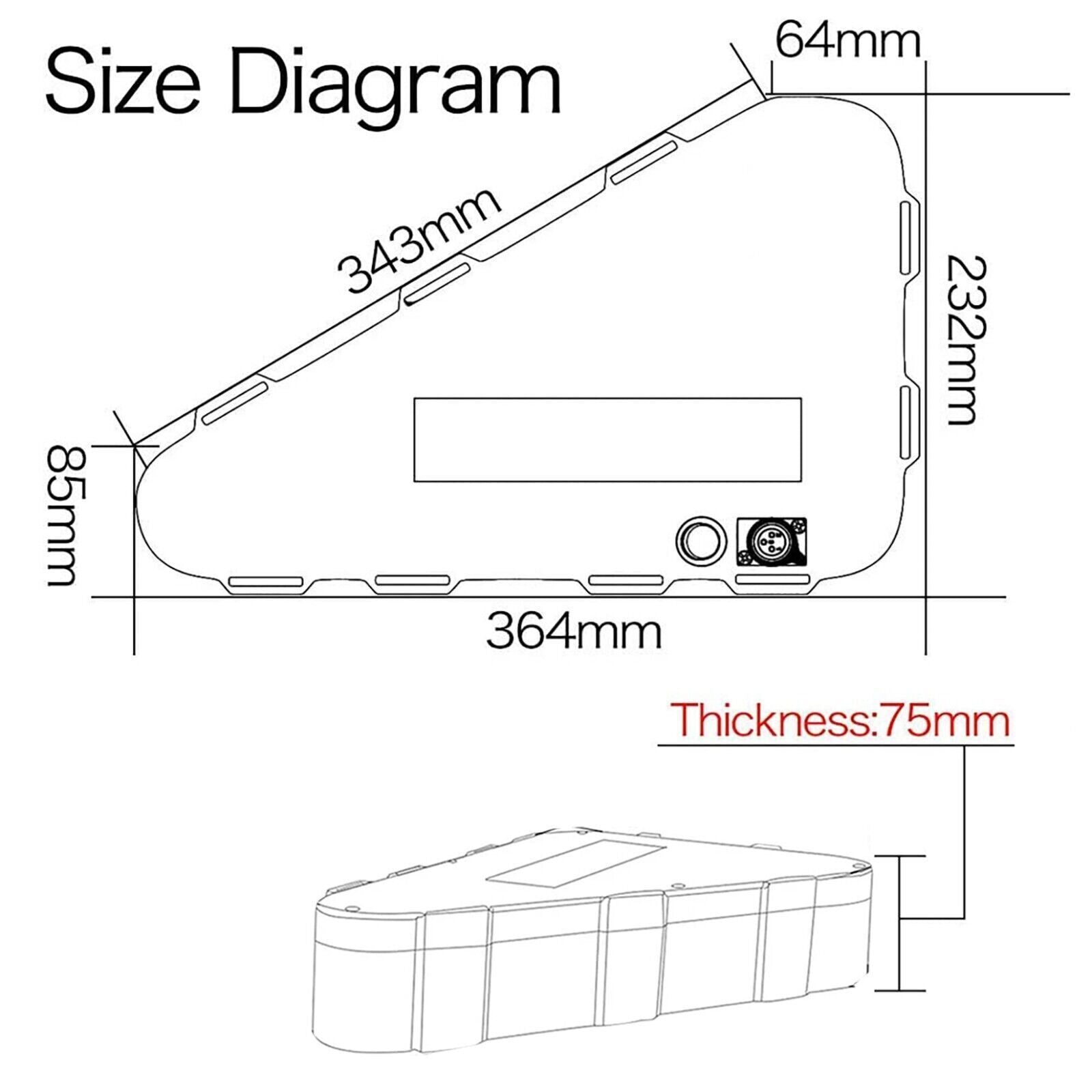

• Please check the size of the battery and frame size before purchasing to make sure the Triangle Battery can be fitted into your bike frame.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
