For Harley Bobber/Chopper/Touring/Custom Headlight Head Lamp With LED Signals

Description:

• Colour: Chrome & Black
• Working Voltage: DC 12V
• H4 35W P43T Halogen bulb included
• ABS housing with chrome reflective interior, clear PC lens

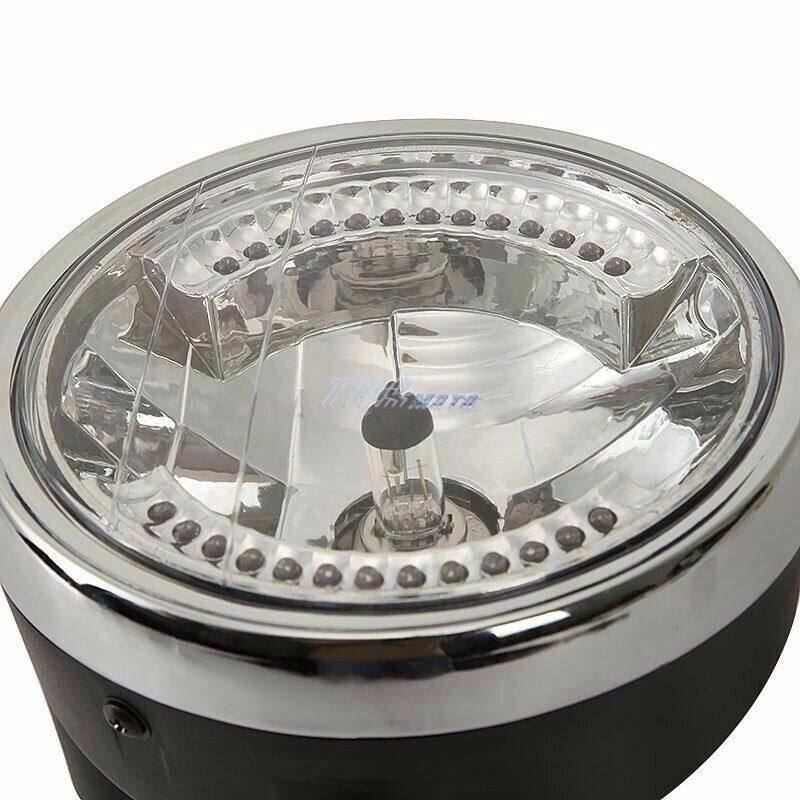

• Angel Eye ring: 26 LED(13 LED each side),amber

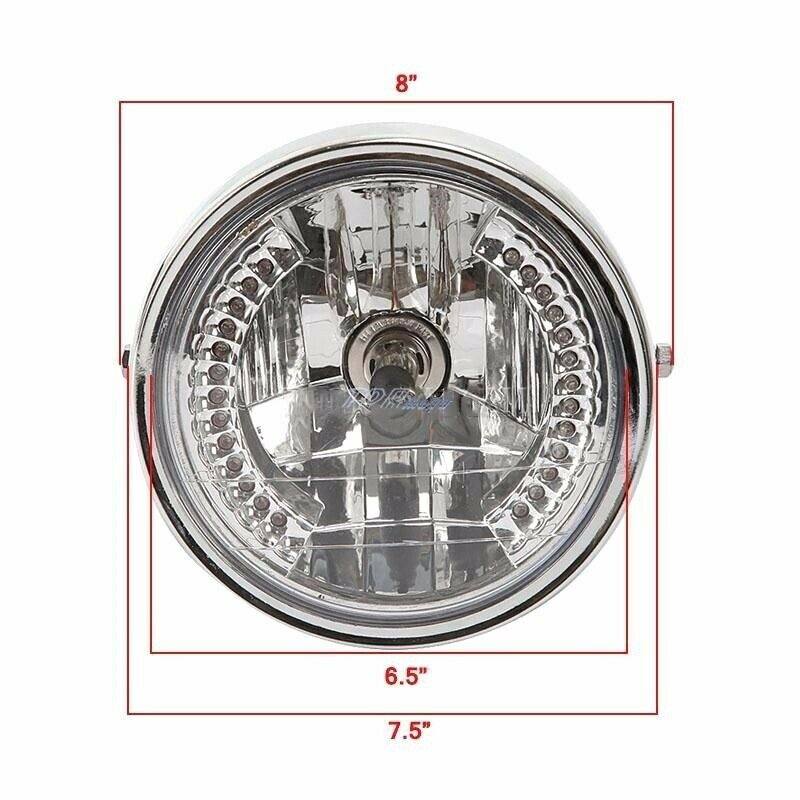

• Size: approx. 6.5" lens diameter,7"outer diameter
• Approx. 8" distance between 8mm mounting bolts
• Aftermarket Crystal halogen headlight with LED "Angel eye" ring
• High performance high/low beam, diamond cut reflector
• High transmission lens with correct curved surface for better luminous efficiency
• Provide good field of view while driving in poor visibility

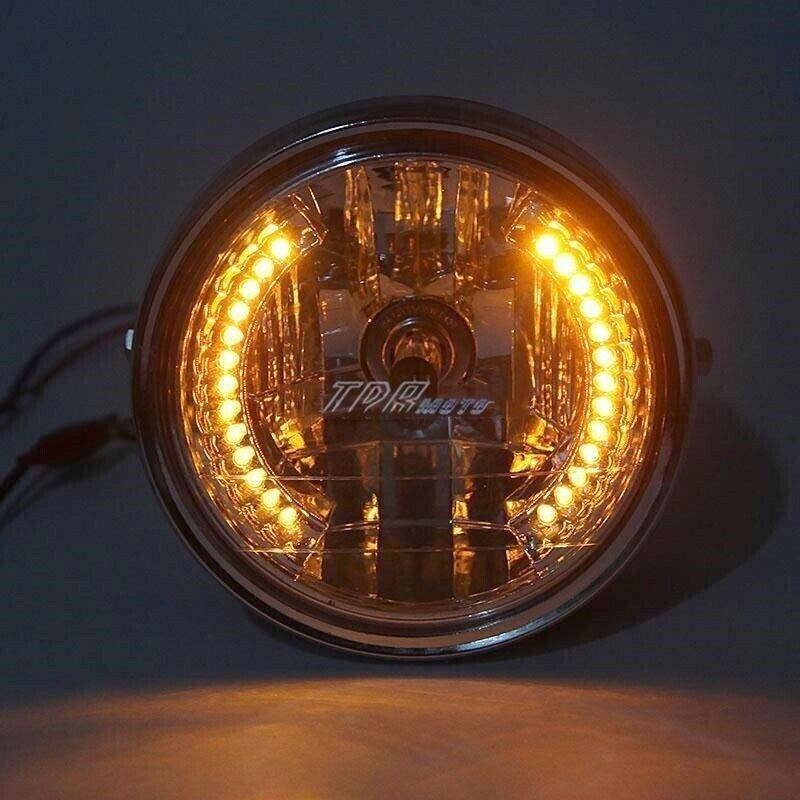

• LED ring can be wired to be daytime running light, wired to stay on with headlight as accent light, or split into left & right side turn signals
• No mounting hardware, no installation instruction included

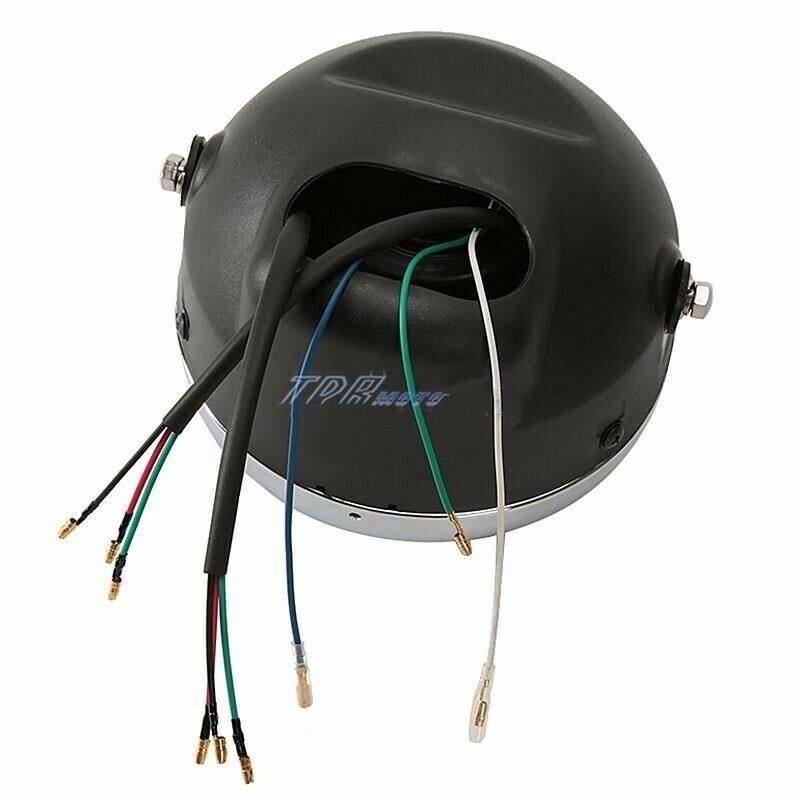

9-wire connection:

• Headlight-blue(ground), green(high beam), white(low beam)
• LED light-black(ground), green(running light), red(turn signal)
• Load resistor(not included) may be required for some models

Fitment:

• Please check the size before purchase
• Please make sure this headlight fits your motorcycle before you purchase
• Custom Motor bikes/Metric bikes/Cruisers/Choppers
