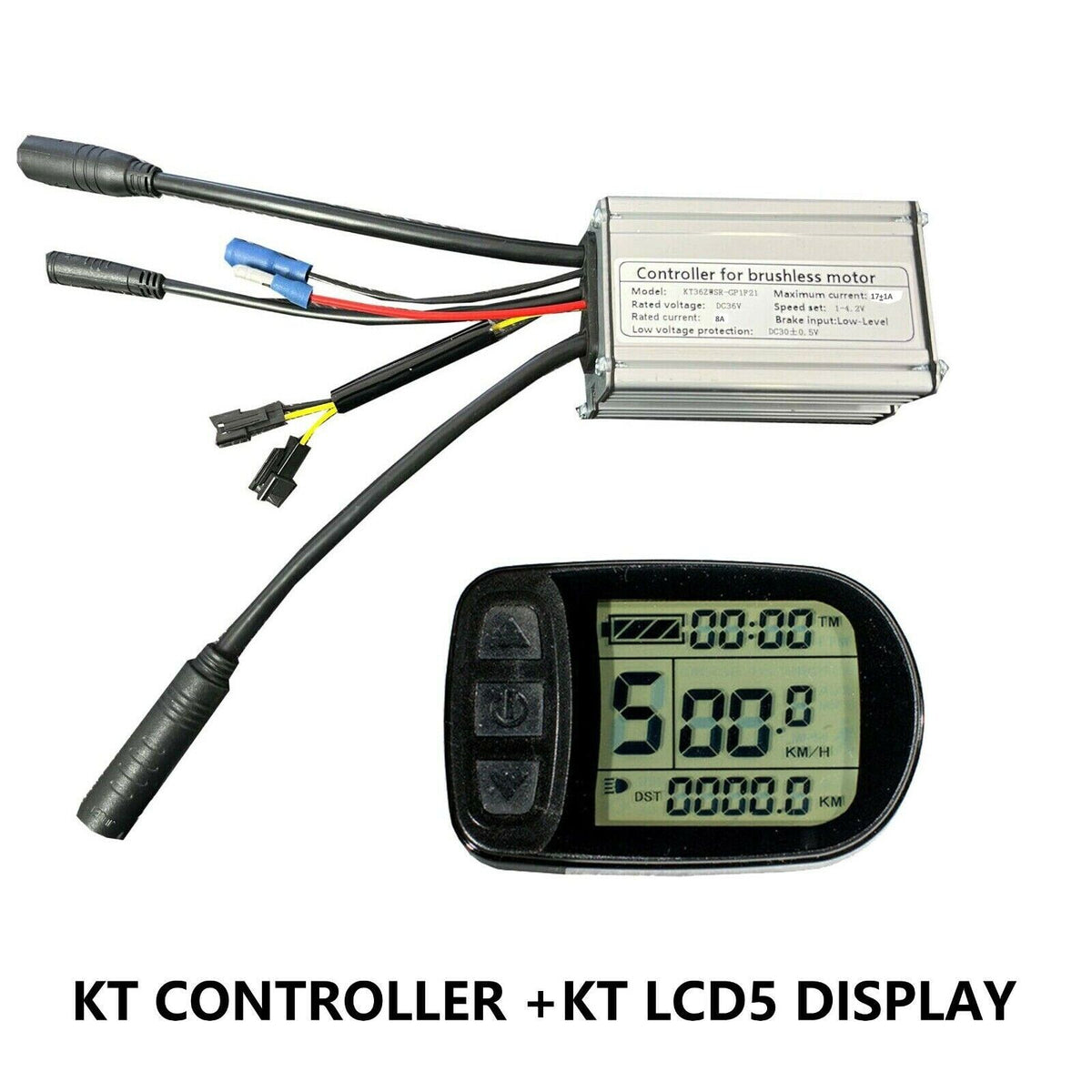

KT Controller 36V 15A & KT LCD5 Display For 250W 350W Hub Motor Electric Bike

• With Display function, suitable for KT LED790-900S LCD1-LCD8 all Display, with headlight function, headlight switch on the Display
• Size: ~83mm * 53mm * 33mm
• Weight: 200g
• Cable length: 100mm-130mm
• 6 mosfets
• Maximum current: 15±1A
• Rated voltage: DC36V/48V
• Speed set: 1-4.2V
• Rated current: 7A
• Brake input: Low-Level
• Low voltage protection: DC30/40±0.5V

Controller Connectors：

• motor (9 pin water resistant plug )
• Power
• PAS (3pin waterproof plug)
• 1 to 4 cable (8 pins for throttle, e-bike, display)
• Light cable
• KT controller only compatible with KT display(same communication protocol)
• Please make sure that your system is KT system before purchase
• This controller fit for electric bike only, not suitable for electric scooter

LCD display specifications:

• KT-LCD5 Electric Bike Controller Intelligent Black Control Panel LCD Display Electric Bicycle Bike Parts For KT Controller
• Optional Interface Types: Water resistant
• Material: ABS
• Cable length: 28cm
• Fit Handlebar Diameter: 22mm
• Size: 77x51x16.5mm
• Colour: Black

LCD display features:

• Numerous functions: switching on and off the bicycle lights, battery level indicator (4 bars), 3 speed display modes (current, maximum, average), traction help up to 6km / h, odometer, trip duration display
• Made of high quality materials, durable and practical
• Bike conversion accessories, KT-LCD5 electric bicycle LCD meter, suitable for KT series controller, it does not apply to other controllers

What's in the box:

• 1 x LCD Display
• 1 x KT 15A controller
