Rectangle 48V 15AH Lithium Ion BATTERY DIY Pack for Electric Wheelchair Mobility

Rectangle 48V 15AH Lithium Ion BATTERY DIY Pack for Electric Wheelchair Mobility

SKU: TE195~TE508~TE514#

Regular price $459.00
Regular price $519.95 Sale price $459.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Package

Care Instructions and Warranty

Description:

  • Brand New 48V 15AH Lithium Ion Electric Bike Battery DIY Pack with Australian Standard Charger

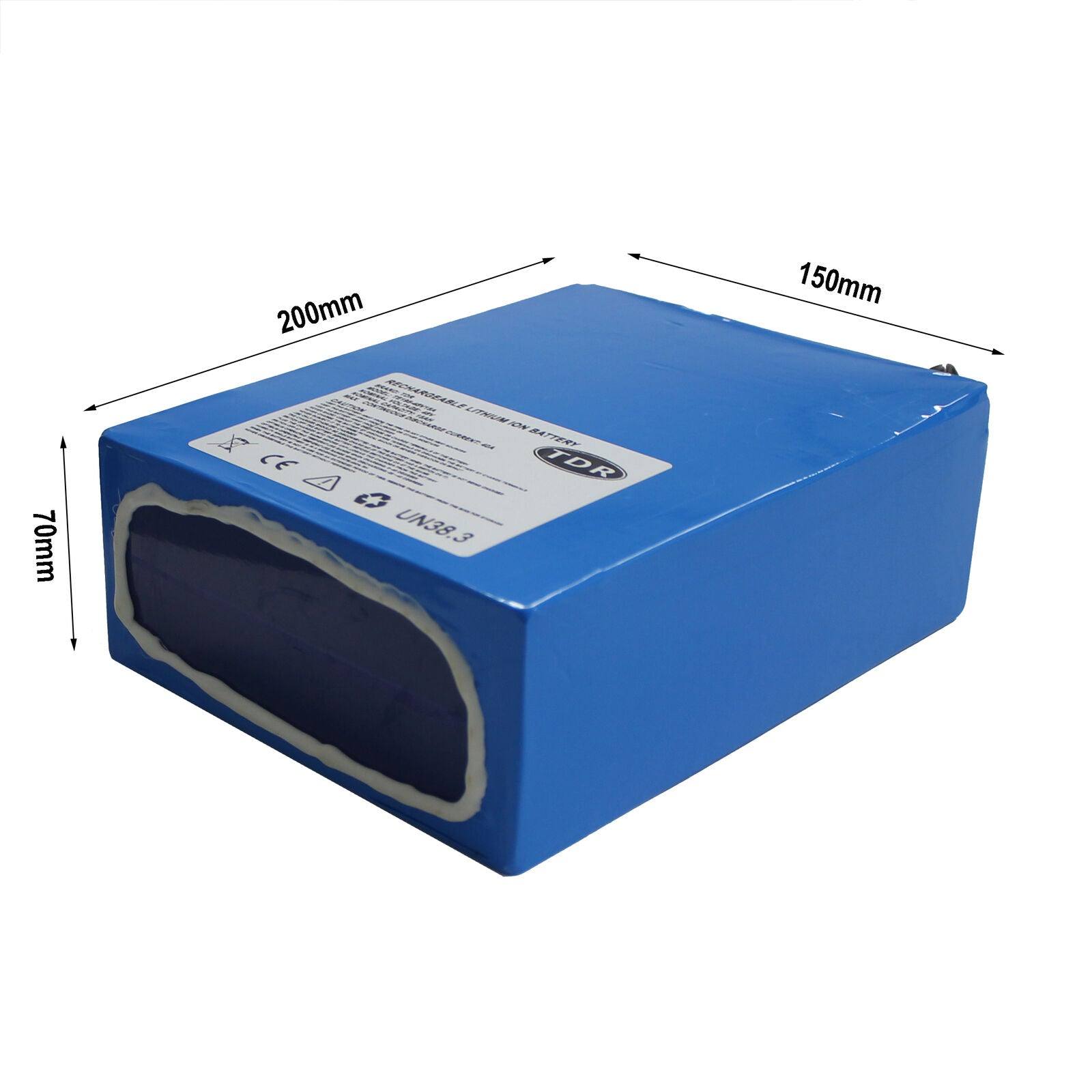

  • Length (mm) 200 x Width (mm) 150 x Height (mm) 70
  • Approx. Weight: 4KG
  • Voltage: 48V
  • Typical capacity Ah : 15AH
  • Maximum Continuous Discharge Current: 40A
  • For 500W-1500W Motor in 48v
  • BMS Feature and Australian Standard charger
  • Non-spill able, Can be operated in horizontal or vertical position

Specifications:

  • Nominal Voltage: 48V
  • Rated Capacity: 15Ah
  • Max Constant discharge current: 40A
  • Peak discharge current: 80A (2 second)
  • Over current protection: 120±5A
  • Discharge cut-off voltage: 36.4V±0.5V
  • Charger voltage: 54.6V±0.5V
  • Charge current: ≤5A
  • LEP cell: 18650-3.6V (13S6P)
  • Cycle life ≥ 1000 times
  • Battery Weight: 5 KG

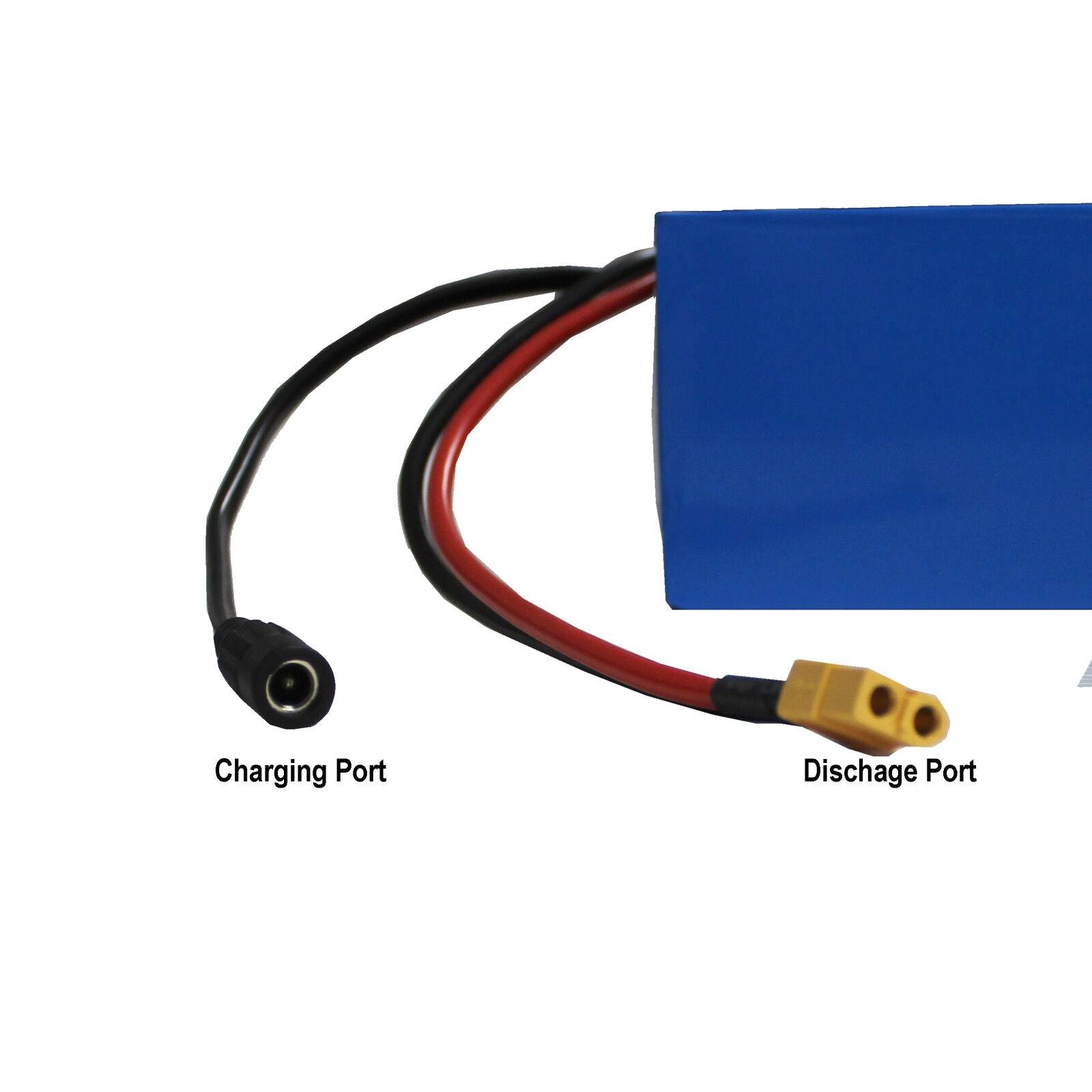

  • Battery Charging port type (option only): RCA

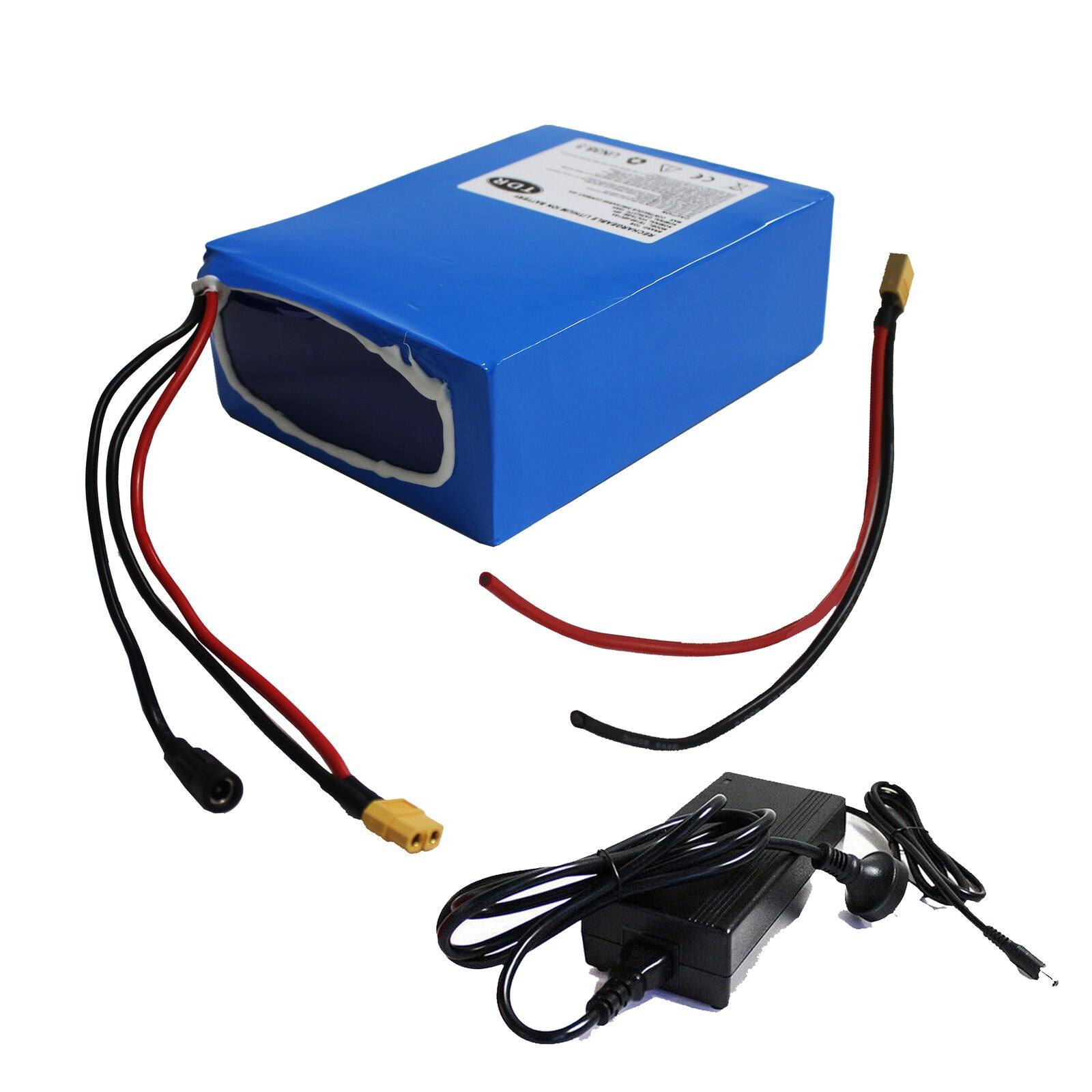

Package Include:

  • 1 x 48V 15AH Battery

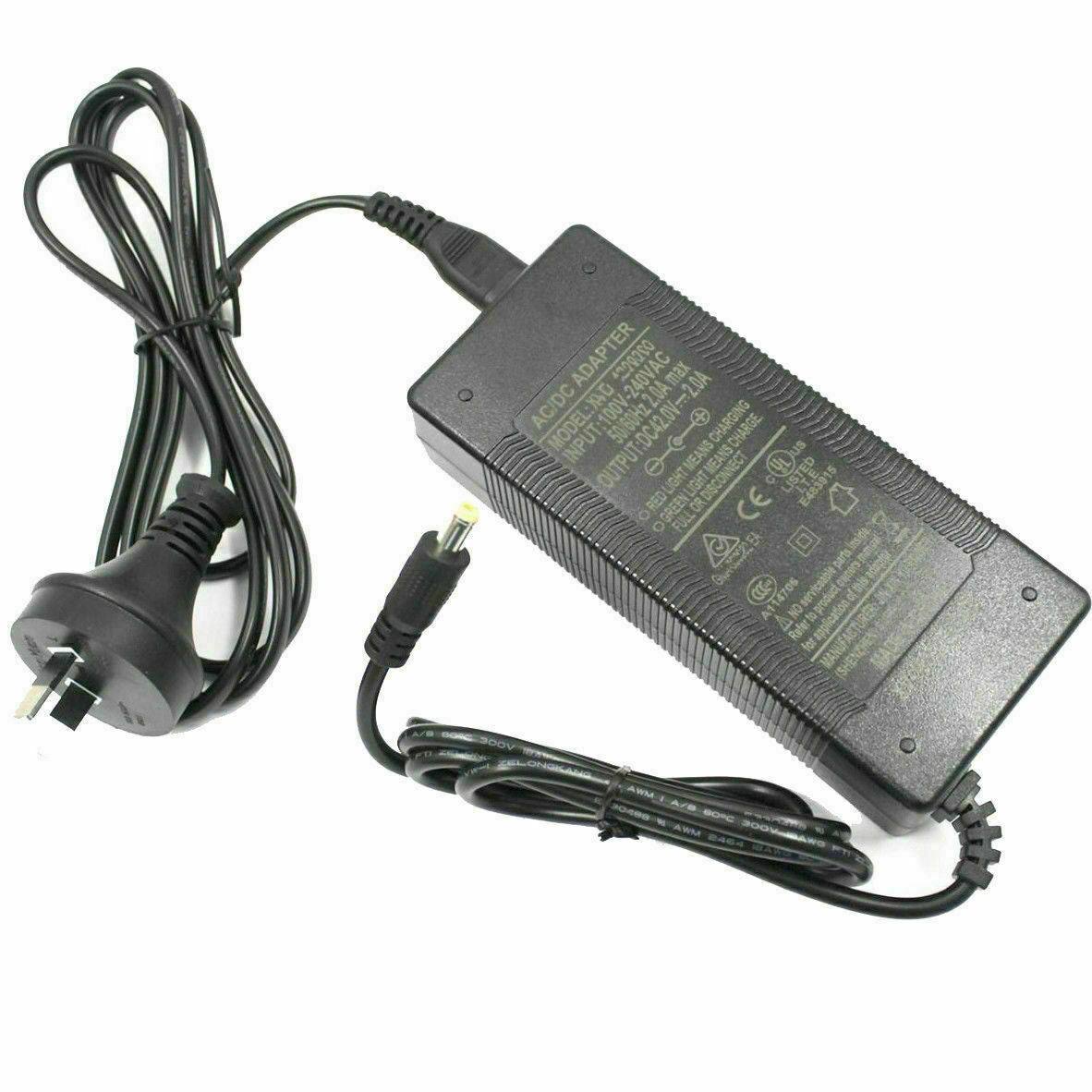

  • 1 x Charger (option only)

Important notes:

  • Please check the size of battery, battery connection type, charger port before purchase.
  • No installation instruction provided, professional electrician installation recommended.
  • Please check your controller rate before purchase, the maximum continuous discharge current of this battery is 40A
  • This battery is mainly used on electric bike, using for another purpose may shorten the life of the battery and void warranty.
