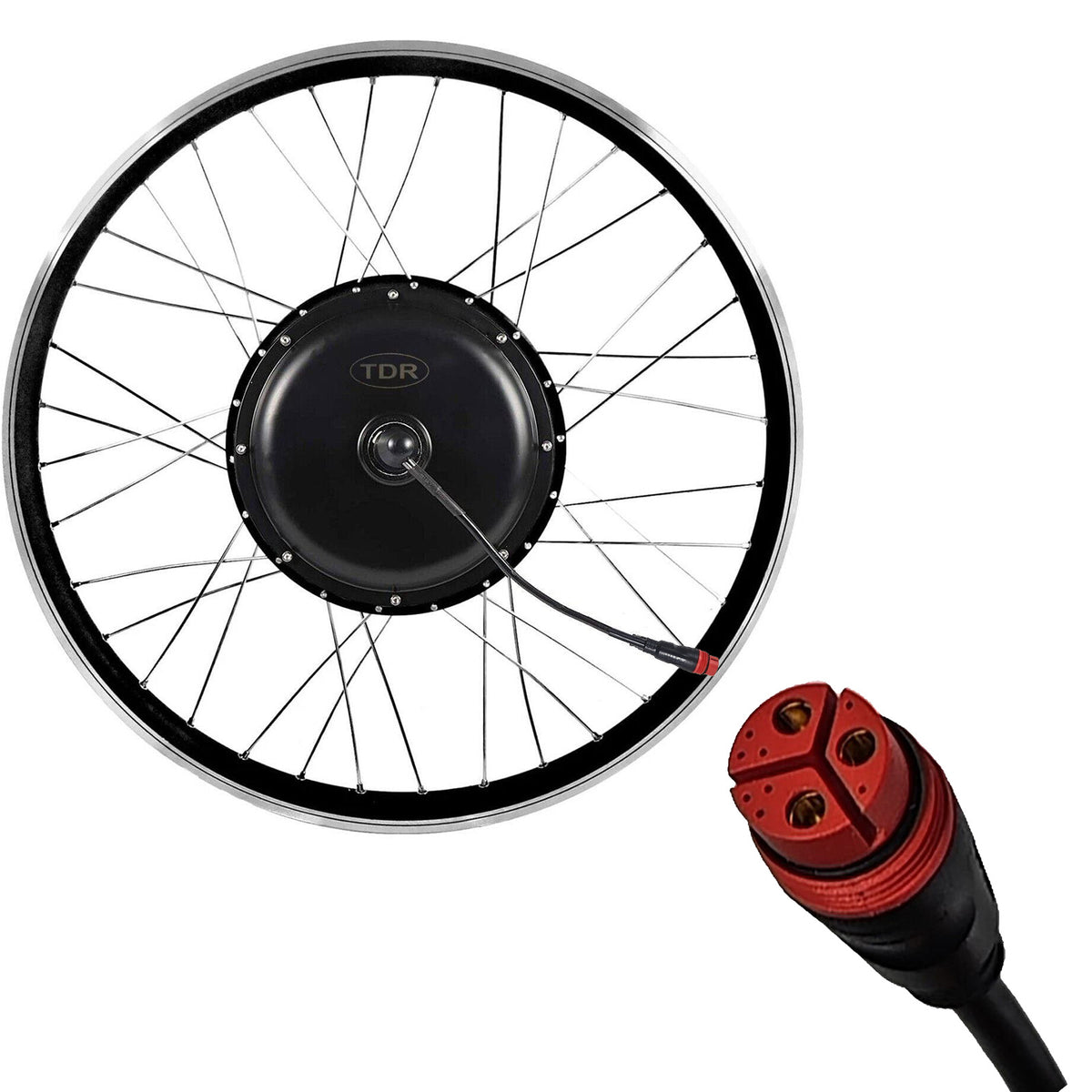

Replacement Motor Rim for TDR 48V 1500W Ebike Conversion Kit

Replacement part for TDR 1500W conversion kit or e-bike only. You may need an adapter (SKU:TJ193) if the plug is different. It's not compatible if your ebike is TDR brand.

Option For 26'' Wheel

• For 26 Inch wheel with a width between 1.75 - 2.25 Inch

Option For 27.5'' Wheel

• For 27.5 Inch wheel with a width between 1.75 to 2.25 Inch

Option For 28''/29''/700C Wheel

• For 700C wheel with a width between 700*35C to 700*55C, 28 Inch wheel with a width between 1.75 to 2.25 Inch, 29 Inch wheel with a width between 1.75 to 2.25 Inch

Description

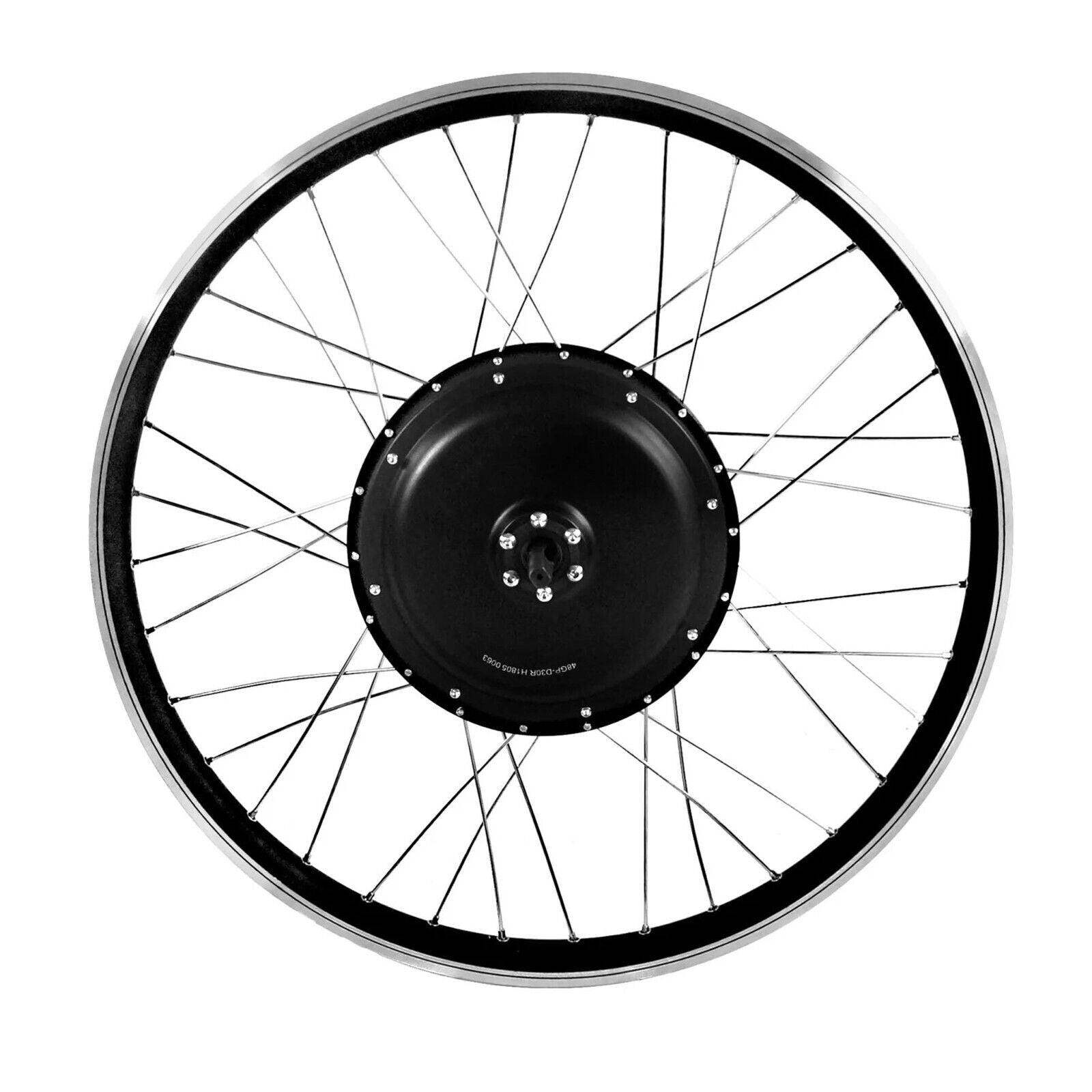

• Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
• Torque: 65 N.M
• Wiring Method: Waterproof Wire Connection System
• Maximum Speed: 60 km/h
• Rear Fork Width Requirement:135 - 142mm
• Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

• 12 Months Replacement Warranty on the Motor

Package Include :

• 1x 48V 1500W Rear Rim Motor (size depends on your choice)

Important Notes

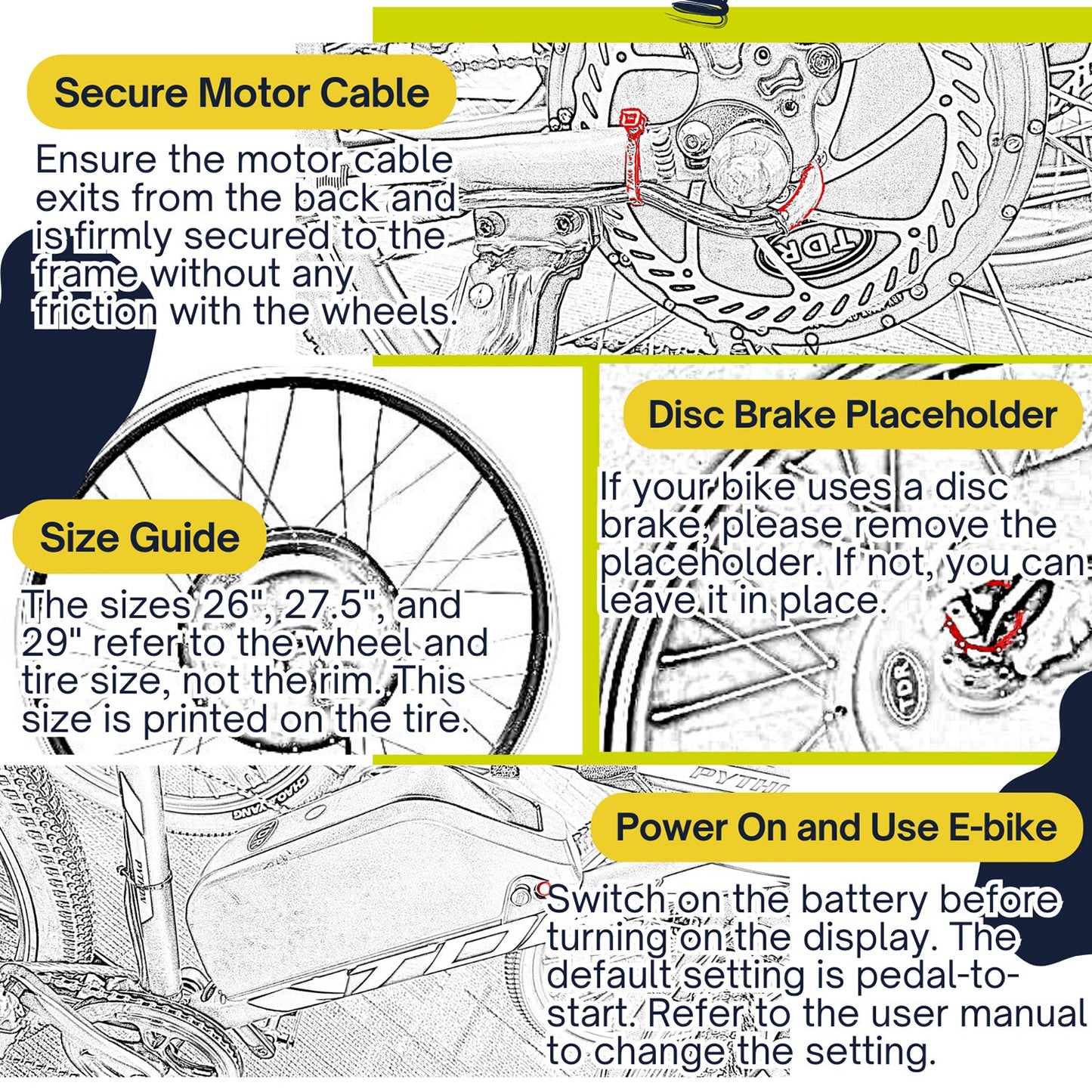

• Please note that the size listed refers to the wheel size, not the rim diameter. Make sure to check your wheel size before purchasing; you can find it printed on the tire sidewall.
• Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.

• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is not included.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
