TDR 24 INCH 48V 750W Electric Bike Conversion Kit Front Hub Wheel Rim Motor Kit
TDR 24 INCH 48V 750W Electric Bike Conversion Kit Front Hub Wheel Rim Motor Kit
SKU:
Couldn't load pickup availability
- For Front 24 Inch wheel with a width between 1.75 to 2.25 Inch

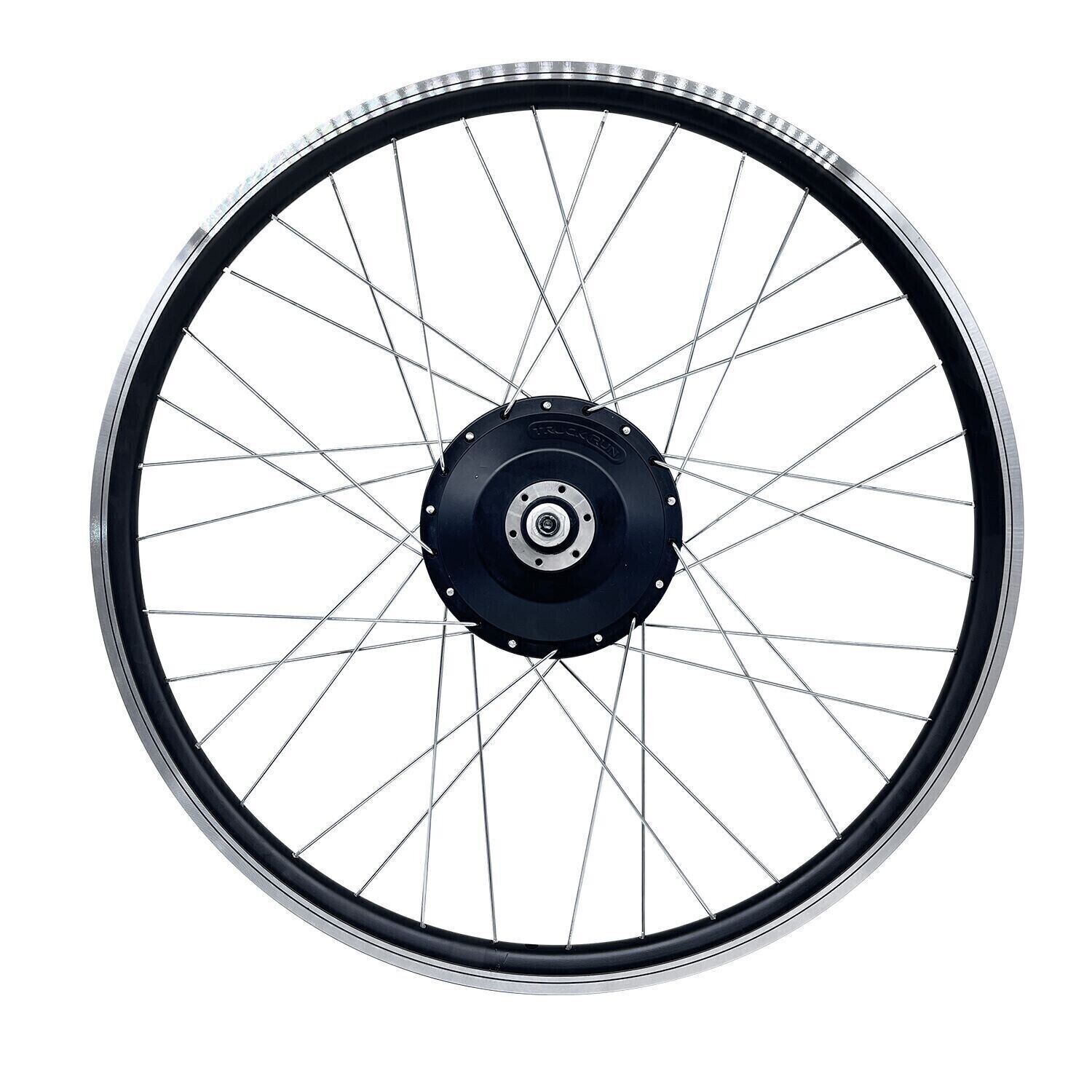

- Rim Motor: Front 48V 750W Brushless Gear Hub Motor
- Torque: 55 N.M

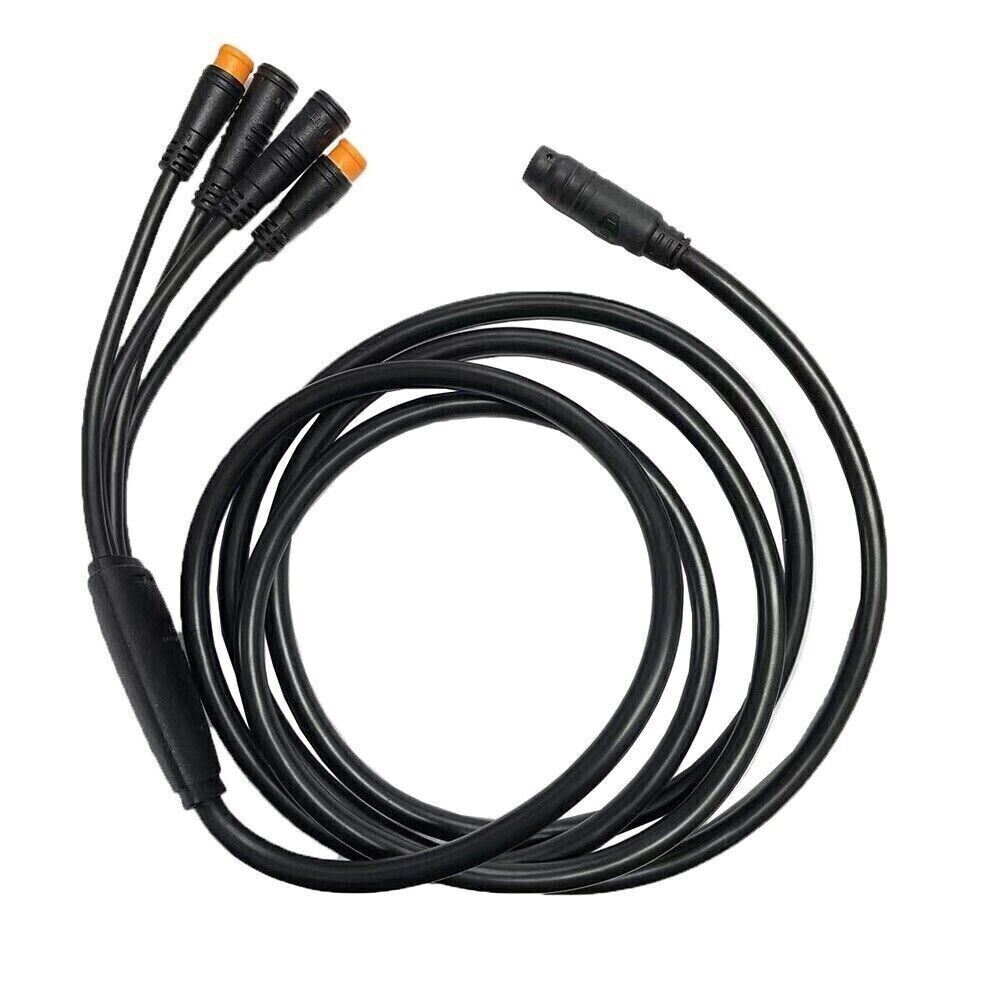

- Wiring Method: Waterproof Wire Connection System
- Maximum Speed: 50 km/h

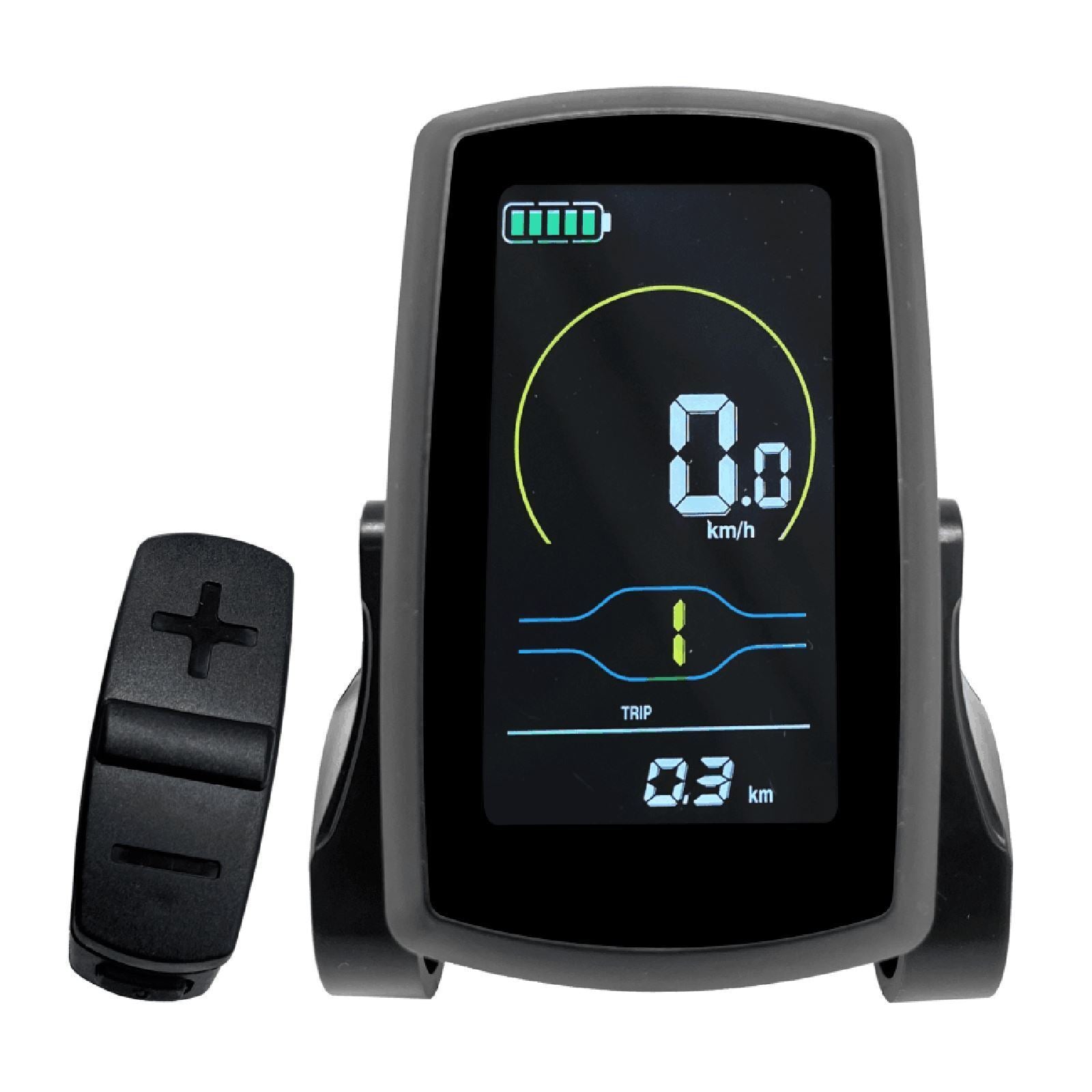

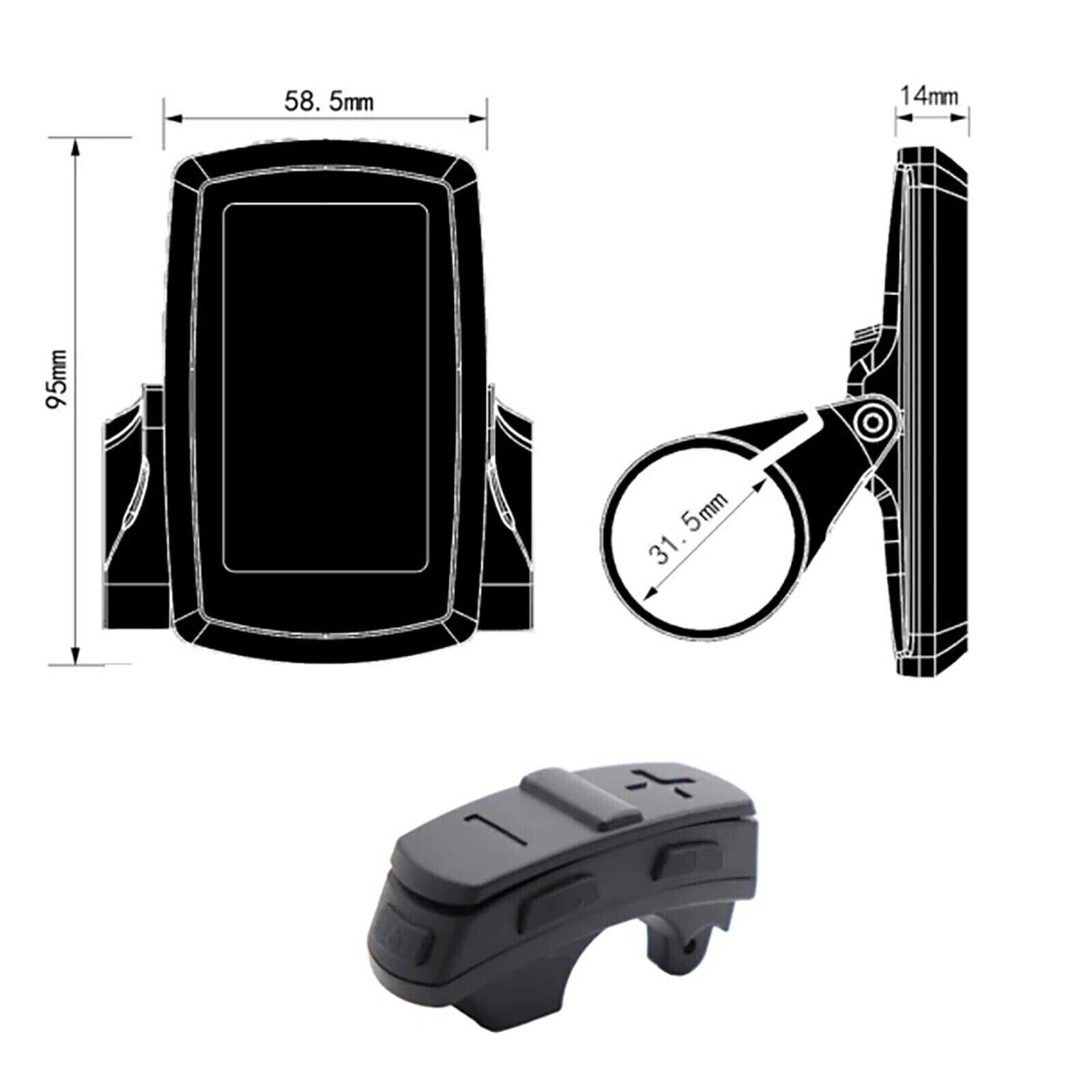

- Display: Intelligent Colorful LCD Panel Display

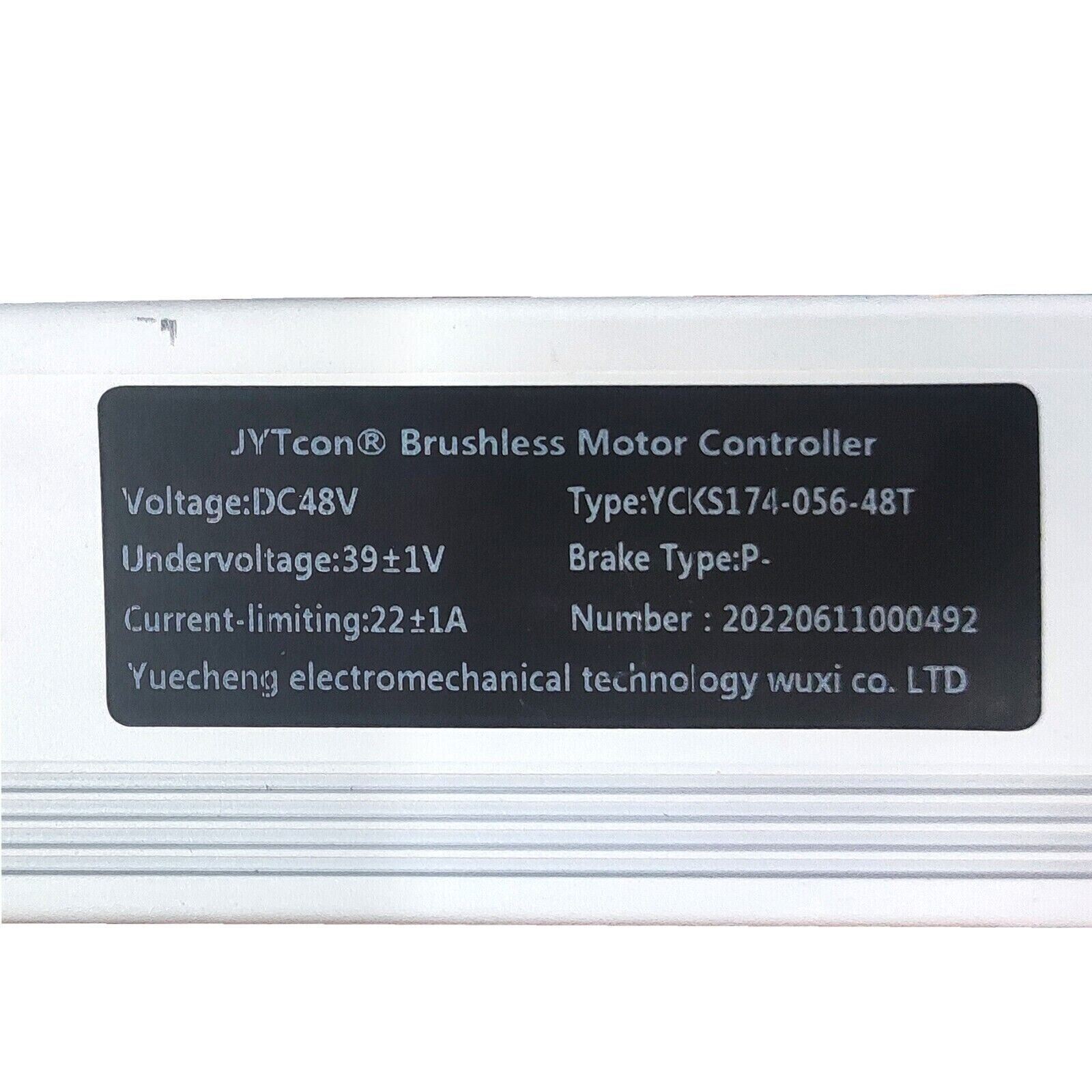

- Controller: Intelligent Motor Controller, the Current is 22±1A
- Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
- Front Fork Width Requirement: 98mm - 102mm
- Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

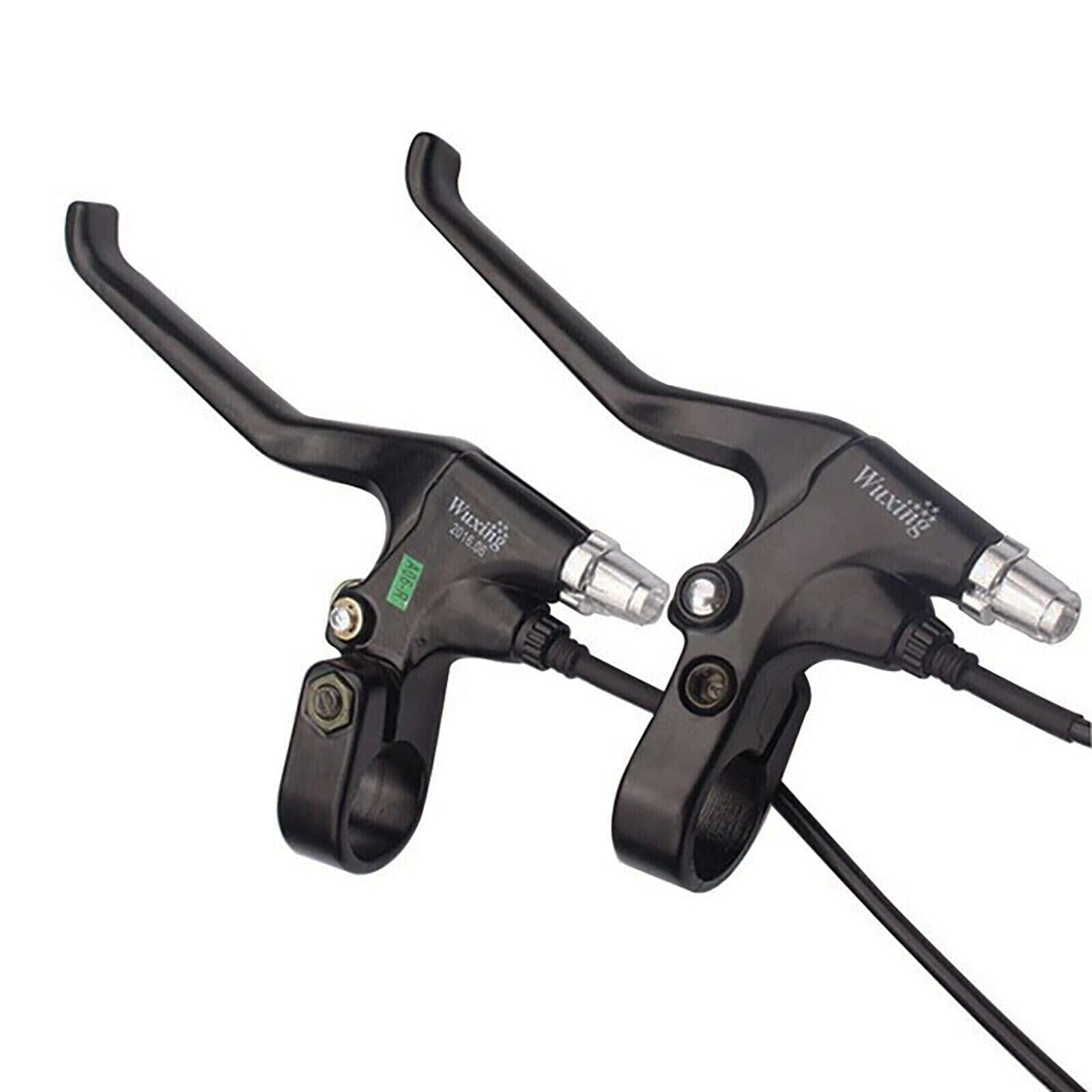

- Brake levers: Aluminum Alloy Wuxing E-brake Lever
- Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

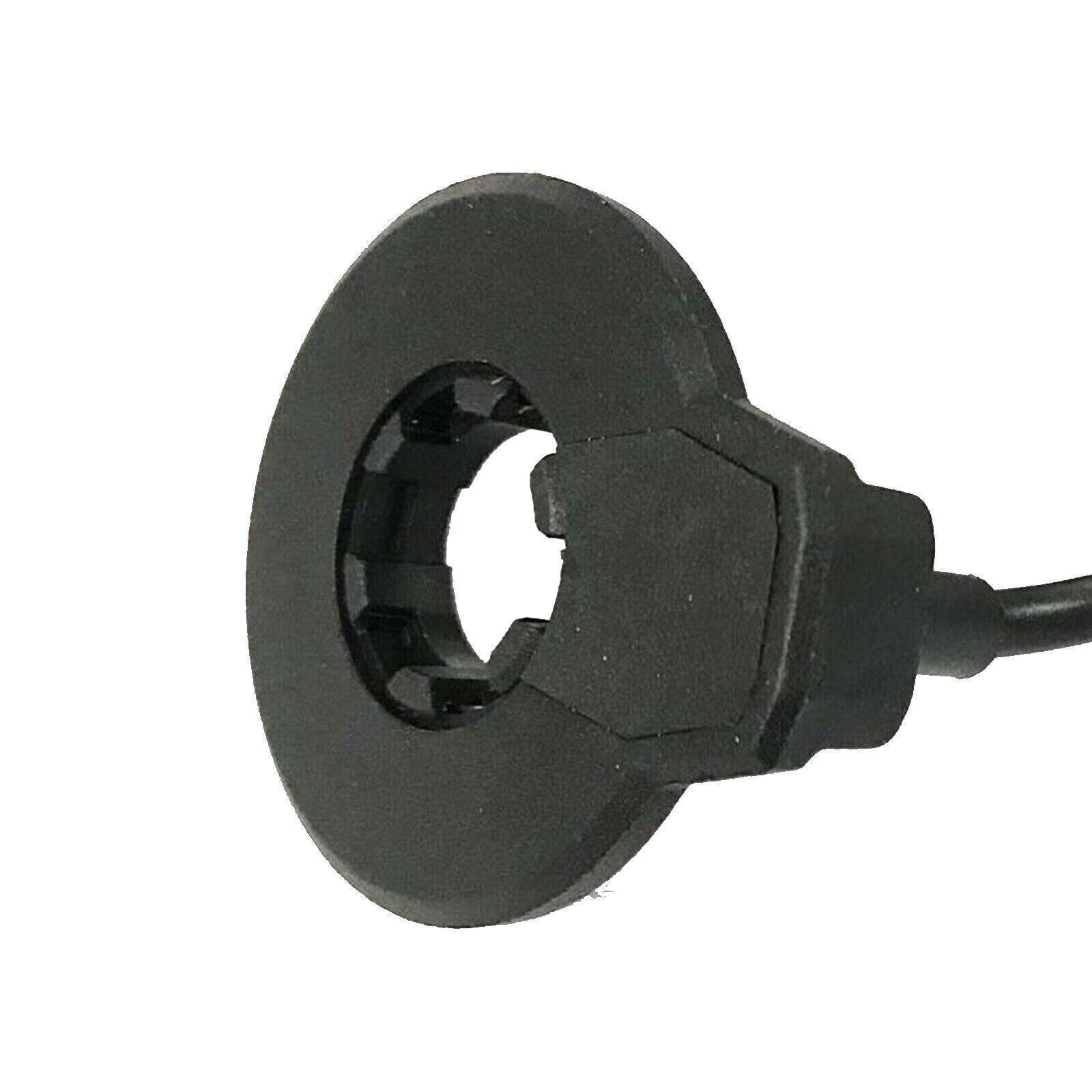

- PAS Sensor: 12 Magnets Pedal Assist Sensor
- 12 Months Replacement Warranty on the Motor

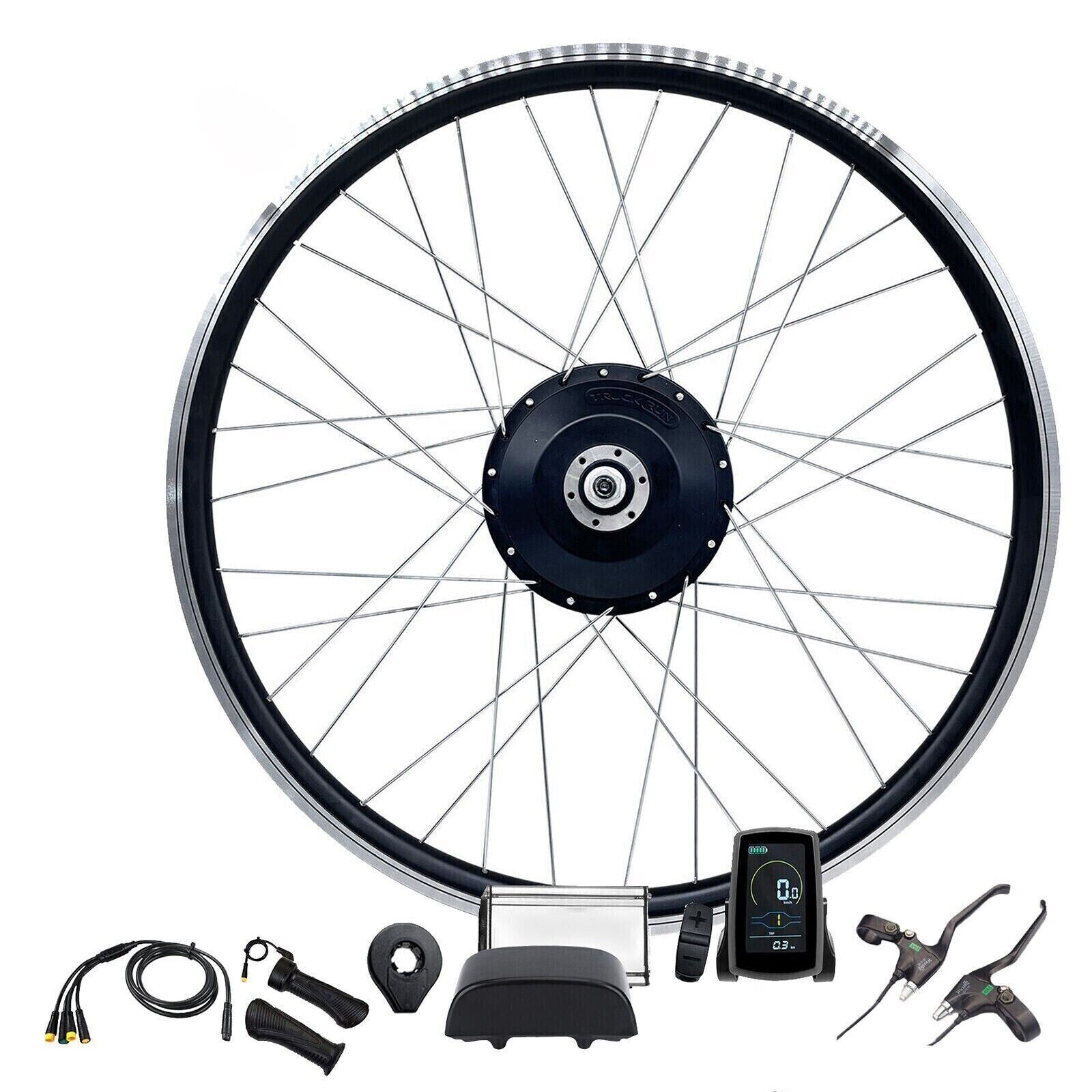

Package Include :
- 1x 48V 750W Front Rim Motor
- 1x Intelligent Motor Controller
- 1x Controller Box
- 1x Pedal Assist Crank Sensor
- 1x Pair of E-Brake Levers
- 1x Twist Throttle
- 1x LCD Display
- 1x Cable Ties Set
- 1x Manual
Important Notes

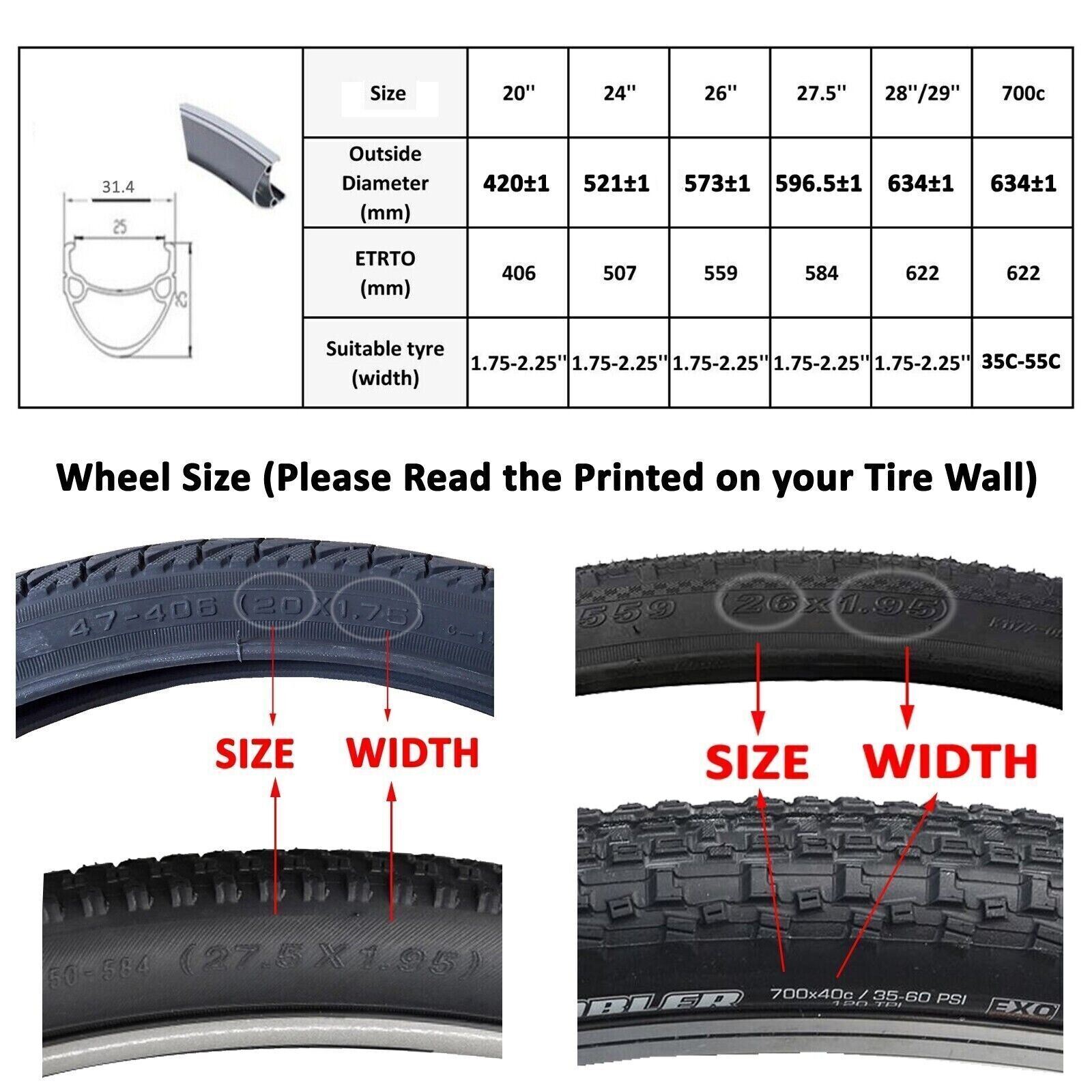

- Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

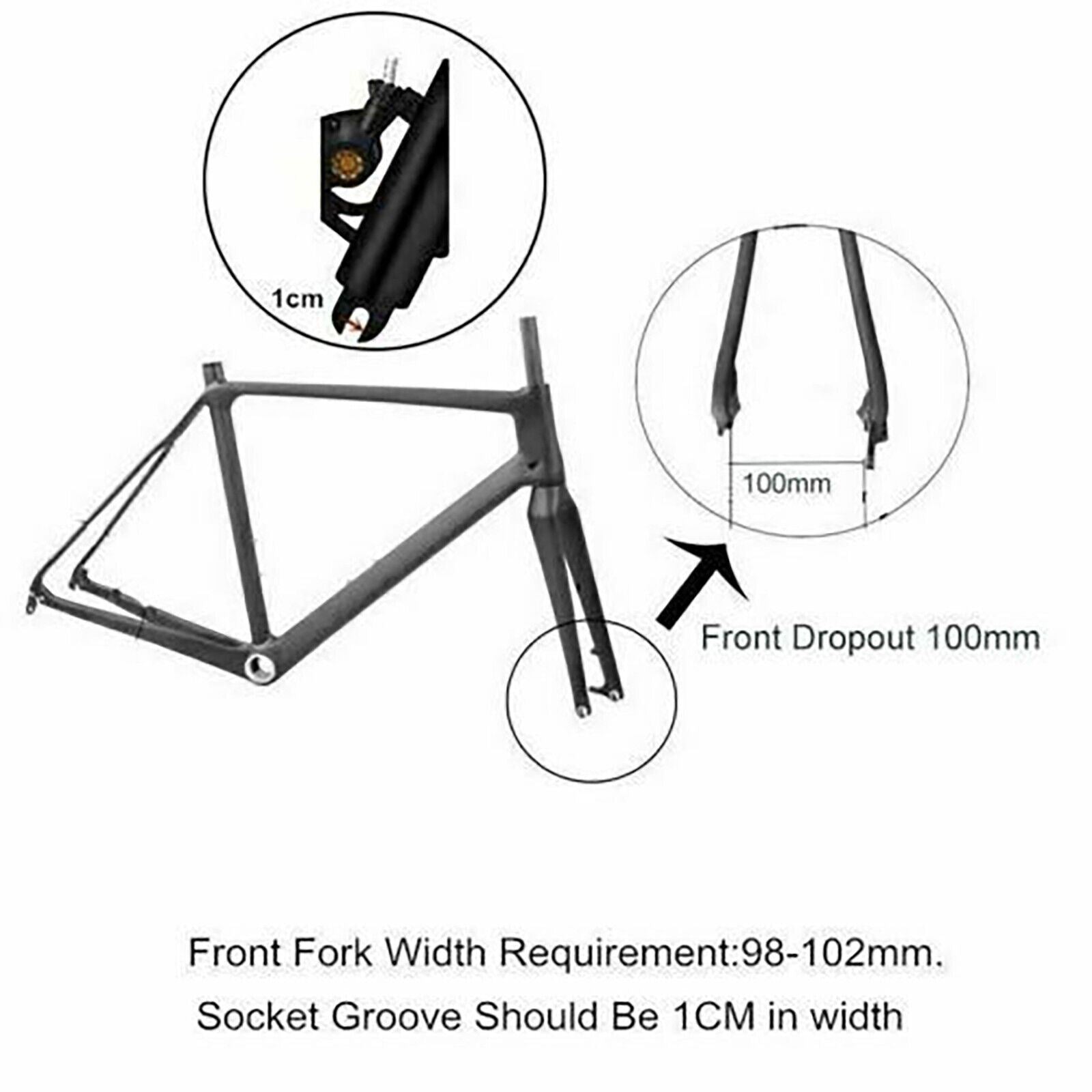

- Please check your Front fork width (98 - 102mm) to make the motor hub can be fitted into it.
- Battery and charger are not included in this listing. Our 750W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 22A and a nominal capacity of not less than 15Ah.
- Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
- The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
- Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
