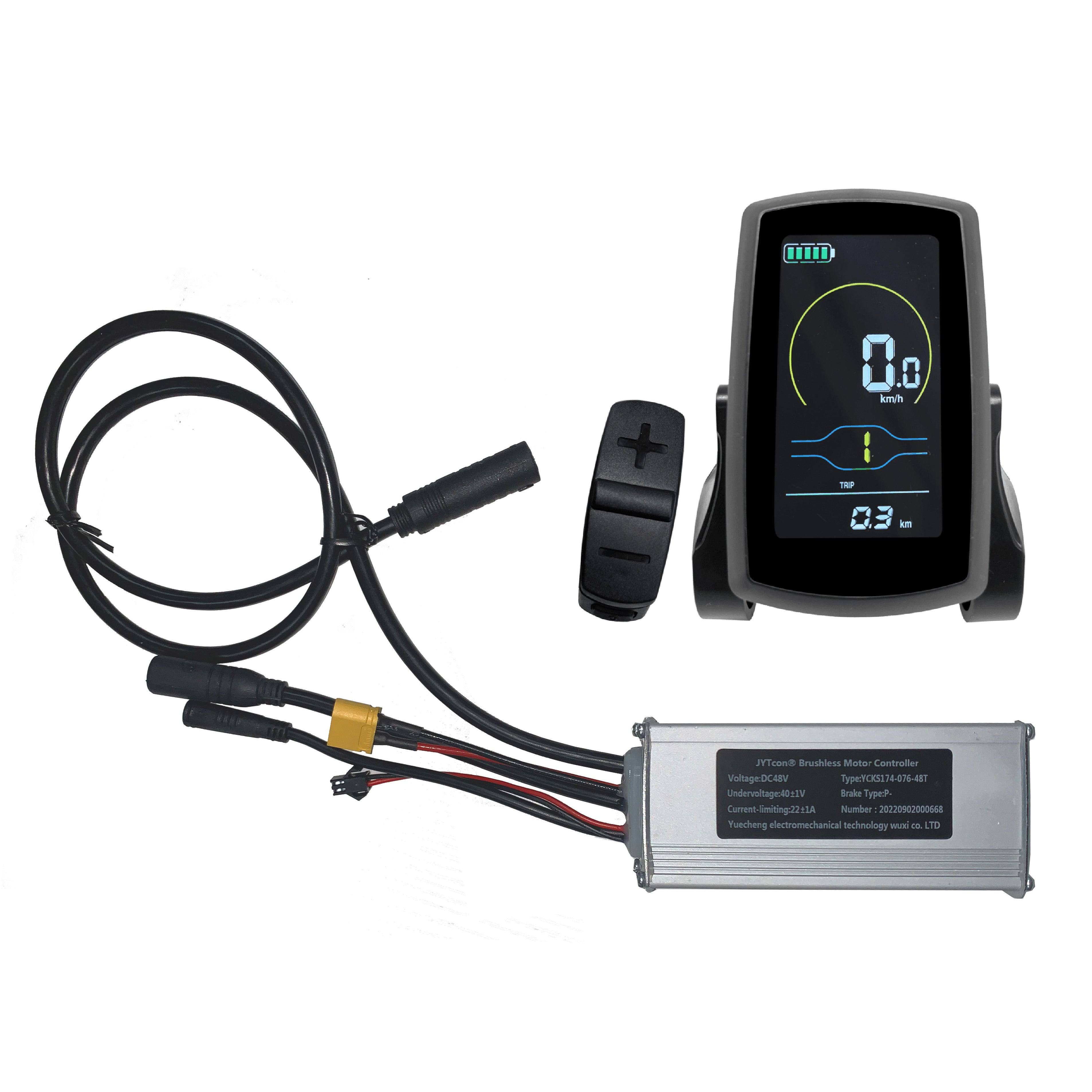

Yolin YL80C E-Bike Colourful Display + JYTcon Brushless Motor Controller

SKU: TJ161~TJ182
$141.64
$160.95
$141.64
10 customers are viewing this product
Yolin YL80C E-Bike Colourful Display + JYTcon Brushless Motor Controller - TDRMOTO

Yolin YL80C E-Bike Colourful Display + JYTcon Brushless Motor Controller

$160.95 $141.64

Yolin YL80C E-Bike Colourful Display + JYTcon Brushless Motor Controller

$160.95 $141.64

Display Specification:

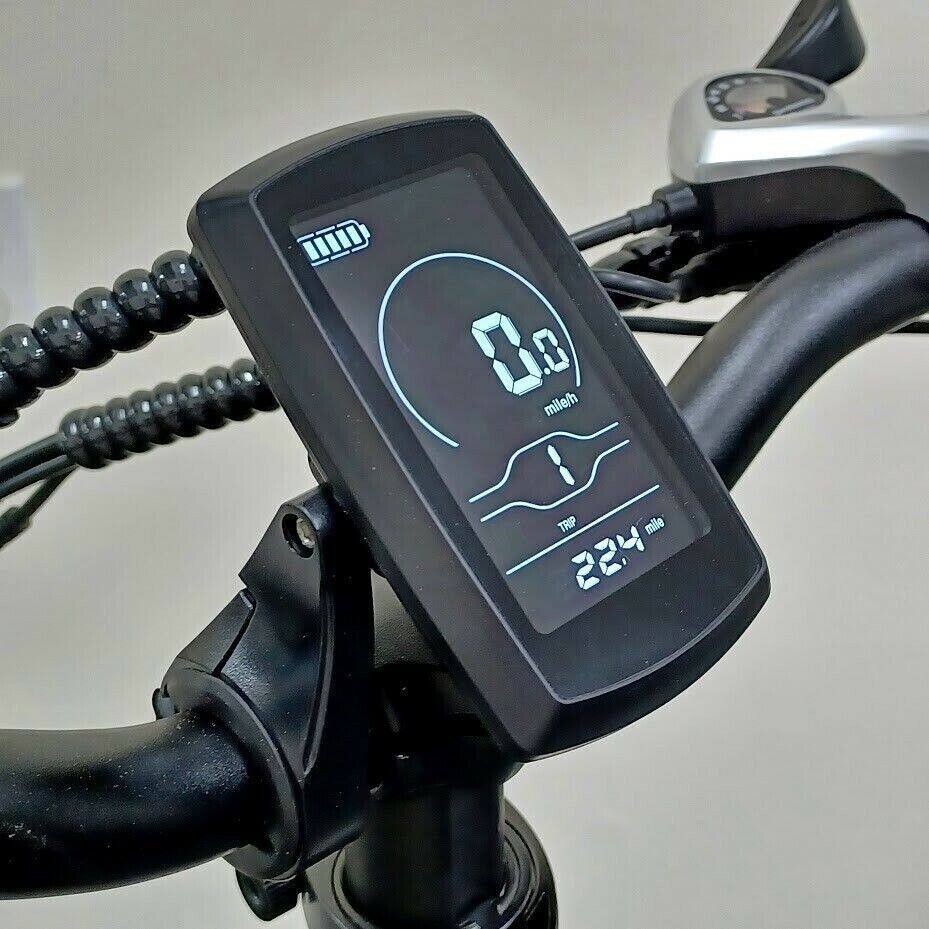

  • This intelligent LCD Display is the perfect replacement part for eBikes already equipped with the YL-80C. YL80C meter provides a variety of functions to meet your riding needs such as Battery display, Motor power indication, Assistance gear adjustment and indication, Speed display (including real-time speed, maximum speed, and average speed)
  • Color: Black
  • Material: ABS Plastic

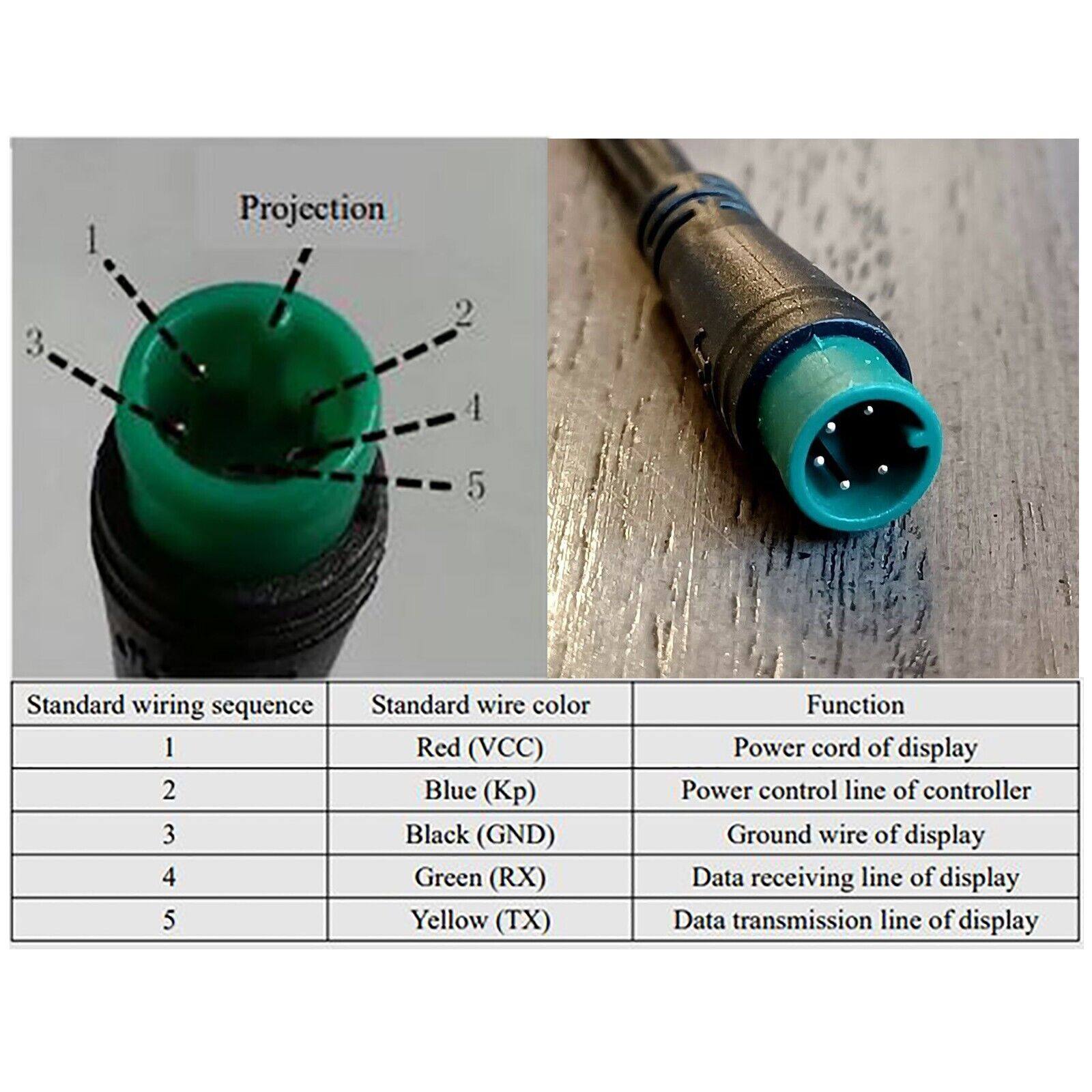

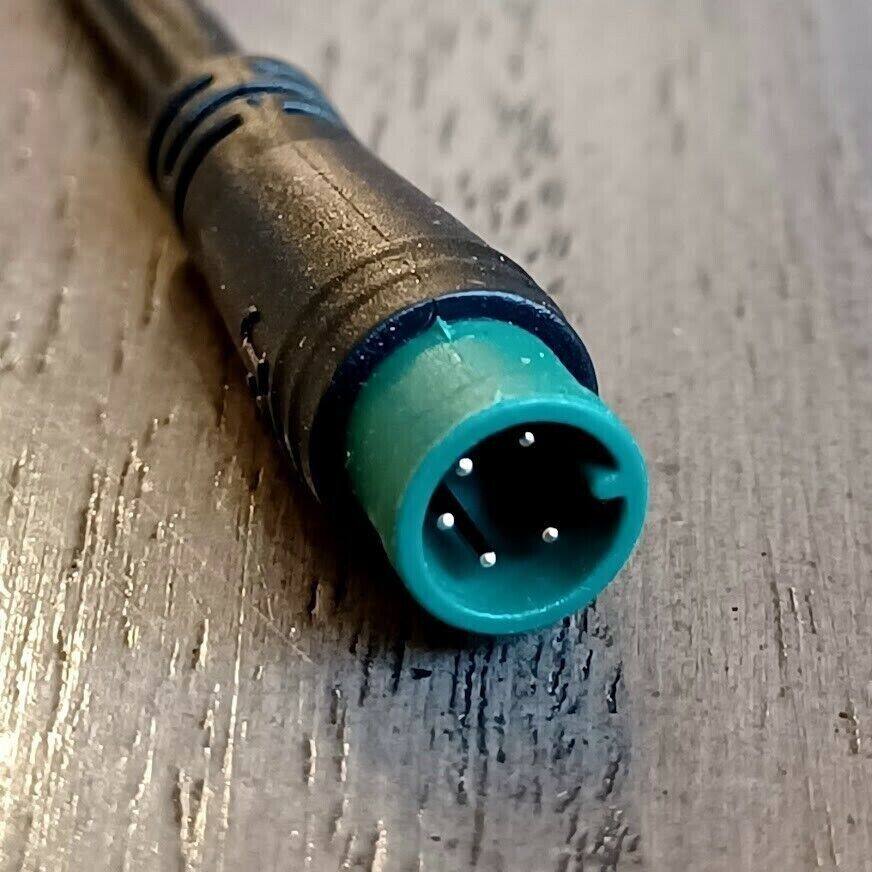

  • Connector Type: JULET waterproof 5Pin
  • 52V/48V power supply
  • Rated working current 15mA
  • Maximum working current 30mA
  • Leakage current at power-off <1uA
  • Working current at the supply controller end 50mA
  • Working temperature -20~60

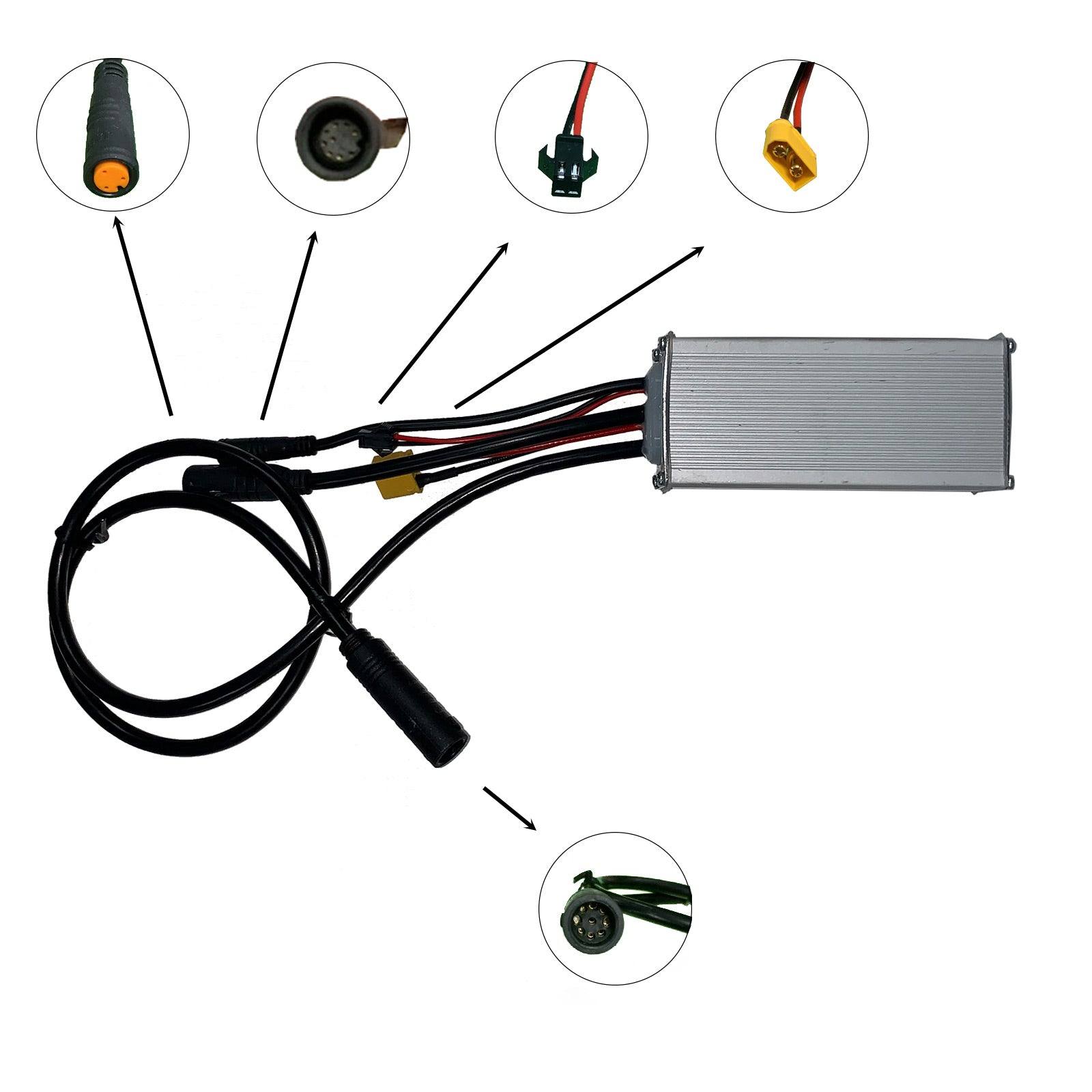

Controller Specification:

  • Voltage: DC48V
  • Undervoltage: 40±1V
  • Current-limiting: 22±1A
  • Type: YCKS174-076-48T
  • Brake Type: P-

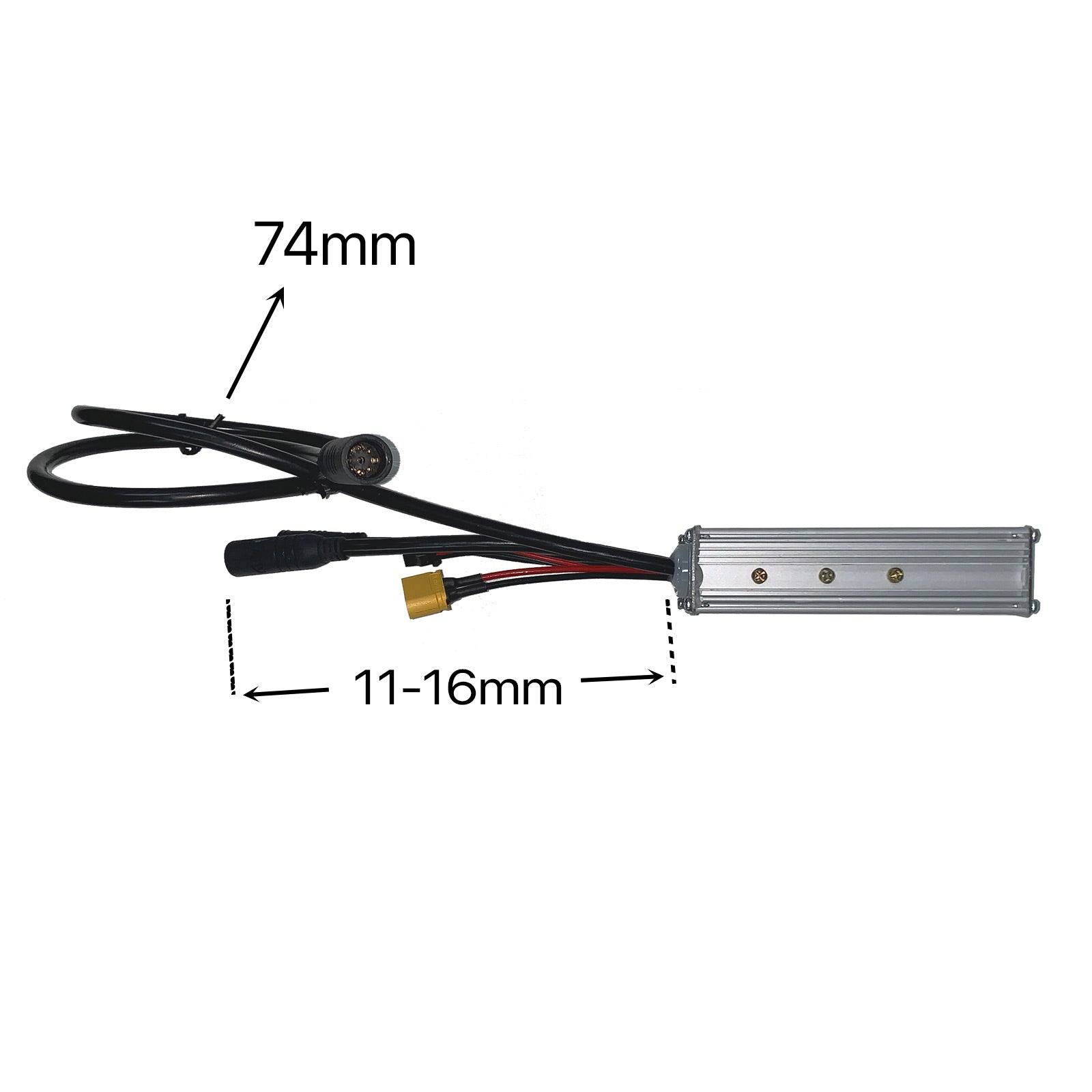

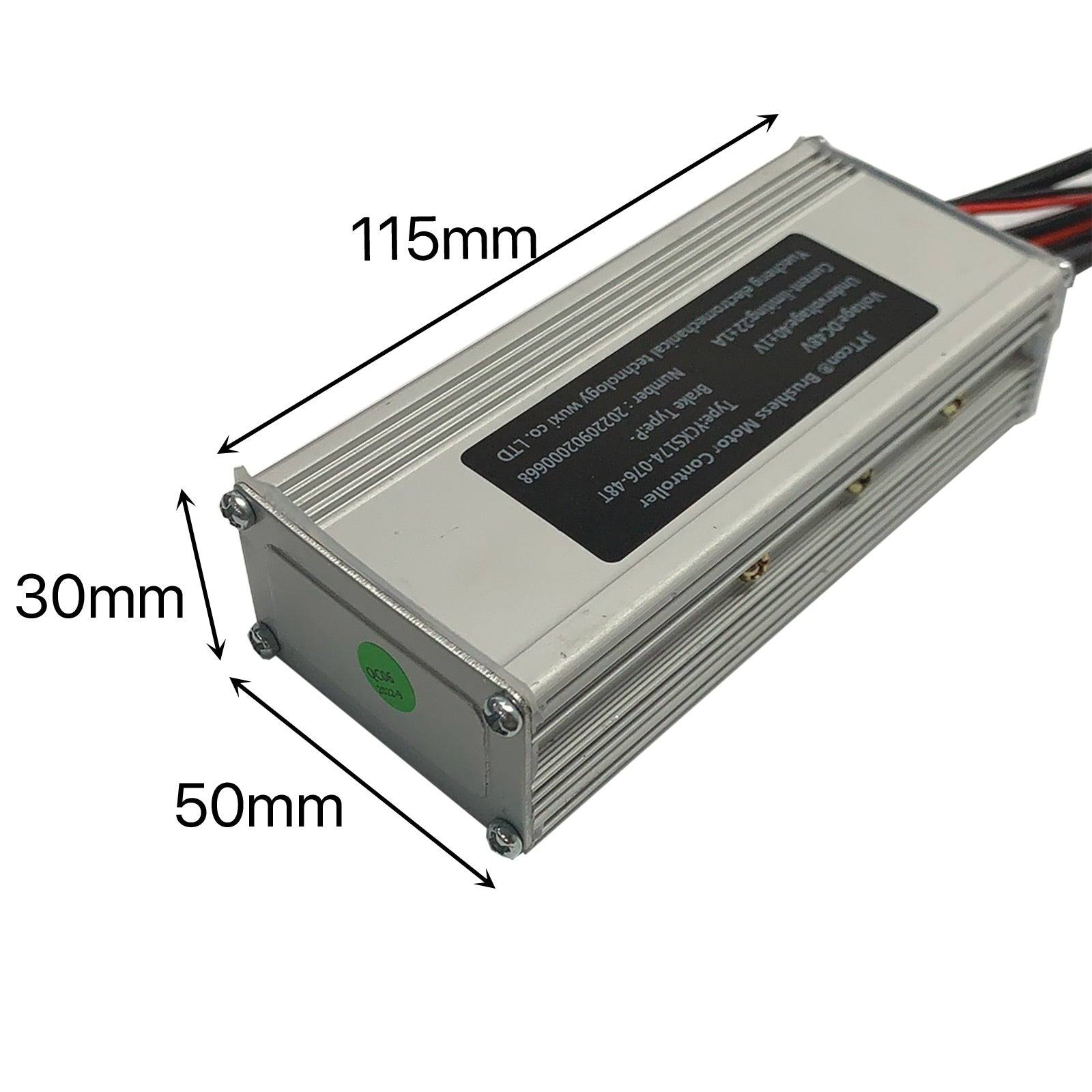

  • Controller Dimension: 115 * 50 * 30mm
  • Weight: 0.3kg

Package Contents:

  • 1 x Ebike Display Meter
  • 1 x motor controller

Notes:
Please check your original device, size before purchase to make sure this meets your need.
