500W 27.5" Front Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit
500W 27.5" Front Hub 48V 15Ah Rear Rack Battery Electric Bike Conversion Kit
SKU:
Description:
- Wheel Size: 27.5" Front wheel (Suitable for tyre width size 1.50 to 2.25)
- Motor: 48V 500W Brushless gear hub motor in black colour

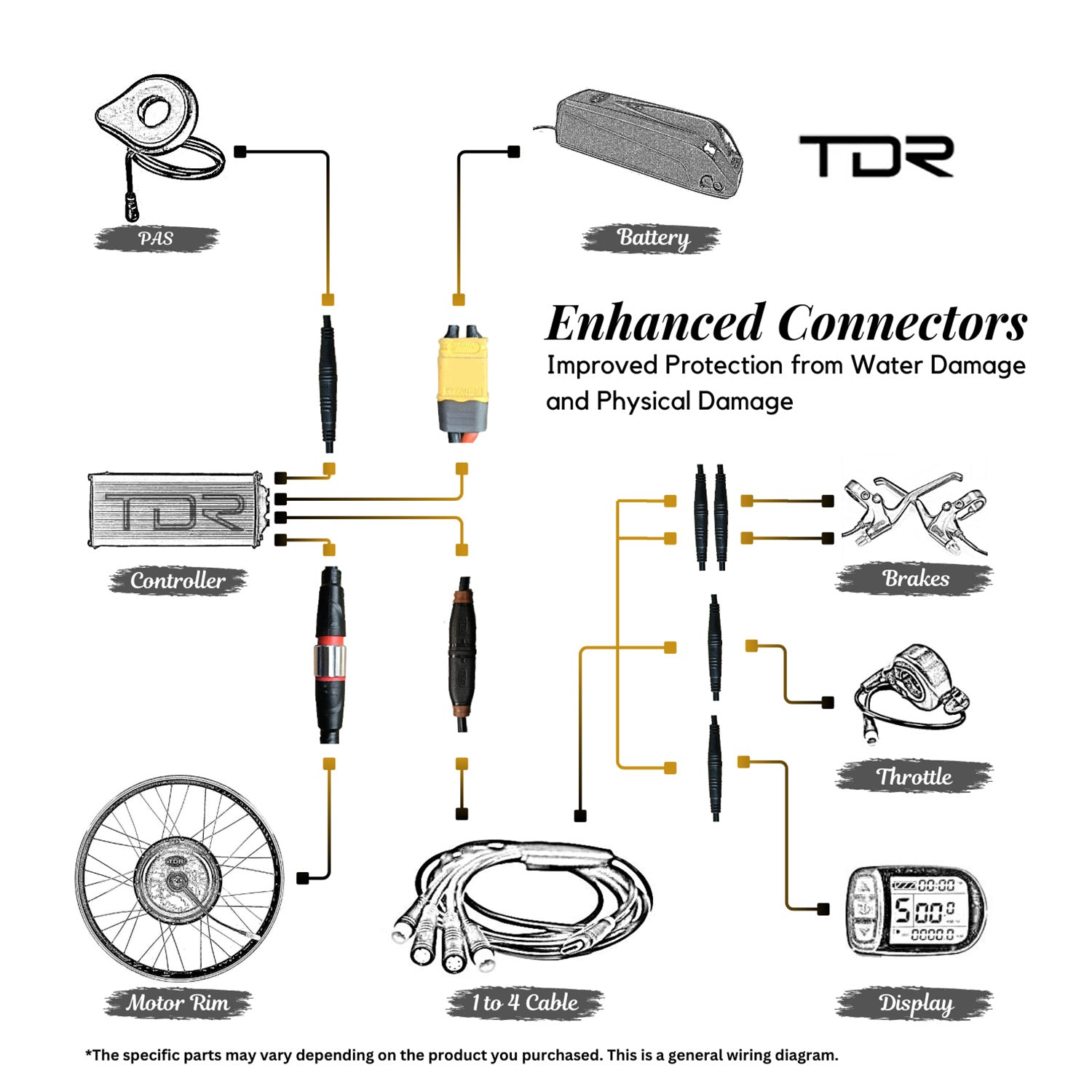

- Wiring method: Waterproof wire connection system
- Battery range: +/-60km per power in pedal assist mode
- Full Speed: Up to 45 km/h
- Display: KT LCD5
- Controller : 48V 22A KT Brand Controller
- Riding mode: Thumb throttle electric assist mode /Pedal Assist mode
- Front fork width requirement: 98-102mm.
- Suitable for Disk Brake and V brake to use
- Motor: High speed 48V 500W front hub brushless gear motor, Bending Magnet .More efficient
- Brake levers: Aluminium alloy, Wuxing E-brake lever
- Rim and spokes: P25DE Alloy double wall rim CNC sidewalls, with 12g steel spokes
- Controller: KT Brand 48V controller in controller box .Maximum current rate : 22±1A

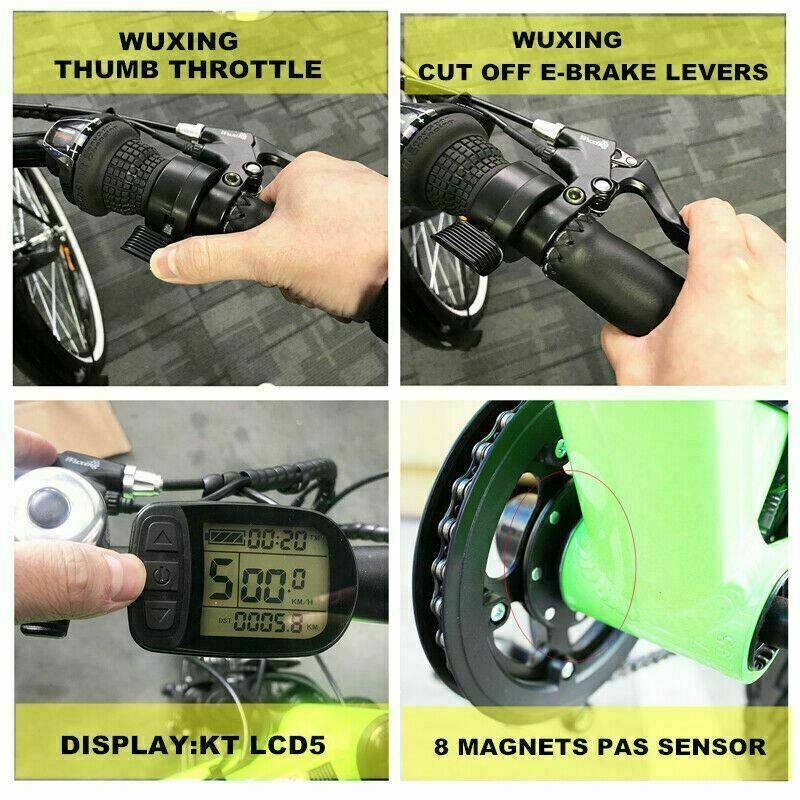

- Throttle: Thumb(Finger) Throttle, Wuxing Brand
- PAS Sensor: 8 Magnet
- Display: KT LCD5;Show all basic information , DIY setting

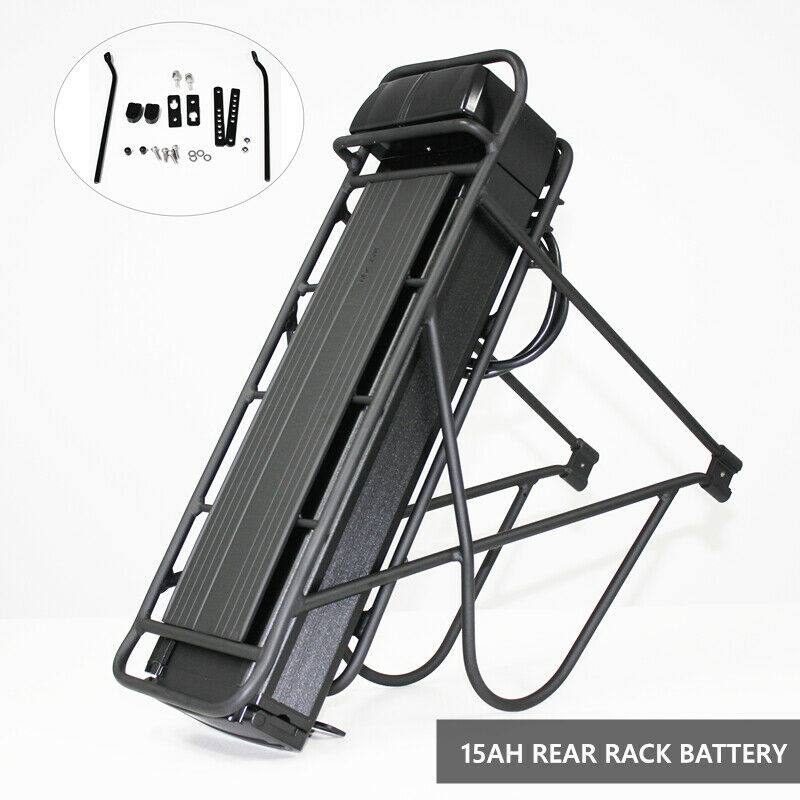

- Battery: 48V15AH Rear Rack Frame Lithium-ion Battery; Approx. 5 Hours charging Time; Reliable quality
- Charger: More than 1000 times cycle-life .Australia safety standard
Key feature:
- Rotor Height: 24mm, More Powerful
- Magnet Height: 24mm, More Powerful
- Lamination/Silicon Steel Sheet: 0.35mm, Material 270 Higher Motor Efficiency
- Nylon gear: 12mm, Better Quality Material, Higher torque, 20% Longer Using Life
- Bearing: C&U Better quality, motor more quiet
- Motor Axle: Salt Mist Axle, Anti-rust
- Washers: Rust-resisting
- Speed sensor: Integrated
- Built to the highest international standards, CE
- Alloy rim & steel spoke & Aluminium alloy powerful controller
- Aluminium alloy powerful controller guarantee big current supply
- Brake Levers cut off the power supply to the motor safely
- Rear rack frame battery 48V 15AH gives more power and runs more distance w' reliable quality
- Charger with more than 1000 times cycle-life. Australia Safety standard
KT brand controller features :
- Use Imitate Torque Control Mode To Help Achieve A Smooth Start-Up Of The Vehicle, The Power-Assist Drive Will Be Smooth And Natural.
- Electric Power Assist Is With Fast Response And Always Consistent With The Riders Pedal Action To Achieve The Effect Of The Torque Boost.
- With Multiple Protection Features Such As Stalled, Over-Current, Over-Temperature, Over-Voltage, Under-Voltage, Speed, Lack Of Phase And So On To -
- Protect The Safety Of Vehicle Electronic Control Systems And Traffic.
KT LCD5 Display functions:
- Battery level indicator (4 bars)
- 3 speed display modes (current, maximum, average)
- Traction help up to 6km/h
- Odometer
- Trip duration display
Package Include:
- 27.5" Front Rim x 1 (48V 500W motor)
- Battery & Charger x 1 (48V 15Ah Lithium Battery + Rear rack frame )
- Controller x 1
- LCD Display x 1
- Pair e-Brake Levers x 1
- Thumb Throttle x 1
- PAS sensor x 1 Set
- Wiring cable x 1

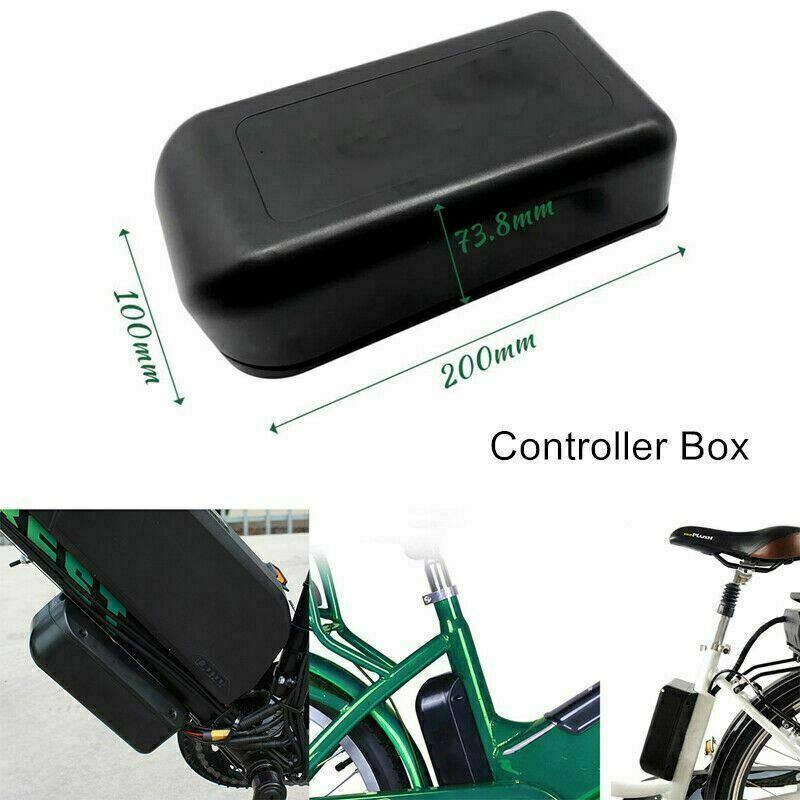

- Controller box
- Installation manual
Important note:
- Professional installation skill needed .Please notice that basic tools will be required when install this DIY kit
- 48V 500W Motor is not path legal , this product is recommend for off road use only

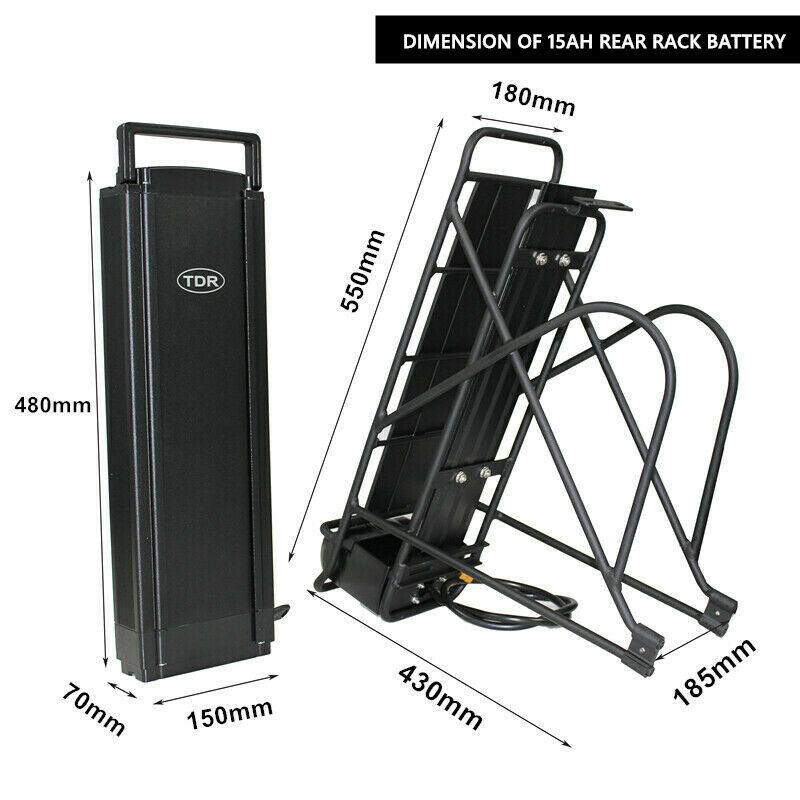

- Please check battery size and your bike's triangle frame , make sure battery fits your frame
