Description:

• Wheel Size: 27.5" Front wheel (Suitable for tyre width size 1.50 to 2.25)
• Motor: 48V 500W Brushless gear hub motor in black colour

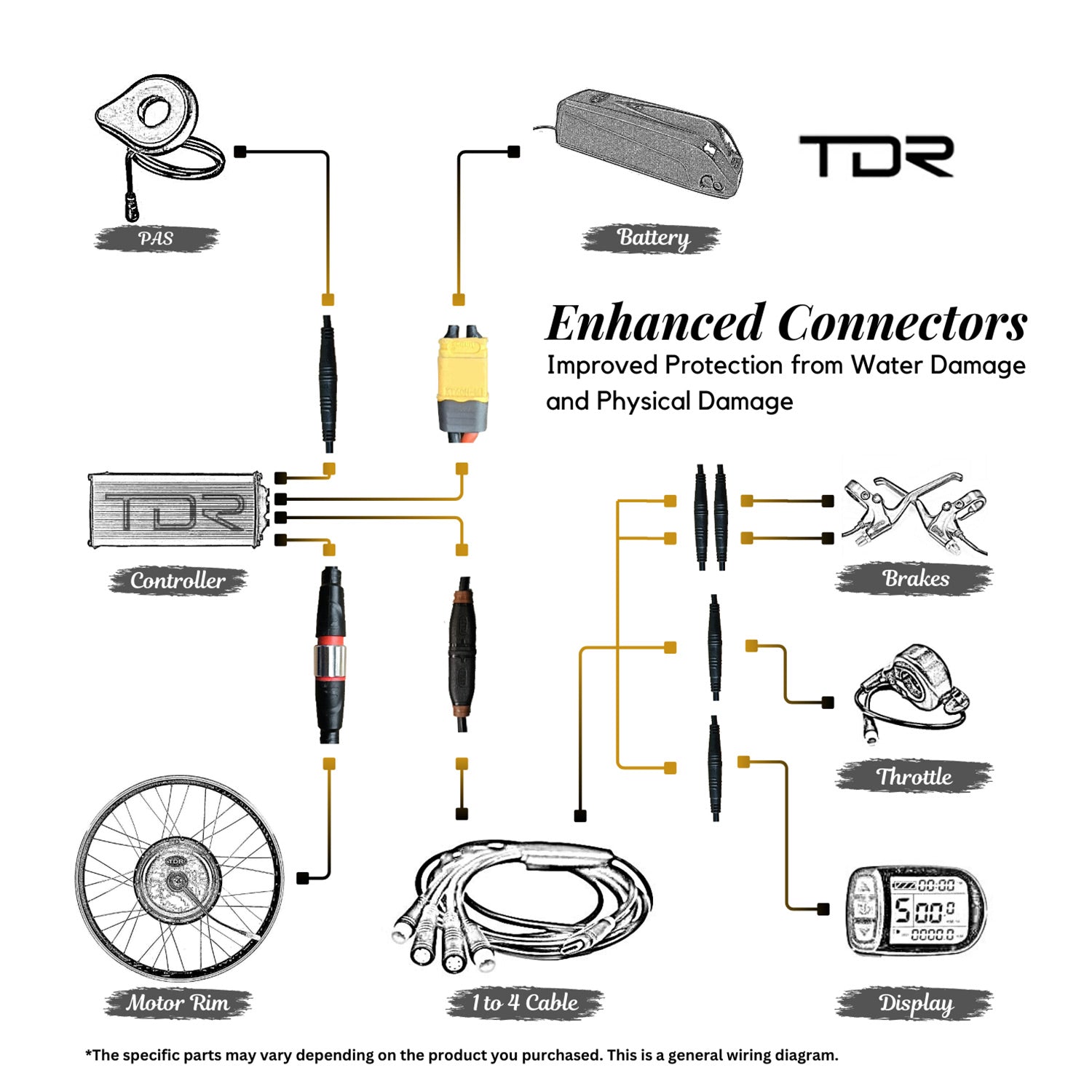

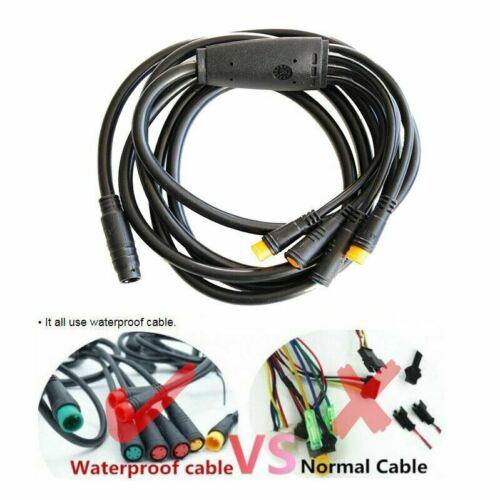

• Wiring method: Waterproof wire connection system
• Battery range: +/-60km per power in pedal assist mode
• Full Speed: Up to 40 km/h
• Display: KT LCD5
• Controller: 48V 22A KT Brand Controller
• Riding mode: Thumb throttle electric assist mode / pedal Assist mode

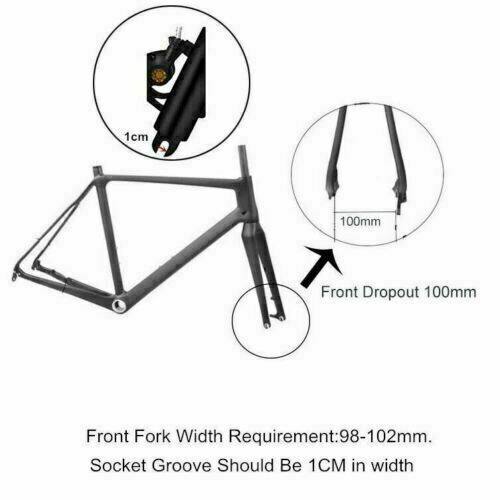

• Front fork width requirement: 98-102mm

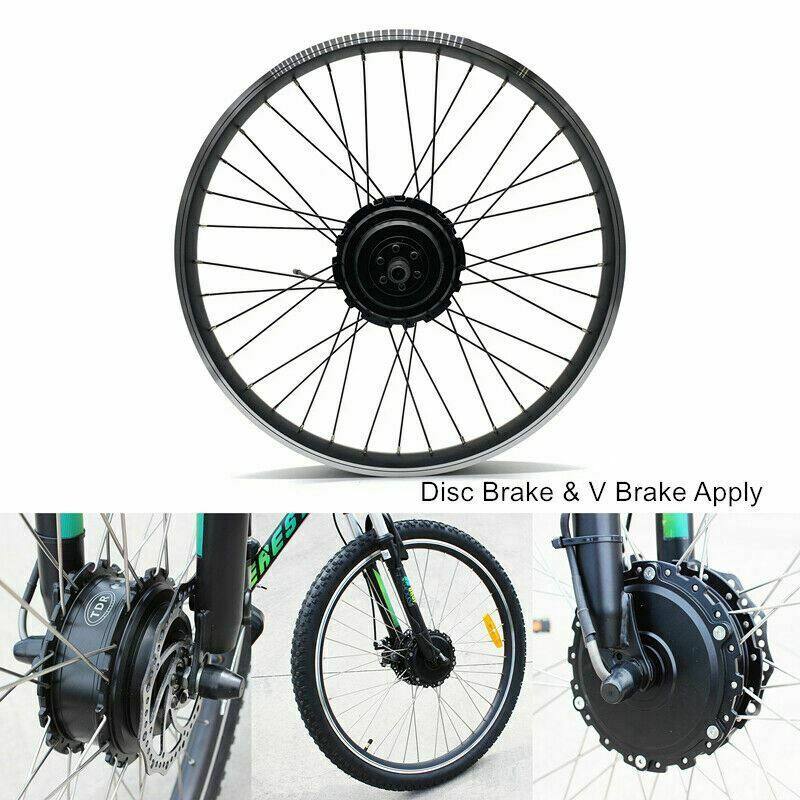

• Suitable for Disk Brake and V brake to use

Specifications:

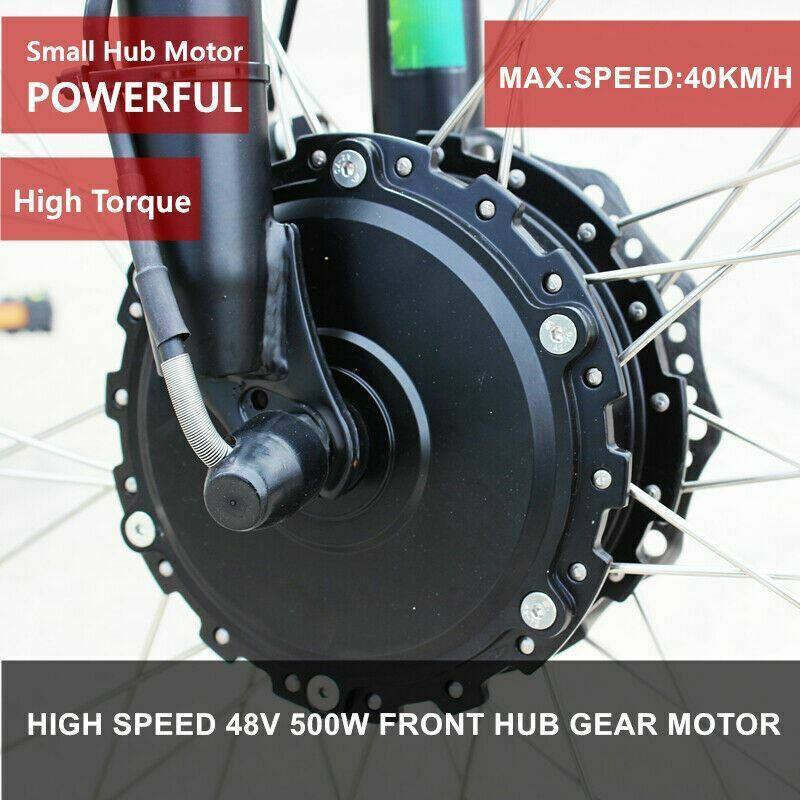

• Motor: 48V 500W front hub brushless gear motor, bending Magnet. More efficient

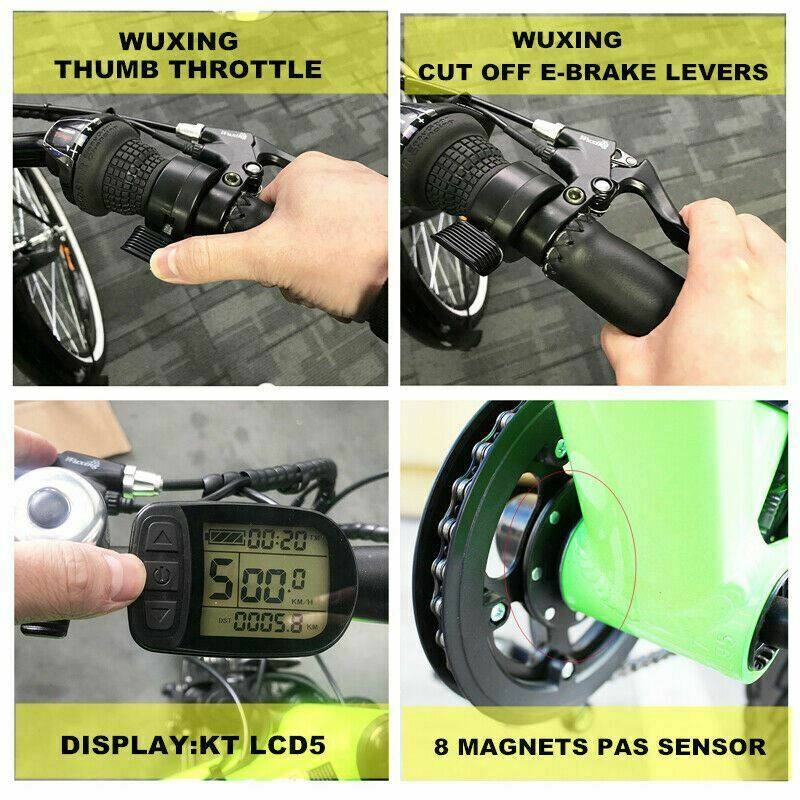

• Brake levers: Aluminium alloy, Wuxing E-brake lever
• Rim and spokes: P25DE Alloy double wall rim CNC sidewalls, with 12g steel spokes

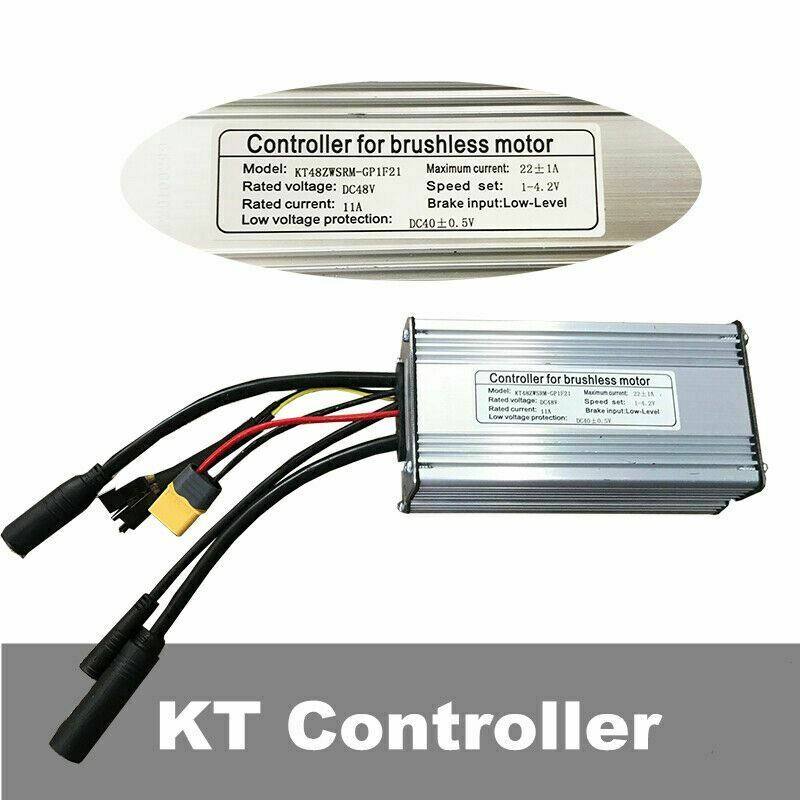

• Controller: KT Brand 48V controller in controller box
• Maximum current rate : 22±1A
• Throttle: Thumb(Finger) Throttle, Wuxing Brand
• PAS Sensor: 8 Magnet
• Display: KT LCD5;Show all basic information, DIY setting

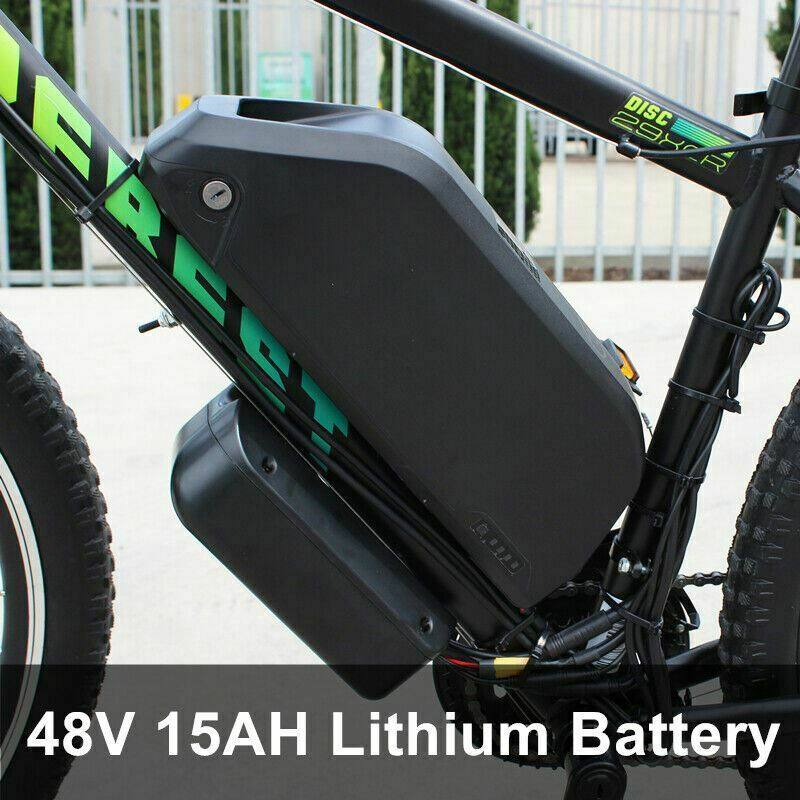

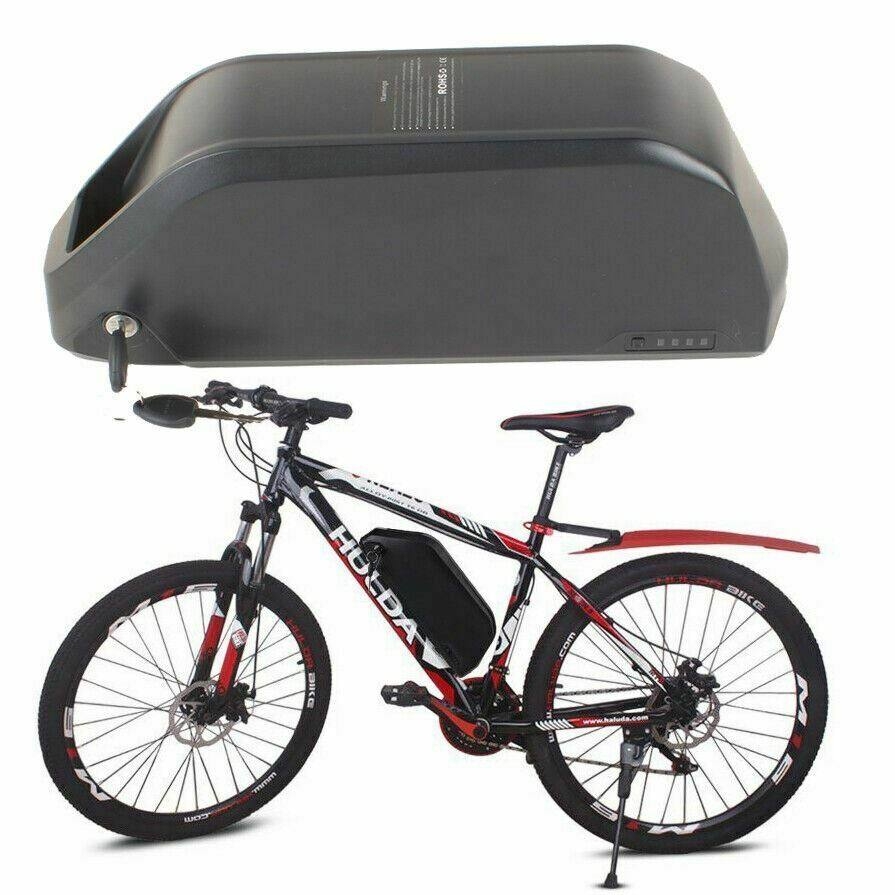

• Battery: 48V15AH DP-9 Downtube Lithium-ion Battery, approx. 5 Hours charging Time, reliable and high quality
• Charger: More than 1000 times cycle-life .Australia safety standard

Key feature:

• Rotor Height: 24mm, More Powerful
• Magnet Height: 24mm, More Powerful
• Lamination/Silicon Steel Sheet: 0.35mm, Material 270 Higher Motor Efficiency
• Nylon gear: 12mm, Better Quality Material, Higher torque, 20% Longer Using Life
• Bearing: C&U Better quality, motor more quiet
• Motor Axle: Salt Mist Axle, Anti-rust
• Washers: Rust-resisting
• Speed sensor: Integrated
• Built to the highest international standards, CE
• Powerful 48V 500W brushless hub motor
• Alloy rim & steel spoke & aluminium alloy powerful controller
• Aluminium alloy powerful controller guarantee big current supply
• Brake Levers cut off the power supply to the motor safely
• Downtube battery 48V 15AH gives more power and runs more distance with reliable quality
• Charger with more than 1000 times cycle-life. Australia Safety standard

KT brand controller features:

• Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
• Electric power assist is with fast response and always consistent with the riders pedal action to achieve the effect of the torque boost
• Multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic

KT LCD5 Display functions:

• Battery level indicator (4 bars)
• 3 speed display modes (current, maximum, average)
• Traction help up to 6km/h, odometer, trip duration display

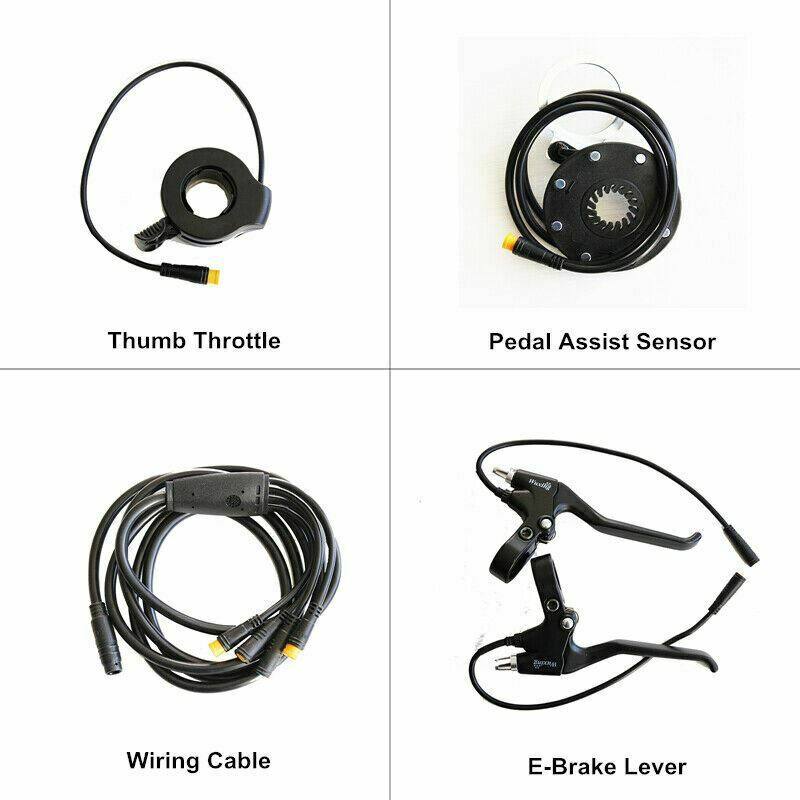

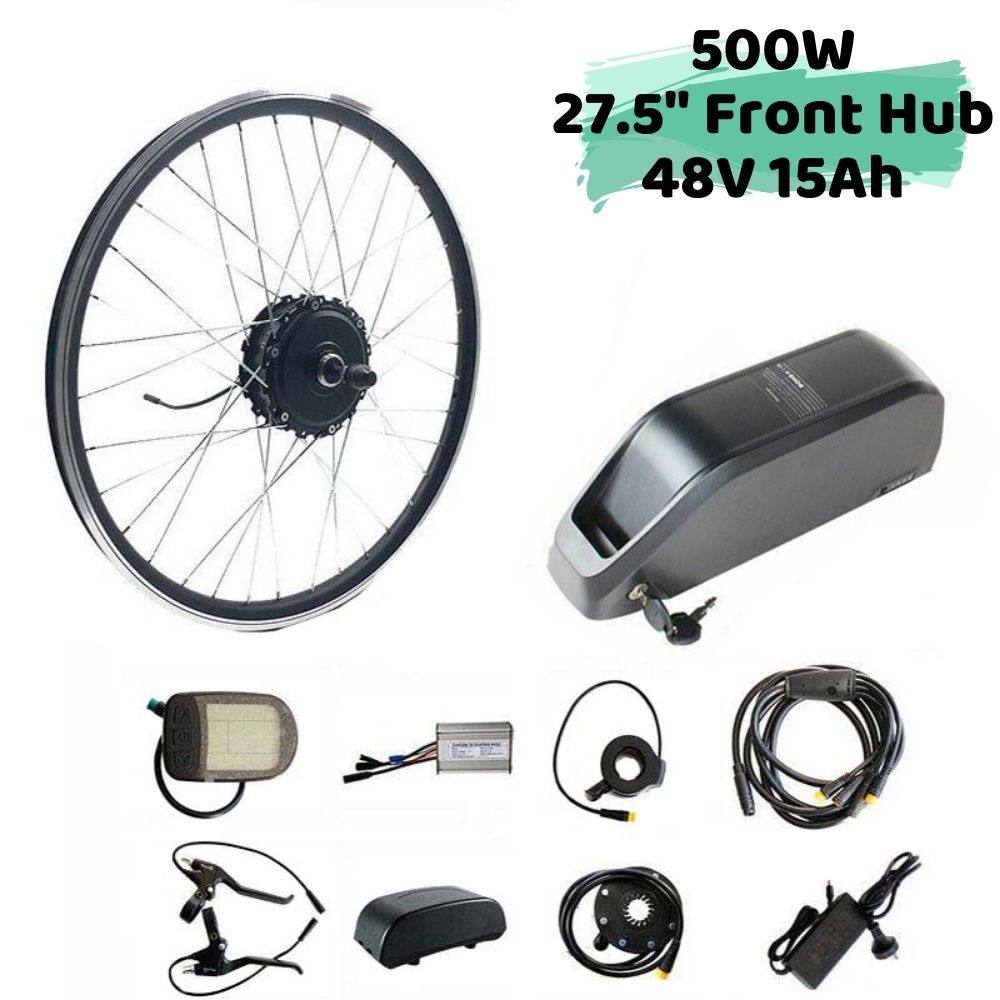

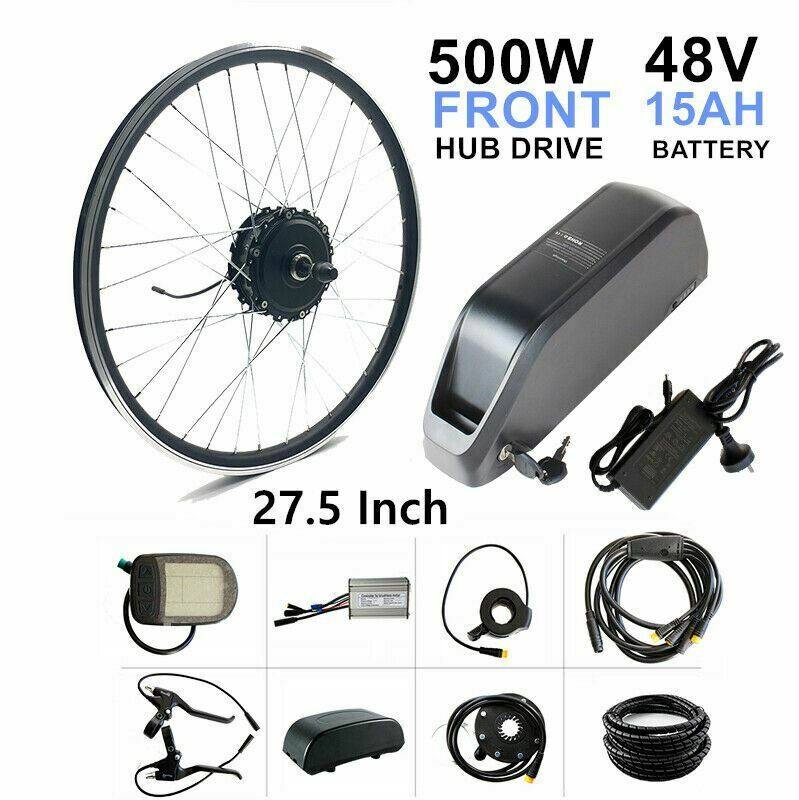

Package include:

• 1 x 27.5" front rim (48V 500W motor)
• 1 x battery & charger (48V 15Ah Lithium Battery )
• 1 x controller
• 1 x LCD display
• 1 x pair e-brake levers
• 1 x thumb throttle
• 1 x PAS sensor set
• 1 x wiring cable
• 1 x protection line
• 1 x controller box
• 1 x installation manual

Important notes:

• Some basic tools will be required to install this DIY conversion kit
• Professional mechanic installation is highly recommended

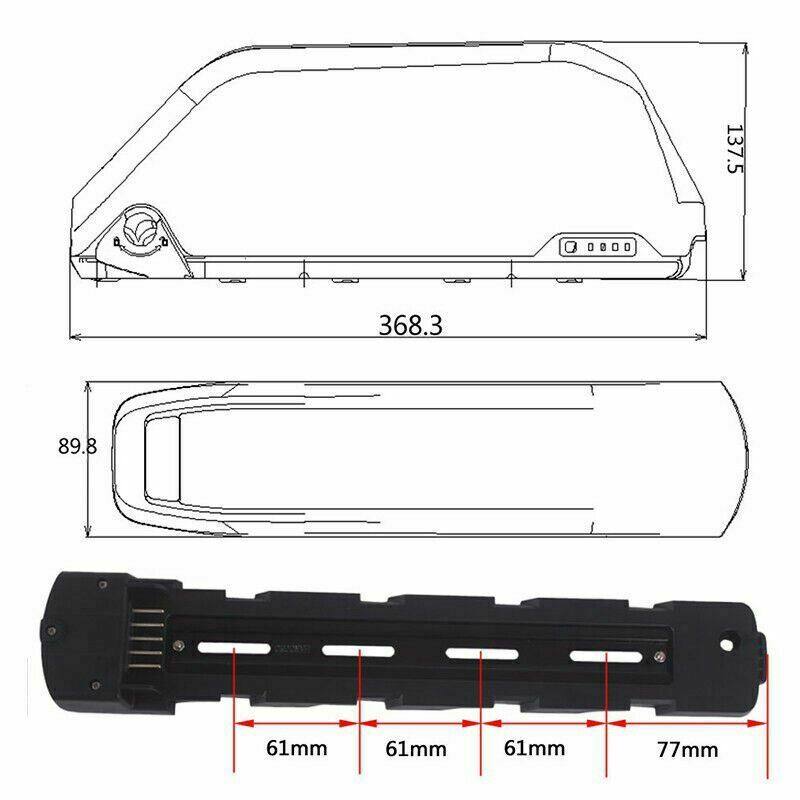

• Please check the battery size and your bike's triangle frame, make sure it fits before purchase
• 500W motor is not bike path legal, strictly for off road and private property use only
