500W TongSheng TSDZ2B Mid Drive 48V 15Ah 20Ah 28.8Ah Triangle Battery Electric Bike Conversion Kit

The conversion kit with the 28.8Ah battery is in stock.

The conversion kit with the 20.8Ah battery is expected to restock between December 9 and December 13.

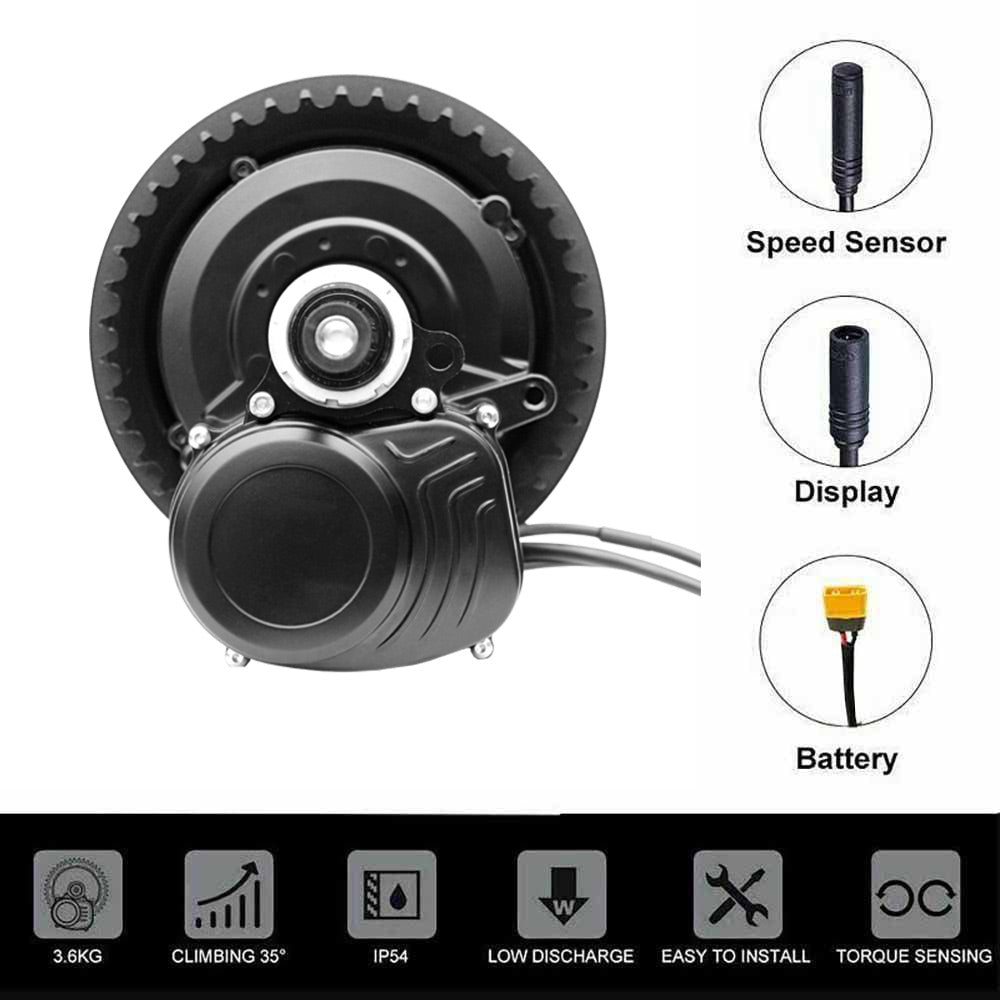

Why choose the little motor- TSDZ2B Mid drive motor?

• Fits 95% of standard bike frames with 68-73mm bottom bracket built in torque and cadence sensor- this results in much smoother acceleration than any cadence sensor mid drive motor.
• Easy to install. Kit includes all installation parts and tools.
• The motor has an extra support mount - resulting in a much more reliable install.
• 80Nm of torque
• The TSDZ2B Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%, allowing you to conquer virtually any   hill with ease.

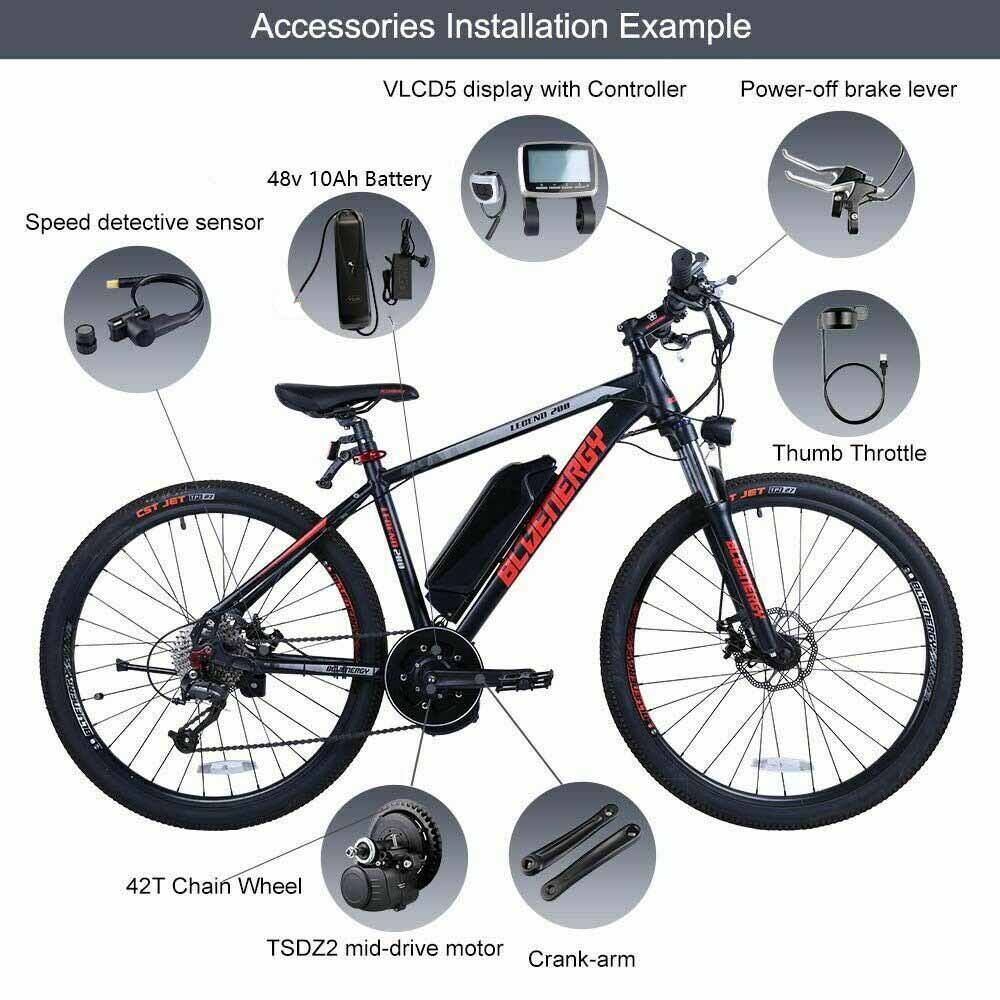

• These kits retrofit most bicycles by replacing the bottom bracket & crank set assembly - to utilize the existing drivetrain & gears for maximum efficiency.

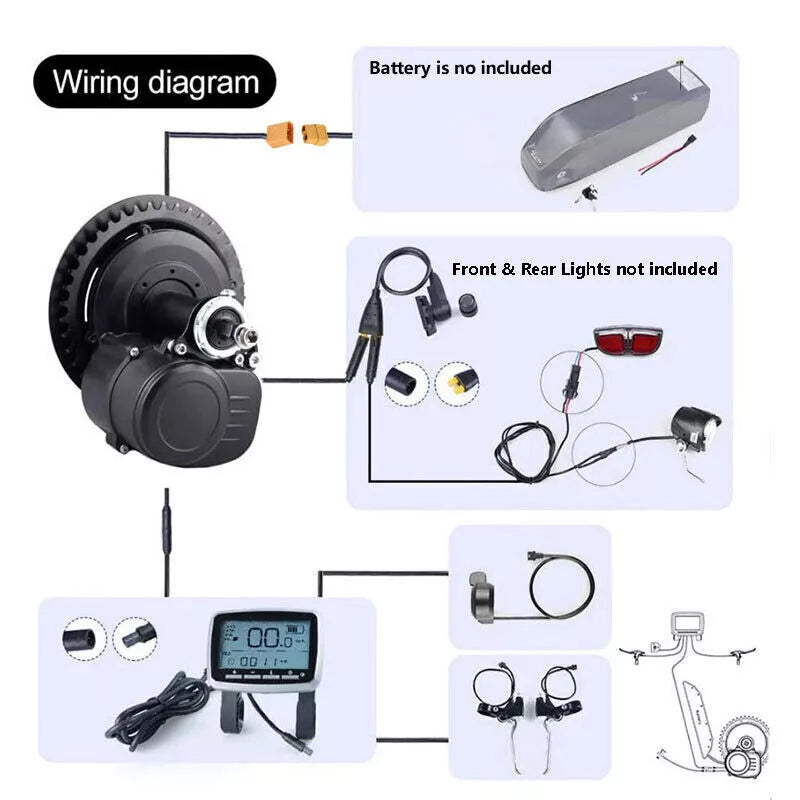

• The VLCD-5 Display - w/ Throttle & E-brakes: The VLCD-5 is a larger, center mounted display with ports and wiring for a throttle, e-brakes, and an external handlebar mounted button panel.
• It also houses a USB port for charging your mobile device (installation/use of the throttle, e-brakes, and/or external button panel is optional).

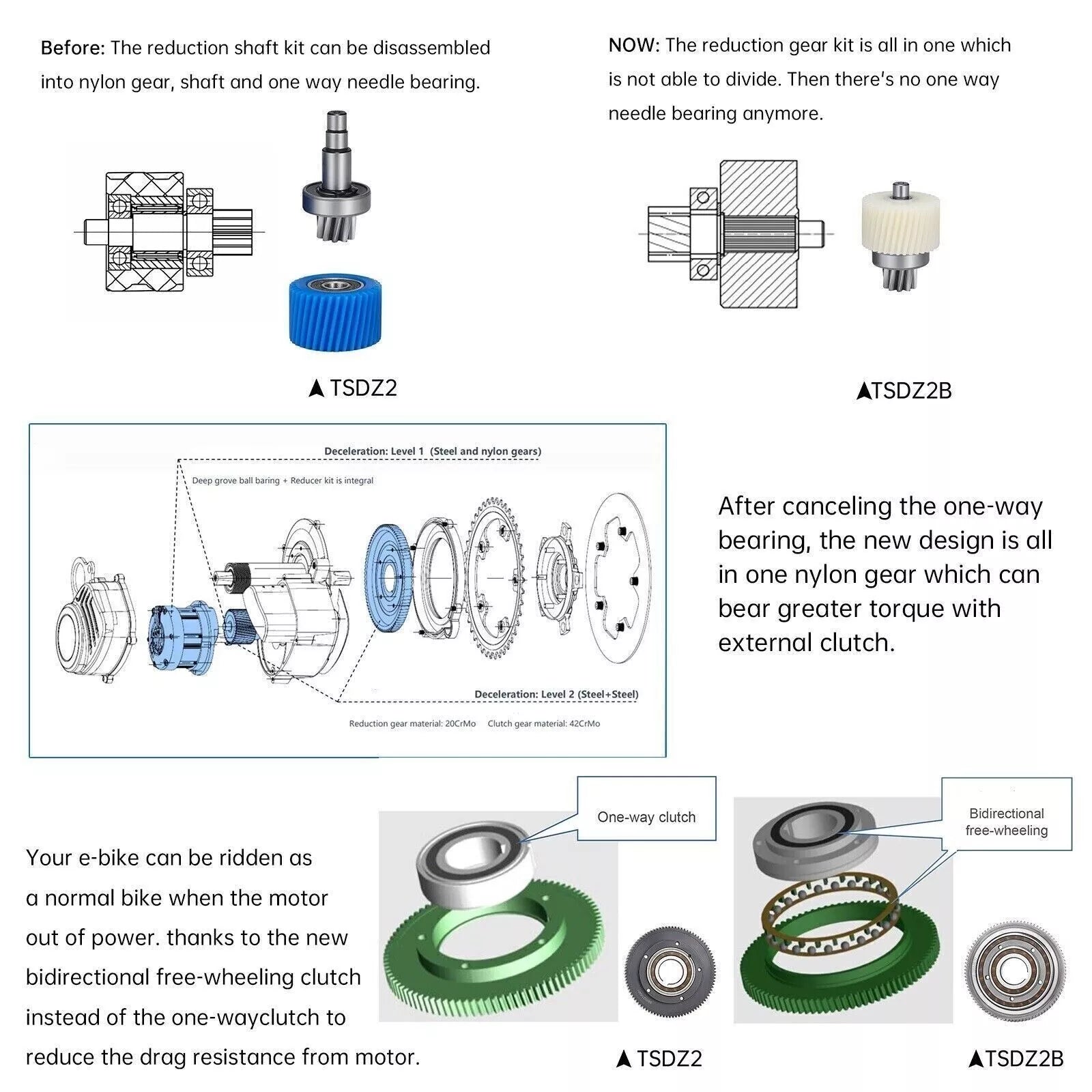

What improvements have been made when comparing the new TSDZ2B to the old version?

• The upgraded TSDZ2B now features an all-in-one reduction gear kit, which cannot be separated, making it more robust and stable.
• Additionally, the one-way needle bearing has been replaced with an all-in-one nylon gear in the new TSDZ2B version, providing increased torque with an external clutch.
• Moreover, the new bi-directional freewheeling clutch enables you to ride your bike as a regular bicycle when the power is depleted.

Specifications:

• Model        TSDZ2B
• Rated Power     500W
• Efficiency (%)     ≥80
• Reduction Ratio     41
• Wheel Size (Inch)     Optional
• Rated Voltage (DCV)     48V
• Max Torque (N.m)     80
• Weight (kg)     3.5
• n0(Rpm)     66/94
• Power Assist Ratio     36%~300%
• Pedal Sensor     Speed and Torque Integrated
• Shaft Standard     JIS
• Noise Grade (dB)     <55
• Throttle     Thumb
• E-Brake     Yes
• Light Drive Capacity (DCV/W)     6/3
• IP Level / Salt Spray Test     65/96
• Certification     CE/RoHS/EN 15194
• Bike Recommendation     E-CITY / E-TOUR

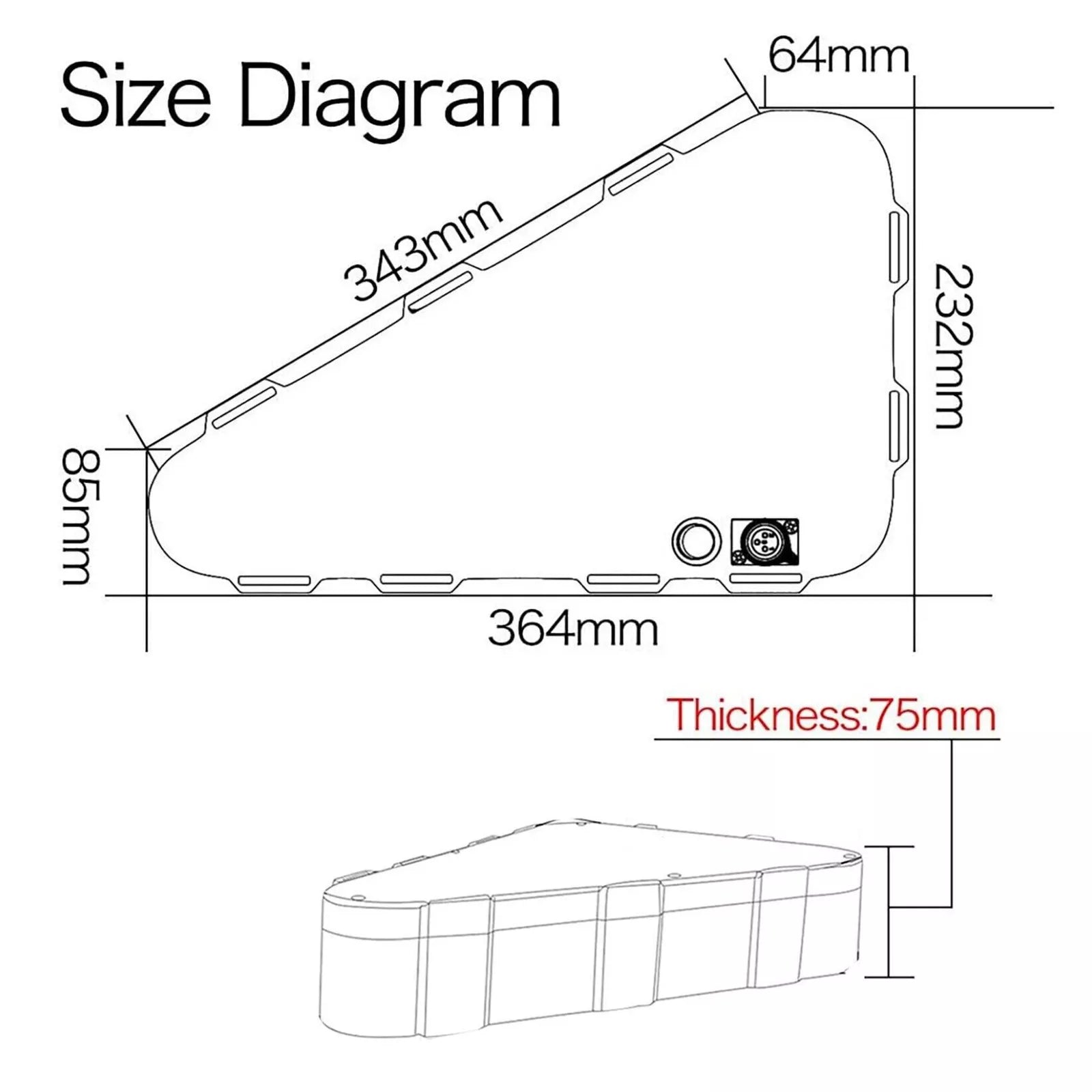

Battery Specs:

• 48v Battery
• Nominal Voltage: 48V
• Rated Capacity: 15Ah / 20Ah / 28.8Ah
• Watt Hours: 480Wh
• Configuration: 13S4P
• Battery Cell: A-grade 18650 2500mah
• Max Continuous Charge Current: 3A
• Max Constant Discharge Current: 30A( BMS)
• Charge Cut-off Voltage: 54.6V
• Discharge Cut-off Voltage: 36.4V
• Battery Weight: 3.9kg
• Charger included

Features:

• Universal compatibility: Fits almost bikes in market with 68-73mm bottom bracket,Free Gift Wrench.
• Torque and cadence sensor: Much smoother and better, as it can match your power, not just turn on or off when you do
• Installation & Mode: Easily installation by the installation video and the instruction manual we provided;Three riding Mode (E-bike & Pedal Assisted bicycle, Pedaling bicycle, Pure Power bicycle) for you to choose, you can choose the E-bike to enjoy a long time travel, and also exercise.
• Light and smart: 30% lighter than a Bafang motor for almost the same power output .

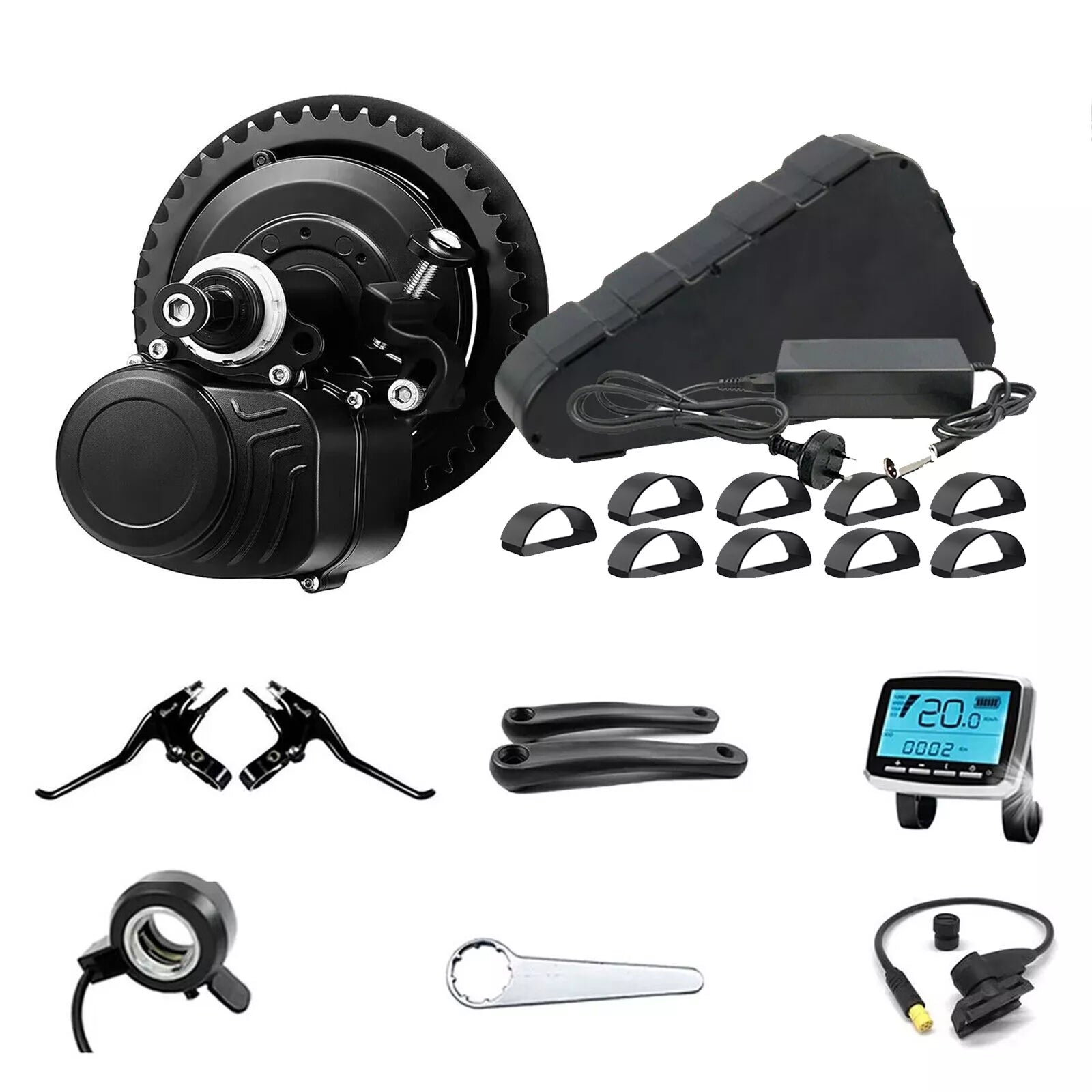

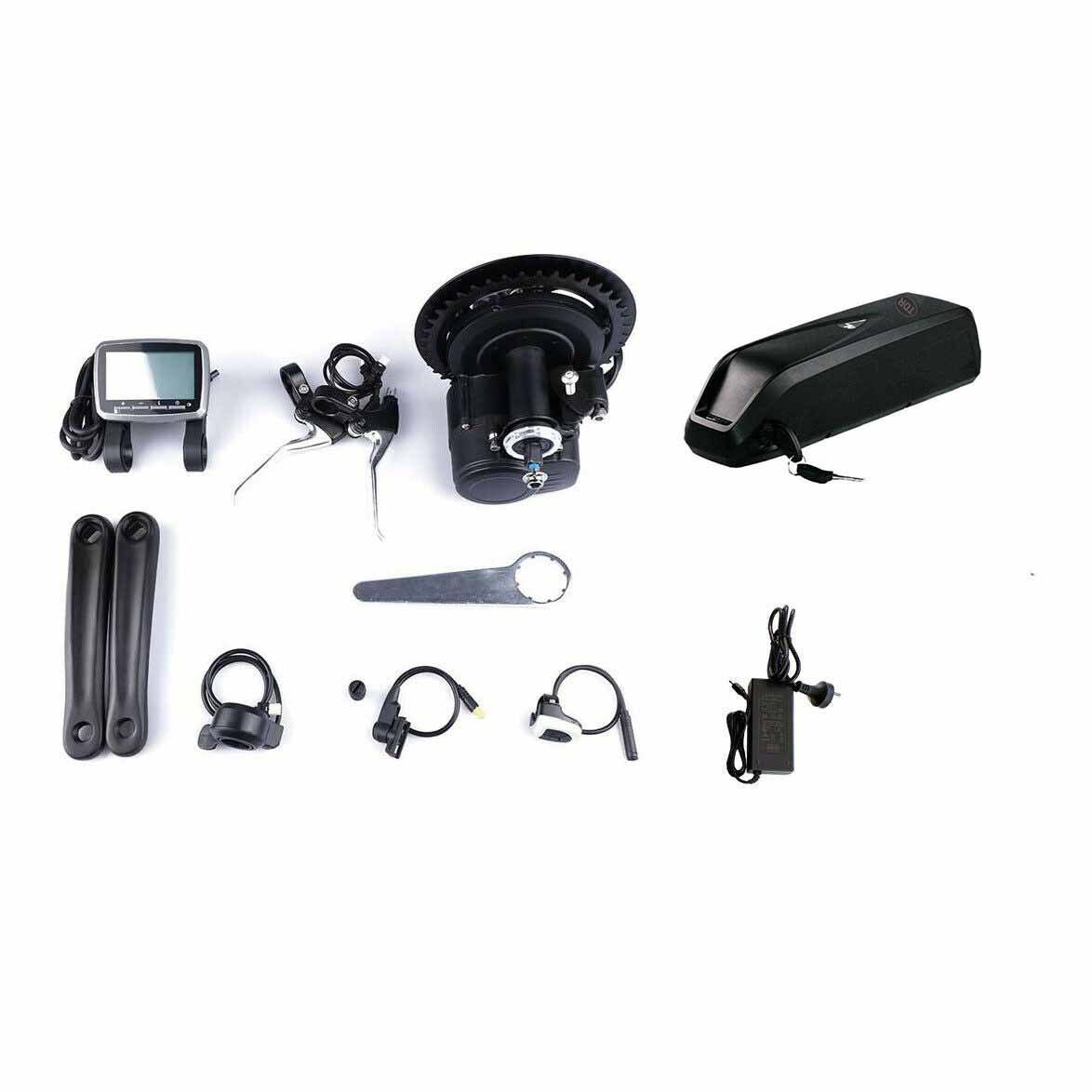

Package included:

• 1 x Mid Central Motor
• 1 x VLCD-5 Meter
• 1 x Cranks
• 1 x Speed Sensor
• 1 x Gear Button
• 1 x Wrench
• 1 x Throttle
• 1 x Manual
• 1 x 48v 15Ah / 20Ah / 28.8Ah Battery
• 1 x Charger


Note :

• 48V 500W Is not road legal ebike power ,we only recommend off road use !!
• Warranty : 12 Months replacement warranty for motor and battery, under normal household use battery life ≥ 800 cycles
• Professional  installation recommended
• The max speed will be between 30km/h to 40km/h depending on bike's gear ratio ,smaller teeth sprocket will make bike go faster.
