750W Front 24" Wheel EBike Electric Bike Conversion Kit with 13A Battery

750W Front 24" Wheel EBike Electric Bike Conversion Kit with 13A Battery

SKU:

$749.00
$749.00
Liquid error (snippets/price line 87): Computation results in '-Infinity'% off Sold out
Tax included. Shipping calculated at checkout.

Things to know before you ride

Before riding, check your local road and usage laws. Our information is general and may not cover your specific circumstances. You’re responsible for confirming legal compliance.

Ride with caution and always wear a helmet and protective gear. Don’t bin this product or its parts in household/curbside bins. Follow your local waste regulations when disposing.

Specifications
  • For Front 24 Inch wheel with a width between 1.75 to 2.25 Inch

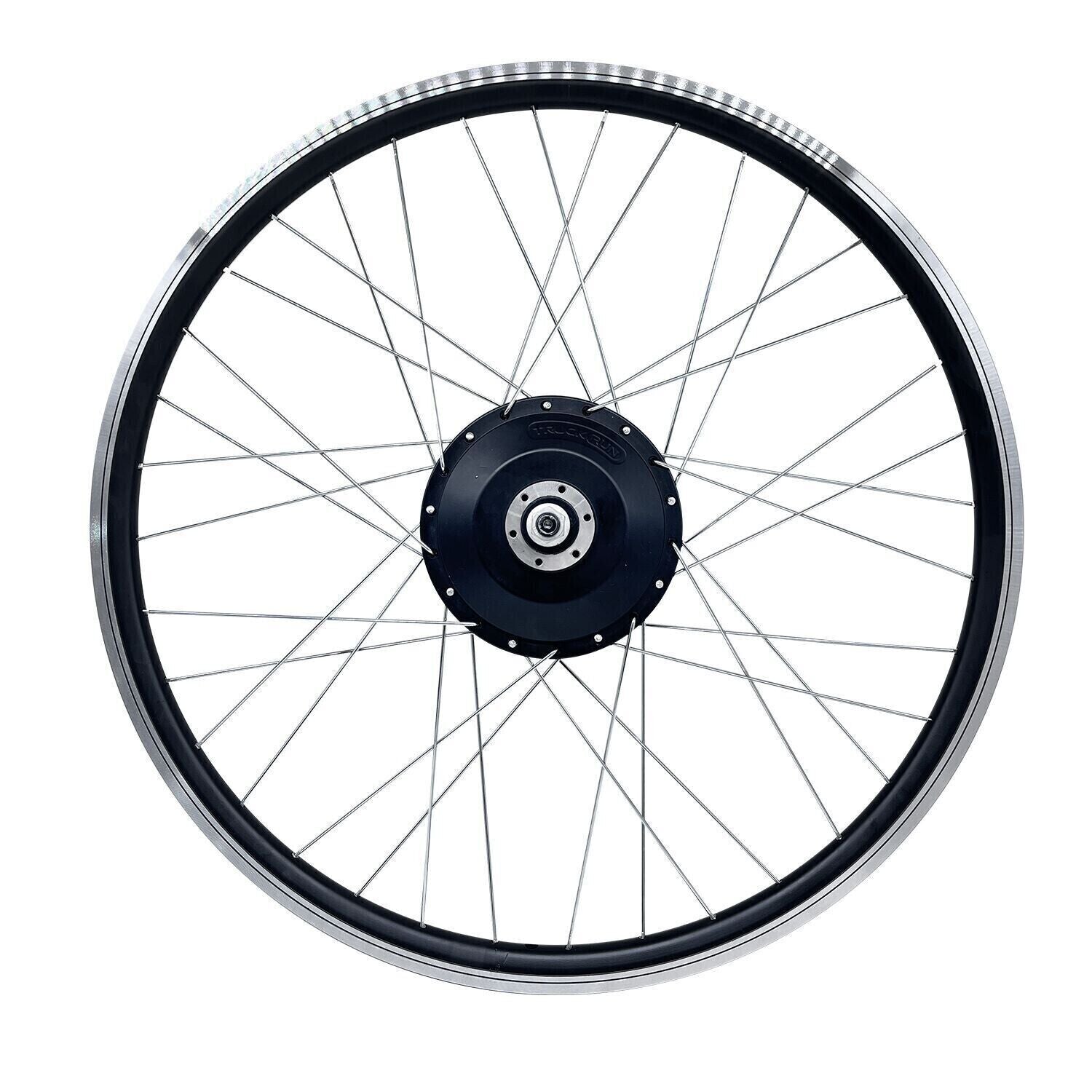

  • Rim Motor: Front 48V 750W Brushless Gear Hub Motor
  • Torque: 55 N.M
  • Wiring Method: Waterproof Wire Connection System
  • Maximum Speed: 50 km/h
  • Display: Intelligent Colorful LCD Panel Display
  • Controller: Intelligent Motor Controller, the Current is 22±1A
  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
  • Front Fork Width Requirement: 98mm - 102mm
  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
  • Brake levers: Aluminum Alloy Wuxing E-brake Lever
  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
  • PAS Sensor: 12 Magnets Pedal Assist Sensor
  • 12 Months Replacement Warranty on the Motor & Battery
  • Riding Range: Up to 50 km with Pedal Assist Mode

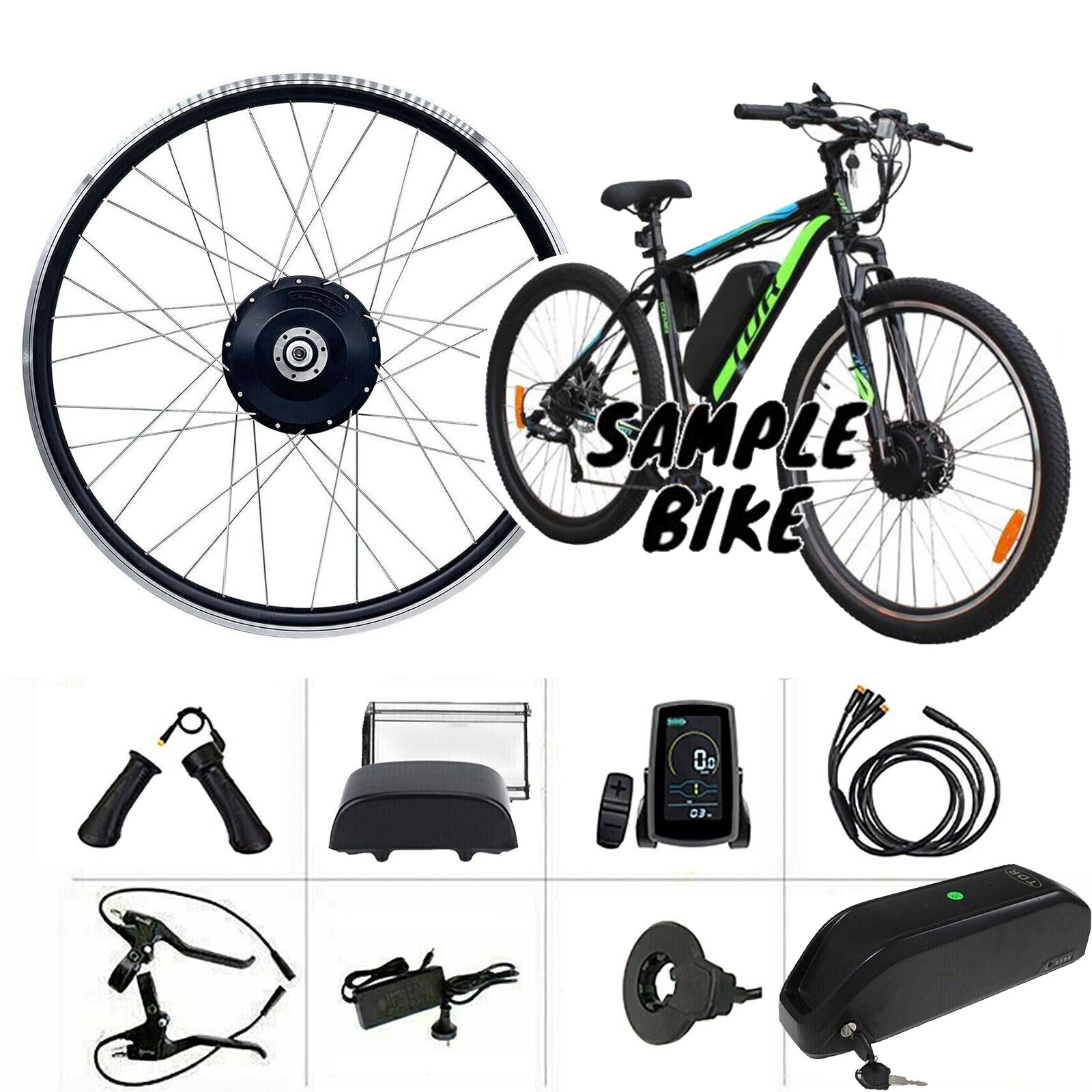

Package Include :
  • 1x 48V 750W Front Rim Motor
  • 1x Intelligent Motor Controller
  • 1x Controller Box
  • 1x Pedal Assist Crank Sensor
  • 1x Pair of E-Brake Levers
  • 1x Twist Throttle
  • 1x LCD Display
  • 1x Cable Ties Set
  • 1x Manual
  • 1x 7 Speed Freewheel
  • 1x 48V 13AH Downtube Battery with Charger

Important Notes
  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
  • Please check your Front fork width (98 - 102mm) to make the motor hub can be fitted into it.

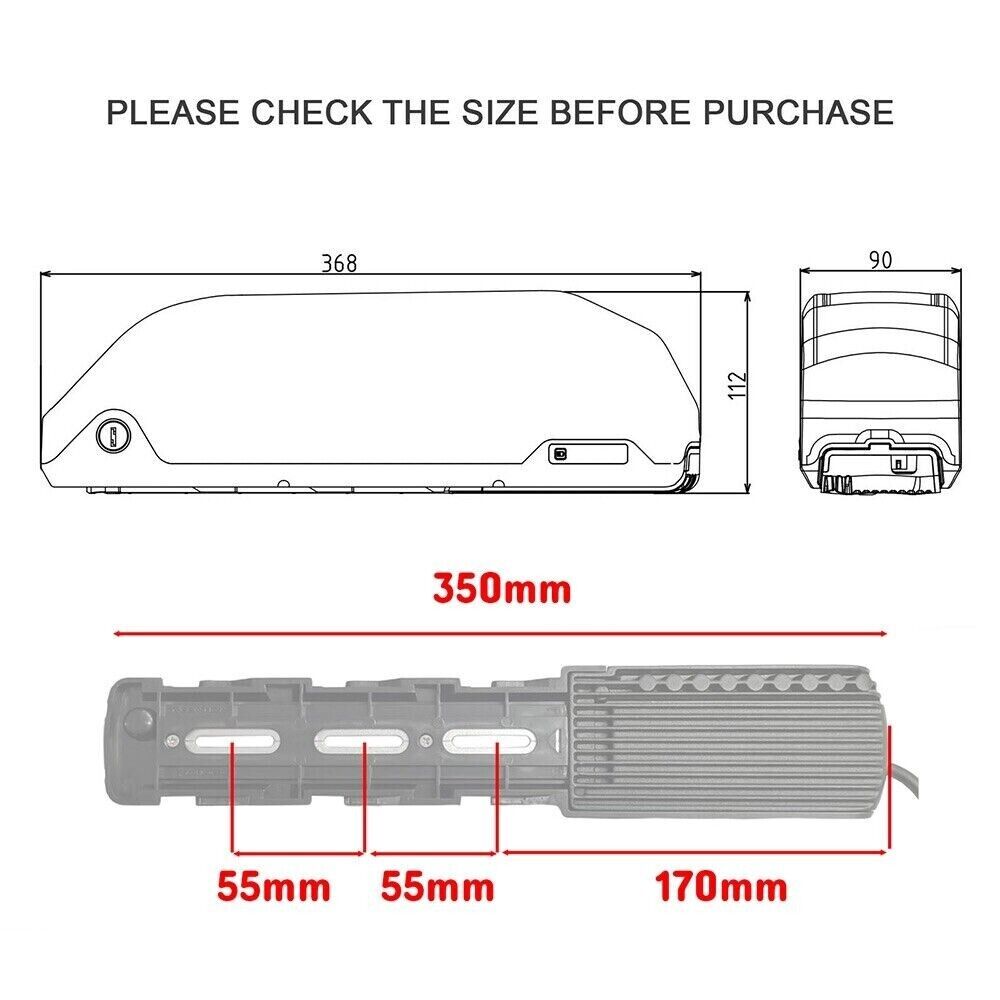

  • Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

Electric Bike & E-Kit Manuals Guide

E-bike and E-bike Kit Troubleshooting

Assembly Video of Rear Hub Motor E-bike
